From: Robust direct position determination methods in the presence of array model errors
Calculation module | Computational unit | Computational complexity of each unit | Total computational complexity |
---|---|---|---|
Gauss-Newton algorithm in (27) | \( \mathbf{C}\left({\widehat{\mathbf{p}}}^{(i)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right) \) | MN2K2 + N2K | \( {I}_{\mathrm{iter}}\left(\begin{array}{c}{I}_{\mathrm{N}}\left(\begin{array}{c}{MN}^2{K}^2+{N}^2K+{N}^2\left(N-1\right)\\ {}+{N}^2\left({L}^2+2L\right)+N\left({L}^2+3L\right)\\ {}+O\left({N}^3\right)+O\left({L}^3\right)\end{array}\right)\\ {}+{I}_{\mathrm{G}\hbox{-} \mathrm{N}}N\left(\begin{array}{c}{Q}_n^2\left( MK+3\right)\\ {}+{Q}_n\left({M}^2\left({K}^2+K\right)+2 MK\right)\\ {}+{M}^2\left(3{K}^2+K\right)+M\left(2K+1\right)\\ {}+2K+O\left({Q}_n^3\right)\end{array}\right)\\ {}+M\left({N}^2{K}^2+N\left(2K+1\right)\right)\\ {}+N\left({K}^2+K\right)+O\left({K}^3\right)\end{array}\right) \) (where IN, IG ‐ N, and Iiter denote the iteration numbers for Gauss-Newton algorithm and alternating minimization algorithm, respectively) |
Eigen decomposition of \( \mathbf{C}\left({\widehat{\mathbf{p}}}^{(i)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right) \) | O(N3) | ||
\( {\mathbf{V}}_N\left({\widehat{\mathbf{p}}}^{(i)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right) \) | N2(N − 1) | ||
\( \mathbf{H}\left({\widehat{\mathbf{p}}}^{(i)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right) \) | \( {\displaystyle \begin{array}{c}{N}^2\left({L}^2+L\right)\\ {}+N\left({L}^2+2L\right)\end{array}} \) | ||
\( \mathbf{h}\left({\widehat{\mathbf{p}}}^{(i)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right) \) | N2L + NL | ||
\( {\alpha}^i{\left(\operatorname{Re}\left\{\mathbf{H}\left({\widehat{\mathbf{p}}}^{(i)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right)\right\}\right)}^{-1}\cdot \operatorname{Re}\left\{\mathbf{h}\left({\widehat{\mathbf{p}}}^{(i)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right)\right\} \) | O(L3) | ||
Estimation of \( \overline{\mathbf{s}} \) | \( \mathbf{B}\left({\widehat{\mathbf{p}}}^{\left(\mathrm{a}\right)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right) \) | MN 2 K 2 | |
\( \mathbf{B}\left({\widehat{\mathbf{p}}}^{\left(\mathrm{a}\right)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right){\left(\mathbf{B}\left({\widehat{\mathbf{p}}}^{\left(\mathrm{a}\right)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right)\right)}^{\mathrm{H}} \) | NK 2 | ||
Eigen decomposition of \( \mathbf{B}\left({\widehat{\mathbf{p}}}^{\left(\mathrm{a}\right)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right){\left(\mathbf{B}\left({\widehat{\mathbf{p}}}^{\left(\mathrm{a}\right)},{\widehat{\boldsymbol{\upmu}}}^{\left(\mathrm{a}\right)}\right)\right)}^{\mathrm{H}} \) | O(K3) | ||
Gauss-Newton algorithm in (33) | \( {\mathbf{g}}_n\left({\widehat{\boldsymbol{\upmu}}}_n^{(i)}\right) \) | \( {\displaystyle \begin{array}{c}{Q}_n^2+2{M}^2{K}^2\\ {}+M\left(K+1\right)+2K\end{array}} \) | |
\( {\mathbf{G}}_n\left({\widehat{\boldsymbol{\upmu}}}_n^{(i)}\right) \) | \( {\displaystyle \begin{array}{c}{Q}_n\left(\begin{array}{c}{M}^2\left({K}^2+K\right)\\ {}+ MK\end{array}\right)\\ {}+{M}^2\left({K}^2+K\right)+ MK\end{array}} \) | ||

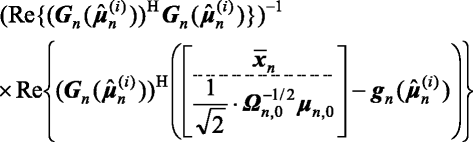

\( {\displaystyle \begin{array}{c}{Q}_n^2\left( MK+2\right)\\ {}+{Q}_n MK+O\left({Q}_n^3\right)\end{array}} \) | |||
Estimation of β | \( \frac{{\left(\left({\widehat{\overline{\mathbf{s}}}}^{\left(\mathrm{a}\right)}\odot {\boldsymbol{\upgamma}}_n\left({\widehat{\mathbf{p}}}^{\left(\mathrm{a}\right)}\right)\right)\otimes {\mathbf{a}}_n\left({\widehat{\mathbf{p}}}^{\left(\mathrm{a}\right)},{\widehat{\boldsymbol{\upmu}}}_n^{\left(\mathrm{a}\right)}\right)\right)}^{\mathrm{H}}{\overline{\mathbf{x}}}_n}{{\left\Vert {\mathbf{a}}_n\left({\widehat{\mathbf{p}}}^{\left(\mathrm{a}\right)},{\widehat{\boldsymbol{\upmu}}}_n^{\left(\mathrm{a}\right)}\right)\right\Vert}_2^2\cdot {\left\Vert {\widehat{\overline{\mathbf{s}}}}^{\left(\mathrm{a}\right)}\odot {\boldsymbol{\upgamma}}_n\left({\widehat{\mathbf{p}}}^{\left(\mathrm{a}\right)}\right)\right\Vert}_2^2} \) | M(2K + 1) + K |
