Improvement of Adaptive Cruise Control Performance

EURASIP Journal on Advances in Signal Processing volume 2010, Article number: 295016 (2010) Cite this article

Article metrics

  • 8659 Accesses

  • 5 Citations

Abstract

This paper describes the Adaptive Cruise Control system (ACC), a system which reduces the driving burden on the driver. The ACC system primarily supports four driving modes on the road and controls the acceleration and deceleration of the vehicle in order to maintain a set speed or to avoid a crash. This paper proposes more accurate methods of detecting the preceding vehicle by radar while cornering, with consideration for the vehicle sideslip angle, and also of controlling the distance between vehicles. By making full use of the proposed identification logic for preceding vehicles and path estimation logic, an improvement in driving stability was achieved.

1. Introduction

The number of traffic accidents and injuries continues to increase year by year, and annual traffic fatalities in Japan remain at over 7000. Under these conditions, there is an urgent need for technologies which can mitigate the serious damage caused by car accidents, as well as prevent the accidents themselves. Some members of this study have played active roles in a study group for the Advanced Safety Vehicle (ASV), a project conducted by the Japanese Ministry of Land, Infrastructure, Transport and Tourism, and are involved with ASV research and development. This study group has proposed and studied safety technologies such as Adaptive Cruise Control (ACC) and Precrash Safety Systems [1–7]. Some of these technologies have already been put into practical use.

An ACC system maintains the vehicle at the speed set by the driver, and when it detects a preceding vehicle travelling at a slower speed than the driver's vehicle, it controls the vehicle speed to match the speed of the preceding vehicle. It also performs following control to maintain the level of distance between vehicles which was set by the driver (a distance proportional to the vehicle speed). There has been past research for ACC systems aimed at designing a vehicle following distance control system using linear approximation and linear control logic [8]. However this research has not succeeded in producing natural vehicle behavior that meets the drivers' expectations. In addition, while a method for following a preceding vehicle on curves has been proposed [9] based on the following distance measured by stereo image processing and on the relative vehicle speed, this method is limited to following distances in the range of 4 m–22 m, and it is not suitable for maintaining the following distance of approximately 100 m that is needed for expressway driving.

When a vehicle is driving at high speed such as on an expressway, sideslip occurs when the vehicle corners. It is known that this sideslip operates toward the outside of the turn when the vehicle is at slow speed, and toward the inside of the turn when the vehicle is at high speed [10–12]. Research and development of 4 WS systems that steer the rear wheels in order to reduce this sideslip and improve driving performance have been carried out. However, no attempts other than this paper have been found at creating an ACC system with following control that incorporates consideration of the vehicle sideslip. Our research team has already submitted a patent application for this concept [13].

This paper describes the Adaptive Cruise Control system (ACC), a system which reduces the driving burden on the driver. The ACC system primarily supports the four driving modes on the road that are described in Section 2.1, and controls the acceleration and deceleration of the vehicle in order to maintain a set speed or to avoid a collision. The key to achieving intelligent ACC control is the method used to detect and follow the preceding vehicle.

The use of obstacle detection equipment, which detects the preceding vehicle by means of millimeter wave radar, is already well established [14–18]. When the obstacle detection equipment detects a vehicle (obstacle) in the path ahead of the driver's vehicle, the turning radius of the driver's vehicle (calculated based on the values from the yaw rate sensor and steering angle sensor) is used to estimate the position of the preceding vehicle after the next radar scan. The system then judges whether or not the estimated position of the preceding vehicle matches the position detected after the radar scan. As long as the turning radius of the driver's vehicle does not change significantly between the radar scans, then calculating the amount of offset of the detected preceding vehicle from its path center line allows the future position of the preceding vehicle to be easily estimated. In particular when the speeds of the driver's vehicle and the preceding vehicle are approximately the same, the amount of this offset can be assumed to be unchanging between radar scans, making it possible to easily predict the position of the preceding vehicle. However as described above, on expressways where the vehicles are travelling at high speed, if there is a curve where the turning radius of the driver's vehicle changes between radar scans, the sideslip that occurs when the vehicle corners causes the amount of offset from the preceding vehicle path center line to change. As a result, it becomes impossible to accurately estimate the position of the preceding vehicle, and the driver's vehicle accelerates, producing a potentially dangerous situation.

This ACC system that incorporates consideration of the sideslip angle makes it possible for one vehicle to reliably follow the preceding vehicle by performing the following two operations. First, the system estimates the path (the radius of curvature of the path center line) by determining the cornering radius of the vehicle based on the detected yaw rate, steering wheel angle, and vehicle velocity. Second, the system judges whether or not the current detected vehicle is the same as the previous detected vehicle by comparing the position of the detected vehicle with a position that is estimated based on the calculated offset from the center line of the path each time a radar scan occurs. Usually, the radius of curvature of the path center line is assumed to be unchanged during the period between radar scans. However, in cases of curves near an entrance or exit, the radius of curvature of the path actually does change during the period between radar scans. In these cases, if the offset is assumed to be unchanged, the radar fails to lock onto the preceding vehicle. Therefore, because the position of the preceding vehicle relative to the driver's own vehicle is influenced by the sideslip of vehicle, the offset needs to be corrected at each radar scan based on the most recent detected cornering radius.

For the following operation, ACC performs control in order to maintain a constant distance. However, for example, when the preceding vehicle is traveling close to the second vehicle ahead, and if the preceding vehicle brakes and accelerates suddenly and repeatedly (jerky motions), the driver's own vehicle is forced to perform the same jerky motions. As a result, such a system cannot be expected to provide good ride quality and a feeling of safety. Therefore, it is necessary to change from velocity control which maintains a constant distance between the driver's vehicle and the preceding vehicle to velocity control which maintains a constant distance between the driver's vehicle and the second vehicle ahead. In this way, even if the preceding vehicle performs repeated jerky motions, the driver's own vehicle is not forced to perform sudden braking and acceleration. This results in a definite improvement to the ride quality and the feeling of safety.

From the above points of view, this paper proposes a more accurate method of detecting the preceding vehicle by radar, and of controlling the distance between vehicles. This proposal also for the first time includes consideration of the vehicle sideslip angle. These methods are expected to result in improved driving stability.

Section 2 of this paper describes the ACC system configuration. Section 3 explains the functions related to velocity control. Evaluation for the ACC system based on the experiment results and conclusions are presented in Section 4.

2. ACC System Configuration

2.1. Primary ACC Modes

The ACC system supports four control modes, which are described below and shown in Figure 1.

  1. (1)

    Constant velocity control: when there are no vehicles straight ahead, or when there is a large distance between the driver's vehicle and the preceding vehicle, the system maintains a constant vehicle velocity.

  2. (2)

    Deceleration control: when a vehicle traveling ahead at a slower speed is detected, the system uses the throttle to decelerate the driver's vehicle. If this deceleration is insufficient, the system uses the brake to decelerate the vehicle.

  3. (3)

    Following control: when the driver's vehicle is following behind the preceding vehicle, the system controls the throttle and brake so that the time interval between the vehicles (which corresponds to a distance between the vehicles that is proportional to the velocity of the driver's vehicle) is the time which was set by the driver.

  4. (4)

    Acceleration control: when, due to a lane change, there is no longer a vehicle ahead of the driver's vehicle, the system accelerates the vehicle up to the velocity set by the driver, and then maintains a constant velocity. Furthermore, when the driver's vehicle approaches a vehicle ahead of it without slowing down enough, an alert buzzer and display prompt the driver to apply the brakes or take other appropriate action.

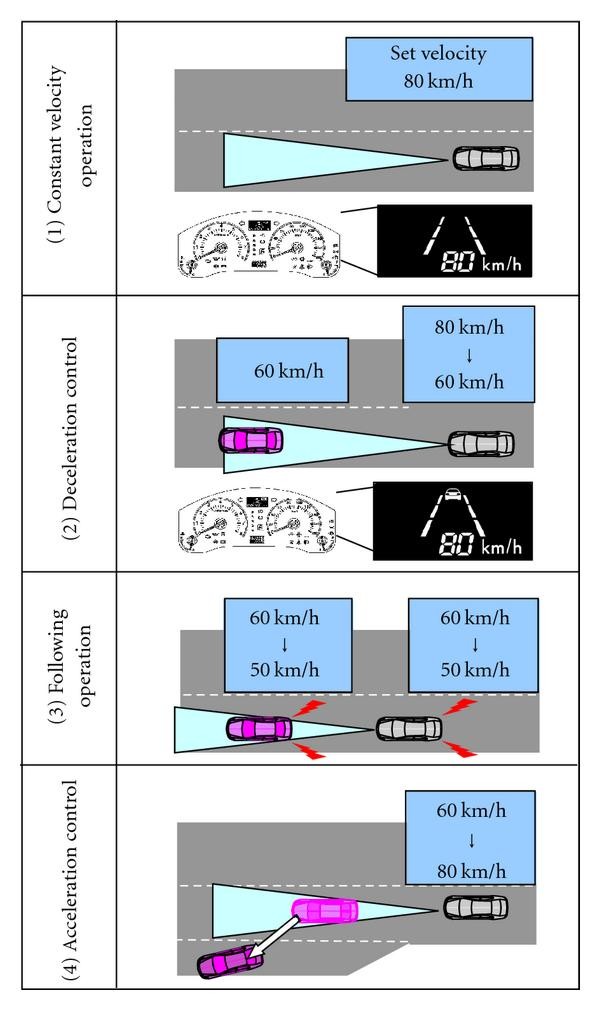

Figure 1
figure1

Four modes supported by the ACC system.

Full size image

2.2. System Configuration

Figure 2 shows the ACC system configuration and unit layout in a vehicle. This configuration includes the existing Auto Speed Control (ASC), Dynamic Stability Control (DSC), Millimeter Wave Radar used to detect objects ahead, ACC Electrical Control Unit (ACC ECU) used to calculate control values for the engine and brake, Distance Setting Switch used to set a time interval for following the preceding vehicle (in order to maintain a constant distance), and Indicator/Display which informs the driver of the control mode. Figure 3 shows the part layout for the sensors, ECU, and other components. For brake control, the DSC brake actuator function is extended to perform feedback control, so that the deceleration demanded by the driver is delivered. For engine control, the vehicle velocity set by ACC is transmitted to the vehicle velocity control section of the existing ASC, and the system then controls the vehicle velocity so as to follow the vehicle preceding it.

Figure 2
figure2

System configuration.

Full size image
Figure 3
figure3

ACC unit layout.

Full size image

Values from the wheel speed sensor and yaw rate/lateral G sensor are transmitted to the DSC ECU, and values for the vehicle velocity and other items set from the operation switches are transmitted to the PCM ECU. Furthermore, the signals of both ECUs are collected at the ACC ECU via CAN (Control Area Network). The transmissions between the Millimeter Wave Radar and the ACC ECU are carried out via CAN. In addition, when brake control is performed, ACC controls the relay between the brake pedal switch and the brake lamp in order to turn on the brake lamps.

As described above, rather than developing a new actuator control for the engine and brake, instead the functions of the existing system are extended, ensuring that this system can be efficiently developed.

2.3. Millimeter Wave Radar

Figure 4 shows an external view of the Millimeter Wave Radar used in this system. The frequency of the Millimeter Wave Radar is 76 to 77 GHz. An FMCW system is used, allowing the distance between vehicles and the relative velocity to be simultaneously measured with very high precision. In order to detect the horizontal angle, a mechanical scan system is used, in which the antenna and millimeter wave transmitter/receiver are panned back and forth to the right and left sides by a motor. This system yields a relatively high angle resolution. In addition, the thickness of this radar has been reduced to 70 mm, which makes it possible to install it inside the bumper, despite the mechanical scanning. The specifications of the millimeter wave radar are shown in Table 1.

Table 1 Millimeter Wave Radar performance.
Full size table
Table 2 Vehicle system parameters.
Full size table
Figure 4
figure4

View of the Millimeter Wave Radar.

Full size image

3. ACC ECU

The main functions of the ACC system are selection of the preceding vehicle and control of the distance between the vehicles. Figure 5 shows a block diagram of the control logic.

Figure 5
figure5

Control block diagram.

Full size image

The ACC ECU selects the preceding vehicle to follow by utilizing the information (distance and relative velocity) transmitted by the Millimeter Wave Radar. The system then controls the acceleration and deceleration of the vehicle based on control values such as the target vehicle velocity and the target acceleration/deceleration.

3.1. Selection of the Preceding Vehicle during Cornering

The Millimeter Wave Radar is used to detect the vehicles traveling ahead of the driver's vehicle. When the road is straight, the preceding vehicle can be easily identified as the vehicle traveling ahead on the same path as the driver's vehicle. However, it becomes more difficult to identify the preceding vehicle when there are curves in the road. As shown in Figure 6, when three vehicles are traveling ahead of the driver's vehicle at a curve in the road, it is first necessary to determine which vehicle is on same path as the driver's vehicle and which vehicles are not on the same path. Then the vehicle to be followed can be correctly identified.

Figure 6
figure6

Detection of preceding vehicle and estimation of path.

Full size image

The system judges whether the object detected by the radar is a relative static object or moving object by comparing the velocities of the driver's vehicle and detected vehicle. If the preceding vehicle is traveling at a speed that is approximately the same, that vehicle is considered to be a relative static object.

At the same time, the path (with radius of curvature ) is estimated by determining the cornering radius of the driver's vehicle based on the detected yaw rate, steering wheel angle, and vehicle velocity.

The system judges whether or not the current detected vehicle is the same as the previous detected vehicle each time a radar scan occurs. This judgment is performed by comparing the position of the detected vehicle with the estimated position. Therefore the offset from the center line of the path is recalculated at each radar scan in order to estimate a new position for the detected vehicle after it has moved.

Usually, the radius of curvature of the path center line is assumed to be unchanged during the period between radar scans. However, in cases when the vehicle is on a curve near an entrance or exit, the path radius of curvature actually does change between radar scans. If the sideslip is assumed to be unchanged, the system fails to lock onto the target vehicle. Therefore, because the relative position of the preceding vehicle to the driver's vehicle is influenced by the sideslip of the vehicle, the offset needs to be corrected at each radar scan based on the most recent detected cornering radius.

3.2. Basic Logic

The system estimates the radius of curvature for the path of the driver's vehicle based on the yaw rate and vehicle velocity. When the vehicle is cornering, the relationship among the velocity , the yaw rate , and the cornering radius is obtained as follows:

(1)

Figure 7 shows the geometric relationships between the driver's vehicle and the vehicle immediately preceding it. The arc of radius is the traffic lane of the driver's vehicle. If the offset , which is the distance between the traffic lane and the preceding vehicle, is within a certain range, the preceding vehicle is determined to be traveling on the same path. Here, if the distance to the vehicle immediately preceding is , and the irradiation angle of the radar is , the following relationship can be derived:

(2)

Assuming that is sufficiently smaller than the radius , the offset can be derived as follows:

(3)
Figure 7
figure7

Position of preceding vehicle during cornering without considering the sideslip angle.

Full size image

3.3. Introduction of the Sideslip Angle

In actual cases when a vehicle is traveling at a certain velocity on the road, a sideslip angle occurs at the vehicle during cornering. When the traffic lane curves, this sideslip result in a deviation in the range of irradiation. Correcting the range of irradiation can be expected to improve the offset accuracy.

A dynamic model of the vehicle shown in Figure 8 can be expressed as follows [12]:

(4)

Using (4), the sideslip angle can be calculated as follows:

(5)
Figure 8
figure8

Two-wheel model of a vehicle.

Full size image

From the relationship between the sideslip and the cornering radius shown in Figure 9, the amount of center travel can be obtained as follows:

(6)

Based on the relationships shown in Figure 9 and considering the sideslip element, the following relationship can be expressed in nearly the same way as in Figure 7:

(7)
Figure 9
figure9

Position of preceding vehicle during cornering, with consideration for the sideslip angle.

Full size image

Assuming that is sufficiently smaller than the radius , the offset can be obtained as follows:

(8)

The absolute amount of center travel is proportional to the square of the vehicle velocity as shown in (6). Therefore, here can be expressed as follows:

(9)

Parameters and are then identified by using the actual experiment data. Figure 10 shows the relationship between the vehicle velocity and the amount of center travel .

Figure 10
figure10

Relationship between amount of center travel and the vehicle velocity.

Full size image

Figure 11 shows the relationship between the amount of correction and the cornering radius . It can be seen that the smaller the cornering radius is, the larger the amount of correction becomes.

Figure 11
figure11

Relationship between amount of correction and cornering radius (vehicle velocity: 70–75 km/h).

Full size image

The system judges whether the objects detected by the millimeter wave radar are relative static objects, which include a preceding vehicle traveling at the same speed, or relative moving objects. This judgment is performed by using the velocity of the objects relative to the velocity of the driver's vehicle. The driving path for the driver's vehicle is estimated from the current vehicle conditions such as the vehicle velocity, steering angle, and yaw rate. The target preceding vehicle on the estimated path is selected based on the position of the preceding vehicle relative to the estimated driving path.

In Figure 12, the green lines indicate the estimated path. Despite the fact that there are many reflectors at the side of road and a vehicle traveling in the adjacent lane, the system has reliably locked onto the preceding vehicle. Figure 13 shows an actual scene in which the preceding vehicle can be selected quickly by using the estimated path and the position of the target vehicle.

Figure 12
figure12

Estimation of traffic lane and recognition of the preceding vehicle.

Full size image
Figure 13
figure13

Actual case in which the preceding vehicle can be selected quickly by using the path and the position of the target vehicle.

Full size image

3.4. Control of the Distance between Vehicles

The logic described in Section 3.3 makes faster lock-on times possible, allowing the ACC ECU to smoothly control the velocity of the driver's vehicle in order to maintain a constant distance between the vehicles. Furthermore, it allows the radar to maintain a continuous lock on the preceding vehicle.

The target vehicle velocity and target acceleration/deceleration are calculated using the time interval which was set by the driver, the current distance between the driver's vehicle and the preceding vehicle, and the current relative velocity of the vehicles. Based on the difference between the target velocity and the current velocity, the velocity can be controlled so that the distance between vehicles gently converges on the target distance. Acceleration and deceleration are performed in the same way as when the vehicle is operated by the driver. As a result, the driver does not experience any discomfort. Figure 14 shows the changes in the relative velocity when the driver's vehicle is traveling at a speed of 85 km/h and approaches a preceding vehicle traveling at a constant speed of 60 km/h. It can be seen that the control of acceleration and deceleration by the ACC ECU is almost the same as when the vehicle is operated by the driver. In fact, the ACC ECU control can been seen to be smoother than driver control.

Figure 14
figure14

Results of driving test.

Full size image

4. Conclusions

Improving the preceding vehicle lock-on performance by improving the Millimeter Wave Radar unit and making full use of object identification logic and path estimation logic resulted in improved driving stability. This performance was achieved even on an expressway with continuous sharp turns in a mountainous region, or an expressway with multiple lanes and heavy traffic in an urban area. The preceding vehicle identification performance was approximately the same as or better than the performance of other such systems in the industry.

For the acceleration/deceleration performance, which has a large effect on occupant comfort, when the lane was changed during tracking and the preceding vehicle sped up, the acceleration performance satisfied the need for a smooth feeling of acceleration with a short response delay.

Conversely, when the driver's vehicle caught up with the preceding vehicle, a smooth and comfortable feeling of deceleration was achieved.

This Adaptive Cruise Control system was developed for the purposes of driving safety and comfort. It reduces the number of brake and switch operations that are required of the driver. As a result, the system reduces the driving burden so that the driver can drive in comfort. The system demonstrated sufficient lock-on, tracking, and acceleration/deceleration performance, and the system was able to provide a satisfactory driving experience for the driver.
