A Content-Motion-Aware Motion Estimation for Quality-Stationary Video Coding

EURASIP Journal on Advances in Signal Processing20102010:403634

https://doi.org/10.1155/2010/403634

  • Received: 31 March 2010
  • Accepted: 1 August 2010
  • Published:

Abstract

The block-matching motion estimation has been aggressively developed for years. Many papers have presented fast block-matching algorithms (FBMAs) for the reduction of computation complexity. Nevertheless, their results, in terms of video quality and bitrate, are rather content-varying. Very few FBMAs can result in stationary or quasistationary video quality for different motion types of video content. Instead of using multiple search algorithms, this paper proposes a quality-stationary motion estimation with a unified search mechanism. This paper presents a content-motion-aware motion estimation for quality-stationary video coding. Under the rate control mechanism, the proposed motion estimation, based on subsample approach, adaptively adjusts the subsample ratio with the motion-level of video sequence to keep the degradation of video quality low. The proposed approach is a companion for all kinds of FBMAs in H.264/AVC. As shown in experimental results, the proposed approach can produce stationary quality. Comparing with the full-search block-matching algorithm, the quality degradation is less than 0.36 dB while the average saving of power consumption is 69.6%. When applying the proposed approach for the fast motion estimation (FME) algorithm in H.264/AVC JM reference software, the proposed approach can save 62.2% of the power consumption while the quality degradation is less than 0.27 dB.

Keywords

  • Video Sequence
  • Quality Degradation
  • Speedup Ratio
  • Motion Estimation Algorithm
  • Aliasing Problem

1. Introduction

Motion Estimation (ME) has been proven to be effective to exploit the temporal redundancy of video sequences and, therefore, becomes a key component of multimedia standards, such as MPEG standards and H.26X [17]. The most popular algorithm for the VLSI implementation of motion estimation is the block-based full search algorithm [811]. The block-based full search algorithm has high degree of modularity and requires low control overhead. However, the full search algorithm notoriously needs high computation load and large memory size [1214]. The highly computational cost has become a major problem on the implementation of motion estimation.

To reduce the computational complexity of the full-search block-matching (FSBM) algorithm, researchers have proposed various fast algorithms. They either reduce search steps [12, 1522] or simplify calculations of error criterion [8, 2325]. Some researchers combined both step-reduction and criterion-simplifying to significantly reduce computational load with little degradation. By combining step-reduction and criterion-simplifying, some researchers proposed two-phase algorithms to balance the performance between complexity and quality [2628]. These fast algorithms have been shown that they can significantly reduce the computational load while the average quality degradation is little. However, a real video sequence may have different types of content, such as slow-motion, moderate-motion, and fast-motion, and little quality degradation in average does not imply the quality is acceptable all the time. The fast block-matching algorithms (FBMAs) mentioned above are all independent of the motion type of video content, and their quality degradation may considerably vary within a real video sequence.

Few papers present quality-stationary motion estimation algorithms for video sequences with mixed fast-motion, moderate-motion, and slow-motion content. Huang et al. [29] propose an adaptive, multiple-search-pattern FBMA, called the A-TDB algorithm, to solve the content-dependent problem. Motivated by the characteristics of three-step search (TSS), diamond search (DS), and block-based gradient descent search (BBGDS), the A-TDB algorithm dynamically switches search patterns according to the motion type of video content. Ng et al. [30] propose an adaptive search patterns switching (SPS) algorithm by using an efficient motion content classifier based on error descent rate (EDR) to reduce the complexity of the classification process of the A-TDB algorithm. Other multiple search algorithms have been proposed [31, 32]. They showed that using multiple search patterns in ME can outperform stand-alone ME techniques.

Instead of using multiple search algorithms, this paper intends to propose a quality-stationary motion estimation with a unified search mechanism. The quality-stationary motion estimation can appropriately adjust the computational load to deliver stationary video quality for a given bitrate. Herein, we used the subsample or pixel-decimation approach for the motion-vector (MV) search. The use of subsample approach is two-folded. First, the subsample approach can be applied for all kinds of FBMAs and provide high degree of flexibility for adaptively adjusting the computational load. Secondly, the subsample approach is feasible and scalable for either hardware or software implementation. The proposed approach is not limited for FSBM, but valid for all kinds of FBMAs. The proposed approach is a companion for all kinds of FBMAs in H.264/AVC.

Articles in [3338] present the subsample approaches for motion estimation. The subsample approaches are used to reduce the computational cost of the block-matching criterion evaluation. Because the subsample approaches always desolate some pixels, the accuracy of the estimated MVs becomes the key issue to be solved. As per the fundamental of sampling, downsampling a signal may result in aliasing problem. The narrower the bandwidth of the signal, the lower the sampling frequency without aliasing problem will be. The published papers [3338] mainly focus on the subsample pattern based on the intraframe high-frequency pixels (i.e., edges). Instead of considering spatial frequency bandwidth, to be aware of the content motion, we determine the subsample ratio by temporal bandwidth. Applying high subsample ratio for slow motion blocks would not reduce the accuracy for slow motion or result in large amount of prediction residual. Note that the amount of prediction residual is a good measure of the compressibility. Under a fixed bit-rate constraint, the compressibility affects the compression quality. Our algorithm can adaptively adjust the subsample ratio with the motion-level of video sequence. When the interframe variation becomes high, we consider the motion-level of interframe as the fast-motion and apply low subsample ratio for motion estimation. When the interframe variation becomes low, we apply high subsample ratio for motion estimation.

Given the acceptable quality in terms of PSNR and bitrate, we successfully develop an adaptive motion estimation algorithm with variable subsample ratios. The proposed algorithm is awared of the motion-level of content and adaptively select the subsample ratio for each group of picture (GOP). Figure 1 shows the application of proposed algorithm. The scalable fast ME is an adjustable motion estimation whose subsampling ratio can be tuned by the motion-level detection. The dash-lined region is the proposed motion estimation algorithm and the proposed algorithm switches the subsample ratios according to the zero motion vector count (ZMVC). The higher the ZMVC, the higher the subsample ratio. As the result of applying the algorithm for H.264/AVC applications, the proposed algorithm can produce stationary quality at the PSNR of 0.36 dB for a given bitrate while saving about 69.6% power consumption for FSBM, and the PSNR of 0.27 dB and 62.2% power-saving for FBMA. The rest of the paper is organized as follows. In Section 2, we introduce the generic subsample algorithm in detail. Section 3 describes the high-frequency aliasing problem in the subsample algorithm. Section 4 describes the proposed algorithm. Section 5 shows the experimental performance of the proposed algorithm in H.264 software model. Finally, Section 6 concludes our contribution and merits of this work.
Figure 1
Figure 1

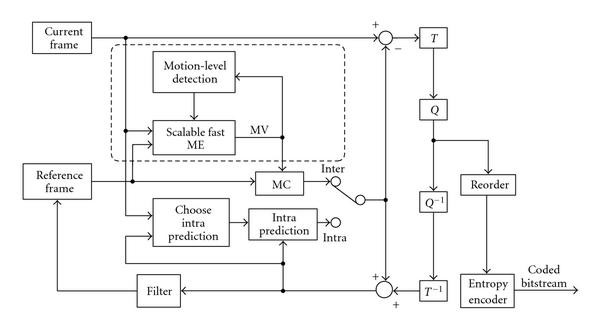

The proposed system diagram for H. 264/AVC encoder.

2. Generic Subsample Algorithm

Among many efficient motion estimation algorithms, the FSBM algorithm with sum of absolute difference (SAD) is the most popular approach for motion estimation because of its considerably good quality. It is particularly attractive to ones who require extremely high quality, however, it requires a huge number of arithmetic operations and results in highly computational load and power dissipation. To efficiently reduce the computational complexity of FSBM, lots of published papers have efficiently presented fast algorithms for motion estimation. For these fast algorithms, much research addresses subsample technologies to reduce the computational load of FSBM [3337, 39, 40]. Liu and Zaccarin [33], as pioneers of subsample algorithm, applied subsampling technology to FSBM and significantly reduced the computation load. Cheung and Po [34] well proposed a subsample algorithm combined with hierarchical-search method. Here, we present a generic subsample algorithm in which the subsample ratio ranges from -to- to -to- . The basic operation of the generic subsample algorithm is to find the best motion estimation with less SAD computation. The generic subsample algorithm uses (1) as a matching criterion, called the subsample sum of absolute difference (SSAD), where the macroblock size is N-by-N, R(i,j) is the luminance value at of the current macroblock (CMB). The is the luminance value at of the reference macroblock (RMB) which offsets from the CMB in the searching area -by- . is the subsample mask for the subsample ratio -to- as shown in (2) and the subsample mask is generated from basic mask (BM) as shown in (3), When the subsample ratios are fixed at powers of two because of regularly spatial distribution, these ratios are 16 : 16, 16 : 8, 16 : 4, and 16 : 2, respectively. These subsample masks can be generated in a 16-by-16 macroblock by using (3) and are shown in Figure 2. From (3), given a subsample mask generated, the computational cost of SSAD can be lower than that of SAD calculation, hence, the generic subsample algorithm can achieve the goal of power-saving with flexibly changing subsample ratio. However, the generic subsample algorithm suffers aliasing problem for high-frequency band. The aliasing problem will degrade the validity of motion vector (MV) and obviously result in a visual quality degradation for some video sequences. The next section will describe how the high-frequency aliasing problem occurs for subsample algorithm in detail,
(1)
(2)
(3)
where  u(n)  is  a  step  function; that is,
(4)
Figure 2
Figure 2

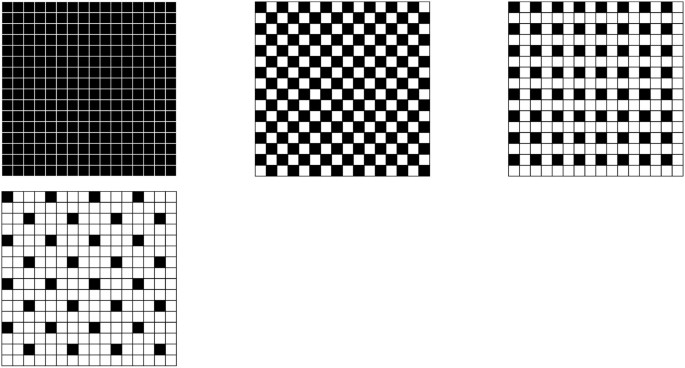

(a) 16 : 16 subsample pattern, (b) 16 : 8 subsample pattern, (c) 16 : 4 subsample pattern and (d) 16 : 2 subsample pattern.

3. High-Frequency Aliasing Problem

According to sampling theory [41], the decrease of sampling frequency will result in aliasing problem for high-frequency band. On the other hand, when the bandwidth of signal is narrow, higher downsample ratio or lower sampling frequency is allowed without aliasing problem. When applying the generic subsample algorithm for video compression, for high-variation sequences, the aliasing problem occurs and leads to considerable quality degradation because the high-frequency band is messed up. Papers [42, 43] hence propose adaptive subsample algorithms to solve the problem. They employed the variable subsample pattern for spatial high-frequency band, that is, edge pixels. However, the motion estimation is used for interframe prediction and temporal high-frequency band should be mainly treated carefully. Therefore, we determine the subsample ratio by the interframe variation. The interframe variation can be characterized by the motion-level of content. The ZMVC is a good sign for the motion-level detection because it is feasible for measurement and requires low computation load. The high ZMVC means that the interframe variation is low and vice versa. Hence, we can set high subsample ratio for high ZMVCs and low subsample ratio for low ZMVCs. Doing so, the aliasing problem can be alleviated and the quality can be frozen within an acceptable range.

To start with, we first analyze the results of visual quality degradation with different subsample ratios. We simulated the moderate motion video sequence "table" in H.264 JM10.2 software, where the length of GOP is fifteen frames, the frame rate is 30 frames/s, the bit rate is 450 k bits/s, and initial is 34. After applying three subsample ratios of 16 : 8, 16 : 4, and 16 : 2, Figure 3 shows quality degradation results versus subsample ratios. The average quality degradation of the i th GOP ( ) is defined as (5), where is the average PSNRY of i th GOP using the full-search block-matching (FSBM) and is the average PSNRY of i th GOP with specific subsample ratio (SSR). From Figure 3, although the video sequence "table" is, in the literature, regarded as a moderate motion, there exists the high interframe variation between the third GOP and the seventh GOP. Obviously, applying the higher subsample ratios may result in serious aliasing problem and higher degree of quality degradation. In contrast, between the eleventh GOP and the twentieth GOP, the quality degradation is low for lower subsample ratios. Therefore, we can vary the subsample ratio with the motion-level of content to produce quality-stationary video while saving the power consumption when necessary. Accordingly, we developed a content-motion-aware motion estimation based on the motion-level detection. The proposed motion estimation is not limited for FSBM, but valid for all kinds of FBMAs,
(5)
Figure 3
Figure 3

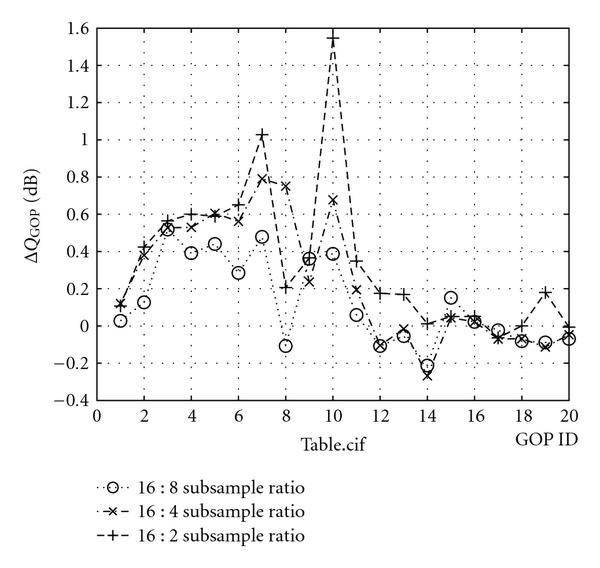

The diagram of Q with 16 : 8, 16 : 4, 16 : 2 subsample ratios for table sequence.

4. Adaptive Motion Estimation with Variable Subsample Ratios

To efficiently alleviate the high-frequency aliasing problem and maintain the visual quality for video sequences with variable motion levels, we propose an adaptive motion estimation algorithm with variable subsample ratios, called the Variable Subsampling Motion Estimation (VSME). The proposed algorithm determines the suitable subsample ratio for each GOP based on the ZMVC. The algorithm can be applied for FSBM algorithm and all other FBMAs. The ZMVC is a feasible measurement for indicating the motion-level of video. The higher the ZMVC, the lower the motion-level. Figure 4 shows the ZMVC of first P-frame in each GOP for table sequence. From Figures 3 and 4, we can see that when the ZMVC is high the for the subsample ratio of 16 : 2 is little. Since the tenth GOP is the scene-changing segment, all subsampling algorithms will fail to maintain the quality. Between the third and seventh GOPs, becomes high and the ZMVC is relatively low. Thus, this paper uses the ZMVC as a reference to determine the suitable subsample ratio.
Figure 4
Figure 4

The ZMVC of each GOP for table sequence.

In the proposed algorithm, we determine the subsample ratio at the beginning of each GOP because the ZMVC of the first interframe prediction is the most accurate. The reference frame in the first interframe prediction is a reconstructed I-frame but others are not for each GOP. Only the reconstructed I-frame does not incur the influence resulted from the quality degradation of the inaccurate interframe prediction. That is, we only calculate the ZMVC of the first P-frame for the subsample ratio selection to efficiently save the computational load of ZMVC. Note that the ZMVC of the first P-frame is calculated by using 16 : 16 subsample ratio. Given the ZMVC of the first P-frame, the motion-level is determined by comparing the ZMVC with preestimated threshold values. The threshold values is decided statistically using popular video clips.

To set the threshold values for motion-level detection, we first built up the statistical distribution of versus ZMVC for video sequences with subsample ratios of 16 : 2, 16 : 4, 16 : 8, and 16 : 16. Figure 5 illustrates the distribution. Then, we calculated the coverage of given PSNR degradation . In the video coding community, 0.5 dB is empirically considered a threshold below which the perceptual quality difference cannot be perceived by subjects. The quality degradation of greater than 0.5 dB is sensible for human perception [44]. To keep the degradation of video quality low for the quality-stationary video coding, a strict threshold of smaller than 0.5 dB is assigned to be a aimed without the sensible quality degradation. Therefore, in this paper, the aimed is 0.3 dB. We use the coverage range to set the threshold values for motion-level detection. The motion-level detection will further determine the subsample ratio. The range indicates the covered range of ZMVC, where is the percentage of GOPs whose is less than 0.3 dB for subsample ratio of . Given the parameters and , we can set threshold values as shown in Table 1.
Table 1

Threshold setting for different conditions under the 0.3  of visual quality degradation.



393

387

376

344

305

232

368

356

344

251

239

190

265

242

227

297

179

49

Figure 5
Figure 5

The statistical distribution of GOP versus ZMVC.

5. Selection of ZMVC Threshold and Simulation Results

The proposed algorithm is simulated for H.264 video coding standard by using software model JM10.2 [45]. Here, we use twelve famous video sequences [46] to simulate in JM10.2, and they are shown in Figure 6 and Table 2. From Table 2, the file format of these video sequences is CIF (352 288 pixels) and the search range is 16 in both horizontal and vertical directions for a 16-16 macroblock. The bit-rate control fixes the bit rate of 450 k under displaying 30 frames/s. The selection of threshold values is based on two factors: average quality degradation ( PSNRY) and average subsample ratio. The PSNRY is defined as
(6)
where the frame size is , and and denote the Y components of original frame and reconstructed frame at . The quality degradation PSNRY is the PSNRY difference between the proposed algorithm and FSBM algorithm with 16-to-16 subsample ratio.
Table 2

Testing video sequences.



Video sequence

Number of frames

Fast Motion

Dancer

250



Foreman

300



Flower

250

Normal Motion

Table

300



Mother_Daughter (M_D)

300



Weather

300



Children

300



Paris

300

Slow Motion

News

300



Akiyo

300



Silent

300



Container

300

Figure 6
Figure 6

Test clips: (a) Dancer, (b) Foreman, (c) Flower, (d) Table, (e) Mother_Daughter, (M_D) (f) Weather, (g) Children, (h) Paris, (i) News, (j) Akiyo, (k), and Silent (l) Container. DancerForemanFlowerTableMother_DaughterWeatherChildrenParisNewsAkiyoSilentContainer

The average subsample ratio is another index for subsample ratio selection, as defined in (7) where are the P-frames subsampled by . Later, we will use it to estimate the average power consumption of the proposed algorithm,
(7)
Table 3 shows the simulation results of PSNRY for these tested video sequences with different set of threshold values. From Table 3, the set of threshold values with can satisfy all tested video sequences under the average quality degradation of 0.3 dB; however, the overall average subsample ratios shown in Table 4 are lower than the others. The lower the subsample ratio, the higher the computational power will be. The uses of the set of threshold values of and also result in the quality degradations less than 0.36 dB which is close to the 0.3 dB goal. To achieve the goal of the quality degradation under the low computational power, the set of threshold values with is favored in this paper. As shown in Table 4, the use of the set of threshold values of results in the quality degradations less than 0.36 dB which is close to the 0.3 dB goal while the power consumption reduction is 69.6% comparing with FSBM without downsampling.
Table 3

Analysis of quality degradation using three adaptive subsample rate decisions.



Dancer

−0.02

−0.02

−0.02

−0.09

−0.36

−0.77

Foreman

−0.09

−0.15

−0.16

−0.31

−0.33

−0.59

Flower

0

−0.04

−0.04

−0.15

−0.27

−0.44

Table

−0.05

−0.06

−0.11

−0.19

−0.26

−0.34

M_D

−0.2

−0.22

−0.23

−0.33

−0.36

−0.45

Weather

−0.2

−0.22

−0.25

−0.29

−0.33

−0.33

Children

−0.13

−0.16

−0.19

−0.28

−0.29

−0.29

Paris

−0.17

−0.22

−0.21

−0.31

−0.35

−0.35

News

−0.08

−0.1

−0.12

−0.15

−0.2

−0.20

Akiyo

−0.09

−0.12

−0.12

−0.15

−0.15

−0.15

Silent

−0.06

−0.05

−0.04

−0.06

−0.09

−0.09

Container

−0.02

−0.02

−0.02

−0.02

−0.02

−0.02

Table 4

Analysis of average subsample ratio using three adaptive subsample rate decisions.



Dancer

16 : 15.55

16 : 15.55

16 : 15.55

16 : 14.43

16 : 11.75

Foreman

16 : 14.32

16 : 13.31

16 : 12.93

16 : 10.61

16 : 10.24

Flower

16 : 16.00

16 : 15.10

16 : 15.10

16 : 11.98

16 : 8.80

Table

16 : 9.50

16 : 9.03

16 : 7.17

16 : 5.32

16 : 4.57

M_D

16 : 7.08

16 : 6.43

16 : 6.34

16 : 3.92

16 : 3.55

Weather

16 : 5.87

16 : 5.32

16 : 4.39

16 : 3.18

16 : 3.00

Children

16 : 7.82

16 : 7.27

16 : 6.43

16 : 3.83

16 : 3.27

Paris

16 : 6.52

16 : 6.25

16 : 5.22

16 : 3.46

16 : 3.00

News

16 : 7.45

16 : 6.71

16 : 4.95

16 : 3.09

16 : 3.00

Akiyo

16 : 4.76

16 : 3.83

16 : 3.46

16 : 3.00

16 : 3.00

Silent

16 : 7.27

16 : 7.08

16 : 6.34

16 : 3.92

16 : 3.00

Container

16 : 3.18

16 : 3.00

16 : 3.00

16 : 3.00

16 : 3.00

Average

16 : 8.58

16 : 8.04

16 : 7.35

16 : 5.60

16 : 4.87

After choosing the set of threshold values between 16 : 16, 16 : 8, 16 : 4, and 16 : 2, we compare the proposed algorithm with generic subsample rate algorithms. Table 5 illustrates the simulation results. Figure 7 illustrates the distribution diagram of PSNRY versus subsample ratio based on Table 5. From Figure 7, to maintain PSNRY around 0.3 dB, the generic algorithm must at least use the fixed 16 : 12 subsample ratio to meet the target, but the proposed algorithm can adaptively use lower subsample ratio to save power dissipation while the degradation goal is met. To demonstrate that the proposed algorithm can adaptively select the suitable subsample ratios for each GOP of a tested video sequence, we analyze the average quality degradation of each GOP by using (5) for "table" sequence and the result is shown as in Figure 8. From Figure 8, the first, second, eighth to twentieth GOPs have the lowest degree of high-frequency characteristic and their ZMVCs also show that they belong to low motion degree, hence these GOPs are allotted 16 : 2 subsample ratio. Moreover, the third GOP has the highest degree of high-frequency characteristic and this GOP is allotted 16 : 16 subsample ratio. The fourth to seventh GOPs also are allotted the suitable subsample ration according to their ZMVCs. Since the tenth GOP is the scene-changing segment, all subsampling algorithms will fail to maintain the quality. Per our simulation with other scene-changing clips, the proposed algorithm does not always miss the optimal ratio. However, in average, the proposed can perform better quality results than the others. Figure 9 shows comparison the PSNRY of each frame using proposed algorithm with the PSNRY of each frame using fixed 16 : 16, 16 : 6, and 16 : 4 subsample ratios. From the analysis result of Figure 9, the PSNRY results of the proposed algorithm is very close to the PSNRY results of fixed 16 : 16 and the proposed algorithm can efficiently save power consumption without affecting visual quality. Finally, to demonstrate the power-saving ability of proposed algorithm, we use (8) to calculate the speedup ratio and the results are shown in Table 6. From Table 6, the speedup ratio can achieve between 1.36 and 5.33. The average speedup ratio is 3.28,
(8)
Table 5

Performance analysis of quality degradation for various video sequences using various methods. (Note that the proposed algorithm can always keep the quality degradation low.)

Full search block matching (FSBM) algorithm



Generic

Generic

Generic

Generic

Generic

Generic

Generic

Generic

Proposed

Video

16 : 16

16 : 14

16 : 12

16 : 10

16 : 8

16 : 6

16 : 4

16 : 2

algorithm

sequence

subsample

subsample

subsample

subsample

subsample

subsample

subsample

subsample

(70%)



ratio

ratio

ratio

ratio

ratio

ratio

ratio

ratio




PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

Dancer

34.42

−0.18

−0.33

−0.53

−0.7

−0.86

−0.92

−0.93

−0.36

Foreman

30.51

−0.09

−0.18

−0.27

−0.4

−0.55

−0.72

−0.78

−0.33

Flower

20.58

−0.05

−0.1

−0.18

−0.28

−0.4

−0.49

−0.51

−0.27

Table

32.04

−0.02

−0.04

−0.09

−0.13

−0.16

−0.24

−0.35

−0.26

M_D

40.34

−0.03

−0.02

−0.08

−0.15

−0.25

−0.35

−0.46

−0.36

Weather

33.26

−0.06

−0.1

−0.09

−0.15

−0.22

−0.28

−0.33

−0.33

Children

30

−0.01

−0.05

−0.11

−0.14

−0.17

−0.22

−0.29

−0.29

Paris

31.67

0

−0.04

−0.05

−0.1

−0.13

−0.27

−0.33

−0.35

News

38.27

−0.02

−0.01

−0.04

−0.06

−0.09

−0.13

−0.22

−0.2

Akiyo

43.36

0.01

−0.01

−0.02

−0.03

−0.05

−0.09

−0.16

−0.15

Silent

35.62

−0.03

−0.03

−0.03

−0.02

−0.02

−0.06

−0.08

−0.09

Container

36.47

0

−0.01

−0.01

0

−0.02

−0.02

−0.02

−0.02

Table 6

Performance analysis of speedup ratio.

Full search block matching (FSBM) algorithm



Generic

Generic

Generic

Generic

Generic

Generic

Generic

Generic

Proposed

Video

16 : 16

16 : 14

16 : 12

16 : 10

16 : 8

16 : 6

16 : 4

16 : 2

algorithm

sequence

subsample

subsample

subsample

subsample

subsample

subsample

subsample

subsample

(70%)



ratio

ratio

ratio

ratio

ratio

ratio

ratio

ratio

ratio



Speedup

Speedup

Speedup

Speedup

Speedup

Speedup

Speedup

Speedup

Speedup

Dancer

1

1.143

1.3334

1.60011

2.0001

2.6671

4.0006

8.0012

1.36

Foreman

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

1.56

Flower

1

1.143

1.3334

1.60011

2.0001

2.6671

4.0006

8.0012

1.82

Table

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

3.50

M_D

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

4.50

Weather

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

5.33

Children

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

4.89

Paris

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

5.33

News

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

5.33

Akiyo

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

5.33

Silent

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

5.33

Container

1

1.143

1.3334

1.60013

2.0002

2.6669

4.0003

8.0006

5.33

Figure 7
Figure 7

The quality degradation chart of FSBM with fixed subsample ratios and proposed algorithm.

Figure 8
Figure 8

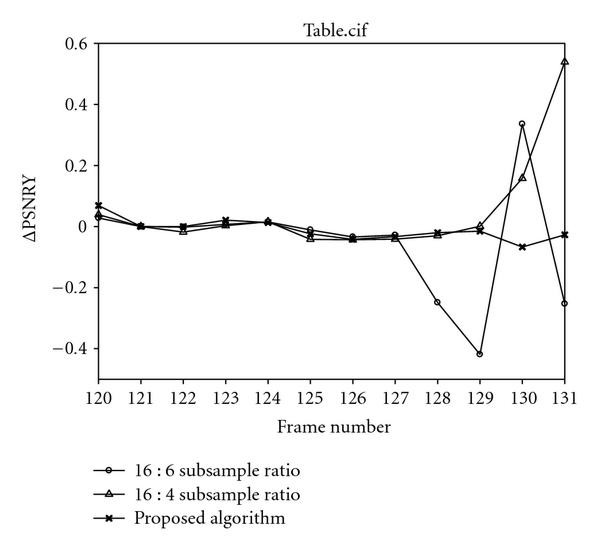

The dynamic quality degradation of the clip "Table" with fixed subsample ratios and proposed algorithm.

Figure 9
Figure 9

The dynamic variation of FSBM quality degradation with fixed subsample ratios and proposed algorithm.

The foregoing simulations are implemented using FSBM algorithm in JM10.2 software. Next, the fast motion estimation (FME) algorithm in JM10.2 software is chosen to combine with the proposed algorithm and implement simulations mentioned above again. Table 7 shows results of PSNRY between the proposed algorithm and generic algorithm. Figure 10 shows the distribution diagram of PSNRY versus subsample ratio based on Table 7 and shows that all tested sequences can satisfy to maintain the visual quality degradation under constraint of 0.3 dB. For fast motion sequences, "Dancer," "Foreman," and "Flower," the proposed algorithm can adaptively select low subsample ratio based on their high degree of high-frequency characteristic and visual quality degradation is 0.08 dB at most. Other video sequences are distributed among 16 : 4 and 16 : 2 subsample because low degree of high frequency. Figure 11 shows the PSNR value of each frame for "Table" sequence and the PSNRY results of the proposed algorithm is also very close to the PSNRY results of fixed 16 : 16 subsample ratio. Finally, the results of speedup ratio is shown in Table 8. From Table 8, the speedup ratio can efficiently achieve between 1.056 and 5.428 and operation timing of motion estimation can be more less than FSBM because of less search points. The average speedup ratio is 2.64. Therefore, FME algorithm which combines with the proposed algorithm is a better methodology of motion estimation in H.264/AVC under maintaining the stable visual quality and power-saving for all video sequences.
Table 7

Performance analysis of quality degradation for various video sequences using various methods. (Note that the proposed algorithm can always keep the quality degradation low.)

Fast motion estimation (FME) algorithm



Generic

Generic

Generic

Generic

Generic

Generic

Generic

Generic

Proposed

Video

16 : 16

16 : 14

16 : 12

16 : 10

16 : 8

16 : 6

16 : 4

16 : 2

algorithm

sequence

subsample

subsample

subsample

subsample

subsample

subsample

subsample

subsample

(70%)



ratio

ratio

ratio

ratio

ratio

ratio

ratio

ratio




PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

PSNRY

Dancer

33.48

−0.17

−0.31

−0.47

−0.63

−0.84

−1.01

−0.99

−0.05

Foreman

29.63

−0.06

−0.11

−0.17

−0.21

−0.29

−0.45

−0.69

−0.08

Flower

19.64

−0.01

−0.03

−0.06

−0.08

−0.15

−0.25

−0.48

−0.01

Table

31.07

−0.02

−0.03

−0.06

−0.07

−0.11

−0.17

−0.25

−0.09

M_D

39.44

0

0

−0.02

−0.02

−0.05

−0.12

−0.31

−0.24

Weather

32.34

−0.01

−0.02

−0.05

−0.09

−0.07

−0.13

−0.27

−0.26

Children

29.12

−0.06

−0.08

−0.02

−0.15

−0.16

−0.23

−0.3

−0.27

Paris

30.69

0.04

0.02

0.04

0.04

0.01

−0.05

−0.21

−0.15

News

37.29

0.03

0.05

0.03

0.05

0.05

0.03

−0.05

−0.05

Akiyo

42.38

0.03

0.04

0.03

0.02

−0.01

−0.02

−0.07

−0.08

Silent

34.64

0

0

0

0

0.04

0.05

0.02

0

Container

35.5

0

0.02

0.01

0

0

0.01

−0.03

−0.02

Table 8

Performance analysis of speedup ratio.

Fast motion estimation (FME) algorithm



Generic

Generic

Generic

Generic

Generic

Generic

Generic

Generic

Proposed

Video

16 : 16

16 : 14

16 : 12

16 : 10

16 : 8

16 : 6

16 : 4

16 : 2

Algorithm

sequence

subsample

subsample

subsample

subsample

subsample

subsample

subsample

subsample

(70%)



ratio

ratio

ratio

ratio

ratio

ratio

ratio

ratio

ratio



Speedup

Speedup

Speedup

Speedup

Speedup

Speedup

Speedup

Speedup

Speedup

Dancer

1

1.147252

1.346325

1.626553

2.051174

2.768337

4.208802

8.5202

1.056017

Foreman

1

1.14796

1.34685

1.6294

2.05981

2.78782

4.25265

8.2275502

1.16797

Flower

1

1.143542

1.335488

1.603778

2.006855

2.63666

3.975399

8.096571

1.061454

Table

1

1.150301

1.352315

1.637259

2.067149

2.7824

4.210231

8.497531

2.50664

M_D

1

1.150295

1.349931

1.627438

2.040879

2.724727

4.086932

8.16456

4.611836

Weather

1

1.153651

1.36162

1.653674

2.092012

2.815901

4.250473

8.529343

5.379942

Children

1

1.219562

1.488654

1.719515

2.569355

3.51429

5.697292

12.43916

5.056478

Paris

1

1.15079

1.354444

1.645437

2.083324

2.812825

4.270938

8.627448

5.422681

News

1

1.150716

1.351302

1.631096

2.04845

2.740255

4.12047

8.253857

5.260884

Akiyo

1

1.145874

1.340152

1.61157

2.017577

2.692641

4.04448

8.080182

5.35473

Silent

1

1.15267

1.355195

1.63785

2.060897

2.7634

4.160839

8.338212

4.845362

Container

1

1.149457

1.348652

1.626109

2.0412

2.731408

4.109702

8.226404

5.428775

Figure 10
Figure 10

The quality degradation chart of FME with fixed subsample ratios and proposed algorithm.

Figure 11
Figure 11

The dynamic variation of FME quality degradation with fixed subsample ratios and proposed algorithm.

6. Conclusion

In this paper, we present a quality-stationary ME that is aware of content motion. By setting the subsample ratio according to the motion-level, the proposed algorithm can have the quality degradation low all over the video frames and require low computation load. As shown in the experimental results, with the optimal threshold values, the algorithm can make the quality degradation less than 0.36 dB while saving 69.6% ( )) power consumption for FSBM. For the application of FBMA, the quality is stationary with the degradation of 0.27 dB and the power consumption is reduced by the factor of 62.2% ( )). The estimation of power consumption reduction is referred to the average subsampling ratio in that the power consumption should be proportional to the subsampling amount. The higher the subsampling amount, the more the power consumption. One can also adjust the size of search range or calculation precision for achieving the quality-stationary. However, either approach cannot have high degree of flexibility for hardware implementation.

Declarations

Acknowledgment

This work was supported in part by the National Science Council, R.O.C., under the grant number NSC 95-2221-E-009-337-MY3.

Authors’ Affiliations

(1)
Department of Electrical and Control Engineering, National Chiao Tung University, Hsinchu, 30010, Taiwan

References

  1. ISO/IEC CD 11172-2(MPEG-1 Video) : Information technology-coding of moving pictures and asociated audio for digitsl storage media at up about 1.5 Mbits/s: Video. 1993.Google Scholar
  2. ISO/IEC CD 13818-2–ITU-T H.262(MPEG-2 Video) : Information technology-generic coding of moving pictures and asociated audio information: Video. 1995.Google Scholar
  3. ISO/IEC 14496-2 (MPEG-4 Video) : Information Technology-Generic Coding of Audio-Visual Objects. Part2:Visual, 1999Google Scholar
  4. Wiegand T, Sullivan GJ, Luthra A: Draft ITU-T Recommendation H.264 and Final Draft International Standard 14496-10 AVC. VT of ISO/IEC JTC1/SC29/WG11 and ITU-T SG16/Q.6, Doc. JVT-G050r1, Geneva, Switzerland, May 2003Google Scholar
  5. Richardson I: H.264 and MPEG-4 Video Compression. John Wiley & Sons, New York, NY, USA; 2003.View ArticleGoogle Scholar
  6. Wiegand T, Sullivan GJ, Bjøntegaard G, Luthra A: Overview of the H.264/AVC video coding standard. IEEE Transactions on Circuits and Systems for Video Technology 2003, 13(7):560-576.View ArticleGoogle Scholar
  7. Kuhn P: Algorithm, Complexity Analysis and VLSI Architecture for MPEG-4 Motion Estimation. Kluwer Academic Publishers, Dordrecht, The Netherlands; 1999.View ArticleMATHGoogle Scholar
  8. Do VL, Yun KY: A low-power VLSI architecture for full-search block-matching motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 1998, 8(4):393-398. 10.1109/76.709406View ArticleGoogle Scholar
  9. Shen J-F, Wang T-C, Chen L-G: A novel low-power full-search block-matching motion-estimation design for H.263+. IEEE Transactions on Circuits and Systems for Video Technology 2001, 11(7):890-897. 10.1109/76.931116View ArticleGoogle Scholar
  10. Brünig M, Niehsen W: Fast full-search block matching. IEEE Transactions on Circuits and Systems for Video Technology 2001, 11(2):241-247. 10.1109/76.905989View ArticleGoogle Scholar
  11. Sousa L, Roma N: Low-power array architectures for motion estimation. Proceedings of the 3rd IEEE Workshop on Multimedia Signal Processing, 1999 679-684.Google Scholar
  12. Jain JR, Jain AK: Displacement measurement and its application in interframe image coding. IEEE Transactions on Communications 1981, 29(12):1799-1808. 10.1109/TCOM.1981.1094950View ArticleGoogle Scholar
  13. Ogura E, Ikenaga Y, Iida Y, Hosoya Y, Takashima M, Yamashita K: Cost effective motion estimation processor LSI using a simple and efficient algorithm. IEEE Transactions on Consumer Electronics 1995, 41(3):690-698. 10.1109/30.468021View ArticleGoogle Scholar
  14. Mietens S, De With PHN, Hentschel C: Computational-complexity scalable motion estimation for mobile MPEG encoding. IEEE Transactions on Consumer Electronics 2004, 50(1):281-291. 10.1109/TCE.2004.1277875View ArticleGoogle Scholar
  15. Chen M, Chen L, Chiueh T: One-dimensional full search motion estimation algorithm for video coding. IEEE Transactions on Circuits and Systems for Video Technology 1994, 4(5):504-509. 10.1109/76.322998View ArticleGoogle Scholar
  16. Li R, Zeng B, Liou ML: A new three-step search algorithm for block motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 1994, 4(4):438-442. 10.1109/76.313138View ArticleGoogle Scholar
  17. Tham JY, Ranganath S, Ranganath M, Kassim AA: A novel unrestricted center-biased diamond search algorithm for block motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 1998, 8(4):369-377. 10.1109/76.709403View ArticleGoogle Scholar
  18. Zhu C, Lin X, Chau L-P: Hexagon-based search pattern for fast block motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 2002, 12(5):349-355. 10.1109/TCSVT.2002.1003474View ArticleGoogle Scholar
  19. Kim KB, Jeon YG, Hong M-C: Variable step search fast motion estimation for H.264/AVC video coder. IEEE Transactions on Consumer Electronics 2008, 54(3):1281-1286.View ArticleGoogle Scholar
  20. Sarwer MG, Wu QMJ: Adaptive variable block-size early motion estimation termination algorithm for H.264/AVC video coding standard. IEEE Transactions on Circuits and Systems for Video Technology 2009, 19(8):1196-1201.View ArticleGoogle Scholar
  21. Chen Z, Xu J, He Y, Zheng J: Fast integer-pel and fractional-pel motion estimation for H.264/AVC. Journal of Visual Communication and Image Representation 2006, 17(2):264-290. 10.1016/j.jvcir.2004.12.002View ArticleGoogle Scholar
  22. Cai C, Zeng H, Mitra SK: Fast motion estimation for H.264. Signal Processing: Image Communication 2009, 24(8):630-636. 10.1016/j.image.2009.02.012Google Scholar
  23. Li W, Salari E: Successive elimination algorithm for motion estimation. IEEE Transactions on Image Processing 1995, 4(1):105-107. 10.1109/83.350809View ArticleGoogle Scholar
  24. Luo J-H, Wang C-N, Chiang T: A novel all-binary motion estimation (ABME) with optimized hardware architectures. IEEE Transactions on Circuits and Systems for Video Technology 2002, 12(8):700-712. 10.1109/TCSVT.2002.800859View ArticleGoogle Scholar
  25. Kim N-J, Ertürk S, Lee H-J: Two-bit transform based block motion estimation using second derivatives. IEEE Transactions on Consumer Electronics 2009, 55(2):902-910.View ArticleGoogle Scholar
  26. Lee S, Chae S-I: Motion estimation algorithm using low resolution quantisation. Electronics Letters 1996, 32(7):647-648. 10.1049/el:19960420MathSciNetView ArticleGoogle Scholar
  27. Cheng HW, Dung LR: EFBLA: a two-phase matching algorithm for fast motion estimation. Proceedings of the 3rd IEEE Pacific Rim Conference on Multimedia: Advances in Multimedia Information Processing, December 2002 2532: 112-119.Google Scholar
  28. Su C-L, Jen C-W: Motion estimation using MSD-first processing. IEE Proceedings: Circuits, Devices and Systems 2003, 150(2):124-133. 10.1049/ip-cds:20030332Google Scholar
  29. Huang S-Y, Cho C-Y, Wang J-S: Adaptive fast block-matching algorithm by switching search patterns for sequences with wide-range motion content. IEEE Transactions on Circuits and Systems for Video Technology 2005, 15(11):1373-1384.View ArticleGoogle Scholar
  30. Ng K-H, Po L-M, Wong K-M, Ting C-W, Cheung K-W: A search patterns switching algorithm for block motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 2009, 19(5):753-759.View ArticleGoogle Scholar
  31. Nie Y, Ma K-K: Adaptive irregular pattern search with matching prejudgment for fast block-matching motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 2005, 15(6):789-794.View ArticleGoogle Scholar
  32. Lim J-H, Choi H-W: Adaptive motion estimation algorithm using spatial and temporal correlation. Proceedings of the IEEE Pacific Rim Conference on Communications, Computers and Signal Processing (PACRIM '01), August 2001, Victoria, Canada 2: 473-476.Google Scholar
  33. Liu B, Zaccarin A: New fast algorithms for the estimation of block motion vectors. IEEE Transactions on Circuits and Systems for Video Technology 1993, 3(2):148-157. 10.1109/76.212720View ArticleGoogle Scholar
  34. Cheung C, Po L: A hierarchical block motion estimation algorithm using partial distortion measure. Proceedings of the International Conference on Image Processing (ICIP '97), October 1997 3: 606-609.View ArticleGoogle Scholar
  35. Cheung C-K, Po L-M: Normalized partial distortion search algorithm for block motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 2000, 10(3):417-422. 10.1109/76.836286View ArticleGoogle Scholar
  36. Wang C-N, Yang S-W, Liu C-M, Chiang T:A hierarchical decimation lattice based on -queen with an application for motion estimation. IEEE Signal Processing Letters 2003, 10(8):228-231. 10.1109/LSP.2003.814403View ArticleGoogle Scholar
  37. Wang C-N, Yang S-W, Liu C-M, Chiang T:A hierarchical -queen decimation lattice and hardware architecture for motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 2004, 14(4):429-440. 10.1109/TCSVT.2004.825550View ArticleGoogle Scholar
  38. Cheng H-W, Dung L-R: A vario-power ME architecture using content-based subsample algorithm. IEEE Transactions on Consumer Electronics 2004, 50(1):349-354. 10.1109/TCE.2004.1277884View ArticleGoogle Scholar
  39. Chan Y-L, Siu W-C: New adaptive pixel decimation for block motion vector estimation. IEEE Transactions on Circuits and Systems for Video Technology 1996, 6(1):113-118. 10.1109/76.486426View ArticleGoogle Scholar
  40. Wang YK, Wang YQ, Kuroda H: A globally adaptive pixel-decimation algorithm for block-motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 2000, 10(6):1006-1011. 10.1109/76.867940View ArticleGoogle Scholar
  41. Oppenheim AV, Schafer RW, Buck JR: Discrete-Time Signal Processing. Prentice-Hall, Upper Saddle River, NJ, USA; 1999.Google Scholar
  42. Chan Y-L, Siu W-C: New adaptive pixel decimation for block motion vector estimation. IEEE Transactions on Circuits and Systems for Video Technology 1996, 6(1):113-118. 10.1109/76.486426View ArticleGoogle Scholar
  43. Wang Y, Wang Y, Kuroda H: A globally adaptive pixel-decimation algorithm for block-motion estimation. IEEE Transactions on Circuits and Systems for Video Technology 2000, 10(6):1006-1011. 10.1109/76.867940View ArticleGoogle Scholar
  44. Dung L-R, Lin M-C: Wide-range motion estimation architecture with dual search windows for high resolution video coding. IEICE Transactions on Fundamentals of Electronics, Communications and Computer Sciences 2008, E91-A(12):3638-3650. 10.1093/ietfec/e91-a.12.3638View ArticleGoogle Scholar
  45. Joint Video Team : Reference Software JM10.2. http://iphome.hhi.de/suehring/tml/download/old_jm/
  46. http://www.m4if.org/resources.php#section26

Copyright

© M.-C. Lin and L.-R. Dung. 2010

This article is published under license to BioMed Central Ltd. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Advertisement
