An Underwater Acoustic Implementation of DFT-Spread OFDM


This paper presents a design of DFT-spread OFDM system applied to an underwater acoustic channel. It does not only combine all the advantages of a conventional OFDM system but also reduces the peak-to-average power ratio of the transmit signal. Besides, the scheme spreads the information over several subcarriers as a result of the application of an additional DFT operation and leads to a diversity gain in a frequency-selective fading channel, which is one of the many challenges of communicating data through an underwater acoustic channel. Simulation results show that our proposal possesses good bit-error-rate performance. The system has been tested in a real underwater acoustic channel—the experimental pool in Xiamen University. The experimental results show that the DFT-spread OFDM system can achieve better results than a simple OFDM system in a benign underwater channel.

1. Introduction

Underwater acoustic channels are considered to be "quite possibly nature's most unforgiving wireless medium" [1]. The complexity of underwater acoustic channels is driven by the ocean environment characteristics which include large delay, Doubly-spread, Doppler-spreads, frequency-selective fading, and limited bandwidth [2]. However, since the beginning of the 20th century, underwater communication has been used [3] and there is a pressing demand for higher data rate systems that can cope with the highly scattered underwater channel.

Multicarrier modulation is an alternative to overcoming the long delay spread inherent in underwater acoustic channels. It increases the symbol interval and thereby decreases the intersymbol interference (ISI) [4]. The most popular method of multicarrier modulation for underwater acoustic communication is orthogonal frequency division multiplexing (OFDM), which has been widely studied. However, the OFDM system suffers a number of drawbacks, one of them is high peak-to-average power ratio, since the OFDM systems transmit signal resulting from the superposition of a large number of independent data symbols [5, 6].

In order to transmit a signal without distortion, the OFDM system requires a more expensive power amplifier with high linearity and a wide dynamic range. Besides, the nonlinear distortions due to clipping and amplification effects in the transmitted signal will lead to both in-band and out-of-band emissions [7]. In-band distortions will only degrade the performance of the OFDM system whereas out-of-band emissions will also disturb services in adjacent transmission bands. Normally, out-of-band emissions have therefore to be reduced below specified power levels to comply with a given spectrum mask [8].

There have been many studies on the reduction of peak-to-average power ratio, such as the clipping method, the pre-coding method, the partial-transmit sequence method, the selective mapping method, and so on [912]. But all methods have drawbacks. These drawbacks are associated with a high computational complexity, large memory requirements, or distortion of the transmitted signal. However, Discrete Fourier Transform-Spread Orthogonal Frequency Division Multiplexing (DFT-spread OFDM) is one outcome of such investigations [13].

The DFT-spread OFDM scheme was first proposed in [14]. In this scheme, data symbols are spread over several subcarriers by DFT, and this is followed by ordinary OFDM processing. Compared with conventional OFDM systems, the DFT-spread OFDM leads to a diversity gain in frequency-selective channel, and it combines the advantages of single-carrier transmission, like constant signal envelope, simple clock, and frequency synchronization [15]. As such it has already been selected as the uplink modulation scheme for the upcoming Long-Term Evolution of 3G systems under the work item of Evolved-UTRA by 3GPP [16]. In [17], Nisar et al. analyzed the error probabilities of the DFT-spread OFDM and derived their analytical closed-form expressions for the addictive white Gaussian noise (AWGN), fading AWGN, and multipath and fading multipath channel scenarios.

Underwater acoustic communication is an important challenge due to the presence of fading, multipath, and refractive properties of the sound channel [18]. Low peak-to-average power ratio and a diversity gain in frequency-selective channel are just two reasons why we chose a DFT-spread OFDM system to transmit data over an underwater acoustic channel. The former advantage can improve the power efficiency of the transmitter and the later advantage reduces the bit-error rate of the system.

The rest of this paper is organized as follows. In Section 2, the signal processing operations in DFT-spread OFDM system are described. As channel estimation is not the most important purpose in this study, we use a simple least squares channel estimation method, our system, as described in Section 3. Simulation results of the DFT-spread OFDM and OFDM systems under Rayleigh fading channel conditions are given in Section 4, as well as the experiment results in experimental pool of Xiamen University, China.

2. System Model

In DFT-spread OFDM, data symbols are spread by DFT, and this is followed by ordinary OFDM processing. Figure 1 shows the block diagram of the DFT-spread OFDM system. The input data is first mapped into a QPSK constellation. Then the data sequence is converted in parallel and entered the FFT to perform spreading. Pilot signals are inserted before the IFFT operation which is used to implement OFDM modulation. A cyclic prefix is also appended to the data sequence as guard interval. The complex base-band signal is then upconverted to the transmission frequency and sent out to the underwater acoustic channel by the transducer.

Figure 1
figure 1

A block diagram of a DFT-spread OFDM system.

Suppose that the input data, , is then the symbol mapping and is then spread by DFT.


The DFT spread symbols are mapped onto subcarriers out of a total of points by zero padding. The operation can be described as follows:


denotes the th subcarrier symbol. The resulting frequency-domain symbols are then transformed to the time-domain symbol sequence by an IFFT operation:


Let , where and . Then,


If , then


If , then


As we have seen from the previous discussion, DFT-spread OFDM have exact copies of input time symbols with a scaling factor of in the th multiple sample positions, both of and are integer, and in-between values are the sum of all the time input symbols in the input block with different complex weighting [19].

The structured mapping between the DFT spread symbols and sub-carriers enables the transmitted signal to have a low peak-to-average power ratio. Except for the DFT spreading and the structured symbol to subcarrier mapping, it is identical to OFDM [20].

A cyclic prefix is employed in order to avoid intersymbol and intercarrier interferences. The time length of the cyclic prefix is chosen to be larger than the expected delay spread. Suppose the time length of cyclic prefix is and the useful data duration is . In this paper, the number of points in the IFFT is and the number of useful subcarriers is . The signal frequency band is 6000 Hz, so . We set , the total time for a DFT-spread OFDM symbol was .

3. Channel Estimation

3.1. Channel Model

The transmitted signal in DFT-spread OFDM is


where is the carrier frequency.

After being transmitted over a frequency selective fading channel, the received signal is


where and are the amplitude fade and phase offset on the th carrier. is the addictive white Gaussian noise (AWGN).

The real underwater acoustic channel in which we tested our system was far too simplistic compared with the real ocean channels. Considering the frequency-domain signal of the OFDM communication system, the transmitted signal is , and the receiving signal is The system can be described as


where and are the column vectors representing the channel and the noise at the th subcarrier for the th OFDM symbol.

3.2. Least Squares Channel Estimation

In order to coherently demodulate DFT-spread OFDM and OFDM signals, channel state information (CSI) must be available at the receiver. Added channel information via the use of pilot sequence, which is predefined, is frequently employed within OFDM systems [21]. We choose block-pilot in our systems, the pattern of the transmit signals is shown in Figure 2. Both of the DFT-spread OFDM and OFDM signals are divided into blocks. Through the paper, adjacent signal blocks are grouped together, without overlapping between adjacent groups. In each group, the first signal block is used to transmit a pilot signal and it is called the pilot block. The remaining four blocks bear information data and thus are called information blocks. The channel state information must be estimated continually, because the underwater acoustic channels are time varying. The time length between two pilot blocks is limited and can be designed according to the channel state. In our scheme, the time length of each group is .

Figure 2
figure 2

The pattern of transmit signals.

There are many techniques to estimate the channel state information exploiting pilot blocks, such as leastsquares (LS), minimum mean square error (MMSE), and linear minimum mean square error (LMMSE). A detailed description of channel estimation can be found in [21]. In this paper, we use LS channel estimation, which is the simplest method. Starting from system model of OFDM given in (9) the LS estimation of is


In matrix notations,


4. Simulation and Experiment Results

4.1. Simulation Result

In order to test the performance of DFT-spread OFDM and OFDM systems, both of them are simulated in a Rayleigh fading channel, supposing that the time synchronization and frequency synchronization are perfect. The simulation of the performance of DFT-spread OFDM and OFDM systems in Rayleigh fading channel using MATLAB is shown in Figure 3. As shown in the simulation result, the performance of the DFT-spread OFDM system is better than that of the OFDM system in a Rayleigh fading channel, just because the former has a diversity gain in the frequency domain.

Figure 3
figure 3

The simulation result of the performance in Rayleigh fading channel.

4.2. Experiment Design

The experiment was carried out at the experimental pool in Xiamen University. Figure 4 depicts the location of transmitter and receiver transducers. Both of them were kept still during the whole experiment. The distance between the transmitter and the receiver is 10 m.

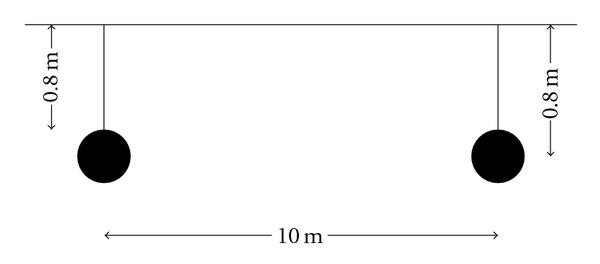

Figure 4
figure 4

Location of Transducer.

In order to know the frame boundary, LFM signals are appended before the data sequence before being transmitted into the channel. At the receiver, time synchronization is achieved via correlating the received samples with the known LFM sequence. After that, the received data is divided into DFT-spread OFDM or OFDM symbols.

System specification for the experiment is shown in Table 1.

Table 1 System specification.

4.3. Experimental Results and Analysis

Figures 58 are the power spectral density of the DFT-spread OFDM system and the OFDM system in both transmitter and receiver. Comparing Figures 5 and 6, Figures 7 and 8, the power spectral density of the receive data is quite different from transmit data, which confirms that the real underwater acoustic channel is a frequency-selective fading channel.

Figure 5
figure 5

The transmit data power spectral density of the DFT-spread OFDM system.

Figure 6
figure 6

The receive data power spectral density of the DFT-spread OFDM system.

Figure 7
figure 7

The transmit data power spectral density of the OFDM system.

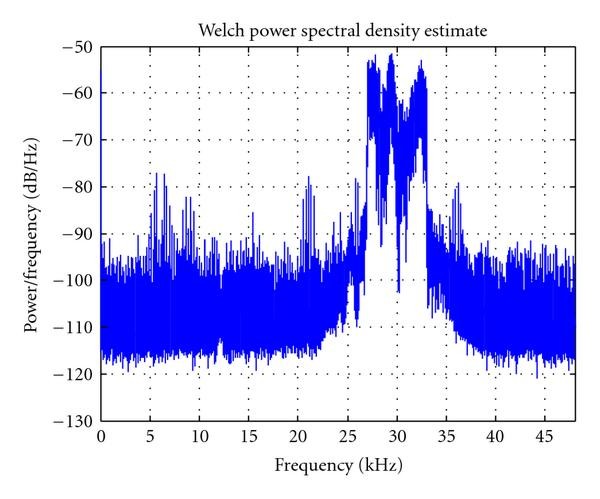

Figure 8
figure 8

The receive data power spectral density of the OFDM system.

Table 2 is the result of the experiment. From Table 2, we can see that the average bit-error rate of the OFDM system is 0.00666 nearly 10 times of the result of the DFT-spread OFDM system, of which the average bit-error rate is 0.000786. The results of the experiment confirm that, in the underwater acoustic channel, the DFT-spread OFDM system has better performance than the OFDM system primarily as a result of the improved peak-to-average power ratio characteristics.

Table 2 Experiment results.

5. Conclusions

In this paper, we have proposed a new design of DFT-spread OFDM system. The simulation results and the experiment results in a benign underwater channel show that, compared with the typical OFDM system, the proposed DFT-spread OFDM system could achieve excellent performance. The study demonstrated that DFT-spread OFDM system is applicable for underwater acoustic communication.


  1. Brady D, Preisig JC: Underwater acoustic communications. In Wireless Communications: Signal Processing Perspectives. Edited by: Poor HV, Wornell GW. Prentice-Hall, Upper Saddle River, NJ, USA; 1998:330-379.

    Google Scholar

  2. Singer AC, Nelson JK, Kozat SS: Signal processing for underwater uacoustic communications. IEEE Communications Magazine 2009, 47(1):90-96.

    Article  Google Scholar

  3. Woodward B, Sari H: Digital underwater acoustic voice communications. IEEE Journal of Oceanic Engineering 1996, 21(2):181-192. 10.1109/48.486793

    Article  Google Scholar

  4. Hwang S-J, Schniter P: Efficient communication over highly spread underwater acoustic channels. Proceedings of the 3rd Workshop on Underwater Networks (WUWNet '07), September 2007, Montreal, Canada

    Google Scholar

  5. Myung HG, Lim J, Goodman DJ: Peak-to-average power ratio of single carrier FDMA signals with pulse shaping. Proceedings of the 17th International Symposium on Indoor and Mobile Radio Communications, September 2006 1-5.

    Google Scholar

  6. Stemick M, Rohling H: OFDM-FDMA scheme for the uplink of a mobile communication system. Wireless Personal Communications 2007, 40(2):157-170. 10.1007/s11277-006-9106-x

    Article  Google Scholar

  7. Li Y, Kyung J-H, Son J-W, Ryu H-G: PAPR reduction in MC/DS CDMA system by DFT spreading codes. Proceedings of the 3rd International Conference on Information Technology and Applications (ICITA '05), July 2005 2: 326-329.

    Article  Google Scholar

  8. Galda D, Rohling H, Costa E, Haas H, Schulz E: A low complexity transmitter structure for OFDM-FDMA uplink systems. Proceedings of the 55th IEEE Vehicular Technology Conference (VTC '02), May 2002 4: 1737-1741.

    Google Scholar

  9. Li X, Cimini LJ Jr.: Effects of clipping on the performance of OFDM with transmitter diversity. Proceedings of the IEEE Vehicular Technology Conference, May 1997 3: 1634-1638.

    Google Scholar

  10. Wilkinson TA, Jones AE: Minimization of the peak-to-mean envelope power ratio of multicarrier transmission schemes by block coding. Proceedings of the IEEE Vehicular Technology Conference (VTC '95), July 1995, Chicago, Ill, USA 825-829.

    Google Scholar

  11. Bauml RW, Fischer RF, Huber JB: Reduc ing the peak-to-average power ratio of multicarrier modulation by selective mapping. IEE Electronic Letters 1996, 33(22):2056-2057.

    Article  Google Scholar

  12. Muller SH, Huber JB: OFDM with reduced peak-to-average power ratio by optimum combination of partial transmit sequences. IEE Electronics Letters 1997, 33(5):368-369. 10.1049/el:19970266

    Article  Google Scholar

  13. Nisar MD, Nottensteiner H, Hindelang T: On performance limits of DFT spread OFDM systems. Proceedings of the 16th IST Mobile and Wireless Communications Summit, July 2007 1-4.

    Google Scholar

  14. Dinis R, Falconer D, Lam CT, Sabbaghian M: A multiple access scheme for the uplink of broadband wireless systems. Proceedings of the Global Telecommunications Conference, December 2004 6: 3808-3812.

    Google Scholar

  15. Brueninghaus K, Rohling H: Multi-carrier spread spectrum and its relationship to single-carrier transmission. Proceedings of the 48th IEEE Vehicular Technology Conference (VTC '98), May 1998 3: 2329-2332.

    Google Scholar

  16. Standardization Committee 3GPP : Physical layer aspects for E-UTRA. 3GPP TR 25.814, 2006,

  17. Nisar MD, Nottensteiner H, Hindelang T: On performance limits of DFT spread OFDM systems. Proceedings of the 16th IST Mobile and Wireless Communications Summit, July 2007 1-4.

    Google Scholar

  18. Domingo MC: Overview of channel models for underwater wireless communication networks. Physical Communication 2008, 1(3):163-182.

    Article  Google Scholar

  19. Myung H: Introduction to single carrier FDMA. Proceedings of the 15th European Signal Processing Conference (EUSIPCO '07), September 2007, Poznan, Poland

    Google Scholar

  20. Jeong BJ, Chung HK: Pilot structures for the uplink single carrier FDMA transmission systems. Proceedings of the IEEE Vehicular Technology Conference (VTC '08), May 2008 2552-2556.

    Google Scholar

  21. Ozdemir MK, Arslan H: Channel estimation for wireless OFDM systems. IEEE Communications Surveys & Tutorials 2007, 9(2):18-48.

    Article  Google Scholar

Download references


This work was supported by The Nature Science Foundation of China under Grants 60672046 and The Natural Science Foundation of Fujian Province, China under Grants 2009J05155. It also supported by 985 innovation project on information technology of Xiamen University.
