Point Spread Function Estimation for a Terahertz Imaging System


We present a method for estimating the point spread function of a terahertz imaging system designed to operate in reflection mode. The method is based on imaging phantoms with known geometry, which have patterns with sharp edges at all orientations. The point spread functions are obtained by a deconvolution technique in the Fourier domain. We validate our results by using the estimated point spread functions to deblur several images of natural scenes and by direct comparison with a point source response. The estimations turn out to be robust and produce consistent deblurring quality over the entire depth of the focal region of the imaging system.

1. Introduction

Imaging systems operating in the terahertz (THz) region of the spectrum have the potential to enable new applications due to the unique combination of properties that occur in this region, such as penetration through clothes, packaging and plastics, and also the fact that THz waves are nonionising and hence do not pose a health hazard for humans. Application domains such as security [1], medical imaging [2] and nondestructive testing [3] are likely to benefit from developments in this area. Despite these advantages, commercial systems in this spectral region have been slow to emerge, due to a lack of mature THz components and technology.

Imaging at THz frequencies poses a challenge to the resolution of the images that can be achieved [4], both because of the technology's immaturity and the long wavelengths employed (relative to wavelengths at optical frequencies), which are typically around or over the millimetre range. Due to the expensive nature of terahertz imaging systems and the likelihood of long acquisition times, there is ample scope for employing image processing techniques, without increasing the system cost nor image acquisition time. Knowledge of the point spread function (PSF) of the imaging system is very important for improving image quality.

The point spread function is the imaging system's response to an ideal, point-like source. In practical situations it may not be easy to find such ideal sources, and methods relying on direct measurement of the point spread function from the response of a point-source approximation will face the challenge of balancing resolution against sensitivity. Examples of approximations for point sources include standard stars or quasars when calibrating astronomical instruments [5, 6], recording beads in microscopy [7, 8], and pinholes into opaque materials for various optical systems [9]. However, most practical computational methods used for the estimation of the point spread function are indirect and rely on some measured output of the system and possibly some additional knowledge of the scene being imaged and imaging system parameters. In general, these methods are application dependent and fall into two categories: parametric and nonparametric methods. Parametric methods assume that the PSF belongs to a given shape class, modelled by a small number of parameters, such as a confusion disk or a Gaussian, and then focus on finding a robust method for estimating the parameters [1013]. Nonparametric methods [14, 15] allow for the point spread function to be of any shape although they may still impose some mild restrictions on it, such as not having a too large a support.

Here we propose an approach for calculating the PSF based on the imaging of phantom objects designed to take advantage of the imaging system characteristics. Before explaining this approach, the system design will be discussed along with properties of the PSF. The paper is organised as follows. In Section 2 we present the architecture of our experimental terahertz imaging system. In Section 3 we describe the phantoms used in our experiments and the alignment procedure. We present our PSF estimation procedure and experimental results in Section 4 and summarise our conclusions in Section 5.

2. System Design

In the CSIRO Wireless Technologies Laboratory, we have designed a 180 GHz coherent imaging system. The system operates in reflection mode. A reflection mode approach is required where the object being imaged does not allow THz waves to penetrate through the object whereas THz waves being scattered off the object may be detected. Practical scenarios requiring this approach include detection of skin lesions and cancers, explosive detection in packaging, and corrosion detection under paint.

The configuration of the reflection mode imaging system is shown in Figure 1(a), and the photo of the system is shown in Figure 1(b). A target to be imaged is oriented such that its surface is orthogonal to the direction of the THz beam incident on the surface. The imaging system focuses the THz beam onto the surface. Imaging proceeds by translating the target such that the target's surface remains at the focal point of the system.

Figure 1
figure 1

Schematic diagram (a) and real view (b) of our quasioptical system, with silicon beam splitter and two parabolic mirrors. (c) diagram of the system electronics.

The focused THz beam on the target surface is created by a quasioptical system that directs a THz beam generated from a THz source. The THz source employs a smooth-walled spline-profile horn to create a diverging Gaussian beam. This beam then strikes mirror M1 which collimates the beam. The collimated beam exhibits a Gaussian amplitude distribution and a constant phase distribution in the plane orthogonal to the direction of beam propagation. The beam's amplitude cross-section does not vary between mirrors M1 and M2. The collimated beam strikes mirror M2 and is transformed into a Gaussian beam converging towards the focal point on the target surface. A portion of the THz beam penetrates the target, and the remainder is reflected across a range of angles. The energy reflected off the target and captured by mirror M2 is coupled through the optical system back to mirror M1 and is focused towards the THz source. A silicon wafer partially reflects the energy into a THz receiver.

The amplitude of the signal captured at the receiver is used to determine the amount of energy reflected by the target. The THz source is a continuous sine wave oscillating at 180 GHz. Reflection at the target generates a reflected wave which differs from the incident sine wave in both amplitude and phase. Measurement of the phase proceeds by comparing the phase of the signal at the THz receiver with the phase of the THz source. The schematic diagram in Figure 1(c) shows the electronics that achieves this comparison. A 10 dB coupler is used to capture 10% of the transmitted signal. This signal is mixed down to an IF frequency of approximately 1.9 GHz. The signal at the THz receiver is also mixed down to 1.9 GHz. The two 1.9 GHz signals are then filtered and cross-correlated to determine the phase difference. The described system is physically large, occupying a region of approximately 1 m 1 m. However, the system is based on electronic components which have the potential to be reconfigured in the future into a compact configuration.

The described system has a PSF that ideally should be Gaussian, have flat phase, and be invariant to the image coordinates. Invariance to image coordinates follows as the PSF does not vary as the target is translated through the fixed beam. The depth of focus and PSF size can be calculated from the properties of the source and receiver horns, which are similar to those described in [16], and the focal lengths of the mirrors M1 and M2. The resulting depth of focus is about 3.4 mm with a spot size of 2.5 mm.

3. Phantom Design

The core idea of our method is to evaluate the PSF by imaging "phantom" objects with precisely defined geometry. The phantom shape and alignment procedure are an extension of a design we have proposed in [17], based on a 2-value phase image, corresponding to phase shifts. Here the phantoms were designed to produce true complex images under imaging with an ideal, delta PSF. To this end, we manufactured two phantoms of aluminium, which has very good reflective properties, representing the same geometric pattern, which consists of a series of elevated concentric disks. The radii of the disks follow a quadratic growth law and are 5.0, 5.3, 5.9, 6.8, 8.0, 9.5, 11.3, 13.4, 15.8, 18.5, and 21.5 mm, respectively. There were several reasons for choosing this particular phantom design. Firstly, we wanted a pattern that is easy to generate automatically and to be able to produce the ideal phantom images aligned with the real phantom data. We wanted it to have strong edges at all orientations, which would lead to strong components in all Fourier domain low frequencies. This would make it suitable for using a Wiener filter deconvolution technique, which we detail in Section 4. We also wanted a fair degree of variability with respect to the radial steps and, in particular, to have at least one annular ring thinner than the expected extent of the support of the point spread function. The elevation step between consecutive disks was kept constant, which means that, for an ideal, delta-like point spread function, the image of the phantom would be constant on every annular ring. The elevation step was 0.4 mm for the first phantom (which we will henceforth refer to as "Phantom 1") and 0.2 mm for the second phantom (which we will henceforth refer to as "Phantom 2"). The frequency of our system was set to 180 GHz. The elevation steps on both phantoms are not integral fractions of the wavelength, and therefore the phase variation on consecutive disks is nonperiodic. The phantoms were both placed within the focal zone of our imaging system but were not perfectly aligned, in order to test the variability of the estimated point spread function over the focal range. Pictures of the two aluminium phantoms are shown in Figure 2.

Figure 2
figure 2

Two aluminium phantoms, displaying a sequence of concentric disks, elevated in constant steps.

3.1. Phantom Image Registration

To evaluate the point spread function, the procedure described in the next section requires both the actual phantom image acquired with our imaging system and a registered ideal phantom image of the phantom, under a delta point spread function. In order to generate the ideal phantom data, we firstly acquire the complex images corresponding to the two phantoms by scanning the aluminium phantoms pictured in Figure 2. From these, we extract the phase data, on which we manually identify several points lying on the circumference of the outermost circle, which corresponds to the edge of the largest disk. The coordinates of those points are fed into a procedure of least squares circle fitting, as described in [18]. The proposed procedure gives the best circle through the set of points by firstly finding the vector as the minimiser of , where is the -vector having component equal to and is the matrix having column equal to , for . This minimiser is


and then from (1) one finds the coordinates of the circle center as and the circle radius as . Our experiments show that identifying around 15 pairs of points on the outermost circle on the phantom was sufficient to get both the circle center and radius with subpixel accuracy (i.e., feeding more points coordinates into the algorithm did not result in any significant variation.) In practice, about 20 pairs of point coordinates have been used to generate the ideal phase image data shown in Figure 3. The other inner circles are then easy to generate automatically form the known dimensions of the phantom. The phase value on the outmost flat area, outside the largest ring, is set to be equal to the dominant value of corresponding area in the acquired phase image, and the other phase values, constant on each ring, are easily computed from the elevation step and the value of the wavelength. Specifically, for every ring elevated by an additional  mm, the phase value decreases by (because the distance is travelled twice in reflection mode). In our case, at 180 GHz, the wavelength  mm. The implicit assumption is that the phantom plane is perfectly perpendicular to the incident THz wave. The amplitude value on the ideal phantom data is set constant and equal to the dominant value on the area outside first ring, in the amplitude image of the measured data. Figure 3 displays the phantom phase images corresponding to the two phantoms, in the context of the imaging setup described in detail in Section 4, the ideal phantom images obtained using the data fitting procedure outlined in this section, and the difference images. Both sets of data are well aligned, with the main discrepancies occurring around the thin inner annular ring having a radius below the wavelength. However, the phase image of Phantom 2 exhibits slightly poorer alignment to its generated ideal phase data, compared to the same data from Phantom 1. This is due to the fact that, in the experimental setup, the alignment of the plane of Phantom 2 has had a tiny deviation from a angle to the incident THz beam.

Figure 3
figure 3

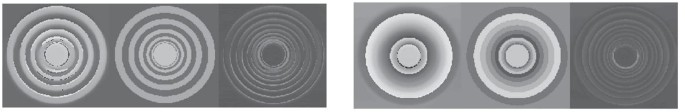

Left to right, in radians: phase of acquired complex phantom image, phase image generated using the circle fitting data and knowledge of phantom geometry, and difference image. (a) corresponds to Phantom 1 and (b) to Phantom 2.

4. Point Spread Function Estimation

If an image is captured with an imaging system having point spread function in the presence of independent additive noise , then the resulting observed image satisfies the equation


where denotes convolution. Because of the commutativity of the convolution operation, the roles of and are dual to each other, which means that and can be used to estimate (deblurring) or and can be used to estimate (point spread function estimation). In the absence of any noise (), one could find either in terms of and or in terms of and from (2). The straightforward way is to take the Fourier transform on both sides, which maps convolution into multiplication, and then find the Fourier transform of the unknown (either or ) by a simple pointwise division. However, in most practical situations, the assumption of negligible noise is unrealistic, and the direct approach suggested above would lead to strong amplification of high frequency noise. A Wiener filter approach can be used to counter the effects of noise [19]. The point spread function can be estimated from the equation


where , and denote the Fourier transforms of , and and and denote the power spectra of the and . In most practical situations, the inverse of the signal to noise ratio is difficult to measure or estimate accurately and is often approximated by a constant , leading to the simplified version of the Wiener deconvolution:


This approximation is particularly appropriate in the case of white Gaussian noise and a flat signal spectrum. In the case of reflections from a flat metal phantom, the spectrum is flat by design. Measurements of signal reflectance with no target have indeed confirmed that the noise in our system closely resembles white Gaussian noise [17]. Therefore, the simplified Wiener filter model of (4) is very suitable for our PSF estimation.

4.1. Experimental Setup

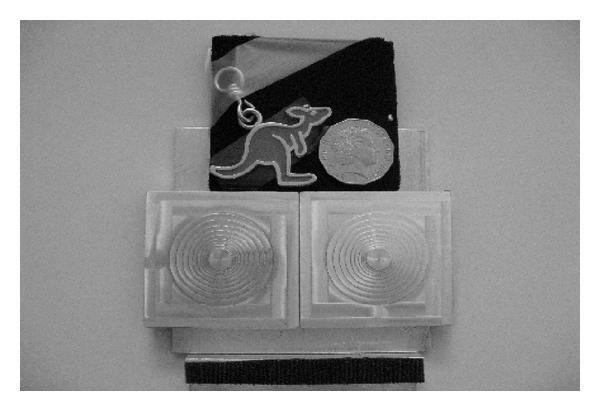

The scene pictured in Figure 4 was imaged with our system at 180 GHz. The scene consists of the two phantoms previously described, a 50 cents dodecagonal coin, and a metal keyring in the shape of a kangaroo fixed on a Styroflex substrate. The base planes for the two phantoms are closely aligned; however, the base plane of Phantom 2 is about 0.5 mm in front of that of Phantom 1, while the coin and the keyring are about 1 to 2 mm above this plane. The entire scene fits well within the focal range of the imaging system, which is estimated to be about 3.4 mm. A tiny metal ball with diameter of about 2 mm has also been added to the scene and is located slightly above and to the right of the coin. The idea was to let this ball approximate a "point source" and use its response for a direct estimation of the PSF shape. The imaging data corresponding to the two phantoms were cropped out of the image, and the algorithm described in Section 3.1 has been applied to produce the ideal phantom data. Subsequently, the simplified version of the Wiener filter deconvolution of (4) has been applied to the measured and ideal phantom images, to produce a PSF estimation. The value of the parameter was estimated from the measured value of our signal and the estimated power of the noise data to be in the range of to . The amplitude and phase of the estimated point spread functions for the two phantoms are shown in Figure 5.

Figure 4
figure 4

Imaging scene at 180 GHz.

Figure 5
figure 5

Amplitude images (a) and phase images (b) of complex point spread functions. From left to right: from direct pinball response measurement, from image data of Phantom 1, and from image data of Phantom 2.

We remark that the phase of the point spread function is almost flat over the high intensity region of the PSF signal, which is in accordance with the phase variation of a Gaussian beam in its focal region. This is an expected result, since our source and receiver horns were designed to produce Gaussian beams.

4.2. Validation

As a validation test, we use both estimated point spread functions, obtained on the basis of two phantom data, and the direct estimation of the point spread function from the pinball response to deblur the natural scene pictured in Figure 4, consisting of the keyring and the coin. We apply a Wiener deconvolution with . The amplitude data of the deblurred images, using the three estimations of the point spread function, are shown in Figure 6, and the corresponding phase images are shown in Figure 7.

Figure 6
figure 6

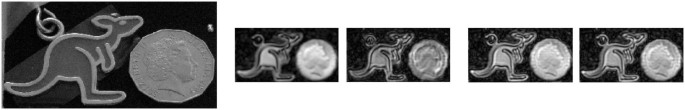

(a) Optical image of kangaroo and coin scene. (b) Amplitude image of original scan at 180 GHz (left) and amplitude of deblurred image using PSF estimated from pinball response (right). (c) Amplitude of deblurred images using the PSFs obtained by the technique described in this section, from the image data of Phantom 1 (left) and Phantom 2 (right).

Figure 7
figure 7

Phase images corresponding to the amplitude images in the last two rows of Figure 6.

The effects of the deblurring are most noticeable on the amplitude images of Figure 6. We remark the poor quality of the deblurring obtained using the PSF estimated directly from the pinball response. Admittedly, a ball with diameter around 2 mm is not a close match to an ideal point source, but it is, in practical terms, as close as we could get to it; attemps to use metal balls of smaller sizes in our experiments have resulted in response signals too weak for any reliable estimation of their shape. By contrast, both deblurred images using the PSFs estimated from phantom data show similar and remarkable detail improvement. On the coin image, the edges are sharper. Details in the area of the mouth and nose are enhanced and some texture areas of the hair become more prominent. The letters on the coin remain indistinguishable, which is to be expected, because their fine features have sizes smaller than the wavelength. However, the overall letters' blocks are still more visible on the two deblurred images. A tiny horizontal image misalignment, due to a mechanical lag of the translation table, also becomes visible in the deblurred images, especially across the upper half of the coin. The features on the kangaroo keyring are enhanced, particularly around the head and the paws areas, where the edges become better separated. The two PSFs estimated from the two phantom images are not identical, which is to be expected, given the fact that they are estimated at slightly different depths. In spite of this, the deblurring results on Figure 6(c) are remarkably similar. The patterns in the phase images, shown in Figure 7(b), are more consistent with depth geometry suggested by the optical image in Figure 7(a). By contrast, the phase image at the right of Figure 7(a) (corresponding to deblurring with the pinball PSF) is again the most inconsistent with the same depth geometry pattern.

5. Conclusions

We have presented a procedure for estimating the complex-valued point spread function of a terahertz imaging system which operates in reflection mode. A metal phantom with known geometry is placed at the focal region of the system and imaged. From this acquired phantom image and a computed version of the ideal phantom image, registered to the acquired image, the point spread function is estimated using a Wiener filter technique. The quality of the estimated point spread function is tested by using it to deconvolve images of a scene containing manufactured objects with good reflective properties. The improvement in detail areas of the scene validates the point spread function estimation obtained using our technique. Our methodology was applied in a context where there was no practical alternative for estimating the PSF using direct measurement of a point source response. The only physical approximations of point sources for which we could obtain reasonably strong response signals were metal balls too large in size, and the PSFs estimated from such direct measurements turned out to be of poor quality. Estimations of the PSF at slightly different depths around the focal plane have produced deblurring of similar quality at all depths around the focal plane region. While in our experiments we have only tested a THz imaging system in reflection mode, the same technique could be applied for a THz imaging system operating in transmission mode; the only challenge would be the manufacturing of a phantom from materials with precisely controlled absorption coefficients. A study of such materials is presented in [20].


  1. Kemp MC, Taday PF, Cole BE, Cluff JA, Fitzgerald AJ, Tribe WR: Security applications of terahertz technology. Terahertz for Military and Security Applications, April 2003, Proceedings of SPIE 5070: 44-52.

    Article  Google Scholar

  2. Woodward RM, Wallace VP, Pye RJ, Cole BE, Arnone DD, Linfield EH, Pepper M: Terahertz pulse imaging of ex vivo basal cell carcinoma. Journal of Investigative Dermatology 2003, 120(1):72-78. 10.1046/j.1523-1747.2003.12013.x

    Article  Google Scholar

  3. Chen CH: Ultrasonic and Advanced Methods for Nondestructive Testing and Material. World Scientific, Singapore; 2007.

    Book  Google Scholar

  4. Fitzgerald AJ, Berry E, Miles RE, Zinovev NN, Smith MA, Chamberlain JM: Evaluation of image quality in terahertz pulsed imaging using test objects. Physics in Medicine and Biology 2002, 47(21):3865-3873. 10.1088/0031-9155/47/21/326

    Article  Google Scholar

  5. Lehnert MD, Miley GK, Sparks WB, Baum SA, Biretta J, Golombek D, De Koff S, Macchetto FD, McCarthy PJ: Hubble Space Telescope snapshot survey of 3CR quasars: the data. Astrophysical Journal, Supplement Series 1999, 123(2):351-376. 10.1086/313239

    Article  Google Scholar

  6. Teuber J, et al.: Rotate-and-stare: a new method for PSF estimation. Astronomy and Astrophysics, Supplement Series 1994, 108: 509-512.

    Google Scholar

  7. McNally JG, Karpova T, Cooper J, Conchello JA: Three-dimensional imaging by deconvolution microscopy. Methods 1999, 19(3):373-385. 10.1006/meth.1999.0873

    Article  Google Scholar

  8. Dusch E, Dorval T, Vincent N, Wachsmuth M, Genovesio A: Three-dimensional point spread function model for line-scanning confocal microscope with high-aperture objective. Journal of Microscopy 2007, 228(2):132-138. 10.1111/j.1365-2818.2007.01844.x

    Article  MathSciNet  Google Scholar

  9. Metzler SD, Accorsi R: Resolution versus sensititvity-effective diameter in pinhole collimation: experimental verification. Physics in Medicine and Biology 2005, 50(21):5005-5017. 10.1088/0031-9155/50/21/004

    Article  Google Scholar

  10. Cannon M: Blind deconvolution of spatially invariant image blurs with phase. IEEE Transactions on Acoustics, Speech and Signal Processing 1976, 24(1):58-63. 10.1109/TASSP.1976.1162770

    Article  Google Scholar

  11. Rajagopalan AN, Chaudhuri S: MRF model-based identification of shift-variant point spread function for a class of imaging systems. Signal Processing 1999, 76(3):285-299. 10.1016/S0165-1684(99)00015-8

    Article  MATH  Google Scholar

  12. Von Tiedemann M, Fridberger A, Ulfendahl M, Boutet De Monvel J: Image adaptive point-spread function estimation and deconvolution for in vivo confocal microscopy. Microscopy Research and Technique 2006, 69(1):10-20. 10.1002/jemt.20261

    Article  Google Scholar

  13. Sakano M, Suetake N, Uchino E: A robust point spread function estimation for out-of-focus blurred and noisy images based on a distribution of gradient vectors on the polar plane. Optical Review 2007, 14(5):297-303. 10.1007/s10043-007-0297-5

    Article  Google Scholar

  14. Doukoglou TD, Hunter IW, Kearney RE: Nonparametric two-dimensional point spread function estimation for biomedical imaging. Medical and Biological Engineering and Computing 1993, 31(3):277-283. 10.1007/BF02458047

    Article  Google Scholar

  15. Hall P, Qiu P: Nonparametric estimation of a point-spread function in multivariate problems. Annals of Statistics 2007, 35(4):1512-1534. 10.1214/009053606000001442

    Article  MathSciNet  MATH  Google Scholar

  16. Granet C, James GL, Bolton R, Moorey G: A smooth-walled spline-profile horn as an alternative to the corrugated horn for wide band millimeter-wave applications. IEEE Transactions on Antennas and Propagation 2004, 52(3):848-854. 10.1109/TAP.2004.825156

    Article  Google Scholar

  17. Popescu DC, Hellicar A, Li Y: Phantom-based point spread function estimation for terahertz imaging system. Proceedings of the 11th International Conference on Advanced Concepts for Intelligent Vision Systems (ACIVS '09), October 2009, Bordeaux, France 5807: 629-639.

    Article  Google Scholar

  18. Coope ID: Circle fitting by linear and nonlinear least squares. Journal of Optimization Theory and Applications 1993, 76(2):381-388. 10.1007/BF00939613

    Article  MathSciNet  MATH  Google Scholar

  19. Gonzales RC, Woods RE: Digital Image Processing. Prentice-Hall, Englewood Cliffs, NJ, USA; 2002.

    Google Scholar

  20. Walker GC, Berry E, Smye SW, Brettle DS: Materials for phantoms for terahertz pulsed imaging. Physics in Medicine and Biology 2004, 49(21):363-369. 10.1088/0031-9155/49/21/N01

    Article  Google Scholar

Download references


The authors acknowledge Carl Holmesby for manufacturing the phantoms used in our experiments.
