Traffic Data Collection for Floating Car Data Enhancement in V2I Networks

Abstract

This paper presents a complete vision-based vehicle detection system for floating car data (FCD) enhancement in the context of vehicular ad hoc networks (VANETs). Three cameras (side-, forward- and rear- looking cameras) are installed onboard a vehicle in a fleet of public buses. Thus, a more representative local description of the traffic conditions (extended FCD) can be obtained. Specifically, the vision modules detect the number of vehicles contained in the local area of the host vehicle (traffic load) and their relative velocities. Absolute velocities (average road speed) and global positioning are obtained after combining the outputs provided by the vision modules with the data supplied by the CAN Bus and the GPS sensor. This information is transmitted by means of a GPRS/UMTS data connection to a central unit which merges the extended FCD in order to maintain an updated map of the traffic conditions (traffic load and average road speed). The presented experiments are promising in terms of detection performance and computational costs. However, significant effort is further necessary before deploying a system for large-scale real applications.

1. Introduction

Floating car data (FCD) refers to technology that collects traffic state information from a set of individual vehicles which float in the current traffic. Each vehicle, which can be seen as a moving sensor that operates in a distributed network, is equipped with positioning (GPS) and communication (GSM, GPRS, UMTS, etc.) systems, transmitting its location, speed, and direction to a central control unit that integrates the information provided by each one of the vehicles.

FCD systems are being increasingly used in a variety of important applications since they overcome the limitations of fixed traffic monitoring technologies (installation and maintenance costs, lack of flexibility, static nature of the information, etc.). We refer to [1] for general background concerning the most representative FCD activities in Japan, Europe, and the United States.

FCD can be used by the public sector to collect road traffic statistics and to carry out real-time road traffic control. The information provided by FCD systems can be supplied to individual drivers via dynamic message signs, PDA devices, satellite navigation systems, or mobile phones, including dynamic rerouting information. Thus, drivers would be able to make more informed choices, spending less time in congested traffic. In addition, the knowledge of the current traffic situation can be also used to estimate time of arrival of a fleet of public transport vehicles and, furthermore, to plan and coordinate the movements of the fleet (fleet management) so that driving assignments can be carried out more efficiently. Besides previous applications, the use of FCD entails environmental benefits since it can be used to reduce fuel consumption and emissions.

The basic data provided by FCD systems (vehicle location, speed, and direction) can be enriched using new onboard sensors (ambient temperature, humidity and light, windshield wiper status, fog light status, fuel consumption, emissions, tire pressure, suspension, emergency brake, etc.) which are centralized by means of the controller-area-network (CAN) bus. Such data can be exploited to extend the information horizon including traffic, weather, road management, and safety applications [1]. In addition, computer vision systems can be included in order to improve the automatic detection of potentially interesting events and to document them by sending extended data [2].

In order to provide ubiquitous coverage of the entire road network, a minimum representation of the total passenger car fleet has to be used, since each moving sensor (each vehicle) only supplies information about its status. The fact that everyday road users have to be asked to share information regarding their movements and speeds arises privacy issues that have to be addressed. Many potential road travellers may be reluctant to join FCD projects because of violations of their privacy due to permanent traceability or possible liability in case of speed limit violations. Thus, the fundamental concept for FCD systems calls for no identification information to be sent with the basic data, which can be easily implemented from a technical perspective. For example, in [3] a general method for anonymization of FCD by deriving pseudonyms for trips is presented.

Another approach consists of using the information supplied by a specific fleet of vehicles, rather than information coming from individual road users. Taxis or public transport buses can be used due to the extended periods of time they spend on the urban road network. Although taxis and buses provide a major source of innercity traffic information because of the time they spend mobile, they have limitations. Problems arise if the taxi drivers, through detailed knowledge of the local road network, take steps to avoid congested areas which will not be reported [4]. Traffic load perception may be lower than the actual one if reserved taxis or buses lanes are used. On the contrary, privacy issues are not as critical as before, especially when using a fleet of public transport buses.

This paper presents a complete vision-based vehicle detection system onboard a fleet of public transport buses with the aim of improving the data collected in FCD applications. The proposed system has been developed in the framework of the GUIADE project. Three cameras covering the local environment of the vehicle are used: forward-rear- and side- looking cameras. The system obtains under certain constraints, such as good weather and daytime conditions, the number of vehicles in the local range of the bus as well as their relative position and velocity. This information is combined with the data provided by regular FCD systems (global location, speed, and direction), obtaining a more detailed description of the local traffic load and the average speed. The communication system between the vehicles and the central control unit is based on wireless technology via GPRS/UMTS cellular protocols. Finally, the central unit integrates the data collected by the fleet in order to generate updated traffic status maps.

The remainder of this paper is organized as follows: the description of the system including the wireless communication scheme is summarized in Section 2. Section 3 describes the vision-based vehicle detection system as well as the spatial and temporal integration of the collected data. Experimental results that validate the proposed approach are presented in Section 4. Finally, conclusions and future works are discussed in Section 5.

2. System Descripction

The proposed FCD architecture can be seen in Figure 1. Floating car data is supplied by a fleet of public transport buses which corresponds to an inner-city bus line. Each vehicle is equipped with a global positioning system (GPS), wireless communication interfaces (GPRS/UMTS and WLAN IEEE 802.11) and a complete vision-based vehicle detection system.

Figure 1
figure 1

Overview of the proposed FCD architecture.

The vehicle-to-infrastructure (V2I) communication system is based on the geographic coverage provided by cellular networks. General packet radio service (GPRS) and universal mobile telecommunications system (UMTS) are used to connect each vehicle with the central control unit. Each vehicle provides information that can be divided in three main groups.

  1. (1)

    Standard FCD information: vehicle identifier (2?bytes), timestamp (11?bytes), GPS position (8?bytes), speed (2?bytes), and direction (2?bytes).

  2. (2)

    Vehicle status information: ambient temperature (2?bytes), humidity (2?bytes), light (2?bytes), windshield wiper status (1?byte), fog light status (1?byte), fuel consumption (4?bytes), and emissions (4?bytes).

  3. (3)

    Extended FCD information: globally referenced average traffic load (2?bytes) and average road speed for a measured segment travel time (2?bytes).

As can be observed, the total message size per vehicle is 45 bytes. The extended FCD information is supplied to the central unit at a frequency of 1 Hz. Accordingly, the bandwidth currently demanded by vehicular communication in the communication channel, that is, the vehicle throughput, is 360 bps without overheads. This value can be considered negligible taking into account the available bandwidth and the proposed FCD architecture.

The central control unit integrates the information provided by each one of the vehicles in order to compute updated traffic and weather maps which will be used for fleet management tasks as well as to estimate the time of arrival.

The vehicle-to-vehicle (V2V) communication system is defined as a backup communication system based on a wireless-fidelity (WiFi) IEEE 802.11a/b/g interface. In situations where the cellular network is not working, in-range vehicles will exchange the most updated information available.

One of the main advantages of the proposed approach is that it does not need to deal with privacy issues since the floating vehicles correspond to a fleet of public transport buses.

3. Vision-Based Traffic Detection System

In this section, we present the main contribution of this work: a complete vision-based traffic detection system which enhances the data supplied by standard FCD systems. The benefits of using computer vision instead of other technologies such as radar-based systems can be summarized as follows. Computer vision systems can compensate for the lower angular resolution of the low-cost radar and the increased appearance of ghost radar targets (guard-rails, railings, lamp posts, reflections, etc.). These false positives are relevant and they cannot simply be ignored. The camera has very good angular resolution and can be used to determine height, width, and lateral speed of the target. Pattern recognition can be used to classify the object and even weakly reflective targets such as pedestrians can be detected. Moreover, the cost of a vision system is significantly lower than the cost saved by using the simpler radar. A vision system, in addition to overcoming cost reduction problems, can contribute to the system features such as road analysis and scene understanding.

Each individual vehicle is equipped with three FireWire cameras (forward-, rear- and side-looking cameras) that cover the local environment of the bus (see Figure 2). A common hardware trigger synchronizes the image acquisition of the three cameras and an onboard PC houses the computer vision software.

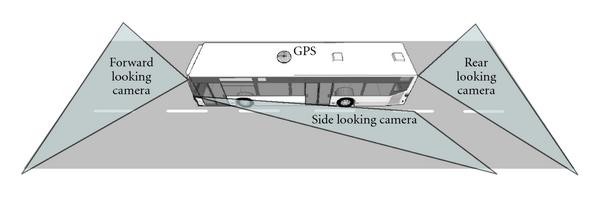

Figure 2
figure 2

Main vehicle sensors: three cameras (forward, rear, and side looking cameras) and a global positioning system.

Each individual vehicle detection system provides information about the number of detected vehicles and both their relative position and speed. These results are combined with the GPS measurements and the data provided by the CAN bus in order to provide globally referenced traffic information. This scheme is described in Figure 3.

Figure 3
figure 3

Stages of the vision-based traffic detection system.

The layers of the proposed architecture of the three vision modules are conceptually the same: lane detection, vehicle candidates selection, vehicle recognition, and tracking. The first step of each one of the vision systems consists of reducing the searching space in the image plane in an intelligent manner in order to increase the performance of the vehicle detection module. Accordingly, road lane markings are detected and used as the guidelines that drive the vehicle searching process (see Figure 4). The area contained by the limits of the lanes is scanned in order to find vehicle candidates that are passed on to the vehicle recognition modules. Thus, the rate of false positives is reduced. In case that no lane markings are detected, a basic region of interest is used instead covering the front, rear, and side parts of the vehicle. Finally, a tracking stage is implemented using Kalman filtering techniques.

Figure 4
figure 4

Rear, side, and forward lane detection.

3.1. Lane Detection

An attention mechanism is necessary in order to filter out inappropriate candidate windows based on the lack of distinctive features, such as horizontal edges and vertical symmetrical structures, which are essential characteristics of road vehicles. This has the positive effect of decreasing both the total computation time and the rate of false positive detections. Lane markings are detected using gradient information in combination with a local thresholding method which is adapted to the width of the projected lane markings. Then, clothoid curves are fitted to the detected markings. The algorithm scans up to 25 lines in the candidates searching area, from 2 meters in front of the camera position to the maximum range in order to find the lane marking measurements. The proposed method implements a nonuniform spacing search that reduces certain instabilities in the fitted curve. The final state vector is composed of 6 variables [5] for each lane on the road

(1)

where and represent the clothoid horizontal curvature parameters, and stand for the clothoid vertical curvature parameters, while , , and are the lateral error and orientation error with regard to the centre of the lane and the width of the lane, respectively. The clothoid curves are then estimated based on lane marking measurements using a Kalman filter for each lane.

Apart from the detected road lanes additional virtual lanes have been considered so as to cope with situations in which a vehicle is located between two lanes (e.g., if it is performing a change lane manoeuvre). Virtual lanes provide the necessary overlap between lanes, avoiding both misdetections and double detections caused by the two halves of a vehicle being separately detected as two potential vehicles. A virtual lane is located to provide overlap between two adjoining lanes. Figure 5 provides some examples of lane markings detection in real outdoor scenarios. Detected lanes determine the vehicle searching area and help reduce false positive detections. In case no lane markings are detected by the system, fixed lanes corresponding to a straight road model are assumed instead.

Figure 5
figure 5

Vehicle searching area as a result of the lane markings analysis for forward, rear and side modules.

3.2. Side Vehicle Detection

Side vehicle detection module [6] relies on the computation of optical flow. In order to reduce computational time, optical flow is computed only on Canny points in the image. Canny edge pixels are consequently matched and grouped together in order to detect clusters of pixels that can be considered as candidate vehicles in the image. Classical clustering techniques are used to determine groups of pixels, as well as their likelihood to form a single object. Even after pixels clustering, some clusters can still be clearly regarded as belonging to the same real object. A second grouping stage (double-stage) is then carried out among different clusters in order to determine which of them can be further merged into a single blob. For this purpose, simple distance criteria are considered. Two objects that are very close to each other are finally grouped together in the same cluster. The reason for computing a two-stage clustering process relies on the fact that by selecting a small distance parameter in the first stage, interesting information about clusters in the scene can be obtained. Otherwise, using a large distance parameter in the single clustering process, highly gross clusters would have been achieved, losing all information about the granular content of the points that provide optical flow in the image.

The selected clusters constitute the starting point for locating candidate vehicles in the image. For that purpose, the detected positions of clusters are used as a seed point to search for a collection of horizontal edges that could potentially represent the lower part of a car. The candidate is located on the detected horizontal edges that meet certain conditions of entropy and vertical symmetry. Some of the most critical aspects in side vehicle detection are subsequently listed: () shadows on the asphalt due to lampposts, other artefacts or a large vehicle overtaking the ego-vehicle on the right lane; () self-shadow reflected on the asphalt (especially problematic in sharp turns like in round-about points), or self-shadow reflected on road protection fences; () robust performance in tunnels; and () avoiding false alarms due to vehicles on the third lane.

The flow diagram of the two-stage detection algorithm is depicted in Figure 6. As can be observed, there is a pre-detector that discriminates whether the detected object is behaving like a vehicle or not. If so, the frontal part of the vehicle is located in the region of interest. In addition, the vehicle mass centre is computed. In case the frontal part of the vehicle is properly detected and its mass centre can also be computed, a final warning message is issued. After being located, vehicle candidates are classified by using a linear SVM classifier [7] with HOG features [8] previously trained with the samples obtained from real road images, and at that point vehicle tracking starts. Tracking is stopped when the vehicle gets out of the image. Sometimes, the shadow of the vehicle remains in the image for a while after the vehicle disappears from the scene, provoking the warning alarm to hold on for 1 or 2 seconds. This is not a problem, however, since the overtaking car is running in parallel with the ego-vehicle during that time although it is out of the image scene. Thus, maintaining the alarm in such cases turns out to be a desirable side effect.

Figure 6
figure 6

Side vehicle detection flow diagram.

Figure 7 shows an example of blind spot detection in a sequence of images. The indicator depicted in the upper-right part of the figure toggles from green to blue when a vehicle enters the blind spot area (indicated by a green polygon). A blue bounding box depicts the position of the detected vehicle.

Figure 7
figure 7

Example of the side-vehicle detection module (also called blind spot detection) in a sequence of images. The indicator in the upper-right part of the figure toggles from green to blue when a car is detected in the blind spot.

3.3. Forward and Rear Vehicle Detection

Forward- and rear-looking vehicle detection systems share the same algorithmic core. The attention mechanism sequentially scans each road lane from the bottom to the maximum range looking for a set of features that might represent a potential vehicle. Firstly, the vehicle contact point is searched by means of the top-hat transformation. This operator allows the detection of contrasted objects on nonuniform backgrounds [9]. There are two different types of top-hat transformations: white hat and black hat. The white hat transformation is defined as the residue between the original image and its opening ( operator). The black hat transformation is defined as the residue between the closing ( operator) and the original image. The white and black hat transformations are analytically defined as follows:

(2)
(3)

The opening operator () is defined as the dilation of the erosion and the closing operator () is defined as the erosion of the dilation (for more details see [10]).In our case we use the white hat operator (2) since it enhances the boundary between the vehicles and the road [11]. Horizontal contact points are preselected if the number of white top-hat features is greater than a configurable threshold. Then, candidates are preselected if the entropy of Canny points is high enough for a region defined by means of perspective constraints and prior knowledge of target objects (see Figure 8).

Figure 8
figure 8

From left to right: original image; contact point detection on white top-hat image; candidate preselected with high entropy of Canny points.

Before computing the Canny features, an adaptive thresholding method is applied. This process is based on an iterative algorithm that gradually increases the contrast of the image, and compares the number of Canny points obtained in the contrast increased image with the number of edges obtained in the current image. If the number of Canny features in the actual image is higher than in the contrast increased image the algorithm stops. Otherwise, the contrast is gradually increased and the process resumed. This adaptive thresholding method permits to obtain robust image edges, as depicted in the examples provided in Figure 9.

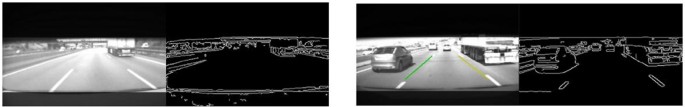

Figure 9
figure 9

Canny images after adaptive thresholding.

In a second step, vertical edges (), horizontal edges (), and grey level () symmetries are obtained, so that, candidates will only pass to the next stage if their symmetries values are greater than a threshold. The vertical and horizontal edges symmetries are computed as listed inAlgorithm 1.The grey level symmetry computation procedure is shown inAlgorithm 2.Some examples of the three types of symmetries are depicted in Figure 10.

Algorithm 1: Vertical and horizontal edges symmetries computation procedure.

() Initialize

() For

()   For each pair of vertical/horizontal edge pixels and

()      

()

Algorithm 2: Gray level symmetry computation procedure.

() For each possible symmetry axis initializes

()    For

()          For

()           If

()             

()

Figure 10
figure 10

Upper row: gray level symmetry; Middle row: vertical edges symmetry; Lower row: horizontal edges symmetry.

Symmetry axes are linearly combined to obtain the final position of the candidate. Finally, a weighted variable is defined as a function of the entropy of Canny points, the three symmetry values and the distance to the host vehicle. We use this variable to apply a nonmaximum suppression process per lane which removes overlapped candidates. An example of this process is shown in Figure 11.

Figure 11
figure 11

(a) Overlapped candidates. (b) Nonmaximum suppression results.

The selected candidates are classified by means of a linear SVM classifier [7], in combination with histograms of oriented gradients features [8]. We have developed and tested two different classifiers depending on the module (forward and rear classifiers). All candidates are resized to a fixed size of 64 64 pixels to facilitate the features extraction process. The rear-SVM classifier is trained with 2000 samples and tested with 1000 samples (1/1 positive/negative ratio) whereas the forward-SVM classifier is trained with 3000 samples and tested with 2000 samples (1/1 positive/negative ratio). Figures 12 and 13 depict some positive and negative samples of the forward and rear training and test data sets, respectively. Figure 14 shows a couple of examples of vehicle detection after linear SVM classification with HOG features.

Figure 12
figure 12

Forward data set. (a) positive samples (vehicles). (b) negative samples.

Figure 13
figure 13

Rear data set. (a) positive samples (vehicles). (b) negative samples.

Figure 14
figure 14

Linear SVM with HOG features classification examples: nonvehicle (red) and vehicle (green).

After detecting consecutively an object classified as vehicle a predefined number of times (empirically set to 3 in this work), data association and tracking stages are triggered. The data association problem is addressed by using feature matching techniques. Harris features are detected and matched between two consecutive frames as depicted in Figure 15.

Figure 15
figure 15

Data association by features matching. (a, b) Harris features on image t. (c, d) matched Harris features on image t + 1.

Tracking is implemented using Kalman filtering techniques [12]. For this purpose, a dynamic state model and a measurement model must be defined. The proposed dynamic state model is simple. Let us consider the state vector , defined as follows:

(4)

In the state vector and are the respective horizontal and vertical image coordinates for the top left corner of every object, and and are the respective width and height in the image plane, a dynamical model equation can be written like this

(5)

In the model, is the simple time, represents the system dynamics matrix and is the noise associated to the model. Although the definition of is simple, it proves to be highly effective in practice since the real time operation of the system permits to assure that there will not be great differences in distance for the same vehicle between consecutive frames. The model noise has been modelled as a function of distance and camera resolution. The state model equation is used for prediction in the first step of the Kalman filter. The next step is to define the measurement model. The measurement vector is defined as . Then, the measurement model equation is established as follows:

(6)

In last equation, represents the measurement matrix and is the noise associated to the measurement process. The purpose of the Kalman filtering is to obtain a more stable position of the detected vehicles. Besides, oscillations in vehicles position due to the unevenness of the road makes coordinate of the detected vehicles change several pixels up or down. This effect makes the distance detection unstable, so a Kalman filter is necessary for minimizing these kinds of oscillations.

3.4. FCD Integration

As depicted in Figure 3, the FCD integration or Data Fusion module uses three sources of data: the measurements provided by the GPS, the data supplied by the CAN bus, and the output obtained from the three vision-based vehicle detection modules. Whereas the GPS and the CAN bus sample frequency is 1 Hz, the vision-based system operates in real-time at 25 frames per second (25 Hz). The proposed data fusion scheme provides information at the lowest sample frequency (1 Hz) covering two consecutive GPS measurements, the vehicle speed (via CAN bus) and the outputs of the vision module.

The outputs of the side, forward, and rear vehicle detection systems at frame are the number of detected vehicles and their corresponding distances to the host vehicle (note that is used here as a distance/range measurement). These outputs are combined to cover the whole local environment of the vehicle. The traffic load at frame is given by next expression

(7)

where is the maximum number of vehicles in range that can be detected by the three systems (in our case is defined as 9 or 13 for two lanes and three lanes roads, resp.). The average road speed at frame is computed as follows:

(8)

where and represent the distance between the host vehicle and vehicle at frames and , respectively, corresponds to the sample time, is the host vehicle speed provided by the CAN bus, and is the number of detected vehicles. Note that the distance values correspond to filtered measurements since they are obtained from the first two elements of the Kalman filter state vector ( and ) using known camera geometry and ground-plane constraints.

Two consecutive GPS measurements define both a spatial and a temporal segment. The temporal segment corresponds to the GPS sample time (1 second), and the spatial segment will be defined as the globally referenced trajectory between the two GPS measurements. In order to obtain the extended FCD information (i.e., the road traffic load and the road speed) for this spatio/temporal segment we integrate the values supplied by the vision modules during 25 consecutive frames. With this approach a dense coverage of the road traffic load and the road speed can be assured for host vehicle speeds up to 180 km/h since the total range of the vision module covers more than 50 m (25 meters for both the rear and the forward looking modules; the side range covers up to two third parts of the bus length in the adjacent lane). Obviously this maximum speed will never be exceeded by a public bus. This approach facilitates further map-matching tasks since the extended FCD information between two consecutive points will always be globally referenced.

4. Experimental Results

The system was implemented on a PC Core 2 Duo at 3.0 GHz and tested in real traffic conditions using CMOS cameras with low-resolution images (320 240). After training and test, a tradeoff point has been chosen at detection rate (DR) of 95% and false positive rate (FPR) of 5% for the rear-SVM classifier and at DR of 90% and FPR of 6% for the forward-SVM classifier. We have to note that these numbers are obtained in an offline single-frame fashion, so that, they will be improved in subsequently stages. In addition, the lane detection system reduces the searching area and the number of false candidates passed to further stages.

In order to validate the proposed vision-based vehicle detection system as an extended source for FCD applications we have recorded several video sequences in real traffic conditions, and we have manually labeled the number of vehicles in range at every frame (a total of 800 frames). The speed of the host vehicle was around 90 km/h so the length of the traveled route was 1 km approximately. Both the traffic load and the average road speed are computed at every frame using (7) and (8). Figure 16 shows the ground truth and the number of vehicles detected in range. Most of the errors take places in cases where the host vehicle is passing beneath a bridge due to strong illumination changes (see Figure 17) and in curves or cases where there are strong changes in the vehicle pitch, roll or camera height.

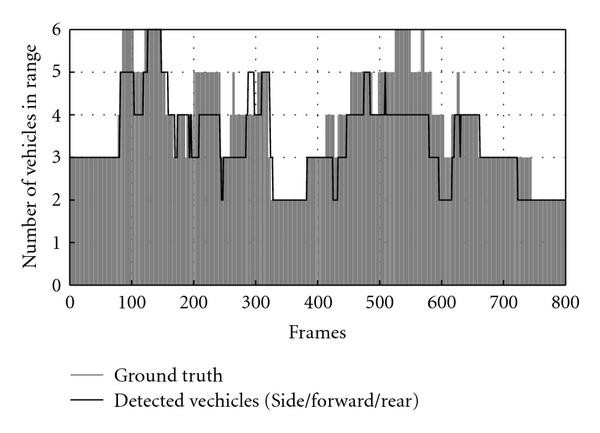

Figure 16
figure 16

Number of vehicles detected by the three vision modules compared with the manually labeled ground truth in a real sequence.

Figure 17
figure 17

Examples with strong illumination changes after passing beneath a bridge.

The traffic load and the average road speed at every frame are depicted in Figures 18 and 19, respectively. These values are provided by the vision modules at a frequency of 25 Hz. As the extended FCD information is supplied to the central unit at a frequency of 1 Hz the traffic load and the average road speed are finally integrated during 25 consecutive frames. These results are shown in Figures 20 and 21. We use a colour code to describe the level of traffic load and the road speed: green indicates that there is good flow/high speeds; yellow indicates that there is semi-dense traffic/medium speeds, and red shows dense traffic/slow speeds (traffic jams). After combining the results with the GPS measurements we can obtain the traffic load in universal transverse mercator (UTM) coordinates, as depicted in Figure 22 (note that map-matching is not carried out; the aerial image has been obtained from Google Earth).

Figure 18
figure 18

Traffic load at every frame in a real sequence.

Figure 19
figure 19

Average road speed at every frame in a real sequence.

Figure 20
figure 20

Average traffic load at every second in a real sequence.

Figure 21
figure 21

Average road speed at every second in a real sequence.

Figure 22
figure 22

GPS trajectory and the corresponding traffic load computed at the central unit (the aerial image has been obtained from Google Earth).

5. Concluding Remarks

This paper presented a complete vision-based vehicle detection system that enhances the data supplied by FCD systems in the context of vehicular ad hoc networks. The system is composed of three vision subsystems (side, forward and rear subsystems) that detect the traffic load and the relative velocities of the vehicles contained in the local area of the host vehicle. Under certain constraints, such as good weather and daytime conditions, absolute velocities, and global positioning are obtained after combining the outputs provided by the vision modules with the outputs supplied by the CAN Bus and the GPS sensor. Standard FCD systems provide the vehicle position, speed, and direction. The proposed approach extends this information by including more representative measurements corresponding to the traffic load and the average road speed.

In order to cover the entire road network, the proposed vision-based system is defined for being installed onboard a fleet of public buses where privacy is a minor issue. The extended packets collected by each moving vehicle are transmitted to the central unit by means of a GPRS/UMTS data connection. The central unit merges the extended FCD in order to maintain an updated map of the traffic conditions (traffic load and average road speed).

The presented experiments are promising in terms of detection performance and computational costs. However, significant effort is further necessary before deploying a system for large-scale real applications. For this purpose, new experiments will be carried out merging the data collected by more than one vehicle, including map-matching techniques and further analysis on V2I and V2V communications (e.g., using repetition based MAC protocols [13]). In addition, the proposed vision-based vehicle detection system will be extended to deal with complex weather conditions (e.g., wet or snowy roads) as well as night-time conditions.
