Improved Adaptive LSB Steganography Based on Chaos and Genetic Algorithm

EURASIP Journal on Advances in Signal Processing20102010:876946

https://doi.org/10.1155/2010/876946

Received: 17 November 2009

Accepted: 19 May 2010

Published: 20 June 2010

Abstract

We propose a novel steganographic method in JPEG images with high performance. Firstly, we propose improved adaptive LSB steganography, which can achieve high capacity while preserving the first-order statistics. Secondly, in order to minimize visual degradation of the stego image, we shuffle bits-order of the message based on chaos whose parameters are selected by the genetic algorithm. Shuffling message's bits-order provides us with a new way to improve the performance of steganography. Experimental results show that our method outperforms classical steganographic methods in image quality, while preserving characteristics of histogram and providing high capacity.

Keywords

Genetic AlgorithmDiscrete Cosine TransformationCover ImageSecret MessageDiscrete Cosine Transformation Coefficient

1. Introduction

Steganography is the science of hiding messages in a medium called carrier or cover object in such a way that existence of the message is concealed. The cover object could be a digital still image, an audio file, or a video file. The hidden message called payload could be a plain text, an audio file, a video file, or an image [1, 2].

Steganographic methods can be classified into spatial domain embedding and frequency domain embedding. Least Significant Bit (LSB) replacing is the most widely used steganographic method in spatial domain, which replaces the cover image's LSBs with message bits directly. Although it has several disadvantages such as vulnerable to attacks, LSB steganography is a popular method because of its low computational complexity and high embedding capacity. In frequency domain, popular steganographic methods mostly base on Discrete Cosine Transformation (DCT). After performing DCT on each block and quantizing the DCT coefficients, message bits are embedded into the quantized DCT (qDCT) coefficients. Recently, many steganographic schemes using LSB and its improved versions on qDCT have been invented, which offer reasonably high embedding capacity while attempting to preserve the marginal statistics of the cover image, such as J-Steg [3], F5 [4], and OutGuess [5]. It is well known that J-Steg is detectable using the attack [6, 7] since it is based on simply flipping LSBs. F5 employs matrix encoding to decrease the change for one payload, but its shrinkage at 0s makes it detectable. OutGuess embeds message bits into a part of coefficients and uses the other part to compensate artifacts on the histogram, so it preserves characteristics of histogram. But its embedding efficiency and capacity are low because of compensation.

Our contributions are in two folds. First, we present improved adaptive LSB steganography that can embed messages adaptively and thus can satisfy various requirements (high capacity, high security, high image quality, etc.). Second, our method minimizes degradation of the stego image through finding the best mapping between the secret message and the cover image based on chaos and the genetic algorithm (GA).

The rest of the paper is organized as follows. Section 2 introduces general principles of chaos and GA. Section 3 illustrates our proposed method in detail, which includes the improved adaptive LSB steganography, a method to shuffle message bits based on the logistic map and GA, the embedding procedure and the extraction procedure. Experimental results are shown in Section 4, where we demonstrate that our method has good stego image quality, high security-preserving characteristics of histogram, and high capacity. Finally, conclusions are addressed in Section 5.

2. Preliminary

2.1. Chaos and Its Application in Information Hiding

The chaos phenomenon is a deterministic and analogously stochastic process appearing in a nonlinear dynamical system [8, 9]. Because of its extreme sensitivity to initial conditions and the outspreading of orbits over the entire space, it has been used in information hiding to increase security [10, 11].

Logistic map is one of the simplest chaotic maps, described by
(1)

where , .

Researches on chaotic dynamical systems show that the logistic map stands in chaotic state when . That is, the sequence generated by the logistic map is nonperiodic and nonconvergent. All the sequences generated by the logistic map are very sensitive to initial conditions, in the sense that two logistic sequences generated from different initial conditions are uncorrelated statistically. The logistic map was used to generate a sequence as the watermark [11] or to encrypt the embedded position [10, 11] in former works. In our algorithm to be described below, we use the logistic map to shuffle bits-order of the message.

2.2. Genetic Algorithm

The genetic algorithm (GA), introduced by Holland [12] in his seminal work, is commonly used as an adaptive approach that provides a randomized, parallel, and global search. It bases on the mechanics of natural selection and genetics to find the exact or approximate solution for a given optimization problem.

GA is implemented as a computer simulation in which a population of abstract representations of candidate solutions to an optimization problem evolves toward better solutions. The evolution usually starts with some randomly selected genes as the first generation. All genes in a generation form a population. Each individual in the population is called chromosome, which corresponds to a solution in the optimization problem domain. An objective, called fitness function, is used to evaluate the quality of each chromosome. A new generation is recombined to find the best solution by using three operators: selection, crossover, and mutation [13]. The process is repeated until a predefined condition is satisfied.

Once we have the genetic representation and the fitness function defined, pseudocode algorithm of GA is illustrated as follows.
  1. (1)

    Generate initial population.


  2. (2)

    Evaluate the fitness of each individual in the population.


  3. (3)

    Select best-ranking individuals to reproduce.


  4. (4)

    Breed a new generation through crossover and mutation (genetic operations) and give birth to offspring.


  5. (5)

    Evaluate the individual fitness of the offspring.


  6. (6)

    Replace the worst ranked part of population with offspring.


  7. (7)

    Repeat to (6) until termination condition is satisfied.



3. Our Proposed Method

3.1. Improved Adaptive LSB (IA-LSB) Steganography

The classical LSB steganography replaces cover images' LSBs with messages' bits directly. This embedding strategy leads to dissymmetry. When the LSB of a coefficient in the cover image equals to its corresponding message bit, no change is made. Otherwise, this coefficient is changed from to or from to —changes from to or from to never happen. This dissymmetry is utilized by steganalysis, known as attack [6, 7].

In order to avoid dissymmetry, improved adaptive LSB (IA-LSB) steganography is proposed. First, the number of bits to be embedded in a certain coefficient is adaptive. With proper parameters, we can get high capacity while preserving high security. Second, less modification rule (LMR) is used to minimize modification.

3.1.1. Adaptively Decide Bits to be Embedded in Each Coefficient

Let denote the sequence of quantized DCT coefficients in a certain JPEG block of the cover image. loc divides 64 coefficients into two parts. In the first part, bits are embedded into each valid coefficient, and in the second part, bits are embedded (shown in Figure 1). We can adjust , , and loc to get high performance according to the content of the cover image.

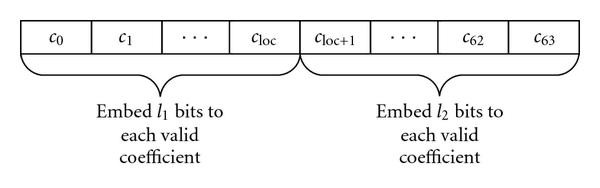

Figure 1
Figure 1

Division of 64 coefficients in a 8 × 8 block.

3.1.2. Less Modification Rule (LMR)

Suppose is assigned to hold bits. Denote 's corresponding message bits as decimally, and denote its corresponding coefficient in the stego image as . Let be the decimal expression of the least significant bits of . That is, .

Let , be two candidates for . Because , and hold the same message bits. In classical LSB steganography, . In our method, or is chosen according to less modification rule formulated as follows:
(2)

In this rule, we always choose the change that introduces less modification. For example, if , , and , then , , . , but the absolute value of change from to is 3 while to is 1, so choose as . Take another example, , and , then , , . In this case, choose , which is closer to , as .

3.2. Shuffle Message Bits Based on Chaos and Genetic Algorithm

Shuffling message bits changes the way of modifying the cover image during embedding thus influences image quality and security of the stego image. By finding a proper way to shuffle, we can improve the image quality or security or both. In this paper, we use the logistic map for shuffling and use GA to find proper parameters for the logistic map.

Denote the message with length as . The process of using the logistic map to shuffle is stated as follows.
  1. (1)

    Given a pair of input , the logistic map will generate a sequence . Wipe off the first (e.g. 1000) elements of the sequence, and use the consecutive different elements to form a vector .


  2. (2)

    Sort the elements of in descending order. The suffixes of the sorted elements form a sequence .


  3. (3)

    Shuffle message bits according to . That is, the message bit with suffix in is put to position .



Here comes an example of using the logistic map to shuffle message bits. Let , , then , and shuffled message sequence is .

From the shuffling process mentioned above, we can see that the pair of parameters decides the order of shuffled message bits. In order to improve the performance of the shuffling method, GA is used to select a proper pair of . In our scheme, we choose to improve quality of the stego image in the sense of PSNR and select PSNR as GA's fitness function:
(3)
where and are number of rows and columns of the cover image, respectively; is the difference between coefficients in spatial domain at position in the cover image and in the stego image. The process of using GA to maximize PSNR is shown in Figure 2 and stated as follows.
  1. (1)

    Initialize population. Randomly generate pairs of , , . is the size of population and each is an individual.


  2. (2)

    For each , shuffle message bits and embed the reordered message bits into the cover image using IA-LSB steganography, then compute PSNR between the cover image and the stego image, which is the fitness function of GA. In the following operations, the individual with larger fitness function will be considered better.


  3. (3)

    GA operators—selection, crossover, and mutation—are operated to generate the next generation.


  4. (4)

    Repeat and till the number of generations equals maximum generation (e.g., 100).


  5. (5)

    Put out the best pair of selected by GA.

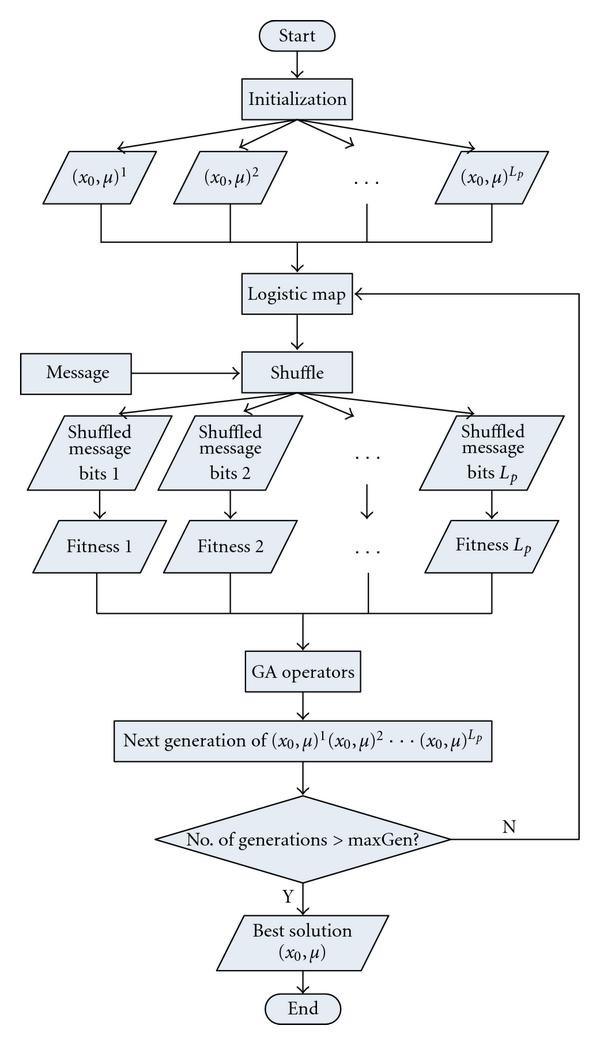

Figure 2
Figure 2

Process of using GA to find the best pair input for logistic map.

3.3. Embedding Procedure

A coefficient is valid, if and it is not a DC coefficient. The whole embedding procedure is depicted in Figure 3. Firstly, the message bits are shuffled by the logistic map whose input pair is selected by GA. Secondly, the cover JPEG file is decoded, obtaining quantized DCT coefficients. Thirdly, the shuffled message bits are embedded into the valid quantized DCT coefficients using IA-LSB steganography. Finally, stego quantized DCT coefficients are encoded to the stego JPEG file.
Figure 3
Figure 3

Embedding procedure of our proposed method.

It needs to be taken into consideration that valid coefficients after embedding should still be valid, that is, valid coefficients should not be changed to 0. On one hand, characteristics of histogram can be preserved; on the other hand, message bits can be extracted correctly and simply. If , . To add or subtract is determined randomly.

3.4. Extracting Procedure

After receiving the stego JPEG file and , we can extract the message bits as showed in Figure 4. First, the stego JPEG file is entropy decoded to obtain stego quantized DCT coefficients. Second, the shuffled message bits are extracted from LSBs of valid coefficients. Thirdly, the shuffled message bits are reordered to there natural order using logistic map with as input. Message bits are obtained.

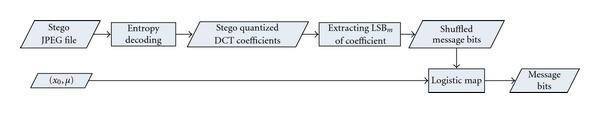

Figure 4
Figure 4

Extracting procedure of our proposed method.

4. Experiments

In this section, we demonstrate the performance of our proposed method and compare it with that of F5 [14], MB1 [15], and Outguess [16]. The image quality of each steganography method is expressed objectively in PSNR. Standard gray-level and true color images with sizes of are used as covers, such as Lena, Baboon, and Couple. The JPEG quality factor is set to during compression in each method.

4.1. Image Quality

In order to demonstrate validity of shuffling message bits, we compare the PSNR of images embedded by IA-LSB steganography with and without shuffling message bits. The results of gray images are shown in Table 1. Shuffling message bits does improve the PSNR of the stego image. It can also be applied to other steganographic algorithms and provides us with a new way to improve performance of steganography. Moreover, Table 2 shows that this scheme of shuffling is not only applicable to gray images but also color images.
Table 1

PSNR of gray images embedded by IA-LSB with and without shuffling message bits, simply denoted as "with" and "without".

PSNR (db)

Average embedding capacity (bpc)



0.46

0.624

0.731



with

without

with

without

with

without

Lena

39.93

39.72

38.521

38.181

37.376

37.221

Baboon

33.59

33.41

33.058

32.821

32.381

32.23

Milkdrop

44.32

44.21

40.187

39.92

39.274

38.934

Plane

38.73

38.44

37.586

37.281

36.727

36.506

Table 2

PSNR of color images embedded by IA-LSB at 0.45 bpc.

PSNR (db)

with

without

Lena

35.134

35.011

Baboon

28.62

28.556

Milkdrop

39.384

39.252

Plane

34.518

34.391

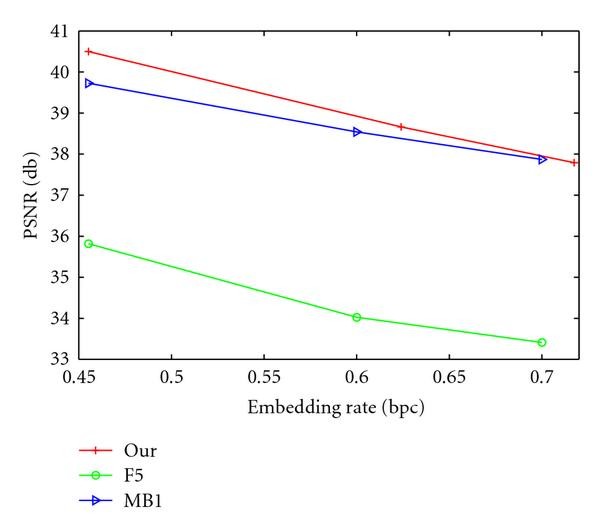

Figure 5 shows the PSNR of our method, F5, and MB1. The results are averaged on 50 gray-level images. We can see that the PSNR of our proposed method is higher than that of F5 and MB1. For the capacity of Outguess is around 0.3 bpc, it is not shown in the figure. The PSNR of Outguess is not higher than 32.86 db at 0.3 bpc (bit per nonzero AC coefficient) but of our method is higher than 37 db even at 0.72 bpc. We can conclude that our method outperforms F5, MB1, and Outguess in image quality.
Figure 5
Figure 5

PSNR of our method, F5, and MB1.

4.2. Preserving Characteristics of Histogram

As a representative example, Figure 6 plots distribution of the (2,1)th quantized AC components for cover image "Lena" and its corresponding stego image with an embedding rate of 0.46 bpc. The red line illustrates the coefficients distribution of a stego image with our proposed method, and green bars illustrate that of the cover image. Figure 6 shows that our method preserves the characteristics of histogram. This is also true for the other components (e.g., (1,2)th, (2,2)th AC components) and the other testing images.
Figure 6
Figure 6

Distribution of the (2,1)th AC components.

5. Conclusion

A steganographic method uses IA-LSB based on chaos and genetic algorithm is proposed. After finding the best parameters for the logistic map using GA, rearrange the secret message and embed it into the cover image using IA-LSB. Experimental results demonstrate that our algorithm achieves high embedding capacity while preserving good image quality and high security.

The important and distinctive features in the proposed method are to minimize the degradation of stego image by shuffling the secret message based on the logistic map and GA. To find better mapping between the secret message and the cover image so as to improve the steganographic performance is our future work.
