A Relative-Localization Algorithm Using Incomplete Pairwise Distance Measurements for Underwater Applications


The task of localizing underwater assets involves the relative localization of each unit using only pairwise distance measurements, usually obtained from time-of-arrival or time-delay-of-arrival measurements. In the fluctuating underwater environment, a complete set of pair-wise distance measurements can often be difficult to acquire, thus hindering a straightforward closed-form solution in deriving the assets' relative coordinates. An iterative multidimensional scaling approach is presented based upon a weighted-majorization algorithm that tolerates missing or inaccurate distance measurements. Substantial modifications are proposed to optimize the algorithm, while the effects of refractive propagation paths are considered. A parametric study of the algorithm based upon simulation results is shown. An acoustic field-trial was then carried out, presenting field measurements to highlight the practical implementation of this algorithm.

1. Introduction

The capability of reliable underwater modem technology [1, 2] has led to a growing number of emerging underwater applications, presenting with them new possibilities and challenges. One of these applications is the deployment of a cluster of underwater sensors [3], which offers benefits ranging from oil-platform monitoring [4] to ecosystem monitoring, surveillance, and early warning systems for tsunami. A typical application of a sensor deployment generally involves the collection of data and the delivery of these data [5, 6]. In the former, the knowledge of sensor positions may play an important role in aiding the interpretation of the recorded data or in improving the performance of signal processing algorithms such as in array processing [7]. In the latter, where the collected data are sent or relayed to a destination, the estimation of sensor position enables the implementation of more energy and latency efficient routing and channelaccess protocols [8, 9]. Therefore, in situations where the positional information are not available to the sensors prior to deployment, or that it changes after deployment, there exists the motivation to localize the sensors with existing modem capabilities.

The aim of this paper is to present and evaluate an algorithm using the weighted-majorization [10, 11] multidimensional scaling (MDS) approach for the localization of sparsely deployed sensors within the underwater environment. Based on extensive study of sensor localization in the radio frequency domain, the underpinning methodology can be broadly categorised into range-free and rangebased schemes [12]. Range-free schemes are effective in obtaining estimated positions for applications requiring limited accuracies but usually impose constraints on the flexibility of deployment. Range-based schemes are based upon the accurate measurements of Euclidean distances between the sensors, which can be derived from two-way ranging delays, time-of-arrivals, angles-of-arrival, or received signal strength indicator (RSSI). In the underwater environment, RSSI measurements are affected by multipaths and back-scattering especially in a shallow water environment such as in coastal waters or within a busy harbour. Also, acoustic modems generally operate within a frequency band that captures many external sources of noise, varying from shrimps [13] (in tropical waters) to breaking waves in a stormy weather [14], thus contributing to a high and fluctuating level of ambient noise. These factors can potentially lead to inconsistency in RSSI measurements. Similarly, measuring angles-of-arrival to a high accuracy may prove prohibitive unless every node is equipped with the necessary hydrophone array. The viable methods are therefore by using time-of-arrival measurements which require strict synchronization amongst all the nodes or by two-way ranging. The latter method requires no synchronization and operates by measuring the two-way propagation time assuming that the queried modem sends a reply packet after a fixed time-delay.

The task of underwater sensor localization can be considered as a two-step process; first by the localization of the sensors in the 3D Euclidean space with respect to one another using measurements of internode distances only, and then, if necessary, the anchoring of these positions to a reference or geodetic coordinate system. A relatively straightforward method of resolving the sensors' relative locations using only pairwise distance measurements is by metric multidimensional scaling, as a special case where one assumes that the measure of dissimilarities is represented by Euclidean distances, and that a set of coordinates within the relevant dimensions explain the observed distances. This concept has its roots in the field of psychometrics [15], in which an early analytical solution was presented by Torgerson [16] and referred to as classical MDS. In order to apply classical MDS to the problem of sensor localization, all the pairwise distances between the nodes need to be obtained [17]. This implies that every node needs to have acoustic visibility to all the other nodes. Such a requirement may often be difficult to meet in practice, as ranging measurements may be erroneous or unsuccessful between nodes that are further apart, as well as nodes that are partially obstructed (such as by harbour walls) and have no complete visibility to all the other nodes.

The contribution of this article is in addressing the problem of relative localization using incomplete pairwise distance measurements. By applying a robust approach based upon an iterative, weighted, cost-minimization algorithm known as stress-majorization [18, 19], it is shown that a cluster of sensor nodes can be efficiently localized in the absence of complete pairwise distance measurements. The key improvements introduced herein are a robust and effective method of initialization of the algorithm, a parametric study of the proposed approach, and a case-study of its practical application based upon experimental field measurements. The next section relates the contribution of this paper with regard to previous research effort within similar domain. Section 3 presents the analytical formulation of the problem and the algorithm of the proposed approach. In Section 4, simulation results provide a parametric evaluation on the algorithm's performance. Section 5 describes a field trial being conducted with 12 nodes using acoustic time-of-arrival measurements, capturing the issues related to the implementation of this algorithm and verifying the results predicted in the simulation study. Section 6 presents a short discussion on the scope of this article while Section 7 draws the conclusion from this work.

2. Related Work

Sensor localization is an area of active research in both the radio [2024] and underwater domains [2529], where various solutions based on different levels of constraints and assumptions on infrastructure availability have been studied. Broader reviews on this subject can be found in [12, 30].

In [23], Patwari et al. applied maximum likelihood estimation techniques to approximate a node's relative location, but the accuracy of the approximations (and the validity of the derived lower Cramer-Rao bounds) depends on having complete pairwise distances for all the nodes and knowledge of the probability distribution underlying the observed data. Although one can assume that the pairwise distances are Gaussian distributed (the validity of which increases with higher signal-to-noise ratios [31]), the requirement of obtaining all pairwise distances may introduce a challenging constraint in practice for the application scenario considered in this article. In [22], Moses et al. also presented a self-localization approach method using a maximum-likelihood estimator, relying on both time-of-arrival measurements and angle-of-arrival measurements. It is also acknowledged that with incomplete data measurements, the maximum likelihood estimator may not yield a unique solution.

In [17], Shang et al. applied classical-MDS by eigenvalue decomposition (EVD) for the localization of nodes using distance measurements. It is demonstrated that closed-form solutions can be obtained without the need for iterative computations, but this is restricted by the condition that global information of pairwise distances in the network needs to be made available to a central processor or to all individual nodes. Ji and Zha [32] applied a majorization-MDS approach for sensor localization, allowing for missing pairwise distances. This removes the requirement for complete pairwise distance measurements. However, a random start configuration is applied for the estimation of the initial point coordinates, and the possible existence of non-linear propagation paths was not discussed. The work is extended by Costa et al. in [33], where arbitrary non-negative weightings can be applied to distance measurements, such that adaptive weightings can be applied to account for different levels of confidence amongst the pairwise distances. The proposed algorithm is decentralised such that each node estimates its local cost function iteratively, then communicates this to their neighbours in order to achieve cost minimization globally across all the nodes. However, there is little emphasis on the method for estimating initial node positions, and the algorithm similarly assumes that the measured distances are an accurate representation of Euclidean distances between the nodes. Also, since the focus is on adaptively choosing neighbours based upon the quality of measurements by allocating the appropriate weightings, the work did not investigate the tolerance of the algorithm to varying levels of missing pairwise measurements.

An experimental study of sensor self-localization in the free-space outdoor environment was conducted using acoustic ranging by Kwon et al. in [34]. In addressing the issue of missing and noisy distance measurements, a weighting function that was coupled with a soft constraint of minimum distances were introduced. The key difference in their approach is in that a gradient descent algorithm was applied in the process of minimization, and that a multiple restart scheme was used to avoid local minima. Separately, an alternative method of addressing missing distances within a 3D environment was studied by Birchfield [35], which iteratively uses a subset of points (up to 4 for 3D) with the highest availability of distance measurements to derive an estimate of local coordinates, until all the coordinates based on relative distances are obtained. Simulation results showed that this can effectively mitigate the need for classical MDS in cases where the condition, that each node has a minimum of unique distance measurements to nodes that satisfies the same condition, is met, where is the total number of dimensions. This condition is more easily met when the total number of sensors is high compared to the number of dimensions which is usually only up to 3 in a Euclidean space.

The focus of this work is on a majorization-MDS algorithm for the relative localization of underwater sensors, or nodes, by using only incomplete inter-node distance measurements, given no other a priori information. Central to this approach is the application of classical-MDS using approximated distances in replacement of missing pairwise distances for obtaining the initial estimates of coordinates for the majorization algorithm. This is shown to be effective in avoiding local minima, and mitigates the need for multiple restarts with different sets of random estimates.

3. A Weighted and Iterative Minimization Approach

Iterative majorization, a term coined by Heiser [11], is a minimization method formulated in the field of geometric data representation [10, 18], and can be applied to multidimensional scaling [19, 36]. One of the attractive features of this algorithm is that a non-increasing sequence of function values are yielded, implying a quick and guaranteed convergence. However, it is worth noting that the algorithm does not necessarily converge at the global minimum. On the contrary, the point of convergence would, in most cases, be at a local minimum [37], hence the importance of having an effective approach to find the global minimum when applying this algorithm.

The sensor nodes are assumed to be stationary, or drifting at such a rate that the change in position during localization is negligibly small. Nodes are also assumed to have protocols to broadcast their presence to the other nodes, to perform mutual ranging measurements, and to share their range measurements with the other nodes. This assumption does not reduce the practicality of the algorithm proposed herein. In its simplest form, this can be based on a classical time-division protocol, where nodes broadcast their ID and any known pairwise measurements before performing ranging measurements to any previously unknown nodes, and repeating the process several times. Time-slots can be uniquely allocated based upon each node's unique ID [38], while the slot length is defined in order to mitigate the need for strict time-synchronization across all the nodes. Optimized distributed protocols can be found in [33, 39].

3.1. Problem Formulation

Relative-localization involves calculating a set of relative coordinates in the relevant dimensions of the Euclidean space for all the nodes within a cluster, such that their corresponding pairwise distances closely match the measured pairwise distances. Given number of sensor nodes, the coordinates of these nodes are represented by an matrix X where is the number of dimensions. The pairwise distance between any two nodes is a function of the set of coordinates , and for a Euclidean space can be expressed as


where is the pairwise distance between nodes i and j, calculated using their respective m dimensional coordinates. The elements form a symmetrical pairwise distance matrix, D. Similarly, the measured distances between nodes and , , form a symmetrical pairwise distance matrix . The mismatch between the measured distances and those which are calculated for the approximated coordinates can be expressed as


where is the weighting for the distance between node and that corresponds to element (i, j) in both the matrices and D. The condition of denotes the elements in the upper triangle of the symmetrical matrices. The weightings are normalized to values between 0 and 1 where a 0 represents a missing distance measurement. The function σ is commonly referred to as the stress function in related literatures [40]. The remaining task is to approximate the coordinates of the nodes, , such that the value of is minimized.

3.2. Classical-MDS

When all the pairwise distance measurements are available, classical-MDS offers a solution without iterative computations. Using the matrix , the computation steps for classical-MDS [16, 24] are given as follows.

  1. (1)

    Calculate a covariance matrix, Z, from the square of the distance matrix, by multiplication with centring matrices, producing a centred matrix where , I is an identity matrix of size , and L is a square matrix of ones of size n.

  2. (2)

    Compute the eigenvalues, , and eigenvectors, Q, by applying eigen-decomposition on .

  3. (3)

    The approximated coordinates, , is then given by where is the first elements of , while is the first elements of that usually correspond to the non-negative eigenvalues in the diagonal.

3.3. Iterative Majorization Initiated by Approximated Classical-MDS

If some of the pairwise range measurements cannot be obtained, for example as a result of obstruction to the line-of-sight, then the measured pairwise distance matrix will be incomplete (in which the elements that correspond to the unavailable measurements are 0). In such cases, the function in (2) can be iteratively minimized by updated approximations of . This is achieved by using a majorization function that satisfies a chain of inequality towards the stress function, resulting to new approximations of that yield a smaller value for the stress function. The derivation of the majorization function is well documented in [36]. For the purpose of clarity in describing the proposed modifications, the usual procedures of the algorithm are herein described.

  1. (1)

    Set the weights corresponding to the pairwise distances, using 0 for missing measurements and 1 otherwise, or, if a priori knowledge is available to provide indication towards the relative levels of confidence in the measurements, positive ratios of up to 1 are allocated.

  2. (2)

    Initialize to a set of random coordinates, and the number of iterations, , then calculate using (2).

  3. (3)

    Calculate an update for by using the relationship:

  4. where

    , is a matrix with elements formed from the allocated weightings such that if and for the diagonal elements. Recall that L is a square matrix of ones of size n. contains elements calculated in the following manner:

  5. (4)

    Calculate s k+1 and repeat from step 3 if , where is an arbitrarily small positive constant acting as a threshold beyond which is indicative of a convergence, or if , where is the maximum number of iterations allowed. Otherwise, the relative locations are given by the coordinates in . The corresponding distance matrix is . The value of can be set as , such that it is suitably small to indicate that any further iterations yield negligible minimisation of the error parameter s, hence no further improvements to the estimate of relative positions.

3.4. Algorithm Optimization

A common method to optimise the iterative algorithm in Section 3.3 is to apply multiple restarts (i.e., performing the complete iterative algorithm repetitively) using different sets of random initial coordinates in order to avoid local minima. This may be computationally intensive for embedded processors on deployable nodes, which usually implies greater power consumption. An alternative method is herein proposed for mitigating random restarts, and is shown in Section 4 to have comparable performance but with a significant reduction in computation requirement.

Central to the proposed approach is the observation that, albeit with poor results, classical-MDS can be performed on a distance matrix with missing measurements. One may choose to obtain a relatively inaccurate, but rapid, approximation of the missing measurements by taking the mean of available pairwise distances corresponding to both and nodes (i.e., mean of available measurements across the rows of and ). The algorithm of classical-MDS described in Section 3.2 can be applied to , but is set to so that is a set of coordinates in a larger number of dimensions than the Euclidean space. By principle component analysis [41], one then notes that the columns of that have larger values of standard deviations would represent the more principal axes, or dimensions, in the data. It is then possible to discard the dimension with the least standard deviation, recalculate an updated distance matrix, and obtain a new with a smaller number of dimensions, until the coordinates in 3-dimensional space are obtained. This is applicable because distance measurements corresponding to the Euclidean space are often restricted to within 2 or 3 dimensions, such that . However, the final result is often a few orders of magnitude inferior to the results obtained from iterative majorization with multiple restarts. This is because some useful information in the discarded axes is inevitably lost during dimensionality reduction.

A more robust approach therefore is to merge this technique with the iterative majorization algorithm, such that the coordinates can be used as the initial estimates for the iteration. The complete steps are described as follows.

  1. (1)

    Obtain rapid approximations of the missing pairwise distances using simple averaging for available measurements corresponding to the pair of nodes, yielding .

  2. (2)

    Perform classical-MDS on to obtain such that the coordinates have number of dimensions.

  3. (3)

    Set and perform the majorization algorithm in Section 3.3 using the original and corresponding weightings.

  4. (4)

    Upon convergence, calculate a new set of distances, , by using .

  5. (5)

    Perform classical-MDS on with or 3 depending on the desired number of dimensions.

  6. (6)

    Using the obtained as initial estimates, perform the majorization algorithm to obtain the final coordinates. The corresponding distance matrix is .

To distinguish between the two approaches, this approach is named as MDSInit while the random multiple restart approach is named as RandInit. The results from a parametric study comparing MDSInit and RandInit are shown in Section 4.

3.5. Issues Related to Underwater Sound Propagation

There are two issues related to underwater sound propagation that have a direct impact on the measurement of pairwise distances. The first is the estimation of sound velocity. The distances are usually obtained from the time or time-delay-of-arrival measurements using an estimated sound velocity. However, this estimated velocity may contain an error if the sound speed profile is not measured prior to localization of the assets. By making the assumption that the estimated velocity is the velocity at the corresponding depth of the node, the error can be compensated using a simple scaling factor. However, the accurate scaling factor cannot be directly optimized using the implied distances because the actual path of sound propagation is usually greater than the shortest Euclidean internode distance assumed by MDS algorithms, which leads to the second issue.

The refraction experienced by a sound wave is proportional to the gradient of velocity with respect to depth. Although the modelling of the precise path is more involved, it is possible to approximate a relationship between the shortest distance and the non-linear path using the Ray theory [42], which in the underwater environment is applicable for higher frequencies of a few kHz and above. This is applicable for underwater modems that have effective range of up to a few kilometres, hence operating within a relatively high frequency band, typically from 2 to 20 kHz. If the operating environment is assumed to have a depth of not more than 100 m, the velocity gradient can be treated as quasi-constant such that there is no significant fluctuation in the underlying trend [43]. This is usually representative of shallow coastal waters, and may not encapsulate all possible deployment environments for underwater sensor networks. Given this assumption, the non-linear path then becomes an arc of curvature for a circle with a radius r as shown in Figure 1, expressed as (by Snell's law):

Figure 1
figure 1

Refracted path modelled as an arc of curvature given the assumption of constant sound velocity gradient.


where is the velocity of sound corresponding to the depth of the source, g is the gradient of the velocity variation, and is the launch angle of the ray. The relationship between the length of the refracted ray, s, and the shortest distance a can be stated as (by trigonometry of an isosceles triangle):


As an example, if the ray is horizontally launched by a node at 50 m depth, and the velocity profile has a gradient of 2 ms-1/100 m, the relationship between () and s is shown in Figure 2, indicating that for the assumed environment, the error introduced by sound refraction is mild for ranges under 4000 m. With time-delay-of-arrival measurements, this error is doubled due to the two-way propagation path.

Figure 2
figure 2

Error from shortest distance due to refracted propagation path.

Compensating for this error requires the availability of sound velocity profile data during localisation. Figure 2 shows that in very shallow water environments with relatively benign velocity profiles and short ranges (i.e., under 4000 m), the error caused by sound refraction is relatively small (i.e., 0.02% of the range) compared to the ambiguity errors that are potentially introduced by a large percentage of missing pairwise distances (typically in the order of 10 to 20% of range). Another common compensation approach is by using a set of available anchor points of which the precise coordinates, and hence shortest inter-node distances, are used to predict a best-fit velocity profile by matching against ranging measurements. These anchor points are also used for mapping the relative locations onto geo-coordinates by using m-axis vector translations along with -axis rotations.

It must be noted that the nonlinearity of the propagation path is only insignificant in very shallow waters where the variation of sound velocity with respect to depth is small. However, this assumption is no longer valid in deeper waters, and therefore, it is important in such cases to compensate for the associated errors. An effective numerical solution is presented by Berger et al. [44] that evaluate and compensate for the stratification effect of the depth-dependent sound velocity by using only the depth and sound velocity profile information, and allows for noisy (Gaussian) time-of-arrival and depth measurements.

3.6. Weighting Matrix

The weighting matrix can be used to set the level of influence exerted by the corresponding distances in the outcome of the algorithm. Intuitively, the weightings are a representation of confidence in the measured data, and with the appropriate levels that best matches the actual underpinning conditions, one seeks to obtain an optimal weighting matrix that produces the relative locations with the smallest error. A priori data can be used to guide the allocation of weighting. As an example, if a modem is known to produce an error that is proportional to the measured distance, then one would penalise the weighting for a larger distance measurements. Such information can also come from detailed channel modelling for a known environment. Without a priori data, the estimation of an optimal weighting matrix relies heavily on the availability of statistical information that can be extracted from the measured data.

With both time-of-arrival measurements and time-delay-of-arrival measurements, it is possible to obtain multiple measurements, and adjust the weighting based upon the standard deviations of these repetitive measurements, such that data with large standard deviations are allocated smaller weights. This assumes that the error influencing the deviations has a nonzero mean. Otherwise, taking the average of a sufficiently large number of repetitive measurements would give a similarly confident result. In the case of time-of-arrival measurements, the difference between the measurements in opposite directions provides an indicator to the bias in the distance measurement. For the acoustic experiments detailed in Section 5, the wind speed was estimated using the differences in time-of-arrival measurements, and the weighting matrix is adjusted based upon the standard deviations of repetitive measurements.

4. Parametric Simulations

Simulations were carried out in order to obtain a comparison between the initialization approaches. The approach of using MDS and dimensionality reduction to initialize points is named as MDSInit, while RandInit denotes the use of multiple sets of random initial points.

The environment was a 10000 10000 3000 m 3-D space. As the purpose of the simulation is to carry out a parametric and comparative study of the algorithms within a 3-D space, using a very shallow environment (i.e., 100 m depth) would reduce the dimensionality problem to a 2-D approximation. A number of nodes, , were randomly placed in this environment with uniform probability on all 3 axes. It is usually desirable for underwater sensors to be deployed on the sea-bed with sensing elements buoyed to known depths. However, given a priori knowledge of sensor depth and a relatively flat sea-bed, the 3-D MDS problem becomes reducible. The random placement of the sensor in the depth dimension simulates the unknown variation of depth amongst the sensors, and can be reasonably assumed to be a superset of the equi-depth and known-depth scenarios.

The majorization algorithm was performed using both the MDSInit and RandInit approaches. After obtaining the relative coordinates, the inter-node distances were calculated and compared to the inter-node distances from the actual coordinates. The elapsed processing time was also logged. This was then repeated with an increasing percentage of missing pairwise distances. The distances were removed in the order of their magnitude, such that the largest distances are first removed, until the required level is reached. The number of random multiple restart allowed for RandInit is limited to 50, from which the solution with the lowest stress function value was selected. The results are shown in Figures 36. It is worth noting that the scale on the -axis of the figures have been adjusted in order to give a better visual comparison. Any off-the-chart points, with values beyond the maximum on the -axis, are considered to be the point at which the corresponding percentages of missing distances become large enough to contribute to significant performance degradation.

Figure 3
figure 3

(a) Error performance; (b) processing time versus percentage of missing pairwise distances (where the larger distances are made missing) using ideally measured distances.

Figure 4
figure 4

(a) Error performance; (b) processing time versus percentage of missing pairwise distances using distances with added 0 mean and 5 m standard deviation Gaussian noise.

Figure 5
figure 5

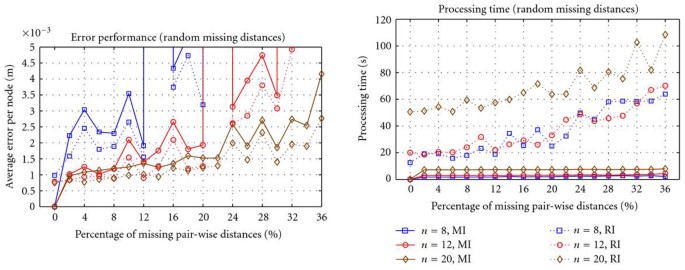

(a) Error performance; (b) processing time versus percentage of missing pairwise distances using ideal distances, where the missing distances are randomly selected.

Figure 6
figure 6

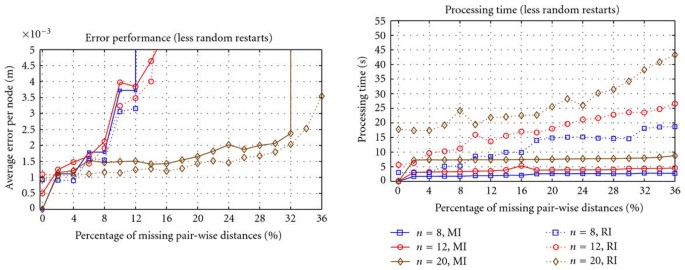

(a) Error performance; (b) processing time with the number of multiple restart is constrained to 15, an empirical level at which both the error and missing distance tolerance performances are comparable for both approaches.

Each data-point of the simulation results is obtained by averaging over 10 random geometrical configurations. This relatively small number of random trials contributed to the non-smoothness in the data, but this sufficiently illustrates the trend of relationship between the parameters. Figure 3 shows the result under ideal measurement conditions, while Figure 4 shows the result where the distances are corrupted with Gaussian noise of zero mean and 5 m standard deviation. Both the MDSInit and RandInit approaches are shown to have comparable minimization performance in terms of error from the actual distances, while the MDSInit approach has a lower tolerance to incomplete pairwise distances. Where the distances are corrupted by Gaussian noise (Figure 4(a)), the error performance is dominated by the noise, demonstrating that the error performance is very similar in both approaches. The spikes in the error charts are due to a node's coordinate being resolved inaccurately, hence biasing the average error. As the missing pairwise measurements are those with the furthest distances, this occurred in the random arrangements where a single node was located much further away than the rest of the nodes, hence sharing most of the missing distances. This is verified by the results in Figure 5 obtained using ideal distance measurements, but with distances set to missing in a random manner as opposed to the largest distances. When missing distances are set as missing in a random manner, there is a smaller probability that any one node would suffer a much higher loss of measurements, hence the higher missing pairwise tolerances in both the approaches.

The simulation results also demonstrate that the processing time for the RandInit approach is significantly longer. Where a 50-time multiple restart was applied, the RandInit approach provided consistent error performance and outperformed the MDSInit approach in terms of missing-pairwise tolerance, at the expense of a processing time that is up to 20 times longer. Figure 6 shows that when the number of multiple restarts was reduced to 15, the empirical level at which both the error performance and missing pairwise tolerance is comparable, the processing times were reduced to a level of up to 3 times longer.

5. Acoustic Field Trial

A practical demonstration of the localisation capabilities of a partially interconnected set of sensors was conducted during June 2009. A blustery, humid day was deliberately chosen to provide anisotropic propagation velocity conditions. The sensors were located on an undulating site to provide a 3D topography. This site was chosen to be adjacent to a road and under an airport flight path in order to provide intermittent noise conditions. Finally, high buildings surrounded two sides of the site in order to provide extreme multipath propagation conditions. Photographs of the site and equipment setup are shown in Figure 7.

Figure 7
figure 7

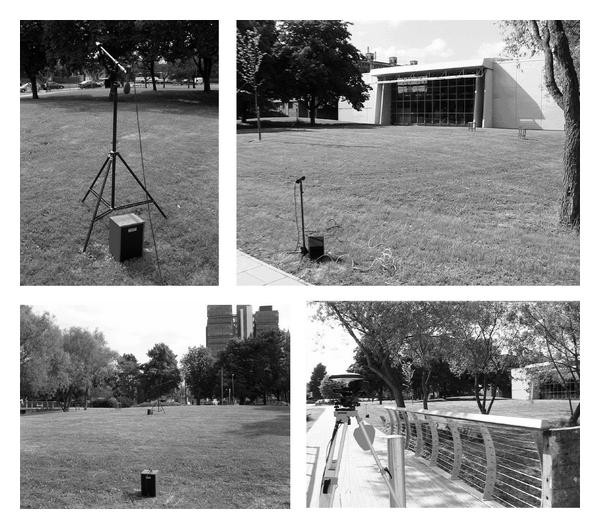

The experimental site and the equipment setup on the site.

Twelve microphones were located at positions previously determined using a survey-grade, carrier-phase-tracking global positioning satellites (GPS) receiver, as shown in Figure 8. Five of these microphones were colocated with a projector, whilst a roving projector was manually moved to the remaining seven microphone positions. Each projector was sequentially excited by a Hann weighted, linear frequency modulated sinusoid sweeping the band from 0 Hz to 16 kHz in 5.26 seconds. The receiver consisted of a bilaterally weighted matched filter providing a processing gain of some 46 dB against white noise. However, the coloured traffic-noise environment and blustery conditions typically resulted in a processing gain varying from 20 to 35 dB.

Figure 8
figure 8

The actual positions of the nodes as surveyed by the carrier-phase tracking. GPS with regard to a local reference point. The contours depict the varying height of the site.

A constant probability of false alarm (CFAR) detector [45, 46] was used to automatically detect the occurrence of the direct-blast originating from the projectors. This consisted of a 30 ms noise-estimation window and a 2 ms signal-estimation window, separated by a guard-band of 1 ms. A 20 dB detection threshold was applied in order to reduce the false alarm rate. A typical matched filter output is shown in Figure 9, this shows that the direct blast is frequently of smaller amplitude than the multipath reverberation from the adjacent buildings and that the reverberation decays as an inverse square law. This is often associated with the adverse propagation conditions in the vicinity of the air-ground interface resulting from wind-shear and thermal profiles and unpredictable phase-changes [47]. A dynamic range of received signal strength in excess of 60 dB was encountered during the experiment.

Figure 9
figure 9

Typical matched filter output.

Both the microphones and projectors have dimensions that are large in terms of wavelengths at the higher operating frequencies and thus become directional. The identification of the direct blast becomes virtually impossible under noise- and reverberation-limited conditions, resulting in a random selection of a multipath, as shown in Figure 10.

Figure 10
figure 10

Extreme noise- and reverberation limited conditions.

Under such circumstances, the approach adopted was to determine the cumulative distribution function and to place more confidence in results with tightly clustered distributions. The zero-mean range estimate ensemble average of the cumulative distribution functions from fifty six available sensor pairs is illustrated in Figure 11. The limit of the shaded area equates to one standard deviation from the mean. It will be noted that the standard deviation of the majority of range estimates is less than 1 m. With a temperature of 2C, the wind-free sound velocity is estimated as 345 ms-1.

Figure 11
figure 11

Cumulative distribution functions of all zero-mean range estimates.

The standard deviation of the range estimates may be used to compute a scoring matrix for use within the MDS algorithm, as shown in Figure 12. The value of the scoring matrix is calculated from , where and represent the standard deviation of a sensor pair range estimate and the peak standard deviation of all the sensor pair range estimates, respectively. Values of unity are associated with sensor-pairs with a low standard deviation. Where a higher value of standard deviation is encountered, or associated with the random selection of a multipath, a low score is returned and this measurement has less impact on the position estimation algorithm.

Figure 12
figure 12

Scoring matrix derived from standard deviation of range estimates.

The range estimates can also provide information about the anisotropic propagation velocities by considering the difference between elements mirrored by the leading diagonal of the range estimation matrix. This may be directly mapped back to wind speed and direction. A display of wind vectors derived from sensor pair measurements is shown in Figure 13. The centre of each cluster of vectors corresponds to the microphone position. The average length of the vectors varies significantly across the site because some microphones were nestling in hollows and were well shielded from the wind, whilst others were mounted on stands of typical height 1 m and placed in positions exposed to prevailing wind conditions.

Figure 13
figure 13

Estimate of wind speed vectors.

The averaged wind speed across the sensor field was estimated as 1.94 m/s (7 km/hr) and a heading of 160 degrees. This compares with the meteorological wind speed measured on the day of 19 km/hr from the North East direction, obtained from the nearest weather station at an airport about 12 km away. Therefore, the wind speed on the experimental site varied due to local conditions such as the presence of urban landscapes. The wind speed estimate was obtained from the difference between the time-delay measurements in opposite directions, a method applicable only when using time-of-arrival measurements.

The estimated ranges formed a 12 12 distance matrix, . The actual distances as surveyed by GPS was stored in matrix and was only used to calculate errors of the final results from the algorithms. The error-per-node was calculated by taking the average of the absolute difference between and . Both the RandInit and MDSInit algorithms as detailed in Sections 3.3 and 3.4, respectively, were applied on the estimated ranges. The estimated ranges were first processed with a unity weighting matrix such that equals to 1 for available distance entries or 0 otherwise, over an increasing percentage of missing pairwise distances, chosen from the larger distances. This was then repeated with randomly chosen missing pairwise distances. The results are shown in Figures 14 and 15, respectively.

Figure 14
figure 14

(a) Error performance; (b) processing time versus percentage of missing pairwise distances with uniform weighting and largest distances missing.

Figure 15
figure 15

(a) Error performance; (b) processing time versus percentage of missing pairwise distances with uniform weighting and random missing distances.

It can be observed that the results are comparable with the prediction from the simulation study. The error performance is dominated by external factors such as varying wind conditions and the presence of bursty noise associated with the traffic. Therefore, the error performances of both the RandInit and MDSInit approaches are almost identical. Where the missing distances are set with largest distances, the tolerance to the level of missing distances is significantly lower as the error from the furthest node increases the average error.

The data were then processed by using a nonuniform weighting matrix that was scored in an inversely proportional manner to the standard deviation of the measured data. The results are shown in Figures 16 and 17.

Figure 16
figure 16

(a) Error performance; (b) processing time versus percentage of missing pairwise distances with standard-deviation adjusted weighting and largest distances missing.

Figure 17
figure 17

(a) Error performance; (b) processing time versus percentage of missing pairwise distances with standard-deviation adjusted weighting and random missing distances.

The improvement in error performance from the use of an adjusted weighting matrix is minimal. This is because the algorithm is minimizing the error between the distance matrix of the estimated relative coordinates and the measured distance matrix. Figure 18 shows the final stress values in the MDSInit approach for both uniform weighting and adjusted weightings, demonstrating lower stress values (as expressed in (2)) for the adjusted weightings across all the levels of missing pairwise distances. The lower stress value indicates that the adjusted-weighting yields estimates that better fit the measured distances. Figure 19 shows the individual errors of the pairwise distances with respect to the actual distances, highlighting the fact that the average error per node can be biased due to the failure to resolve the relative location of a small number of nodes in the cluster.

Figure 18
figure 18

The application of a weighting matrix adjusted using the standard deviation of the measured data contributes to a lower stress value (as expressed in (2)) in the algorithm.

Figure 19
figure 19

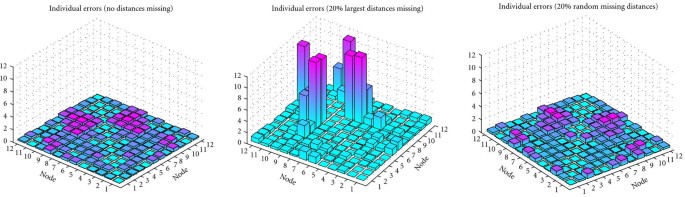

Individual error performances obtained with the MDSInit approach with adjusted weightings for (a) no missing distances, (b) 20% largest distances missing, and (c) 20% random missing distances.

The average wind speed estimate, as shown in Figure 13, can be used to build a compensation matrix for the resolved distances. By using the matrix dot product, the variation in sound velocity experienced by the path between any pair of nodes can be calculated. Figure 20 shows that the error from the actual distances is reduced when the velocity compensation matrix is applied based upon the average value of 1.94 m/s with a 160 degree heading. Both were processed with the MDSInit approach using adjusted weighting. Where all distance measurements are available, the average error per node from actual, GPS-surveyed, distances is 0.2 m. It is worth noting that the GPS survey data has a standard deviation of about 0.05 m, while the co-location of the projector and microphone has an ambiguity of approximately 0.03 m.

Figure 20
figure 20

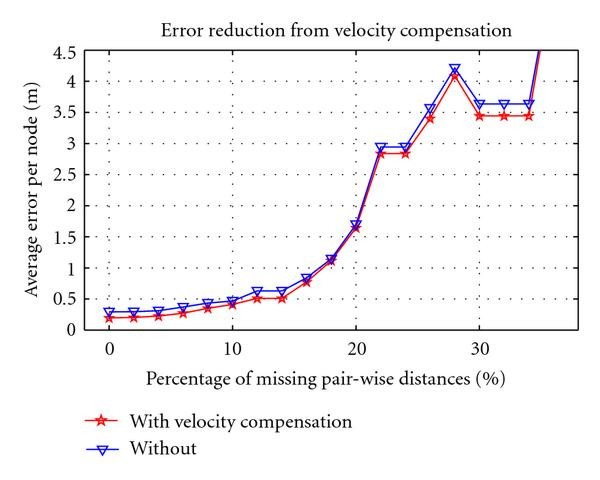

Reduction of error per node by velocity compensation using the average wind vector estimate.

For completeness, the relative coordinates are mapped onto the reference coordinate shown in Figure 8. Three anchor points are chosen arbitrarily (nodes 1, 2, and 3) and the coordinate transformation matrix involving a 3-axes translation and a 3-axes rotation is derived using Nelder-Mead minimization [48]. Figure 21 shows the mapped coordinates of the nodes for different percentages of missing largest distances.

Figure 21
figure 21

Mapped node positions with respect to actual surveyed positions using anchor nodes 1, 2, and 3. Circles are actual surveyed positions, crosses are positions resolved with complete set of pairwise distance, triangle are resolved with 10% largest distance missing, while asterisks are resolved with 20% largest distance missing.

6. Scope of Study

The proposed algorithm inherently seeks the points that best fit the measured distances. In most realistic scenarios, the measured distances will contain some errors from the actual distances. It was shown that compensating the bias in sound velocity using the estimated wind vector reduces the error between the estimated distances and the actual distances. Similarly, in underwater applications where the sound velocity profile is available, the refraction path can be estimated to produce an adjustment matrix for the estimated distances. Also, the actual distances between available anchor nodes can be used to evaluate the reliability of the measured distances. More involved research related to the area of optimising the fit between the estimated and actual distances using information from anchor points can be found in [49, 50].

The relative-localization problem considered in this article is for a cluster of node, but the solution is not necessarily restricted to a single-hop cluster. In a distributed, multi-hop arrangement of underwater nodes, relative-localization is usually reduced to the local positioning of a cluster of nodes with local anchor points, before iteratively optimizing the relative positions between the clusters. Therefore, the incomplete pairwise distance matrix can be considered as an irreducible matrix from a larger, global distance matrix for a distributed network of nodes.

A theoretical analysis on the performance constraints of relative location estimation as a function of the number of links to an anchor node and the total number of unanchored nodes is documented in [51].

Although the acoustic environment in which the experimental trial was conducted was also affected by ambient noise, multipath signal arrivals, and wind distortions, there are, nevertheless, notable differences from the underwater environment. The spectral characteristics of the ambient noise differ between the air-acoustic and the underwater environment. In the experiment, the main sources of ambient noise were from the nearby traffic. In the underwater environment, the performance-limiting ambient noise may originate from various sources local shipping in coastal waters, organisms such as snapping shrimps in tropical waters, and breaking waves. In both cases, the ambient noise would be expected to have non-stationary statistical characteristics. In terms of multipaths, reflections came from the buildings as well as the ground in the experimental environment, whilst in the underwater environment there are sea surface and sea bed reflections as well as multipaths from refractive spreading. The experimental environment is relatively homogeneous, and therefore gave rise to negligible refraction. The same is only valid in a very shallow water environment.

7. Conclusions

A robust approach for relative location estimation is presented, based upon a minimization method known as iterative majorization, which allows the estimation of relative coordinates using an incomplete pairwise distance matrix. An optimized initialization approach is proposed which demonstrated comparable minimization performance while requiring approximately 20 times less computing cycles.

It is shown that for underwater applications, sound refraction can contribute to the error between the measured and actual distances. However, in relatively shallow waters where the sound velocity gradient is benign and for ranges under 4000 m, the difference is likely to be small, but should be taken into account if the sound velocity profile is known.

Simulation study on the proposed approach demonstrated that the tolerance to missing pairwise distance is in the region of 8% to 30% depending on the number of nodes in the cluster and the pattern of missing distances. In cases where the missing pairwise distances are the largest distances, the tolerance is lower compared to randomly missing pairwise distances. This is because the higher loss of pairwise distances at the furthest nodes leads to failure to resolve their positions.

An acoustic field trial was carried out to evaluate the proposed algorithm. The results demonstrated that the application of a weighting function adjusted by the standard deviation of the observed data optimizes the fit between the estimated and measured distances, while the improvement in fit between the estimated and actual distances is much smaller. The estimated distances are then corrected using an estimate of the wind vector to calculate the variation from wind-free sound velocity during the trial. This leads to an observed reduction in the error of the estimated distances. The error performance and tolerance to missing pairwise distances of both approaches, as well as the significant reduction in processing time of the proposed approach are similarly demonstrated with the field trial measurements. Finally, the relative coordinates of the nodes are also mapped onto the reference coordinate of the site, showing good agreement with the actual nodes' positions as surveyed by a carrier-phase-tracking GPS. Although both the simulation and experimental field trial results provided an indication to the practicality and robustness of the proposed algorithm in the context of optimising the process of relative positioning using incomplete distance measurements, it is worth noting that a direct extrapolation to predict its performance in an underwater environment is still constrained by variables that are not herein considered due the fundamental difference between the air-acoustic and the underwater environment.
