Evaluation of a Validation Method for MR Imaging-Based Motion Tracking Using Image Simulation

EURASIP Journal on Advances in Signal Processing volume 2010, Article number: 942131 (2009) Cite this article

Abstract

Magnetic Resonance (MR) imaging-based motion and deformation tracking techniques combined with finite element (FE) analysis are a powerful method for soft tissue constitutive model parameter identification. However, deriving deformation data from MR images is complex and generally requires validation. In this paper a validation method is presented based on a silicone gel phantom containing contrasting spherical markers. Tracking of these markers provides a direct measure of deformation. Validation of in vivo medical imaging techniques is often challenging due to the lack of appropriate reference data and the validation method may lack an appropriate reference. This paper evaluates a validation method using simulated MR image data. This provided an appropriate reference and allowed different error sources to be studied independently and allowed evaluation of the method for various signal-to-noise ratios (SNRs). The geometric bias error was between 0– voxels while the noisy magnitude MR image simulations demonstrated errors under 0.1161 voxels (SNR: 5–35).

1. Introduction

The body responds to mechanical loading on several timescales (e.g., [1, 2]), but in vivo measurement of critical parameters such as muscle load, joint reaction force, and tissue stress/strain is usually not possible [3, 4]. In contrast, suitably validated computational models can predict all of these parameters, and they are therefore a powerful tool for understanding the musculoskeletal system [4, 5] and are in use in diverse applications from impact biomechanics [6, 7] to rehabilitation engineering [8, 9], surgical simulation [10, 11], and soft tissue drug transport [12].

Skeletal muscle tissue in compression is nonlinear elastic, anisotropic, and viscoelastic, and a constitutive model with very good predictive capabilities for in vitro porcine muscle has been proposed [13, 14]. However, validating this model for living human tissue presents significant difficulties. Some authors have used indentation tests on skeletal muscle [15, 16], but the tissue was then assumed to be isotropic and linear in elastic and viscoelastic properties. In contrast, noninvasive imaging methods that allow detailed measurement of human soft tissue motion and deformation (due to known loading conditions) combined with inverse finite element (FE) analysis allow for the evaluation of more complex constitutive models.

The work presented here is part of a study aiming to use indentation tests on the human arm, tagged Magnetic Resonance (MR) imaging and inverse FE analysis to determine the mechanical properties of passive living human skeletal muscle tissue using the constitutive model described in [13, 14].

Recently the potential of using surface deformation measurements from 3D digital image correlation to assess mechanical states throughout the bulk of a tissue has been shown [17]. However MR imaging combined with deformation tracking techniques can provide 3D deformation data throughout the tissue volume and is ideal for the evaluation of constitutive models such as [13, 14]. MR imaging has been used to study skin [18], heart [19], and recently also rat skeletal muscle [20] (though a simplified Neo-Hookean model was applied).

The techniques for tracking tissue deformation from (e.g., tagged) MR imaging are complex and require validation using an independent measure of deformation. Since physically implanting markers is not feasible and anatomic landmarks are either absent or difficult to track, alternative methods have been employed. Young et al. [21] recorded angular displacement of a silicone gel phantom using tagged MR images and evaluated the results using FE modelling and 2D surface deformation derived from optical tracking of lines painted on the phantom surface. Similarly, Moore et al. [22] used optical tracking of surface lines on a silicone rubber phantom to validate MR-based deformation measures. However simple tensile stretch was applied and only a 2D measure of surface deformation was used. There were also temporal synchronisation issues between the optical and MR image data. In both of the optical validations studies above the error related to the optical tracking method was not quantified. Other authors have used implantable markers. For instance Yeon et al. [23] used implanted crystals and sonomicrometric measurements for validation of tagged MR imaging of the canine heart. However the locations of the crystals were verified manually by mapping with respect to surface cardiac landmarks in the excised heart and matching problems between MR and sonomicrometric measurements occurred. Neu et al. [24, 25] evaluated a tagged MR imaging-based deformation tracking technique for cartilage using spherical marker tracking in a silicone soft tissue phantom. However the marker centres were determined by manually fitting a circle to each marker in two orthogonal directions and imaging was performed on excised tissue samples at high resolution (over 32 voxels across marker diameter) using a nonclinical 7.05T scanner.

This paper shows that validation of in vivo medical imaging techniques and image processing algorithms is challenging partially due to the lack of appropriate reference data. Although experimental validation methods using soft tissue MR imaging phantoms can be developed, the data derived from these often suffers uncertainties similar to those present in the target soft tissue. Therefore the validation method itself often lacks an appropriate reference. In this paper a novel technique for the validation of a 3D MR imaging-based motion and deformation tracking technique, applicable to 3D deformation, is presented. The validation method, based on marker tracking, was evaluated (and validated) using simulated magnitude MR image data because this allows full control and knowledge of marker locations and thus provides the final real "gold standard.'' It addition this allows for the independent analysis of geometric bias and of method performance across a wide range of realistic noise conditions.

2. Methods

2.1. The Tissue Phantom

The proposed validation configuration is an MR compatible indentor used to apply deformation to a phantom and provides an independent measure of deformation allowing validation of MR imaging-based motion and deformation tracking. A silicone gel soft tissue phantom was developed to represent deformation modes expected in the human upper arm due to external compression (see Figure 1), as such the phantom resembles a cylindrical soft tissue region containing a stiff bonelike core. The gel (SYLGARD 527 A&B Dow Corning, MI, USA) has similar MR [26] and mechanical [17] properties to human soft tissue and has been used in numerous MR imaging-based studies on soft tissue biomechanics [21, 24, 27–34]. Embedded in the gel are contrasting spherical polyoxymethylene balls of  mm diameter (The Precision Plastic Ball Co Ltd, Addingham, UK). The lack of signal in the markers in comparison to the high gel signal allows tracking.

Figure 1
figure 1

(a) An MR image of a gel region with markers, (b) a tagged MR image region, and (c) the silicone gel soft tissue phantom containing the spherical markers (white balls).

Full size image

2.2. MR Imaging

The type of image data used in the current study is T2 magnitude MR images. Deformation can be measured using marker tracking methods applied to full volume scans taken at each deformation step. A full volume scan was performed on the tissue phantom using a 3T scanner (Philips Achieva 3T, Best, The Netherlands). Cubic 0.5 mm voxels were used and the data was stored using the Digital Imaging and Communication in Medicine (DICOM) format. Figures 1(a) and 1(b) show an example of an MR image and tagged MR image of a region of the phantom. The voxel intensities of the images are 9 bit unsigned integers with values ranging from 0 to 511. The data was imported into Matlab 7.4 R2007a (The Mathworks Inc., USA) for image processing. The image data was normalised producing an average gel intensity of 0.39, while the marker intensity was zero.

2.3. Marker Tracking Method

To track the movement of markers from the 3D MR data an image processing algorithm was developed in Matlab (The Mathworks Inc., USA). The centre point of each marker at each time step can be found using 3 main steps: masking,adjacency grouping, andcentre point calculation.

(1) Masking. Masking was performed to identify the central voxels for each marker. To reduce computational time the mask was only applied to voxels that qualify (based on intensity threshold) as potentially belonging to a marker. In addition a sparse cross-shaped mask was designed (Figure 2(a)) with just 12 voxels (significantly less than nonsparse cubic or spherical masks which would be around 729 and 250 voxels, resp.). When the mask operates on a voxel with image coordinates , the image coordinates of the 12 (surrounding) mask voxels can be defined as

(1)

Image processing masks are generally used as a spatial filter; however in this case the mask was used as a logic operator to find voxels matching the following criterion. A voxel at location is classified as a central marker voxel when all the central cross-mask voxels (see cross-shape in Figure 2(a)) have intensities smaller than the intensity threshold and all of the outer voxels (see outer voxels in Figure 2(a)) have intensities higher than or equal to the intensity threshold . In other words the following pseudoequation needs to be true:

(2)

Here all of the first six mask voxels (indicated with ), of the mask coordinate collection , represent the central cross-elements and the last six (indicated with ) represent the outer elements (see Figure 2(a)). Depending on the marker appearance in the image (see next section) up to 8 central marker voxels match this criterion and were found per marker.

Figure 2
figure 2

(a) The cross-shaped mask, (b) the adjacency-based grouping process, (c) a 3 mm diameter sphere placed at the calculated marker centre.

Full size image

(2)Adjacency Grouping. Calculating the marker centre point using only the central marker voxels identified using masking does not provide an accurate centre point determination (accurate to within a voxel at best) and is sensitive to marker appearance. The more voxels that are included (e.g., all) the better. To find and group voxels deemed to belong to the same marker a grouping algorithm was used. The central marker voxels found using masking were used as starting points to group objects using adjacency analysis. The adjacency grouping is a stepwise process. Adjacency coordinate groups (ACGs) are created for all the voxels found using masking. The process starts with one of the voxels found using masking and is assigned to be part of marker group M. The ACG for this voxel with coordinates is defined as

(3)

The ACG contains all the directly adjacent voxels of the voxel (its direct upper, lower, front, back, left, and right neighbours). Any voxel with coordinates is added to the marker group when its intensity is lower than and its coordinates are found within one of the ACGs of the marker . When a voxel is added to the marker group its ACG is added to the set of ACGs belonging to and this process is repeated. Voxels are added to a marker group until the group is no longer growing.

Figure 2(b) shows how, starting with one central voxel, the surrounding low intensity voxels within the coordinate group are added and when this is repeated all voxels representing the marker are grouped. After grouping, the dimensions and number of voxels of the object were compared to what is expected for normal markers (e.g., a diameter of under 6 voxels and consisting of under 250 voxels) to filter out possible objects other than markers.

(3) Centre Point Calculation. The centre point for each marker group was determined using weighted averaging. The centre coordinates of a marker composed of voxels is defined as

(4)

Here average , , and represent the coordinates of each of the voxels in the marker group. Since those voxels with intensities close to zero are more likely to belong to a marker than voxels with intensities close to the gel intensity, the weight for a voxel with intensity was defined as:

(5)

Here represents a threshold which for a noiseless image could be set equal to the gel intensity (the weight then represents the volume fraction of marker material present in the voxel). The condition is added that when is larger than the weight .

2.4. Evaluation of Marker Tracking Method Using Simulated Magnitude MR Image Data

The marker tracking method was evaluated using simulated magnitude MR image data because this allows full control and knowledge of marker locations and thus provides the final real "gold standard.'' The simulated data also allow one to isolate and study errors from different sources. The marker tracking method was evaluated using algorithms developed in Matlab (The Mathworks Inc., USA) and involves the following steps: simulation of a noiseless image and analysis of geometric bias, andsimulation of noisy magnitude MR data and analysis of the noise effects. The final noisy image data allows one to evaluate the performance of the method under varying noise conditions while the noiseless image allows for evaluation of the geometric bias implicit in the method.

(1) Simulation of a Noiseless Image and Analysis of Geometric Bias. Since the marker image intensity values are zero, image data were simulated by multiplying an image representing gel volume fractions by the average normalised gel intensity. A 3D image space can be defined containing only markers and gel and can be expressed as a continuous binary function , where for all marker coordinates and for all gel coordinates. When this function is represented across voxels intermediate intensities arise as averaging occurs at each voxel where intensity is equivalent to the gel volume fraction within the voxel. The continuous binary function can however be approximated by a high-resolution binary image. Simulation of a volume fraction image at the desired (lower) resolution (cubic 0.5 mm voxels) then involves simple averaging of the high-resolution representation. High-resolution binary images were created at 25 times the acquisition resolution. A 2D mid-slice of a high-resolution (cubic 0.02 mm voxels) binary image is shown in Figure 3(a). At this resolution the marker sphere is represented by over 1.7 million voxels and the volume is represented with less than 0.07% error. Figure 3(b) shows the corresponding volume fraction image at the averaged acquisition resolution (cubic 0.5 mm voxels). By multiplying the obtained volume fraction image with the appropriate gel intensity (average normalised intensity 0.39) a noiseless simulated image is obtained.

Figure 3
figure 3

(a) A high resolution (uniform 0. 02 mm voxels) binary mid-slice image of marker, (b) corresponding mid-slice at the MR acquisition resolution (uniform 0.5 mm voxels).

Full size image

The appearance in Figure 3(b) is symmetric because the marker centre point coincides with a voxel corner. However the appearance of objects in images varies depending on their location due to averaging across the discrete elements, in this case voxels, which leads to a geometric bias affecting the marker tracking method. Figure 4(a) shows a marker sphere and the voxel in which its centre point is found. This voxel is named the Object Central Voxel (OCV) (see also Figure 4(b)). When a marker centre point coincides with the centre of its OCV appearance 1 is obtained. Similarly 2 up to 4 demonstrate the appearance of a marker when its centre coincides with the middle of a voxel face, the middle of a voxel edge and a voxel corner, respectively. Obviously when a marker is moved exactly one voxel in a certain orthogonal direction its appearance has not changed but simply shifted. In fact each of these appearances is either symmetric or equivalent to several other appearances obtainable through varying location within the OCV (e.g., each voxel corner produces the same appearance while mid-edge appearances can be obtained through rotation and mirroring). Thus when the spherical markers (or any other symmetric shape) are averaged across a cubic voxel matrix the appearance varies uniquely within the blue tetrahedron shown in Figure 4(b). All other appearances can be obtained by rotation and mirroring of the appearances in this tetrahedron. Appearances 1–4 are the most symmetric appearances obtainable. Other appearances however can be asymmetric such as case 5 which is obtained when the marker centre coincides with the centre of the tetrahedron. Since the centre point calculation in the marker tracking method is based on an average of marker voxel coordinates, it is sensitive to symmetry of the marker appearance and as such the error is also related to asymmetry.

Figure 4
figure 4

(a) A marker sphere showing OCV. (b) An OCV showing the tetrahedron in which the appearance of markers varies uniquely. The most symmetric appearances are 1 mid voxel, 2 mid face, 3 mid edge, and 4 voxel corner. Appearance 5 is in the middle of the tetrahedron and shows the resulting asymmetric appearance.

Full size image

It was hypothesised that since OCV points 1–4 in Figure 4 produce symmetric appearances the error here is low and that locations furthest away from these symmetries produce the worst error. If this hypothesis is true the error would follow a pattern similar to that shown in Figure 5 (a distance plot from the grid defined by the corner, mid-edge, and middle points) and assuming that each point has the same symmetry "weight,'' the worst error should occur in the middle of the longest edge of the tetrahedron.

Figure 5
figure 5

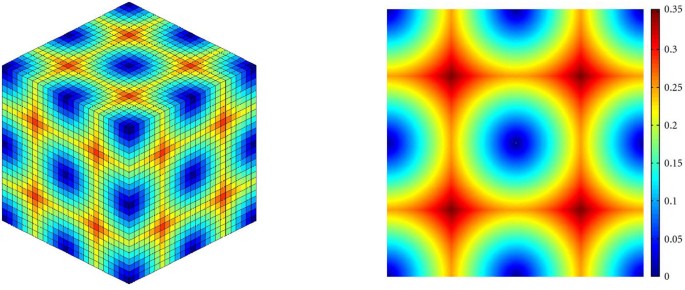

(a) A 3D plot representing the full OCV showing the expected type of geometric bias pattern, and (b) a 2D equivalent.

Full size image

The geometric bias was investigated by simulating markers with their centre points coinciding with various locations within an OCV in the absence of noise. Due to the symmetry in the appearances as discussed above, simulations were performed in 1 octant of the OCV only using a grid of points. For visualisation purposes the results were then mirrored to obtain bias measures across the full OCV (similar to Figure 5(a)) producing a grid. A finer grid was then applied around the maximum bias to closely approximate the location of the real maximum bias. This process was repeated until the found maximum no longer varied significantly.

(2) Simulation of Noisy Magnitude MR Data and Analysis of the Noise Effects. Noise is present in all real MR images, and the performance of the marker tracking method needs to be evaluated in the presence of appropriate noise in the simulated image. During MR imaging, signal is acquired in the frequency domain using receiver coils. To move to the image domain the signal can be sampled at discrete locations and reconstructed using inverse Fourier Transforms. For each reconstructed image voxel in Cartesian space the signal can be expressed as a real signal (represents the noiseless simulated image) plus a real noise component and an imaginary noise component [35]

(6)

These independent noise components are identically distributed (with zero mean) and their Probability Density Function (PDF) is Gaussian [35–37]. The magnitude of a signal can be calculated using

(7)

The image intensities in magnitude MR images in the presence of noise follow a Rician distribution [35–38] with a PDF [39, 40] given by

(8)

where represents the standard deviation of the Gaussian noise, represents the Heaviside step function (ensuring for ), and is the 0 order modified Bessel function of the first kind. Figure 6 shows a surface plot of the Rician PDF for various (or SNR) ratios (Figure 6 was created using , the SNR is therefore ). When the noise dominates and approaches zero the Rician PDF reduces to the Rayleigh PDF [35, 36] (see blue dots in Figure 6). However, when the signal dominates ( [36]) the Rician distribution behaves approximately Gaussian (red dots in Figure 6 are for a Gaussian PDF at ) [35, 36]. With the knowledge that when the Rician PDF reduces to the Rayleigh PDF, can be estimated by analysis of background noise using [38]

(9)

Using this equation, and analysis of the background of a normalised T2 MR image of the silicone gel phantom, was estimated to be 0.02. Based on the average normalised gel intensity of 0.39 this corresponds to an SNR of 19.5. However, to evaluate the performance of the marker tracking method in the presence of noise, images were simulated at the worst location found by the geometric bias at a SNR of 5 up to 35. Simulations were performed 10 000 times to obtain an estimate of the error distribution at the various SNR levels.

Figure 6
figure 6

The Rician PDF at various ratios (0–6). When the Rician PDF reduces to the Rayleigh distribution (blue dots) however as increases to over the Rician PDF behaves approximately Gaussian (red dots at ).

Full size image

3. Results

The results are presented in two steps: evaluation of the geometric bias in the marker tracking method, andevaluation of the performance on the marker tracking method in the presence of noise.

(1) Evaluation of the Geometric Bias in the Marker Tracking Method. Figure 7(a) shows the geometric bias error in the absence of noise in an Object Central Voxel (OCV). The colour in each element is the error (in units of voxels) of the marker tracking method for each point on the 3D grid. Figure 7(b) shows 2D image slices through Figure 7(a) showing the best and worst locations . Analysis demonstrated that overall the geometric bias of the marker tracking method ranges from 0 to a maximum of (with a mean of and a standard deviation of ) voxels. The error is 0 for the symmetric cases (1–4 in Figure 4) while the maximum error occurs in locations where a marker centre point coincides with 1/1.368th or 1/4.329th of a voxel; see, for example, white points in Figure 7(b) (e.g., at ).

Figure 7
figure 7

(a) The OCV showing the error of the marker tracking method, each grid locations tested. (b) Three 2D image slices through the OCV for the best (Slice 1 and 2) and worst locations (Slice 3).

Full size image

(2) Evaluation of the Performance on the Marker Tracking Method in the Presence of Noise. The performance of the marker tracking method for the noisy magnitude MR image simulations obtained from the 10 000 simulations at each SNR of 5 up to 35 is presented next. As the SNR increases from 5 to 35 the maximum, mean and minimum voxel errors vary according to Figure 8(a). The standard deviation is plotted in Figure 8(b). Although for the maximum stays below 0.1127 in all cases, the method performs better when is chosen depending on SNR. To illustrate this Figure 9 shows results for the SNR range 15–35 using . Using a higher means that the marker groups are composed of more voxels and thus a more accurate centre point can be calculated. The maximum voxel error for at an SNR  = 19.5 (estimated SNR level) is voxels; however using a in this case results in a more threefold increase of the accuracy as the maximum error is reduced to voxels. The optimum value for a certain SNR can be determined using MR data simulations. Using simulations the error can be minimised for a given SNR by adjusting the value.

Figure 8
figure 8

Results for SNR 5 up to 35 using T = 0.26. (a) The maximum (red dotted line), the mean (blue crossed line), and the minimum voxel error plotted against SNR, and (b) the standard deviation plotted against SNR.

Full size image
Figure 9
figure 9

Results for SNR 15 up to 35 using T = 0.32. (a) The maximum (red dotted line), the mean (blue crossed line), and the minimum voxel error plotted against SNR, and (b) the standard deviation plotted against SNR.

Full size image

4. Discussion

Several MR imaging-based motion tracking algorithms have been proposed in the literature, for example, tagged MR imaging [41] and phase contrast MR imaging [42], but these all rely upon validation of the algorithms proposed. A review of the literature showed that the validation methods used for existing techniques are frequently incomplete, and this paper presents a novel validation method for MR imaging based on motion tracking using a marker tracking algorithm which itself is validated against simulated MR image data. Simulated data was generated for the noise-free case as well as for a variety of different Rician distributed noise levels. The noise-free image data allowed analysis of the error related to the geometric bias independently from other error sources.

Therefore the method proved to be robust with geometric bias errors of between voxels and errors due to noise remaining below 0.1127 voxels for all cases simulated with signal-to-noise ratios from 5 to 35. These results were achieved for a global threshold value . However altering the threshold value based on the SNR may result in a significant increase in accuracy. The optimum value for a certain SNR can be determined using MR data simulations. Using simulations the error can be minimised for a given SNR by adjusting the value.

The method proposed in this paper has two main advantages. The first is that the data used for validation is simulated and therefore can be chosen to have desired levels of noise. This permitted evaluation of the marker tracking method for different levels of noise which has not been done previously. Secondly, since this validation method is based on MR imaging, the marker tracking experiment and the MR imaging-based motion and deformation tracking can all be performed at the same time within the MR scanner.

Although this method has been developed for application to tagged MR imaging on the upper arm, the methods presented here are not limited to this application and can be applied to validate other types of MR imaging-based motion and deformation tracking techniques. Furthermore, these methods are independent of the chosen phantom shape.

5. Conclusion

A novel marker tracking method has been presented and validated using simulated MR image data. The marker tracking method is robust and the maximum geometric bias was voxels while the error due to noise remains below 0.1127 voxels for Rician noise distributions with signal-to-noise ratios from 5 up to 35. This appears to be the only marker tracking algorithm suitable for the validation of MR-based motion and deformation tracking of soft tissue which has been validated against a "gold standard.''

References

  1. Lissner H, Lebow M, Evans F: Experimental studies on the relation between acceleration and intracranial pressure changes in man. Surgery Gynecology & Obstetrics 1960, 111: 329-338.

    Google Scholar

  2. McNamara LM, Prendergast PJ: Bone remodelling algorithms incorporating both strain and microdamage stimuli. Journal of Biomechanics 2007, 40(6):1381-1391. 10.1016/j.jbiomech.2006.05.007

    Article  Google Scholar

  3. Davis J, Kaufman KR, Lieber RL: Correlation between active and passive isometric force and intramuscular pressure in the isolated rabbit tibialis anterior muscle. Journal of Biomechanics 2003, 36(4):505-512. 10.1016/S0021-9290(02)00430-X

    Article  Google Scholar

  4. Erdemir A, McLean S, Herzog W, van den Bogert AJ: Model-based estimation of muscle forces exerted during movements. Clinical Biomechanics 2007, 22(2):131-154. 10.1016/j.clinbiomech.2006.09.005

    Article  Google Scholar

  5. Marjoux D, Baumgartner D, Deck C, Willinger R: Head injury prediction capability of the HIC, HIP, SIMon and ULP criteria. Accident Analysis & Prevention 2008, 40(3):1135-1148. 10.1016/j.aap.2007.12.006

    Article  Google Scholar

  6. Muggenthaler H, von Merten K, Peldschus S, et al.: Experimental tests for the validation of active numerical human models. Forensic Science International 2008, 177(2-3):184-191. 10.1016/j.forsciint.2007.12.005

    Article  Google Scholar

  7. Ivancic PC, Ito S, Panjabi MM: Dynamic sagittal flexibility coefficients of the human cervical spine. Accident Analysis & Prevention 2007, 39(4):688-695. 10.1016/j.aap.2006.10.015

    Article  Google Scholar

  8. Linder-Ganz E, Shabshin N, Itzchak Y, Gefen A: Assessment of mechanical conditions in sub-dermal tissues during sitting: a combined experimental-MRI and finite element approach. Journal of Biomechanics 2007, 40(7):1443-1454. 10.1016/j.jbiomech.2006.06.020

    Article  Google Scholar

  9. Linder-Ganz E, Shabshin N, Itzchak Y, Yizhar Z, Siev-Ner I, Gefen A: Strains and stresses in sub-dermal tissues of the buttocks are greater in paraplegics than in healthy during sitting. Journal of Biomechanics 2008, 41(3):567-580. 10.1016/j.jbiomech.2007.10.011

    Article  Google Scholar

  10. Lim Y-J, De S: Real time simulation of nonlinear tissue response in virtual surgery using the point collocation-based method of finite spheres. Computer Methods in Applied Mechanics and Engineering 2007, 196(31-32):3011-3024. 10.1016/j.cma.2006.05.015

    Article  MATH  Google Scholar

  11. Audette MA, Hayward V, Astley O, Doyon M, McCallister GA, Chinzei K: A PC-based system architecture for real-time finite element-based tool-specific surgical simulation. Proceedings of the 18th International Congress and Exhibition on Computer Assisted Radiology and Surgery (CARS '04), June 2004, International Congress Series 1268: 378-383.

    Google Scholar

  12. Wu PI, Edelman ER: Structural biomechanics modulate intramuscular distribution of locally delivered drugs. Journal of Biomechanics 2008, 41(13):2884-2891. 10.1016/j.jbiomech.2008.06.025

    Article  Google Scholar

  13. Van Loocke M, Lyons CG, Simms CK: A validated model of passive muscle in compression. Journal of Biomechanics 2006, 39(16):2999-3009. 10.1016/j.jbiomech.2005.10.016

    Article  Google Scholar

  14. Van Loocke M, Lyons CG, Simms CK: Viscoelastic properties of passive skeletal muscle in compression: stress-relaxation behaviour and constitutive modelling. Journal of Biomechanics 2008, 41(7):1555-1566. 10.1016/j.jbiomech.2008.02.007

    Article  Google Scholar

  15. Gefen A, Gefen N, Linder-Ganz E, Margulies SS: In vivo muscle stiffening under bone compression promotes deep pressure sores. Journal of Biomechanical Engineering 2005, 127(3):512-524. 10.1115/1.1894386

    Article  Google Scholar

  16. Palevski A, Glaich I, Portnoy S, Linder-Ganz E, Gefen A: Stress relaxation of porcine gluteus muscle subjected to sudden transverse deformation as related to pressure sore modeling. Journal of Biomechanical Engineering 2006, 128(5):782-787. 10.1115/1.2264395

    Article  Google Scholar

  17. Moerman KM, Holt CA, Evans SL, Simms CK: Digital image correlation and finite element modelling as a method to determine mechanical properties of human soft tissue in vivo. Journal of Biomechanics 2009, 42(8):1150-1153. 10.1016/j.jbiomech.2009.02.016

    Article  Google Scholar

  18. Tada M, Nagai N, Yoshida H, Maeno T: Iterative FE analysis for non-invaseice material modeling of a fingertip with layered structure. Proceedings of the Eurohaptics, 2006, Paris, France

    Google Scholar

  19. Walker JC, Ratcliffe MB, Zhang P, et al.: Magnetic resonance imaging-based finite element stress analysis after linear repair of left ventricular aneurysm. Journal of Thoracic and Cardiovascular Surgery 2008, 135(5):1094-1102. 10.1016/j.jtcvs.2007.11.038

    Article  Google Scholar

  20. Ceelen KK, Stekelenburg A, Mulders JLJ, et al.: Validation of a numerical model of skeletal muscle compression with MR tagging: a contribution to pressure ulcer research. Journal of Biomechanical Engineering 2008, 130(6):-8.

    Article  Google Scholar

  21. Young AA, Axel L, Dougherty L, Bogen DK, Parenteau CS: Validation of tagging with MR imaging to estimate material deformation. Radiology 1993, 188(1):101-108.

    Article  Google Scholar

  22. Moore CC, Reeder SB, McVeigh ER: Tagged MR imaging in a deforming phantom: photographic validation. Radiology 1994, 190(3):765-769.

    Article  Google Scholar

  23. Yeon SB, Reichek N, Tallant BA, et al.: Validation of in vivo myocardial strain measurement by magnetic resonance tagging with sonomicrometry. Journal of the American College of Cardiology 2001, 38(2):555-561. 10.1016/S0735-1097(01)01397-3

    Article  Google Scholar

  24. Neu CP, Hull ML, Walton JH: Error optimization of a three-dimensional magnetic resonance imaging tagging-based cartilage deformation technique. Magnetic Resonance in Medicine 2005, 54(5):1290-1294. 10.1002/mrm.20669

    Article  Google Scholar

  25. Neu CP, Hull ML, Walton JH, Buonocore MH: Toward an MRI-based method to determine three-dimensional deformations in articular cartilage. Proceedings of the Summer Bioengineering Conference, 2003, Key Biscayne, Fla, USA

    Google Scholar

  26. Goldstein DC, Kundel HL, Daube-Witherspoon ME, Thibault LE, Goldstein EJ: A silicone gel phantom suitable for multimodality imaging. Investigative Radiology 1987, 22(2):153-157. 10.1097/00004424-198702000-00013

    Article  Google Scholar

  27. Augenstein KF, Cowan BR, LeGrice IJ, Nielsen PMF, Young AA: Method and apparatus for soft tissue material parameter estimation using tissue tagged magnetic resonance imaging. Journal of Biomechanical Engineering 2005, 127(1):148-157. 10.1115/1.1835360

    Article  Google Scholar

  28. Denney TS Jr., Prince JL, Lopez MJ, McVeigh ER: Optimal tag pattern validation using magnetic resonance imaging. Proceedings of the IEEE International Conference on Image Processing (ICIP '94), 1994, Austin, Tex, USA

    Google Scholar

  29. Fahmy AS, Krieger A, Osman NF: An integrated system for real-time detection of stiff masses with a single compression. IEEE Transactions on Biomedical Engineering 2006, 53(7):1286-1293. 10.1109/TBME.2006.873690

    Article  Google Scholar

  30. Kraitchman DL, Young AA, Chang C-N, Axel L: Semi-automatic tracking of myocardial motion in MR tagged images. IEEE Transactions on Medical Imaging 1995, 14(3):422-433. 10.1109/42.414606

    Article  Google Scholar

  31. Osman NF: Detecting stiff masses using strain-encoded (SENC) imaging. Magnetic Resonance in Medicine 2003, 49(3):605-608. 10.1002/mrm.10376

    Article  Google Scholar

  32. Sampath S, Parthasarathy V, Prince JL: A phantom validation of the FastHARP pulse sequence. Proceedings of the IEEE International Symposium on Biomedical Imaging, 2002

    Google Scholar

  33. Wyman BT: Mechanical Evaluation of the Paced Heart Using Tagged Magnetic Resonance Imaging. The Department of Biomedical Engineering, The Johns Hopkins University, Baltimore, Md, USA; 1999.

    Google Scholar

  34. Young AA, Kraitchman DL, Dougherty L, Axel L: Tracking and finite element analysis of stripe deformation in magnetic resonance tagging. IEEE Transactions on Medical Imaging 1995, 14(3):413-421. 10.1109/42.414605

    Article  Google Scholar

  35. Henkelman RM: Measurement of signal intensities in the presence of noise in MR images. Medical Physics 1985, 12(2):232-233. 10.1118/1.595711

    Article  Google Scholar

  36. Gudbjartsson H, Patz S: The Rician distribution of noisy MRI data. Magnetic Resonance in Medicine 1995, 34(6):910-914. 10.1002/mrm.1910340618

    Article  Google Scholar

  37. Cárdenas-Blanco A, Tejos C, Irarrazaval P, Cameron I: Noise in magnitude magnetic resonance images. Concepts in Magnetic Resonance A 2008, 32(6):409-416.

    Article  Google Scholar

  38. Aja-Fernandez S, Alberola-Lopez C, Westin C-F: Noise and signal estimation in magnitude MRI and Rician distributed images: a LMMSE approach. IEEE Transactions on Image Processing 2008, 17(8):1383-1398.

    Article  MathSciNet  Google Scholar

  39. Rice SO: Mathematical analysis of random noise. Bell Systems Technical Journal 1944, 23: 282-332.

    Article  MathSciNet  MATH  Google Scholar

  40. Rice SO: Mathematical analysis of random noise. Bell Systems Technical Journal 1945, 24: 46-156.

    Article  MathSciNet  MATH  Google Scholar

  41. Axel L, Montillo A, Kim D: Tagged magnetic resonance imaging of the heart: a survey. Medical Image Analysis 2005, 9(4):376-393. 10.1016/j.media.2005.01.003

    Article  Google Scholar

  42. Gatehouse PD, Keegan J, Crowe LA, et al.: Applications of phase-contrast flow and velocity imaging in cardiovascular MRI. European Radiology 2005, 15(10):2172-2184. 10.1007/s00330-005-2829-3

    Article  Google Scholar

Download references

Acknowledgment

This work was funded by a Research Frontiers Grant (06/RF/ENMO76) awarded by Science Foundation Ireland.
