Semiblind channel estimation for MIMO–OFDM systems

Yi-Sheng Chen; Jyu-Han Song

doi:10.1186/1687-6180-2012-212

Research
Open Access

Semiblind channel estimation for MIMO–OFDM systems

Yi-Sheng Chen¹Email author and
Jyu-Han Song¹

EURASIP Journal on Advances in Signal Processing20122012:212

https://doi.org/10.1186/1687-6180-2012-212

Received: 8 March 2012
Accepted: 2 June 2012
Published: 3 October 2012

Abstract

This article proposes a semiblind channel estimation method for multiple-input multiple-output orthogonal frequency-division multiplexing systems based on circular precoding. Relying on the precoding scheme at the transmitters, the autocorrelation matrix of the received data induces a structure relating the outer product of the channel frequency response matrix and precoding coefficients. This structure makes it possible to extract information about channel product matrices, which can be used to form a Hermitian matrix whose positive eigenvalues and corresponding eigenvectors yield the channel impulse response matrix. This article also tests the resistance of the precoding design to finite-sample estimation errors, and explores the effects of the precoding scheme on channel equalization by performing pairwise error probability analysis. The proposed method is immune to channel zero locations, and is reasonably robust to channel order overestimation. The proposed method is applicable to the scenarios in which the number of transmitters exceeds that of the receivers. Simulation results demonstrate the performance of the proposed method and compare it with some existing methods.

Keywords

MIMO
OFDM
Semiblind estimation
Frequency domain equalization
Circular precoding

1 Introduction

Orthogonal frequency-division multiplexing (OFDM), when combined with cyclic prefix (CP) as the guard intervals, is an effective transmission technique for high-speed broadband communication systems because of its high data rate, high spectral efficiency, and lack of intersymbol interference (ISI)[1, 2]. The operational principle of OFDM is to use inverse discrete Fourier transform (IDFT) and CP insertion to divide the original bandwidth into multiple narrow sub-bands, in which the mobile channel can be considered non-dispersive[3]. It is then easy to implement low complexity equalization at the receiver by using a set of complex multipliers, one for each sub-band, provided the channel state information is available[4].

Multiple-input multiple-output (MIMO) technology, which employs multiple antennas at the transmitters and receivers, has received much attention due to its ability to improve the data transmission rate through enormous channel capacity gains. Hence, an MIMO–OFDM system that combines OFDM and MIMO technologies is a key way for achieving high performance transmission in modern wireless communications[5].

The receivers of MIMO–OFDM systems require channel state information to detect symbols reliably. Blind or semiblind channel estimation is a bandwidth-efficient alternative to the conventional training based approaches[6–8]. Researchers have recently proposed various methods for (semi) blind channel estimation for MIMO–OFDM systems[9–12]. Gao et al.[9] proposed a robust subspace method applicable to MIMO–OFDM systems. Their method exhibits many advantages, including robustness to channel order overestimation and guaranteeing the channel identifiability. However, this method is not suitable for the case of more transmitters than receivers, and it imposes some constraints on channel zero locations. Blind or semiblind estimation using non-redundant precoding[8] can solve these problems since it avoids the catastrophic effects of channel zeros and requires less assumptions on channel. Previous studies present three typically non-redundant precoding methods for (semi)blind channel estimation for MIMO–OFDM systems[10–12]. The method in[10] uses the precoding to spread the symbols of each user over all subcarriers, thus increasing multipath diversity and reducing bit error rate (BER) at the receivers. Gao and Nallanathan[11] generalized the precoding method in[13] to MIMO–OFDM systems. A distinguishing feature of their method is that it can be applied to the scenarios in which the number of transmitters exceeds that of the receivers. Shin et al.[12] presented a framework for exploiting a general non-redundant precoding method for MIMO–OFDM systems and MIMO single-carrier systems with frequency-domain equalization. Their method is robust to channel order overestimation and incurs a relaxed channel identifiability condition.

This article develops a semiblind channel estimation method for MIMO–OFDM systems based on a specific and non-redundant precoding scheme, say, circular precoding, since the circular precoding allows channel estimation at the receiver and simplifies the encoding scheme at the transmitter[14]. In literature, to the best of our knowledge, only two circular precoding based methods have been proposed for single-input single-output (SISO) OFDM systems[14, 15]. Thus the current study focuses on generalizing the methods in the SISO case[14, 15] to the MIMO–OFDM systems. The proposed method is based on second-order statistics. With circular precoding at the transmitters, the autocorrelation matrix of the received data is equal to a noise-perturbated matrix involving the outer product of the channel frequency response matrix and the coefficents relating to the precoding. Dividing each submatrix in the autocorrelation matrix by the corresponding coefficient related to the precoding gives a noise-perturbed outer product of the channel frequency response matrix. Then we use the relation of the channel frequency response matrix and the channel impulse response matrix to transform the above noise-perturbed matrix to another noise-perturbed matrix. The resulting noise-perturbed matrix is equal to an outer product of the channel impulse response matrix plus a diagonal matrix due to channel noise. Next, we use a simple method to eliminate the noise components to obtain the outer product of the channel impulse response matrix. Finally, the channel impulse response matrix is obtained by computing the positive eigenvalues and the corresponding eigenvectors of this outer-product matrix. This study also tests the resistance of the precoding design to finite-sample estimation errors, and explores the effects of the precoding scheme on channel equalization through pairwise error probability (PEP) analysis. Simulation results demonstrate the performance of the proposed method and compare it with previous methods.

This article is organized as follows. Section 2 presents the system model and problem statement. Section 3 derives the estimation method, studies the precoding design, evaluates the equalization performance, and provides some further discussion about the proposed algorithm. Section 4 shows simulation results. Finally, Section 5 concludes this article.

The notations used in this article are quite standard: bold uppercase is used for matrices, and bold lowercase is used for vectors. A^T represents the transpose of the matrix A, and A^∗ represents the conjugate transpose of the matrix A. I_M is the identity matrix of dimension M × M, and A ⊗ B is the Kronecker product of matrices A and B. The symbols $R$ and $C$ represent the set of real numbers and the set of complex numbers, respectively.

2 System model and basic assumptions

Consider the K-input J-output discrete time OFDM baseband system shown in Figure1. Let {H(0) H(1)…H(L)} be the MIMO channel impulse response from the transmitters to the receivers with order L, where

H (l) \in C^{J \times K}

is the l th lag of the MIMO channel, ∀l = 0,1,…,L. The matrix element H(l)]_jk= h_jk(l) is the l th lag of the channel between the k th transmitter and the j th receiver, ∀k = 1,2,…,K, ∀j = 1,2,…,J. At the k th transmitter, the n th information vector

x^{(k)} (n) = {[x_{1}^{(k)} (n) x_{2}^{(k)} (n) \dots x_{M}^{(k)} (n)]}^{T} \in C^{M}

is first precoded by a real circular precoder

P \in R^{M \times M}

, followed by an IDFT matrix F⁻¹, to obtain

s^{(k)} (n) = F^{- 1} P x^{(k)} (n),

(2.1)

where

s^{(k)} (n) = {[s_{1}^{(k)} (n) s_{2}^{(k)} (n) \dots s_{M}^{(k)} (n)]}^{T} \in C^{M}

, and P is a circulant matrix with p₁p₂ … p_M^T as its first column with p_i> 0, ∀i. After CP insertion for each transmitted vector s^(k)(n) and CP removal at the receiver, as long as the length of CP is longer than or equal to L, the input-output relation of the system can be described as follows[11]:

\{\begin{array}{c} z^{(1)} (n) = \sum_{k = 1}^{K} H_{1 k} s^{(k)} (n) + w^{(1)} (n) \\ z^{(2)} (n) = \sum_{k = 1}^{K} H_{2 k} s^{(k)} (n) + w^{(2)} (n) \\ ⋮ \\ z^{(J)} (n) = \sum_{k = 1}^{K} H_{Jk} s^{(k)} (n) + w^{(J)} (n), \end{array}

(2.2)

where

H_{jk} \in C^{M \times M}

is a circulant matrix with

{[h_{jk} (0) h_{jk} (1) \dots h_{jk} (L) 0 \dots 0]}^{T} \in C^{M}

being its first column, and

z^{(j)} (n) = {[z_{1}^{(j)} (n) z_{2}^{(j)} (n) \dots z_{M}^{(j)} (n)]}^{T} \in C^{M}

and

w^{(j)} (n) = {[w_{1}^{(j)} (n) w_{2}^{(j)} (n) \dots w_{M}^{(j)} (n)]}^{T} \in C^{M}

are the received signal vector and the additive white Gaussian noise (AWGN) vector, respectively, ∀j = 1,2,…,J. Taking DFT operation on the received signal z^(j)(n) in (2.2) and using (2.1) lead to the following equations:

\{\begin{array}{c} y^{(1)} (n) = F z^{(1)} (n) = \sum_{k = 1}^{K} D_{1 k} P x^{(k)} (n) + v^{(1)} (n) \\ y^{(2)} (n) = F z^{(2)} (n) = \sum_{k = 1}^{K} D_{2 k} P x^{(k)} (n) + v^{(2)} (n) \\ ⋮ \\ y^{(J)} (n) = F z^{(J)} (n) = \sum_{k = 1}^{K} D_{Jk} P x^{(k)} (n) + v^{(J)} (n), \end{array}

(2.3)

where

v^{(j)} (n) = F w^{(j)} (n) = {[v_{1}^{(j)} (n) v_{2}^{(j)} (n) \dots v_{M}^{(j)} (n)]}^{T} \in C^{M}

is the noise vector,

y^{(j)} (n) = {[y_{1}^{(j)} (n) y_{2}^{(j)} (n) \dots y_{M}^{(j)} (n)]}^{T} \in C^{M}

is the received vector, and

D_{jk} = F H_{jk} F^{- 1} = diag [d_{jk} (1) d_{jk} (2) \dots d_{jk} (M)] \in C^{M \times M}

is a diagonal matrix, ∀1 ≤ j ≤ J, 1 ≤ k ≤ K. Note that

d_{jk} (m) = \sum_{l = 0}^{L} h_{jk} (l) ω^{- l (m - 1)}

is the channel frequency response between the k th transmitter and the j th receiver at the m th subcarrier for m = 1,2,…,M and ω = exp(i 2Π/M).

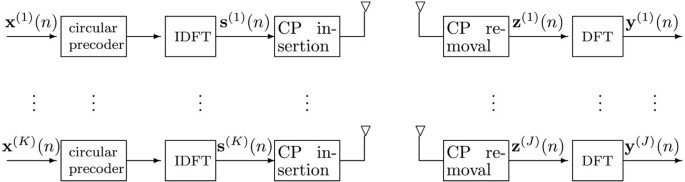

Figure 1
**An MIMO–OFDM baseband system with circular precoding.**

To further simplify the system model, we regroup the transmitted symbols, received signals, and noise signals on the same time slot as follows:

\begin{array}{l} x_{i} (n) = {[x_{i}^{(1)} (n) x_{i}^{(2)} (n) \dots x_{i}^{(K)} (n)]}^{T} \in C^{K}, \\ i = 1, 2, \dots, M, \\ y_{i} (n) = {[y_{i}^{(1)} (n) y_{i}^{(2)} (n) \dots y_{i}^{(J)} (n)]}^{T} \in C^{J}, \\ i = 1, 2, \dots, M, \end{array}

\begin{align} v_{i} (n) = {[v_{i}^{(1)} (n) v_{i}^{(2)} (n) \dots v_{i}^{(J)} (n)]}^{T} \in C^{J}, \\ i = 1, 2, \dots, M . \end{align}

Then, after some proper entry permutations, (2.3) can be rewritten as

\begin{align} \underset{y (n)}{\underset{⏟}{[\begin{array}{c} y_{1} (n) \\ y_{2} (n) \\ ⋮ \\ y_{M} (n) \end{array}]}} = \underset{D}{\underset{⏟}{[\begin{array}{c} D (1) & 0 & \dots & 0 \\ 0 & D (2) & \dots & 0 \\ ⋮ & ⋮ & ⋱ & ⋮ \\ 0 & 0 & \dots & D (M) \end{array}]}} (P \otimes I_{K}) \\ \times \underset{x (n)}{\underset{⏟}{[\begin{array}{c} x_{1} (n) \\ x_{2} (n) \\ ⋮ \\ x_{M} (n) \end{array}]}} + \underset{v (n)}{\underset{⏟}{[\begin{array}{c} v_{1} (n) \\ v_{2} (n) \\ ⋮ \\ v_{M} (n) \end{array}]}}, \end{align}

(2.4)

where $D (m) = [d_{jk} (m)] \in C^{J \times K}$ is the channel frequency response matrix from the transmitters to the receivers at the m th subcarrier.

The purpose of this article is to develop a method of semiblindly identifying the MIMO channel impulse response {H(0),H(1),…,H(L)}, using second-order statistics of the received data based on the following assumptions:

(i)

The source signal x ^(k)(n) is a zero-mean and white vector sequence with E[x ^(k)(m)x ^(l)(n)^∗] = δ(k−l)δ(m−n)I _M, where δ(·) is the Kronecker delta function. The AWGN is zero-mean with $E [w^{(k)} (m) w^{(l)} {(n)}^{*}] = δ (k - l) δ (m - n) σ_{w}^{2} I_{M}$ . In addition, the source signal is uncorrelated with the AWGN w ^(j)(n), i.e., E[x ^(k)(m)w ^(j)(n)^∗] = 0 _M×M, ∀ m,n,j,k.
(ii)

The channel impulse response matrix $H = {[H {(0)}^{T} H {(1)}^{T} \dots H {(L)}^{T}]}^{T} \in C^{J (L + 1) \times K}$ is full column rank, i.e., rank (H) = K.

3 Semiblind channel estimation and equalization

This section develops the proposed method under assumptions (i) and (ii). Section 3.1 first derives the estimation method. Section 3.2 then discusses the precoding design to combat the effect of finite-sample estimation errors. Section 3.3 investigates the equalization performance of the precoding method using PEP analysis. Section 3.4 provides further discussion about the proposed method.

3.1 The estimation method

Under assumption (i), the autocorrelation matrix of y(n) in (2.4) is shown as follows:

\begin{align} R = E [y (n) y {(n)}^{*}] \\ = D (P \otimes I_{K}) (P^{*} \otimes I_{K}) D^{*} + σ_{w}^{2} I_{JM} \\ = D ({PP}^{*} \otimes I_{K}) D^{*} + σ_{w}^{2} I_{JM} \\ = D (G \otimes I_{K}) D^{*} + σ_{w}^{2} I_{JM} . \end{align}

(3.1)

Since P is a circulant matrix,

G = {PP}^{*} \in R^{M \times M}

is also a circulant matrix[16] with g = [g₁g₂ … g_M]^T being its first column. Let

J \in R^{M \times M}

be a circulant matrix with the first column equal to

{[0 1 0 \dots 0 0]}^{T} \in R^{M}

. Thus, G can be expressed as

G = [g Jg J^{2} g \dots J^{M - 1} g] .

(3.2)

Using (3.2), (3.1) can be expressed as

\begin{align} R = D ([g Jg J^{2} g \dots J^{M - 1} g] \otimes I_{K}) D^{*} + σ_{w}^{2} I_{JM} \\ = [D (g \otimes I_{K}) D (Jg \otimes I_{K}) D (J^{2} g \otimes I_{K}) \dots D (J^{M - 1} g \\ \otimes I_{K})] D^{*} + σ_{w}^{2} I_{JM} \\ = [\begin{array}{c} g_{1} D (1) & g_{M} D (1) & \dots & g_{2} D (1) \\ g_{2} D (2) & g_{1} D (2) & \dots & g_{3} D (2) \\ ⋮ & ⋮ & ⋱ & ⋮ \\ g_{M} D (M) & g_{M - 1} D (M) & \dots & g_{1} D (M) \end{array}] D^{*} + σ_{w}^{2} I_{JM} \\ = [\begin{array}{l} g_{1} D (1) D {(1)}^{*} & g_{M} D (1) D {(2)}^{*} & \dots & g_{2} D (1) D {(M)}^{*} \\ g_{2} D (2) D {(1)}^{*} & g_{1} D (2) D {(2)}^{*} & \dots & g_{3} D (2) D {(M)}^{*} \\ ⋮ & ⋮ & ⋱ & ⋮ \\ g_{M} D (M) D {(1)}^{*} & g_{M - 1} D (M) D {(2)}^{*} & \dots & g_{1} D (M) D {(M)}^{*} \end{array}] \\ + σ_{w}^{2} I_{JM} . \end{align}

(3.3)

Note that the autocorrelation matrix R in (3.3) is a noise-perturbated matrix involving the coefficients g₁,g₂,…,g_M, and the outer-product matrices D(m)D(n)^∗, ∀m n = 1,2,…,M. Dividing each submatrix in R by the corresponding coefficient yields the matrices

D (m) D {(m)}^{*} + \frac{σ_{w}^{2}}{g_{1}} I_{J}

and D(m)D(n)^∗ for m n = 1,2,…,M, m ≠ n. Those matrices are then used to form the following matrix

Q_{F} = D_{F} D_{F}^{*} + \frac{σ_{w}^{2}}{g_{1}} I_{JM},

(3.4)

where $D_{F} = {[D {(1)}^{T} D {(2)}^{T} \dots D {(M)}^{T}]}^{T} \in C^{JM \times K}$ is the channel frequency response matrix. Note that Q_Fis the outer product of D_F plus a diagonal matrix $\frac{σ_{w}^{2}}{g_{1}} I_{JM}$ due to noise. If the noise components imposed on Q_Fcan be eliminated, then we can obtain the outer-product matrix $D_{F} D_{F}^{*}$ . Next, we can take eigen-decomposition of this outer-product matrix to obtain an estimate ${\hat{D}}_{F}$ of D_F. However, taking eigen-decomposition of such a large size (JM × JM)of matrix $D_{F} D_{F}^{*}$ involves more computations and usually renders a less accurate result, especially when M, the number of subcarriers, is large. To avoid this drawback, we want to use (3.4) to obtain another matrix HH^∗, which is the outer product of the channel impulse response matrix $H = {[H {(0)}^{T} H {(1)}^{T} \dots H {(L)}^{T}]}^{T} \in C^{J (L + 1) \times K}$ . The size of HH^∗ is J(L + 1) × J(L + 1), which is smaller than the size of $D_{F} D_{F}^{*}$ .^a Hence, taking eigen-decomposition of HH^∗ to obtain an estimate $\hat{H}$ of H requires less computational load.

To obtain HH^∗ from (3.4), we first define an M × (L + 1) matrix F₁ = F(:,1:L + 1), which is the matrix containing the first (L + 1) columns of F. In addition, the relationship between the channel frequency response matrix D_F and channel impulse response matrix H can be described as follows:

D_{F} = \sqrt{M} (F_{1} \otimes I_{J}) H .

(3.5)

With the aid of (3.5) and (3.4), we obtain the following matrix Q_H:

\begin{align} Q_{H} = \frac{1}{M} (F_{1}^{*} \otimes I_{J}) Q_{F} (F_{1} \otimes I_{J}) \\ = \frac{1}{M} (F_{1}^{*} \otimes I_{J}) (D_{F} D_{F}^{*} + \frac{σ_{w}^{2}}{g_{1}} I_{JM}) (F_{1} \otimes I_{J}) \\ = \frac{1}{M} (F_{1}^{*} \otimes I_{J}) D_{F} D_{F}^{*} (F_{1} \otimes I_{J}) \\ + \frac{1}{M} (F_{1}^{*} \otimes I_{J}) \frac{σ_{w}^{2}}{g_{1}} I_{JM} (F_{1} \otimes I_{J}) \\ = {HH}^{*} + \frac{σ_{w}^{2}}{M g_{1}} I_{J (L + 1)} . \end{align}

(3.6)

Since the matrix H is of full column rank by assumption (ii), the rank of HH^∗ is K. This implies that the associated smallest J(L + 1)−K eigenvalues of Q_H in (3.6) are equal to the scaled-noise variance

\frac{σ_{w}^{2}}{M g_{1}}

. Hence in practice, we can estimate the scaled-noise variance as the average of the smallest J(L + 1)−K eigenvalues of Q_H. Then the outer-product matrix HH^∗ can be obtained by substracting

\frac{σ_{w}^{2}}{M g_{1}} I_{J (L + 1)}

from Q_H in (3.6). Finally, taking eigen-decomposition of the Hermitian and positive semi-definite matrix HH^∗with rank K yields K positive eigenvalues and the associated unit-norm eigenvectors, say, λ₁,…,λ_K and d₁,…,d_K, respectively. We can thus choose the channel impulse response matrix to be

\hat{H} = [\sqrt{λ_{1}} d_{1} \sqrt{λ_{2}} d_{2} \dots \sqrt{λ_{K}} d_{K}] \in C^{J (L + 1) \times K},

(3.7)

up to a unitary matrix ambiguity $U \in C^{K \times K}$ , i.e., $H = \hat{H} U$ , since $\hat{H} {\hat{H}}^{*} = {HH}^{*} = Q$ . The ambiguity matrix U is intrinsic to semiblind estimation of multiple input systems using only second-order statistics technique[17]. This ambiguity can be resolved using a short pilot sequence[18].

3.2 Precoding design

In Section 3.1, we obtain Q_F from the autocorrelation matrix R. However, in practice, we have $\hat{R} = R + △ R$ instead of R, where △R is the error matrix due to the presence of finite-sample estimation error. As a result, dividing each submatrix in the autocorrelation matrix $\hat{R}$ by the corresponding coefficient g_m to obtain ${\hat{Q}}_{F}$ involves an error term, i.e., ${\hat{Q}}_{F} = Q_{F} + △ Q_{F}$ , where △Q_F is the error term, and $△ Q_{F} ((k - 1) J + 1 : kJ, (l - 1) J + 1 : lJ) = \frac{1}{g_{m}} △ R ((k - 1) J + 1 : kJ, (l - 1) J + 1 : lJ)$ with m = (k−l)_M + 1, ∀1 ≤ k,l ≤ M. Here (·)_Mis the modulo-M operation. It is obvious that a large value of the corresponding g_m attenuates the error term △Q_F, which in turn increases the accurancy of estimation for ${\hat{Q}}_{F}$ .

As a result, we need to design the precoding coefficients p₁,p₂,…,p_M to maximize g₁,g₂,…,g_M to reduce the error term. However, this results in a multi-objective optimization problem which does not seem to easily yield a tractable way to design. Hence, we present another feasible approach to design the precoding in the following.

Since no prior information of the distortion △R can be obtained in advance, we combine all the M objective functions into a single cost with the same weight, i.e., g = g₁ + g₂ + ⋯ + g_M, and try to design the precoding to maximize g. In addition, it is easy to verify that

g = {(p_{1} + p_{2} + \dots + p_{M})}^{2}

. Then the optimization problem can be formulated as follows:

\begin{align} {max}_{p_{1}, p_{2}, \dots, p_{M}} {(p_{1} + p_{2} + \dots + p_{M})}^{2} \\ subject to & \sum_{n = 1}^{M} p_{n}^{2} = 1 . \end{align}

(3.8)

The constraint in (3.8) normalizes the power gain of each precoded symbol in the precoded vector P x^(k)(n) to 1. Appendix shows that the optimal solution to (3.8) is

p_{1} = p_{2} = \dots = p_{M} = \frac{1}{\sqrt{M}} .

(3.9)

Although (3.9) is the optimal solution for channel estimation, it makes symbol detection impossible because (3.9) produces a singular matrix P that can not decode the precoded vector P x^(k)(n) at the receiver. To make symbol detection possible after channel estimation, we modify the optimal solution (3.9) as the following precoding scheme

\{\begin{array}{l} p_{1} = \sqrt{\frac{1}{M} + τ} \\ p_{n} = \sqrt{\frac{1}{M} - \frac{τ}{M - 1}}, n = 2, 3, \dots, M, \end{array}

(3.10)

to make a nonsingular matrix P, where $0 < τ < \frac{M - 1}{M}$ is small. The solution in (3.10) is a small perturbation of the optimal solution in (3.9). In addition, if we increase τ from 0 to $\frac{M - 1}{M}$ , then p₁ is larger than p_n, n = 2,3,…,M, which would improve the channel equalization performance. In the following subsection, we will prove this fact by evaluating the equalization performance under the precoding scheme (3.10).

3.3 Analysis of PEP

One approach to evaluating the equalization performance is BER analysis, but it is generally quite complex. Hence, we use PEP analysis, a technology which is widely used in space-time communications and OFDM systems, to examine the equalization performance[19–25]. In addition, to better understand the intrinsic impact of the precoding (3.10) on equalization, we assume that the channel state information is known at the receivers. This assumption also appears in[26, 27] to evaluate the equalization performance. Now, let us consider the system model (2.4) with zero-forcing (ZF) equalization and drop the time index n for notational convenience.

The PEP analysis measures the probability that a symbol vector x is sent but another

\tilde{x} \neq x

is detected. Let ∥·∥ denote the two-norm of a vector. Then by definition, the PEP conditioned on the channel impulse response matrix H is given by

Pr [x \to \tilde{x} | H] = Pr [∥ \hat{x} - \tilde{x} ∥ < ∥ \hat{x} - x ∥ | H],

(3.11)

where

\hat{x} = x + (P^{- 1} \otimes I_{K}) D^{†} v

is the estimate of x after ZF equalization, and D^† is the pseudo-inverse of D. Let

d = ∥ x - \tilde{x} ∥

be the distance between x and

\tilde{x}

, and let

e = \frac{\tilde{x} - x}{d}

be the normalized error vector. Then (3.11) can be directly simplified to

Pr [x \to \tilde{x} | H] = Pr [u > \frac{d}{2} | H],

(3.12)

where

u = Re [v^{*} {(D^{†})}^{*} (P^{- T} \otimes I_{K}) e]

and Re[·] denotes the real part. Since each element in v is a zero-mean circular Gaussian random variable with variance

σ_{w}^{2}

, the random variable u is also a zero-mean Gaussian with variance

\begin{align} E [u^{2}] = E [| Re [v^{*} {(D^{†})}^{*} (P^{- T} \otimes I_{K}) e] |^{2}] \\ = \frac{σ_{w}^{2}}{2} ∥ {(D^{†})}^{*} (P^{- T} \otimes I_{K}) e ∥^{2} . \end{align}

(3.13)

Hence, the conditional PEP in (3.12) becomes

Pr [x \to \tilde{x} | H] = Q (\frac{d}{\sqrt{2 σ_{w}^{2}} ∥ {(D^{†})}^{*} (P^{- T} \otimes I_{K}) e ∥}),

(3.14)

where Q(·) is the Q-function[28]. Let ∥·∥_F denote the Frobenius norm of a matrix. Then by the submultiplicative property of matrix norms[29], we have

\begin{align} ∥ {(D^{†})}^{*} (P^{- T} \otimes I_{K}) e ∥ \leq ∥ {(D^{†})}^{*} ∥_{F} \cdot ∥ P^{- T} \otimes I_{K} ∥_{F} \cdot ∥ e ∥ \\ = \sqrt{K} ∥ {(D^{†})}^{*} ∥_{F} \cdot ∥ P^{- T} ∥_{F} \\ = \sqrt{K} ∥ {(D^{†})}^{*} ∥_{F} \cdot ∥ P^{- 1} ∥_{F} . \end{align}

(3.15)

The first equality in (3.15) holds since the two-norm of the unit vector e is 1, and the second equality holds since the Frobenius norm of a matrix A equals the Frobenius norm of A^T.

Let us now focus on ∥P⁻¹∥_F in (3.15). Since P is a circulant matrix, it can be decomposed as P = F⁻¹D_PF, and the inverse of P can be expressed as

P^{- 1} = F^{- 1} D_{P}^{- 1} F

, where D_P is a diagonal matrix with eigenvalues of P on its diagonal[16]. For P with coefficients {p₁,p₂,…,p_M} given in (3.10), the first row of P is a b b … b, where

a = \sqrt{\frac{1}{M} + τ}

and

b = \sqrt{\frac{1}{M} - \frac{τ}{M - 1}}

. Then the eigenvalues of P are given by the DFT of the first row of P[16] to form the diagonal matrix

D_{P} = diag [a + (M - 1) b, a - b,, a - b, \dots, a - b] \in R^{M \times M}

. This leads to

\begin{align} ∥ P^{- 1} ∥_{F} = ∥ F^{- 1} D_{P}^{- 1} F ∥_{F} \\ \leq ∥ F^{- 1} ∥_{F} \cdot ∥ D_{P}^{- 1} ∥_{F} \cdot ∥ F ∥_{F} \\ = \sqrt{M} \cdot \sqrt{{[a + (M - 1) b]}^{- 2} + (M - 1) {(a - b)}^{- 2}} \cdot \sqrt{M} \\ \leq M \sqrt{{(a - b)}^{- 2} + (M - 1) {(a - b)}^{- 2}} \\ = M \sqrt{M} {(a - b)}^{- 1} . \end{align}

(3.16)

From (3.15) and (3.16), we know

∥ {(D^{†})}^{*} (P^{- T} \otimes I_{K}) e ∥ \leq \sqrt{K M^{3}} ∥ {(D^{†})}^{*} ∥_{F} {(a - b)}^{- 1} .

(3.17)

Using (3.17), we know the conditional PEP (3.14) is upper bounded by

Pr [x \to \tilde{x} | H] \leq Q (\frac{d (a - b)}{\sqrt{2 σ_{w}^{2} K M^{3}} ∥ {(D^{†})}^{*} ∥_{F}}) .

(3.18)

From (3.18), it is obvious that we can increase a (i.e., p₁ or τ) to decrease the upper bound of PEP, which in turn reduces the symbol/bit detection error. However, it is easy to check that increasing τ from 0 to $\frac{M - 1}{M}$ would decrease the value of the objective function g = (p₁ + p₂ + ⋯ + p_M)² in (3.8), which means the estimation performance deteriorates. Hence, there is a tradeoff in the selection of τ between channel estimation and equalization. In the work of[4, 11], this tradeoff is also observed. We will give a simulation example to demonstrate this tradeoff in Section 4.

3.4 Discussion

We now give some further comments about the proposed method.

(1)

Channel identifiability and the case of more transmitters: The channel identifiability condition, rank (H) = K (assumption (ii)), for the proposed method is the same as that in methods [11, 12, 30], but is more relaxed than the identifiability conditions for methods [9, 10]. If assumption (ii) does not hold, i.e., the matrix H is rank deficient with rank(H) = W < K, then rank(HH ^∗) = W < K. In this case, we could only choose W positive eigenvalues and the associated eigenvectors from HH ^∗, which can not form the matrix $\hat{H}$ in (3.7) in theory.

In addition, since the size of the channel impulse response matrix H is J(L + 1) × K, rank(H) = K implies
$J (L + 1) \geq K,$

(3.19)

i.e., the product of the number of receivers (J) and the channel length (L + 1) should be no less than the number of transmitters (K). Hence, the proposed method is capable of identifying not only the more receivers case (J ≥ K), but also the more transmitters case (K > J) as long as (3.19) is fulfilled.
(2)

Channel order overestimation: So far we have assumed that the channel order L is known. If L is unknown, we can set P, the length of CP, as an upper bound of L since P ≥ L is required to avoid interblock interference. With this upper bound $\hat{L} = P$ and following the process given in Section 3.1, the corresponding matrix Q _H in (3.6) can be similarly constructed as $Q_{H} = H_{ov} H_{ov}^{*} + \frac{σ_{w}^{2}}{M g_{1}} I_{J (\hat{L} + 1)}$ , where $H_{ov} = {[H^{T} \underset{(\hat{L} - L) blocks}{\underset{⏟}{0 \dots 0}}]}^{T} \in C^{J (\hat{L} + 1) \times K}$ . Then, similar to the method given in Section 3.1, we eliminate the noise contribution imposed on Q _H to obtain $H_{ov} H_{ov}^{*}$ . Note that the last $(\hat{L} - L)$ block columns and block rows of $H_{ov} H_{ov}^{*}$ are zero. Hence, rank $(H_{ov} H_{ov}^{*}) = K$ and $H_{ov} H_{ov}^{*}$ has K positive eigenvalues. Each of the associated eigenvectors has the form $\hat{d} = {[d^{T} 0 \dots 0]}^{T} \in C^{J (\hat{L} + 1)}$ where $d \in C^{J (L + 1)}$ . From these K positive eigenvalues and the associated K eigenvectors, we can estimate ${\hat{H}}_{ov}$ , and then obtain the channel impulse response matrix $\hat{H}$ from ${\hat{H}}_{ov}$ up to a matrix ambiguity.
(3)
Algorithm: We now summarize the proposed approach as the following algorithm:
1. (1)

  Collect the received data y(n), and then estimate the autocorrelation matrix R via the following time average
  $\hat{R} = \frac{1}{S} \sum_{n = 1}^{S} y (n) y {(n)}^{*},$

  (3.20)

  where S is the number of data blocks.
2. (2)

  Use the precoding coefficients in (3.10) to compute Q _F from the autocorrelation matrix of $\hat{R}$ .
3. (3)

  Form the matrix Q _Husing (3.6) and Q _Fobtained from the previous step.
4. (4)

  Use the method given in Section 3.1 to remove the noise components imposed on Q _H to obtain HH ^∗.
5. (5)

  Finally, obtain the channel impulse response matrix H by computing the K largest eigenvalues and the associated eigenvectors of HH ^∗.

4 Simulation

In this section, we generate 100 2-input 2-output random channels with L = 6 for each simulation (except simulation 3) to demonstrate the performance of the proposed method. The number of subcarriers for one OFDM block is M = 36, and the length of CP is P = 6. Each channel coefficient in the channel impulse response matrix is generated according to the independent complex-valued Gaussian distribution with zero-mean and unit variance. The normalized mean-square-error (NMSE) of the channel impulse response matrix is defined as $NMSE = (1 / I) \sum_{i = 1}^{I} ∥ {\hat{H}}^{(i)} - H ∥_{F}^{2} \cdot ∥ H ∥_{F}^{- 2}$ , where I = 100 is the number of independent trials. ${\hat{H}}^{(i)} = {[{\hat{H}}^{(i)} {(0)}^{T} {\hat{H}}^{(i)} {(1)}^{T} \dots {\hat{H}}^{(i)} {(6)}^{T}]}^{T}$ is the i th estimate of the channel impulse response matrix H after removing the unitary matrix ambiguity by the least squares method[17]. The number of symbol blocks is S = 100. The input source symbols are quadrature-phase-shift-keying (QPSK) signals. The channel noise is zero-mean, temporally and spatially white Gaussian. The signal-to-noise ratio (SNR) at the output is defined as $SNR = \frac{E [∥ y (n) - v (n) ∥_{2}^{2}]}{E [∥ v (n) ∥_{2}^{2}]}$ .

4.1 Simulation 1: the effect of the precoding on channel estimation and equalization

In this simulation, we use 4 different precoders based on (3.10) with τ = 0.2, 0.4, 0.6, and 0.8, to illustrate the effect of the precoding on channel estimation and ZF equalization. Figure2 shows that NMSE decreases as SNR increases for each precoder. In this figure, we also see that the estimation performs better for smaller τ, which is consistent with the analysis at the end in Section 3.3. Figure3 shows that the BER improves as τ increases, since the analysis of PEP shows that a larger τ can lower the upper bound of PEP, which in turn improves symbol/bit detection at the receiver. From Figures2 and3, we know there is a tradeoff between channel estimation and equalization, and the selection of τ should depend on the scenarios we meet.

Figure 2
**Channel NMSE versus output SNR for different** τ.

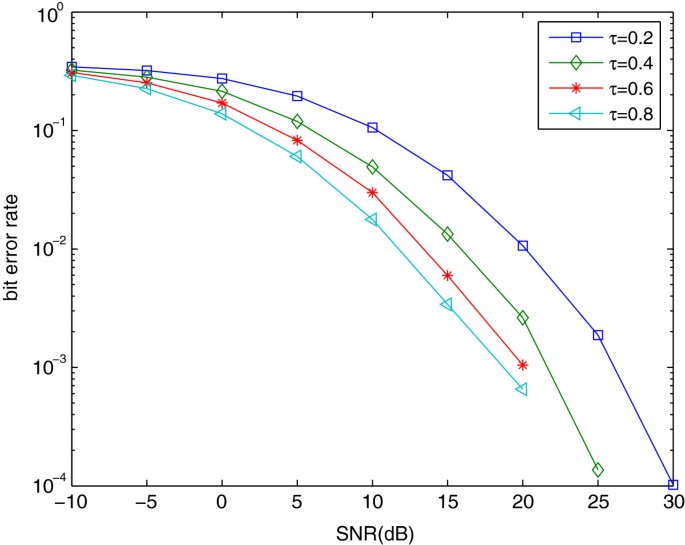

Figure 3
**BER versus output SNR for different** τ.

4.2 Simulation 2: robustness to channel order overestimation

In this simulation, we use the precoding scheme that satisfies (3.10) with different τ and fix SNR = 10 dB. For each upper bound

\hat{L}

with

0 \leq (\hat{L} - L) \leq 5

, we choose

P = \hat{L}

and M = 9P for simulation such that the transmission efficiency is maintained at 90%. Figure4 shows that the proposed method is reasonably robust to channel order overestimation since the NMSE increases slowly for each τ as

(\hat{L} - L)

increases from 0 to 5.

Figure 4
**Channel NMSE versus** $(\hat{L} - L)$ .

4.3 Simulation 3: channels with more transmitters than receivers

In this simulation, we generate 100 3-input 2-output random channels with L = 6 to illustrate the performance of the proposed method for channels with more transmitters than receivers. The precoding scheme is chosen based on (3.10) with different τ. Figure5 shows that the NMSE decreases as SNR increases. This figure also shows that the proposed method can apply to the channels with more transmitters than receivers.

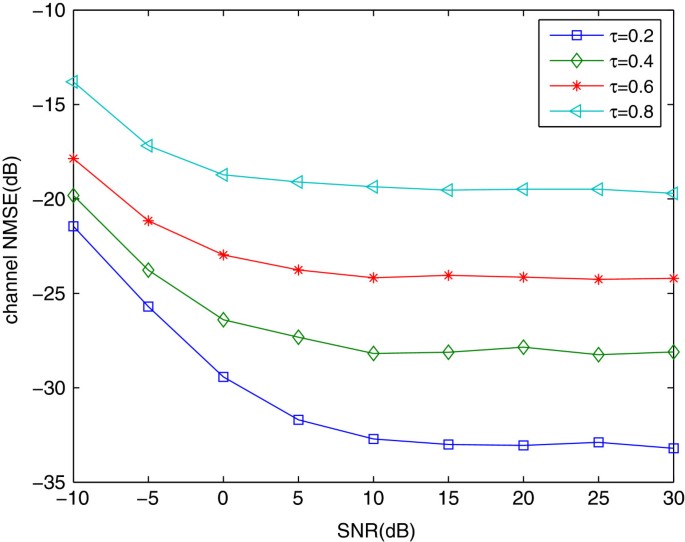

Figure 5
**Channel NMSE versus output SNR (more transmitters case).**

4.4 Simulation 4: comparison with existing methods

In this simulation, we compare the ZF equalization performances achieved by the proposed method (with τ = 0.8), one subspace method[9], and three precoding methods[10–12]. For the precoding matrices in[10–12], the precoding coefficients are {β = 0.432,α = 0.9j γ = 1.1}, {p = 0.2}, and {α = 0.8,δ = 0.05}, respectively. Figure6 shows that the proposed method outperforms the three precoding methods. The reason may be due to no systematic procedures for the precoding designs are given in[10–12] to combat against the noise effects and numerical errors; while the proposed method not only works out a way to remove the noise components, but also appropriately develops a precoding to combat against the numerical errors.

Figure 6
**Comparison of BER performance with existing methods.**

Figure6 also shows that the proposed method performs better than the subspace method in the low-to-medium SNR region (SNR < 25 dB), and for high SNR, the subspace method performs better than the proposed method. Since the subspace method enjoys the so-called “finite sample convergence” property[22–24], that is, in the noiseless case (or sufficicently high SNR), the channels can be almost exactly identified by using a finite number of samples for autocorrelation estimation, it is expected that the subspace-based solution can yield improved channel estimation accuracy and the resultant BER in the high SNR region, as compared with the proposed method.

5 Conclusions

In this article, we propose a semiblind channel estimation method for MIMO–OFDM systems based on circular precoding. By taking advantage of circular precoding, we obtain the outer product of the channel impulse response matrix H from the autocorrelation matrix of the received data. Then the channel impulse response matrix can be obtained by computing the positive eigenvalues and the corresponding eigenvectors of the outer-product matrix HH^∗. We also study the precoding design to combat the numerical error of estimation for the autocorrelation matrix, and discuss the effects of precoding on channel estimation and equalization. With the proposed framework, the method is reasonably robust to channel order overestimation and the identifiability condition is simply that the channel impulse response matrix has full column rank. Thanks to the identifiability condition, the proposed method is applicable to MIMO channels with more transmitters or more receivers. The simulations in this study also demonstrate the performance of the proposed method.

Endnote

^a Since the CP is actually a copy of the last portion of $s^{(k)} (n) \in C^{M}$ , the length of CP, P, is less than M (i.e., P < M). In general, for transmission efficiency, P is usually less than or equal to 0.25M. In addition, in Section 2, we know the length of CP is longer than or equal to L (i.e., L ≤ P) to combat against the channel delay spread. Hence we have L + 1 < M, which implies the size of HH^∗ is smaller than the size of $D_{F} D_{F}^{*}$ .

Appendix

The optimal solution to (3.8)

To find the optimal solution to (3.8), we first formulate (3.8) as

\begin{align} min_{p_{1}, p_{2}, \dots, p_{M}} f (p_{1}, p_{2}, \dots, p_{M}) \\ subject to h (p_{1}, p_{2}, \dots, p_{M}) = 0, \end{align}

(A.1)

where

f (p_{1}, p_{2}, \dots, p_{M}) = - {(p_{1} + p_{2} + \dots + p_{M})}^{2}

and

h (p_{1}, p_{2}, \dots, p_{M}) = \sum_{n = 1}^{M} p_{n}^{2} - 1

. Then we form a Lagrangian function γ as (A.2)

γ (p_{1}, p_{2}, \dots, p_{M}, λ) = f (p_{1}, p_{2}, \dots, p_{M}) + λ h (p_{1}, p_{2}, \dots, p_{M}),

(A.2)

where λ is the Lagrange multiplier[31]. The first-order necessary condition provided from Lagrange’s theorem says that for a point (p₁,p₂,…,p_M) to be a minimizer, the partial derivatives of the Lagrangian function must satisfy

\{\begin{array}{l} \frac{\partial γ}{\partial p_{1}} = - 2 \sum_{n = 1}^{M} p_{n} + 2 λ p_{1} = 0 \\ \frac{\partial γ}{\partial p_{2}} = - 2 \sum_{n = 1}^{M} p_{n} + 2 λ p_{2} = 0 \\ ⋮ \\ \frac{\partial γ}{\partial p_{M}} = - 2 \sum_{n = 1}^{M} p_{n} + 2 λ p_{M} = 0 \\ \frac{\partial γ}{\partial λ} = \sum_{n = 1}^{M} p_{n}^{2} - 1 = 0 . \end{array}

(A.3)

From the first M equations in (A.3), we know

\sum_{n = 1}^{M} p_{n} = λ p_{1} = λ p_{2} = \dots = λ p_{M} .

(A.4)

There are two cases for (A.4), $\sum_{n = 1}^{M} p_{n} = 0$ and $\sum_{n = 1}^{M} p_{n} \neq 0$ . For the first case, it is obvious that the objective function f = 0. However, it is easy to find a solution that conforms to the constraint h = 0, for example, (p₁,p₂,p₃,…,p_M) = (1,0,0,…,0), such that the objective function f = −1 which is smaller than f = 0. Hence, the first case can not minimize the objective function. Thus, it is necessary to focus the second case, $\sum_{n = 1}^{M} p_{n} \neq 0$ .

For $\sum_{n = 1}^{M} p_{n} \neq 0$ , (A.4) implies λ ≠ 0 and p₁ = p₂ = ⋯ = p_M. Combining (A.4) with the last equation in (A.3) shows that $(p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}, λ^{*}) = (\frac{1}{\sqrt{M}}, \frac{1}{\sqrt{M}}, \dots \frac{1}{\sqrt{M}}, M)$ is the unique solution to (A.3) for $\sum_{n = 1}^{M} p_{n} \neq 0$ , which implies $(p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}) = (\frac{1}{\sqrt{M}}, \frac{1}{\sqrt{M}}, \dots, \frac{1}{\sqrt{M}})$ is the unique candidate for being a minimizer. We now want to verify if $(p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}, λ^{*})$ satisfies the second-order sufficient condition.

According to[31], we form the Hessian matrix Γ(p₁,p₂,…,p_M,λ) of the Lagrangian function γ(p₁,p₂,…,p_M,λ) at

(p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}, λ^{*})

as

Γ (p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}, λ^{*}) = [\begin{array}{c} 4 M - 2 & - 2 & - 2 & \dots & - 2 \\ - 2 & 4 M - 2 & - 2 & \dots & - 2 \\ - 2 & - 2 & 4 M - 2 & \dots & - 2 \\ ⋮ & ⋮ & \dots & ⋱ & ⋮ \\ - 2 & - 2 & - 2 & \dots & 4 M - 2 \end{array}] .

(A.5)

Let

r = {[r_{1} r_{2} \dots r_{M}]}^{T}

be a vector and let

\nabla h (p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}) = [\frac{2}{\sqrt{M}} \frac{2}{\sqrt{M}} \dots \frac{2}{\sqrt{M}}]

be the gradiant of h at

(p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*})

. If we can verify that the Hessian matrix Γ in (A.5) is positive definite for all r ≠ 0 with

\nabla h (p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}) r = 0

, then

(p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*})

is the minimizer. To see this, we know

\begin{align} \nabla h (p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}) r = 0 \\ \Leftrightarrow & r_{1} + r_{2} + \dots + r_{M} = 0 . \end{align}

(A.6)

Now

\begin{align} r^{T} Γ (p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}, λ^{*}) r \\ = & (4 M r_{1}^{2} - 2 r_{1} \sum_{i = 1}^{M} r_{i}) + (4 M r_{2}^{2} - 2 r_{2} \sum_{i = 1}^{M} r_{i}) \\ + \dots + (4 M r_{M}^{2} - 2 r_{M} \sum_{i = 1}^{M} r_{i}) \\ = & 4 M (r_{1}^{2} + r_{2}^{2} + \dots + r_{M}^{2}) > 0, \forall r \neq 0 . \end{align}

(A.7)

Note that the second equality in (A.7) holds due to (A.6). From (A.7), we know the Hessian matrix $Γ (p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}, λ^{*})$ is positive definite for all r ≠ 0 with $\nabla h (p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}) r = 0$ . Hence, the solution $(p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}) = (\frac{1}{\sqrt{M}}, \frac{1}{\sqrt{M}}, \dots, \frac{1}{\sqrt{M}})$ is the optimal solution to (A.1), and the objective function $f (p_{1}^{*}, p_{2}^{*}, \dots, p_{M}^{*}) = - M$ .

Declarations

Acknowledgements

This research was sponsored by the National Science Council under grant NSC-98-2221-E035-043.

Authors' original submitted files for images

Below are the links to the authors’ original submitted files for images.

13634_2012_357_MOESM1_ESM.pdf Authors’ original file for figure 1

13634_2012_357_MOESM2_ESM.pdf Authors’ original file for figure 2

13634_2012_357_MOESM3_ESM.pdf Authors’ original file for figure 3

13634_2012_357_MOESM4_ESM.pdf Authors’ original file for figure 4

13634_2012_357_MOESM5_ESM.pdf Authors’ original file for figure 5

13634_2012_357_MOESM6_ESM.pdf Authors’ original file for figure 6

Authors’ Affiliations

(1)

Department of Communications Engineering, Feng Chia University, Taichung, Taiwan

References

Cimini Jr. LJ: Analysis and simulation of a digital mobile channel using orthogonal frequency division multiplexing. IEEE Trans. Commun 1985, 33(7):665-675. 10.1109/TCOM.1985.1096357View ArticleGoogle Scholar
Bingham JA: Multicarrier modulation for data transmission: an idea whose time has come. IEEE Commun. Mag 1990, 28(5):5-14.MathSciNetView ArticleGoogle Scholar
Hanzo L, Munster M, Choi BJ, Keller T: OFDM and MC-CDMA for Broadband Multi-User Communications, WLANs and broadcasting. Wiley, West Sussex, England; 2003.View ArticleGoogle Scholar
Lin R, Petropulu AP: Linear precoding assisted blind channel estimation for OFDM systems. IEEE Trans. Veh. Technol 2005, 54(3):983-995. 10.1109/TVT.2005.844681View ArticleGoogle Scholar
Stuber GL, Barry JR, Mclaughlin SW, Li Y, Ingram MA, Pratt TG: Boardband MIMO–OFDM wireless communications. Proc. IEEE 2004, 92(2):271-294. 10.1109/JPROC.2003.821912View ArticleGoogle Scholar
Abed-Meraim K, Qiu W, Hua Y: Blind system identification. Proc. IEEE 1997, 85(8):1310-1332. 10.1109/5.622507View ArticleGoogle Scholar
Ding Z, Li Y: Blind Equalization and Identification. Marcel Dekker, Inc., New York; 2001.Google Scholar
Giannakis GB, Hua Y, Stoica P, Tong L: Signal Processing, Advances in Wireless and Mobile Communications Volume I: Trends in Channel Identification and Equalization. Prentice Hall, PTR Upper Saddle River; 2001.Google Scholar
Gao F, Zeng Y, Nallanathan A, Ng TS: Robust subspace blind channel estimation for cyclic prefixed MIMO OFDM systems: algorithm, identifiability and performance analysis. IEEE J. Sel.Areas Commun 2008, 26(2):378-388.View ArticleGoogle Scholar
Yatawatta S, Petropulu AP: blind channel estimation in MIMO OFDM systems with multiuser interference. IEEE Trans. Signal Process 2006, 54(3):1054-1068.View ArticleGoogle Scholar
Gao F, Nallanathan A: Blind channel estimation for MIMO OFDM systems via nonredundant linear precoding. IEEE Trans. Signal Process 2007, 55(2):784-789.MathSciNetView ArticleGoogle Scholar
Shin C, Heath Jr. RW, Powers EJ: Non-redundant precoding-based blind and semi-blind channel estimation for MIMO block transmission with a cyclic prefix. IEEE Trans. Signal Process 2008, 56(6):2509-2523.MathSciNetView ArticleGoogle Scholar
Petropulu AP, Lin R: Blind OFDM channel estimation through simple linear precoding. IEEE Trans. Wirel. Commun 2004, 3(2):647-655. 10.1109/TWC.2003.821140View ArticleGoogle Scholar
Zhang R: Blind channel estimation for precoded OFDM system. In Proc. IEEE Int. Conf. Acoust. Speech Signal Process, vol. 3. Philadelphia, Pennsylvania, USA; 2005.Google Scholar
Kim T, Eo I: Blind channel estimation and equalization in OFDM system with circular precoding. In Proc. IEEE Int. Conf. Acoust. Speech Signal Process, vol. 4. Toulouse, France; 2006.Google Scholar
Moon TK, Stirling WC: Mathematical Methods and Algorithms for Signal Processing. Prentice Hall, Upper Saddle River; 2000.Google Scholar
Ding Z: Matrix outer-product decomposition method for blind multiple channel identification. IEEE Trans. Signal Process 1997, 45(12):3053-3061. 10.1109/78.650264View ArticleGoogle Scholar
Chen YS: Semiblind channel estimation for MIMO single carrier with frequency-domain equalization systems. IEEE Trans. Veh. Technol 2010, 59(1):53-62.View ArticleGoogle Scholar
Liu Z, Xin Y, Giannakis GB: Linear constellation precoding for OFDM with maximal multipath diversity and coding gain. IEEE Trans. Commun 2003, 51(3):416-427. 10.1109/TCOMM.2003.809791View ArticleGoogle Scholar
Tepedelenlioğlu C: Maximum multipath diversity with linear equalization in precoded OFDM systems. IEEE Trans. Inf. Theory 2004, 50(1):232-235. 10.1109/TIT.2003.821987View ArticleMathSciNetMATHGoogle Scholar
Zhou S, Giannakis GB: Single-carrier space-time block-coded transmissions over frequency-selective fading channels. IEEE Trans. Inf. Theory 2003, 49(1):164-179. 10.1109/TIT.2002.806158MathSciNetView ArticleMATHGoogle Scholar
Tong L, Zhao Q: Joint order detection and blind channel estimation by least squares smoothing. IEEE Trans. Signal Process 1999, 47(9):2345-2355. 10.1109/78.782179View ArticleMATHGoogle Scholar
Zhao Q, Tong L: Adaptive blind channel estimation by least squares smoothing. IEEE Trans. Signal Process 1999, 47(12):3000-3012.View ArticleMATHGoogle Scholar
Yu X, Tong L: Joint channel and symbol estimation by oblique projections. IEEE Trans. Signal Process 2001, 49(12):3074-3083. 10.1109/78.969515View ArticleGoogle Scholar
Larsson EG, Stoica P: Space-Time Block Coding for Wireless Communications. Cambridge University Press, Cambridge; 2003.View ArticleMATHGoogle Scholar
Wu JY, Lee TS: Periodic-modulation-based blind channel identification for the single-carrier block transmission with frequency-domain equalization. IEEE Trans. Signal Process 2006, 54(3):1114-1130.View ArticleGoogle Scholar
Chevreuil A, Serpedin E, Loubaton P, Giannakis GB: Blind channel identification and equalization using periodic modulation precoders: performance analysis. IEEE Trans. Signal Process 2000, 48(6):1570-1586. 10.1109/78.845916View ArticleGoogle Scholar
Proakis JG, Salehi M: Essentials of Communication Systems Engineering. Prentice Hall, Upper Saddle River; 2005.MATHGoogle Scholar
Golub GH, Van Loan CF: Matrix Computations. The Johns Hopkins University Press, Baltimore; 1996.MATHGoogle Scholar
Lin CA, Chen YS: Blind identification of MIMO channels using optimal periodic precoding. IEEE Trans. Circ. Syst. Reg. Papers 2007, 54(4):901-911.View ArticleMathSciNetGoogle Scholar
Luenberger DG: Linear and Nonlinear Programming. Kluwer Academic Publishers, Boston; 2003.MATHGoogle Scholar

Copyright

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
