A digital waveguide-based approach for Clavinet modeling and synthesis

  • 1Email author,
  • 2,
  • 2,
  • 1 and
  • 3
EURASIP Journal on Advances in Signal Processing20132013:103

https://doi.org/10.1186/1687-6180-2013-103

  • Received: 15 March 2012
  • Accepted: 5 April 2013
  • Published:

Abstract

The Clavinet is an electromechanical musical instrument produced in the mid-twentieth century. As is the case for other vintage instruments, it is subject to aging and requires great effort to be maintained or restored. This paper reports analyses conducted on a Hohner Clavinet D6 and proposes a computational model to faithfully reproduce the Clavinet sound in real time, from tone generation to the emulation of the electronic components. The string excitation signal model is physically inspired and represents a cheap solution in terms of both computational resources and especially memory requirements (compared, e.g., to sample playback systems). Pickups and amplifier models have been implemented which enhance the natural character of the sound with respect to previous work. A model has been implemented on a real-time software platform, Pure Data, capable of a 10-voice polyphony with low latency on an embedded device. Finally, subjective listening tests conducted using the current model are compared to previous tests showing slightly improved results.

Keywords

  • Delay Line
  • Total Harmonic Distortion
  • Comb Filter
  • Stringed Instrument
  • Tone Control

1 Introduction

In recent years, computational acoustics research has explored the emulation of vintage electronic instruments [13], or national folkloric instruments, such as the kantele [4], the guqin [5], or the dan tranh [6]. Vintage electromechanical instruments such as the Clavinet [7] are currently popular and sought-after by musicians. In most cases, however, these instruments are no longer in production; they age and there is a scarcity of spare parts for replacement or repair. Studying the behavior of the Clavinet from an acoustic perspective enables the use of a physical model [8] for the emulation of its sound, making possible low-cost use for musicians. The name ‘Clavinet’ refers to a family of instruments produced by Hohner between the 1960s and the 1980s, among which the most well-known model is the Clavinet D6. The minor differences between this and other models are not addressed here.

Several methods for the emulation of musical instruments are now available [811]. Some strictly adhere to an underlying physical model and require minimal assumptions, such as finite-difference time-domain methods (FDTD) [10, 12]. Modal synthesis techniques, which enable accurate reproduction of inharmonicity and beating characteristics of each partial, have recently become popular in the modeling of stringed instruments [11, 1315]. However, the computational model proposed in this paper is based on digital waveguide (DWG) techniques, which prove to be computationally more efficient than other methods while adequate for reproducing tones of slightly inharmonic stringed instruments [8, 16, 17] including keyboard instruments [18].

Previous works on the Clavinet include a first exploration of the FDTD modeling for the Clavinet string in [19] and a first DWG model proposed in [20]. The model discussed hereby is based on the latter, provides more details, and introduces some improvements. The Clavinet pickups have been studied in more detail in [21]. Listening tests have been conducted in [22] based on the previously described model. The sound quality of the current model is compared to previous listening tests showing a slight improvement, while the computational cost is still kept low as in the previous work. Other related works include models for the clavichord, an ancient stringed instrument which shows similarities to the Clavinet [23, 24]. At the moment, there is a commercial software explicitly employing physical models for the Clavinet [25], but no specific information on their algorithms is available.

The paper is organized as follows: Section 2 deals with the analysis of Clavinet tones. Section 3 describes a physical model for the reproduction of its sound, while Section 4 discusses the real-time implementation of the model, showing its low computational cost. Section 5 describes the procedures for subjective listening tests aimed at the evaluation of the model faithfulness, and finally, Section 6 concludes this paper.

2 The Clavinet and its acoustic characteristics

The Clavinet is an electromechanical instrument with 60 keys and one string per key; there are two pickups placed close to one end of the string. The keyboard ranges from F1 to E6, with the first 23 strings wound and the remaining ones unwound, so that there is a small discontinuity in timbre. The end of the string which is closest to the keyboard is connected to a tuning pin and is damped by a yarn winding which stops string vibration after key release. The string termination on the opposite side is connected to a tailpiece. The excitation mechanism is based on a class 2 lever (i.e., a lever with the resistance located between the fulcrum and the effort), where the force is applied through a rubber tip, called the tangent. The rubber tip strikes the string and traps it against a metal stud, or anvil, for the duration of the note, splitting the string into speaking and nonspeaking parts, with the motion of the former transduced by the pickups. Figure 1 shows the action mechanism of the Clavinet.
Figure 1
Figure 1

A schematic view of the Clavinet: (a) top and (b) side. Parts: A, tangent; B, string; C, center pickup; D, bridge pickup; E, tailpiece; F, key; G, tuning pin; H, yarn winding; I, mute bar slider and mechanism; and J, anvil.

The Clavinet also includes an amplifier stage, with tone control and pickup switches. The tone control switches act as simple equalization filters. The pickup switches allow the independent selection of pickups or sums of pickup signals in phase or in anti-phase. Figure 2 shows the Clavinet model used for analysis and sound recording.
Figure 2
Figure 2

The Hohner Clavinet D6 used in the present investigation. The tone switches and pickup selector switches are located on the panel on the bottom left, which is screwed out of position. On the opposite side is the mute bar slider. The tuning pins, one per key, are visible.

2.1 Electronics

The unamplified sound of the Clavinet strings is very feeble as the keybed does not acoustically amplify the sound; it needs be transduced and amplified electronically for practical use. The transducers are magnetic single-coil pickups, coated in epoxy and similar to electric guitar pickups, although instead of having one coil per string, there are 10 metal bar coils intended to transduce six strings each.

The two pickups are electrically identical, but they have different shapes and positions. The bridge pickup lies above the strings tilted at approximately 30° with respect to normal and is placed close to the string termination, while the central pickup lies below the strings, closer to the string center, and orthogonal to them as illustrated in Figure 1a.

The pickups introduce several effects on the resulting sound [26], including linear filtering, nonlinearities [27], and comb filtering [8, 28]. Some of these effects have been studied in [21] and will be detailed in Subsection 2.3.5, while details regarding the emulation of these effects are reported in Section 3.3.

The signal is subsequently fed to the amplifier, which is a two-stage bipolar junction transistor amplifier, with four second-order or first-order cells activated by switches, corresponding to the four tone switches: soft, medium, treble, and brilliant. In this work, the frequency response of the amplifier and its tone controls have been evaluated with a circuit simulator. The combination of the unshielded single-coil pickups and the transistor amplifier produces a fair amount of noise, also depending on electromagnetic interference in the surrounding environment.

2.2 Tone recording and analysis

The tone analyses were conducted on a large database of recorded tones sampled from a Hohner D6 Clavinet (Hohner Musikinstrumente GmbH & Co. KG, Trossingen, Germany). Recordings include Clavinet tones for the whole keyboard range, with different pickup and switch settings. The recording sessions were carried out in a semi-anechoic recording room. The recordings were done with the Clavinet output and an AKG C-414 B-ULS condenser microphone (AKG Acoustics GmbH, Vienna, Austria) placed close to the strings, and both were connected to the acquisition sound card. The latter recordings were useful only in the analysis of the tail of the sound as the mechanical noise generated by the key, its rebound, and the tangent hitting the anvil masked the striking portion of the tone nearly entirely. This was due to the fact that the Clavinet soundboard is not intended as an amplifying device, but rather as a mechanical support to the instrument.

The tones collected from the amplifier output were analyzed, bearing in mind that the string sound was modified by the pickups and the amplifier.

2.3 Characteristics of recorded tones

Clavinet tones are known for their sharp attacks and release times, which make the instrument suitable for rhythmic music genres. This is evident upon examination of the signal in the time domain. The attack is sharp as in most struck chordophone instruments, and the release time, similarly, is short, at least with an instrument in mint condition, with an effective yarn damper. The sustain, on the other hand, is prolonged, at least for low and mid tones, as there is minimal energy transfer to the rest of the instrument (in comparison with, say, the piano). During sustain, beyond minimal interaction with the magnetic transducer and radiation from the string itself, the only transfer of energy occurs at the string ends, which are connected to a metal bar at the far end and the tangent rubber tip at the near end. During sustain, the time required for the sound level to decay by 60 dB (T 60) can be as long as 20 s or more. Mid to high tones have a shorter sustain as is typical of stringed instruments. Figure 3 illustrates the time and frequency plot of a A 2 tone.
Figure 3
Figure 3

Plot of (a) an A♯2 tone (116.5 Hz) and (b) its spectral content up to 8 kHz. Please note that the spectrum in (b) is recorded from a pickup signal, hence exhibits the effects of the pickups (clearly visible as a comb pattern with notches at every 5th partial) and the amplifier.

2.3.1 Attack and release transient

Properties of the time-domain displacement wave and the excitation mechanism will be inferred by assuming the pickups to be time-differentiating devices [27].

The attack signals show a major difference between low to mid tones and high tones, as shown in Figure 4. Figure 4b shows the first period of a D3 tone, illustrating a clear positive pulse, reflections, and higher frequency oscillations, while in Figure 4a, the first period of an A4 tone has a clear periodicity and a smooth waveshape.
Figure 4
Figure 4

First period of (a) an A4 (440.0 Hz) tone and (b) a D3 (146.8 Hz) tone, both sampled at 48 kHz.

When the key is released, the speaking and nonspeaking parts of the string are unified, giving rise to a change in pitch of short duration, caused by the yarn damper. Given the geometry of the instrument, the pitch decrease after release is three semitones for the whole keyboard. A spectrogram of the tone before and after release is shown in Figure 5.
Figure 5
Figure 5

Spectrogram of the tone before and after key release. The key release instant is located at 0.5 s.

2.3.2 Inharmonicity of the string

Another perceptually important feature of a string sound is the inharmonicity [29], due to the lightly dispersive character of wave propagation in strings. Several methods exist for inharmonicity estimation [30]. In order to quantify the effect of string dispersion, the inharmonicity coefficient B must be estimated for the whole instrument range. Although theoretically the exact pitch of the partials should be related only to the fundamental frequency and the B coefficient [31] by the following equation:
f n = n f 0 ( 1 + B n 2 ) ,
(1)
where f n is the frequency of the n th partial and f 0 is the fundamental frequency, empirical analysis of real tones shows a slight deviation between the measured partial frequency and the theoretical f n , and thus, a deviation value B n can be calculated for each partial related to the fundamental frequency by the following:
B n = f n 2 n 2 f 0 2 n 4 f 0 2 ,
(2)

obtained by reworking Equation 1 and replacing the overall B with a separate B n for every n th partial. For practical use, a number of B n values measured from the same tone are combined to obtain an estimate of the overall inharmonicity. A way to obtain this estimate is to use a criterion based on the loudness of the first N partials (excluding the fundamental frequency), as described below.

The partial frequencies are evaluated by the use of a high-resolution fast Fourier transform (FFT) on a small segment of the recorded tone. The FFT coefficients are interpolated to obtain a more precise location of partial peaks at low frequencies. The peaks are automatically retrieved by a maximum finding algorithm at the neighborhood of the expected partial locations for the first N partials and their magnitudes (in dB) are also measured. The fundamental frequency and its magnitude are estimated as well. The B n coefficients are estimated for each of the N partials using the measured value for f 0 to take a possible slight detuning into account. For a perceptually motivated B estimate, the B n estimated values are averaged with a weighting according to their relative amplitude.

The B coefficient has been estimated for eight Clavinet tones spanning the whole key range by evaluating the B n coefficients for N=6, i.e., using all the partials from the second to the seventh. Linear interpolation has been used for the remaining keys. The estimate of the B coefficient for the whole keyboard is shown in Figure 6 and plotted against inharmonicity audibility thresholds as reported in [29]. From this comparison, it is clear that inharmonicity in the low keyboard range exceeds the audibility threshold and its confidence curve, meaning that its effect should be clearly audible by any average listener. For high notes, the inharmonicity crosses this threshold, making it unnoticeable to the average listener, and hence may be excluded from the computational model.
Figure 6
Figure 6

Estimated B coefficient for the whole keyboard. Estimated inharmonicity coefficients (bold solid line with dots) for the whole Clavinet keyboard range against audibility thresholds (solid line) and confidence bounds (dashed lines) evaluated in [29]. The discontinuity between the 23rd and 24th keys is noticeable at approximately 150 Hz.

2.3.3 Fundamental frequency

The fundamental frequency is very stable over time. A method based on windowed autocorrelation analysis [32] was used in order to obtain a good estimate of f 0 histories for the attack and sustain phase of the tone. The analysis shows a slight change in time of the pitch, which, however, is perceptually insignificant, with a variation of at most 1 to 2 cents, while audibility thresholds are usually much higher [33].

2.3.4 Higher partials

The spectrum in Figure 3b shows the first harmonics up to 8 kHz for an A 2 tone and is quite representative of the spectral profile for many of the Clavinet tones. The second partial always has a magnitude more than 3 dB higher than the first, and often (as in the figure) the third is higher than the second. The spectral envelope of Clavinet tones shows several peaks and notches due to the superposition of several effects including partial beating (which generates time-varying peaks and notches), the pickup position (which applies a comb pattern, later discussed in Section 2.3.5), and amplifier and filter frequency responses (discussed in Section 2.3.6). Figure 3b reveals a comb-like pattern given by the pickup position at approximately 544 Hz and multiple frequencies.

The temporal evolution of partials has been studied. The partials’ decay is usually linear on the decibel scale but sometimes shows an oscillating behavior, i.e., a beating, as seen at the bottom of Figure 7.
Figure 7
Figure 7

Harmonic decay for two different recordings of an A2 Clavinet tone: (a) piano and (b) mezzoforte.

The connection between the pitch or key velocity and this phenomenon is still not understood. Data show that the phenomenon stops occurring with keys higher than E4, while the magnitude of the oscillations can be as high as 15 dB peak-to-peak, at frequencies between 0.5 and 2 Hz. The phenomenon does not always noticeably occur, and its amplitude and frequency change from time to time. There is a slight correlation with the key velocity, suggesting that the phenomenon may be correlated to acoustical nonlinearities (e.g., string termination yielding), similar to those appearing in other instruments such as the kantele [4]. Generally, when the beating occurs, it is shown in both microphone and pickup recordings. In principle, however, electrical nonlinearities may as well imply some beating between the slightly inharmonic tone partials and harmonics generated by the nonlinearity.

Besides occasional beating, most partials exhibit a monotone decay. For those tones that do not show partials beating, T 60 have been measured separately for each partial. The lowest two to four partials usually show remarkably longer T 60 than the higher ones. T 60 decreases with increasing partial number. However, for most tones, the envelope for partials T 60 is not regular but shows an oscillating or ripply behavior, i.e., a fluctuation of the T 60 with an approximate periodicity between two and three times the fundamental frequency. Figure 8 shows partials T 60 extracted from an E4 tone (vertical lines), compared to the ones from the synthesis model later described in Section 3.
Figure 8
Figure 8

Partials T 60 extracted from an E4 tone compared to the ones from the synthesis model. Partials T 60 for a measured Clavinet E4 tone (vertical lines) plotted against the partials T 60 of an E4 tone synthesized by the computational model (the dotted line represents the loss filter only, and the dashed line represents the loss filter together with the ripple filter). The T 60 values for the first two partials have been matched with the ripple filter.

2.3.5 The pickups

Coil pickups, such as those used in guitars, have been studied thoroughly in [26]. The effect of their position is that of linear filtering. Comb-like patterns can be observed in guitar tones and in Clavinet tones due to the reflection of the signal at the string termination. Pickups also have their own frequency response given by their electric impedance and the input impedance they are connected to [34]. Finally, the relation between the string displacement and the voltage generated by the pickup induction mechanism is nonlinear due to factors such as the nonlinear decay law of the magnetic dipole field. The frequency response of the displacement to voltage ratio is that of a perfect derivative. All the effects listed hereby have been analyzed and modeled.

Details on the comb parameter extraction will be given in Section 3.3 relative to its implementation. The electrical impedance Z(ω) of a Clavinet pickup has been measured as described in [34] and is shown in Figure 9. The frequency response of the pickup (proportional to the inverse of Z(ω)) is almost flat, with differences between maximum and minimum values smaller than 1 dB. The impedance can be, in general, greatly modified by the parasitic capacitance present in the connection to the amplifier (e.g., in guitar cables [34]). This parameter has not been evaluated and is considered hereby negligible as the Clavinet has a short connection to the amplifier made partly of shielded cables and partly of copper paths on a printed circuit board.
Figure 9
Figure 9

Impedance magnitude of the Clavinet pickup versus frequency.

Nonlinearities in the displacement to voltage ratio have been evaluated by means of a software simulation in Vizimag, a commercial electromagnetic simulator. Simulations have been carried out for different string gauges, string to pickup distance, and horizontal position of the string with respect to the pickup. The vibration in the horizontal and vertical polarizations has been measured separately, resulting in a negligible voltage generated by the horizontal displacement (25 dB lower than the vertical displacement). The string oscillation was 1 mm peak-to-peak wide, which is the maximum measured oscillation amplitude. The simulations are detailed in [21].

Simulations show that the magnetic flux variation in response to vertical displacement has a negative exponential shape (Figure 10), in accord to previous works [26, 27, 35].
Figure 10
Figure 10

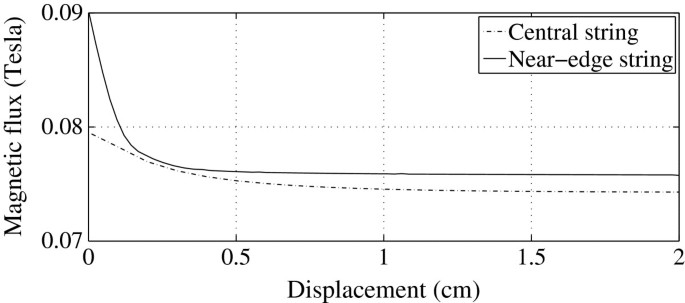

Simulation of the magnetic flux against vertical displacement. Magnetic flux variation against vertical displacement for a string passing over the pickup center (dashed line) and vertical displacement for a string passing over the edge of the pickup (solid line).

2.3.6 Amplifier and tone controls

Pickup signals are fed to the amplifier section, which also includes tone controls and a volume potentiometer. The amplifier schematic is publicly available [36], and it has been used to gather a basic understanding of its functioning. Some of the components, such as the tone controls and the transistors, have been isolated to conduct simulations and obtain an estimate of the frequency response by means of an electric circuit simulator.

Figure 11 shows simulations for the magnitude frequency response of the tone switches, with all the tone switches active (open switches) and with one switch active at a time. Further circuit simulations with the tone stack removed show the amplifier frequency response to be close to flat, with a mild low-shelf (−3 dB at 130 Hz) and high-shelf (+ 3 dB at 4,000 Hz) characteristic. The tone controls, consisting of first- or second-order discrete filters, have been emulated by digital filters with the transfer function derived from the respective impedance in the analog domain, as detailed in Section 3.4.
Figure 11
Figure 11

SPICE simulation of the tone switches. All switches active (solid line), soft-only active (dotted line), medium-only active (dashed line), treble-only active (dash-dotted line), brilliant-only active (dash-dot-dot line).

3 Computational model

The basic Clavinet string model was presented first in [37] and described in [20]. It consists of a digital waveguide loop structure [38] in which a fractional delay filter [39], a loss filter [40], a ripple filter [41], and a dispersion filter [42] are cascaded. This structure is fed by an attack excitation signal, generated on-line by a signal model dependent on an estimate of the virtual tangent velocity. Furthermore, the note decay is modeled by increasing the length of the delay line and increasing losses, i.e., decreasing loop gain. The string model is completed by several beating equalizers [43] modulating the gain of the first partials.

More details of this model will now be described.

3.1 String model

The Clavinet pitch is very stable during the sustain phase of the tone, and thus, there is no need for change in the overall DWG delay during sustain. Partial decay time analysis from Clavinet tones reveals ripply T 60 also shown by microphone-recorded tones. This can be easily reproduced by the use of a so-called ripple filter, which has been used for the emulation of other instruments as well, such as the harpsichord [41] and the piano [44].

The ripple filter adds a feedforward path with unity gain (which can be incorporated into the delay line) and adds a small amount of the direct signal to it with gain r. The analytic expression is the following:
y [ n ] = rx [ n ] + x [ n R ] ,
(3)

where r is a small coefficient and R is the length of the delayed path length introduced by this filter. The effect of the ripple filter is shown in Figure 8 compared to the T 60 of a real tone. The gain at different partials or, conversely, the T 60 values are different from one another, enabling the emulation of the real tone behavior seen in Figure 8. Although from a visual inspection of the figures the fit between real and synthesized data may not seem close, from a perceptual standpoint, it must be noted that differences of several seconds in the T 60 times, i.e., of several decibels in the magnitude response for a given partial, do not result in a perceivable change, as they fall beneath audibility thresholds, as shown in [45] for the magnitude response of a loss filter in a DWG model.

By increasing or decreasing the r coefficient, the ripple effect is increased or decreased; by changing R, the width of the ripples is changed. R is in turn calculated from the parameter R rate from the following:
R = round ( R rate L S ) ,
(4)

and thus, the total delay line L S is now split into two sections of length R and L =L S R. To maintain closed loop stability, the overall gain must be kept below unity, i.e., g+|r|<1, with g being the loss filter gain.

The ripple filter coefficients can be adjusted in order to match those observed in recorded tones. The ripple parameters in Figure 8, for instance, are R rate=1/2 and r=−0.006. In the model, R rate and r are randomly chosen at each keystroke respectively in the range between 1/2 to 1/3 and −0.006 to −0.001, according to observations.

The design of the dispersion filter follows the algorithm described in [46]a. The algorithm achieves the desired B coefficient in a frequency band specified by the user. The authors suggest that this be at least 10 times the fundamental frequency. The B coefficients, the bandwidth (BW), and the β parameters used for every key are linearly interpolated from the values in Table 1.
Table 1

B coefficients used for the design of the dispersion filter

Key

F1

A♯1

D3

D♯3

F♯5

E6

B

5E −4

2E −4

9E −5

1E −4

9E −5

8E −5

BW (Hz)

436.5

582.7

1,468.3

1,555.6

7,399.9

13,185.1

β

0.85

0.85

0.85

0.85

0.85

0.85

The Clavinet tones may contain beating partials as shown in Figure 7. An efficient and easily tunable method to emulate this is to cascade a so-called beating equalizer, proposed in [43] with the DWG loop.

The beating equalizer is based on the Regalia-Mitra tunable filters [47] but adds a modulating gain at the output stage K[n], where n is the time index.

In brief, such a device is a band-pass filter with varying gain at the resonating frequency. The gain can vary according to an arbitrary function of time, but for the emulation of Clavinet tones, it has been decided to use a | cos(2π f n)| law, which well approximates the behavior seen in Figure 7 in Section 2.3.4. The modulated gain is the following:
K [ n ] = 1 0 | cos ( 2 πfn ) | 20 .
(5)

In order to modulate M partials, M beating equalizers are needed. It was shown, however, by informal listening tests that it is difficult to perceive the effect of more than three beating equalizers working at the same time.

The computational cost of this device is low, consisting of a biquad filter plus the overhead of five operations per sample (three additions and two multiplications, as can be seen in [43] and Figure 2).

3.2 Excitation model

The string model described so far can be fed at attack time with an excitation signal of some kind. In the proposed model, the excitation signal consists of a smooth pulse similar to those seen in low- to mid-range tones. The pulse is made by joining an attack ramp with its reverse. The ramp is obtained by fitting the following polynomial to some pulses extracted from recorded tones:
f ( x ) = a P x P + a P 1 x P 1 + ... + a 1 x + a 0 .
(6)
The polynomial coefficients were calculated from several least square error fits to some portions of signals extracted from the recordings. These signals have a smooth triangular shape and represent the pickup output from the tangent hitting the string. A polynomial has been obtained with order P=6 and coefficients in descending order: −2.69E −8, 2.53E −6, −9.54E −5, 1.74E −3, −1.44E −2, 4.50E −2, −3.50E −2. This signal is scaled by a gain and stretched by interpolation according to the player dynamic, making it shorter or longer. To calculate the pulse length in samples N, the average key velocity v and the initial distance d between the tangent and stud are required; thus,
N = f s d v ,
(7)
where f s is the sampling frequency. The average key velocity normally varies linearly in the range 1 to 4 m/s and is mapped to integers from 1 to 127, as per the Musical Instrument Digital Interface (MIDI) standard. Figure 12 shows piano and forte excitation signals calculated with our method.
Figure 12
Figure 12

Excitation pulse signals for piano and forte tones.

The pulse signals seen in Clavinet tones have a smooth triangular shape and represent the pickup output from the tangent hitting the string. Most of the recorded tones exhibit a similar pulse at the beginning of the tone, hence making this a good approximation for the string excitation produced by the tangent in most cases. Because the signal extracted from the pickups is the time derivative of the string displacement at the pickup position, when using its approximation as an excitation, it must be ensured that the wave variables in the digital waveguide are also time-differentiated approximations of the displacement of the Clavinet string. This allows differentiation to be avoided when emulating the effect of pickups if these are linear devices. With nonlinear pickups (as it is the case), integration must be performed before the nonlinear stage.

3.3 Model for pickups

The proposed pickup model includes a comb effect dependent on the pickup position, the magnetic field distance nonlinearity, and the emulation of the pickup selector switches. The traveling waves reflected at the string termination are transduced by the pickups, thus creating a comb characteristic in frequency. This effect can be emulated by a comb filter with negative gain (ideally −1 for a stiff string) and a delay equal to the time needed for the wave to propagate from the pickup position to the string termination and back [26]. As discussed in Section 2.3.5, string dispersion also affects the position of the comb notches. In [48], the amount of dispersion is shown to be equal to the string inharmonicity itself. A duplicate of the dispersion filter used in the string model could be added to the comb feedforward path to obtain this secondary effect. However, to achieve a trade-off between computational efficiency and sound quality, the duplicate filter has not been implemented as it would increase the computational cost by 25%.

The comb filter needs two parameters to be calculated: the delay in samples and the gain. The latter has been set to −1 for both the pickups as the string termination is assumed to only invert the incoming wave. The former can be calculated with a simple proportion after a direct measure of the pickup’s distance from the string termination: the physical string length to pickup distance ratio can be multiplied to the total delay line length L targ.

The overall frequency response has not been modeled being perceptually flat (as discussed in Section 2.3.5).

The pickup nonlinearity reported in Section 2.3.5 can be implemented as an exponential or an N th-order polynomial. The latter has a lower computational cost, and it can be computed on modern DSP architectures with N−1 consecutive multiply-accumulate operations and N products following Horner’s method [49]. The polynomial coefficients used are reported in Table 2.
Table 2

Pickup polynomial coefficients

Coefficient

Value

p 0

0.7951

p 1

−1.544

p 2

1.818×102

p 3

−9.508×103

p 4

1.817×105

Figure 13 compares the exponential fit to the simulated data and the polynomial fit. The exponential fit has a slightly lower root mean square error value, proving a better approximation to the pickup nonlinearity. The polynomial fit, however, scales better to embedded devices for its lower computational cost and higher precision.
Figure 13
Figure 13

Comparison of the exponential fit to the simulated data and the polynomial fit. Magnetic flux variation against vertical string displacement for a string passing over the center of the pickup (marker), an exponential fit (dashed line), and a fourth-degree polynomial approximation (solid line).

Since the excitation is a velocity wave and the nonlinearity applies to a displacement wave, the signal must be integrated before the nonlinearity. For real-time scenarios, a leaky integrator can be used as the one proposed in [50]. Afterwards the nonlinear block differentiation must be applied to emulate that performed by pickups [27]. A simple first-order digital differentiator as in [51] is sufficient and suited for real-time operation.

3.4 Model for the amplifier

Analyses from Section 2.3.6 suggested that the amplifier and the tone switch frequency response can be modeled in the digital domain with simple infinite impulse response (IIR) digital filters, keeping the computational cost low. The tone stack consists of four first- or second-order filters which can be bypassed by a switch. Details about the filters are provided in Table 3. For emulation in the digital domain, the impedance Z i (s) is calculated for each filter in the Laplace domain and then transformed by bilinear transform in a digital transfer function H i (z). The parallel Z i (s) in the analog domain can hence be emulated by cascading the H i (z) filters in the digital domain.
Table 3

Filter transfer functions

Filter

Components

Z i ( s)

H i ( z)

Soft

R=30 kΩ

R 1 + sRC

R 1 + 2 RC f s 1 + z 1 1 + 1 2 RC f s 1 + 2 RC f s z 1



C=0.1 μF



Medium

R=10 kΩ

R 1 + sRC

R 1 + 2 RC f s 1 + z 1 1 + 1 2 RC f s 1 + 2 RC f s z 1



C=15 nF



Treble

L=2 H

sL 1 + s 2 CL

2 f s L 1 + a 1 z 2 1 + 2 1 k 1 + k z 1 + z 2



C=4.7 nF




where a = 4 CL f s 2

Brilliant

L=0.6 H

s L

2 f s L 1 z 1 1 + 0 . 99 z 1

As an example, 14 compares one of the tone switch combinations and its digital filter implementation.
Figure 14
Figure 14

Comparison of one of the tone switch combinations and its digital filter implementation. The frequency response obtained by circuit simulation of one of the tone switch combinations (the parallel of medium, treble, and brilliant; dashed line) and the cascade of their IIR digital filter counterparts matching the simulation (solid line). The order of the digital filters matches that of the analog filter.

Finally, the frequency response of the amplifier excluding the tone stack is emulated with digital shelf filters corresponding to the data provided in Section 2.3.6. A reliable estimate of the nonlinearity introduced by the transistors was not possible as a faithful transistor model was not available for the specific transistor models in the computer software used during tone switch simulations. The transistor nonlinearities [52] have been measured on a real Clavinet by the use of a tone generator and a signal analyzer. The input signal was a sine wave at 1 kHz of amplitude equal to the maximum one generated by pickups with normal polyphonic playing (400 mV) showing a total harmonic distortion (THD) of 1% with normal polyphonic playing, rising to 3.6% for the highest peaks during fortissimo chord playing, which, however, is obtained only very rarely. Considering the 1% THD data as the upper bound for normal playing, the nonlinear character of the amplifier has been neglected, considering that the generated harmonic content is likely to be masked by the Clavinet tones.

3.5 Tangent knock

A secondary feature of the Clavinet sound is the presence of a knock sound, due to the tangent hitting the stud and hence the soundboard. The presence of this knocking sound in the pickup recordings may seem curious, but it can easily be explained by the fact that the impact of the tangent with the soundboard stud involves the string which is placed between the two bodies and in contact with the soundboard and hence transmits part of the sound (including the modal resonances of the soundboard) through to the pickups.

This knocking sound is clearly audible in high tones, where its overlap with the tone harmonics is lower. In order to partially model this knock, a sample of this sound has been extracted from an E6 tone, where the fundamental frequency lies over 1,300 Hz. The knocking sound, which has most of its energy concentrated below 1,200 Hz, can be isolated by filtering out everything over the tone fundamental frequency.

In the proposed model, a triggered sample is used. The sample is the same for any key (the secondary importance of this element does not give a strong motivation for precise modeling). Additionally, a mild low-pass filter can be added with a slightly random cutoff frequency for each note triggering in order to reduce the sample repetitiveness.

3.6 Overview of the complete model and computational cost

The computational model described so far has been first implemented in Matlab®;. The target of this work has been the development of a low-complexity model that could fit a real-time computing platform; thus, the porting of that model did not require any particular change in structure for the subsequent real-time implementation. The computational model described so far, depicted in Figure 15, stands for both the Matlab and the real-time implementation.
Figure 15
Figure 15

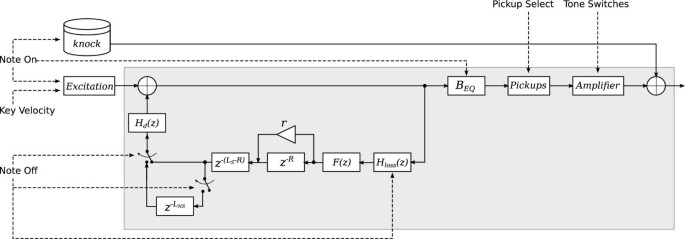

Signal flow for the complete Clavinet model.

To summarize the work done to build this model, an overview of the basic blocks will be given. The DWG model consists of the delay line, which is split into two sections (z −(L S R) and z R ) in order to add the ripple filter. The DWG loop includes the one-pole loss filter [53]H targ(z) which adds frequency-dependent damping and the dispersion filter H d (z) which adds the inharmonicity characteristic to metal strings. The fractional delay filter F(z) accounts for the fractional part of L S which cannot be reproduced by the delay line.

While the Clavinet pitch during sustain is very stable, and thus there is no need for changing the delay length, a secondary delay line, representing the nonspeaking part of the string, is needed to model the pitch drop at release. This delay line z L N S is connected to the DWG loop at release time to model the key release mechanism.

To excite the DWG loop, there is the excitation generator block, named Excitation, which makes use of an algorithm described in [20] to generate the an excitation signal related to key velocity and data on the tangent to string distance. This is triggered just once at attack time.

Several blocks are cascaded in the DWG loop. The beating equalizer (B EQ), composed of a cascade of selective bandpass filters with modulated gain, emulates the beating of the partial harmonics and completes the string model. Then, the Pickup block emulates the effect of pickups, while the Amplifier emulates the amplifier frequency response, including the effect of the tone switches.

Finally, the soundboard knock sample is triggered at a ‘note on’ event to reproduce that feature of the Clavinet tone. This is similar to what has been done for the emulation of the clavichord [23], an instrument that shows some similarities with the Clavinet.

The theoretical computational cost of the complete model can be estimated for the worst case conditions and is reported in Table 4. The worst case conditions occur for the lowest tone (F1), which needs the longest delay line and the highest order for the dispersion filter. The latter depends on the estimate of the B coefficients made during the analysis phase and the parameters used to design the filter. With the current data, the maximum order of the dispersion filter is eight.
Table 4

Computational cost of the Clavinet model per sample per string

Block

Multiplications

Additions

Fractional delay filter

2

2

Dispersion filter

4 × 5

4 × 4

Loss filter

2

1

Ripple filter

1

1

Soundboard knock with LPF

3

2

Beating equalizers

2 × 7

2 × 7

Pickups

9

5

Amplifier and tone switches

21

15

Total per string

82

64

Total FLOPS per string is 6.4MFLOPS at 44,100Hz.

The memory consumption is mostly due to the delay lines, which, at a 44,100-Hz sampling frequency, require at most 923 samples (a longer delay line is not required as the dispersion filter takes into account a part of the loop delay), which, together with the taps required by comb filters, can amount to approximately 1,000 samples of memory per string.

4 Real-time implementation

The model discussed in Section 3 is well suited to a real-time implementation, given its low computational cost. The implementation has been performed on the Pure Data (PD) open-source software platform, a graphical programming language [54].

Some technical details regarding the PD patch implementation will be now discussed.

The main panel includes real-time controllable parameters such as pickup selector, tone switches, yarn damping, ripple filter coefficients, soundboard knock volume, beating equalizers settings, and the master volume.

The delay line used for digital waveguide modeling is allocated and written by the [delwrite ] object and is read by the [vd ] object. The latter also implements the fractional delay filter with a four-point interpolation algorithm.

The dispersion filter is made of cascaded second-order sections (SOSs). These are not easily dynamically allocated at runtime in the PD patching system; hence, a total of four SOSs has been preallocated and coefficients have been prepared in Matlab. More than four SOSs would be needed for the lowest tones if a more accurate emulation of the dispersion were desired (which can be achieved by increasing the frequency cutoff of the mask in the dispersion filter design algorithm), but a trade-off between computational cost and quality of sound has been made.

The PD patchb for the Clavinet has been created and tested on an embedded GNU/Linux platform running Jack as the real-time audio server at a sampling frequency of 44,100 Hz. The platform is the BeagleBoard, a Texas Instruments OMAP-based solution (Dallas, TX, USA), with an ARM-v8 core (equipped with a floating point instruction set), running a stripped-down version of Ubuntu 10.10 with no desktop environment [55]. A test patch with 10 instances of the string model and the amplifier requires an average 97% CPU load, leaving the bare minimum for the other processes to run (including pd-gui and system services) but causing no Xruns (i.e., buffer over/underruns). The current PD implementation of the model only relies on the PD-extended package externals: this means that, in the future, if using custom-written C code to implement parts of the algorithm (e.g., the whole feedback loop), the overhead for the computational cost can be highly reduced. This will gain headroom for additional complexity in the model. The audio server guarantees a 5.8-ms latency (128 samples at 44,100 Hz), thus unnoticeable when the patch is played with a USB MIDI keyboard.

5 Model validation

A preliminary model validation has been done by comparing real data with synthetic tones. Throughout the paper, some differences have been shown in the string frequency response (Figure 8) and in the frequency response of the amplifier tone control (Figure 16). Furthermore, the time and spectral plot of a tone synthesized by the model (to be compared to the sampled counterpart in Figure 3) is shown in Figure 16.
Figure 16
Figure 16

Plot of (a) a synthesized A♯2 tone and (b) its spectral content up to 8 kHz.

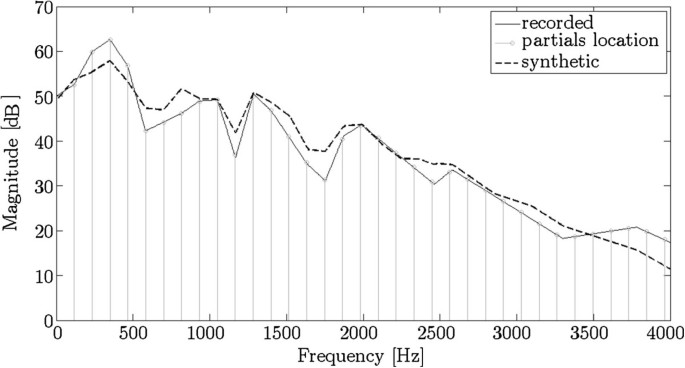

A more detailed comparison between the former two tones is shown in Figure 17, where the partial envelope has been extracted, smoothed, and compared. Although the two spectra do not exactly match, from a perceptual standpoint, the differences are of minor importance.
Figure 17
Figure 17

Comparison of the partial envelope of real (77.78 Hz) and synthesized D♯2 tones up to 4 kHz. Thin solid line, real; thick dashed line, synthesized. The partial locations are given by the gray stem plot.

A more significant means of assessing the quality of the sound synthesis in terms of realism and fidelity to the real instrument are subjective listening tests. Several tests have been conducted according to a guideline proposed by the authors in [22]. The same reference also reports tests conducted with the earlier version of the Clavinet model described in [20]. Test results conducted on the present model show slight differences with the ones presented in [22], which will be briefly reported for the sake of completeness.

The metric used to evaluate the results is called accuracy or discrimination factor [56], d, which is defined as follows:
d = P CS P FP + 1 2 ,
(8)

where P CS and P FP are the correctly detected synthetic percentage and falsely identified synthetic percentage (recorded samples misidentified as synthetic), respectively. A discrimination factor of 100% represents perfect distinguishability for the recorded and synthetic tones, whereas 50% represents random guessing. In previous works, a threshold of 75% has been accepted as the borderline, under which the sound can be considered not distinguishable [5658]; however, in this work, the 75% threshold will be called a likelihood threshold, under which the sound can be considered very close to the real one. Perfect indistinguishability coincides with random guessing.

The listening tests show a good level of realism as the threshold of 75% for the discrimination averaged among the subjects is never reached. The d factor averaged among the various subject categories is 53%. Musicians with knowledge of the Clavinet sound obtained the highest d score, 58%, 3% lower than that obtained with the previous model, showing an increase in sound quality with the current model. Tests have been performed with both single tones and melodies.

6 Conclusions and future work

This paper describes a complete digital waveguide model for the emulation of the Clavinet, including detailed acoustical analysis and parametrization and modeling of pickups and the amplifier. Important issues related to the analysis of the recordings, the peculiarity of the tangent mechanism, and the way to reproduce the amplifier stage are addressed. Specifically, the excitation waveform is generated depending on the key strike velocity, and the release mechanism is modeled from the speaking and nonspeaking string lengths. The frequency response of the pickups based on impedance measurement on a Clavinet pickup is discussed, while the amplifier model is based on digital filters derived from circuit analysis and is compared to computer-aided electricalsimulations.

A real-time Pure Data patch is described that can run several string instances on a common PC, allowing for at least 10-voice polyphony. Subjective listening tests are briefly reported to prove a good degree of faithfulness of the model to the real Clavinet sound. Future work on the model includes a mixed FDTD-DWG model [59] to introduce nonlinear interaction in the tangent mechanism while keeping the computational cost low. The listening tests reported in this paper stand as one of the first attempts in subjective evaluation for musical instrument emulation, and, even revealing its usefulness on purpose, more advanced methods and metrics will be explored in the future.

Endnotes

a The Matlab script performing the algorithm from [46] is available at http://www.acoustics.hut.fi/publications/papers/spl-adf/adf.m.

b The PD patch and sound samples of the computational model will be shared with the community and made available at http://a3lab.dii.univpm.it/projects/jasp-clavinet.

Declarations

Acknowledgements

Many thanks to Emanuele Principi, PhD, from the Università Politecnica delle Marche Department of Information Engineering, for the development of the software platform used for the tests, called A3Lab Evaluation Tool. One of the authors (Bilbao) was supported by the European Research Council, under grant StG-2011-279068-NESS.

Authors’ Affiliations

(1)
Department of Information Engineering, Università Politecnica delle Marche, Via Brecce Bianche 12, Ancona, 60131, Italy
(2)
Department of Signal Processing and Acoustics, Aalto University, Otakaari 5, 02015, Finland
(3)
Department of Music, University of Edinburgh, King’s Buildings, Mayfield Rd., Edinburgh, EH9 3JZ, UK

References

  1. De Sanctis G, Sarti A: Virtual analog modeling in the wave-digital domain. IEEE Trans. Audio Speech Lang. Process 2010, 18(4):715-727.View ArticleGoogle Scholar
  2. Hélie T: Volterra series and state transformation for real-time simulations of audio circuits including saturations: application to the Moog ladder filter. IEEE Trans. Audio Speech Lang. Process 2010, 18(4):747-759.View ArticleGoogle Scholar
  3. Fontana F, Civolani M: Modeling of the EMS VCS3 voltage-controlled filter as a nonlinear filter network. IEEE Trans. Audio Speech Lang. Process 2010, 18(4):760-772.View ArticleGoogle Scholar
  4. Erkut C, Karjalainen M, Huang P, Välimäki V: Acoustical analysis and model-based sound synthesis of the kantele. J. Acoust. Soc. Am 2002, 112(4):1681-1691. 10.1121/1.1504858View ArticleGoogle Scholar
  5. Penttinen H, Pakarinen J, Välimäki V, Laurson M, Li H, Leman M: Model-based sound synthesis of the guqin. J. Acoust. Soc. Am 2006, 120: 4052-4063. 10.1121/1.2360422View ArticleGoogle Scholar
  6. Cho SJ, Chong U, Cho S: BSynthesis of the Dan Tranh based on a parameter extraction system. J. Audio Eng. Soc 2010, 58(6):498-507.Google Scholar
  7. Vail M: Vintage Synthesizers. Miller Freeman Books, San Francisco; 2000.Google Scholar
  8. Smith JO: Physical Audio Signal Processing for Virtual Musical Instruments and Digital Audio Effects. . Accessed 19 Aug 2011 http://www.w3k.org/books/
  9. Välimäki V, Pakarinen J, Erkut C, Karjalainen M: Discrete-time modelling of musical instruments. Reports on Prog. Phys 2006, 69: 1-78. 10.1088/0034-4885/69/1/R01View ArticleGoogle Scholar
  10. Bilbao S: Numerical Sound Synthesis: Finite Difference Schemes and Simulation in Musical Acoustics. Wiley, Chichester; 2009.View ArticleGoogle Scholar
  11. Trautmann L, Rabenstein R: Digital Sound Synthesis by Physical Modeling Using the Functional Transformation Method. Kluwer/Plenum, New York; 2003.View ArticleGoogle Scholar
  12. Chaigne A, Askenfelt A: Numerical simulations of piano strings. a physical model for a struck string using finite difference methods. J. Acoust. Soc. Am 1994, 95(2):1112-1118. 10.1121/1.408459View ArticleGoogle Scholar
  13. Bank B, Sujbert L: Generation of longitudinal vibrations in piano strings: from physics to sound synthesis. J. Acoust Soc. Am 2005, 117(4):2268-2278. 10.1121/1.1868212View ArticleGoogle Scholar
  14. Bank B, Zambon S, Fontana F: A modal-based real-time piano synthesizer. IEEE Trans. Audio Speech Lang. Process 2010, 18(4):809-821.View ArticleGoogle Scholar
  15. Lee N, Smith JO, Välimäki V: Analysis and synthesis of coupled vibrating strings using a hybrid modal-waveguide synthesis model. IEEE Trans. Audio Speech Lang. Process 2010, 18(4):833-842.View ArticleGoogle Scholar
  16. Välimäki V, Huopaniemi J, Karjalainen M, Jánosy Z: Physical modeling of plucked string instruments with application to real-time sound synthesis. J. Audio Eng. Soc 1996, 44: 331-353.Google Scholar
  17. Bensa J, Bilbao S, Kronland-Martinet R, Smith III J: The simulation of piano string vibration: from physical models to finite difference schemes and digital waveguides. J. Acoust. Soc. Am 2003, 114: 1095-1107. 10.1121/1.1587146View ArticleGoogle Scholar
  18. Rauhala J, Lehtonen HM, Välimäki V: Toward next-generation digital keyboard instruments. IEEE Signal Process. Mag 2007, 24(2):12-20.View ArticleGoogle Scholar
  19. Bilbao S, Rath M: Time domain emulation of the Clavinet. In 128th AES Convention. London; 22–25 May 2010:7-7.Google Scholar
  20. Gabrielli L, Välimäki V, Bilbao S: Real-time emulation of the Clavinet. In Proceedings of the International Computer Music Conference. Huddersfield; 31 July–5 Aug 2011:249-252.Google Scholar
  21. Remaggi L, Gabrielli L, de Paiva R, Välimäki V, Squartini S: A pickup model for the clavinet. In Digital Audio Effects Conference 2012 (DAFx-12). York; 17–21 Sept 2012.Google Scholar
  22. Gabrielli L, Squartini S, Välimäki V: A subjective validation method for musical instrument emulation. In 131st AES Convention. New York; 20–23 Oct 2011.Google Scholar
  23. Välimäki V, Laurson M, Erkut C: Commuted waveguide synthesis of the clavichord. Comput. Music J 2003, 27(1):71-82. 10.1162/01489260360613353View ArticleGoogle Scholar
  24. d’Alessandro C: On the dynamics of the clavichord: from tangent motion to sound. J. Acoust. Soc. Am 2010, 128: 2173-2181. 10.1121/1.3478783View ArticleGoogle Scholar
  25. Pianoteq CL1 . Acceseed 19 Aug 2011 http://www.pianoteq.com/commercial%5Faddons
  26. de Paiva RC, Pakarinen J, Välimäki V: Acoustics and modeling of pickups. J. Audio Engineering Soc 2012, 60(10):768-782.Google Scholar
  27. Horton N, Moore T: Modeling the magnetic pickup of an electric guitar. Am. J. Phys 2009, 77: 144-150. 10.1119/1.2990663View ArticleGoogle Scholar
  28. Nackaerts A, De Moor B, Lauwereins R: Measurement of guitar string coupling. In Proceedings of the International Computer Music Conference. Goteborg; 16–21 Sept 2002:321-324.Google Scholar
  29. Järveläinen H, Välimäki V, Karjalainen M: Audibility of the timbral effects of inharmonicity in stringed instrument tones. Acoust. Res. Lett. Online, ASA 2001, 2(3):79-84. 10.1121/1.1374756View ArticleGoogle Scholar
  30. Rauhala J, Lehtonen H, Välimäki V: Fast automatic inharmonicity estimation algorithm. J. Acoust. Soc. Am 2007, 121(5):184-189.View ArticleGoogle Scholar
  31. Fletcher H, Blackham E, Straton R: Quality of piano tones. J. Acoust. Soc. Am 1962, 34(6):749-761. 10.1121/1.1918192View ArticleGoogle Scholar
  32. Rabiner LR: On the use of autocorrelation analysis for pitch detection. IEEE Trans. Acoust. Speech Signal Process 1977, 25(1):24-33. 10.1109/TASSP.1977.1162905View ArticleGoogle Scholar
  33. Järveläinen H, Välimäki V: Audibility of initial pitch glides in string instrument sounds. In Proceedings of the International Computer Music Conference. Havana; 17–23 Sept 2001:282-285.Google Scholar
  34. De Paiva C, Penttinen H: Cable matters: instrument cables affect the frequency response of electric guitars. In 131st AES Convention. New York; 20–23 Oct 2011.Google Scholar
  35. Lemarquand G, Lemarquand V: Calculation method of permanent-magnet pickups for electric guitars. IEEE Trans. Magnetics 2007, 43(9):3573-3578.View ArticleGoogle Scholar
  36. www.clavinet.com. Clavinet D6 amplifier schematic http://www.gti.net/junebug/clavinet/Clavinet%5FD6%Fschematic.pdf . Accessed 19 Aug 2011
  37. Gabrielli L: Modeling of the clavinet using digital waveguide synthesis techniques. M.Sc. thesis, Università Politecnica delle Marche, 2011Google Scholar
  38. Jaffe DA, Smith JO: Extensions of the Karplus-Strong plucked-string algorithm. Comput. Music J 1983, 7(2):56-69. 10.2307/3680063View ArticleGoogle Scholar
  39. Laakso T, Välimäki V, Karjalainen M, Laine U: Splitting the unit delay-tools for fractional delay filter design. IEEE Signal Process. Mag 1996, 13(1):30-60. 10.1109/79.482137View ArticleGoogle Scholar
  40. Bank B, Välimäki V: Robust loss filter design for digital waveguide synthesis of string tones. IEEE Signal Process. Lett 2003, 10(1):18-20.View ArticleGoogle Scholar
  41. Välimäki V, Penttinen H, Knif J, Laurson M, Erkut C: Sound synthesis of the harpsichord using a computationally efficient physical model. EURASIP J. Appl. Signal Process 2004, 7: 934-948.View ArticleGoogle Scholar
  42. Van Duyne S, Smith J: A simplified approach to modeling dispersion caused by stiffness in strings and plates. In Proceedings of the International Computer Music Conference. Aarhus, 12–17; Sept 1994:335-343.Google Scholar
  43. Rauhala J: The beating equalizer and its application to the synthesis and modification of piano tones. In Digital Audio Effects Conference (DAFx-07). Bordeaux, 10–15; Sept 2007:181-187.Google Scholar
  44. Rauhala J, Laurson M, Välimäki V, Lehtonen H, Norilo V: A parametric piano synthesizer. Comput. Music J 2008, 32(4):17-30. 10.1162/comj.2008.32.4.17View ArticleGoogle Scholar
  45. Järveläinen H, Tolonen T: Perceptual tolerances for the decaying parameters in string instrument synthesis. J. Audio Engineering Soc 2001, 49(11):1049-1059.Google Scholar
  46. Abel JS, Välimäki V, Smith JO: Robust, efficient design of allpass filters for dispersive string sound synthesis. IEEE Signal Process. Lett 2010, 17(4):406-409.View ArticleGoogle Scholar
  47. Regalia P, Mitra S: Tunable digital frequency response equalization filters. IEEE Trans. Acoust. Speech Signal Process 1987, 35(1):118-120. 10.1109/TASSP.1987.1165037View ArticleGoogle Scholar
  48. Lindroos N, Penttinen H, Välimäki V: Parametric electric guitar synthesis. Comput. Music J 2011, 35(3):18-27. 10.1162/COMJ_a_00066View ArticleGoogle Scholar
  49. Horner W: A new method of solving numerical equations of all orders, by continuous approximation. Philos. Trans. Royal Soc. London 1819, 109: 308-335. 10.1098/rstl.1819.0023View ArticleGoogle Scholar
  50. Brandt E: Hard sync without aliasing. In Proceedings of the International Computer Music Conference. Havana; 9–14 Sept 2001:365-368.Google Scholar
  51. Al-Alaoui MA: Novel digital integrator and differentiator. IEEE Electron. Lett 1993, 29(4):376-378. 10.1049/el:19930253View ArticleGoogle Scholar
  52. Yeh D: Digital implementation of musical distortion circuits by analysis and simulation. Ph.D. dissertation, Stanford University, 2009. https://ccrma.stanford.edu/~dtyeh/papers/DavidYehThesissinglesided.pdf. Accessed 8 May 2013
  53. Bank B: Physics-based sound synthesis of the piano. Ph.D. dissertation, Helsinki University of Technology, 2000 http://www.acoustics.hut.fi/~bbank/thesis.html. Accessed 8 May 2013
  54. Puckette M: Pure data: another integrated computer music environment. In Proceedings of the Second Intercollege Computer Music Concerts. Tachikawa; 7 May 1997:37-41.Google Scholar
  55. Gabrielli L, Squartini S, Principi E, Piazza F: Networked beagleboards for wireless music applications. In European DSP Education and Research Conference (EDERC 2012). Amsterdam; 13–14 Sept 2012.Google Scholar
  56. Wun CW, Horner A: Perceptual wavetable matching for synthesis of musical instrument tones. J. Audio Engineering Soc 2001, 49: 250-262.Google Scholar
  57. Wun S, Horner A: Evaluation of weighted principal-component analysis matching for wavetable synthesis. J. Audio Engineering Soc 2007, 55(9):762-774.Google Scholar
  58. Lehtonen H, Penttinen H, Rauhala J, Välimäki V: Analysis and modeling of piano sustain-pedal effects. J. Acoust. Soc. Am 2007, 122: 1787-1797. 10.1121/1.2756172View ArticleGoogle Scholar
  59. Karjalainen M, Erkut C: Digital waveguides versus finite difference structures: equivalence and mixed modeling. EURASIP J. Adv. Signal Process 2004, 7: 978-989.View ArticleGoogle Scholar

Copyright

Advertisement
