MPCM: a hardware coder for super slow motion video sequences

  • Estefanía Alcocer1Email author,
  • Otoniel López-Granado1,
  • Roberto Gutierrez2 and
  • Manuel P Malumbres1
EURASIP Journal on Advances in Signal Processing20132013:142

https://doi.org/10.1186/1687-6180-2013-142

Received: 31 January 2013

Accepted: 22 July 2013

Published: 27 August 2013

Abstract

In the last decade, the improvements in VLSI levels and image sensor technologies have led to a frenetic rush to provide image sensors with higher resolutions and faster frame rates. As a result, video devices were designed to capture real-time video at high-resolution formats with frame rates reaching 1,000 fps and beyond. These ultrahigh-speed video cameras are widely used in scientific and industrial applications, such as car crash tests, combustion research, materials research and testing, fluid dynamics, and flow visualization that demand real-time video capturing at extremely high frame rates with high-definition formats. Therefore, data storage capability, communication bandwidth, processing time, and power consumption are critical parameters that should be carefully considered in their design. In this paper, we propose a fast FPGA implementation of a simple codec called modulo-pulse code modulation (MPCM) which is able to reduce the bandwidth requirements up to 1.7 times at the same image quality when compared with PCM coding. This allows current high-speed cameras to capture in a continuous manner through a 40-Gbit Ethernet point-to-point access.

Keywords

PCMImage codingFPGA designHigh speedIntegrated circuits

1 Introduction

Video compression has been an extremely successful technology that has found its commercial application across many areas from scientific and industrial applications as video archiving, high-quality medical video, surveillance and security applications to the audiovisual industry (TV and cinema) and the broad spectrum of video appliances available in the market, such as digital cameras, DVD, Blue-Ray, and DVB.

In the last decade, the improvements in VLSI levels and image sensor technologies have led to a frenetic rush to provide image sensors with higher resolutions and faster frame rates. As a result, video devices were designed to capture real-time video at high-resolution formats with frame rates above 100 Hz. Nowadays, ultrahigh-speed video cameras can be found in the market like Phantom v641 (Vision Research Inc., Wayne, NJ, USA) [1] which is able to capture high-resolution video (2,560 × 1,600 pixels) at 1,450 frames per second (fps). These video cameras are specially suited for scientific or industrial applications, such as car crash tests, explosives and pyrotechnics, ballistics, projectile tracking, combustion research, materials research and testing, fluid dynamics, flow visualization. which demand real-time video capturing at extremely high frame rates with high-definition (HD) formats. Therefore, data storage capability, communication bandwidth, processing time and power consumption are critical parameters that should be carefully considered in the design process of high-speed video cameras.

In order to fight against these constraints, most of nowadays high-speed cameras store the captured images in a fast synchronous dynamic random access memory (SDRAM) module of up to 64 GB [14] without performing compression, using pulse code modulation (PCM) [5]. The huge amount of data of the resulting uncompressed image/video needs to be processed to guarantee its transmission or storage, being a really challenging task. Thus, the internal communication bus may not be fast enough to transfer the video out of the camera, or the writing speed of the storage device may not be high enough to save the video [6]. So the approach of using fast SDRAM memory as video storage is feasible since the memory bandwidth is high enough, but when memory is run out, the camera stops recording and needs to save the stored video to a secondary storage in raw or compressed format. This is a limitation because depending on the capturing resolution of the camera, only a few seconds could be recorded in the random access memory (RAM) module, and so continuous capturing is not possible.

So as to overcome these restrictions, it would be of interest to reduce the video storage requirements by means of hardware encoders that fulfill the application requirements, i.e., high frame rate and high-definition and beyond video formats. Therefore, if we were able to perform some kind of ultrafast encoding, we would reduce the required storage resources, and real-time recording like in conventional video cameras would be possible.

Many hardware coders based on different coding algorithms are used in real systems [714]. Most of them are application-specific integrated circuits dedicated to specific encoding algorithms that are not designed to work in real-time with ultrahigh frame rates and high-definition video formats.

However, several attempts have been made in order to deal with high-speed camera encoding. In [15] authors present JPEG field-programmable gate array (FPGA)-based encoder which is able to compress up to 500 frames/s at a resolution of 1,280 × 1,024. Also in [16], an improved version of the fast boundary adaptation rule [17] algorithm in conjunction with differential pulse code modulation is applied to increase the R/D efficiency, although coding delays were not provided.

In general, the constraints imposed by ultrahigh frame rate video capture applications discard most of the existing coding techniques (e.g., predictive coding or transform coding) since they are much more complex than PCM. Therefore, a coding algorithm that has properties similar to those of PCM (low complexity, random access, and scalability) but with a better coding efficiency would be of interest. Modulo-Pulse Code Modulation scheme (MPCM) [18] image coder fulfills these requirements. To encode an image, MPCM encoder removes certain bits from each pixel value which represents a very simple processing. The complexity is moved to the decoder side, where the bits that were removed from each pixel will be predicted by using its codeword (remaining bits of a pixel) and side information (SI) that the decoder computes by interpolating the previously decoded pixels.

In this paper we implement a fast codec based on MPCM [18] over a XC7Z020-1CLG484CES Xilinx FPGA device (Xilinx Inc., San Jose, CA, USA). Results show that FPGA-based MPCM encoder obtains a throughput of up to 409.84 MBytes/s at high compression rates for monochromatic images, allowing to store on a nonvolatile memory 2,501 fps at a 1,280 × 1,024 resolution. Furthermore, in this paper we present a hardware implementation of the MPCM decoding system, which is able to reproduce a full-HD (1080p) video at 193 fps.

The rest of the paper is organized as follows. In Section 2 we present a brief overview of the Modulo-PCM encoder. In Section 3, the description of the proposed architecture is presented. A detailed evaluation of the architecture proposal is shown in Section 4 in terms of R/D, coding delay, power consumption, and occupied board area. Finally, in Section 5 some conclusions are drawn.

2 Encoding system

In this section, we describe the MPCM-based coding algorithm for the encoding of a one-dimensional signal. Let x ~ n ( n N ) be a continuous-amplitude discrete-time signal whose amplitude values lie in [A min,A max]. Let x n  be the digital signal that results from the quantization of x ~ n with a fixed-rate uniform quantizer of B bits/sample and step size:
Δ = A max - A min / 2 B .
The easiest way of reducing the bit rate of x ~ n is to remove the l-least significant bits (LSBs) of each codeword of x ~ n . To achieve a more efficient rate reduction, we propose the use of a MPCM-based coding algorithm (Figure 1). The samples of x ~ n are divided into sets that are encoded with different accuracies. For the sake of simplicity, let us consider we divide x ~ n into two sets: S 0 = {x 2n |ni = 0,1,2,…} and S 1 = {x 2n+1|n = 0,1,2,…}. As shown in Figure 1, each sample in S 0 is encoded by removing the l 0-LSBs of its codeword (PCM signal) while each sample in S 1 is encoded by removing the m 1-most significant bits (MSBs) and l 1-LSBs of its codeword (MPCM signal). Then, the encoder works at an average rate R = B - (l 0 + l 1 + m 1)/2 bits/sample.

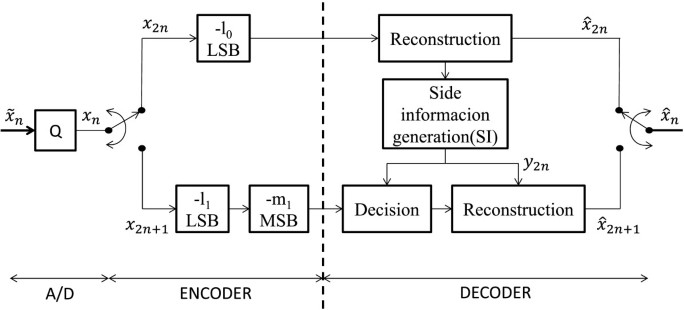

Figure 1

Block diagram of MPCM coding algorithm.

As the encoding of x 2n  is equivalent to a quantization with a uniform quantizer with step size equal to 2 l 0 Δ , the decoder can directly reconstruct the samples of S 0 from their codewords (Figure 1). With respect to the encoded samples in S 1 (Figure 2 (a)), removing the l 1-LSBs of x 2n+1 is equivalent to quantizing its original continuous value with a uniform quantizer with step size equal to 2 l 1 Δ (Figure 2 (b)). After removing the m 1-MSBs, the resulting codeword identifies a set of 2 m 1 disjoint intervals I i | i = 0 , , 2 m 1 - 1 , with each interval being of length 2 l 1 Δ (Figure 2 (c)).
Figure 2

Quantization intervals and codewords for B = 3 , l 1 = 1 and m 1 = 1 . (a) After A/D conversion. (b) After removing l 1 bits. (c) After removing m 1 bits. (d) After deciding between I 0 and I 1. (e) After reconstruction. (f) After final quantization. Symbol X represents the removed bits. Boldfaced codewords represent the codeword selected in each step for the shown values of x 2n  and y 2n . Marked intervals are the intervals represented by the selected codeword in each step.

At the decoder, a PCM-coded signal is directly reconstructed from its received codeword x ̂ 2 n . This reconstructed value is set to the midpoint of its quantization interval. However, a MPCM-coded signal is decoded by using its codeword x ̂ 2 n + 1 and its SI y 2n+1. This process is divided into two steps: decision and reconstruction. Consequently, in order to decide which I i  interval x ̂ 2 n + 1 belongs to, MPCM decoders exploit the correlation between the signal samples by furnishing a prediction for each sample in S 1 based on previously decoded samples in S 0. This prediction y 2n+1 acts as SI to decide the interval, which is obtained by interpolating the previously decoded samples in S 0. Therefore, in this decision step, the decoder uses y 2n+1 to select one of the 2 m 1 disjoint intervals as shown in (Figure 2 (d)), choosing the closest interval to the prediction. If the decision process is done without error for x 2n+1, its m 1-MSBs are properly recovered; otherwise, the decoder incurs a decision error in which the probability depends on m 1 and the accuracy of the SI. The accuracy of the SI depends on the degree of correlation between the samples x n  and the distortion introduced in the encoding of S 0. Furthermore, the larger the m 1, the shorter the minimum distance between the codewords of the same set 2 m 1 , hence, the higher the probability of decision error. As a result, in order to limit these impacts in the encoding algorithm, l 0 must be lower than or equal to l 1 (l 0 ≤ l 1) and m 1 must be the minimum possible. Once the decoder has estimated the m 1-MSBs of x 2n+1 (Figure 2 (d)) in the reconstruction step, it tries to recover its l 1-LSBs which finally provides an estimated signal x ̂ 2 n + 1 (Figure 2 (e)). This reconstruction is done using the quantization interval I i  where supposedly lies x 2n+1 and its SI (y 2n+1) by taking the closest value of the chosen interval to the prediction y 2n+1 (Figure 2 (f)). Notably, if the coding parameters accomplish the following characteristics l 0 = l 1 and m 1 = 0, the MPCM encoder/decoder will act as a PCM coding system, since in such cases, the help provided by the SI does not compensate the loss suffered by encoding each MPCM signal with fewer bits than the PCM signal. In fact, in these cases, midpoint reconstruction performs better than MPCM reconstruction. Nevertheless, in most cases, MPCM performs better than or the same as PCM, with great gains at 1, 2, 3, and 4 bpp.

For a more detailed description of MPCM encoder, the reader is referred to [18, 19].

3 Hardware implementation

In order to cope with the high throughput bandwidth of nowadays high-speed cameras, both MPCM encoder and decoder have been implemented over a hardware architecture. The description language used to build its design is VHDL. The proposed hardware implementation has been developed over a Zynq-7000 FPGA of Xilinx family, specifically over the ZC702 model which includes the XC7Z020-1CLG484CES SoC (System-on-Chip) [20].

3.1 Encoder architecture

The implemented encoder architecture is illustrated in Figure 3. The original image/frame captured by the camera sensors is stored in a memory block whose reading is determined by a control block. In that structure, 16 pixels are read on each cycle so as to speed the encoding process as much as possible within the scope of the device’s internal memory. This memory acts as an internal buffer of frames to read them in high-speed applications and it is implemented with block RAMs. In this way, we use 52 dual-port 36-Kb block RAMs with ports configured as 512 × 64 bits, where 64 output bits, namely 8 pixels, are read in each memory output port. These pixels are processed in the following block, without delay, in the same reading cycle, where they are encoded by removing the corresponding l 0 or l k  and m k  bits. Finally, we obtain the coded samples of the image which are sent to the final storage device.

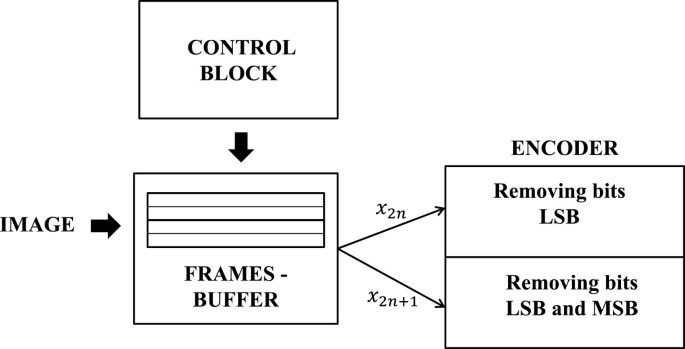

Figure 3

Encoder architecture design.

Our proposed implementation design first divides the image/frame into N set of pixels, where one of the resulting pixels is encoded using PCM and the rest of them with MPCM. We take the strategy of dividing x [n 1,n 2] into four (N = 4) sets x 0,0[n 1,n 2], x 0,1[n 1,n 2], x 1,0[n 1,n 2], and x 1,1[n 1,n 2] such that
x p , q n 1 , n 2 = x 2 n 1 + p , 2 n 2 + q
with p and q [0,1] as explained in [19]. Then, the first one is encoded using PCM, removing l 0 LSBs, and the remaining parts using MPCM, removing l k  LSBs and m k  MSBs. A diagram of the steps used in our hardware algorithm is shown in Figure 4. Remark that both the reading and coding of the 16 pixels are performed in the same clock cycle.
Figure 4

Example of the encoder algorithm with l 0 = 2 , l k = 1 and m k = 1 . Blue-colored blocks are samples to be coded using PCM and the yellow/orange ones are to be coded using MPCM.

3.2 Decoder architecture

The proposed decoder architecture is shown in Figure 5. In this approach, the buffer is filled with coded samples until the first three lines are completed since at least three rows and three columns of pixels stored are needed (9 pixels in total) so as to decode a set N of 4 pixels, then the decoding process starts. The decoder is divided into two steps: decision and reconstruction. The recovery of the original image is performed as follows:

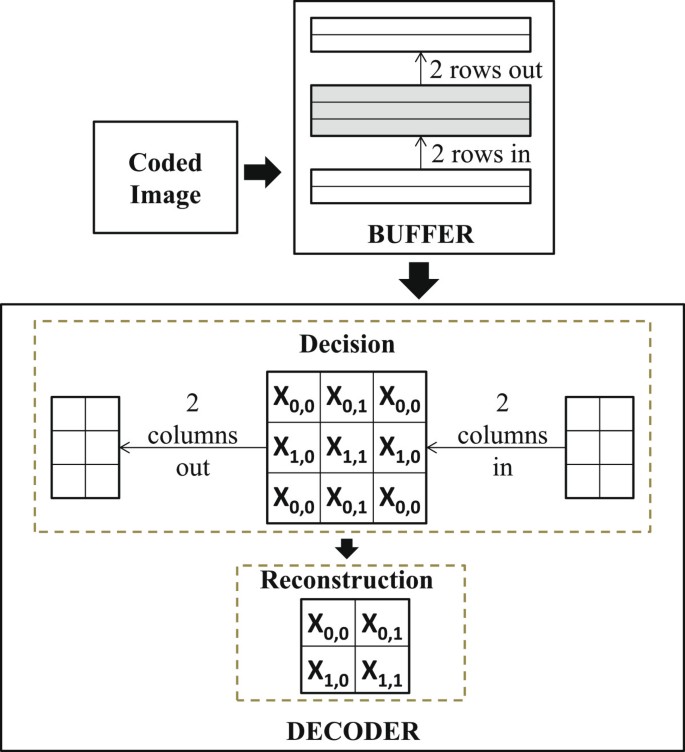

Figure 5

Decoder architecture design.

  1. 1.

    Three columns of data are processed in decision block, where the PCM signal is reconstructed as shown in Figure 6a. SIs are generated from the previous PCM samples (Figure 6b), and one of the possible intervals 2 m k is selected in which each MPCM decoded signal will be placed (Figure 6c).


  2. 2.
    At the decoder reconstruction block, we recover the LSB removed in the encoding process using its SI and the interval corresponding to each MPCM sample as shown in Figure 6d, according to this rule:
    x ̂ = a if y < a y if a y b . b if y > b

    After completing these steps, we get four decoded pixels.


  3. 3.

    In each cycle, two columns of encoded samples leave the decoder and another two enter into it, keeping the last previous column, considering that it contains the necessary PCM samples to decode the next set of 4 pixels. This process is carried out iteratively until all samples of the three rows from the buffer have been decoded.


  4. 4.

    Then, the buffer is shifted. Two rows leave the buffer and two new ones enter into it, keeping the last previous row, as in case of columns. All the above operations continue until all the input encoded samples are decoded.


Figure 6

Example of MPCM decoding process with l 0 = 2 , l 1 = 1 and m 1 = 1 . (a) Reconstruction of PCM signals by taking the midpoint of its quantization interval. (b) Obtaining of SI (y k ) by interpolating the previously decoded PCM signals. (c) Decision step to recover MPCM signals. Interval selection of the 2 m 1 potential codewords. (d) Reconstruction step to recover MPCM signals.

The proposed decoder design has been completely pipelined, so this makes each of the aforementioned steps used for decoding to be performed concurrently. In addition, as previously mentioned, four decoded pixels are obtained in each cycle. In this approach, the operating frequency has been set to get the 4 pixels, but in order to organize the entire decoded image, a phase-locked-loop (PLL) module has been used, which generates multiple clocks for a given input clock. Therefore in each cycle, 4 pixels are stored in a buffer with a fixed frequency, but these pixels are read with a frequency four times higher, thus achieving a serial output without delay. The buffers used in the proposed architecture have been implemented using single dual-port 18-Kb block RAMs.

4 Results

Both encoder and decoder architecture designs have been tested. In this section, we present the performance evaluation of the complete system in terms of peak signal-to-noise ratio (PSNR), encoding/decoding times, board area usage, maximum frame rate, and speed-ups obtained when compared to a CPU sequential algorithm. The architectures have been synthesized, placed and routed using Xilinx ISE 14.3 tool, and have been simulated and verified using Matlab/Simulink through System Generator toolbox. They have been designed into the Zynq AP SoC-based board previously mentioned. Occupied board area, maximum frequency, and power consumption estimation have been measured from the Xilinx ISE 14.3 tool. In our experiments, we have assessed the results of eight gray-scale images with 8 bits per sample, five of which (Zelda, Lena, Peppers, Barbara, and Baboon) with a resolution of 512 × 512 pixels and the rest, a full-HD (1080p) image, a 2,048 × 2,560 image, and a 4K UHD image. Furthermore, we have assigned values to the coding/decoding parameters (with N = 4, l 1 = l 2 = l 3, and m 1 = m 2 = m 3) so as to obtain the best result on average of PSNR for a given bit-rate, although there may be other combinations of parameters that would optimize a particular image as proposed by Marleen Morbee in [19].

In Table 1 the PSNR obtained for all tested images as a function of the bit rate (R) is presented. As expected, for higher rates (R), which means removing few bits in the encoding process, MPCM algorithm generally provides good PSNR due to the fact that no significant loss occurs in the coding process, and, consequently, no big errors are introduced in the decoding process. Therefore, the lower the rate (R), the lower the PSNR value. Moreover, as explained in Section 2, in the cases where the chosen parameters meet l 0 = l 1 and m 1 = 0, a reconstruction PCM is applied, so the PSNR corresponding to R = 6 bpp and R = 5 bpp, shown in Table 1, is the same for a PCM coding. One advantage of the proposed MPCM algorithm versus PCM is the possibility of compressing intermediate bit rates (nonintegers) due to the different numbers of bits removed in a set of pixels (l 0 ≠ l 1). In addition, MPCM algorithm overcomes in quality to PCM at high levels of compression. An example of comparison between the MPCM coding and PCM coding is shown in Figure 7 (tractor image), which shows the PSNR values as function of the rate for the image full-HD (1080p). As it can be seen, MPCM obtains the same quality than PCM at low compression rates. However, at high compression rates, MPCM obtains a PSNR improvement up to 15 dB when compared to PCM.
Table 1

PSNR values for all tested images for a given bit-rate



PSNR (dB)



R= 4 bpp

R= 4 . 5 bpp

R= 5 bpp

R= 5 . 5 bpp

R= 6 bpp


(l 0 , l 1 , m 1 )

(l 0 , l 1 , m 1 )

(l 0 , l 1 , m 1 )

(l 0 , l 1 , m 1 )

(l 0 , l 1 , m 1 )



(1,4,1)

(2,4,0)

(3,3,0)

(1,3,0)

(2,2,0)

Zelda (512 × 512)

39.00

38.90

40.15

41.51

45.04

Lena (512 × 512)

37.74

37.77

39.82

41.06

44.96

Peppers (512 × 512)

33.70

36.92

39.32

40.29

44.62

Barbara (512 × 512)

26.06

35.27

38.91

39.83

44.56

Baboon (512 × 512)

24.45

33.02

37.61

38.20

43.85

Tractor (1,920 × 1,080)

38.01

39.67

40.22

42.15

44.73

Woman (2,048 × 2,560)

30.53

36.47

39.52

40.70

44.95

Ducks (3,840 × 2,160)

35.09

35.00

38.14

38.88

43.72

Figure 7

PSNR as a function of the rate of image tractor coded using MPCM and only PCM.

Furthermore, two images compressed at different bit rates by the algorithm MPCM proposed are shown in Figures 8 and 9. As you can see from the pictures, at 6 and 5 bpp, non-perceptual inequality is observed regarding the original image. However, some differences begin to be appreciated at a rate of 4 bpp, for example, in the set of images of the tractor, one could see a slight distortion inside the rear wheel at 4 bpp.
Figure 8

A set of four monochromatic images (Zelda 512 × 512 ) decoded with the following bit rates. (a) Original image. (b) At 6 bpp. (c) At 5 bpp. (d) At 4 bpp.

Figure 9

A set of four monochromatic images (Tractor 1,920 × 1,080 ) decoded with the following bit rates. (a) Original image. (b) At 6 bpp. (c) At 5 bpp. (d) At 4 bpp.

4.1 Encoder evaluation

Regarding coding/decoding delay, the proposed encoder architecture works at a maximum clock frequency of 204.96 MHz, that is 4.879 ns. Furthermore, the algorithm requires 16,387 cycles to perform the encoding process for an image resolution of 512 × 512 pixels. Therefore, we require 79.952 μ s to encode any image for the aforementioned resolution, which is 12 times faster than the sequential algorithm on an Intel Core 2 CPU at 1.8 GHz with 5 GBytes RAM. As the encoding process does not depend on the internal characteristics of the image, but only on the image resolution, in Figure 10, the maximum frame rate achievable for the proposed architecture is presented. As shown, the hardware implemen tation of the MPCM encoder is able to compress up to 3,558 fps for HD-ready resolution (720p) or up to 1,581 fps for full-HD resolution (1080p).

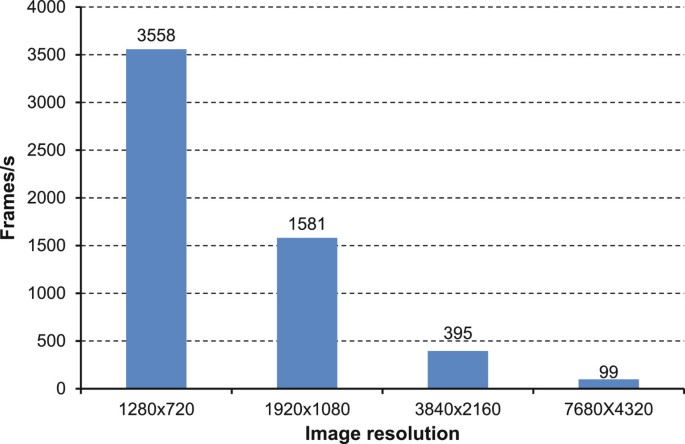

Figure 10

Maximum encoded frames per second for different monochromatic image resolutions.

The high-speed encoding process makes high-speed cameras able to capture continuously and grab without the restrictions of the internal RAM size. For example, the proposed MPCM hardware implementation could compress at 4 bpp rate with a reasonable quality and a throughput bandwidth of 1,640 MBytes/s which will extend the capturing time over the internal camera RAM module up to two times or will permit its transmission over a 40-Gbit Ethernet point-to-point access.

The basic elements of a FPGA are configurable logic blocks (CLBs). CLBs architecture includes 6-input look-up tables (LUTs), memory capability within the LUT and register, and shift register functionality. The LUTs in the Zynq-7000 AP SoC can be configured as either one 6-input LUT (64-bit ROMs) with one output, or as two 5-input LUTs (32-bit ROMs) with separate outputs but common addresses or logic inputs. Each LUT output can optionally be registered in a flip-flop. Four of such LUTs and their eight flip-flops as well as multiplexers and arithmetic carry logic form a slice, and two slices form a configurable logic block (CLB). Four of the eight flip-flops per slice (one flip-flop per LUT) can optionally be configured as latches. Between 25% and 50% of all slices can also use their LUTs as distributed 64-bit RAM or as 32-bit shift registers [20].

Table 2 presents the results of the encoder implementation in terms of hardware resources used, indicating the number of used slices, flip-flops, LUTs and 36-KB block RAMs. In addition, it shows an estimation of the power consumed using XPower of Xilinx ISE 14.3, being only 305 mW, due to the high segmentation in the encoder design. As shown, only 1% of all the available area in the FPGA is used, so given the large amount of unused area on the FPGA, we could use it to deploy multiple identical encoders that could run concurrently. Thus, different frames could be encoded simultaneously so as to increment the available recording time of a high-speed camera. To take advantage of this, we would only have to consider an external memory to support the storage of several frames, considering the blocks RAMs used as intermediate buffers. Another option would be to divide the images or frames in different collections of lines which could be encoded in parallel. In this way, a speed-up of 8× fps would be achieved and as a result, the MPCM encoder would be able to compress up to 12,648 fps for full-HD (1080p) monochromatic resolution.
Table 2

Area used in the FPGA encoder implementation



Used

Available

Utilization (%)

Number of slices

14

13,300

1

Number of slice registers (as flip-flops)

17

106,400

1

Number of slice LUTs

35

53,200

1

Number of RAMB36

52

140

37

FMax (MHz)

204.96

-

-

Power consumption(mW)

305

-

-

4.2 Decoder evaluation

As far as the decoder is concerned, the maximum clock frequency obtained for the decoder is 160 MHz with a latency of only 713 cycles. However, the maximum clock frequency has been set at 100 MHz. This frequency is taken as a compromise due to the use of other frequency four times higher provided by the PLL module, as discussed in Section 3.2, since there is a limited frequency for the FPGA used. So, the MPCM decoder is able to recover 400 Mpixels per second at that frequency. On the other hand, the algorithm requires 66,240 cycles to perform the decoding process for an image resolution of 512 × 512 pixels, so 662 μ s are needed to decode any image for that resolution, being 70 times faster than the sequential decoding algorithm on an Intel Core 2 CPU at 1.8 GHz with 5 GBytes RAM.

Figure 11 shows the maximum decoding frame rate achievable for the proposed architecture. As shown, the hardware implementation of the MPCM decoder is able to recover up to 434 fps for HD-ready (720p) resolution or up to 193 fps for full-HD (1080p) resolution, which corresponds to a throughput of 50 MBytes/s, making available to reproduce high-definition cinema at high frame rates.
Figure 11

Maximum decoder frames per second for different image resolutions.

Regarding the occupied board area, Table 3 shows a summary of the hardware resources required by the decoder, which, in a similar way with the encoder, is less than a 1%. The occupied board area could vary depending on the l 0, l 1, m 1 parameters, but in any case it will be lower than 1%. As indicated in Section 3.2, the buffers used have been modeled on single dual-port 18-Kb block RAMs so as to take advantage of the lower consumption compared to distributed memories, besides being faster. Note that the maximum frequency shown in Table 3 is 154.5 MHz, but in our design, we have set this frequency to 100 MHz as explained previously.
Table 3

Area used in the FPGA decoder implementation for parameters l 0 = 2 , l 1 = 1 , and m 1 = 1



Used

Available

Utilization (%)

Number of slices

129

13,300

1

Number of slice registers(as flip-flops)

415

106,400

1

Number of slice LUTs

208

53,200

1

Number of RAMB18

5

140

4

FMax (MHz)

154.5

-

-

Power consumption (mW)

221

-

-

5 Conclusions

In this paper, we have presented an efficient FPGA implementation of the MPCM codec. We have shown the quality of the reconstructed frames in terms of PSNR at different compression rates and for several frames with different textures. Regarding coding speed, the results show that our proposed implementation is able to compress a full-HD (1080p) resolution picture at 1,581 fps. The maximum achievable throughput bandwidth of our proposed implementation is 409.84 MBytes/s which permits the continuous grabbing of a nowadays high-speed camera at an image resolution of HD-ready (1,280 × 720p) and a reasonable good quality. But, if the final application requires a higher image quality, our encoder is able to give up to 1,640 MBytes/s at a 2:1 compression rate, incrementing the capturing time over the high-speed camera internal RAM memory. The occupied area of the FPGA used is less than 1% of the total available area, which give us the possibility to replicate several times the encoding system and thus, several frames or different collections of lines of the same image can be compressed in a parallel way.

We have also developed in hardware a MPCM decoder module. Our proposed decoder design is able to recover images at 193 fps for full-HD resolution, with an occupied board area of less than 1%.
