Features for voice activity detection: a comparative analysis

EURASIP Journal on Advances in Signal Processing20152015:91

https://doi.org/10.1186/s13634-015-0277-z

Received: 1 July 2015

Accepted: 26 October 2015

Published: 11 November 2015

Abstract

In many speech signal processing applications, voice activity detection (VAD) plays an essential role for separating an audio stream into time intervals that contain speech activity and time intervals where speech is absent. Many features that reflect the presence of speech were introduced in literature. However, to our knowledge, no extensive comparison has been provided yet. In this article, we therefore present a structured overview of several established VAD features that target at different properties of speech. We categorize the features with respect to properties that are exploited, such as power, harmonicity, or modulation, and evaluate the performance of some dedicated features. The importance of temporal context is discussed in relation to latency restrictions imposed by different applications. Our analyses allow for selecting promising VAD features and finding a reasonable trade-off between performance and complexity.

Keywords

Speech detection Speech properties Feature selection

1 Introduction

Today, speech-controlled applications and devices that support human speech communication become more and more popular. With the use of mobile devices, availability is no longer limited to a certain place; instead, it is possible to communicate in almost any situation. Efficient and convenient human-computer interfaces based on speech recognition allow us to control devices using spoken commands and to dictate text. In automotive environments, hands-free telephony and speech-controlled applications enable the driver to interact with humans and machines while driving without being distracted from road traffic. Even hearing-impaired persons benefit from advanced speech signal processing: modern hearing aid devices amplify the desired speech signal and suppress interfering noise components.

Although there are various different use cases for speech signal processing, the algorithms involved face a common challenge: based on a signal that is corrupted with noise, the presence of speech has to be detected before the signal is further processed.

Speech enhancement algorithms, as incorporated in hands-free telephony or hearing aids, rely on noise characteristics that are estimated in time intervals where speech is absent. Robust detection of speech is necessary to exclude speech components from the noise estimates and to reduce artifacts caused by aggressive noise reduction during speech. Latencies have to be kept as small as possible to ensure simultaneousness between input and output signals. Additionally, the hardware’s capabilities are limited, so the memory and CPU consumptions have to be scaled accordingly.

Speech transmission, e.g., via mobile networks, is primarily focused on speech segments. During speech pauses, less information is transmitted and comfort noise is inserted instead.

Automatic speech recognition systems are other examples where speech detection is employed. These systems are typically controlled by speech detectors that determine the beginning and the end of speech utterances. Recognition is performed only on intervals where the presence of speech is confirmed. A small recognition delay is acceptable, which relaxes the latency requirements and allows the speech detector to employ more temporal context information.

Motivated by the wide range of applications, voice activity detection (VAD) is subject to continuous research activity. Several approaches have been introduced, usually focused on specific applications. Accurate detection results are reported thanks to sophisticated VAD algorithms.

One important aspect of designing a VAD algorithm is the selection of features that represent discriminative properties of speech and noise. Accurate VAD results can be expected if the speech characteristics represented by the features are not masked by background noise or other interfering signals. For practical applications, the features have to fulfill additional requirements imposed by limited hardware and latency constraints.

In this article, we provide an overview of features for VAD presented so far. We focus on the important case of single-channel approaches, so spatial information is not taken into account. Our goal is to classify the features according to relevant criteria that indicate the usability of features for an application at hand. We perform a structural analysis of the features complemented by comparative experiments based on a common database. Our analyses are more extensive compared to earlier publications [1, 2].

In Section 2, we specify the problem of VAD and discuss evaluation measures that consider accuracy and latency. The simulation setup used throughout this article is summarized in Section 3. In Section 4, we briefly present a chronological overview of the stages of VAD development before we discuss some features in more detail. We classify the features by speech characteristics they represent and compare their detection accuracy. After having discussed these experiments for each class of features separately, Section 5 compares the performance of all feature classes. We analyze the performance in relation to the temporal context and determine the latency introduced by the features. Finally, we summarize our results in Section 6 and interpret them with respect to application-specific criteria for feature selection.

2 Voice activity detection

Voice activity detection usually addresses a binary decision on the presence of speech for each frame of the noisy signal. Approaches that locate speech portions in time and frequency domain, such as speech presence probability (SPP) or ideal binary mask (IBM) estimation, can be considered as extensions of VAD that exceed the scope of this article.

Most of the algorithms proposed for VAD can be divided into two processing stages:
  • First, features are extracted from the noisy speech signal to achieve a representation that discriminates between speech and noise.

  • In a second stage, a detection scheme is applied to the features resulting in the final decision.

This article focuses on the extraction of features. However, first, we present an overview of the detection scheme and measures to evaluate the performance of VAD algorithms.

The temporal resolution of speech detection is limited and much lower than the sampling rate of the audio signal. Therefore, the decision is typically not performed for each sample n of the signal x(n). Instead, the signal is divided into short frames
$$\begin{array}{*{20}l} \mathbf{x}(\ell) =\left[ {x(\ell L - N + 1) \,, \, \ldots \,, \, x(\ell L - 1) \,, \, x(\ell L)}\right]^T \end{array} $$
(1)

that buffer N samples of the noisy signal. In addition, the frame rate is reduced by an integer factor L compared to the sampling rate.

The goal of VAD is to determine whether the frame x() contains speech or not. Therefore, the two hypotheses
$$\begin{array}{*{20}l} \begin{array}{ll} \mathrm{H}_{1}: & \mathbf{x}(\ell) = \mathbf{b}(\ell) + \mathbf{s}(\ell) \\ \mathrm{H}_{0}: & \mathbf{x}(\ell) = \mathbf{b}(\ell) \end{array} \end{array} $$
(2)
are formulated where the noisy frame is either assumed to be a superposition of speech components s() and noise b() or to be purely noise. The decision for one of the hypotheses
$$\begin{array}{*{20}l} \text{VAD}_{ftr}(\eta,\ell) = \left\{\begin{array}{ll} 1, & \text{ when}\, \mathrm{H}_{1}\, \text{is accepted,}\\ 0, & \text{ when}\, \mathrm{H}_{0}\, \text{is accepted,} \end{array}\right. \end{array} $$
(3)

relies on features f t r that are calculated based on the noisy signal. Here, η denotes the decision parameter, e.g., a threshold.

For many scalar features, such as the short-term power, the feature can directly be employed as a decision variable. In this case, a simple thresholding scheme
$$\begin{array}{*{20}l} \text{VAD}_{ftr}(\eta,\ell) = \left\{\begin{array}{ll} 1, & \text{ when } ftr \left(\mathbf{x}(\ell) \right) > \eta,\\ 0, & \text{ when } ftr \left(\mathbf{x}(\ell) \right) \leq \eta, \end{array}\right. \end{array} $$
(4)

can be applied to detect speech. When the feature exceeds a threshold \(\eta \in \mathbb {R}\), H1 is accepted and speech is detected; otherwise, H0 is accepted indicating the absence of speech. For features that decrease during the presence of speech, the decision should be inverted.

For multidimensional features, classification becomes more difficult. Advanced classifiers, such as Gaussian mixture models (GMM) or neural networks (NN), can be trained to distinguish speech from noise based on the feature vectors. Also for these features, finally, a binary and scalar decision is achieved.

2.1 Performance measures

Usually, the performance of VAD algorithms is evaluated in terms of receiver operating characteristic (ROC) curves. For this, the probability of correct detection of speech P d(η) is plotted against the probability of false alarms P fa(η) for varying values of the threshold. To express the curve by a single value, the area under the ROC curve (AUC) is calculated. Based on this value, the performance of different VAD algorithms can be compared (optimal value AUC = 1). The ROC curve directly depends on the data and does not require further assumptions. Furthermore, AUC does not rely on a certain value of the threshold. To find an optimal threshold for the specific dataset, an optimization criterion has to be applied, e.g., P fa(η opt) set to a fixed value.

ROC and AUC cannot reflect performance with respect to particular time intervals, since they are based on averaging over time. Freeman et al. [3] therefore introduced a time selective evaluation that distinguishes between different types of errors:
  • Clipping at the front end of speech (FEC)

  • Clipping in the middle of speech (MSC)

  • Hangover after speech (OVER)

  • Noise detected as speech (NDS)

Using these measures, it is possible to express the reaction to speech onsets and offsets.

In [4], we discussed a more fine-grained evaluation of VAD algorithms. For this measure, the detection rate is determined for frames relative to reference speech on- and offsets. By averaging only over utterances but not over time, the dynamic behavior is captured.

An illustration of all measures is shown in Fig. 1.
Fig. 1

Example of evaluation of the detection (gray areas) of a VAD algorithm by determining errors (striped areas) compared to the reference. a For ROC curves, VAD results are averaged over reference speech and noise intervals to determine probability of detection (P d) and false alarm (P fa). b The measure by Freeman et al. [3] considers four intervals, bounded by reference and detection end points, to determine the FEC, MSC, OVER, and NDS. c The fine-grained measure increases the temporal selectivity by a frame-wise evaluation around reference speech on- and offsets [4]. The dynamic behavior is captured by averaging only over utterances but not over time

The performance measures are based directly on the detection outcome. The segmentation VAD f t r (){0,1} resulting from a VAD algorithm is compared to a reference VADref() that is considered as a ground truth. Typically, this reference is generated based on clean speech signals that are artificially mixed with noise for experiments.

3 Simulation setup

Before discussing the feature, we now summarize the simulation setup employed for all evaluations throughout this article. To cover a wide range of use cases, we considered two different noise databases and one speech database.

The QUT-NOISE database [5] is a noise database that was developed under the objective to evaluate VAD approaches. It consists of five categories of noise scenarios: cafe, car, home, reverberant surroundings, and street. For each category, two noise conditions were recorded, such as closed and open windows for the car scenario. Each recording was divided into two parts that can be employed for training and testing of algorithms. The resulting 20 continuous noise recordings have a duration of more then 0.5 h each. The data is available with a high sampling rate of 48 kHz. Some scenarios were recorded in reverberant environments. To simulate reverberant speech, impulse responses are provided for these scenarios. In our experiments, we convolved clean speech data with these impulse responses. The variety of scenarios and the large amount of data in the QUT-NOISE database allow us to evaluate VAD approaches based on a representative data set.

In addition to this extensive database, we employed a subset of the well-known NOISEX-92 database [6]. We focused on real noise recordings and neglected the artificial signals. Specifically, we chose the car, factory, operation room, F-16, Lynx, and machine gun noises. Since each file contains only 4 min of noise, we used the NOISEX data only for testing but not for training.

The clean speech data in our experiments was based on the TIMIT database [7]. In total, this database comprises 6300 speech files recorded with 630 speakers (192 females and 438 males). Each file contains an English sentence that was read by one speaker. The average duration of the files is about 3 s. The audio files are accompanied by a phonetic transcription that can be used as a reference for speech detection. We used this transcription in the evaluations to distinguish between voiced and unvoiced speech as well as noise. The database is already separated into training and testing data.

The TIMIT data does not include a significant amount of leading and trailing silence. We therefore extended the signals by 1.5 s of silence before and after the speech signal. Hence, the average duration of the resulting mixed signals is about 6 s.

For our evaluation, we artificially mixed speech and noise data without considering the Lombard effect [8]. To achieve realistic signal-to-noise ratios (SNRs), the speech signal was scaled before it was mixed with the noise. We used eight different SNRs in the range between −5 and 15 dB. For each of the 16 noise scenarios used for testing (10 for training), 40 speech files were randomly selected. This resulted in 3200 noisy speech files for training and 5120 files for testing. The complete database consists of about 14 h of noisy speech.

For all simulations, we used a sample rate of 16 kHz corresponding to the sample rate of NOISEX and TIMIT data. All features were calculated based on short frames of the signal according to Eq. (1). Frames of length N=512 were buffered, and the frame rate was reduced by a factor of L=256 compared to the sample rate. For features in the frequency domain, a discrete Fourier transform (DFT) was applied to the frames x(), resulting into K=257 spectral bins X(k,).

Several features rely on an estimate of the power spectral density (PSD). To estimate the PSD, in our experiments the magnitude squared DFT coefficients |X(k,)|2 are temporally smoothed
$$\begin{array}{*{20}l} \hat{\Phi}_{xx}(k,\ell) = \alpha_{\text{PSD}} &\cdot \hat{\Phi}_{xx}(k,\ell-1) \\ & + (1-\alpha_{\text{PSD}}) \cdot | X(k,\ell) |^{2}. \end{array} $$
(5)

We chose a smoothing constant \(\alpha _{\text {PSD}} \, \hat {=} \, 200\,\text {dB/s}\).

Some elaborate features are represented by vectors. For these multidimensional features, we employed a neural network as a classifier to make a decision on the presence of speech. The network was based on one hidden layer with 20 neurons with hyperbolic tangent activation functions. The output layer represented the probability of speech presence or absence by two neurons and a soft-max activation function.

The evaluations of features in the following section were based on the area under ROC curve (AUC) measure. High values—next to one—are desired as they indicate a good performance of the feature. A feature yielding low values in the range of 0.5 does not allow for a distinction between speech and noise.

4 Features

The beginning of VAD research goes along with the first attempts for word recognition systems in the 1970s. At that time, simple features, such as energy or zero-crossing rate [9], were investigated for VAD. The simplicity of the features was justified by moderate noise conditions with an SNR on the order of 30 dB.

During the following decades, the complexity of features was increased to achieve reasonable detection results in more challenging noise conditions. Especially, speech characteristics, such as the spectral shape [10] and the harmonic structure [11] of speech, were thoroughly examined.

Sohn et al. [12] introduced statistical model-based approaches for VAD. They modeled the distributions of X(k,) for speech and noise by different probability density functions and used the likelihood ratio between both models for the decision. Later, this concept was refined in several advanced algorithms [13].

One limitation of most of the early VAD algorithms was that they only took into account the data from the current frame. Ramírez et al. [14] showed that the detection benefits from long-term information about the speech signal. By extending the temporal range of data employed in the decision, also long-term characteristics of speech, such as the degree of stationarity, can be captured.

The trend to consider more contextual information still goes on, motivated by the increased detection robustness even in adverse scenarios. Modulation properties were identified as important aspects in human perception of speech. Different features, such as spectro-temporal modulation (STM) [15] or amplitude modulation spectrogram (AMS) [16], inherit this fact and reflect the presence of speech in a similar manner to the human perception.

Due to the diversity of speech characteristics, a combination of complementary features is desirable in practice [2]. In the following, we therefore discuss different speech characteristics and analyze as to what extent they are represented by the features. In addition, we determine the latency introduced by the features. The analyses presented in the following sections suggest promising candidates of features for various applications.

4.1 Power and SNR

The short-term power \({\sigma ^{2}_{x}}(\ell) = \frac {1}{N}\mathbf {x}(\ell)^{T} \mathbf {x}(\ell)\) of an audio signal can be employed as a first indicator for the presence of speech. Assuming that the speech components exhibit higher values of power compared to the background noise, a threshold can be applied to detect speech. In many scenarios, the assumption of increased power is reasonable due to the Lombard reflex [8] that lets the speakers raise their voices in noisy environments. However, a fixed threshold requires the level of noise and speech to be known in advance. Normalization of the power increases the separability between speech and noise components. Slow variations of the noise scenario can be considered by tracking changes with time. In contrast, non-stationary interferences are likely to falsely trigger power based speech detectors.

In their early speech detection algorithm, Rabiner and Sambur [9] normalized the power by
$$\begin{array}{*{20}l} P_{\text{norm}}(\ell) = \left({\sigma^{2}_{x}}(\ell) - \sigma^{2}_{x\,\text{min}}\right)/\left(\sigma^{2}_{x\,\text{max}} - \sigma^{2}_{x\,\text{min}} \right) \end{array} $$
(6)

where they determined the peak \(\sigma ^{2}_{x\,\text {max}}\) and silence power \(\sigma ^{2}_{x\,\text {min}}\) based on a complete utterance. To reduce computational costs and memory, they replaced the power by the mean of magnitude values.

A similar approach that tracks the power envelope was introduced by Marzinzik and Kollmeier [17]. Minimum \(\sigma ^{2}_{x\,\text {min}}(\ell)\) and maximum values \(\sigma ^{2}_{x\,\text {max}}(\ell)\) of the power are tracked for three different frequency ranges. In addition to the full-band signal, a low-pass (LP) and a high-pass (HP) filtered version of the signal are taken into account. The six-dimensional feature vector
$$\begin{array}{*{20}l} \mathbf{P}_{\mathrm{dyn. norm}}(\ell) = &\left[ \Delta (\ell), \Delta_{\text{LP}}(\ell), \Delta_{\text{HP}}(\ell), \right.\\ &\left.\tilde{P}(\ell), \tilde{P}_{\text{LP}}(\ell), \tilde{P}_{\text{HP}}(\ell)\right]^{T} \end{array} $$
(7)

is based on the dynamic range of the signal \(\Delta (\ell) = \sigma _{x\,\text {max}}^{\text {[dB]}}(\ell)- \sigma _{x\,\text {min}}^{\text {[dB]}}(\ell)\) and the normalized power \(\tilde {P}(\ell) = \left (\sigma _{x}^{\text {[dB]}}(\ell) - \sigma _{x\,\text {min}}^{\text {[dB]}}(\ell) \right) / \Delta (\ell)\) for each frequency range. Here, the logarithmic power \(\sigma _{x}^{\text {[dB]}}(\ell) = 10\log _{10}\left ({\sigma ^{2}_{x}}(\ell) \right)\) is employed.

The signal-to-noise power ratio is a common measure to normalize the power. In contrast to the approaches summarized above, the peak power is not considered for the SNR. Instead, the normalized short-term power
$$\begin{array}{*{20}l} \text{SNR}(\ell) = {\sigma^{2}_{x}}(\ell) / \hat{\sigma}^{2}_{b}(\ell) \end{array} $$
(8)

solely relies on an estimate of the noise power \(\hat {\sigma }^{2}_{b}(\ell)\). Several approaches have been presented to estimate the noise power:

Lamel et al. [18] estimated the noise power based on the histogram of the lowest 10 dB of logarithmic power values. The method was originally developed for non-realtime speech recognition systems that require access to all the data for processing. In our simulations, the technique was modified for online estimation where the histogram is continuously updated based on present and previous power values.

Given a first VAD result, some approaches update the noise estimate during speech pauses. An approach that iteratively uses the SNR-based VAD to detect non-speech intervals was described, e.g., by Van Gerven and Xie [19]. When speech is detected, i.e., the SNR exceeds a threshold η b , the noise power estimate
$$\begin{array}{*{20}l} \hat{\sigma}^{2}_{b}(\ell+1) = \left\{\begin{array}{ll} \hat{\sigma}^{2}_{b}(\ell), &\text{for VAD }(\eta_{b}, \ell) = 1 \\ \tilde{\sigma}^{2}_{b}(\ell), &\text{otherwise } \end{array} \right. \end{array} $$
(9)

is kept. Otherwise, recursive averaging \(\tilde {\sigma }^{2}_{b}\,(\ell)\! = \alpha \cdot \hat {\sigma }^{2}_{b}(\ell \,-\,1) + (1\,-\,\alpha) \cdot {\sigma ^{2}_{x}}(\ell)\) of the signal power can be employed for noise estimation. In [19], the variance of the noise power is also tracked. The detection threshold is adapted depending on the expected variance of the power in noise-only intervals.

Pencak and Nelson [20] used a sorted spectrum \(\acute {\Phi }_{\textit {xx}}(k,\ell) \le \acute {\Phi }_{\textit {xx}}(k+1,\ell)\) to estimate the SNR based on a single frame. The average of the spectral values with the lowest magnitudes was assumed to correspond to the noise power \(\hat {\sigma }^{2}_{b,\text {spec}}(\ell)\). The highest values, contributing 40 % of the total power, were averaged to calculate the signal power \(\hat {\sigma }^{2}_{x,\text {spec}}(\ell)\). When calculating
$$\begin{array}{*{20}l} \text{SNR}_{\text{spec}}(\ell) = \hat{\sigma}^{2}_{x,\text{spec}}(\ell) / \hat{\sigma}^{2}_{b,\text{spec}}(\ell), \end{array} $$
(10)

a flat noise spectrum is required in order to achieve low values \(\gtrapprox 1\) for speech pauses. Therefore, a spectral whitening scheme has to be applied in advance. The spectral envelope of noise is determined by temporally smoothing the spectrum. Whitening is then achieved by normalizing the instantaneous spectrum with this estimated noise spectrum.

The SNR-based procedure introduced by Ramírez et al. [14] explicitly takes into account temporal information. For each subband 0≤k<K, the long-term envelope
$$\begin{array}{*{20}l} \text{LTSE}(k,\ell) = \underset{\ell-R \leq \tilde{\ell} \leq \ell+R}{\max} \left(\hat{\Phi}_{xx}(k,\tilde{\ell}) \right) \end{array} $$
(11)
over 2R+1 frames of the power spectrum is calculated. Analogous to Eq. (9), the noise power spectrum \(\hat {\Phi }_{\textit {bb}}(k,\ell)\) is estimated by averaging \(\hat {\Phi }_{\textit {xx}}(k,\ell)\) only during speech pauses. The long-term spectral divergence
$$\begin{array}{*{20}l} \text{LTSD}(\ell) = 10\log_{10} \left(\frac{1}{K} \sum_{k=0}^{K-1} \frac{\text{LTSE}(k,\ell) }{ \hat{\Phi}_{bb}(k,\ell)} \right) \end{array} $$
(12)

then is determined by averaging the ratio between LTSE and \(\hat {\Phi }_{\textit {bb}}(k,\ell)\) over frequency. Later, Ramírez et al. [21] extended their approach by replacing the maximum operator by order statistics filters for multi-band quantile SNR estimation.

Most of the standardized approaches for VAD incorporate power or SNR features, which underlines their importance for speech detection. In ITU-T G.729 Annex B [22], the full-band and low-band energies are combined with other features to detect speech. ETSI AMR [23] is based on the SNR for multiple subbands, and ETSI AFE [24] relies on the energies calculated for different spectral regions.

Some other approaches that employ SNR in a statistical model-based framework will be discussed separately in Section 4.11.

4.2 Evaluation of power and SNR features

The power and SNR features summarized in this section are now evaluated. We expect that the SNR of the noisy speech signal significantly influences the VAD result. Hence, for this category of features, we focus on the SNR dependency. In Table 1, the performances of some representative power and SNR features for varying SNR are compared.
Table 1

AUC for power and SNR features as a function of SNR. Feature performance is highlighted by colors on a scale from red (low) over yellow (reasonable) to green (good)



Performance improvements for increasing values of the SNR are obvious for most of the features. Only the feature that estimates the SNR based on a single frame shows a relatively constant performance. Even the plain short-term power results in a reasonable performance for higher SNRs. However, since no normalization is involved, the overall performance is clearly outperformed by the other approaches.

Normalizing the power based on the maximum and minimum values of the complete utterance (Eq. (6)) improves the results for low SNRs. Since the maximum value is assumed to correspond to speech, this normalization is vulnerable against outliers, e.g. noise bursts. In addition, the whole utterance has to be available, which is inapplicable for real-time use cases.

A normalization based on an estimate of the noise power is calculated for the instantaneous SNR (8). For our simulations, we used two different noise power estimators. Recursive noise estimation based on the VAD result (9) slightly improves the performance. A similar result is achieved by estimating the noise power based on a histogram.

The next approach tracks the power envelope dynamics (7) to normalize the power. Improvements are achieved by calculating the normalized power for different frequency ranges. This procedure implicitly considers temporal context, since the power envelope is tracked slowly over time.

The long-term spectral divergence (LTSD) measure (12) explicitly addresses the temporal context for VAD. Since the maximum value of the power spectrum over multiple frames is employed in the feature, short missed detections can be avoided. This improves the feature’s performance consistently. The definition of LTSD includes a look-ahead, so the current decision is influenced by future frames. Especially, onsets are detected more robustly; however, an additional latency in the application has to be tolerated.

The last feature evaluated for this category estimates the SNR based on a single frame (10). A completely different behavior can be observed compared to the features evaluated before. For the feature, the ratio of the highest and lowest bins of a whitened and sorted power spectrum is calculated. The whitening thereby can be seen as a simple noise reduction. For low SNRs, the performance therefore exceeds the results of the other features. On the other hand, even the lowest spectral bins may contain fractions of speech. They are, however, expected to correspond to noise. For higher SNRs, this results in a decreasing performance of the feature.

4.3 Pitch and harmonicity

According to Fant’s source-filter model of human speech production, speech can be modeled by a voiced or unvoiced excitation signal that is spectrally shaped by the vocal tract. In this section, we will discuss features that target at the voiced excitation. Properties of the vocal tract will be revisited later in Section 4.5.

For voiced phonemes, vibration of the vocal cords produce a harmonically rich sound with a distinct pitch between 50 and 250 Hz [25]. All vowels, but some consonants as well, exhibit this harmonic structure, which is therefore characteristic for speech. Features that represent the harmonic structure are reliable indicators for speech. However, unvoiced speech portions, such as some fricatives, cannot be expected to be detected using harmonicity or pitch-based features alone [26]. Moreover, music or other harmonic noise components might be misinterpreted as speech.

Voicing properties of speech are employed by several features [27] with varying complexity. Some simple features only consider variations along time or frequency without addressing the harmonic structure. More advanced approaches represent the harmonic structure of voiced speech:

The zero-crossing rate (ZCR) [9] for unvoiced speech is typically higher than that for voiced speech segments. A high value of
$$\begin{array}{*{20}l} \text{ZCR}(\ell) = \frac{\sum\limits_{n=\ell L}^{\ell L-N+2} | \operatorname{sign}(x(n)) - \operatorname{sign}(x(n-1)) | }{ 2 (N-1) } \end{array} $$
(13)
therefore can be employed to detect unvoiced phonemes. A combination of the inverse ZCR and the short-term energy
$$\begin{array}{*{20}l} \text{ZRMSE}(\ell) = \sqrt{{\sigma^{2}_{x}}(\ell)} / \text{ZCR}(\ell) \end{array} $$
(14)

was proposed in [28] and appeared to be a good measure for the degree of voicing.

The (normalized) auto-correlation function (ACF)
$$\begin{array}{*{20}l} \text{ACF}(\tau,\ell) = \frac{\sum\limits_{n=\ell L}^{\ell L-N+1+\tau} x(n) \cdot x(n-\tau)}{\text{norm}(\tau,\ell)} \end{array} $$
(15)

captures the harmonic structure of speech. Normalization is based on the energy of the signal [27] \(\text {norm}(\tau,\ell) = \sqrt {\sum _{n=\ell L}^{\ell L-N+1+\tau } x^{2}(n) \cdot \sum _{n=\ell L - \tau }^{\ell L-N+1} x^{2}(n)}\). The ACF is a fundamental approach for several pitch-related features for speech detection. For periodic signals, it is maximized for values of τ being integer multiples of the period. This property is employed by features that reflect the maximum ACF peak [27], the periodicity of the ACF [29], or the difference between maximum and minimum values [30].

Some alternative measures similar to ACF were proposed. Tucker [11] introduced a periodicity measure that is based on a least squares periodicity estimator. The short-time average magnitude difference function (AMDF) [31] replaces the product operation of the correlation by the magnitude of the difference |x(n)−x(nτ)|. A generalization of the ACF is given by the shift ACF [32] that exploits multiple repetitions of the periodic signal.

The ACF represents the harmonic excitation of the vocal cords. However, it also reflects properties of the vocal tract. To separate both effects, the cepstrum can be employed instead [27]. A log operation is applied to the spectrum \(\hat {\Phi }_{\textit {xx}}(k,\ell)\) before it is transformed to the cepstral domain using, e.g., the discrete cosine transform (DCT)
$$\begin{array}{*{20}l} &\text{cepst}(\tau,\ell) \\ &= \sum_{k=0}^{K-1} \log\left(\hat{\Phi}_{xx}(k,\ell) \right) \cdot \cos\left(\frac{\tau (k + 0.5) \pi }{K} \right). \end{array} $$
(16)

The logarithm converts the convolutive mixture in the time domain between excitation signal and vocal tract properties into a sum of two cepstral components. The rapidly fluctuating excitation spectrum thereby is represented by the higher order cepstral bins. Harmonic components are characterized by a peak in this region. They can be captured using the difference between maximum and minimum value of the cepstrum. Another harmonic feature can be derived by transforming this region of the cepstrum back into the spectral domain [33]. The properties of the vocal tract given by the lower order bins will be discussed in the next section.

The features discussed so far search for periodicity in the time domain1. A basic feature in the frequency domain is the spectral entropy
$$\begin{array}{*{20}l} H(\ell) = -\sum_{k=0}^{K-1} \tilde{\Phi}_{xx}(k,\ell) \cdot \log\left(\tilde{\Phi}_{xx}(k,\ell) \right) \end{array} $$
(17)

where \(\tilde {\Phi }_{\textit {xx}}(k,\ell) = \hat {\Phi }_{\textit {xx}}(k,\ell) / \sum _{\tilde {k}=0}^{K-1} \hat {\Phi }_{\textit {xx}}(\tilde {k},\ell)\) denotes the normalized spectrum. The entropy reflects the flatness of the spectrum. It is maximized when all spectral values are equal. For speech, some frequencies are excited and dominate the spectrum. In this case, the entropy is low, whereas for stationary background noise, high entropy is assumed [27]. Another feature closely related to the entropy is the spectral flatness measure [34]. It is based on the ratio between geometric and arithmetic mean of the spectral values. Both features consider the distribution of spectral values. However, they do not explicitly target at the harmonic structure.2

In the frequency domain, the harmonic structure can be described by equally spaced spectral peaks with a distance corresponding to the pitch frequency. The harmonic product spectrum (HPS)
$$\begin{array}{*{20}l} \text{HPS}(\tilde{k},\ell) = \sum_{r=1}^{R} \log \left(\hat{\Phi}_{xx}\left(r \cdot \tilde{k}, \ell \right) \right) \end{array} $$
(18)

accumulates R harmonic components corresponding to the potential pitch \(\tilde {k}\). The maximum value can be employed to detect periodicity [30].

Normalizing the maximum value based on an estimate of the aperiodic components increases the robustness of the feature as described in [25] and similarly in [35].

4.4 Evaluation of pitch and harmonicity features

The voicing properties of speech are relevant for the evaluation of the features discussed in this section. We therefore analyze the performance on voiced and unvoiced speech portions separately. The results are summarized in Table 2. Our initial analysis showed that noise is a serious problem for these features since the harmonic structure of speech is superimposed by the noise. We therefore apply a Wiener filter with a maximum attenuation of 6 dB to the signal. The noise spectrum is determined using the MMSE-based estimator introduced by Gerkmann and Hendriks [36]. All features discussed in this section are calculated based on this enhanced speech signal.
Table 2

AUC for harmonicity features as a function of voicing. A Wiener filter with up to a 6 dB noise suppression was applied as preprocessing. Feature performance is highlighted by colors on a scale from red (low) over yellow (reasonable) to green (good)



The ZCR (13) is a feature with low complexity. Our simulation shows that the ZCR for voiced speech behaves similarly compared to the noise-only case. The AUC approaches a value of 0.55, which implies that hardly any separation between voiced speech and noise is possible based on this feature. To distinguish between voiced speech and noise, other features appear to be more appropriate. On the other hand, unvoiced speech can be reasonably identified by a high value ZCR.

The spectral entropy (17) shows a behavior similar to the ZCR. The former considers the non-flatness of the spectrum without addressing the harmonic structure. Therefore, it is triggered by unvoiced speech.

The inverse ZCR and the short-term power are combined for ZRMSE (14). In contrast to the ZCR, it is capable to detect voiced speech. For voiced speech, the value is high as the power typically is high for voiced speech. On the other hand, the high ZCR for unvoiced speech prevents a detector from detecting unvoiced speech. This behavior can be exploited to distinguish between voiced and unvoiced speech.

The next features explicitly focus on the harmonic structure of voiced speech. Typically, pitch is located within a frequency range between 50 and 250 Hz [25]. To determine the degree of harmonicity that corresponds to voiced speech, we therefore restrict all subsequent features to this frequency range or the corresponding interval of time lags.

Harmonicity is indicated by high peaks maxτ(ACF(τ)) of the normalized ACF (15). Our simulation shows that voiced speech can be identified using this feature. However, noise can also cause peaks in the relevant interval, so the performance is not as good as expected from earlier analyses. To evaluate the general capability of ACF-based features, we apply a neural network to the relevant interval of the ACF. The improved results confirm that better performances can be achieved by employing other features than the maximum.

Next, we evaluate the harmonic product spectrum (18) that reflects the harmonic structure of speech in the spectral domain. When calculating \(\max _{\tilde {k}}\left (\text {HPS}(\tilde {k}) \right)\), we observe a reasonable performance although no normalization is involved.

The cepstral peak maxτ(cepst(τ))− minτ(cepst(τ)) (16) shows the best performance of all features considered in this evaluation. For voiced speech, the detection is fine, but even unvoiced speech can be detected using this feature.

4.5 Formant structure

Variable cavities in the human vocal tract allow the speaker to form different phonemes. The resonance (or formant) frequencies are emphasized resulting in a characteristic shape of the spectral envelope. Based on this formant structure, specific phonemes can be identified. It is therefore an important feature for speech recognition systems.

The spectral shape of a signal can be described in different ways.

The cepstral coefficients given by Eq. (16) separate the spectral envelope from the excitation. The spectral shape is characterized by the lower order coefficients [37].

Mel frequency cepstral coefficients (MFCCs) rely on a perceptually motivated transformation of the frequency axis. The spectral magnitude values of multiple subbands are accumulated3 resulting in a reduced frequency resolution for higher frequencies. Finally, the cepstrum is calculated based on the modified spectrum [38, 39].

Considering the speech signal as the output of an infinite impulse response (IIR) filter, the filter coefficients can be determined using linear prediction. The linear predictive coding (LPC) coefficients model the spectral shape and can be used for speech detection [10]. An alternative representation of the LPC coefficients is given by the line spectral frequencies (LSFs). LSFs can be interpolated while retaining stability of the corresponding IIR filter. For this reason, it is utilized in the standardized VAD procedure ITU-T G.729 Annex B [22].

To detect speech based on the spectral shape, the multidimensional feature vectors are typically modeled using codebooks. Speech and noise spectra are represented by the different codebook entries. Generally, the codebooks are generated in advance based on a representative training dataset [10]. However, adaptive procedures were also introduced that update the codebook entries based on the recording at hand [39, 40].

4.6 Evaluation of formant structure features

In the following, the features that reflect the formant structure of speech are evaluated. At first, the outputs of the features are multidimensional. Therefore, we classify the results using neural networks. We chose neural networks in place of codebooks in order to have a common classifier for the multidimensional features from all categories. An evaluation of the performance for different values of the SNR are shown in Table 3.
Table 3

AUC for formant features as a function of SNR. Feature performance is highlighted by colors on a scale from red (low) over yellow (reasonable) to green (good)



The cepstrum (16) has already been evaluated for the detection of harmonic speech components. In contrast to this earlier consideration, we now employ all the cepstral bins. This feature reflects both the rapidly varying excitation and the spectral envelope representing the formant structure.

To evaluate the performance of linear prediction, we used a 10th-order predictor. When applying the neural network directly to the LPC coefficients, we notice that the performance decreases extremely. However, after converting the LPC coefficients to line spectral frequencies, a performance similar to that of the cepstrum is achieved. The neural network appears to deal better with LSFs.

An evaluation of the perceptually motivated compression of the spectrum using a mel filterbank is presented in the last row of the table. We applied a neural network to the output of a 20-band mel filterbank. For this category, we achieve the best results.

4.7 Stationarity

The temporal variation of noise is typically much slower than the variation of speech. Under the assumption that noise is a stationary signal, the degree of non-stationarity can be employed for speech detection. Since short-term stationarity is also expected for speech signals, stationarity has to be considered over intervals longer than the typical duration of a phoneme [41]. Unfortunately, non-stationary interferences might trigger speech detectors as well. This suggests applying stationarity-based features primarily in scenarios where non-stationary interferences are unlikely to occur.

Ghosh et al. [41] introduced the long-term signal variability (LTSV) as a measure for non-stationarity. For each frequency bin, a temporal entropy \(H(k,\ell) = \tilde {H}(k,\ell) / N(k,\ell) + \log \left (N(k,\ell) \right)\) is calculated with
$$\begin{array}{*{20}l} {}\tilde{H}(k,\ell) = -\sum_{r=0}^{R-1} \hat{\Phi}_{xx}(k,\ell-r) \cdot \log\left(\hat{\Phi}_{xx}(k,\ell-r) \right) \end{array} $$
(19)
and a normalization \(N(k,\ell) = \sum _{r=0}^{R-1} \hat {\Phi }_{\textit {xx}}(k,\ell -r)\). In contrast to the spectral entropy given in Eq. (17), the entropy here reflects the temporal flatness for each frequency bin over a window of R frames. For stationary signals, the entropy is maximized as the spectrum does not change over time. For the final feature, the entropies of all subbands are fused by calculating the variance over frequency:
$$\begin{array}{*{20}l} \text{LTSV}(\ell) = \frac{1}{K} \sum_{k=0}^{K-1} \left(H(k,\ell) - \frac{1}{K}\sum_{\tilde{k}=0}^{K-1} H(\tilde{k},\ell) \right)^{2}. \end{array} $$
(20)

Since all entropy values are equal for stationary signals, the feature value approaches zero in this case. When speech is present, non-stationarity occurs in some subbands and the variance is higher.

In [42], the procedure was extended to the multi-band LTSV. In contrast to LTSV, the variance is not calculated over all subbands. Instead, multiple variances are determined for different frequency ranges resulting in a multidimensional feature vector. This algorithm was reported to deal with non-stationary noise better than the standard LTSV.

The long-term spectral flatness measure (LSFM) was introduced by Ma and Nishihara [43]. For this feature, the entropy is replaced by the ratio of geometric and arithmetic means over R frames.

By calculating the mean over frequency
$$\begin{array}{*{20}l} {}\text{LSFM}(\ell) =\frac{1}{K}\sum_{k=0}^{K-1} \log \left(\frac{\left(\prod_{r=0}^{R-1} \hat{\Phi}_{xx}(k,\ell-r) \right)^{1/R} }{ \left(\sum_{r=0}^{R-1} \hat{\Phi}_{xx}(k,\ell-r) \right) / R} \right) \end{array} $$
(21)

the subband results are fused. The arithmetic mean generally exceeds the geometric mean. Hence, the feature value is always negative. Speech is indicated by a higher magnitude of the value.

Analogous to the spectral entropy in (17), the features described in this section only consider the distribution of spectral values but do not target at their temporal structure. In the next section, we will therefore focus on modulation features that address the temporal structure of speech. Both stationarity and modulation features will then be evaluated together.

4.8 Modulation

The temporal structure of speech is dominated by a characteristic energy modulation peak at about 4 Hz [44]. This frequency corresponds to the typical syllable rate of human speech. Features that target at this property are robust against most interferences; however, a long window is necessary to capture it properly.

Based on the spectrogram that describes the temporal evolution of the spectrum, modulation properties can be determined. Different representations of the spectrogram were discussed in literature. For example, a sequence of frames of the spectrum \(\hat {\Phi }_{\textit {xx}}(k,\ell)\) given by Eq. (5) is employed in [45]. For many approaches, a mel filterbank [44] or similar transformations [46] are applied to the spectrum. This results in a perceptually motivated representation of the spectrogram. Mesgarani et al. [15] even introduced a model of the early-stage auditory system to determine an auditory spectrogram.

To distinguish between speech and music, Scheirer and Slaney [44] determine the modulation in addition to several other features. A 4-Hz bandpass filter is applied to each band of a mel-filtered spectrogram, and the corresponding energy is determined. Based on the overall energy for each band, the energy at 4 Hz is normalized. The average of the normalized values over all bands is employed as a scalar feature for speech detection.

The amplitude modulation spectrogram (AMS) [46] evaluates the modulation for multiple frequencies. For this, a DFT is applied to each band of the spectrogram. To capture the low modulation frequencies around 4 Hz, a long window length of about 1 s was chosen by Bach et al. [47]4. Their implementation considers 29 modulation frequencies for 17 frequency bands resulting in a 493-dimensional feature. A more general representation of temporal modulations is given by this feature.

The spectro-temporal modulation (STM) [15] considers modulations along time as well as along frequency. It is motivated by human audio processing in the auditory cortex. In addition to the temporal structure reflected by the AMS, the STM also reveals the harmonic and formant structure of speech [48].

Two-dimensional filters, sometimes called spectro-temporal modulation filters (STMFs), are applied to the spectrogram
$$\begin{array}{*{20}l} r(k, \ell, \omega, \Omega) = \hat{\Phi}_{xx}(k,\ell) \hspace{0.5em} \ast_{k,\ell} \hspace{0.5em} \text{STMF}(k, \ell; \omega, \Omega) \end{array} $$
(22)
where k, denotes a convolution along time and frequency. The STMFs are parametrized by a rate ω [Hz] and a scale parameter Ω [s] that describe the modulations along time and frequency. An envelope function, e.g., a Hann window, is applied to limit the size of the two-dimensional FIR filter. An example for STMFs with different parameters is shown in Fig. 2.
Fig. 2

STMFs [49] for four different values of ω and Ω

When the stacked output vector r() of different filters is directly employed as a feature, the VAD has to deal with a high number of dimensions. In [15], 5 scale filters and 12 rate filters were applied for 128 subbands resulting in a feature vector with 7680 elements.

Different strategies were discussed to reduce the number of dimensions. In [15], a multidimensional PCA was applied. By averaging the magnitude of r(k,,ω,Ω) over frequency, a feature
$$\begin{array}{*{20}l} E(\ell, \omega, \Omega) = \sum_{k=0}^{K-1} | r(k,\ell, \omega, \Omega) | \end{array} $$
(23)

with a reduced number of dimensions was derived by Hsu et al. [45]. They identified max(E(,1 Hz,5 ms),E(,−1 Hz,5 ms)) to be a reasonable scalar feature for the detection of speech.

4.9 Evaluation of stationarity and modulation features

As discussed, we expect that stationarity features perform best in stationary noise situations. The modulation considers the temporal structure of speech and is therefore expected to cope with non-stationary noises. To analyze the robustness against various types of noises, different scenarios from QUT-NOISE and the NOISEX database are taken into account. Our simulation results are summarized in Tables 4 and 5. In the table, only some selected scenarios are depicted. Nevertheless, the results over all scenarios are determined based on all noises of each database.
Table 4

AUC for stationarity and modulation features for some dedicated noise scenarios. The evaluation over all scenarios includes those that are not shown in the table. Feature performance is highlighted by colors on a scale from red (low) over yellow (reasonable) to green (good)


Table 5

AUC for stationarity and modulation features for some dedicated noise scenarios. The evaluation over all scenarios includes those that are not shown in the table. Feature performance is highlighted by colors on a scale from red (low) over yellow (reasonable) to green (good)



In the first two rows, the evaluation results of the stationarity features, LTSV (20) and LSFM (21), are depicted. For our simulation, both features take into account 30 frames, corresponding to about 0.5 s. As expected, the best performance is achieved for stationary scenarios, such as car noise. The performance decreases for non-stationary scenarios, e.g., the babble noise recorded in a cafe. Obviously, the most challenging scenario is given by the machine gun noise taken from the NOISEX database. The highly non-stationary noise bursts result in a low performance for all features.

In the following, three modulation features are evaluated. All of these features were calculated based on a mel-filtered spectrogram with 20 bands.

First, the results for the modulation at a frequency of 4 Hz are depicted. A similar performance compared to the stationarity features is noticeable.

To calculate the amplitude modulation spectrogram, we used an FFT over 64 frames, corresponding to about 1 s of the temporal context. For the QUT-NOISE database, an improved performance is achieved. However, for some scenarios in the NOISEX database, the performance is lower compared to the 4 Hz modulation.

The best performance can be observed for the spectro-temporal modulation feature. We employed a feature vector with 771 elements using the Gabor STMFs by Schädler et al. [49]. In almost all scenarios, the STM feature outperforms the other ones.

4.10 Other features

In literature, one can find many additional approaches, which cannot easily be classified in the categories we described in this article. To present a more complete overview of VAD features, we briefly summarize some of these approaches:
  • Teager energy operator (TEO) [50] is based on a non-linear operation on the signal. A multi-band implementation of the feature was discussed [51].

  • Higher-order statistics in the LPC residual domain [52] rely on linear prediction as a preprocessing step. Skewness and kurtosis of the residual signal are employed in the feature.

  • Modified group delay [53] employs phase information in contrast to the pure magnitude information given by the power spectrum.

  • Spectral flux [30, 54] considers local spectral differences between two adjacent frames.

  • CASA-based features [55] realize VAD with features that were originally derived in the context of computational auditory scene analysis (CASA) research.

Statistical model-based approaches comprise the feature and parts of the detector. Since they represent an important class of VAD algorithms, in the following, we will discuss them in more detail.

4.11 Statistical model-based approaches

The features discussed so far are directly extracted from the data. In the detector, a fixed threshold is applied to the features to make a decision on the presence of speech. Reasonable values of the threshold are usually found heuristically based on histograms. The histograms represent non-parametric estimators of distributions of the features for speech and noise.

The statistical model-based approaches employ the same basic features but extend the decision by prior knowledge of speech. The distributions of features for speech and noise are explicitly modeled by probability density functions (PDFs). Parameters of the PDFs are estimated during runtime. In contrast to the heuristic approaches, a threshold is now applied to the likelihood ratio of the speech and the noise model.

Sohn et al. [12] introduced a frequently cited model-based approach for VAD. They modeled the DFT bins X(k,) by zero-mean complex-Gaussian distributions with different variances for speech and noise. Given the hypotheses defined in (2), the resulting likelihood ratio
$$\begin{array}{@{}rcl@{}} \Lambda(k,\ell) &=& \frac{p\left(X(k,\ell) | \mathrm{H}_{1} \right)}{ p\left(X(k,\ell) | \mathrm{H}_{0} \right)} \end{array} $$
(24)
$$\begin{array}{*{20}l} &= \frac{1}{1+ \xi(k,\ell)} \exp\!\left(\frac{\gamma(k,\ell) \cdot \xi(k,\ell) }{ 1 + \xi(k,\ell)} \right) \end{array} $$
(25)

for each frequency bin depends on the a priori SNR ξ(k,) and the a posteriori SNR γ(k,). Both parameters are estimated based on the observed data using the estimator introduced by Ephraim and Malah [56]. Since statistical independence between frequency bins is assumed, the final likelihood ratio is derived as the geometric mean over frequency \(\log \Lambda (\ell) = \frac {1}{K} \sum _{k=0}^{K-1} \log \Lambda (k,\ell)\).

Other distributions were investigated that model speech more accurately than Gaussian PDFs. Chang et al. [57] chose a complex Laplacian model that was replaced in [58] by a generalized gamma distribution. A comparison between different models was presented in [13].

The likelihood ratio in (24) is calculated based on a single frame. Especially weak speech tails are difficult to detect given this limited amount of information. In several publications, model-based VADs were discussed that incorporate contextual information from multiple frames. Already Sohn et al. [12] introduced a hangover scheme that considers the dependency between successive frames. For this, speech and speech pause are modeled by two states of a hidden Markov model (HMM). Fixed probabilities are assigned to both state transitions. The forward procedure is applied, resulting in a temporally smoothed likelihood ratio.

Ramírez et al. [59] formulated a multiple-observation likelihood ratio test (MO-LRT) for VAD. In addition to the assumption of statistical independence between frequency bins, 2R+1 successive frames are also assumed to be independent. This results in a likelihood ratio \(\Lambda _{\text {MO-LRT}}(\ell) = \prod _{r=-R}^{R} \Lambda (\ell +r)\). Ramírez et al. reported an improved reliability of VAD, even though it was mentioned that the assumption of independence does not hold in most cases.

Shin et al. [60] considered the inter-frame correlation by conditioning the PDF based on the previous frame. They derived an approach that applies two different thresholds to the likelihood ratio depending on the previous VAD result. Later, in [61] the approach was refined by considering the two preceding frames.

5 Inter-category evaluation

In the preceding sections, we separately discussed features that reflect different properties of speech. The evaluations of dedicated features revealed that their VAD performance varies even when the same speech property is employed. We measured the performance in terms of area under ROC curve (AUC) values.

Here, we change our perspective from specific features towards the practicability of feature classes for applications. In addition to the average performance given by the AUC, the temporal behavior of features will be relevant for this consideration. We will quantify this temporal behavior using the measures summarized in Section 2.1. The results are interpreted with respect to the temporal context and look-ahead employed by the features.

Temporal context and look-ahead are in general beneficial for detection performance. Speech onsets are more accurately captured due to the look-ahead. The temporal context allows for detection of weak phonemes by employing information from adjacent frames.

However, look-ahead is only applicable for some use cases. In an implementation, the acausal look-ahead is resolved by delaying other parts of the application. This delay between input and output signal is unacceptable when both signals are simultaneously available to a listener. Delays have to be avoided, e.g., in hearing aids, where the amplified output signal superimposes with the direct sound. Additionally, current values, e.g., a spectrum, have to be buffered for later usage. The increased memory consumption is another drawback of look-ahead.

To employ temporal context in VAD features, some information, e.g., multiple frames of the spectrum, have to be stored. Again, the memory consumption increases, which is crucial for applications that deal with limited resources.

In the following, we will analyze the temporal behavior of different features for each category.

The fine-grained measure of the dynamic behavior allows for an intuitive interpretation of the feature’s performance. To determine the detection rate, detection results for frames close to reference speech onsets and offsets are averaged over multiple utterances. Plots of the dynamic behavior are shown in Figs. 3 and 4. The corresponding values of FEC, OVER, MSC, and NDS are summarized in Table 6. For FEC, the average time-lag between onset and the first following detection is calculated. Analogously, the average time-lag between offset and the following stop of detection is considered for OVER. To achieve positive values for FEC and OVER, feature look-aheads are compensated before evaluation. MSC and NDS are expressed by the detection rate in the remaining intervals that are not already covered by FEC and OVER as illustrated in Fig. 1. For all analyses described in this section, we fix the false alarm rate to P fa(η 10% )=0.1 by adjusting the threshold η 10% accordingly.
Fig. 3

Dynamic behavior (a, b) and ROC curve (c) for two different features. The LTSD feature considers some temporal context whereas the SNR feature relies on a single frame. The ROC curve plots the average detection rate during speech intervals P d(η) vs. the average false-alarm rate during noise-only intervals P fa(η) for varying values of the threshold η. The dynamic behavior reflects the time dependency of detections relative to speech onsets and offsets for a fixed threshold η 10% chosen such that P fa(η 10% )=0.1

Fig. 4

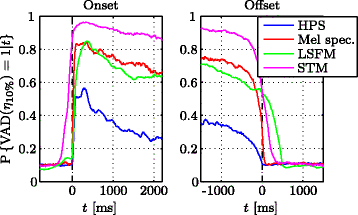

Dynamic behavior for features that represent harmonicity (HPS), formant structure (Mel spectrum), stationarity (LSFM), or modulation (STM) of speech

Table 6

Time-selective evaluation measures applied to different features from all categories



FEC

OVER

100-MSC

NDS



[ms]

[ms]

[%]

[%]

SNR histogram

90.7

61.4

63.9

9.5

LTSD

338.8

169.6

74.4

7.2

HPS

320.4

62.5

41.1

8.8

Mel spectrum

83.2

42.9

76.8

9.6

LSFM

228.0

219.7

72.8

10.1

STM

444.9

524.3

90.7

12.8

First, we compare two different SNR-based features that employ different amounts of temporal context. The SNR feature with histogram-based noise estimation does not include contextual information. In contrast, the LTSD feature is calculated based on 2R+1 frames. A look-ahead of R frames allows the LTSD feature to even consider some future data.

In Fig. 3, the dynamic behavior as well as the ROC curve are depicted for both features. The ROC curve for LTSD reveals an improved performance compared to the SNR feature. The curve for LTSD is located closer to the optimal point that is given by the upper left corner of the plot (P d=1,P fa=0). The dynamic behavior shows a slightly decreasing detection rate over time for both features. Again, the detection rate of LTSD always exceeds the SNR feature.

The temporal context and the look-ahead of LTSD are reflected in the plot. Using LTSD, speech is already detected before the reference indicates the presence of speech. On the other hand, the feature retains high values for a short period of time after reference offsets. The inert reaction of LTSD to speech onsets and offsets is quantified by higher values of FEC and OVER in Table 6. Even though slightly different intervals are considered for 100-MSC and P d(η 10% ) as well as NDS and P fa(η 10% ), the results exhibit the same tendency.

The fine-grained measure of the dynamic behavior apparently provides more information about the feature compared to FEC, OVER, MSC, and NDS. For the following discussions, we therefore focus on the fine-grained measure.

The dynamic behavior of representative features from other categories is depicted in Fig. 4. Obviously, the features for harmonicity (HPS) and formant structure (Mel spectrum) indicate speech only in the reference speech interval. Since both properties are calculated instantaneously without temporal context, speech onsets and offsets are precisely localized. No distinction is made between voiced and unvoiced speech portions for this analysis. The HPS feature is therefore outperformed by all other features considered here. Nevertheless, harmonicity features are typically less complex and provide reasonable results for voiced speech as discussed in Section 4.3.

The formant structure, represented by the Mel spectrum, improves the performance compared to harmonicity. However, features that employ the formant structure are typically multidimensional and require a more complex decision scheme, e.g., based on codebooks or neural networks.

The LSFM feature exemplifies stationarity properties of speech. No look-ahead is introduced, the VAD therefore starts to detect speech after the reference onset. The temporal context of 0.5 s is reflected by the plot of the dynamic behavior.

Modulation properties of speech are considered by the STM feature. The feature outperforms all other features in this analysis. Since a long temporal context and look-ahead are involved, the feature indicates speech for some time before the reference onset and after the offset. Calculation of the feature is quite complex. On the one hand, several frames of the spectrum have to be stored which increases the memory consumption. On the other hand, much CPU is required to convolve the spectrogram with different filters and fuse the individual results to a final VAD.

6 Conclusions

In this article, we have summarized and analyzed several features for voice activity detection. Under the objective to categorize features by speech properties that are employed, we have given an overview of established approaches. Our analyses showed that the performances of features vary, even when the same speech property was considered. We have identified the temporal context as one important aspect for improved performance.

A long temporal context and look-ahead are beneficial for speech detection. However, both can be utilized only in some applications. On the one hand, the memory and CPU consumption typically increase for a longer context. This is critical for applications that have to deal with limited resources. On the other hand, delays have to be inserted for the implementation of a look-ahead. This can only be afforded for applications where an immediate availability of the result is less important.

We have compared the temporal behavior of representative features from all categories. It became obvious that power, harmonicity, and formant structure of speech can be captured without exploiting temporal context information. In contrast, stationarity and modulation properties of speech have to be extracted based on a longer context.

Throughout the article, we have focused on discussing separate features. However, combinations of features from different categories seem to be promising. Independent properties of speech should be employed together, resulting in an improved performance.

7 Endnotes

1 In case of the cepstrum, it is the frequency domain.

2 In fact, reordering of the spectral bins does not influence the features, which implies that they are triggered by any non-flat spectrum.

3 According to some definitions (e.g., [38]), a logarithm is calculated before accumulating.

4 In an earlier approach [46], a short window length was chosen, too short to resolve the 4-Hz modulation. However, it was stated that even short segments can be sufficient to identify speech.

Declarations

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Acoustic Speech Enhancement Research, Nuance Communications Deutschland GmbH
(2)
Digital Signal Processing and System Theory, Christian-Albrechts-Universität zu Kiel

References

  1. M Espi, S Miyabe, T Nishimoto, N Ono, S Sagayama, in Proc. of Spoken language technology workshop (SLT). Analysis on speech characteristics for robust voice activity detection (IEEE,Berkeley, California, USA, 2010).Google Scholar
  2. M Van Segbroeck, A Tsiartas, SS Narayanan, in Proc. of INTERSPEECH. A robust frontend for VAD: exploiting contextual, discriminative and spectral cues of human voice (ISCA,Lyon, France, 2013).Google Scholar
  3. DK Freeman, CB Southcott, I Boyd, in Proc. of IEE Colloquium on Digitized Speech Communication via Mobile Radio. A voice activity detector for the Pan-European digital cellular mobile telephone service (IEEE,London, United Kingdom, 1988).Google Scholar
  4. S Graf, T Herbig, M Buck, G Schmidt, in Proc. of ITG conference on speech communication. Improved performance measures for voice activity detection (IEEE,Erlangen, Germany, 2014).Google Scholar
  5. DB Dean, S Sridharan, RJ Vogt, MW Mason, in Proc. of INTERSPEECH. The QUT-NOISE-TIMIT corpus for the evaluation of voice activity detection algorithms (ISCA,Makuhari, Japan, 2010).Google Scholar
  6. A Varga, HJM Steeneken, Assessment for automatic speech recognition: II, NOISEX-92: a database and an experiment to study the effect of additive noise on speech recognition systems. Speech Commun.12(3), 247–251 (1993).View ArticleGoogle Scholar
  7. JS Garofolo, LF Lamel, WM Fisher, JG Fiscus, DS Pallet, NL Dahlgren, DARPA TIMIT acoustic-phonetic continuous speech corpus CD-ROM. National Institute of Standards and Technology (1993).Google Scholar
  8. J-C Junqua, The influence of acoustics on speech production: a noise-induced stress phenomenon known as the Lombard reflex. Speech Commun.20(1), 13–22 (1996).View ArticleGoogle Scholar
  9. LR Rabiner, MR Sambur, An algorithm for determining the endpoints of isolated utterances. Bell Syst. Tech. J.54(2), 297–315 (1975).View ArticleGoogle Scholar
  10. LR Rabiner, MR Sambur, Application of an LPC distance measure to the voiced-unvoiced-silence detection problem. IEEE Trans. Acoust. Speech Signal Process.25(4), 338–343 (1977).View ArticleGoogle Scholar
  11. R Tucker, Voice activity detection using a periodicity measure. IEEE Proc. Commun. Speech Vis.139(4), 377–380 (1992).View ArticleGoogle Scholar
  12. J Sohn, NS Kim, W Sung, A statistical model-based voice activity detection. IEEE Signal Process. Lett.6(1), 1–3 (1999).View ArticleGoogle Scholar
  13. J-H Chang, NS Kim, SK Mitra, Voice activity detection based on multiple statistical models. IEEE Trans. Signal Process.54(6), 1965–1976 (2006).View ArticleGoogle Scholar
  14. J Ramírez, JC Segura, C Benítez, Á de la Torre, A Rubio, Efficient voice activity detection algorithms using long-term speech information. Speech Commun.42:, 271–287 (2004).View ArticleGoogle Scholar
  15. N Mesgarani, M Slaney, SA Shamma, Discrimination of speech from nonspeech based on multiscale spectro-temporal modulations. IEEE Trans. Audio, Speech Lang. Process.14(3), 920–930 (2006).View ArticleGoogle Scholar
  16. J Anemüller, D Schmidt, J-H Bach, in Proc. of INTERSPEECH. Detection of speech embedded in real acoustic background based on amplitude modulation spectrogram features (ISCA,Brisbane, Australia, 2008).Google Scholar
  17. M Marzinzik, B Kollmeier, Speech pause detection for noise spectrum estimation by tracking power envelope dynamics. IEEE Trans. Speech Audio Process.10(2), 109–118 (2002).View ArticleGoogle Scholar
  18. LF Lamel, LR Rabiner, AE Rosenberg, JG Wilpon, An improved endpoint detector for isolated word recognition. IEEE Trans. Acoust. Speech Signal Process.29(4), 777–785 (1981).View ArticleGoogle Scholar
  19. S Van Gerven, F Xie, in Proc. of EUROSPEECH. A comparative study of speech detection methods (ISCA,Rhodos, Greece, 1997).Google Scholar
  20. J Pencak, D Nelson, in Proc. of ICASSP. The NP speech activity detection algorithm (IEEE,Detroit, Michigan, USA, 1995).Google Scholar
  21. J Ramírez, JC Segura, C Benítez, A de La Torre, A Rubio, in Proc. of ICASSP. A new voice activity detector using subband order-statistics filters for robust speech recognition (IEEE,Montreal, Canada, 2004).Google Scholar
  22. ITU, ITU-T Recommendation G.729 Annex B A silence compression scheme for G.729 optimized for terminals conforming to Recommendation V.70 (1996).Google Scholar
  23. ETSI, ETSI EN 301 708 Voice activity detector (VAD) for adaptive multi-rate (AMR) speech traffic channels (1998).Google Scholar
  24. ETSI, ETSI ES 202 050 Advanced front-end feature extraction algorithm (2007).Google Scholar
  25. DJ Nelson, J Pencak, in Proc. of SPIE’s 1995 International Symposium on Optical Science, Engineering, and Instrumentation. Pitch-based methods for speech detection and automatic frequency recovery (International Society for Optics and Photonics,San-Diego, California, USA, 1995).Google Scholar
  26. G Hu, D Wang, Segregation of unvoiced speech from nonspeech interference. J. Acoust. Soc. Am.124(2), 1306–1319 (2008).View ArticleGoogle Scholar
  27. T Kristjansson, S Deligne, P Olsen, in Proc. of INTERSPEECH. Voicing features for robust speech detection (ISCA,Lisbon, Portugal, 2005).Google Scholar
  28. C Shahnaz, W-P Zhu, MO Ahmad, in Proc. of ISCAS. A multifeature voiced/unvoiced decision algorithm for noisy speech (IEEE,Kos, Greece, 2006).Google Scholar
  29. H Ghaemmaghami, BJ Baker, RJ Vogt, S Sridharan, in Proc. of INTERSPEECH. Noise robust voice activity detection using features extracted from the time-domain autocorrelation function (ISCA,Makuhari, Japan, 2010).Google Scholar
  30. SO Sadjadi, JHL Hansen, Unsupervised speech activity detection using voicing measures and perceptual spectral flux. IEEE Signal Process. Lett.20(3), 197–200 (2013).View ArticleGoogle Scholar
  31. M Orlandi, A Santarelli, D Falavigna, in Proc. of INTERSPEECH. Maximum likelihood endpoint detection with time-domain features (ISCA,Geneva, Switzerland, 2003).Google Scholar
  32. F Kurth, A Cornaggia-Urrigshardt, in Proc. of ITG Conference on Speech Communication. Detection of audio events with repetitive structure using generalized autocorrelations (IEEE,Erlangen, Germany, 2014).Google Scholar
  33. T Fukuda, O Ichikawa, M Nishimura, in Proc. of ICASSP. Improved voice activity detection using static harmonic features (IEEE,Dallas, Texas, USA, 2010).Google Scholar
  34. N Madhu, Note on measures for spectral flatness. Electron. Lett. 45(23), 1195–1196 (2009).View ArticleGoogle Scholar
  35. K Ishizuka, T Nakatani, in Proc. of SAPA. Study of noise robust voice activity detection based on periodic component to aperiodic component ratio (ISCA,Pittsburgh, Pennsylvania, USA, 2006).Google Scholar
  36. T Gerkmann, RC Hendriks, Unbiased MMSE-based noise power estimation with low complexity and low tracking delay. IEEE Trans. Audio, Speech, Lang. Process.20(4), 1383–1393 (2012).View ArticleGoogle Scholar
  37. JA Haigh, JS Mason, in Proc. of EUROSPEECH. A voice activity detector based on cepstral analysis (ISCA,Berlin, Germany, 1993).Google Scholar
  38. JD Hoyt, H Wechsler, in Proc. of ICASSP. Detection of human speech in structured noise (IEEE,Adelaide, Australia, 1994).Google Scholar
  39. T Kinnunen, P Rajan, in Proc. of ICASSP. A practical, self-adaptive voice activity detector for speaker verification with noisy telephone and microphone data (IEEE,Vancouver, Canada, 2013), pp. 7229–7233.Google Scholar
  40. F Heese, M Niermann, P Vary, in Proc. of ICASSP. Speech-codebook based soft voice activity detection (IEEE,Brisbane, Australia, 2015).Google Scholar
  41. PK Ghosh, A Tsiartas, S Narayanan, Robust voice activity detection using long-term signal variability. IEEE Trans. Audio, Speech, Lang. Process.19(3), 600–613 (2011).View ArticleGoogle Scholar
  42. A Tsiartas, T Chaspari, N Katsamanis, P Ghosh, M Li, M Van Segbroeck, A Potamianos, SS Narayanan, in Proc. of INTERSPEECH. Multi-band long-term signal variability features for robust voice activity detection (ISCA,Lyon, France, 2013).Google Scholar
  43. Y Ma, A Nishihara, Efficient voice activity detection algorithm using long-term spectral flatness measure. EURASIP J. Audio, Speech, Music Process.2013(1), 1–18 (2013).MATHView ArticleGoogle Scholar
  44. E Scheirer, M Slaney, in Proc. of ICASSP. Construction and evaluation of a robust multifeature speech/music discriminator (IEEE,Munich, Germany, 1997).Google Scholar
  45. C-C Hsu, T-E Lin, J-H Chen, T-S Chi, in Proc. of ICASSP. Voice activity detection based on frequency modulation of harmonics (IEEE,Vancouver, Canada, 2013).Google Scholar
  46. J Tchorz, B Kollmeier, in Proc. of EUROSPEECH. Speech detection and SNR prediction basing on amplitude modulation pattern recognition (ISCA,Budapest, Hungary, 1999).Google Scholar
  47. J-H Bach, B Kollmeier, J Anemüller, in Proc. of ICASSP. Modulation-based detection of speech in real background noise: generalization to novel background classes (IEEE,Dallas, Texas, USA, 2010).Google Scholar
  48. T Ezzat, J Bouvrie, T Poggio, in Proc. of INTERSPEECH. Spectro-temporal analysis of speech using 2-D Gabor filters (ISCA,Antwerp, Belgium, 2007).Google Scholar
  49. MR Schädler, BT Meyer, B Kollmeier, Spectro-temporal modulation subspace-spanning filter bank features for robust automatic speech recognition. J. Acoust. Soc. Am.131:, 4134 (2012).View ArticleGoogle Scholar
  50. GS Ying, CD Mitchell, LH Jamieson, in Proc. of ICASSP. Endpoint detection of isolated utterances based on a modified Teager energy measurement (IEEE,Minneapolis, Minnesota, USA, 1993).Google Scholar
  51. G Evangelopoulos, P Maragos, Multiband modulation energy tracking for noisy speech detection. IEEE Trans. Audio, Speech Lang. Process.14(6), 2024–2038 (2006).View ArticleGoogle Scholar
  52. E Nemer, R Goubran, S Mahmoud, Robust voice activity detection using higher-order statistics in the LPC residual domain. IEEE Trans. Speech Audio Process.9(3), 217–231 (2001).View ArticleGoogle Scholar
  53. RM Hegde, HA Murthy, VR Gadde, in Proc. of INTERSPEECH. The modified group delay feature: a new spectral representation of speech (ISCA,Jeju Island, Korea, 2004).Google Scholar
  54. N Cho, E-K Kim, Enhanced voice activity detection using acoustic event detection and classification. IEEE Trans. Consum. Electron.57(1), 196–202 (2011).View ArticleGoogle Scholar
  55. X-L Zhang, D Wang, in Proc. of INTERSPEECH. Boosted deep neural networks and multi-resolution Cochleagram features for voice activity detection (ISCA,Singapore, 2014).Google Scholar
  56. Y Ephraim, D Malah, Speech enhancement using a minimum-mean square error short-time spectral amplitude estimator. IEEE Trans. Acoust. Speech Signal Process.32(6), 1109–1121 (1984).View ArticleGoogle Scholar
  57. J-H Chang, JW Shin, NS Kim, in Proc. of INTERSPEECH. Likelihood ratio test with complex Laplacian model for voice activity detection (ISCA,Geneva, Switzerland, 2003).Google Scholar
  58. JW Shin, J-H Chang, HS Yun, NS Kim, in Proc. of ICASSP. Voice activity detection based on generalized gamma distribution (IEEE,Philadelphia, Pennsylvania, USA, 2005).Google Scholar
  59. J Ramírez, JC Segura, C Benítez, L García, A Rubio, Statistical voice activity detection using a multiple observation likelihood ratio test. IEEE Signal Process. Lett.12(10), 689–692 (2005).View ArticleGoogle Scholar
  60. J-W Shin, HJ Kwon, SH Jin, NS Kim, Voice activity detection based on conditional MAP criterion. IEEE Signal Process. Lett.15:, 257–260 (2008).View ArticleGoogle Scholar
  61. S-K Kim, J-H Choi, S-I Kang, J-H Song, J-H Chang, in Proc. of INTERSPEECH. Toward detecting voice activity employing soft decision in second-order conditional MAP (ISCA,Makuhari, Japan, 2010).Google Scholar

Copyright

© Graf et al. 2015
