Robust adaptive algorithm for active control of impulsive noise
EURASIP Journal on Advances in Signal Processing volume 2016, Article number: 44 (2016)
Abstract
Active noise control (ANC) systems employing adaptive filters suffer from stability issues in the presence of impulsive noise. To overcome this limitation, new methods must be investigated. In this paper, we propose the filteredx statespace recursive least square (FxSSRLS), an SSRLSbased practical and adaptive algorithm for ANC. Computer simulations are executed to verify the enhanced performance of the FxSSRLS algorithm. Symmetric αstable (SαS) distributions are used to model impulsive noise. The results show that the proposed FxSSRLS algorithm is more robust in eliminating highpeaked impulses than the recently reported algorithms for ANC applications. Moreover, the suggested solution exhibits better stability and faster convergence, without jeopardizing the performance of the proposed solution in terms of residual noise suppression in the presence of impulses.
Introduction
Active noise control (ANC) has been extensively used by researchers over the last two decades, due to its superior performance in canceling lowfrequency noise as compared to passive methods such as enclosures, barriers, and silencers [1]. Impulsive noise is nonGaussian in nature, which means that it involves the frequent occurrence of amplitudes that are larger than those found in Gaussian noise. Hence, the information contained within the signal is altered significantly. Power line communication interference, underwater acoustic signals, lowfrequency atmospheric noise, noise generated by punching machines, infusion pump sounds in hospitals, and all types of manmade noise can be classified as impulsive noise [2–4].

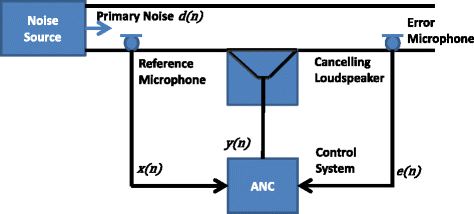

Figure 1 shows the basic block diagram of a singlechannel feedforward ANC system using an adaptive algorithm. The system consists of two microphones and a control system. The two microphones are used to obtain reference noise x(n) and residual noise error signal e(n) while the control system is used to generate an antinoise signal d(n). The output y(n) of the adaptive control system drives the cancelation loudspeaker.
The biggest challenges incurred in the ANC of impulsive noise are convergence and stability of the noise reduction algorithms. Due to its simplicity and low computational complexity, the most widely used algorithm for ANC is filteredx least mean square (FxLMS), which is designed to minimize the variance of error signal [5]. However, since the secondorder moment does not exist in case of impulsive noise [6], it cannot be used for impulsive noise reduction. Sun et al. [7] proposed a modification in the FxLMS algorithm which ensures stability of the system. They applied fixed thresholds on the reference signal in order to eliminate the effect of large amplitudes of impulses. Instead of ignoring the samples as in [7], Akhtar and Mitsuhashi [8] improved the Sun algorithm by replacing impulses with new threshold values of error and reference signals to achieve faster convergence along with enhanced stability. The algorithms [5, 7, 8] are bound to update their threshold parameters during runtime operation which increases computational complexity. To reduce the complexity, another normalized stepsize FxLMS (NSSFxLMS) algorithm is reported in [9], which does not need modified reference or error signal. And in consequence to that, no selection of the threshold parameters are required. Wu et al. in [10] suggested a new technique (FxlogLMS) based on fair Mestimator that minimizes the squared logarithmic transformations of error signal to achieve robustness. However, the algorithm has the drawback of reaching a dead zone in the process of updating the filter coefficients. Bergamasco et al. [11] provided a solution based on online estimation of the secondary path for ANC applications. A modified Filtered x Least Mean Mestimator (FxLMM) algorithm [12], established on a twopart skewed triangular Mestimate, is presented to achieve stability in FxLMM when exposed to highpeaked impulses. Data reusingbased normalized stepsize FxLMS (DRNSSFxLMS) algorithm, recommended in [13] for active control of impulsive noise sources, improved the performance but at the expense of increased computational complexity. Similarly, the Filtered x Recursive Least Square (FxRLS) algorithm [14] is used for impulsive noise control, which gives faster convergence but at the cost of increased computational complexity. The GaussSiedel algorithm [15] and dichotomous coordinate descent (DCD) algorithm [16] are used for recursive least square adaptive filtering that gives reduced computational complexity. However, the main problem with recursive least square (RLS) family algorithms is the lack of robustness. To enhance the robustness of the RLS algorithm, a modification, i.e., statespace RLS, is presented in [17, 18]. Statespace recursive least square (SSRLS) exhibits excellent tracking performance due to its modeldependent statespace formulation but has not been tested in the ANC domain. Due to the presence of the secondary path s(z) in Fig. 2, SSRLS cannot be used in its existing form. Therefore, in this paper, we have modified the SSRLS algorithm to track the filtered reference noise, making it suitable for ANC applications. The SSRLS algorithm is used in combination with filtered reference input and hence named as the filteredx SSRLS algorithm.
The rest of the paper is organized as follows: Section 2 presents the proposed algorithm along with its associated schematics. Following this, the simulation results are shown in Section 3. Finally, the conclusions are drawn in Section 4.
Proposed algorithm
Consider the unforced discrete time system
where r is the process states and y is the output, while A and C represent the system and the observation matrices, respectively. We assume that the pair (A, C) is Lstep observable and A is invertible. The statespace formulation of SSRLS provides the designer with the freedom to choose an appropriate model for the underlying environment. However, the reasons that SSRLS cannot be used in its existing form for active noise control are as under:

1)
SSRLS is designed for unforced system, i.e., system without input.

2)
ANC applications have a secondary path s(z) following the adaptive filter w(z) as shown in Fig. 2.

3)
Impulsive noise statespace model is unknown.
According to the required modifications in SSRLS for the ANC domain, the block diagram of the proposed algorithm is shown in Fig. 3.
In this figure, the reference noise signal vector is x(n) = [x(n), x(n − 1) … …. x(n − L + 1)] ′, where L is the length of the reference noise. The desired signal d(n) is calculated as
The filtered reference noise x′(n) = [x′(n), x′(n − 1) ….. x′(n − L + 1)] ′ and the error signal E(n) measured by the error microphone is
The s(n) and \( \hat{s}(n) \) are the impulse responses of the secondary path and its estimate, respectively.
Due to the presence of the secondary path following the adaptive filter, phase mismatch occurs between the desired signal and output of the filter as shown in Fig. 3, which consequently degrades the performance of the ANC system. Thus, for incorporating the effect of the secondary path, an identical filter is placed in the reference signal path leading to input of the filter. The modified output of the adaptive filter followed by the secondary path is given by
The filtered reference noise signal x′(n) is passed to the SSRLS adaptive filter block which computes \( \overline{y}(n) \). The description of the parameters used for our modified filteredx statespace recursive least square (FxSSRLS) algorithm are listed in Table 1.
Since the system given in (1) is for forced systems with x ′ (n) being the input, the three special models of SSRLS in [17, 18] are modified in Table 2.
After modification of the SSRLS models, the next objective is to select the appropriate model for impulsive noise to get the best match of the underlying environment with the presumed model of SSRLS for achieving enhanced performance of SSRLS. The exact model for impulsive noise cannot be determined because of its random nature. As the higher order models can better approximate the abrupt changes in impulsive noise therefore, we have used an acceleration model in our application. The choice has been validated through extensive simulations. The proposed algorithm is summarized below.
Performance analysis and computational complexity
For adaptive filters, when a new algorithm is developed, it is important to carry out its performance analysis. Although the FxLMS algorithm has been widely used for the implementation of ANC applications, its convergence analysis is still an active area of research [19–21]. The inclusion of the secondary path in FxLMS makes its convergence analysis complex as compared to the standard LMS algorithm. Various attempts on derivation of theoretical convergence analysis for the FxLMS algorithm have been made with different simplified assumptions on inputs being single or multitonal, stationary or purely white, and secondary path being pure delay or moving average model, etc. [22, 23].
The analysis of the SSRLS algorithm for the standard adaptive filter has been presented in [17, 18], which may be extended to perform theoretical analysis of the Fx version of the SSRLS algorithm for the ANC systems. This paper develops a modified SSRLS (FxSSRLS) algorithm for ANC of impulsive sources being modeled as symmetric αstable (SαS) distributions. For stable distributions, the moments only exist for the order lesser than the characteristic exponent [6], i.e., for impulsive noise, secondorder moments do not exist. The lower order moments are more difficult to compute than the secondorder moments [24], which makes the theoretical analysis difficult, if not impossible. The nonGaussian signal processing is in general much more complicated in terms of finding statistics than the Gaussian signal processing. This may be the reason that recent work on ANC of impulsive sources (being modeled as stable process) does not include the theoretical analysis, and in fact, the simulations have been used as a major tool to demonstrate the effectiveness of the proposal (see, for example, [7, 8, 11]). The interested reader may also look into the recent works on ANC [25–31]. Though simulations do not prove, they do demonstrate the effectiveness. In this paper, we have also used computer simulations as the evaluation tool and it is observed that the proposed algorithm outperforms the existing algorithms.
Moreover, computational complexity of an algorithm is usually of significant importance particularly in realtime applications. The complexity of individual equations of the proposed FxSSRLS algorithm is given in Table 3, followed by the complexity analysis of other investigated algorithms in Tables 4, 5, 6, and 7.
Here, L represents the total number of states in the FxSSRLS algorithm while in other investigated algorithms, it represents the number of filter coefficients [17, 18]. M represents the secondary path, and N represents the data reuse order for the DRNSSFxLMS algorithm. The computational complexities along with the memory requirements of the investigated algorithms are summarized in Table 8. The memory of the investigated algorithms is calculated using the method given in [32].
Figure 4 shows the plots for the computational complexities of the investigated algorithms. The proposed FxSSRLS algorithm has high computational complexity as compared to the FxLMS and FxRLS algorithm family, which makes it costly for few applications. Nevertheless, in the practical applications where stability and fast convergence is a matter of concern, the implementation of FxSSRLS in the ANC system can be easily handled by the latest DSPs.
Comparison with existing techniques and simulation results
The ANC system for impulsive noise is implemented using the MATLAB platform. The performance of the proposed algorithm is compared with that of the already reported adaptive algorithms in literature [5, 7–9, 13, 14]. The parameters used in simulating the ANC system are tabularized below.
In our simulation setup, the SαS distributions are used to model the statistical parameters of impulsive noise [6]. The analytical form for probability density functions (PDFs) of stable distributions does not exist, so they are normally expressed by their characteristic equations which is actually fourier transform of its PDF.
Some PDFs for SαS distributions are shown in Fig. 5. The SαS distributions have a characteristic exponent parameter α (0 < α < 2), which controls the spread of the PDF, i.e., a smaller value of α indicates that noise will be more impulsive with a heavier tail. For the stable distributions, α ranges between 0 and 2. It is characterized as normal distribution for α = 2, while the distribution is Cauchy for α = 1. In Fig. 6, impulsive noise generated by the standard SαS process with α = 1.65 is shown while the parameters used for simulating the impulsive noise are mentioned in Table 9.

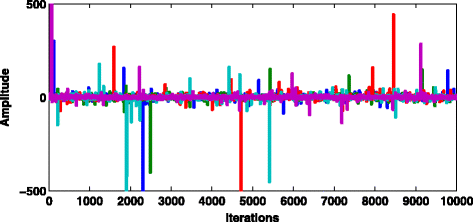

The primary noise d(n) for α = 1.65 picked by the reference microphone is depicted in Fig. 7.
For the simplicity of our simulations, we have made an assumption that the estimated secondary path model \( \hat{s}(z) \) is the same as s(z) [13, 25, 30, 31]. The numeric values of the coefficients of the primary and secondary acoustic paths are taken from the data set given in [1]. The frequency response comprising of magnitude and phase of both path filters are depicted in Fig. 8.
The performance metric used in this research for comparison of the studied algorithms is mean noise reduction. It is calculated as
where A _{ e }(n) and A _{ d }(n) are the estimates of the absolute value of the residual error and disturbance signal, respectively.
In this section, we have validated the performance of our proposed algorithm for ANC of impulsive noise. The impulses for the research are generated by the symmetric alphastable model by considering α = 1.85, α = 1.65, and α = 1.45, respectively, which corresponds to a small, mild, and heavy impulsiveness. Extensive simulations are carried out to find the optimum values of controlling the parameters of the discussed algorithms. The detailed simulation results for the stepsize parameter of the NSSFxLMS and DRNSSFxLMS algorithms for α = 1.65 are illustrated in Fig. 9. It can be observed from Fig. 9 a, b that the optimum stepsize value for both algorithms is 5e−2.

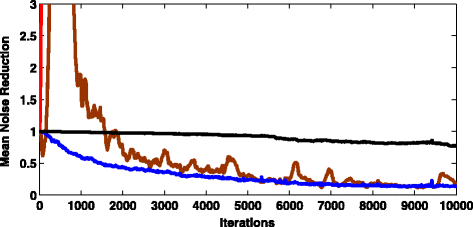

Similarly, the effect of the regularization parameter delta (δ) of the FxRLS algorithm is shown in Fig. 10 for α = 1.65. The parameter δ depends on the signaltonoise ratio (SNR) [5], i.e., the greater the value of the SNR, the smaller the value of delta is selected for better performance of algorithms and vice versa. The optimum value selected for further simulation is 100,000 for α = 1.65.

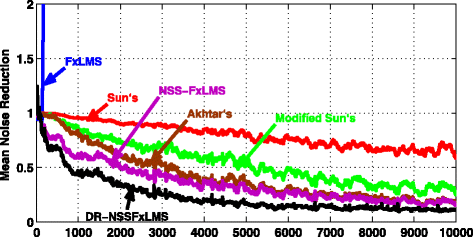

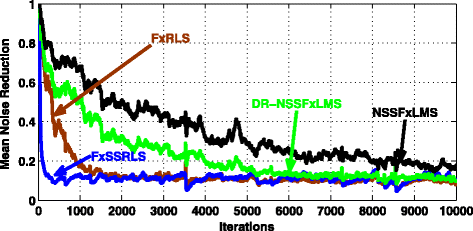

Figure 11 depicts the convergence curves of the most widely used adaptive algorithms in the ANC domain for α = 1.65. The optimum step sizes for the FxLMS, Sun, modified Sun, and Akhtar algorithms used in this simulation are 1e−3, 5e−6, 5e−5, and 5e−5, respectively. It can be seen that among the investigated algorithms of the LMS family, the NSSFxLMS and DRNSSFxLMS algorithms converge quickly after 1000 iterations and give good noise reduction by achieving the lowest mean noise reduction (MNR) as compared to the other investigated algorithms. Similarly, the DRNSSFxLMS algorithm is comparatively less affected by the occurrence of impulsive noise at different iterations and thus exhibits better stability. Therefore, we have selected the NSSFxLMS and DRNSSFxLMS algorithms for further comparison with our proposed FxSSRLS algorithm which can be visualized in Fig. 12.
It can be noticed from Fig. 12 that the NSSFxLMS and DRNSSFxLMS algorithms give slow convergence as compared to the FxRLS and FxSSRLS algorithms that achieve a steady state value at about 2000 and 500 iterations, respectively. The convergence curves of the FxSSRLS and FxRLS algorithms almost overlap after 3500 iterations. However, when an impulse is encountered at about 800 iterations, the FxRLS algorithm exhibits a sudden increase in MNR while the FxSSRLS algorithm is robust enough to remain unaffected.

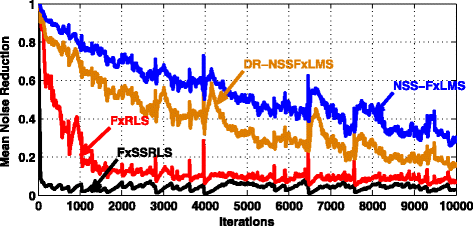

Similarly, other simulation cases with SαS impulsive noises of α = 1.45 and 1.85 were conducted to validate the effectiveness of the proposed FxSSRLS algorithm. It is noticed that the proposed FxSSRLS algorithm demonstrates its improved performance for other selected values of impulsive noise over the investigated algorithms. As shown in Figs. 13 and 14, the steady state performance of the FxRLS and proposed FxSSRLS algorithms is better than that of the NSSFxLMS and DRNSSFxLMS algorithms. Also, the proposed FxSSRLS can yield improved convergence rate and robustness even in the presence of large impulses than that of the FxRLS, NSSFxLMS, and DRNSSFxLMS algorithms, thus making our proposed solution an excellent choice for mitigating the influence of impulses in ANC applications.
Conclusions
In this paper, we have analyzed nonGaussian impulsive noise in the ANC domain. The adaptive algorithms employed in ANC applications become unstable and lack robustness in the presence of impulsive noise. To overcome this limitation in ANC applications, a new algorithm FxSSRLS has been developed and presented in this paper. Due to the recursive parameters of the proposed adaptive algorithm, the reduction in impulsive noise has been achieved, which has been further enhanced by the statespace formulation of the SSRLS models. To validate this improved performance of the newly suggested solution, extensive numerical simulations have been carried out. The results show that with the use of the presented algorithm for ANC, the large amplitude impulses have been significantly reduced. Moreover, the suggested algorithm for ANC applications outperforms the existing algorithms in terms of mean noise reduction, convergence, and stability. However, this improved performance has been achieved at the cost of slight increase in computational complexity. In applications where stability and fast convergence is a matter of concern, the little price paid in terms of computational complexity can be ignored.
