A novel high-frequency encoding algorithm for image compression

Article metrics

Abstract

In this paper, a new method for image compression is proposed whose quality is demonstrated through accurate 3D reconstruction from 2D images. The method is based on the discrete cosine transform (DCT) together with a high-frequency minimization encoding algorithm at compression stage and a new concurrent binary search algorithm at decompression stage. The proposed compression method consists of five main steps: (1) divide the image into blocks and apply DCT to each block; (2) apply a high-frequency minimization method to the AC-coefficients reducing each block by 2/3 resulting in a minimized array; (3) build a look up table of probability data to enable the recovery of the original high frequencies at decompression stage; (4) apply a delta or differential operator to the list of DC-components; and (5) apply arithmetic encoding to the outputs of steps (2) and (4). At decompression stage, the look up table and the concurrent binary search algorithm are used to reconstruct all high-frequency AC-coefficients while the DC-components are decoded by reversing the arithmetic coding. Finally, the inverse DCT recovers the original image. We tested the technique by compressing and decompressing 2D images including images with structured light patterns for 3D reconstruction. The technique is compared with JPEG and JPEG2000 through 2D and 3D RMSE. Results demonstrate that the proposed compression method is perceptually superior to JPEG with equivalent quality to JPEG2000. Concerning 3D surface reconstruction from images, it is demonstrated that the proposed method is superior to both JPEG and JPEG2000.

Introduction

Multimedia requirements demand efficient compression techniques for large data files such as image, video, and 3D data. While the relative price of storage has steadily decreased in the past decades, the amount of generated image and video data has increased exponentially. This is more evident on large data repositories such as YouTube and cloud storage. The increased growth in network traffic and storage requirements means that data compression algorithms can have a large impact on data centres concerning bandwidth, physical storage space, and energy usage. This paper proposes an efficient data compression algorithm based on the discrete cosine transform (DCT) together with several novel steps including the minimization of high-frequency components, a differential process, and a lookup table based search by concurrent binary algorithms at decompression stage.

The DCT has been extensively used [1, 2] in image compression. The image is divided into segments and each segment is then subjected to the transform, creating a series of frequency components that correspond with detail levels of the image. Several forms of encoding are applied to store only the relevant coefficients. The DCT is the basis of the popular JPEG file format, and most video compression methods and multi-media applications [3, 4].

JPEG2000 is based on the discrete wavelet transform (DWT) which is one of the mathematical tools for hierarchically decomposing functions. The wavelet transform is the preferred technique for compressing images at higher compression ratios with higher PSNR values [5, 6]. Its superiority in achieving high compression ratios, error resilience and wide adoption has led to the JPEG2000 ISO standard. The JPEG2000 codec is more efficient than its predecessor JPEG and overcomes many of its drawbacks [7]. It also offers higher flexibility compared to other codes such as region of interest, high dynamic range of intensity values, multi component, lossy and lossless compression, efficient computation, and compression rate control. The robustness of JPEG2000 stems from the DWT which supports multi-resolution representations in both spatial and frequency domains. In addition, the DWT supports progressive image transmission and region of interest coding [8, 9].

To demonstrate the effectiveness of the proposed approach, we focus on compressing 2D image data appropriate for 3D reconstruction. This includes 3D reconstruction from structured light images, and 3D reconstruction from multiple viewpoint images. Previously, we have demonstrated that while geometry and connectivity of a 3D mesh can be tackled by several techniques such as high degree polynomial interpolation [10] or partial differential equations [11, 12], the issue of efficient compression of 2D images both for 3D reconstruction and texture mapping has not yet been addressed in a satisfactory manner. Moreover, in most applications that share common data, it is necessary to transmit 3D models over the Internet. For example, to share CAD/CAM assets, e-commerce applications, update content for entertainment applications, or to support collaborative design, analysis, and display of engineering, medical, and scientific datasets. Bandwidth imposes hard limits on the amount of data transmission and, together with storage costs, calls for more efficient 3D data compression for exchange over the Internet and other networked environments. Using structured light techniques for 3D reconstruction, surface patches can be compressed as a 2D image together with 3D calibration parameters, transmitted over a network and remotely reconstructed (geometry, connectivity and texture map) at the receiving end with the same resolution as the original data [13, 14].

Related to the techniques proposed in this paper, our previous work on data compression is summarised as follows. Focused on compressing structured light images for 3D reconstruction, Siddeq and Rodrigues [13] proposed a method where a single level DWT is followed by a DCT on the LL sub-band yielding the DC components and the AC-matrix. A second DWT is applied to the DC components whose second level LL2 sub-band is transformed again by DCT. A matrix minimization algorithm is applied to the AC-matrix and other sub-bands. Compression ratios of up to 98.8% were achieved. In Siddeq and Rodrigues [13], similar transformations are applied to variant arrangements of data blocks followed by arithmetic coding. The novel aspect of that paper is at decompression stage, where a parallel sequential search algorithm is proposed and demonstrated. Compression ratios of up to 98.5% were achieved. In Siddeq and Rodrigues [15], a two-level DWT was applied followed by a DCT to generate a DC-component array and an MA-Matrix (Multi-Array Matrix). The MA-matrix is then partitioned into blocks and a minimization algorithm codes each block followed by arithmetic coding. At decompression stage a new proposed algorithm, Sequential-search algorithm is used to estimate the MA-matrix. Compression ratios up to 98.1% were achieved. In Siddeq and Rodrigues [16], compression consists of two level DWT followed by two level DCT. A minimize-matrix-size (MMS) algorithm is applied to the AC-matrix and to the other high frequencies followed by arithmetic coding to the output of previous steps. A novel fast-match-search decompression algorithm is used to reconstruct all high-frequency matrices by computing all compressed data probabilities through a binary search algorithm to estimate the data from a look up table. A comparative analysis of various combinations of DWT and DCT block sizes is performed, with compression ratios up to 98%.

In Siddeq and Rodrigues [17], the issue of compressing 3D data geometry, connectivity and texture is addressed through a novel geometry minimization algorithm (GM-algorithm) applied to mesh vertices and triangulated faces with arithmetic coding. First, each vertex (x, y, z) coordinates are encoded to a single value by the GM-algorithm. Second, triangle faces are encoded by computing the differences between two adjacent vertex locations, which are compressed by arithmetic coding together with texture coordinates. The method was demonstrated on large data sets achieving compression ratios between 87—99% without reduction neither in the number of reconstructed vertices nor triangulated faces. Finally, in Siddeq and Rodrigues [18], work is focused on 3D data only under various formats. The GM-algorithm is used to compress vertices and triangulated faces, where faces are encoded by computing the differences between two adjacent vertex locations, and then again coded by the GM-Algorithm and arithmetic coding. High compression ratios over 90% were achieved. A comparative analysis of compression ratios is provided with several commonly used 3D file formats showing the advantages and effectiveness of the approach.

In the research above we focused on a combination of DWT, DCT, matrix minimization, geometric minimization and arithmetic coding. In this paper, we describe a new method for lossy image compression based on DCT alone with quantisation process leading to the creation of two matrices of low and high frequencies (DC-components and AC-coefficients). A high-level view of the proposed method is depicted in Fig. 1. The new aspects of this research are related to the compression of the matrix of AC-coefficients which involves eliminating zeros, followed by a minimization of high-frequency data resulting in a minimized-array. At decompression stage, the recovery of the data from the minimized-array requires a new binary search algorithm which is implemented in a concurrent fashion. These are described in the following sections.

Fig. 1
figure1

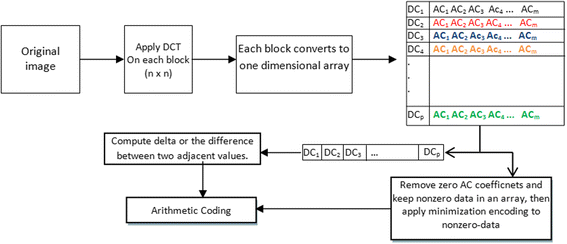

High-level view of the proposed image compression algorithm

This paper is organized as follows. Section 2 introduces the DCT and how it is applied over an image by the proposed method. Section 3 describes the high-frequency minimization algorithm and Section 4 describes how such compressed data are recovered through a concurrent binary search algorithm. Section 5 describes experimental results for both 2D image compression followed by 3D reconstruction from 2D structured light images and 3D reconstruction from multiple viewpoint images. Finally, Section 6 summarizes and concludes the paper.

The discrete cosine transform (DCT)

In the proposed method, the DCT is applied to an image by first dividing the image into non-overlapping n × n blocks (n ≥ 8) and then transformed by DCT to produce de-correlated coefficients. Each block in the frequency domain consists of the following: DC-component at the first location of each block which is a measure of the average value of the samples in the block, and other coefficients called AC coefficients as described in Eq. (1) [2, 6, 19]:

$$ C\left( i, v\right)= a(u) a(v){\displaystyle \sum_{x=0}^{n-1}}{\displaystyle \sum_{y=0}^{n-1}} f\left( x, y\right) cos\left[\frac{\left(2 x+1\right) u\pi}{2 n}\right]\left[\frac{\left(2 y+1\right) v\pi}{2 n}\right] $$
(1)

where \( a(u)=\sqrt{\frac{1}{n}}, \kern0.37em f o r\kern0.37em u=0,\ a(u)=\sqrt{\frac{2}{n}},\ f o r\ u\ne 0. \)

The quantization of each block \( n\times n \) can be represented as follows:

$$ {Q}_{\left( i, j\right)}= L\ast \left( i+ j\right) $$
(2)

Where \( i, j=1,2,\dots, n \) and the quantization factor is an integer \( L>1 \). Each \( n\times n \) block is quantized by Eq. (2) using dot-division-matrix which truncates the results. This process removes insignificant coefficients and increases the number of zeroes in each block. The parameter \( L \) is used to increase or decrease the value of \( Q \). Thus, image details are reduced or lost as the value of \( L \) increases. The range of \( L \) is not limited a priori because it depends on the DCT coefficients and image resolution. The next step is to split the DC-components from each quantized block \( n\times n \) by saving those into a new array called DC-Array. Then the differences between two adjacent values in DC-Array are computed. This differential process generates coefficients that are correlated (generally the values are similar as the DC values of adjacent blocks tend to be similar) so their differences are small and more data are repeated. This process facilitates compression by arithmetic coding and is defined as follows.

$$ {D}_i={D}_i-{D}_{\left( i+1\right)} $$
(3)

where i = 1, 2, …, p − 1 and \( p \) is the size of DC-array. Meanwhile, the remaining AC coefficients (e.g., the 63 AC coefficients for an \( 8\times 8 \) block) are converted into a one-dimensional array by scanning column-by-column and saved into an AC-matrix. This matrix is subject to a high-frequency minimization algorithm described next.

High-frequency minimization algorithm

The AC-matrix is transformed by a matrix minimization method involving eliminating zeros and triplet encoding whose output is then subjected to arithmetic coding. Normally, the AC-matrix contains a large number of zeroes with a few nonzero data. Here, we propose a technique to eliminate blocks of zeroes and store blocks of nonzero data into a one-dimensional array. The algorithm starts by partitioning the AC-matrix into non-overlapping blocks n × n (n ≥ 8). Each block is scanned for nonzero data which, if existing, are stored into a reduced array \( \boldsymbol{R} \) and the location of that block is recorded. Otherwise, the block contains only zeros and is ignored. The algorithm is illustrated below.

figurea

Once only nonzero data are saved into the reduced array R, a high-frequency minimization encoding is applied further reducing its size by 2/3. This process hinges on defining three key values and multiplying these keys by three adjacent entries in R which are then summed over. The key values K 1 , K 2 , and K 3 are generated by a key generator algorithm as follows.

$$ M=1.5 \max \left(\boldsymbol{R}\right) $$
(4)
$$ {K}_1=\mathrm{rand}\left(0,1\right) $$
(5)
$$ {K}_2={K}_1+ M + F $$
(6)
$$ {K}_3= F\ M\left({K}_1+{K}_2\right) $$
(7)

where \( F\ge 1 \) is an integer scaling factor. Assuming that \( N \) is the length of \( \boldsymbol{R} \), \( i=1,2,\dots, N-3 \) is the index of data in \( \boldsymbol{R} \), and \( j \) is the index of encoded minimized array \( {\boldsymbol{A}}_{\boldsymbol{j}} \), the following transformation defines the high-frequency minimization encoding:

$$ {\boldsymbol{A}}_j={K}_1{\boldsymbol{R}}_i+{K}_2{\boldsymbol{R}}_{i+1}+{K}_3{\boldsymbol{R}}_{i+2} $$
(8)

Each value of R in the triplet summation of Eq. (8) can later be recovered by estimating the key values for that block [13, 20, 21]. However, this problem is underdetermined and extra information is required. This information is kept in the header of the compressed file as a string of unique-data appearing in \( \boldsymbol{R} \). Figure 2 illustrates the concept through a numerical example.

Fig. 2
figure2

Unique data appearing in R are kept in the header file allowing key recovery

Each image has its own high-frequency coefficients. The proposed algorithm computes a set of unique data for the high-frequency coefficients for a given image. Being unique to that image, the set cannot be used to reconstruct the high-frequency coefficients for a different image. Figure 2 shows a set of unique data for the reduced array R. This means that the unique data set will be used at decompression stage to reconstruct the array R. The size and contents of the unique data vector are thus, data dependent.

The encoded triplets into array A may contain large number of zeros which can be further encoded through a process proposed in [16]. For example, assume the following encoded minimized array A=[0.5, 0, 0,0, 7.3, 0, 0,0,0,0, −7]. The zero array will be [0,3,0,5,0] where the zeros in red refer to nonzero data existing at these positions and the numbers in black refer to the number of zeros between two consecutive non-zero data. To increase the compression ratio, the number 5 can be broken up into 3 and 2 to increase data redundancy. Thus, the equivalent zero array would be [0,3,0,3,2,0] and the nonzero array would be [0.5, 7.3, −7].

The final step of compression is arithmetic coding which computes the probability of all data and assigns a range to each data (low and high) to generate streams of compressed bits [6]. The arithmetic coding applied here takes a stream of data and converts into a single floating point value. The output is in the range between zero and one that, when decoded, returns the exact original stream of data.

The concurrent binary search decompression algorithm

While the DC-Array can be recovered by a simple addition process, the issue here is how to recover the reduced array \( \boldsymbol{R} \) that has been compressed into the minimized array A. For this purpose, we have devised a new Concurrent Binary Search Algorithm (CBS-Algorithm). The reverse of the compression algorithm consists of three stages:

  1. 1)

    Decode the DC-components: the first step is to reverse the differential process of Eq. (3) by addition such that the encoded values in DC-array return to their original DC-components. This process takes the last value at position \( m \), and adds it to the previous value, and then the total adds to the next previous value and so on.

  2. 2)

    Decode the Minimized-array using the CBS-Algorithm: this novel algorithm has been designed to recover the reduced array \( \boldsymbol{R} \) from the minimized array A. The compressed data contains information about the three compression keys defined in Eqs. (5–7) and the probability data (unique data) followed by compressed streams of data. The CBS-algorithm picks up in turn each data element from the minimized-array and reconstructs the three keys recovering the triplet R of data through a concurrent binary search illustrated by steps A and B:

    1. A)

      Initially, the estimated values defined in Unique-Data array (see Fig. 2) are set to the same value, that is \( {A}_1={B}_1={C}_1,{A}_2={B}_2={C}_2,{A}_3={B}_3={C}_3. \) The searching algorithm computes all possible combinations of A with \( {K}_1 \), B with \( {K}_2 \) and C with \( {K}_3 \) that yield a result keeping in D-array. As a means of an example consider that Unique-Data1=[\( {A}_1{A}_2{A}_3 \)] , Unique-Data2=[\( {B}_1{B}_2{B}_3 \)] and Unique-Data3=[\( {C}_1{C}_2{C}_3 \)]. Then, according to Eq. (4) these represent the coded summation, respectively, and the equation is executed 27 times to build the \( \boldsymbol{R} \) array, as described in Fig. 3a. The match indicates that the unique combination of A, B, and C are the original data (i.e., decompressed data) [16].

    2. B)

      A Binary Search algorithm [22] is used to recover the data and their keys. Our design consists of \( k \) concurrent binary search algorithms to reconstruct the triplets of original data in the \( \boldsymbol{R} \) array, as shown in Fig. 3b. At each step, each binary search algorithm takes a single compressed data from the minimized-array and compares with the middle element of the D-array. If the values match, then a matching element has been found and its relevant (A, B, and C) returned. Otherwise, if the search is less than the middle element the algorithm is repeated to the left of the middle element or, if the value is greater, to the right. All binary search algorithms are synchronised [16].

    Fig. 3
    figure3

    The CBS-algorithm to reconstruct the reduced array R . a Compute all possibilities for keys with Unique-Data to reconstruct the reduced R array. b The Binary Search algorithms work in parallel to find group of decompressed data

  3. 3)

    Combine the DC-components with AC-coefficients: once the reduced array \( \boldsymbol{R} \) is recovered in step 2, the corresponding high frequency AC-Matrix is re-built by placing the nonzero data in the exact locations defined by the algorithm in Section 3. The DC-components and AC-coefficients are then followed by inverse quantization (dot-multiplication with Eq. (2) and the inverse DCT is applied to each block \( n\times n \) Eq. (9) below, to recover the original image.

$$ f\left( x, y\right)={\displaystyle \sum_{u=0}^{Block-1}}\;{\displaystyle \sum_{v=0}^{Block-1}} a(u) a(v) C\left( u, v\right) cos\left[\frac{\left(2 X+1\right) u\pi}{2 Block}\right] cos\left[\frac{\left(2 y+1\right) v\pi}{2 Block}\right] $$
(9)

Experimental results

The experimental results described here were implemented in MATLAB R2013a and Visual C++ 2008 running on an AMD Quad-Core microprocessor. We describe the results in two parts: first, we apply the compression and decompression algorithms to 2D images that contain structured light patterns allowing 3D surface data to be generated from those patterns. The rationale is that a high-quality image compression is required otherwise the resulting 3D structure from the decompressed image will contain apparent dissimilarities when compared to the 3D structure obtained from the original (uncompressed) data. We report on these differences in 3D through visualization and standard measures of RMSE-root mean square error. Second, we apply the method to general 2D images (with no structured light patterns) of different sizes and assess their perceived visual quality and RMSE. Additionally, we compare our compression method with JPEG and JPEG2000 through the visualization of 2D images, 3D surface reconstruction from multiple views and RMSE error measures.

Results for structured light images and 3D surfaces

3D surface reconstruction was performed with our own software developed within the GMPR group [11, 12, 14]. The justification for introducing 3D reconstruction is that we can make use of a new set of metrics in terms of error measures and perceived quality of the 3D visualization to assess the quality of the compression/decompression algorithms. The principle of operation of GMPR 3D surface scanning is to project patterns of light onto the target surface whose image is recorded by a camera. The shape of the captured pattern is combined with the spatial relationship between the light source and the camera, to determine the 3D position of the surface along the pattern. The main advantages of the method are speed and accuracy; a surface can be scanned from a single 2D image and processed into 3D surface in a few milliseconds [23].

Figure 4 (left) depicts the GMPR scanner together with an image captured by the camera (middle) which is then converted into a 3D surface and visualized (right). Note that only the portions of the image that contain patterns (stripes) can be converted into 3D; other parts of the image are ignored by the 3D reconstruction algorithms.

Fig. 4
figure4

a The 3D Scanner developed by the GMPR group, b 2D BMP picture captured by the camera, c 2D image converted into a 3D surface patch

Figure 5 shows several test images used to generate 3D surfaces both in greyscale and colour. The top row shows two greyscale face images, FACE1 and FACE2 with size 1.37 MB and dimensions \( 1392\times 1040 \) pixels. The bottom row shows colour images CORNER, WALL, and METAL with size 3.75 MB and dimension \( 1280\times 1024 \) pixels. It is important to stress here that the RMSE although useful, is a single measure of error and may not give a clear indication to which reconstruction is `best'. This is so because errors could be concentrated in an area that we perceive as less important in the image, and this is more clearly seen by analysing the 3D surface images at various compression ratios.

Fig. 5
figure5

Structured light images used to generate 3D surfaces. Top row greyscale images (a) FACE1 and (b) FACE2, and colour images (c) CORNER, (d) WALL, (e) METAL, respectively

Figure 6 shows a visualization of the decompressed images converted to 3D surfaces using different DCT block sizes (from \( 16\times 16 \) to \( 64\times 64 \)). FACE1 on the top row from the left, the first and second 3D surfaces with RMSE of 1.45 and 2.48 are high-quality surfaces comparable to the original one. The 3D surface with 3D RMSE of 2.25 represents median quality image while the 3D surface with 3D RMSE of 2.57 is low quality as some parts of surface are degraded. Note that the RMSE of 2.25 (third image from left) is lower than 2.48 (second image) but its perceived quality is not higher, instead it is lower due to localised errors in less important areas of the face. Figure 6 bottom row shows the decompressed FACE2 images. The 3D surfaces with 3D RMSE of 1.11 and 1.45 represent high-quality surfaces comparable to the original surface, while the other two represent median to low quality with varying degrees of degradation. It is apparent here that because the RMSE algorithm only calculates the differences between valid surfaces points in two surfaces (original and reconstructed from compressed data) the dropping or disappearance of some areas on the surface will have a marked effect on the mean error.

Fig. 6
figure6

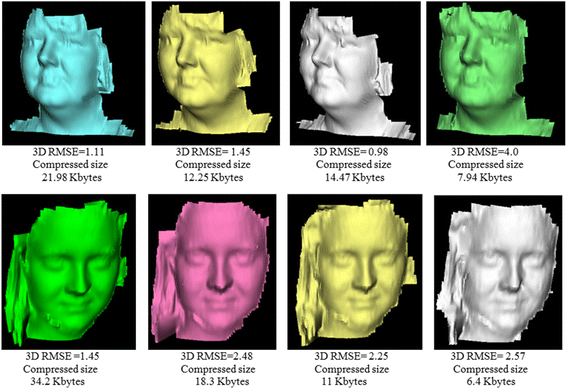

Top and bottom rows: the reconstructed 3D surfaces from images FACE1 and FACE2 at various compression ratios

Tables 1 and 2 provide a quantitative view of compression concerning 2D structured light images and corresponding 3D surface reconstruction for several different DCT block sizes and quantisation factors. The purpose is to analyse the sensitiveness of the algorithms to both parameters. In Table 1 there is only one value for quantization factor \( L \) as these are grey scale images and thus there is only one colour channel to quantise. As expected, it is observed that by doubling the factor, the size of the compressed image is halved. On the other hand, by doubling the block size, the size of the compressed image is only reduced by about a third. It is also observed that no relationship exists concerning block size, factor, and RMSE (both in 2D and 3D). An image that is compressed to double the size of an earlier compression does not mean that its RMSE will be halved compared to the earlier RMSE. The reasons for this have been pointed out above as localised errors in the image will give rise to localised errors in the 3D structure and these do not necessarily correspond to our perception of better or worst.

Table 1 Proposed image compression and decompression applied to greyscale images (original image size = 1.37 MB)
Table 2 Proposed image compression and decompression applied to colour images (original image size = 3.75 MB)

Table 2 depicts three parameters for quantization factor \( L \), one for each channel as these are colour images. Here again by doubling the factor it is observed a halving of the compressed image size. Normally, it would not make sense to have different factor values for different colour channels, but this is a possibility that can be exploited especially in structured light applications where we know that patterns can be projected using a single colour channel (red, green or blue). The same comments above on RMSE also apply here.

Figure 7 depicts the 3D surface images from the decompressed WALL, CORNER and METAL images. The first image on the left with texture mapping on is for information only. The remaining three shaded images were compressed by varying the DCT block size and the colour channels per data depicted in Table 2. Thus, the first rows of shaded images correspond to the first three entries in Table 2 and so on. The perceived quality of all reconstructed 3D surface images follows a similar pattern: as the quantisation factor \( L \) is increased, the size of the compressed file decreases with corresponding deterioration in quality and this is the expected behaviour.

Fig. 7
figure7

3D reconstructed surfaces for images WALL, CORNER and METAL after compression and decompression

Table 3 and Fig. 8 describe the compressed and decompressed results for JPEG and JPEG2000 with comparison with our approach. Here, we compressed very aggressively and in Table 3 the JPEG algorithm simply failed to compress images at the required ratio with equivalent file sizes as our approach. This is indicated by “FAIL”. An important point to note is that while JPEG2000 can compress to equivalent ratios or file sizes as our algorithm, the decompressed image is not of equivalent quality for the purposes of 3D reconstruction.

Table 3 Compression and decompression of 3D images by JPEG2000 and JPEG at higher compression ratios
Fig. 8
figure8

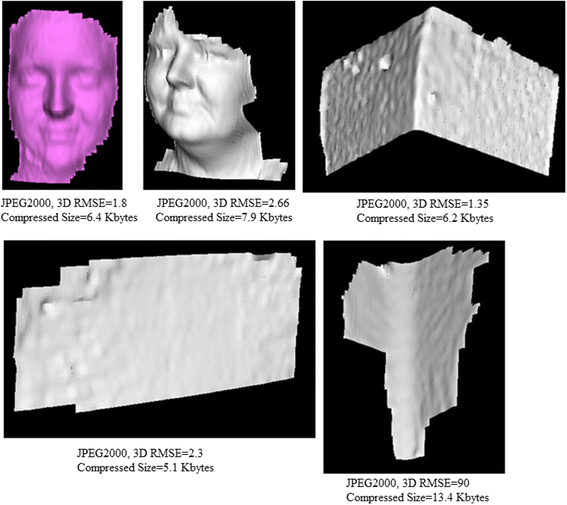

The 3D reconstructed FACE1 (3D RMSE=1.8) by JPEG2000 degraded compared with our approach, also some parts are missing. FACE2 (3D RMSE=2.66) is compressed by JPEG2000 at higher compression ratio, but the top part of the surface is missing. Also, the 3D reconstructed CORNER (3D RMSE=1.35) by JPEG2000 is more degraded than our approach. The 3D reconstructed WALL (3D RMSE=2.3) by JPEG2000 has a higher compression ratio, but the top part of the surface is missing. Finally, the 3D reconstructed METAL (3D RMSE=90) by JPEG2000 is completely degraded compared with our approach

Figure 8 provides a direct comparison between our approach and JPEG2000 for quality assessment through visualisation of the reconstructed 3D surface. Each file containing structured light patterns was compressed to the same size using our method and JPEG2000. The visualisation clearly indicates that our method is superior to JPEG2000 concerning 3D reconstruction in all cases considered both in terms of perceived quality of the reconstruction and absolute RMSE. Additionally, Table 4 shows time execution for our approach compared with JPEG2000. The JPEG technique was unable to compress to the required size, for this reason it does not appear on Table 4.

Table 4 Execution time of our approach compared with JPEG2000

Results for 2D images

In this section, we report on our approach applied to generic 2D images, that is, images that do not contain structured light patterns as described in the previous section. Table 4 tabulates compression results and comparison of our approach with the two compression algorithms JPEG2000 and JPEG respectively using five publicly available images with sizes varying from 0.5 to 9 MB. For each image, we used different block sizes, it varies for different images from 8 × 8 to 64 × 64 as depicted in Table 5. Despite the RMSE limitations as an absolute measure of quality, the tabulated values indicate that JPEG has a much higher error than both our technique and JPEG2000. For this reason, and for its perceived lower quality it is the least desirable technique.

Table 5 Proposed image compression and decompression applied to 2D images

Figure 9 depicts decompressed images by our approach with a comparison with JPEG2000 and JPEG. One can state that JPEG2000 seems to be the better technique for general 2D compression as it has a high perceived quality with low RMSE. Our technique is much better than JPEG and at comparable level to JPEG2000 concerning perceived quality, but with slightly higher RMSE. Thus, the results reported in this section demonstrate that our proposed compression method can equally be used as a general 2D compression technique and, as both JPEG and JPEG2000 are widely used in video compression, our technique is also appropriate for video compression. Furthermore, considering the results reported in the previous section, our method is superior to JPEG and JPEG2000 for 3D reconstruction from structured light images. Also, Table 6 shows the time execution for our approach compared with JPEG and JPEG2000.

Fig. 9
figure9

Comparative perceptual quality between our approach, JPEG2000 and JPEG. X-ray Compressed size to 10 KB. Eye image compressed to 14.2 KB. Girl image compressed to 21.2 KB. Cell image compressed to 9.8 KB. Baby image compressed to 18.3 KB

Table 6 Execution time of our approach compared with JPEG and JPEG2000

Additionally, Table 7 shows our approach tested with additional standard images where each image is of dimension 1200 × 1200 pixels and uniform size of 4.1 MB. These images are freely available for testing image processing algorithms from https://testimages.org. While JPEG2000 can compress to approximately the same size as our approach, it is noted that the JPEG technique failed to compress to the same size. It is noted that both compressed size and bit rates are comparable between JPEG2000 and our approach, while our approach presents a slightly higher RMSE.

Table 7 Testing with additional images and compared with JPEG and JPEG2000

Results of 3D reconstruction from multiple viewpoints

Here, we apply our compression techniques to a series of 2D images and usedAutodesk123D Catch software to generate a 3D model from multiple viewpoints. Images are uploaded to the Autodesk server for processing which normally takes a few minutes. The program uses photogrammetric techniques to measure distances between objects yielding a 3D model; i.e., image processing is performed by stitching a plain seam with correct sides together. However, the software may ask the user to select common points on the seam that could not be determined automatically [24, 25].

The objective is to perform a direct comparison between our DCT with high-frequency minimization technique with both JPEG and JPEG2000 on the ability to perform 3D reconstruction from multiple views. Figure 10 shows three series of 2D images for objects “Apple”, “Face”, and “Ship”. First, we verified that these sequences are suitable for 3D reconstruction with Autodesk 123D. Second, we start by compressing each series of images; Table 8 shows their compressed sizes and RMSE measures. Table 9 presents a direct comparison of compression and it is clearly shown that our approach and JPEG2000 can reach an equivalent maximum compression ratio, while the JPEG technique failed to reach the same state. It is important to stress that while both our technique and JPEG are based on DCT, the fundamental difference in which the DCT is applied in our approach together with the frequency minimization algorithm renders our technique far superior to JPEG as shown here.

Fig. 10
figure10

a, b and c: Sample sequence of images “Apple”, “Face” and “Ship”. a Apple images: number of image 48 images. b Face images: number of images 28 images. c Ship images: number of images 51 images

Table 8 Compression sizes and RMSE
Table 9 Comparison with JPEG and JPEG2000 techniques

Therefore, Table 9 shows that JPEG is not appropriate as it fails to compress all images at high compression ratios and is eliminated from the next stage of 3D reconstruction. Concerning JPEG2000, its ability for 3D reconstruction using Autodesk 123D Catch is illustrated in Fig. 11. While the models Ship and Apple are successfully reconstructed, it fails on the Face model which is significantly degraded. In contrast, our technique successfully reconstructs all three models and this is shown in Figs. 12, 13, and 14.

Fig. 11
figure11

3D reconstruction from JPEG2000: the models Apple and Ship (left and right) were successfully 3D reconstructed from JPEG2000 images. However, the 3D Face model is significantly degraded (middle)

Fig. 12
figure12

a, b 3D model for series of Apple images decompressed by our approach (48 images, average 2D RMSE=9.5, total compressed size=929 KB). The compression ratio for the 3D mesh is 99.7% for connectivity and vertices. a Autodesk 123D Catch converts48 Apple images to obtain 3D model. b 3D surface details for Apple shows the connections between vertices

Fig. 13
figure13

a, b 3D model for series of Face images decompressed by our approach (28 images, average 2D RMSE=5.1, total compressed size=784 KB). The compression ratio for the 3D mesh is 99.6% for connectivity and vertices. a Autodesk 123D Catch converts 28 Face images to obtain 3D model. b 3D surface details for Face shows the connections between vertices

Fig. 14
figure14

a, b 3D model for series of Ship images decompressed by our approach (51 images, average 2D RMSE=14.35, total compressed size=916 KB). The compression ratio for the 3D mesh is 99.7% for connectivity and vertices. a Autodesk 123D Catch converts 51 Ship images to obtain 3D model. b 3D surface derails for Ship shows the connections between vertices

Furthermore, Table 10 shows the execution time for series of images compressed by our approach and compared with JPEG2000’s time execution.

Table 10 Execution time of our approach compared with JPEG2000

Conclusions

This paper has presented and demonstrated a new method for image compression and illustrated the quality of compression through 2D and 3D reconstruction, 2D and 3D RMSE and the perceived quality of the visualisation. Like JPEG, our proposed method is based on DCT but it is fundamentally different in the way it is applied and incorporates several additional transformations at compression stage such as a differential process, the minimization of high-frequency encoding and concurrent binary search algorithms at decompression stage. The analysis of the proposed techniques demonstrated in this paper indicates that the most important aspects of the method and their role in providing high-quality image with high compression ratios are as follows:

  1. 1.

    The DCT can be applied to large block sizes \( \ge 8 \), and the DC-components and AC-coefficients are separated into different matrices by the proposed method and coded separately.

  2. 2.

    Since the AC-coefficients contain a large number of zeros, we applied a new method to eliminate zeros and keep nonzero data. The process keeps significant information while reducing data up to 75%.

  3. 3.

    The minimization of high-frequency encoding algorithm produces a minimized array used to replace each three values from the AC-coefficients by a single floating-point value. This process reduces the coefficients leading to increased compression ratios with faithful decoding.

  4. 4.

    At decompression stage, the concurrent binary search algorithm is the engine for estimating the original data from the minimized array and depends on the organised key values and the availability of a set of unique data. The efficient C++ implementation allows the concurrent algorithms to recover individual AC-coefficient very efficiently.

  5. 5.

    The key values and unique data are used for coding and decoding an image, without this information images cannot be recovered. This is an important point as a compressed image is equivalent to an encrypted image that can only be reconstructed if the keys are available. This has applications to secure transmission and storage of data.

  6. 6.

    Our proposed image compression algorithm was tested on true colour and YCbCr layered images at high compression ratios.

  7. 7.

    The experiments indicate that the technique can be used for real-time applications such as 3D data objects and video data streaming over the Internet.

The results showed that our approach introduced better image quality at higher compression ratios than JPEG and equivalent perceived quality as JPEG2000. Furthermore, it can more accurately reconstruct 3D surfaces at higher compression ratios than both techniques, i.e., in this respect it is superior to JPEG2000. On the other hand, it is more complex than both JPEG2000 and JPEG. A summary of the method main advantages and disadvantages is given below:

  • Advantages

    • Our proposed method uses different block sizes of 8 × 8 and 16 × 16 leading to higher compression ratios. In contrast, the JPEG algorithm uses only 8 × 8 block size while in JPEG2000, the DWT is applied to the entire image.

    • Our proposed algorithm splits the DC values from high-frequency coefficients into two different separate matrices. This step increases the compression ratio. In contrast, JPEG uses zigzag scan to keep the DC-values with high-frequency coefficients. Also, JPEG2000 uses raster scan to encode each sub-band of the DWT.

    • The high-frequency minimization method reduces matrix size, increases compression ratio, and encrypts the matrix by using two different keys. This type of algorithm (or similar) is not available neither to JPEG nor JPEG2000.

    • The concurrent binary search algorithm for high-frequency matrix reconstruction depends on two different keys (i.e., the same keys used in the compression steps). The use of such keys makes our algorithms suitable for security applications as without the key data cannot be decompressed.

    • Concerning 3D reconstruction, our approach can compress some images over 99% without significant degradation of the reconstructed 3D surface. In contrast, images compressed by JPEG or JPEG2000 at the same rate of compression show significant degradation as demonstrated here.

  • Disadvantages

    • The complexity of the compression steps is due to the coding of each three items of data into a single value; for this reason, the time execution for compression is longer than for JPEG and JPEG2000 and more noticeable for large images.

    • The complexity of the decompression algorithm depends on a search method. For this reason, the time execution for decompression is longer than JPEG and JPEG2000.

Future work is focused on efficient implementation of the decoding steps and their application to video compression. Research is under way and will be reported in the near future.
