Comments on ‘Area and power efficient DCT architecture for image compression’ by Dhandapani and Ramachandran

EURASIP Journal on Advances in Signal Processing20172017:50

https://doi.org/10.1186/s13634-017-0486-8

Received: 24 November 2015

Accepted: 18 June 2017

Published: 10 July 2017

Abstract

In [Dhandapani and Ramachandran, “Area and power efficient DCT architecture for image compression”, EURASIP Journal on Advances in Signal Processing 2014, 2014:180] the authors claim to have introduced an approximation for the discrete cosine transform capable of outperforming several well-known approximations in literature in terms of additive complexity. We could not verify the above results and we offer corrections for their work.

Keywords

DCT approximations Low-complexity transforms

1 Introduction

In a recent paper [1], a low-complexity transformation was introduced, which is claimed to be a good approximation to the discrete cosine transform (DCT). We wish to evaluate this claim.

The introduced transformation is given by the following matrix:
$$\begin{array}{*{20}l} \mathbf{T} = \left[ \begin{array}{cccccccc} 1 & \phantom{-}0 & \phantom{-}0 & \phantom{-}0 & 0 & 0 & 0 & 1 \\ 1 & 1 & 0 & 0 & 0 & 0 & 1 & 1 \\ 0 & 0 & 1 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 1 & 1 & 1 & 0 & 0 \\ 0 & 0 & 1 & 1 & -1 & -1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & -1 & 0 & 0 \\ 1 & 1 & 0 & 0 & 0 & 0 & -1 & -1 \\ 1 & 0 & 0 & 0 & 0 & 0 & 0 & -1 \end{array} \right]. \end{array} $$

We aim at analyzing the above matrix and showing that it does not consist of a meaningful approximation for the 8-point DCT. In the following, we adopted the same methodology described in [211] which the authors also claim to employ.

2 Criticisms

2.1 Inverse transformation

The authors of [1] claim that inverse transformation T −1 is given by
$$\begin{array}{*{20}l} \frac{1}{2} \cdot \left[ \begin{array}{cccccccc} 1 & \phantom{-}0 & 0 & \phantom{-}0 & 1 & 0 & 0 & 0 \\ -1 & 1 & 0 & 0 & -1 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & -1 & 1 & 0 & 0 & -1 & 1 \\ 0 & 0 & -1 & 1 & 0 & 0 & 1 & -1 \\ 0 & 0 & 1 & 0 & 0 & 0 & -1 & 0 \\ -1 & 1 & 0 & 0 & 1 & -1 & 0 & 0 \\ 1 & 0 & 0 & 0 & -1 & 0 & 0 & 0 \end{array} \right]. \end{array} $$
However, simple computation reveal that this is not accurate, being the actual inverse given by:
$$\begin{array}{*{20}l} \mathbf{T}^{-1} = \frac{1}{2} \cdot \left[ \begin{array}{cccccccc} 1 & \phantom{-}0 & 0 & \phantom{-}0 & 0 & 0 & 0 & 1 \\ -1 & 1 & 0 & 0 & 0 & 0 & 1 & -1 \\ 0 & 0 & 1 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & -1 & 1 & 1 & -1 & 0 & 0 \\ 0 & 0 & -1 & 1 & -1 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & -1 & 0 & 0 \\ -1 & 1 & 0 & 0 & 0 & 0 & -1 & 1 \\ 1 & 0 & 0 & 0 & 0 & 0 & 0 & -1 \end{array} \right]. \end{array} $$

2.2 Lack of DC component

The first point to be noticed is that the matrix T lacks a row of constant entries. Therefore, it is not capable of computing the mean value or the DC component of a signal under analysis. In terms of image compression, the DC value is the single most important coefficient concentrating most of the image energy. To illustrate this fact, Fig. 1 shows the reconstructed standard Lena image by means of (i) the DC component of the standard DCT, (ii) all DCT coefficients, except the DC component, (iii) the first row of matrix T [1], and (iv) all T coefficients, except the first row, respectively. In [12], Britanak meticulously cataloged dozens of DCT approximations; all of them computed the DC component. The lack of the DC component computation suggests that compressed images resulting from the application of T are expected to be severely degraded in terms of perceived image quality. The associated PSNR values in Fig. 1 also show the poor quality of the reconstructed images using T. Considering M×N pixel images, the PSNR measure is calculated by:
$$\begin{array}{*{20}l} {\text{PSNR}} = 10 \cdot \log_{10}{\left(\frac{{\text{MAX}}^{2}}{{\text{MSE}}}\right)}, \end{array} $$
Fig. 1

Reconstructed Lena image based a only on the DC component of the DCT, b on all DCT transform coefficient except the DC component, c only on the first row of the T [1], and d on all T coefficients, except the first row

where \(\text {MSE} = \frac {1}{M\cdot N} {\sum \nolimits }_{i=1}^{M}{\sum \nolimits }_{j=1}^{N} (a_{i,j} - b_{i,j})^{2}\), a i,j and b i,j are the (i,j)-th element of the original and reconstructed images, respectively; and MAX is the maximum pixel valye. For 8-bit greyscale images, MAX = 255.

2.3 Fast algorithm

In the ‘Fig. 1’ of [1], the authors display a signal flow graph (SFG) which does not correspond to the computation implied by their proposed matrix. Their proposed SFG consists of two addition butterfly sections and one final permutation, which correspond to the following matrices, respectively:
$$\begin{array}{*{20}l} \mathbf{A}_{1} = \left[ \begin{array}{cccccccc} 1 & \phantom{-}0 & \phantom{-}0 & \phantom{-}0 & 0 & 0 & 0 & -1 \\ 0 & 1 & 0 & 0 & 0 & 0 & -1 & 0 \\ 0 & 0 & 1 & 0 & 0 & -1 & 0 & 0 \\ 0 & 0 & 0 & 1 & -1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 1 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 1 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 & 1 & 0 \\ 1 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \end{array} \right], \end{array} $$
$$\begin{array}{*{20}l} \mathbf{A_{2}} = \left[ \begin{array}{cccccccc} 1 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 & 1 \end{array} \right], \mathbf{P}=\left[\begin{array}{cccccccc} 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \end{array} \right]. \end{array} $$
However, this fast algorithm induces to the following matrix:
$$\begin{array}{*{20}l} {}\mathbf{P} \cdot \mathbf{A}_{2} \cdot \mathbf{A}_{1} = \left[ \begin{array}{cccccccc} 1 & \phantom{-}1 & \phantom{-}0 & \phantom{-}0 & 0 & 0 & 1 & 1 \\ 0 & 1 & 0 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & 1 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 1 & 1 & 1 & 0 & 0 \\ 0 & 0 & 0 & 1 & -1 & 0 & 0 & 0 \\ 0 & 0 & 1 & 1 & -1 & -1 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 & -1 & 0 \\ 1 & 1 & 0 & 0 & 0 & 0 & -1 & -1 \\ \end{array} \right] = \mathbf{T}_{\text{SFG}}, \end{array} $$

which is different from T. Therefore, the SFG is incorrect and does not correspond to the proposed matrix. We assume that the intended method is T SFG, which is the matrix implied by the fast algorithm. Indeed, this transformation is shown again in the schematics of the hardware realization of their work. Nevertheless, hereafter, we analyze both matrices: T and T SFG. Similar to T, the matrix T SFG does not evaluate the DC value, being subject to the criticism detailed in the previous subsection.

2.4 Lack of energy concentration

Contrary to the expected behavior for a data compression transformation, the matrix T does not exhibit good decorrelation and energy concentration properties. Energy concentration can be quantified by submitting data to a considered transformation and then computing the energy distribution along transform-domain coefficients. Thus, we considered a Monte Carlo simulation with 10,000 8-point input vectors modeled after the first-order Markov process with correlation coefficient of 0.95 [12]. For comparison, we considered the following transformations: the DCT [12], the SDCT [2] the BAS-2013 [9], and the BC-2012 [3]. Obtained mean values are displayed in Fig. 2. In clear contrast with the other methods, transformations T and T SFG perform very poorly.
Fig. 2

Energy distribution of transform coefficients

Moreover, the lack of energy concentration in the first transform coefficients indicates that the standard zigzag pattern employed in the quantization step is not adequate for this transformation. Nevertheless, the authors claim to employ the zigzag pattern with success. We could not verify this claim.

To further assess the claim of good coding capabilities, we considered the unified coding gain and the transform efficiency as measures to quantify the coding performance [12] of T in comparison with bona fide transforms, such as: DCT, SDCT [2], BAS-2008 [4], BAS-2009 [6], BAS-2010 [8], BAS-2011 [9], CB-2011 [13], and CB-2012 [3]. In addition, we also considered the transformation in [14] and transformation in [15]. Results are shown in Table 1. We emphasize in bold the unfavorable measurements associated to the transformations proposed by the authors. Such transformations are not expected to be suitable for image compression, since both coding measures resulted in very low values.
Table 1

Transform coding assessment

Method

Transform efficiency

Coding gain (dB)

DCT [12]

93.99

8.83

SDCT [2]

82.62

6.02

BAS-2008 [4]

84.95

6.01

BAS-2009 [6]

85.38

7.91

BAS-2010 [8]

88.22

8.33

BAS-2011 [9]

85.38

7.91

CB-2011 [13]

87.43

8.18

CB-2012 [3]

80.90

7.33

Transformation in [14]

3 4 . 9 3

1 . 6 5

Transformation in [15]

3 3 . 6 7

4 . 0 8

T [1]

2 8 . 9 5

1 . 8 6

T SFG [1]

2 8 . 9 5

1 . 8 6

2.5 Irreproducibility of results

The results shown by Dhandapani and Ramachandran could not be repeated. The authors state that they employ simultaneously a quantization step, which corresponds to variable bitrate encoding, and a fixed number of retained transform-domain coefficients, which suggests constant bitrate. This seems contradictory. However, to examine the transformation suggested by the authors, we adopted a constant bitrate encoding based on the retention of r transform-domain coefficients, as suggested originally by Haweel and others [211].

Although the authors do not explicitly inform the number of retained coefficients (r) in their computations. Only for high values of r we could obtain similar values. We calculated the PSNR values considering r=60. Notice that for such a high value of r data is practically not compressed. This is because only 4 coefficients are discarded, implying a compression rate of only 6.25%. Table 2 shows the results. Additionally, at low compression, most orthogonal transforms tend to behave similarly. However, even under this scenario, the transformation proposed by the authors performed poorly—roughly 10 dB lower PSNR measurements. Indeed, the pivotal character of a good transform is its behavior in a wide range of compression rates, specially at high compression. For instance, considering the more realistic case of r=10, as suggested in [2], we obtain the PSNR values shown in Table 3. Notice that the transformation proposed by the authors exhibits extremely high errors, which are emphasized in bold. We also report that the results linked to the transformations described in [14] and [15] display also acutely poor results as shown in Table 3.
Table 2

PSNR of reconstructed images (r=6w0)

Transform

Lena

Boat

Goldhill

Barbara

Lighthouse

Mandrill

Grass

DCT [12]

51.400

46.531

49.497

47.097

49.719

41.147

44.264

SDCT [2]

45.708

41.593

44.308

40.532

43.044

35.956

36.517

BAS-2008 [4]

43.996

39.498

42.449

38.304

41.139

33.886

34.364

BAS-2009 [6]

48.096

44.828

46.470

40.143

44.035

37.982

36.869

BAS-2010 [8]

50.976

46.483

48.912

46.657

48.193

40.617

42.486

BAS-2011 [9]

48.010

44.874

46.328

40.073

44.690

38.085

37.191

CB-2011 [13]

49.537

45.353

47.892

43.163

46.455

39.668

39.815

CB-2012 [3]

46.621

44.217

45.027

39.763

41.939

36.486

35.223

Transformation in [14]

30.193

29.635

32.107

29.411

29.777

26.575

20.612

Transformation in [15]

27.895

27.463

29.797

27.260

27.547

24.530

18.445

T [1]

30.560

30.034

32.565

29.851

30.090

26.862

20.982

T SFG [1]

30.889

29.867

32.920

29.117

30.189

26.779

20.900

Table 3

PSNR of reconstructed images (r=10)

Transform

Lena

Boat

Goldhill

Barbara

Lighthouse

Mandrill

Grass

DCT [12]

32.088

28.971

30.656

24.752

25.549

22.832

19.893

SDCT [2]

27.443

25.570

27.543

23.488

23.348

21.095

17.019

BAS-2008 [4]

29.509

27.150

28.994

24.285

24.444

22.279

18.849

BAS-2009 [6]

29.916

27.354

29.288

24.520

24.381

22.223

18.661

BAS-2010 [8]

31.143

28.292

30.072

24.666

25.063

22.581

19.376

BAS-2011 [9]

29.916

27.354

29.288

24.520

24.381

22.223

18.661

CB-2011 [13]

30.446

27.861

29.612

24.460

24.756

22.516

19.157

CB-2012 [3]

27.015

25.190

27.141

23.595

23.087

21.596

17.170

Transformation in [14]

2.159

1.856

2.877

2.936

2.582

1.992

1.981

Transformation in [15]

6 . 9 2 7

7 . 2 1 3

6 . 2 0 5

6 . 1 2 0

6 . 4 4 2

7 . 0 5 3

6 . 9 1 4

T [1]

2.163

1.867

2.880

2.951

2.596

2.001

1.981

T SFG [1]

4.686

4.380

5.399

5.454

5.086

4.481

4.355

In ‘Fig. 3’ of their work, the authors show reconstructed compressed images according to the following transformations: T SFG, CB-2012, and BAS-2011. All images showed high PSNR values with T SFG offering PSNR values greater than 41 dB. We could no reproduce these results. The authors does not detail the employed parameters, in particular the value of r. However, for r=45, we could obtain comparable PSNR measurements in terms of the traditional DCT approximations. Considering T or T SFG the image degradation is very high, as shown in Fig. 3. For r=15, a more realistic value, we obtain the images shown in Fig. 4. Images associated to T or T SFG are severely degraded—roughly 25–30 dB lower than the typical values offered by traditional approximations. These results are evidence that the transformation proposed by the authors is not suitable for image compression.
Fig. 3

Reconstructed images for r=45. a T (PSNR=23.743), b T SFG (PSNR=24.244), c CB-2012 (PSNR=36.977), d BAS-2011 (PSNR=39.835), e T (PSNR=23.350), f T SFG (PSNR=22.926), g CB-2012 (PSNR=34.782), h BAS-2011 (PSNR=37.152), i T (PSNR=23.512), j T SFG (PSNR=23.653), k CB-2012 (PSNR=29.913), l BAS-2011 (PSNR=31.298), m T (PSNR=22.282), n T SFG (PSNR=22.184), o CB-2012 (PSNR=36.785) and p BAS-2011 (PSNR=40.433)

Fig. 4

Reconstructed images for r=15. a T (PSNR=8.572), b T SFG (PSNR=8.578), c CB-2012 (PSNR=27.500), d BAS-2011 (PSNR=31.271), e T (PSNR=8.231), f T SFG (PSNR=8.239), g CB-2012 (PSNR=25.777), h BAS-2011 (PSNR=28.602), i T (PSNR=9.274), j T SFG (PSNR=9.281), k CB-2012 (PSNR=24.116), l BAS-2011 (PSNR=25.275), m T (PSNR=5.711), n T SFG (PSNR=5.715), o CB-2012 (PSNR=26.201) and p BAS-2011 (PSNR=29.152)

Authors also show in ‘Fig. 4’ of their paper a curve relating PSNR measurements of compressed images to the parameter r. We could not reproduce their results. Figure 5 shows the curves that we obtained considering the same images as the authors. Our results are compatible to the computations independently found in [2, 411]. The curves associated to T and T SFG indicate a significantly lower performance. For r<25—a more realistic scenario—the PSNR loss compared to the traditional transformations is roughly 20 dB. Such evidence points towards the ineffectiveness of T and T SFG for image compression.
Fig. 5

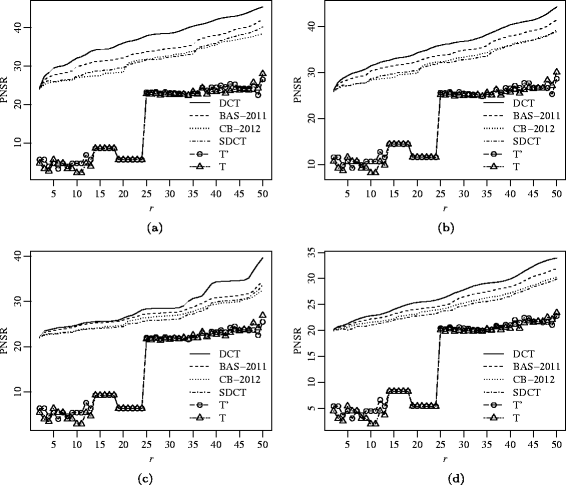

PSNR measurements in terms of the number of retained coefficients r for selected standard images. a Lena, b Cameraman, c Barbara and d Mandrill

3 Conclusion

The transformation proposed in [1] performs poorly when compared to archived DCT approximations. The results in [1] could not be reproduced and some corrections are supplied for the benefit of community.
