Designing digital filter banks using wavelets


In digital filters theory, filtering techniques generally deal with pole-zero structures. In this context, filtering schemes, such as infinite impulse response (IIR) filters, are described by linear differential equations or linear transformations, in which the impulse response of each filter provides its complete characterization, under filter design specifications. On the other hand, finite impulse response (FIR) digital filters are more flexible than the analog ones, yielding higher quality factors. Since many approaches to the circuit synthesis using the wavelet transform have been recently proposed, here we present a digital filter design algorithm, based on signal wavelet decomposition, which explores the energy partitioning among frequency sub-bands. Exploring such motivation, the method involves the design of a perfect reconstruction wavelet filter bank, of a suitable choice of roots in the Z-plane, through a spectral factorization, exploring the orthogonality and localization property of the wavelet functions. This approach resulted in an energy partitioning across scales of the wavelet transform that enabled a superior filtering performance, in terms of its behavior on the pass and stop bands. This algorithm presented superior results when compared to windowed FIR digital filter design, in terms of the intended behavior in its transition band. Simulations of the filter impulse response for the proposed method are presented, displaying the good behavior of the method with respect to the transition bandwidth of the involved filters.

1 Introduction

Filter design has been extensively explored in circuit synthesis and signal processing, as a part of circuit theory [1,2,3,4,5,6,7]. Within this context, one of the major challenges of the IIR filters is determining its respective coefficients: in a digital form, the IIR filters can be designed from their analog versions, a procedure that is not easily performed [2, 4]. On the other hand, the FIR filters are more powerful than the IIR ones [4], but they also require more processing power. In this scenario of drawbacks, the frequency partitioning into sub-bands, obtained by the wavelet transform, could be useful: in the wavelet decomposition of a given signal, frequency sub-bands are obtained with peculiar amplitude values, which could be explored in selective filtering techniques.

The wavelet filter banks provide the advantage of separating the signal under consideration into two or more signals, in the frequency domain. Since signals can show different amplitude levels in both time and wavelet transform domains, it is interesting to partition the energy into several frequency sub-bands for several applications. This could be achieved using low-pass or high-pass filters, associated with wavelets respectively with few or many vanishing moments [8,9,10]. This apparent duality could be better described using spectral factorization [9,10,11,12], which allows separating polynomial roots into two corresponding sequences of low-pass filters in a wavelet filter bank, according to a criterion of perfect reconstruction [12]. The selective filtering method proposed here designs a wavelet family that decomposes the signal to be filtered into sub-bands fitted in amplitude, obtaining good quantitative results in terms of accuracy of filtering and simultaneously with a low computational cost. Although this technique has been studied in several digital signal processing applications, so far it has not been widely explored in digital circuit theory [13,14,15], which is the main focus of this investigation, primarily the digital filter synthesis, showing the good choice for wavelets in digital filtering applications.

This manuscript is organized as follows. Section 2 presents the theory of wavelet filter banks, designed to obtain perfect reconstruction. Section 3 highlights the role of the multiplicity of a root at z =  − 1 in digital filter design. Section 4 presents the methodology for designing a specific wavelet family based on the spectral factorization algorithm [8, 12]. Section 5 presents the frequency responses for the designed filter, when compared to first-order filtering stages, generally implemented with circuit elements. Finally, section VI discusses the results and possible outcomes of this modeling.

2 Methods: wavelet theory and filter banks

In signal processing, a filter bank is an array of band-pass filters that separates the input signal into multiple components, each one carrying a single frequency sub-band of the original signal. For example, an application of a filter bank lies in designing a graphic equalizer, which can attenuate the components differently and recombine them into a modified version of the original signal [16, 17]. The decomposition process, performed by the filter bank, is labeled analysis (meaning analysis of the signal in terms of its components in each sub-band); the output of the analysis is referred to as a sub-band signal, where each frequency sub-band is related to a specific filter in a bank. The reconstruction process is labeled synthesis, meaning the reconstitution of a complete signal resulting from the filtering process [18]. Particularly in digital signal processing, the term filter bank is also commonly applied to a bank of receivers [19, 20]. The difference is that receivers also down-convert the sub-bands to a low-center frequency that can be resampled at a reduced rate. The same procedure could be sometimes performed by undersampling the band-pass sub-bands.

The analysis of signals by filter banks requires minimally filtering techniques using Fourier analysis [18], which use complex sinusoids as basis functions. However, a difficulty that has often been raised with this approach is that, because of the infinite extent of the basis functions, any time-local information is spread out over the whole frequency axis [18]. Under such constraints, the wavelet basis is a set of functions that can represent signals with good resolution in both time and frequency domains. The wavelet transform is well defined within the multiresolution framework, which allows signal analysis in several scales. Wavelets are characterized by time locality, allowing an efficient capture of transient behavior in a signal. Furthermore, the time-frequency resolution trade-off, provided by the multiresolution analysis, enables a better signal representation over the Fourier analysis, since it reveals signal aspects that Fourier signal representation usually neglects, such as trends, breakdown points, and discontinuities. In this context, a wavelet filter bank is an array of wavelet filters used to decompose a signal into sub-bands over different regions of the frequency spectrum, without losing the time domain characterization as performed by the Fourier transform, which is useful in circuit applications.

Particularly, wavelets are function sets obtained from a prototype function (labeled mother wavelet) through dilations and translations. The general form of a wavelet family is given by

$$ {\psi}_{j,k}(x)=\psi \left({2}^jx-k\right)\kern1em ,j,k\in Z $$

where ψj, k(x) is the ‘mother wavelet’, while j and k are respectively the scale and translation factors.

The algebra behind the wavelet filter bank design has been extensively discussed elsewhere [8, 9]. A two-channel wavelet filter bank structure involves four filters: the analysis stage has a low-pass H0(z) and a high-pass H1(z) filter (with h0[n] and h1[n] impulse responses, respectively), while the synthesis stage is formed by low-pass G0(z) and high-pass G1(z) filters (with g0[n] and g1[n] impulse responses, respectively), as shown in Fig. 1. The output signals of those filters, y0[n] and y1[n], must be decimated by a factor of two, retaining only the even samples, since each filter output contains half of the frequency content, but an equal amount of samples as the input signal. The combination of the two outputs contains the same frequency content as the input signal, but the amount of data is doubled. Therefore, the downsampling procedure, denoted by the operator ↓ 2, is applied on filter outputs in the analysis bank:

Fig. 1
figure 1

A two-channel filter bank with analysis and synthesis stages

$$ {y}_0\left[n\right]={h}_0\left[n\right]\ast x\left[n\right],{v}_0\left[n\right]={y}_0\left[2n\right] $$


$$ {y}_1\left[n\right]={h}_1\left[n\right]\ast x\left[n\right],{v}_1\left[n\right]={y}_1\left[2n\right], $$

where the '  ' symbol is the convolution operator.

The input signal x[n] with a fixed length q (for analysis purposes) produces two signals, v0[n] and v1[n], with length q/2. This analysis step is opposite to the synthesis one: v0[n] and v1[n] are interpolated (by a factor of 2) with zeros in odd samples (denoted by the operator ↑ 2). The results are filtered by G0(z) and G1(z), and their sum gives \( \tilde{x}\left[n\right] \):

$$ \tilde{x}\left[n\right]={g}_0\left[n\right]\ast {\tilde{v}}_0\left[n\right]+{g}_1\left[n\right]\ast {\tilde{v}}_1\left[n\right], $$


$$ {\tilde{v}}_i\left[m\right]=\left\{\begin{array}{l}{v}_i\left[m/2\right]\kern1em ,m\kern0.24em \mathrm{even}\\ {}0\kern3.36em ,m\kern0.36em \mathrm{odd}.\end{array}\right. $$

If \( \tilde{x}\left[n\right]=x\left[n-l\right] \) (i.e., if the input signal is delayed by l integer samples), the filter bank allows perfect reconstruction [8, 21, 22]. The conditions for this case are now explained through signal analysis along the filter bank, in the Z-transform domain. An analysis of Eqs. (4) and (5) in the Z-domain leads to

$$ {\displaystyle \begin{array}{l}\tilde{X}(z)=\frac{1}{2}{G}_0(z)\left\{{H}_0(z)X(z)+{H}_0\left(-z\right)X\left(-z\right)\right\}\\ {}\kern1.92em +\frac{1}{2}{G}_1(z)\left\{{H}_1(z)X(z)+{H}_1\left(-z\right)X\left(-z\right)\right\}={z}^{-l}X(z).\end{array}} $$

To avoid output aliasing, the following conditions for perfect reconstruction must be defined [11, 21]:

$$ {G}_0(z){H}_0(z)+{G}_1(z){H}_1(z)=2{z}^{-l} $$


$$ {G}_0(z){H}_0\left(-z\right)+{G}_1(z){H}_1\left(-z\right)=0 $$

The anti-aliasing condition from Eq. (8) leads to “alternating signal” constructions [9], corresponding, in polynomial terms, to H1(z) = G0(−z) and G1(z) =  − H0(−z). Therefore, Eq. (8) is satisfied, and Eq. (7) reduces to an equation of the product filter P0(z) = G0(z)H0(z), such that

$$ {P}_0(z)-{P}_0\left(-z\right)=2{z}^{-l}. $$

This is the key equation to design filters with perfect reconstruction [9], in which the left term is an odd function, so l must be odd. This means that the only odd term in P0(z) is equal to zl. The solution of Eq. (9) leads to the relationships

$$ {h}_0\left[{L}_0-1-k\right]={\left(-1\right)}^k{g}_1\left[k\right] $$
$$ {h}_1\left[{L}_1-1-k\right]={\left(-1\right)}^k{g}_0\left[k\right] $$

where L0 and L1 are the lengths of the filters h0[n] and hi[n], respectively. This leads to

$$ {\tilde{y}}_0\left[k\right]=\sum \limits_nx\left[n\right]{g}_0\left[-n+2k\right] $$
$$ {\tilde{y}}_1\left[k\right]=\sum \limits_nx\left[n\right]{h}_1\left[-n+2k\right] $$
$$ \tilde{x}\left[n\right]=\sum \limits_k\left\{{y}_0\left[k\right]{g}_0\left[-n+2k\right]+{y}_1\left[k\right]{h}_1\left[-n+2k\right]\right\} $$

This formulation motivates the study of digital filter design from a perspective of filter root analysis, which is explored in the following sections.

3 Root analysis in digital filters

Digital filters have been widely used in signal processing and communication systems, in applications such as channel equalization, noise reduction, radar, audio and video processing, biomedical signal processing, and analysis of economic data [2, 3, 23,24,25]. In those examples, the roots of the digital filters play a major role in their design. Their location in the Z-plane allows the designer to establish specific applications, mainly to confine a signal in a prescribed frequency band as in low-pass, high-pass, and band-pass filters; to decompose a signal into two or more sub-bands as in filter-banks, graphic equalizers, sub-band coders, and frequency multiplexers; to modify the frequency spectrum of a signal as in telephone channel equalization and audio graphic equalizers; to model the input-output relationship of a system, such as telecommunication channels, human vocal tract, and music synthesizers [26]. Those features could be directly transferred to circuit theory without loss of generality.

Here, the task of building filter prototypes to select specific frequency components in a signal has been prioritized. We explored the number of zeros (roots of a polynomial filter) of digital filtering structures, placed at z =  − 1. Particularly, we focused on the use of perfect reconstruction filter banks, as those schemes are formed by linear phase analysis and synthesis filters, therefore avoiding the occurrence of undesired disturbances due to phase shifting [26].

The design of a perfect reconstruction filter bank could be synthesized in three steps [11, 27]:

  1. i)

    Selection of a generic polynomial P0(z) that satisfies Eq. (9);

  2. ii)

    Factorization of the polynomial P0(z) into two polynomials G0(z) and H0(z), where H0(z) contains all zeros only at z =  − 1; and

  3. iii)

    Determination of impulse responses of low-pass filters h0[n] and g0[n], as well as the ones for high-pass filters h1[n] = (−1)ng0[n] and g1[n] = (−1)n + 1h0[n], through the “alternating signal” construction [7].

According to digital filter theory [2], the magnitude response |H(z)| of a low-pass digital filter must vanish at the digital frequency Ω = π rad/sample. In Z-plane, such case corresponds to the condition z = e =  − 1, ensuring that the high-frequency components of the input signal are essentially canceled. This condition, H(−1) = 0, is relevant in wavelet theory [7, 8, 16, 17].

In a filter bank, a root located at z =  − 1, with multiplicity p, imposes a major role: the associated wavelet function ψj, k(x) has p vanishing moments, which represents a criterion on how those functions decay toward infinity [8]:

$$ \underset{-\infty }{\overset{\infty }{\int }}{x}^m{\psi}_{j,k}(x) dx=\underset{-\infty }{\overset{\infty }{\int }}{x}^m{2}^{j/2}{\psi}_{j,k}\left({2}^jx-k\right) dx=0\kern1em ,m<p, $$

where j and k denote the dilation and translation wavelet factors, respectively. Figure 2 shows the Daubechies wavelets [15], generally used in wavelet filter design, related to vanishing moments.

Fig. 2
figure 2

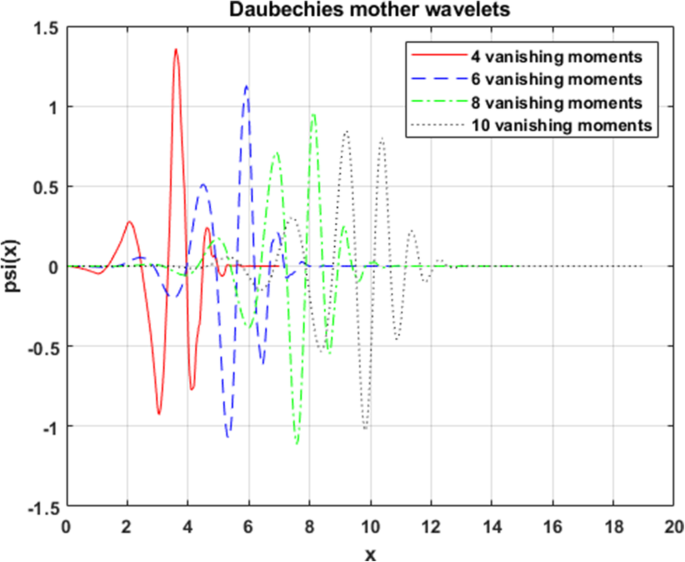

Daubechies wavelets with different vanishing moments

Although the formulation to design perfect reconstruction wavelet filters is given above, there is no explicit criterion on which design is the best choice. One feature that gives some information on the performance of the designed filters, with respect to their behavior on pass and transition bands, is based on the multiplicity of zeros at z =  − 1, which ensures the orthogonality of the designed wavelets and could be explored [4], being useful to determine the number of vanishing moments of that wavelet family.

Therefore, the p value assumes an important role in wavelet filter design, defining the form of the transition band in filtering: a large p value characterizes low-pass filters with a wider passband and a narrower transition band. In contrast, a wavelet function with a few vanishing moments (a low multiplicity p for roots at z =  − 1) produces low-pass filters with a wider transition band and a narrower passband. Exploring those features is convenient to select properly the filter to be used according to the nature of the input signal.

4 Multiresolution selective filter design

Over the last few years, the expansion of circuits equations on wavelet basis has been explored [28, 29]. This resulted from the fact that expanding these equations on a wavelet basis gives algebraic systems that can be conveniently solved (by numerical techniques), producing accurate results with a low-computational cost. This feature is particularly evident when irregular signals (such as fast transients) are considered, since the wavelet basis gives a concise representation (i.e., characterized by a reduced number of coefficients). In fact, the Daubechies wavelets, on the interval in which the representation of circuits equations has been found [30], are the most suitable wavelet basis for this type of problems. They are orthonormal wavelet basis, characterized by a certain number of vanishing moments [31], since they offer the best efficiency in terms of accuracy versus calculation time.

Nevertheless, the uneven distribution of signal energy in the frequency domain has made signal decomposition into wavelets an important practical problem. Rate-distortion theory shows that the uneven spectral nature of real-world signals can provide the basis for source compression techniques [32]. The basic concept explored here refers to dividing the signal spectrum into sub-bands, in a manner that the sub-spectrum with more energy content deserves higher priority for filtering. For example, a slowly varying signal will have predominantly low-frequency components. Therefore, the low-pass sub-bands contain most of its total energy. If one filters the high-pass analysis sub-bands and reconstructs the signal, it is expected that very little or negligible reconstruction error occurs after this analysis/synthesis operation. The decomposition of the signal spectrum into sub-bands provides the mathematical basis for an important and desirable feature in the signal analysis: the monitoring of signal energy components within the sub-bands is possible, as the sub-band signal can be ranked and processed independently.

Under such considerations and after emphasizing the relevance of roots at z =  − 1 in the previous section, the filter bank design can be analytically developed, specifically through spectral factorization of a polynomial filter [9, 22]. The construction of a filter bank, according to that method, requires the computation of the roots of a particular product filter

$$ {P}_0^{<D>}(z)={\left(1+{z}^{-1}\right)}^{2\left(D+1\right)}{Q}_D(z), $$

where QD(z) is a Laurent polynomial with degree D and 2D roots [7].

In order to separate real from complex roots of the polynomial QD(z), a possible form of \( {P}_0^{<D>}(z) \) is here proposed using [30], such that

$$ {P}_0^{<D>}(z)={\left(1+{z}^{-1}\right)}^{2\left(D+1\right)}U\left({z}^{-1};{z}_i\right)V\left({z}^{-1};{r}_j\right) $$


$$ U\left({z}^{-1};{z}_i\right)=\prod \limits_{i=1}^{n^{cq}}\left(1-{z}_i{z}^{-1}\right)\left(1-{z_i}^{-1}{z}^{-1}\right)\left(1-{\overline{z}}_i{z}^{-1}\right)\left(1-{{\overline{z}}_i}^{-1}{z}^{-1}\right) $$


$$ V\left({z}^{-1};{r}_j\right)=\prod \limits_{i=1}^{n^{rd}}\left(1-{r}_j{z}^{-1}\right)\left(1-{r_j}^{-1}{z}^{-1}\right) $$

are auxiliary functions obtained from the separation of \( {P}_0^{<D>}(z) \) into roots at z =  − 1, complex and real roots, and where ncq and nrd are respectively the numbers of quadruple complex factors and of double real factors in QD(z). In fact, the precise separation of roots into two sets, the ones located at z =  − 1 and the ones located in other regions in Z-plane, is the key element of the proposed algorithm for filter circuits design. It can be shown that ncq = D/2 and nrd = D mod  2 [33, 34], where ‘mod’ represents the modulus operator. The Eqs. (16), (17), (18), (19) could be interpreted as

  1. i)

    For an arbitrary polynomial F(z) with N coefficients, there are N − 1 roots, from which a subset of K integer roots, 0 ≤ K ≤ N − 1, may be placed at z =  − 1;

  2. ii)

    In spectral factorization, the polynomial of the product filter \( {P}_0^{<D>}(z) \) with NP = 4D + 3 coefficients and Kp = 2D + 2 roots at z =  − 1 is factorized into polynomials; and

  3. iii)

    Each polynomial corresponds to analysis low-pass filter, H0(z), and synthesis low-pass filter, G0(z), respectively, with Nh and Ng coefficients and Kh and Kg roots at z =  − 1.

This factorization leads to the following constraint for the roots at z =  − 1:

$$ {N}_p={N}_h+{N}_g-1 $$


$$ {K}_p={K}_h+{K}_g. $$

The wavelet family, chosen in the design due to its linear phase, suitable for circuit design [30], is the symmetrical orthogonal one, which requires [8, 11]:

$$ {N}_h={K}_h+4{n}_h^{cq}+2{n}_h^{rd}+1, $$
$$ {N}_g={K}_g+4{n}_g^{cq}+2{n}_g^{rd}+1, $$


$$ {N}_p=2{K}_p-1, $$

where the subscripts h and g correspond to the analysis and synthesis polynomials, respectively. Non-integer values of ncq and nrd correspond to a pair of complex roots and a single real root, respectively. Additionally, Kh and Kg must be simultaneously even or odd, which imposes

$$ {n}_p^{cq}={n}_h^{cq}+{n}_g^{cq} $$


$$ {n}_p^{rd}={n}_h^{rd}+{n}_g^{rd}=1, $$

where \( {n}_p^{cq} \) and \( {n}_p^{rd} \) denote the number of pairs of complex and single real roots for both analysis and synthesis stages, respectively. Once defined, the multiplicity of the root at z =  − 1 for low-pass stages of analysis and synthesis steps, Eqs. (22) and (23) could be used to obtain the number of coefficients for each QD(z) factor. Eqs. (25) and (26) determine the splitting of roots into H0(z) and G0(z) polynomials, whence the low-pass impulse responses h0[n] and g0[n] could be obtained and, simultaneously, h1[n] and g1[n] [35,36,37], using the alternating signal scheme for perfect reconstruction.

As a result, the designed filtering method for circuits applications consists in partitioning the signal to be filtered into two wavelet sub-bands, with subsequent filtering and wavelet reconstruction stages, described in Fig. 3. The application of wavelet transform splits the signal into two parts: a set of low-frequency components with higher amplitude values, and a set of high-frequency components with lower amplitude values. The portion of the signal energy allocated for each sub-band determines the filtering performance.

Fig. 3
figure 3

Block diagram for a reconstruction two-channel filter bank

5 Results and discussion

The formal development of the wavelet filter bank design was presented in Eqs. (16), (17), (18), (19). The next step involves a particular partitioning of the signal energy, described as follows:

  1. i)

    The multiplicity of roots at z =  − 1 is set for low-pass filters of analysis and synthesis steps. In the simulations, better results, in terms of observing a sharper response in transition band, were obtained for Kh = 1 and Kg = 7, leading to

$$ {K}_p={K}_h+{K}_g=8 $$


$$ D=\frac{K_p-2}{2}=3. $$
  1. ii)

    Under the assignment of the value of D, Eqs. (16) and (17) are used to determine the number of coefficients for each factor of QD(z). Once D = 3, the number of coefficients for the factors of Q3(z) must be assigned, since NP = 4D + 3 = 15 and Kp = 2D + 2 = 8. Defining \( {n}_h^{cq}=0 \) and \( {n}_h^{rd}=0 \), it is obtained:

$$ {N}_h={K}_h+1=2. $$

Similarly, defining \( {n}_g^{cq}=1 \) and \( {n}_g^{rd}=1 \), it can be shown that

$$ {N}_g={K}_g+4+2+1=14. $$
  1. iii)

    Choosing a single root at z =  − 1 for the low-pass filter into analysis step, H0(z), the low-pass impulse responses h0[n] and g0[n] are obtained, and hence h1[n] and g1[n], through the “alternating signal” scheme.

The resulting low-pass filters for analysis and synthesis steps in the Z domain, according to the steps performed in (i)–(iii) and developed from Eqs. (16), (17), (18), and (19), are respectively obtained as

$$ {H}_0(z)=\frac{\sqrt{2}}{2}{z}^{-6}+\frac{\sqrt{2}}{2}{z}^{-7}=\frac{\sqrt{2}}{2}{z}^{-6}\left(1+{z}^{-1}\right) $$


$$ {\displaystyle \begin{array}{l}{G}_0(z)=-0,003452\Big(1-{z}^{-1}-8,8{z}^{-2}+8,8{z}^{-3}+40,2{z}^{-4}\\ {}\kern2.28em -40,2{z}^{-5}-204,8{z}^{-6}-204,8{z}^{-7}-40,2{z}^{-8}\\ {}\kern2.28em +40,2{z}^{-9}+8,8{z}^{-10}-8,8{z}^{-11}-{z}^{-12}+{z}^{-13}\Big).\end{array}} $$

Once defined, the responses H0(z) and G0(z), a wavelet family is designed for use in a filter bank, as both filters form the proposed filter bank in a condensed manner. Figure 4 shows the scaling function ϕ(x) and wavelet function ψ(x), corresponding to the designed filter bank, compared to the simplest wavelet functions, the Haar functions [17], which also have a single root at z =  − 1 in its analysis low-pass stage, being therefore adequate for comparison due to its simplicity of representation. Figure 5 shows the zero map for the designed low-pass filters. Those simulations were performed using MATLAB® software.

Fig. 4
figure 4

a Haar scaling function. b Haar mother wavelet. c Designed scaling function. d Designed mother wavelet

Fig. 5
figure 5

Roots of designed low-pass filters in analysis and synthesis steps. The multiplicity of roots at z =  − 1 for each stage (1 for analysis and 7 for synthesis) is pointed out in the figure

The designed synthesis low-pass or high-pass filters could be used in circuit theory, since their roots are known. This is a noticeable advantage in comparison to other filtering methods, based uniquely on the frequency response modeling. Within this method, both filter response and location of roots are performed, allowing a more flexible circuit synthesis. The frequency response for the synthesis low-pass stage is shown in Fig. 6 (normalized for unitary gain at Ω = 0 rad/sample), in comparison to a second-order continuous-time low-pass filter with cutoff frequency of 1 kHz, converted to its digital form by bilinear transformation, and, for instance, to a windowed FIR filter—a typical filter in circuit synthesis [36].

Fig. 6
figure 6

Frequency response for the proposed low-pass filter, compared to a continuous-time low-pass filter after digitization

Figure 7 shows the frequency response in decibel for each filter tested in Fig. 6, when compared to an ideal digital low-pass filter. These results indicate that the proposed algorithm presents better performance than other filtering methods: at Ω = π/2  rad, the frequency response of the proposed filter shows a stable behavior with lower attenuation, while presenting a fast convergence to zero at higher frequencies (Ω = π  rad). Several sets of zeros were tested to factorize the product filter, being selected the one with the best signal energy balance, using a few filter coefficients.

Fig. 7
figure 7

Frequency response absolute values (in decibels) for the proposed filter design, compared to a digitized continuous-time low-pass filter. The relative amplitude is varied from zero to unity

Figure 8 shows that the proposed wavelet filter bank ensures high stop-band attenuation, despite its simpler implementations when compared to typical filter design methods [38, 39]. Finally, the filter developed here is compared to other wavelet filters, in order to validate the design method. Figure 8 shows the frequency response of the designed synthesis low-pass filter, when compared to others obtained from alternative wavelet functions, such as the Haar and ‘orthogonal db8’ (Daubechies) ones [11, 12]. The proposed algorithm is well suited to behave as a good window function in several signal processing applications, showing a higher to accurately resolve noise and distortion components in the frequency spectrum, emphasizing the performance of the proposed model as that is measured by the behavior of the frequency response of the whole filter bank.

Fig. 8
figure 8

Frequency response of synthesis low-pass filters for different mother wavelet functions

The present strategy shows that the concept of wavelets can be explored in the context of circuit theory applications and becomes an additional model to be compared to other well-established filters [40,41,42,43,44,45,46], as it can bring out the orthogonal and the multiresolution properties of the wavelet, improving the efficiency of the calculations. As minor disadvantages, this technique requires a pre-processing of the signals to be filtered in the wavelet domain, such as symmetric extension (a mandatory procedure in wavelet filter design [47,48,49,50,51,52]).

6 Conclusions

In summary, the use of wavelet filter banks in circuit theory allows the implementation of simple filter stages, in terms of the practical formulation involved in that task. The separation of signals into low- and high-frequency values is noticeably efficient, as the energy of the signals involved could be properly partitioned. Nevertheless, the implementation of spectral factorization to wavelet filter design is adequate to build fast and simple filter circuits, in the sense that the design approach based on the multiplicity of roots at z =  − 1 is shown to be elegant and efficient, combining mathematical consistency and good performance. Additionally, the good approximation obtained by wavelets for high-frequency components encourages the proposition of filter schemes in power electronics circuits, where drastic switching procedures are observed. Nevertheless, this filter design method is significantly effective in obtaining a fast transition out of the passband in the frequency domain, as well as the numerical efficiency of wavelets makes the method effective for fast and reliable numerical circuit simulations, despite its mathematical simplicity. The use of wavelets is also preferable in comparison to other filtering schemes, due to the easy time-frequency duality [48]. This shows the relevant contribution of the proposed filter, as other windowing functions do not offer enough side-lobe attenuation to be used in filtering applications. As a future development, optimization approaches could be considered for comparison, since they are not included in such analysis due to the fact they produce high computational effort for implementation, like many other IIR filter schemes.
