Research on the micromotion characteristics of a chaff cloud

Abstract

This paper reports the investigation on the micromotion characteristics of chaff dipoles and a chaff cloud. Micromotion models of chaff dipoles and steady-state chaff clouds are discussed. Fourier transform method and time-frequency method are used to study the micromotion features of chaff dipoles, in the energy domain and time-frequency domain, respectively. Based on the characteristic parameters in these two domains, the simulation results show that there are micro-Doppler frequency components in the echo signals from chaff dipoles, and these frequency components vary periodically. Then, the micro-Doppler frequencies of chaff cloud are obtained based on the method of multipoint synthesis. Finally, the experimental results of chaff dipoles dispersion verify the micromotion characteristics of chaff dipoles and chaff cloud obtained by using the empirical mode decomposition method and the short-time Fourier transform method.

1 Introduction

Chaff cloud, which consists of a large number of chaff dipoles and possesses the reflection characteristics of large bandwidth, high density, and high power, has played an important role in electronic warfare. Releasing chaff cloud by chaff bombs is an effective deception interference measure for certain types of radar systems. Therefore, the technique of classifying chaff cloud and targets (such as missiles and aircrafts) for radar systems faces critical challenge [1,2,3]. It is well known that radar targets usually have micromotion characteristics that can be used to classify different targets [4]. Thus, we could study the micromotion characteristics of the chaff cloud to make a foundation for chaff cloud classification.

First of all, the micromotion models of radar targets are generally built in order to obtain the micromotion characteristics. Chen et al. [4] proposed two basic micromotion models, including the rotation and the oscillation. Then on that basis, Deng et al. [5], Li et al. [6], and Persico et al. [7, 8] proposed the micromotion models of several kinds of radar targets, such as aircrafts, ships, and missiles, respectively.

Thus, the different micro-Doppler frequencies of different targets could be extracted from these above models. The time-frequency analysis [9] including the short-time Fourier transform (STFT) and the Wigner-Ville distribution is the simpler method to extract micro-Doppler frequency, and the adaptive chirplet representation [10] is a senior extraction algorithm. Subsequently, Li et al. [11] proposed an orthogonal matching pursuit algorithm to extract the micro-Doppler frequencies.

Then, the different classification technologies based on the micro-Doppler frequencies have been developed. Clemente et al. [12], Bai et al. [13], and Kim et al. [14] proposed the pseudo-Zernike moment method, the empirical mode decomposition (EMD), and the support vector machine (SVM), respectively.

However, the scholars did not study the micromotion characteristics of chaff clouds. The previous research on the characteristics of chaff clouds has involved three aspects: the aerodynamic characteristics [15], the statistical characteristics [16, 17], and the echo characteristics [18,19,20]. Brunk et al. [15] proposed a spiral descent motion model of a single chaff dipole by a lot of experiments. James et al. [16] modified the operational hydrometeor classification algorithm (HCA) for the WSR-88D weather radar to include a chaff class that can be used as an input to a chaff detection algorithm. The research on the echo characteristics of chaff clouds has involved three aspects: the Doppler, the pulse-pulse correlation, and the depolarization research [18,19,20].

In view of the above analysis, the aim of this paper is to demonstrate that chaff dipoles and chaff clouds have micro-Doppler effects that can be used to carry out preliminary theoretical research for identifying targets and chaff clouds. After the spiral motion model of chaff dipoles is studied and extended through dynamic analysis, a new micromotion model of chaff dipoles is proposed, which is defined in terms of precession micromotion. Then, the micro-Doppler frequencies of chaff dipoles are obtained. Furthermore, the micro-Doppler frequencies of a chaff cloud are obtained based on the method of chaff dipoles multipoint synthesis. The remainder of this paper is structured as follows: in Section 2, the precession model is given by the dynamic characteristics of the chaff dipoles. In Section 3, based on the theory of the micromotion characteristics of a single chaff dipole, the micro-Doppler frequency features of a chaff cloud are quantified by the multipoint synthesis method. A numerical solution of the micro-Doppler frequency of a chaff cloud is given, and the time-frequency spectrum and the energy spectrum of the chaff cloud are obtained. In Section 4, the experimental results of a chaff dipole dispersion experiment verify the accuracy of the above conclusions in Section 2 and Section 3. Finally, the conclusions are provided in Section 5.

2 Micromotion theoretical model

When tens of thousands of chaff dipoles with a small mass are thrown from an aircraft, a chaff cloud forms over time in the air. A chaff dipole has a certain initial precessional angular velocity as it is thrown. If the processing error of a chaff dipole is not considered so that its centroid is assumed to coincide with its shape center completely, gravity and atmospheric resistance do not produce a precession moment. Typically, the chaff dipoles move at a constant angular velocity. Under this assumption, the motion of a chaff cloud in a radar coordinate system is approximately the uniform linear motion, defined by a chaff cloud steady-state model. Compared with the traditional micromotion of aircraft propellers [4], the essential difference in terms of micromotion feature is that the coordinate values of a chaff dipole vary with respect to each time-varying center, while a propeller rotates around a fixed center axis. Therefore, we need to analyze the micromotion characteristics of chaff dipoles and a chaff cloud in terms of coordinates, distances, elevations, and azimuths.

The steady-state model of a chaff cloud is generally a solid spherical or ellipsoidal model, in which the chaff cloud moves in a uniform straight line along a certain direction. The chaff dipoles are distributed randomly on a spherical surface or inside the spherical model. The spacing of the chaff dipoles should be larger than 2λ, so there is no coupling phenomenon [21]. The length of a single chaff dipole is lc = λ/2 according to the induction scattering theory [22]. The diameter d of a chaff dipole cross-sectional area is d <  < λ/2. The reference coordinate system is constructed by taking the center of the chaff cloud as the origin of the coordinate. In the reference coordinate system, the elevation angle and the azimuth angle of a single chaff dipole at the point P in the chaff cloud are defined as θ and φ, respectively. Figure 1 shows that r is the distance from the point P to the origin of the reference coordinate system. The reference position P can be expressed as [xp, yp, zp] in the reference coordinate system. After that, the radar coordinate system is constructed by taking the center of the radar system as the origin of the coordinate. In the radar coordinate system, the elevation angle and the azimuth angle of the chaff cloud are defined as β and α, respectively. Then, the reference position P can be expressed as [Xp, Yp, Zp] in the radar coordinate.

Fig. 1
figure 1

Position model of a single chaff dipole at point P

According to the Euler coordinate transformation formula [4], the position of a single chaff dipole in the radar coordinate system can be obtained as [Xp, Yp, Zp] = init [xp, yp, zp], where init is the Euler coordinate transformation matrix [4], which is the first step in quantifying the precession characteristics of a single chaff dipole relative to the radar.

The radar echo modulation caused by precession is a special modulation mechanism of the chaff dipoles because different echo modulations are produced by the target (e.g., an aircraft or a ship) due to the different states of motion. Figure 2 shows that the precessional motion can be considered as a combination of conical motion (Fig. 2a) and spin motion (Fig. 2b).

Fig. 2
figure 2

Progressive model of a single chaff dipole precession motion: a the conical motion of a chaff dipole and b a falling chaff dipole at a constant angular velocity

As shown in Fig. 1, the distance between a single precessing chaff dipole relative to the radar is as follows:

$$ \overrightarrow{Op}=\overrightarrow{r}+{\Re}_{\mathrm{precession}}\overrightarrow{r_d} $$
(1)

Thus, we can obtain the distance modulus at time t as \( {r}_p(t)=\left\Vert \overrightarrow{R\left({t}_1\right)}+\overrightarrow{r\left({t}_2\right)}+{\Re}_{\mathrm{precession}}\overrightarrow{r_d(t)}\right\Vert \kern0.2em \left(t={t}_1+{t}_2\right) \).

The parameters of Formula (1) are as follows:

  1. 1.

    \( \overrightarrow{r\left({t}_2\right)} \)–the coordinate vector of the point P in the reference coordinate system.

  2. 2.

    \( \overrightarrow{r_d(t)} \)–the precession radius of a single chaff dipole.

  3. 3.

    precession–the precession matrix of a single chaff dipole in the reference coordinate system.

  4. 4.

    \( \overrightarrow{R\left({t}_1\right)} \)–the vector of the chaff cloud center in the radar coordinate system.

  5. 5.

    t1–the time delay of the echo from the chaff cloud center point.

  6. 6.

    t2–the time delay from the chaff cloud center point to the reference point P.

We suppose that the radar transmits a single-frequency continuous-wave (CW) signal with a carrier frequency fc:

$$ p(t)=\exp \left(j2\pi {f}_ct\right) $$
(2)

After that, the echo signal of the scattering point P isFootnote 1:

$$ s(t)=\sigma \exp \left\{j2\pi {f}_c\left[t-\frac{2{r}_d(t)}{c}\right]\right\} $$
(3)

where rd(t) is the value of the real vector \( \overrightarrow{r_d(t)} \). A baseband transformation of s(t) results in:

$$ {s}_b(t)=\sigma \exp \left\{j2\pi {f}_c\frac{2{r}_d(t)}{c}\right\}=\sigma \exp \left\{ j\phi (t)\right\} $$
(4)

The parameters of Formula (4) are as follows:

  1. 1.

    ϕ(t)–the phase term, ϕ(t) = 2πfc (2rd(t)/c).

  2. 2.

    σ–the radar cross section (RCS) of the chaff dipole.

  3. 3.

    c–the velocity of light.

The Doppler frequency of the echo signal can be obtained by deriving the phase term with respect to time t:

$$ {\displaystyle \begin{array}{c}{f}_d=\frac{1}{2\pi}\frac{d\phi (t)}{d t}\\ {}=\frac{2{f}_c}{c}{\left[\frac{d\left({\Re}_{\mathrm{precession}}\overrightarrow{r_d(t)}\right)}{d t}\right]}^T\overrightarrow{n}\end{array}} $$
(5)

where the unit vector of \( \overrightarrow{Qp} \) is \( \overrightarrow{n}=\left(\overrightarrow{R(t)}+\overrightarrow{r(t)}+{\Re}_{\mathrm{precession}}\overrightarrow{r(t)}\right)/\left(\left\Vert \overrightarrow{R(t)}+\overrightarrow{r(t)}+{\Re}_{\mathrm{precession}}\overrightarrow{r(t)}\right\Vert \right) \), which is the coordinate vector of the point O in the radar coordinate system in Fig. 1.

When the chaff dipole is in the far field of the radar, \( \left\Vert \overrightarrow{R(t)}+\overrightarrow{r(t)}\right\Vert >>\left\Vert {\Re}_{\mathrm{precession}}\overrightarrow{r(t)}\right\Vert \); therefore, the unit vector of the line of sight of the radar is simplified to \( {\overrightarrow{n}}^{\prime}\approx \left(\overrightarrow{R(t)}+\overrightarrow{r(t)}\right)/\left\Vert \overrightarrow{R(t)}+\overrightarrow{r(t)}\right\Vert \). Then, the micro-Doppler frequency caused by the chaff dipole precession can be expressed as follows:

$$ {f}_{\mathrm{micro}\hbox{-} D}=\frac{2{f}_c}{c}{\left[\frac{d\left({\Re}_{\mathrm{precession}}\overrightarrow{r_d(t)}\right)}{dt}\right]}^T{\overrightarrow{n}}^{\prime } $$
(6)

Furthermore, the precession matrix precession can be expressed as a conical motion matrix con multiplied by a spin motion matrix spin.

$$ {\Re}_{\mathrm{precession}}={\Re}_{\mathrm{con}}\cdot {\Re}_{\mathrm{spin}} $$
(7)

According to the Rodrigues formula [14], the conical motion matrix con can be described as:

$$ {\Re}_{\mathrm{con}}=I+{\hat{\omega}}_{\mathrm{con}}\sin \left({\Omega}_{\mathrm{con}}t\right)+{\hat{\omega}}_{\mathrm{con}}^2\left[1-\cos \left({\Omega}_{\mathrm{con}}t\right)\right] $$
(8)

Here,

  1. 1.

    Ωcon–the angular velocity of the conical motion.

  2. 2.

    \( {\hat{\omega}}_{\mathrm{con}} \)–the oblique symmetric matrix of the conical motion.

$$ {\hat{\omega}}_{\mathrm{con}}=\left[\begin{array}{ccc}0& -\sin \theta & \sin \varphi \cos \theta \\ {}\sin \theta & 0& -\cos \varphi \cos \theta \\ {}-\sin \varphi \cos \theta & \cos \varphi \cos \theta & 0\end{array}\right] $$
(9)

Similarly, the spin matrix spin can be expressed as:

$$ {\Re}_{\mathrm{spin}}=I+{\hat{\omega}}_{\mathrm{spin}}\sin \left({\Omega}_{\mathrm{spin}}t\right)+{\hat{\omega}}_{\mathrm{spin}}^2\left[1-\cos \left({\Omega}_{\mathrm{spin}}t\right)\right] $$
(10)

Here,

  1. 1.

    Ωspin–the angular velocity of the spin motion.

  2. 2.

    \( {\hat{\omega}}_{\mathrm{spin}} \)–the oblique symmetric matrix of the spin motion.

$$ {\hat{\omega}}_{\mathrm{spin}}=\left[\begin{array}{ccc}0& -{\omega}_z^{\prime }& {\omega}_y^{\prime}\\ {}{\omega}_z^{\prime }& 0& -{\omega}_x^{\prime}\\ {}-{\omega}_y^{\prime }& {\omega}_x^{\prime }& 0\end{array}\right] $$
(11)

Here,

  1. 1.

    Tc–the spin axis, Tc = (xc, yc, zc).

  2. 2.

    ωc–the spin frequency.

Thus, \( {\omega}_x^{\prime }=2{\pi \omega}_c{x}_c \), \( {\omega}_y^{\prime }=2{\pi \omega}_c{y}_c \), and \( {\omega}_z^{\prime }=2{\pi \omega}_c{z}_c \).

Taking a single chaff dipole as a scattering point, the reference coordinate system will be moved to a new position in the radar coordinate system according to \( {\Re}_{\mathrm{init}}\cdot \overrightarrow{r_d(t)} \). Referring to the radar coordinate system (X, Y, Z), the scattering point P will move from its initial position to a new position \( \overrightarrow{r_p(t)}={\Re}_{\mathrm{precession}}\cdot {\Re}_{\mathrm{init}}\cdot \overrightarrow{r_d(t)} \) at time t. The micro-Doppler modulation of the scattering point P due to precession can be expressed as follows:

$$ {\displaystyle \begin{array}{c}{f}_{\mathrm{micro}\hbox{-} \mathrm{D}}=\frac{2{f}_c}{c}{\left[\frac{d\left({\Re}_{\mathrm{precession}}\cdot {\Re}_{\mathrm{init}}\cdot \overrightarrow{r_d(t)}\right)}{dt}\right]}^T{\overrightarrow{n}}^{\prime}\\ {}=\frac{2{f}_c}{c}{\left[\left(\frac{d\Re_{\mathrm{con}}}{dt}\cdot {\Re}_{\mathrm{spin}}+\frac{d\Re_{\mathrm{spin}}}{dt}\cdot {\Re}_{\mathrm{con}}\right)\cdot {\Re}_{\mathrm{init}}\cdot \overrightarrow{r_d(t)}\right]}^T{\overrightarrow{n}}^{\prime}\end{array}} $$
(12)

3 Simulation discussion and results

Based on the above theoretical derivation, the micromotion characteristics of a chaff cloud are further analyzed. It is assumed that all the chaff dipoles in the chaff cloud are the same type (the materials, lengths, and diameters are the same). When the chaff cloud is stable in the radar coordinate system (where the chaff cloud motion approximately obeys the uniform linear motion), all the chaff dipoles can be considered to characterize the precessional motion at the same constant angular velocity. Figure 3 shows that a solid spherical chaff cloud model is constructed. The radius of the chaff cloud is 8 m, and the center point of the chaff cloud is (100, 500, 500) in the radar coordinate system. Then, the chaff cloud drops uniformly along the Z-axis of the radar coordinate system (i.e., the relative velocity of the movement between the radar and the chaff cloud in the radial direction is 0). Furthermore, the Euler transformation angle of the reference coordinate system is set to (π/6, π/6, π/4).

Fig. 3
figure 3

A solid spherical steady-state model of the chaff cloud

Finally, there are 25,920 chaff dipoles randomly distributed in the cloud model. The length of a single chaff dipole is 0.25 cm, and the cross-sectional diameter d of a chaff dipole is d = 25μm. Since it is assumed that the radar transmitting wavelength is 0.5 cm, the spacing of each chaff dipole dc satisfies the formula dc ≥ 1  cm, where dc ≥ 2λ satisfies the uncoupled condition. Figure 4 shows the xy and xz cross-sections of the chaff cloud.

Fig. 4
figure 4

The xy and xz cross sections of the chaff cloud: a the x-y cross section, b the x-z cross section

According to the theory of the precession model of the chaff dipoles and assuming a conical angular velocity Ωcon = 12  rad/s and a spin angular velocity Ωspin = 3  rad/s, we introduce Ωcon and Ωspin into Formulas (8) and (10). Based on the method of multipoint synthesis (where the real target echo is obtained by superimposing the corresponding signals of each scattering point when the relative positions, scattering intensities and phases of the corresponding echo signals are different), the micro-Doppler frequency of a single chaff dipole in the chaff cloud is calculated and simulated based on the short-time Fourier transform, as shown from Figs. 5, 6, and 7.

Fig. 5
figure 5

Micro-Doppler frequency of single chaff dipoles with different elevation angles (in the reference coordinates): a θ = 15, φ = 30, dr = 722 m, b θ = 45, φ = 30, dr = 722 m, and c θ = 75, φ = 30, dr = 722 m

Fig. 6
figure 6

Micro-Doppler frequency of single chaff dipoles with different azimuths (in the reference coordinates): a θ = 30, φ = 60, dr = 722 m, b θ = 30, φ = 120, dr = 722 m, and c θ = 30, φ = 180, dr = 722 m

Fig. 7
figure 7

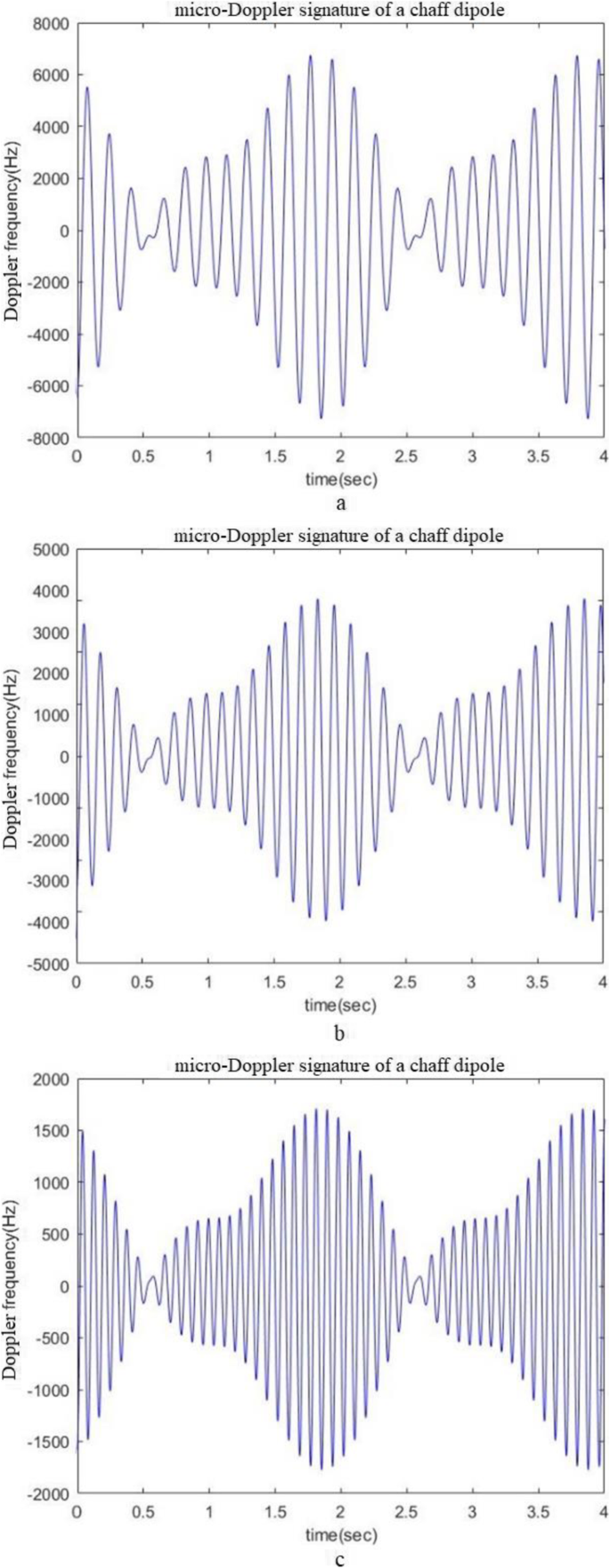

Micro-Doppler frequency of single chaff dipoles with different ranges (in the radar coordinate system): a θ = 30, φ = 30, dr = 706 m, b θ = 30, φ = 30, dr = 709 m, and c θ = 30, φ = 30, dr = 716 m

Figure 5a–c shows the three scattering points (the chaff dipoles at three points a, b, and c) selected randomly in the chaff cloud have the same distance dr (in the radar coordinate system), the same azimuth φ, and different elevations θ (in the reference coordinate system). In contrast, from Fig. 5a–c, we can see that the chaff dipoles produce micro-Doppler frequencies with different bandwidths at different times and that the absolute range of the bandwidth is 4 to 20 kHz through Formula (12). All the periods of the envelopes of the transient bandwidth of the micro-Doppler frequency in different situations are consistent with the angular frequency of the spin motion, fenvelope = 0.494 Hz. It is worth noting that since the angular velocity is a counterclockwise precession of the chaff dipole, the bandwidth of the micro-Doppler frequency is positive; otherwise, a negative bandwidth indicates a clockwise precession of the chaff dipole.

Figure 6a–c shows the three scattering points selected randomly in the chaff cloud have the same distance dr (in the radar coordinate system), the same elevation θ, and different azimuths φ (in the reference coordinate system). In contrast, from Fig. 6a–c, we can see that the chaff dipoles produce the micro-Doppler frequencies with different bandwidths at different times, and the absolute range of the bandwidth is 15 to 30 kHz through Formula (12). All the periods of the envelopes of the transient bandwidth of the micro-Doppler frequency in different situations are consistent with the angular frequency of the spinning, fenvelope = 0.494 Hz. Ultimately, the changes in the elevation θ and the azimuth φ have the same effect on the micro-Doppler frequency of the chaff dipoles.

Figure 7a–c shows the three scattering points selected randomly in the chaff cloud have different distances dr (in the radar coordinate system), the same elevation θ, and the same azimuth φ (in the reference coordinate system). In Fig. 7, all the periods of the envelopes of the transient bandwidth of the micro-Doppler frequency in different situations are consistent with the angular frequency of the spinning, fenvelope = 0.494 Hz. However, in contrast, in Fig. 7a–c, we can see that the period change of the micro-Doppler frequency of the chaff dipoles is faster when the range of the transient bandwidth of the micro-Doppler frequency is smaller. The reason for this phenomenon is that the distances between the chaff dipoles and radar increase, so we can conclude that the change in distance greatly affects the micro-Doppler frequency.

By comparing Figs. 5, 6, and 7, the following conclusions can be obtained: (1) because each chaff dipole spins at the same constant angular velocity, the envelope of the transient bandwidth of the micro-Doppler frequency generated by the chaff dipoles has the same modulation period regardless of whether the distances, the azimuths, and the elevation angles are the same or not; (2) when both of the chaff dipoles and the radar system are in the same line (i.e., have the same azimuth angles β and the same elevation angles α), the period change of the micro-Doppler frequency of the chaff dipoles increases with the distances between the chaff dipoles and the radar system increasing, while the range of the transient bandwidth of the micro-Doppler frequency decreases. The farther the chaff dipole is from the center of the radar system, the more remarkable the chaff dipole micromotion effect is.

Based on the method of multipoint synthesis, it is known that the micro-Doppler spectrum of the chaff cloud echo signal is a set of micro-Doppler frequencies of echoes from all chaff dipoles. Thus, the micro-Doppler frequency of the chaff cloud is obtained by the micro-Doppler frequencies of the chaff dipoles, which can be expressed as

$$ \exp \left(j2\pi {f}_{C\_\mathrm{micro}\hbox{-} \mathrm{D}}t\right)=\exp \sum \limits_{k=1}^K\left(j2\pi {f}_{k\_\mathrm{micro}\hbox{-} \mathrm{D}}t+{\theta}_k\right) $$
(13)

The parameters of Formula (13) are as follows:

  1. 1.

    fk _ micro ‐ D–the micro-Doppler frequency of the kth chaff dipole.

  2. 2.

    θk–the initial phase of the kth chaff dipole echo.

  3. 3.

    K is the number of chaff dipoles.

Figure 8 shows the micro-Doppler spectrum of the chaff cloud. From the figure, we can see that the micro-Doppler frequency of the chaff cloud varies periodically like a single chaff dipole, and the maximum absolute value of the bandwidth of the micro-Doppler frequency of the chaff cloud is 46.1 kHz. Therefore, we can draw a conclusion that chaff clouds have periodical variation of micro-Doppler frequencies, and the period is decided by the vector sum of fk _ micro ‐ D(k = 1, , K).

Fig. 8
figure 8

Time-frequency spectrum of the micro-Doppler frequency of a chaff cloud

The complex envelope (assumed to be θk = 0) of the chaff cloud echoes based on multipoint synthesis can be expressed as:

$$ z(t)=\sum \limits_{k=1}^K{a}_k\exp \left(j2\pi {f}_{k\_\mathrm{micro}\hbox{-} \mathrm{D}}t\right) $$
(14)

The parameters of Formula (14) are as follows:

ak\( {a}_k=\frac{1}{2}{U}_{k\_t}{U}_{k\_r}=\sqrt{\sigma_k}/{R}_k^2\cdot \varepsilon \).

Uk _ t–the amplitude of the transmitting signal

Uk _ r–the amplitude of the echo signal

σk–the RCS of the kth chaff dipole

Rk–the distance between the kth chaff dipole and the radar system

ε\( \varepsilon =\frac{1}{2}{U}_{k\_t}\cdot {F}_t\left(\Theta \right){F}_r\left(\Theta \right)\cdot \lambda \sqrt{P_t{D}_t{D}_r{R}_{\Sigma}}/4\pi \sqrt{\pi } \)

Pt–the parameters are the power of the transmitting signal

Dt–the directivity coefficient of the transmitting antenna

Dr–the receiving antenna

Ft(Θ)–the direction function of the transmitting antenna

Fr(Θ)–the receiving antenna

According to the induction scattering theory, the effective RCS \( \overline{\sigma} \) of a chaff dipole can be expressed as [3]:

$$ \overline{\sigma}=0.86{\lambda}^2{\cos}^4\gamma $$
(15)

where γ is the angle between the electric field direction of the radar signal and the axis of the chaff dipole, as shown in Fig. 9.

Fig. 9
figure 9

The resonance angle γ

After Formula (15) is substituted into Formula (14), the energy spectrum of the micro-Doppler frequency of the chaff cloud is calculated and simulated by time-frequency analysis. Figure 10a shows the normalized energy spectrum of the micro-Doppler frequency of the chaff cloud. In Fig. 10b, the amplitude of the micro-Doppler frequency satisfies the Rayleigh distribution, which coincides with the conclusion in the reference [22]. The micro-Doppler spectrum is further analyzed. The pulse repetition period of pulsed radar determines the sampling rate. When the maximum value of the micro-Doppler frequency is 46.1 kHz, the minimum sampling rate is 92.2 kHz and the pulse repetition period is 10 μs. Figure 11a shows the micro-Doppler spectrum with a 4096 points/s sampling rate. The periodicity of the chaff cloud micro-Doppler frequency begins to appear, but it is incomplete; Fig. 11b shows the result with a 10,240 points/ s sampling rate.

Fig. 10
figure 10

Micro-Doppler spectrum of the chaff cloud: a the energy spectrum of the chaff cloud and b the echo amplitude of the chaff cloud

Fig. 11
figure 11

Micro-Doppler spectrum of the chaff cloud with different sampling rates: a 4096 points/s sampling rate and b 10240 points/s sampling rate

4 Experimental results

In this section, experimental trials are conducted to investigate and calculate the micro-Doppler features of a chaff cloud using a C-band transmitted signal. Then, the data collection is performed.

The balloon employed in the experiment throws chaff dipoles above the ground at a height of 1.5 m through a bracket at a range of 2.5 m from the transmitting and receiving antennas. The measurement system for this experiment includes a signal generator, data logger, host computer, a transmitting antenna, and a receiving antenna. The experimental procedure is as follows: a balloon full of the chaff dipoles is punctured with a bamboo arrow so that the chaff dipoles are dispersed into the air. Figure 12 shows the balloon throwing device. To accurately measure the chaff dipole echo, the transmitting antenna (horn antenna) and the receiving antenna (horn antenna) are placed in parallel with the chaff cloud, and the antennas are separated by absorbing materials. In this scenario, the signal generator can generate an arbitrary frequency (C-band in this experiment) and an arbitrary waveform signal (linear frequency modulation (LFM) pulse in this experiment). The measurement system receives an echo signal from the receiving antenna when the signal is transmitted from the signal generator at the same time. Then, the system processes and records the experimental data. By using a host computer that can monitor the entire test system, the data can be analyzed, and the experimental results can be shown in a time-frequency diagram.

Fig. 12
figure 12

Chaff dipole dispersion experiment: a chaff dipoles thrown from a balloon, and b the chaff dipole dispersion distribution

According to the experimental results, the data that include the movement characteristics of the chaff dipoles and chaff cloud are selected for analysis. To conveniently describe the development of chaff clouds, the instantaneous time of the bamboo arrow piercing the balloon is set to time 0. The experimental image in Fig. 12 shows that approximately 20 g of chaff dipoles passed through several stages after the balloon burst, as the emergence of the chaff dipoles from the balloon, chaff dipoles separation, and chaff cloud deposition.

To demonstrate the procedure of micro-Doppler analysis, the results of the trial are presented. First, a Fourier transform of the original radar returned data is computed, and the obtained image is shown in Fig. 13. As seen from the image, a main frequency bin with a large amplitude exists in the middle of the spectrum representing the chaff cloud radial motion. Surrounding this frequency bin, one can observe other side peaks representing the frequency of the chaff dipoles. The micro-Doppler features are extracted by using the EMD method as described below.

Fig. 13
figure 13

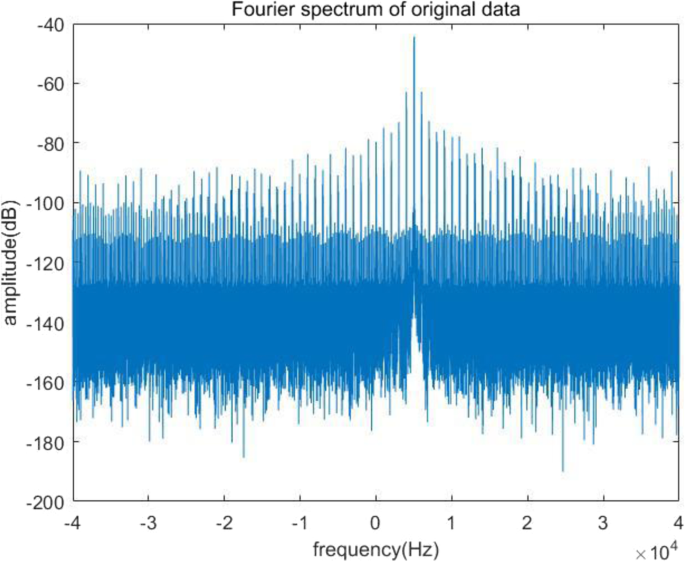

Spectrum of the original signal echo

The EMD algorithm consists of two parts. The first part is the intrinsic-mode functions (IMFs), which decomposes the real-valued signal into a finite number of IMFs. The second part is the calculation of the Hilbert spectrum, in which the analytical signal for each IMF is obtained via Hilbert transform. Then, the distribution of energy-frequency-time can be reconstructed from the original signal. Figure 14 shows the data analysis procedure. First, all the local extremum points of the signal x(t) are determined. Next, the local maximum upper envelope p(t) and the local minimum lower envelope q(t) are fitted by a cubic spline difference. The mean of the upper and lower envelope curve m(t) = (p(t) + q(t))/2 is taken as the mean envelope of the signal x(t). Second, the high-frequency sequence h(t) is obtained by subtracting the mean m(t) from x(t), h(t) = x(t) − m(t). According to the above rules, the steps are repeated until the stopping condition of the sifting IMF component is satisfied, SD  (0.2, 0.3) [23]. Then, the first IMF component c1(t) is obtained. Finally, the new signal r1(t) is obtained by subtracting c1(t) from x(t), and the process is repeated until the last rn(t) cannot be decomposed so that all IMFs can be obtained. After the EMD of the original signal x(t), the IMFs ci(t)(i (1, 2, …, n)) with a frequency range from high to low and the remainder rn(t) are obtained.

Fig. 14
figure 14

EMD flowchart

Thus, the original signal can be expressed as a sum of IMFs and the remainder.

$$ x(t)=\sum \limits_{i=1}^n{c}_i(t)+{r}_n(t) $$
(16)

where the threshold is defined as [23].

$$ SD=\sum \limits_{t=0}^T\left[\frac{\left|{h}_{i-1}(t)-{h}_i(t)\right|}{{h_i}^2(t)}\right] $$
(17)

The subscript denotes the ith sifting process.

Figure 15 shows the EMD results. In this figure, the micro-Doppler spectrum is decomposed into a series of IMFs. In the IMF data, imf 1 mainly consists of a high-frequency signal. Meanwhile, the signals of imf 2~imf 5 have the largest energy, and the signal amplitude varies dramatically. The remaining imf 6, imf 7, and res mainly consist of low-frequency signals.

Fig. 15
figure 15

EMD results of the micro-Doppler spectrum of the chaff cloud

The next step in the procedure is to employ time-frequency analysis to depict the micro-Doppler changes and to estimate the motion parameters of the chaff dipoles. The time-frequency feature of the EMD signals obtained by using the STFT is given in Fig. 16. The chaff dipoles are observed as the periodic variation at 0 Hz on the frequency axis by filtering the chaff cloud Doppler frequency, which is caused by radial motion in radar using the EMD method. Note that image intensity scales are normalized. The period of the strong flashes is the precession period of unexpanded chaff dipole cluster. By comparing Fig. 16 and Fig. 10, we can see that the theoretical data and experimental data have similar micromotion features. In Fig. 16, the energy of the chaff cloud satisfies the Rayleigh distribution, and the micro-Doppler frequency of the chaff cloud varies periodically. The difference is caused by the incompletely expanded chaff dipoles in the experiment.

Fig. 16
figure 16

Time-frequency signatures of the precession from the chaff cloud

5 Conclusion

In this paper, we obtained a precession model of chaff dipoles and a steady-state model of a chaff cloud. In these models, the position model of a single chaff dipole is deduced by the Euler coordinate transformation; the precession model is given by the dynamic characteristics of the chaff dipole. Furthermore, based on the theory of the micromotion characteristics of a single chaff dipole, the micro-Doppler frequency characteristics of a chaff cloud are quantified by multipoint synthesis method. Finally, a numerical solution of the micro-Doppler frequency of the chaff cloud is shown as a time-frequency spectrum of the chaff cloud. Through a quantitative analysis of the micro-Doppler frequency characteristics of the chaff cloud, the following conclusions can be drawn. (1) Because each chaff dipole moves precessionally at the same constant angular velocity, the envelope of the transient bandwidth of the micro-Doppler frequency generated by the chaff dipoles has the same modulation period regardless of whether the distances, the azimuths, and the elevation angles are the same or not. (2) When both of the chaff dipoles and the radar system are in the same line (i.e., have the same azimuth angles β and the same elevation angles α), the period change of the micro-Doppler frequency of the chaff dipoles increases with the distances between the chaff dipoles and the radar system increasing, while the range of the transient bandwidth of the micro-Doppler frequency decreases. (3) Chaff clouds have periodically varying micro-Doppler frequencies, and this period is determined by the vector sum of the micro-Doppler frequencies of all the chaff dipoles; (4) the amplitude of the micro-Doppler frequencies of the chaff cloud satisfies the Rayleigh distribution.
