Performance evaluation of the maximum complex correntropy criterion with adaptive kernel width update

Article metrics

  • 268 Accesses

Abstract

The complex correntropy is a recently defined similarity measure that extends the advantages of conventional correntropy to complex-valued data. As in the real-valued case, the maximum complex correntropy criterion (MCCC) employs a free parameter called kernel width, which affects the convergence rate, robustness, and steady-state performance of the method. However, determining the optimal value for such parameter is not always a trivial task. Within this context, several works have introduced adaptive kernel width algorithms to deal with this free parameter, but such solutions must be updated to manipulate complex-valued data. This work reviews and updates the most recent adaptive kernel width algorithms so that they become capable of dealing with complex-valued data using the complex correntropy. Besides that, a novel gradient-based solution is introduced to the Gaussian kernel and its respective convergence analysis. Simulations compare the performance of adaptive kernel width algorithms with different fixed kernel sizes in an impulsive noise environment. The results show that the iterative kernel adjustment improves the performance of the gradient solution for complex-valued data.

Introduction

The correntropy consists in a similarity measure based on Rényi entropy capable of extracting high-order statistical information from real-valued data [1]. This is why it has been widely used as a cost function in optimization problems such as adaptive filtering in an approach called maximum correntropy criterion (MCC), thus providing better performance than second-order methods in non-Gaussian noise environments [26]. Recently, the correntropy concept has been extended to complex-valued random variables using the maximum complex correntropy criterion (MCCC)[7, 8].

Both MCC and MCCC employ a free parameter called kernel width or kernel size. It essentially controls the nature of the performance surface over which the system parameters are adapted, as it has important effects on distinct aspects, e.g., convergence speed, presence of local optima, and stability of weight tracks [9]. Since the task of obtaining an optimum value for this parameter is time consuming and not trivial, a series of adaptive kernel width algorithms has been proposed in order to choose a proper value for this parameter at each iteration in optimization problems.

An algorithm called adaptive kernel width MCC (AMCC) was proposed in [10] aiming to improve the learning speed, especially when the initial weight vector is far from being optimal. Another method called switch kernel width method of correntropy (SMCC) in [11] updates the kernel width based on the instantaneous error between the estimate and the desired signal in order to adjust such parameter for each iteration. Recently, the technique developed in [12] called variable kernel width-maximum correntropy criterion (VKW-MCC) has been suggested as a solution capable of searching for the best kernel width at each iteration, thus implying reduced error. This strategy is able to provide fast convergence rate and stable steady-state performance. All the aforementioned algorithms were proposed for real-valued data. However, literature apparently does not present any work that evaluates the application of adaptive kernel width algorithms involving complex-valued data.

This paper updates the most recently adaptive kernel width algorithms in order to deal with complex-valued data. Besides that, Wirtinger calculus is applied to propose a novel gradient-based solution to Gaussian kernels using the complex correntropy as a cost function. A convergence analysis of the gradient-based algorithm is presented, as well as simulations comprising a comparative analysis regarding the performance of all adaptive kernel width algorithms in an impulsive noise environment. The results show that the novel adaptive kernel methods improve the performance of the gradient solution for complex-valued data considering the channel identification scenario of a 16-QAM (quadrature amplitude modulation) modulation signal.

The remainder of the paper is organized as follows. Section 2 reviews the complex correntropy function concepts and its use as a cost function to define a new ascendant gradient solution. Section 3 provides the analysis of each adaptive kernel width algorithm evaluated in this study updating its strategy to deal with complex-valued data. Section 4 presents simulations to analyze the performance of the proposed methods and compared it with classical solution from the literature. Finally, Section 5 discusses the main contributions and results regarding the study developed in this work.

Methods

Complex correntropy

Recently, the correntropy function was extended to the case of complex-valued data. This approach is called complex correntropy and is defined as [7]:

$$ V^{c}_{\sigma}(Q,B) = E[\kappa_{\sigma}(Q,B)], $$
(1)

where κσ(·) is any positive-definite kernel with kernel width σ, and Q,B are complex random variables. E[ · ] is the expected value operator.

The work presented in [8] demonstrated that the complex correntropy generalizes the regular correntropy concept to complex-valued data while keeping important properties such as symmetry, bounded, high-order statistical measure, and a probabilistic meaning, specially when the complex Gaussian kernel, defined in (2) is used.

$$ G^{c}_{\sigma}(q - b) = \frac{1}{2\pi\sigma^{2}} \exp \left(-\frac{(q-b)(q-b)^{*}}{2\sigma^{2}}\right), $$
(2)

where (·) is the complex conjugate operator.

Let q(negrito) and b(negrito) columns vectors with N complex-valued samples of the random variables Q and B. Then, using the complex Gaussian Kernel, one can estimates the complex correntropy between Q and B as

$$ \hat{V}^{c}_{\sigma}(Q,B)=\frac{1}{2\pi\sigma^{2}}\frac{1}{N}\sum_{i=1}^{N}\exp\left(-\frac{(q{_{i}} - b_{i})(q_{i} - b_{i})^{*}}{2\sigma^{2}}\right). $$
(3)

Maximum complex correntropy criterion (MCCC)

The use of the complex correntropy as a cost function was first proposed in [7] to solve a linear system identification problem. The goal is to maximize the complex correntropy between a desired complex signal \(\mathbf {{d}} \in \mathbb {C}^{N}\) and the estimated system output y=wHx, where \(\mathbf {w} \in \mathbb {C}^{N}\) is a complex column vector representing the system weights and \(\mathbf {X} \in \mathbb {C}^{N \times M}\) is the system input. [·]H=([·]T) is the Hermitian operator. Summarizing, let JMCCC be the cost function

$$ {}\begin{aligned} J_{MCCC} &= V^{c}_{\sigma}(d,y) = E\left[G^{c}_{\sigma}(d,y)\right]\\ &= \frac{1}{2\pi\sigma^{2}}\frac{1}{L}\sum_{i=1}^{N}\exp\left(-\frac{(d_{i} -y_{i})(d_{i} - y_{j})^{*}}{2\sigma^{2}}\right) \\ &= \frac{1}{2\pi\sigma^{2}}\frac{1}{L}\sum_{i=1}^{N}\exp\left(-\frac{(d_{i} - \mathbf{w}^{H} \mathbf{x}_{i})(d_{i} - \mathbf{w}^{H} \mathbf{x}_{i})^{*}}{2\sigma^{2}}\right), \end{aligned} $$
(4)

which needs to be maximized. xi is the ith column of the input matrix X. This would lead to maximization of the similarity between y and d, causing the error e=dy to zero. This approach is called maximum complex correntropy criterion (MCCC). Figure 1 summarizes a system identification problem in which the MCCC was successful applied in [7]. The MCCC has been also applied to a channel equalization problem [8], but always employing a fixed-point solution algorithm. This approach depends on a matrix inversion, and this operation is sometimes unavailable or the increase in the computational cost is not ideal [13]. Furthermore, the gradient solution will always provide the solution with the least norm, which may be useful in some scenarios [14]. Besides that, all the adaptive kernel size algorithms mentioned in this work employ the gradient solution, which still needs to be introduced in the MCCC (Additional file 1).

Fig. 1
figure1

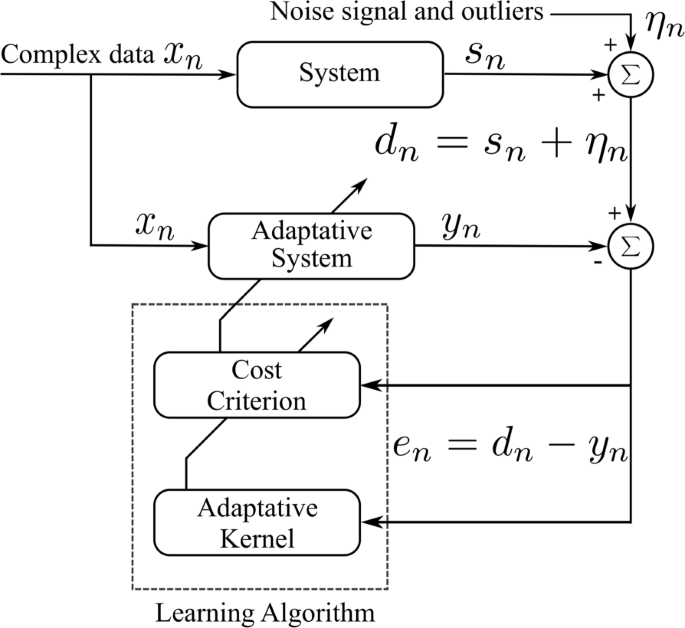

Block diagram of the system identification problem

So, in order to obtain the update rule, it is possible to write:

$$ \mathbf{w}_{n+1} = \mathbf{w}_{n}+ \mu \bigtriangledown J_{n}, $$
(5)

where μ is the step size.

To obtain Jn, the most obvious choice would be differentiating Eq. 4 with respect to w. However, Eq. 4 depends on complex-valued parameter (d,y), although it is always a real-valued function when the complex Gaussian kernel from Eq. (2) is applied [15]. This violates the Cauchy-Riemann conditions, thus making the gradient function not analytical in the complex domain [16]. Hence, standard differentiation cannot be applied. One possible alternative to overcome this problem is to consider the cost function defined in the Euclidean domain with double dimensionality \((\mathbb {R}^{2})\), although this approach leads to onerous computations [17]. The Wirtinger calculus, which will be briefly presented in this section later on, provides an elegant way to obtain a gradient of real-valued cost function that is defined in complex domains.

Wirtinger calculus

Based on the duality between spaces \(\mathbb {C}\) and \(\mathbb {R}^{2}\), the Wirtinger calculus was firstly introduced in [18]. Let \(f : \mathbb {C} \rightarrow \mathbb {C}\) be a complex function defined in \(\mathbb {C}\). Such function can also be defined in \(\mathbb {R}^{2}\) (i.e., f(x+jy)=f(x,y)).

The Wirtinger’s derivative of f at a point c is defined as follows [17]

$$ \frac{\partial f}{\partial z} (c) = \frac{1}{2} \left(\frac{\partial f}{\partial x}(c) - j\frac{\partial f}{\partial y}(c) \right) $$
(6)

On the other hand, the conjugate Wirtinger’s derivative of f at c is given by:

$$ \frac{\partial f}{\partial z^{*}} (c) = \frac{1}{2} \left(\frac{\partial f}{\partial x}(c) + j\frac{\partial f}{\partial y}(c) \right) $$
(7)

In other words, in order to compute the Wirtinger derivative of a given function f, it can be expressed in terms of z and z. Then, the usual differentiation rules can be applied after considering z as a constant. The same concept can be used to compute the conjugate Wirtinger derivative of a function f, also expressed in terms of z and z. In this case, usual differentiation rules must be employed considering z as a constant [17], i.e., considering f as f(z)=zz, which leads to:

$$ \frac{\partial f}{\partial z} = z^{*} \quad \text{and} \quad \frac{\partial f}{\partial z^{*}} = z $$
(8)

Gradient ascent solution

Using the Wirtinger calculus to obtain the gradient Jn:

$$ {}{\begin{aligned} \bigtriangledown J_{n} = \frac{\partial J_{n}}{\partial \mathbf{w}^{*}} = \frac{1}{2\pi\sigma^{2}} \frac{1}{N} \sum_{i=1}^{N} \exp \left(- \frac{ (d_{i} - y_{i})(d_{i} - y_{i})^{*}}{2 \sigma^{2}} \right) \frac{(-1)}{2\sigma^{2}} \frac{\partial (e_{i} e_{i}^{*})}{\partial \mathbf{w}^{*}}, \end{aligned}} $$
(9)

where \(e_{i} = d_{i} - \mathbf {w}^{H}_{i} \mathbf {x}_{i}\).

Thus, it leads to the follow update rule:

$$ \mathbf{w}_{n+1} = \mathbf{w}_{n} + \frac{\mu }{N 4\pi\sigma^{3}} \sum_{i=1}^{N} \exp \left(-\frac{ e_{i} e_{i}^{*}}{2 \sigma^{2}}\right) e_{i}^{*} \mathbf{x}_{i}. $$
(10)

Finally, applying the stochastic gradient gives:

$$ \mathbf{w}_{n+1} = \mathbf{w}_{n} + \frac{\mu }{N 4\pi\sigma^{3}} \exp \left(-\frac{ e_{n} e_{n}^{*}}{2 \sigma^{2}}\right) e_{n}^{*} \mathbf{x}_{n} $$
(11)

A complete step-by-step derivation can be seen in (5).

Convergence analysis

In this section, the convergence of the proposed weight update method is investigated based on stochastic gradient for complex valued-data. It can be considered as an extension of the convergence analysis realized in [19]. Initially, the algorithm described by Eq. 11 can be written in a simplified form:

$$ \mathbf{w}_{n+1} = \mathbf{w}_{i} + \eta f\left[e_{n}\right]\mathbf{x}_{n}, \quad n \geq 0, $$
(12)

where η is the step size, and \(f\left [e_{n}\right ]\) is a nonlinear function of the estimation error e(i), being expressed as:

$$ f\left[e(i)\right] = exp\left(-\frac{e_{n}e^{*}_{n}}{2\sigma^{2}}\right)e_{n}^{*}. $$
(13)

Let us assume that the desired system output signal dn can be expressed as:

$$ d_{n} = \mathbf{w}_{o}^{H}\mathbf{x}_{n} + v_{n}, $$
(14)

where wo is the optimum weight vector that must be estimated, and vn represents the disturbance noise. Then, the estimation error at instant time n is given by:

$$ e_{n} = d_{n} - \mathbf{w}_{n}^{H}\mathbf{x}_{n} = \mathbf{w}_{o}^{H}\mathbf{x}_{n} - \mathbf{w}_{n}^{H}\mathbf{x}_{n} + v_{n}. $$
(15)

Considering that the weight-error vector is defined as \(\widetilde {\mathbf {w}}_{n} = \mathbf {w}^{o} - \mathbf {w}_{n}\), the a priori and a posteriori errors are denoted by:

$$ e_{a}(n) = \widetilde{\mathbf{w}}_{n}^{H}\mathbf{x}_{n}, \quad\, e_{p}(n) = \widetilde{\mathbf{w}}_{n+1}^{H}\mathbf{x}_{n}. $$
(16)

The update rule in Eq. 12 can be rewritten in terms of the weight-error vector as:

$$ \widetilde{\mathbf{w}}_{n+1} = \widetilde{\mathbf{w}}_{n} + \eta f\left[e_{n}\right]\mathbf{x}_{n}. $$
(17)

Post-multiplying both sides of the conjugate transpose version of Eq. 17 by xn, as well as replacing some terms in Eq. 16 for expressions, it is possible to determine a relationship between estimation errors ea(n), ep(n), and en in the form:

$$ e_{p}(n) = e_{a}(n) - \eta f^{*}[e_{n}]\left\Vert \mathbf{x}_{n} \right\Vert^{2}. $$
(18)

In order to eliminate the non linearity \(f\left [e_{n}\right ]\) in Eq. 17, it is possible to combine such expression with Eq. 18 to obtain the following representation:

$$ \widetilde{\mathbf{w}}_{n+1} = \widetilde{\mathbf{w}}_{n} - \left(e_{a}(n) - e_{p}(n)\right)^{*} \frac{\mathbf{x}_{n}}{\left\Vert \mathbf{x}_{n} \right\Vert^{2}}. $$
(19)

With the objective of following an energy-based approach, both sides of Eq. 19 are squared,

$$ {\begin{aligned} \left\Vert \widetilde{\mathbf{w}}_{n+1} \right\Vert^{2} &= \left(\widetilde{\mathbf{w}}_{n} - \left(e_{a}(n) - e_{p}(n)\right)^{*} \frac{\mathbf{x}_{n}}{\left\Vert \mathbf{x}_{n} \right\Vert^{2}} \right)^{H}\\&\times \left(\widetilde{\mathbf{w}}_{n} - \left(e_{a}(n) - e_{p}(n)\right)^{*} \frac{\mathbf{x}_{n}}{\left\Vert \mathbf{x}_{n} \right\Vert^{2}} \right). \end{aligned}} $$
(20)

After some algebraic manipulation of Eq. 20, it is possible to obtain an energy relation as:

$$ \left\Vert \widetilde{\mathbf{w}}_{n+1} \right\Vert^{2} + \frac{\left\Vert e_{a}(n) \right\Vert^{2}}{\left\Vert \mathbf{x}_{n} \right\Vert^{2}} = \left\Vert \widetilde{\mathbf{w}}_{n} \right\Vert^{2} + \frac{\left\Vert e_{p}(n) \right\Vert^{2}}{\left\Vert \mathbf{x}_{n} \right\Vert^{2}}. $$
(21)

Since the mean-square behavior of the algorithm is of interest for the proposed study, expectations of both sides of Eq. 21 are obtained, which are then substituted in Eq. 18, representing the a posteriori error ep(n).

$$ {}{\begin{aligned} E\left[\left\Vert \widetilde{\mathbf{w}}_{n+1} \right\Vert^{2}\right] &= E\left[\left\Vert \mathbf{\widetilde{w}}_{n} \right\Vert^{2}\right] - 2\eta E\left[Re\left\{e_{a}(n)f[e_{n}]\right\}\right]\\ &+ \eta^{2} E\left[ f^{2}[e_{n}]\left\Vert \mathbf{x}_{n} \right\Vert^{2}\right] \end{aligned}} $$
(22)

The convergence of the proposed algorithm depends on the choice of the learning rate. Therefore, a Lyapunov approach is adopted to obtain convergence in an upper bound for which \(E\left [\left \Vert \widetilde {\mathbf {w}}_{n} \right \Vert ^{2} \right ]\) remains uniformly bounded. Analyzing Eq. 22, it is possible to write:

$$ \begin{aligned} E\left[\left\Vert \widetilde{\mathbf{w}}_{n+1} \right\Vert^{2}\right] &\leq E\left[\left\Vert \widetilde{\mathbf{w}}_{n} \right\Vert^{2}\right] \\ & \Longleftrightarrow -\, 2\eta E\left[Re\left\{e_{a}(n)f\left[e_{n}\right\}\right]\right] \\ & \qquad\, + \eta^{2}E\left[f^{2}[e_{n}]\left\Vert \mathbf{x}_{n} \right\Vert^{2}\right] \leq 0\\ \end{aligned} $$
(23)

From Eq. 23, it can be stated that the learning rate can be chosen for all n in the form:

$$ \eta \leq 2\frac{ E\left[Re\left\{e_{a}(i)f[e_{n}]\right\}\right] }{E\left[\left\Vert \mathbf{x}_{n} \right\Vert^{2}\right]}, $$
(24)

Then, the sequence \(E\left [\left \Vert \widetilde {\mathbf {w}}_{n} \right \Vert ^{2}\right ]\) of weight error power will be decreasing and bounded from below, which ensures the convergence. Thus, a sufficient condition for convergence can be alternatively expressed by:

$$ \eta \leq 2\inf_{n\geq 0}\frac{ E\left[Re\left\{e_{a}(n)f[e_{n}]\right\}\right]}{E\left[f^{4}[e_{n}]\right]^{1/2} E\left[\left\Vert \mathbf{x}_{n} \right\Vert^{4}\right]^{1/2} }. $$
(25)

Assuming that the filter is long enough so that ea(n) is a zero-mean Gaussian and the noise process vn is i.i.d., it is possible to define the following statements [19, 20]:

$$ h_{G}\left[ E\left[e_{a}^{2}(n)\right] \right] \triangleq \frac{E\left[Re\left\{e_{a}(n)f[e_{n}]\right\}\right]}{E\left[e_{a}^{2}(n)\right]}. $$
(26)
$$ h_{C}\left[ E\left[e_{a}^{2}(n)\right]\right] \triangleq E\left[f^{4}[e_{n}]\right]. $$
(27)

Therefore, a sufficient convergence condition can be established substituting Eqs. 26 and 27 in Eq. 25, resulting in:

$$ \eta \leq \frac{2}{ E\left[\left\Vert \textbf{x}_{n}^{4} \right\Vert\right]^{1/2}}\left(\inf_{n\geq 0}\frac{E\left[e_{a}^{2}(n)\right]\cdot h_{G}\left[E\left[e_{a}^{2}(n)\right]\right]}{\sqrt{h_{C} \left[E\left[e_{a}^{2}(n)\right]\right]}} \right). $$
(28)

Since all terms in Eq. 28 are functions of \(E\left [e_{a}^{2}(i)\right ]\), it is possible to emphasize this aspect in Eq. 29 in order to indicate that the minimization takes place over the values of \(E\left [e_{a}^{2}(n)\right ]\).

$$ \eta \leq \frac{2}{ E\left[\left\Vert \textbf{x}_{n}^{4} \right\Vert\right]^{1/2}}\left(\inf_{E\left[e_{a}^{2}(n)\right]}\frac{E\left[e_{a}^{2}(n)\right]\cdot h_{G}\left[E\left[e_{a}^{2}(n)\right]\right]}{\sqrt{h_{C} \left[E\left[e_{a}^{2}(n)\right]\right]}} \right). $$
(29)

Then, if the step size follow the condition described in Eq. 29, one can say that the algorithm will converge.

Adaptive kernel size algorithms

Analogously to the real-valued case, the complex correntropy is directly related to the estimation of how similar two random variables are when the Parzen estimator is applied to the joint probability [7]. Thus, the kernel size, also called kernel width, is a free parameter that is inherent to the kernel used to estimate the complex correntropy. It works as a scale parameter that controls the steady-state performance, convergence rate, and impulsive noise rejection [15]. Since it is a free parameter, the kernel width must be chosen by the user, whose value changes according to data and application nature. Then, the definition of an optimal value for the kernel width is not a trivial task [21].

In this context, many works have been proposed in order to help determining the optimal kernel width, e.g., [11, 12, 22, 23]. However, the aforementioned studies only deal with real-valued data. In this section, the algorithms are then updated using the complex correntropy definition and the Wirtinger calculus in order to make them applicable to complex-valued data.

Adaptive kernel width MCCC (AMCCC)

According to [23], AMCC consists in selecting the kernel as a combination of a fixed-kernel bandwidth, which could be defined using Silverman rule [24] and the squared prediction error \(e_{n}^{2}\). The authors also state that this approach causes the algorithm to converge faster, especially when the initial weight vector is far away from the optimal one. Besides the fast convergence rate, prominent advantages of the method lie in simplicity, as well as no extra computational burden, as no additional free parameters are required. Since the kernel size must be always a positive and real value, it is possible to define a new update rule called AMCCC, which can be expressed by:

$$ \sigma_{n}^{2} = e_{n} e_{n}^{*} + \sigma^{2} $$
(30)

where σ is the predefined kernel width and en is the error at the iteration n.

Switch kernel width MCCC (SMCCC)

In order to improve the convergence rate of the method, the SMCC algorithm was introduced in [11]. This work defines the new kernel update rule to MCCC based on [11] and defined as:

$$ \sigma^{2}_{n} = \textit{max}\left (\frac{e_{n} e_{n}^{*}}{2},\sigma^{2}\right) $$
(31)

This is another example of a simple update rule for the kernel that does not add new free parameters to the MCCC algorithm, although robustness is maintained.

Complex variable kernel width—CVKW

The VKW-MCC algorithm calculates the kernel size at each iteration by maximizing \(\exp \left (-e^{2} / 2\sigma ^{2}\right)\) with respect to the kernel width [12]. For this purpose, the authors employ a modified cost function to reduce the interference of the kernel size. Instead of making Jn=E[Gσ(e)], a new cost function is defined as \(J_{k} = E\left [\sigma ^{2} G_{\sigma }(e) \right ] \). Applying the same methodology to the complex-valued case gives:

$$ J_{n} = E\left [\sigma^{4} G_{\sigma}(e) \right ] = E\left [\sigma^{4} G_{\sigma}(D - Y) \right ] $$
(32)

Then, the updated stochastic gradient would be:

$$ W_{n+1} = W_{n} + \frac{\mu}{4\pi N} \textit{exp}\left(-\frac{e_{n} e_{n}^{*}} {2\sigma^{2}}\right)e_{n}^{*}X_{n}. $$
(33)

At each iteration, after calculating the error en at the nth iteration, the kernel size is updated regarding the direction to minimize the error, resulting in:

$$ \underset{\sigma_{n}}{\text{max}}J(e_{n}) = \text{exp}\left(-\frac{e_{n} e_{n}^{*}} {2\sigma_{n}^{2}}\right). $$
(34)

Differentiating (34) using Wirtinger calculus with respect to en leads to:

$$ \bigtriangledown J_{n} (e_{n}) = -\text{exp}\left(-\frac{e_{n} e_{n}^{*}}{2\sigma_{n}^{2}}\right)\frac{e_{n}^{*}\sigma_{n} (\sigma_{n} - 2 e_{n} {\sigma}'_{n}) }{2\sigma_{n}^{4}} $$
(35)

Then, making j(en)=0 gives:

$$ \sigma_{n} = 2 e_{n} {\sigma}'_{n} = 2 k_{\sigma} \left | e_{n} \right | $$
(36)

Results and discussion

In this section, the system identification problem from [7] is revisited to evaluate the performance from the proposed ascendant gradient MCCC using a fixed kernel size and compare it with the variable kernel size strategies, i.e., SMCCC, AMCCC, and CVKW. For reference, the complex least mean square (CLMS) [16], which is a classical solution from the literature, is also considered in the simulations.

The performance of the adaptive filters is evaluated by the weight signal-to-noise ratio (WSNR), which is defined as

$$ \text{WSNR}_{db} = 10 \log_{10} \left(\frac{ \bar{\mathbf{w}}^{H}\,\bar{\mathbf{w}}}{ (\bar{\mathbf{w}} - \mathbf{w}_{i})^{H}(\bar{\mathbf{w}} - \mathbf{w}_{i})}\right), $$
(37)

where \(\bar {\mathbf {{w}}}\) is the correct weights, which are randomly select at each Monte Carlo trial from a Gaussian distribution with mean 0 and variance 1. wi is the complex weights computed by the aforementioned methods in the ith iteration. The WSNR is used to quantify both convergence and misadjustment rates properly in decibels [25].

The desired signal is formed by the product of the proper weights \(\bar {\mathbf {{w}}}\) and the input signal \(\mathbf {{X}} \in \mathbb {C}^{2 \times 2500}\), which elements follow a Gaussian distribution with mean 0.5 and variance 1 for the real part and mean 1.5 and variance 4 for the imaginary part. Then, an additive noise signal is added.

The symmetric stable distribution [26] was used to model an impulsive noise environment to the simulations. Since its symmetric, the shift and skewness parameters are always set to 0. The index of stability 0<α≤2 controls the tail of the distribution, while the scale γ parameter is obtained from a given generalized signal-to-noise ratio in dB (GSNR) [27], which is given by:

$$ \text{GSNR} = 10 \log \frac{P_{S}}{\gamma^{\alpha}}, $$
(38)

where PS is the power of the noiseless signal.

Figure 2 shows the performance of the proposed MCCC algorithm with three different fixed kernel sizes σ=2,10, and 100. Besides that, the adaptive kernel strategies and the CLMS are also included. All plots in this section are made by the average of 103 Monte Carlo trials, and the initial values adopted for the weights are always zero. One can notice that the best result with a fixed kernel size was σ=2. In the simulations, a value smaller than 2 made the algorithm not converge. As in the real-valued case, the MCCC with a large value of kernel size σ=100 made the results almost identical to the CLMS. For large kernel sizes, the complex correntropy-based algorithms tend to the perform as a second order one [7, 15]. The MCCC gradient ascendant with kernel size σ=10 had the WSNR levels between the σ=2 and σ=100. Also, it can be notice that the convergence speed is affected by the kernel size choice. In summary, the smaller that still makes the algorithm converge, the higher the WSNR level. In the other hand, increasing the kernel size makes the WSNR level drop and increases the convergence speed.

Fig. 2
figure2

Performance comparison among several methods in terms of WSNR as a function of the number of iterations for α=1.5 and GSNR = 20 dB

Analyzing Fig. 2, it is possible to see that the adaptive kernel size strategies could overcame the performance of a fixed kernel size selection after 2500 iterations. The CVKW was the algorithm that achieved the highest WSNR levels. The AMCCC had a better WSNR than the SMCCC but the SMCCC had a better convergence rate. It is important to highlight that, although the adaptive kernel size strategies have better WSNR levels, the fixed kernel size methods, and the CLMS have a fast convergence rate.

A typical evolution of the kernel size by each adaptive algorithms compared in Fig. 2 is shown in Fig. 3. The initial values are initially based on Table 1. It is possible to see how much more aggressive the AMCCC and the SMCCC are when compared with the CVKW, due to the updates rules shown in Section 3. This is due to the smoothing factor presented in the VKW-MCC algorithm [12] which was preserved by this paper for the complex-valued case. The algorithms were tested in different noise parameters. Figure 4 compares the performance of the algorithms as a function of index of stability α with a fixed GSNR = 20dB. When α=2, the stable distribution behaves as a Gaussian and the smaller the value of α, the more impulsive is the noise. As expected, the CLMS performances deteriorate faster than the complex correntropy-based methods, except for the one with large kernel size, σ=100. Also, regarding the noise environment, Fig. 5 shows the behavior of each algorithm as a function of the GSNR and a fixed index of stability α=1.5. As expected, as the noise power decreases the WSNR levels increase to all algorithms.

Fig. 3
figure3

Typical evolution of the Kernel size σ used by AMCCC, SMCCC, and CVKW in the scenario of Fig. 2

Fig. 4
figure4

Performance comparison among several methods in terms of WSNR as a function of the characteristic exponent and GSNR = 20

Fig. 5
figure5

Performance comparison among several methods in terms of WSNR as a function of GSNR for α=1.5

Table 1 Kernel size σ and step size μ used in the simulations for each tested algorithm

Although the simulations showed that MCCC could deal well under impulsive noise, using the complex correntropy as a cost function includes a new free parameter that is the kernel size. This is what motivated the development of the adaptive kernel size strategies showed in this paper. However, each adaptive kernel size strategy still needs a kernel parameter as the updates Eq. (30) for the AMCCC, (31) for the SMCCC, and (36) for the CVKW. The choice of this value had showed also important in the methods performance. Also, since all methods presented in this paper are based in the optimization using a gradient ascendant, the analysis of the step size choice in the algorithm performance is relevant. Figures 6, 7, and 8 shows the WSNR performance of each proposed adaptive kernel size strategies with the MCCC as a function of the kernel size σ and step size μ. As one can notice, the performance is strict related to the choice of both the free parameters: the step μ and the kernel size σ.

Fig. 6
figure6

WSNR performance of the AMCCC algorithm as a function of the kernel size parameter σ and the gradient step size μ. The noise environment is model by a stable distribution with α=1.5 and GSNR = 20 dB

Fig. 7
figure7

WSNR performance of the SMCCC algorithm as a function of the kernel size parameter σ and the gradient step size μ. The noise environment is model by a stable distribution with α=1.5 and GSNR = 20 dB

Fig. 8
figure8

WSNR performance of the CVKW algorithm as a function of the kernel size parameter σ and the gradient step size μ. The noise environment is model by a stable distribution with α=1.5 and GSNR = 20 dB

In summary, the use of the complex correntropy as a cost function in a gradient ascendant strategy has shown a valid approach to deal with system identification problems in non-Gaussian noise environments, achieving better results than the classical CLMS solution. Even that the adaptive kernel size strategies could overcome the performance of the MCCC with a fixed kernel size, the dependence of free parameters is still present.

Conclusion

This paper has proposed a novel gradient method employing the complex correntropy as a cost function based on the Wirtinger calculus. Moreover, a convergence analysis has been provided for this gradient solution. This new solution was used in order to update the most recently adaptive kernel size algorithms reported in literature to deal with complex-valued data.

Simulations shown that, as in the real-valued case, adjusting the kernel size makes the gradient MCCC solution an effective mechanism to deal with non-Gaussian noise. Moreover, the performances of the proposed adaptive methods, e.g., CVKW, SMCCC, and AMCCC, improve significantly the performance of the MCCC when compared with the CLMS and MCCC with fixed kernel size in a system identification problem. Future work includes investigating the application of the introduced methods to other problems such as complex-valued nonlinear adaptive filters and telecommunication with baseband signal.

Availability of data and materials

Data and MATLAB source code are available from the corresponding author upon request.

Abbreviations

MCCC:

Maximum complex correntropy criterion

MCC:

Maximum correntropy criterion

VKW-MCC:

Variable kernel width-maximum correntropy criterion

AMCC:

Adaptive kernel width MCC

SMCC:

Switch kernel width method of correntropy

16-QAM:

Quadrature amplitude modulation

WSNR:

Weight signal-to-noise ratio.
