Abstract

The interrupted transmitting and receiving (ITR) can be used in anechoic chamber to solve the coupling between the transmitted and reflected signals. When the ITR periods are random, the fake peaks in high-resolution range profile (HRRP) of ITR echo can be reduced. Then, by utilizing the piecewise sparse property of ITR echo, the HRRP is reconstructed based on compressive sensing (CS). However, the periods of ITR determine the restricted isometry property (RIP) condition and the HRRP reconstruction performance. In order to improve the HRRP reconstruction performance, the ITR period sequence optimization method based on a genetic algorithm (GA) is proposed in this paper. The correlation coefficient of the sensing matrix columns is minimized after optimization so that the RIP of the sensing matrix can be well satisfied. Simulation and comparison results illustrate that the optimization method converges fast and the HRRP reconstruction performance is improved with the optimized ITR periods.

Introduction

The radio frequency simulation (RFS) [1] in an anechoic chamber is widely adopted to conduct target measurement [2, 3]. Because the size of an anechoic chamber is small, the round-trip time of electromagnetic wave may be sub-microsecond which is generally larger than the pulse width. Therefore, the reflected and transmitted signals may be coupled at the receiver when the pulse radar signal is applied in an anechoic chamber for target measurement. In order to solve the problem, the interrupted transmitting and receiving (ITR) method is proposed in [3]. The ITR can divide the pulse signal into hundreds of short pulses with each short pulse width being sub-microsecond. As each short pulse width is smaller than the round-trip time, the coupling is eliminated and the target echo can be obtained for the target measurement.

During the ITR, part of the pulse signal is not transmitted, and the target high-resolution range profile (HRRP) is difficult to be obtained with the ITR echo. An effective method is using compressive sensing (CS) [4,5,6,7,8] to reconstruct the HRRP. The sparse stepped-frequency signal is utilized in [5] to obtain the HRRP and target image with CS. The target HRRP estimation and target detection are discussed in [6,7,8] based on the sparse learning. By utilizing the property of ITR, the measurement matrix can be constructed according to the ITR period sequence and the HRRP is reconstructed [9].

However, the reconstruction performance of HRRP is generally determined by the restricted isometry property (RIP) condition of the sensing matrix [10,11,12]. Therefore, different sensing matrixes may result in different reconstruction performance. The eigenvalue of the Gram matrices and mutual coherence [11, 13] are mainly used to measure the RIP of the sensing matrix. In the ITR method, the sensing matrix is formed according to the ITR periods which means the ITR periods determine the RIP of the sensing matrix. Therefore, improving the HRRP reconstruction performance equals to optimizing the ITR period sequence.

Generally, the R-ITR period sequence is composed of multiple short pulse periods. And then, the optimization of period sequence becomes a multivariable optimization problem. Various multi-objective optimization methods, such as the genetic algorithm (GA) [14, 15] and the particle swarm optimization (PSO) [16, 17], have been investigated. But the algorithms are difficult to be used in optimizing the ITR period sequence directly. Therefore, the R-ITR period sequence optimization method is proposed based on GA in this paper. The minimization of the sensing matrix columns cross-correlation coefficient is used as the fitness criterion. Then, the R-ITR period sequence is optimized after an iteration, and the RIP of the sensing matrix can be better satisfied. The most important aspects of this paper are as follows:

  1. 1)

    The binary coded and decoded method for R-ITR period sequence is proposed so that the cross-operation and mutation operation can be performed during the optimization process.

  2. 2)

    The fitness function is formed for the optimization and the whole procedure of optimization is provided and discussed based on GA.

The remainder of this paper is organized as follows. In Section 2, we give a brief introduction to the principle of R-ITR for pulse radar. The property of ITR echo and the CS-based HRRP reconstruction are discussed as well. After that, the optimization method is proposed to design the R-ITR period sequence. In Section 3, simulations and comparison results are presented and discussed to verify the validity of the proposed optimization method. Finally, conclusions are drawn in Section 4.

Notation

In the sequel, vectors and matrixes are denoted by boldface. [·]T denotes the transpose operation. (·)* represents the conjugate operation. Symbol ||·|| denotes the Euclidean norm of a vector. min(·) and max(·) stand for the minimum and maximum operation. I stands for the identity matrix. A is the sensing matrix. Ψ is the N × N inverse fast Fourier transform matrix. Φ is the measurement matrix. ρ() is the maximum cross-correlation coefficient of the sensing matrix. F() is the fitness function in the optimization method.

Methods

Principle of R-ITR in anechoic chamber

In an anechoic chamber, the pulse signal is divided into multiple short pulses after ITR so that the target echo can be received when the next short pulse is transmitted. Then, the coupling can be eliminated [3]. When the ITR periods are random, the R-ITR is shown in Fig. 1.

Fig. 1
figure1

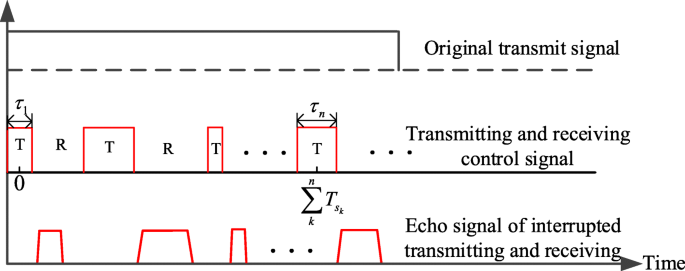

Diagram of the R-ITR

The R-ITR control signal can be expressed as:

$$ {p}_1(t)=\sum \limits_{n\to -\infty}^{+\infty}\mathrm{rect}\left(\frac{t}{\tau_n}\right)\ast \delta \left(t-\sum \limits_k^n{T}_{s_k}\right) $$
(1)

where δ() is the impulse function and τn is the width of the nth short pulse. \( {T}_{s_k} \) is the period of the kth short pulse and k ≤ n. is the convolution operation, and rect() is:

$$ \mathrm{rect}\left(\frac{t}{\tau_n}\right)=\left\{\begin{array}{c}1,\kern0.5em \left|t/{\tau}_n\right|<0.5\\ {}0,\kern0.5em \mathrm{others}\kern1em \end{array}\right. $$
(2)

When the period of ITR and short pulse width is unchanged and it can suppose as \( {T}_{s_k}={T}_s \) and τn = τ, then we have \( {\sum}_k^n{T}_{s_k}={nT}_s \) for the nth short pulse. And the uniform ITR control signal is:

$$ {p}_2(t)=\mathrm{rect}\left(\frac{t}{\tau}\right)\ast \sum \limits_{n\to -\infty}^{+\infty}\delta \left(t-{nT}_s\right) $$
(3)

Therefore, the spectrum of p2(t) can be obtained as:

$$ {P}_2(f)=\tau {f}_s\sum \limits_{n=-\infty}^{n=+\infty}\sin \mathrm{c}\left({nf}_s\tau \right)\delta \left(f-{nf}_s\right) $$
(4)

where fs = 1/Ts, sinc(x) = sin(πx)/(πx). As the R-ITR period is random, the analytical expression of the spectrum is difficult to be obtained.

The transmitted signal is supposed as linear frequency modulation (LFM)

$$ s(t)=\mathrm{rect}\left(\frac{t}{T_p}\right)\exp \left(j2\pi \left({f}_ct+\frac{1}{2}\mu {t}^2\right)\right) $$
(5)

where Tp is the pulse width, fc is the carrier frequency, and μ = B/Tp and B are the bandwidth.

Considering the ITR control signal in (3), the ITR echo can be obtained as:

$$ {\displaystyle \begin{array}{l}{s}_{r_2}(t)={p}_2(t)\cdot {s}_r(t)\\ {}\kern4em =\left(\mathrm{rect}\left(\frac{t}{\tau}\right)\ast \sum \limits_{n\to -\infty}^{+\infty}\delta \left(t-{nT}_s\right)\right){s}_r(t)\end{array}} $$
(6)

where \( {s}_r(t)=\sum \limits_{k=1}^K{\alpha}_ks\left(t-2{R}_k/C\right) \) is the target echo, K is the number of scattering centers, and αk is the scattering coefficient of the kth scattering centers. Rk is the distance between the radar and the kth scattering center.

The de-chirp reference signal is sref(t) = s(t ‐ 2Rref/C), where Rref is the reference distance and C is the speed of the electromagnetic wave. Then, the difference output after de-chirping is:

$$ {\displaystyle \begin{array}{l}{s}_{f_2}(t)={p}_2(t)\cdot {s}_r(t)\cdot {s}_{\mathrm{ref}}^{\ast }(t)\\ {}=\sum \limits_{k=1}^K\left(\left(\mathrm{rect}\left(\frac{t}{\tau}\right)\ast \sum \limits_{n\to -\infty}^{+\infty}\delta \left(t-{nT}_s\right)\right){\alpha}_k\right.\mathrm{rect}\left(\frac{t-2{R}_k/C}{T_p}\right)\exp \left(-j\frac{4\pi }{C}\mu \left(t-\frac{2{R}_{\mathrm{ref}}}{C}\right){R}_{k,\Delta}\right)\\ {}\kern1em \cdot \left.\exp \left(-j\frac{4\pi }{C}{f}_c{R}_{k,\Delta}\right)\exp \left(j\frac{4\pi }{C^2}{R}_{k,\Delta}^2\right)\right)\end{array}} $$
(7)

where \( {s}_{\mathrm{ref}}^{\ast }(t) \) is the conjugation of sref(t), and Rk, Δ = Rk − Rref is the distance between the scattering center and the reference point.

The HRRP of ITR echo is obtained after Fourier transform:

$$ {S}_{f_2}(f)=\tau {f}_s{T}_p\sum \limits_{k=1}^K{\alpha}_k\exp \left(-j\frac{4\pi {f}_c}{C}{R}_{k,\Delta}\right)\sum \limits_{n\to -\infty}^{n\to +\infty}\left(\sin \mathrm{c}\left({nf}_s\tau \right)\sin \mathrm{c}\left({T}_p\left(f-{nf}_s+2\frac{\mu }{C}{R}_{k,\Delta}\right)\right)\right) $$
(8)

In Eq. (8), nfs denotes that different orders of fake peaks appear in HRRP. Then, the range interval is:

$$ \Delta R=\frac{Cf_s}{2\mu } $$
(9)

The constraints of ITR parameters are the same with [9]:

$$ \Big\{{\displaystyle \begin{array}{l}\tau \le \frac{2{R}_0}{C}\\ {}\tau +\frac{2\left({R}_0+L\right)}{C}\le {T}_s<\frac{C{T}_p}{2 BL}\end{array}}\operatorname{} $$
(10)

Because ΔR may be smaller than L, the real and fake peaks will be overlapped and the target peaks in the HRRP are difficult to be extracted. However, the ITR echo is sparse compared with the completed pulse; therefore, the HRRP can be reconstructed based on CS.

HRRP reconstruction based on CS

The vector of the difference-frequency output of the complete echo can be expressed as:

$$ {\mathbf{s}}_{\mathbf{f}}={\mathbf{S}}_{\mathbf{r}\mathbf{ef}}^{\ast}{\mathbf{s}}_{\mathbf{r}} $$
(11)

where sr = [sr(0),sr(1),…,sr(N-1)]T is N × 1 vector of the complete echo sr(t), N is the total sampling number in Tp, Sref = diag{sref(0),sref(1),…,sref(N-1)} is the N × N diagonal matrix composed by the reference signal sref(t), and sf = [sf(0),sf(1),…,sf(N-1)]T is the N × 1 vector of the difference-frequency output.

Sf = [Sf (0),Sf (1),…,Sf (N-1)]T is the target HRRP which can be supposed as K-sparse according to the number of scattering centers. Then, Sf can be obtained after Fourier transform of (11):

$$ {\mathbf{S}}_{\mathbf{f}}={\boldsymbol{\Psi}}^{-1}{\mathbf{S}}_{\mathbf{r}\mathbf{ef}}^{\ast}{\mathbf{s}}_{\mathbf{r}} $$
(12)

where Ψ is the N × N inverse fast Fourier transform (IFFT) matrix.

Because p1(t) is 1 in τn and 0 in \( {T}_{s_n} \)-τn, the rows of P = diag{p1(0),p1(1),…,p1(N-1)} are 0 and can be eliminated. Then, the formation of P1 is obtained and presented in Fig. 2.

Fig. 2
figure2

Formation of matrix P1

P1 can be expressed as:

$$ {\mathbf{P}}_1={\left(\begin{array}{cccccccc}{\mathbf{I}}_{n_{s_1}}& 0& \cdots & 0& 0& \cdots & 0& 0\\ {}0& 0& \cdots & 0& {\mathbf{I}}_{n_{s_2}}& \cdots & 0& 0\\ {}\vdots & \vdots & \cdots & \vdots & \vdots & \cdots & \vdots & \vdots \\ {}0& 0& \cdots & 0& 0& \cdots & 0& {\mathbf{I}}_{n_{s_n}^{\prime }}\end{array}\right)}_{M\times N} $$
(13)

where Insn is the nsn × nsn identity matrix.

Then, the ITR echo is obtained based on the measurement of sr:

$$ {\mathbf{s}}_{\mathrm{ITR}}={\mathbf{P}}_1{\mathbf{s}}_{\mathbf{r}} $$
(14)

where sITR is the M × 1 vector.

As \( {\mathbf{S}}_{\mathbf{ref}}{\mathbf{S}}_{\mathbf{ref}}^{\ast}=\mathbf{I} \), Eq. (14) can be re-written as:

$$ {\mathbf{s}}_{\mathrm{ITR}}={\mathbf{P}}_1{\mathbf{S}}_{\mathbf{ref}}{\boldsymbol{\Psi} \mathbf{S}}_{\mathbf{f}} $$
(15)

After adding noise ξ, we have:

$$ {\displaystyle \begin{array}{l}{\mathbf{s}}_{\mathrm{spInter}}={\mathbf{s}}_{\mathrm{ITR}}+\boldsymbol{\upxi} \\ {}\kern4em ={\boldsymbol{\Phi} \boldsymbol{\Psi} \mathbf{S}}_{\mathbf{f}}+\boldsymbol{\upxi} \end{array}} $$
(16)

where Φ = P1Sref and sspInter is the non-zero value of ITR echo.

The target HRRP can be reconstructed by solving the following problem:

$$ \underset{\overline{{\mathbf{S}}_{\mathbf{f}}}}{\min }{\left\Vert \overline{{\mathbf{S}}_{\mathbf{f}}}\right\Vert}_1\kern1em s.t.\kern0.5em {\left\Vert {\mathbf{s}}_{\mathrm{spInter}}-\boldsymbol{\Phi} \boldsymbol{\Psi} \overline{{\mathbf{S}}_{\mathbf{f}}}\right\Vert}_2\le \boldsymbol{\upxi} $$
(17)

where ||·||1 is the ℓ1 norm, and \( \overline{{\mathbf{S}}_{\mathbf{f}}} \) denotes the reconstructed HRRP.

Let A = ΦΨ be the sensing matrix. Ψ is the N × N the fixed IFFT matrix. Φ = P1Sref is the measurement matrix which can be obtained with P1 and Sref. Because Sref is composed by the reference signal sref(t), the form of A is determined by the matrix P1. From Fig. 2, it can be found that different ITR period sequences can obtain different matrixes of P1 so that the form of A changes. Therefore, the relationship between the R-ITR period sequence and RIP conditions of A is constructed. Generally, A should satisfy the K-order RIP condition to ensure the HRRP reconstruction performance. In order to improve the RIP condition of A, the R-ITR period sequence should be optimized.

ITR period sequence optimization based on GA

Because there are hundreds of short pulses in each pulse signal, the R-ITR period sequence optimization can be converted to a multivariable optimization problem. GA is an adaptive optimization algorithm which is widely used to solve the multivariable optimization problem. The multi-point search, cross-operation, and mutation operation are adopted to eliminate the worst solution and save the optimum solution. After iteration, the optimum R-ITR period sequence can be obtained.

According to Fig. 3, the R-ITR period should be coded firstly to obtain the initialized population. Supposing the R-ITR period \( {T}_{s_n} \) is distributed in [0.5 μs, 0.8 μs] with the interval of 0.1 μs, there are four values to choose, i.e., 0.5 μs, 0.6 μs, 0.7 μs, and 0.8 μs. So, the two-bit binary can be adopted to code \( {T}_{s_n} \), i.e., 00, 01, 10, and 11. \( \mathbf{T}=\left\{{T}_{s_n,{m}^{\prime }}\right\} \) is a N′ × M′ matrix where N′ is the number of \( {T}_{s_n} \) and M′ is the number of population. If the mth R-ITR period sequence \( {T}_{s_n,{m}^{\prime }} \) is:

$$ 0.8\upmu \mathrm{s},0.6\upmu \mathrm{s},0.5\upmu \mathrm{s},0.6\upmu \mathrm{s},0.7\upmu \mathrm{s},0.7\upmu \mathrm{s} $$
(18)
Fig. 3
figure3

R-ITR period sequence optimization based on GA

The corresponding binary codes \( {Z}_{n,{m}^{\prime }} \) are obtained as:

$$ 11\ 01\ 00\ 01\ 10\ 10 $$
(19)

Generally, the sequence length of R-ITR periods is determined by the pulse width and the range of ITR periods. Therefore, the code length increases when the pulse width is large.

Researches show that the RIP of the sensing matrix equals to the eigenvalues of the Gram matrix of sensing matrix and the cross-correlation coefficient of the sensing matrix columns [11,12,13]. When the eigenvalues of the Gram matrix of sensing matrix are close to 1, the RIP property can be satisfied well. However, as the computation complexity of the Gram matrix eigenvalues is high, the cross-correlation coefficient of the sensing matrix columns is adopted to evaluate the fitness of the population.

ai is supposed as the ith column of the sensing matrix A. Then, the maximum cross-correlation coefficient [11,12,13] of the sensing matrix A is defined as:

$$ \rho \left(\mathbf{A}\right)=\underset{0\le k,j<N,k\ne j}{\max}\frac{\left|{\mathbf{a}}_k^H{\mathbf{a}}_j\right|}{{\left\Vert {\mathbf{a}}_k^H\right\Vert}_2{\left\Vert {\mathbf{a}}_j\right\Vert}_2} $$
(20)

When the maximum cross-correlation coefficient is minimized, the RIP of the sensing matrix can be well satisfied. Therefore, we define the fitness function with the mth R-ITR period sequence \( {T}_{s_n,{m}^{\prime }} \) as:

$$ F\left({T}_{s_n,{m}^{\prime }}\right)=\max \frac{1}{\rho \left(\mathbf{A}\right)},\kern1.5em \mathrm{s}.\mathrm{t}.\kern1em {T}_{s_n,{m}^{\prime }}\in P $$
(21)

where P is the variation range of \( {T}_{s_n} \).

The scheme of the proposed optimization method based on GA is presented in Fig. 3.

The flow of Algorithm 1 is presented according to Fig. 3.

Algorithm 1: R-ITR periods sequence optimization.
Input: Initial population \( \mathbf{T}=\left\{{T}_{s_n,{m}^{\prime }}\right\} \)
Output: Optimized R-ITR periods sequence \( {\mathbf{T}}_{\mathrm{opt}}=\left\{{T}_{s_n,{m}^{\prime }}\right\} \)
1. Calculate \( F\left({T}_{s_n,{m}^{\prime }}\right) \)
2. Judge the fitness value
3. Code the R-ITR periods sequence to be \( {\mathbf{T}}_0={\left\{{Z}_{n,{m}^{\prime }}\right\}}_0 \)
4. Select the optimum individual \( {\mathbf{T}}_{\mathrm{s}}={\left\{{Z}_{n,{m}^{\prime }}\right\}}_{\mathrm{s}} \)
5. Cross operation and obtain \( {\mathbf{T}}_{\mathrm{c}}={\left\{{Z}_{n,{m}^{\prime }}\right\}}_{\mathrm{c}} \)
6. Mutation operation and obtain \( {\mathbf{T}}_{\mathrm{m}}={\left\{{Z}_{n,{m}^{\prime }}\right\}}_{\mathrm{m}} \)
7. Population update and obtain \( {\mathbf{T}}_{\mathrm{u}}={\left\{{Z}_{n,{m}^{\prime }}\right\}}_{\mathrm{u}} \)
8. Decode operation to obtain \( {\mathbf{T}}_{\mathrm{d}}={\left\{{T}_{s_n,{m}^{\prime }}\right\}}_{\mathrm{d}} \) and return to 1

By initializing the population as \( \mathbf{T}=\left\{{T}_{s_n,{m}^{\prime }}\right\} \), the proposed optimization process is expressed in detail according to Algorithm 1 and Fig. 3.

Step 1. Calculate the fitness function. The sensing matrix A = ΦΨ is constructed based on each individual \( {T}_{s_n,{m}^{\prime }} \). Then, the fitness function in Eq. (21) is calculated.

Step 2. Judge the fitness value. The fitness function is calculated for every R-ITR period sequence. If the fitness value is satisfied, the iteration stops. Otherwise, the iteration continues.

Step 3. Code operation. The length of the binary code is determined by the range of the R-ITR periods. According to the coded principle in Eqs. (18) and (19), the R-ITR period sequence can be coded as \( {\mathbf{T}}_0={\left\{{Z}_{n,{m}^{\prime }}\right\}}_0 \). M′ series R-ITR period sequences are generated in this step.

Step 4. Select the optimum individual. The roulette wheel is used to select the individual. The elitism selection is also adopted in this part to save the optimum individual {Zn,m′}. After the selection operation, the population is obtained as Ts = {Zn, m}s.

Step 5. Cross operation. The two-point crossover is utilized to conduct the cross operation. The crossover positions and individuals are randomly selected with the crossover probability of Pc. Then, the new individuals can be obtained. And the updated population is Tc = {Zn, m}c.

Step 6. Mutation operation. The mutation operation is conducted based on the population obtained in step 5. The single-point mutation is performed by randomly selecting the individual and the mutation position with the mutation probability of Pm. Then, the population after mutation operation is Tm = {Zn, m}m.

Step 7. Population update. The elitism selection is still used to update the population and obtain \( {\mathbf{T}}_{\mathrm{u}}={\left\{{Z}_{n,{m}^{\prime }}\right\}}_{\mathrm{u}} \).

Step 8. Decode operation. As \( {\mathbf{T}}_{\mathrm{u}}={\left\{{Z}_{n,{m}^{\prime }}\right\}}_{\mathrm{u}} \) is a binary code, Tu should be decoded to obtain the R-ITR periods as \( {\mathbf{T}}_{\mathrm{d}}={\left\{{T}_{s_n,{m}^{\prime }}\right\}}_{\mathrm{d}} \). Then, Td is used to calculate the fitness function in step 1.

Results and discussion

Optimization results of the cross-correlation coefficient

The pulse width is Tp = 20 μs with a bandwidth of B = 500 MHz. The distance between the radar and target is R = 45 m. The R-ITR period sequences are set as 0.5~0.8 μs, 0.5~1.2 μs, and 0.8~1.1 μs with an interval of 0.1 μs. The τ/fs is 0.25 so that the maximum short pulse width is 0.3 μs which ensures the target echo can be received according to Eq. (10).

When \( {T}_{s_n} \) distributes in [0.5 μs, 0.8 μs] and [0.8 μs, 1.1 μs], the two-bit binary can be used to code the R-ITR period sequence. When \( {T}_{s_n} \) distributes in [0.5 μs, 1.2 μs], there are 8 kinds of R-ITR periods. Therefore, three-bit binary should be used to code the \( {T}_{s_n} \). The cross-probability and mutation probability are Pc = 0.57 and Pm = 0.002. The initialization population is M′ = 75.

The length of the R-ITR period sequence is different according to the pulse width and \( {T}_{s_n} \). Thus, the fitness function is calculated by choosing the front 20 μs. Then, the R-ITR periods are adopted to perform the optimization algorithm. According to the steps discussed in Section 2, the optimization results are presented in Tables 1, 2, and 3.

Table 1 The R-ITR period sequence before and after optimization (\( {T}_{s_n} \)[0.5 μs, 0.8 μs])
Table 2 The R-ITR period sequence before and after optimization (\( {T}_{s_n} \)[0.5 μs, 1.2 μs])
Table 3 The R-ITR period sequence before and after optimization (\( {T}_{s_n} \)[0.8 μs, 1.1 μs])

According to Eq. (21), the maximum fitness function value corresponds to the minimum correlation coefficient. The maximum value and average value of the fitness function versus the iteration are shown in Fig. 4.

Fig. 4
figure4

The maximum and average values of the fitness function versus the iteration. a The maximum value of the fitness function versus the iteration. b The average value of the fitness function versus the iteration

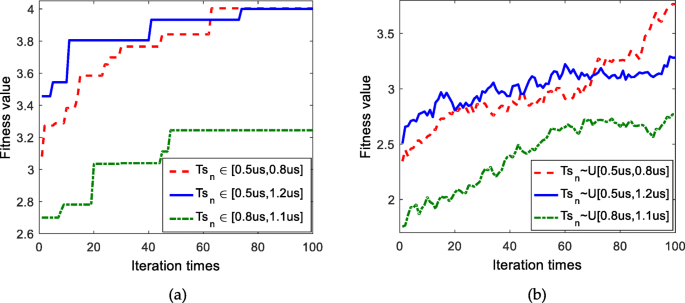

Figure 4a is the maximum value of the fitness function versus the iteration. When the iterations are less, the maximum fitness function value of \( {T}_{s_n} \)~[0.5 μs, 1.2 μs] is bigger than that of \( {T}_{s_n} \)~[0.5 μs, 0.8 μs]. The reason is that there are many individuals containing small \( {T}_{s_n} \) in the initialized population when the R-ITR period range is \( {T}_{s_n} \)~[0.5 μs, 1.2 μs]. However, the initialized population is not the optimized solution. When the iterations increase, the fitness function value of \( {T}_{s_n} \)~[0.5 μs, 0.8 μs] increases and becomes bigger than that of \( {T}_{s_n} \)~[0.5 μs, 1.2 μs]. Besides, the maximum value of the fitness value is the smallest when \( {T}_{s_n} \)~[0.8 μs, 1.1 μs].

The average value of the fitness function is presented in Fig. 4b. It can be found the curve tendency is the same with the maximum value of the fitness function in Fig. 4a. As the worst individuals are eliminated after iteration, the fitness function value increases so that the columns cross-correlation coefficient of the sensing matrix decreases. Then, the RIP of sensing matrix can be better satisfied after GA optimization.

In order to illustrate the columns cross-correlation coefficient variation of the sensing matrix, the average columns cross-correlation coefficient is obtained to compare with the coefficient after optimization. The columns cross-correlation coefficient of the proposed method is compared with the particle swarm optimization (PSO) algorithm. The results are shown in Table 4.

Table 4 The columns of cross-correlation coefficient of the sensing matrix before and after optimization

The optimization value in Table 4 is obtained according to Eq. (21). It can be found that the columns cross-correlation coefficient of the initialization individuals is 0.4131 when \( {T}_{s_n} \)~[0.5 μs, 0.8 μs] and 0.4085 when \( {T}_{s_n} \)~[0.5 μs, 1.2 μs]. The cross-correlation coefficient is the maximum when \( {T}_{s_n} \)~[0.8 μs, 1.1 μs]. The results are basically identical with the curves in Fig. 4.

On the other hand, the columns cross-correlation coefficients are decreased after the optimization, i.e., 0.2498, 0.2500, and 0.3083. Obviously, the coefficient of \( {T}_{s_n} \)~[0.5 μs, 0.8 μs] is the minimum. Besides, the columns cross-correlation coefficient obtained by the PSO method is larger than that obtained by the proposed method. The reason is that the proposed method adopts the elitism selection to save the best individual during each iteration. As a result, the RIP of the sensing matrix can be better satisfied with the proposed optimization method. And finally, the HRRP reconstruction performance can be improved.

Target HRRP reconstruction results based on GA

In this part, the HRRP reconstruction is conducted based on different R-ITR period sequence. Considering there are five scattering centers in the target, the distance between the scattering centers is 2 m. The scattering coefficient is [0.7, 0.5, 1, 0.6, 0.55]. Firstly, the reconstructed HRRP is obtained when \( {T}_{s_n} \)~[0.5 μs, 0.8 μs]. Secondly, the R-ITR period sequence is optimized based on the proposed optimization method. The HRRP reconstruction after optimization is obtained, and the results are presented in Fig. 5.

Fig. 5
figure5

The HRRP reconstruction comparison when \( {T}_{s_n} \)~[0.5 μs, 0.8 μs]. a Distribution of the scattering centers. b HRRP reconstruction before optimization. c HRRP reconstruction after optimization

Figure 5a is the distribution of target scattering centers. The scattering centers from − 4 to 4 m is supposed as 1 to 5. Figure 5b, c is the HRRP reconstruction before and after optimization. It can be found that the reconstructed HRRPs are basically identical to the HRRP of complete echo. Therefore, the sensing matrixes obtained by the optimized and non-optimized R-ITR period sequences have good RIP property when \( {T}_{s_n} \)~[0.5 μs, 0.8 μs].

Specially, the HRRP reconstruction comparisons are presented in Fig. 6 when \( {T}_{s_n} \)~[0.5 μs, 1.2 μs]. Figure 6a is the reconstructed HRRP versus the HRRP of the complete echo. Figure 6b is the reconstructed HRRP obtained by the optimized R-ITR period sequence. It can be found that the deviation between the reconstructed HRRP and the HRRP of the complete echo is smaller in Fig. 6b than that in Fig. 6a. For example, the amplitude of the scattering center 5 in the reconstructed HRRP in Fig. 6b is closer to the HRRP of the complete echo. Therefore, the results indicate the effectiveness of the optimization method.

Fig. 6
figure6

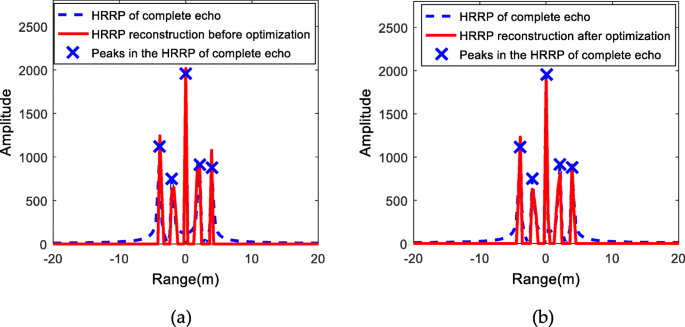

The HRRP reconstruction comparison when \( {T}_{s_n} \)~[0.5 μs, 1.2 μs]. a HRRP reconstruction before optimization. b HRRP reconstruction after optimization

When \( {T}_{s_n} \)~[0.8 μs, 1.1 μs], the HRRP comparison is obtained in Fig. 7. Because there are many large ITR periods, the columns cross-correlation coefficients are big. And the HRRP reconstruction performance is poor as shown in Fig. 7a. However, the R-ITR period sequence is optimized after GA; the reconstructed HRRP is presented in Fig. 7b. It can be found that the deviation between the reconstructed HRRP and the HRRP of the complete echo is small which indicates the good RIP of the sensing matrix after optimization.

Fig. 7
figure7

The HRRP reconstruction comparison when \( {T}_{s_n} \)~[0.8 μs, 1.1 μs]. a HRRP reconstruction before optimization. b HRRP reconstruction after optimization

In order to analyze the HRRP reconstruction performance, the normalized error between the reconstructed HRRP and the HRRP of complete echo is defined as:

$$ \mathrm{Error}={\left\Vert {\mathbf{S}}_f-\overline{{\mathbf{S}}_f}\right\Vert}_2/{\left\Vert {\mathbf{S}}_f\right\Vert}_2 $$
(22)

where Sf is the HRRP of complete echo, and \( \overline{{\mathbf{S}}_f} \) is the reconstructed HRRP.

For different R-ITR period sequences, the normalized errors are summarized in Table 5.

Table 5 The normalized error between the reconstructed HRRP and the real HRRP before and after optimization

In Table 5, the normalized error of HRRP after optimization is smaller than that before optimization. The normalized error is the smallest when \( {T}_{s_n} \)~[0.5 μs, 0.8 μs], and it decreases to 0.3130 when \( {T}_{s_n} \)~[0.8 μs, 1.1 μs]. Besides, the normalized error obtained by the PSO is larger than the proposed method as well. Therefore, it indicates that the proposed optimization method based on GA is effective to improve the HRRP reconstruction performance.

Reconstruction probabilities of scattering centers and HRRP based on GA

When the residual error between the reconstructed and original information is small enough, the reconstruction can be assumed to be correct [4]. Therefore, the HRRP can be supposed as corrected when the peaks Pos(peaks) is smaller than the range cell, and the normalized amplitude deviation Adev(peaks) is smaller than the threshold:

$$ \left\{\begin{array}{c}{P}_{\mathrm{os}}\left(\mathrm{peaks}\right)\le {R}_r\\ {}{A}_{\mathrm{dev}}\left(\mathrm{peaks}\right)\le \gamma \end{array}\right. $$
(23)

where Rr is the range resolution, and Rr = 0.3m as the bandwidth is 500 MHz. γ is the threshold which is set as 0.5.

The output signal-to-noise ratio (SNR) is defined as:

$$ \mathrm{SNR}=\max \left({\left|{A}_{sw}\right|}^2\right)/\overline{{\left|{A}_n\right|}^2} $$
(24)

where Asw is the peak value in target range cell, and \( \overline{{\left|{A}_n\right|}^2} \) is the noise value which is determined by ξ.

The reconstruction probabilities of scattering 1 and 2 and HRRP are presented in Fig. 8. Figure 8a, b are the reconstruction probabilities of scattering center 1 and 2 before and after optimization. Because the coefficient of scattering center 1 is bigger than scattering center 2, the reconstruction probability is better. Meanwhile, the reconstruction probability is improved after GA optimization which is in accordance with the HRRP reconstruction error in Table 5.

Fig. 8
figure8

Reconstruction probabilities of scattering 1 and 2 and HRRP. a Reconstruction probabilities of scattering 1. b Reconstruction probabilities of scattering 2. c Reconstruction probabilities of HRRP

When all the scattering centers are reconstructed, the HRRP can be supposed as success. Then, the HRRP reconstruction probability is presented in Fig. 8c. Similarly, the reconstruction probability is better after the optimization of R-ITR period sequence. Besides, the best reconstruction probability can be obtained with the R-ITR periods of \( {T}_{s_n} \)~[0.5 μs, 0.8 μs].

The reconstruction probability comparsion between the proposed method and the PSO method are conducted and presented in Fig. 9.

Fig. 9
figure9

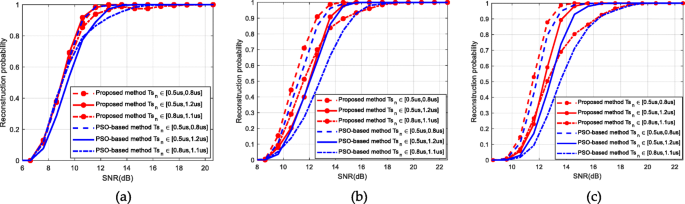

Reconstruction probability comparison between the proposed method and the PSO method. a Comparison of scattering 1 reconstruction probabilities. b Comparison of scattering 2 reconstruction probabilities. c Comparison of HRRP reconstruction probabilities

Figure 9a, b are the reconstruction probability comparison of scattering 1 and scattering 2. It can be found that the reconstruction probabilities obtained by the proposed method are bigger than those obtained by the PSO-based method. The HRRP reconstruction is successful when the five peaks of the HRRP is recovered. Therefore, the HRRP reconstruction probability of the proposed method is better compared with the PSO-based method as shown in Fig. 9c.

Conclusion

The R-ITR period sequence optimization method is proposed in this paper based on GA. The columns cross-correlation coefficient is used to evaluate the fitness value of the population in GA. Then, the HRRP reconstruction probabilities are obtained based on the proposed optimized ITR period sequence, the PSO ITR period sequence, and the ITR period sequence before optimization. Simulation and comparison results show that the columns cross-correlation coefficient is minimized after optimization which indicates the effectiveness of the proposed method. The optimization method of the ITR period sequence can be used in the radar signal design in the future.
