Application of compressed sensing for image compression based on optimized Toeplitz sensing matrices
EURASIP Journal on Advances in Signal Processing volume 2021, Article number: 70 (2021)
Abstract
In compressed sensing, the Toeplitz sensing matrices are generated by randomly drawn entries and further optimizes them with suitable optimization methods. However, during an optimization process, stateoftheart optimization methods tend to lose control over the structure of measurement matrices. In this paper, we proposed the novel approach for optimization of Toeplitz sensing matrices based on evolutionary algorithms such as Genetic Algorithm (GA), Simulated Annealing (SA), and Particle Swarm Optimization (PSO) for compression of an image signal. Furthermore, we investigated the performance of Basis Pursuit (BP) and Orthogonal Matching Pursuit (OMP) algorithms for the reconstruction of the images. The proposed optimized Toeplitz sensing matrices based on evolutionary algorithms such as GA, SA, and PSO exhibit a significant reduction in the mutual coherence (μ) and thus improved the recovery performance of 2D images compared to stateoftheart nonoptimized Toeplitz sensing matrices. The result reveals that the optimized Toeplitz sensing matrices with Basis Pursuit (BP) achieved more accurate results with a robust and uniform reconstruction guarantee compared to the OMP algorithm. However, BP shows the slow reconstruction performance of the image signal. On the other hand, an optimized Toeplitz sensing matrix with OMP shows a fast reconstruction guarantee, but at the cost of a reduction in the PSNR. Furthermore, the proposed approach retains the structure of Toeplitz sensing matrices and improves the image recovery performance of compressed sensing. Finally, the experimental results validate the effectiveness of the proposed method based on evolutionary algorithms for image compression.
Introduction
The conventional Nyquist sampling depends on the highest amount of rate of alteration of a signal. In this sampling scheme, samples of the signal are captured at double the highest frequency in the signal. However, this method restricts the efficient compression of a signal. Since this scheme places an enormous burden on an encoder side which acquires a vast number of samples of the signal and keeps only a few significant samples that are required to characterize the signal. Furthermore, these methods include complicated multiplications, an exhaustive coefficient search, and sorting procedure along with the arithmetic encoding of the significant coefficients with their locations. Consequently, it results in a vast storage requirement and power consumption.
On the contrary, compressed sensing is emerging as the most recent sampling scheme, which allows compression and signal reconstruction from the minimum number of measurements. In this scheme, the signal acquisition and compression are performed simultaneously at the encoder end. The signal is recovered back with a higher probability of success by using different optimization algorithms. Thus, CS results in a significant reduction in storage requirement and further reduces power consumption.
Compressed sensing has been implemented in diverse fields, including medical imaging, radar imaging, cameras, coding theory, geophysics, and astronomy.
CSbased biomedical imaging has been shown enormous interest and growth in recent times. Recently, researchers Wang, Bresler, and Vasilis [1] had reported an indepth survey and success on the application of CS in MRI, CT, PET, SPECT, optical imaging, and ultrasound imaging. The researchers Lustig et al. [2] had been successfully used CS to MRI. Thus, CSbased MRI could speed up the data acquisition process by reducing the scan time, and this allows us to examine a higher number of patients.
The dictionary learningbased reconstruction of MR images is one of the recent developments and shows great potential in medical applications. The researchers Ravishankar and Bresler [3] reconstructed MR images based on the dictionary learning approach. Furthermore, they [4] had successfully proposed learning of doubly sparse transform for the images.
Further, the application of CS in radar imaging has been an additional growing field of interest. Yang et al. [5] had successfully designed the segmented recovery scheme for CSbased SAR (Synthetic Aperture Radar) imaging. Bu et al. [6] had developed a CS algorithm for SAR imaging. They had reconstructed the data of good quality with limited observations and thus results in the reduction of storage requirement. Deng et al. [7] had successfully proposed CSbased image coding. They had been achieved a robust performance against the lossy channel compared to conventional coding methods.
Li and Qi [8] proposed a nonlocal DouglasRachford (NLDR) algorithm, based on DouglasRachford splitting to solve lowrank optimization problems constrained by the CS measurements. Shen et al. [9] sparse Bayesian dictionary learning based compressed sensingbased inpainting of aqua moderate resolution imaging.
Furthermore, some researchers had been implemented and successfully tested the realtime hardware for CSbased applications. For example, the singlepixel camera based on compressed sensing had developed by Duarte et al. [10]. Further, Nagesh and Li [11] had developed color imaging architecture based on the combination of singlepixel CS camera and Bayer color filter. Similarly, singlepixel CS was applied for remote sensing by researcher Ma Jianwei [12], which results in the reduction of storage requirement and the computational cost of imaging.
The author Liquan Zhao et al. [13] has implemented compressed sensing for monitoring the images of the transmission line. These images are compressed and reconstructed using a compressed sensing technique which, reduces the overall operational cost of a system.
In a nutshell, the Nyquist sampling put an enormous burden on the encoder side due to a massive number of samples of an acquired signal, particularly for audio/speech, ECG, image, and video signals. This fact inspired the study of compressed sensing as a potential solution for sampling, compression, and reconstruction of a signal. Intuitively, sparsity represents a large amount of energy concentration in a few numbers of coefficients. Several realworld signals such as speech and image are sparse or compressible in some transform domain. For example, images are compressible in basis algorithms such as JPEG and JPEG2000. The compressed sensing uses this sparsity property to compress and recover the signal effectively.
Traditionally, the random sensing matrices widely employed for signal compression in CS. The random Gaussian sensing matrices are entirely unstructured. Therefore, these matrices resulted in an enhanced computational complexity and increased memory storage requirement. Hence, the practical implementation of random Gaussian sensing matrices is costly. Further, sensing technologies need structured measurement matrices to accomplish different applications. Thus, the Toeplitz measurement matrix is one of the structured class matrix and widely used in a different field of applications, such as MRI [14], Synthetic Aperture Radar (SAR) [15], and channel estimations [16]. The Toeplitz matrices possess some exceptional features, such as these matrices generated with a smaller number of entries. Moreover, different techniques are available to speed up the matrix multiplication, which further may result in fast signal reconstruction. So far, the work carried out under the statement that the Toeplitz matrices generated using randomly drawn entries. Recently, Dirksen et al. [17] proposed partial Gaussian circulant matrices for 1bit compressed sensing. Furthermore, Jie et al. [18] proposed compressed sensing matrices using vector spaces for signal processing.
In the literature, so far, different methods are proposed for the optimization of random Gaussian measurement matrices [19, 20]. However, these methods randomly draw entries to generate random Toeplitz matrices and further optimize them with proper optimization methods. Nevertheless, during an optimization process, these methods lose control over the structure of measurement matrices. Also, researchers Abolghasemi, Jarchi, and Sanei [20] proposed the gradientdecentbased method to optimize mutual coherence. In this method, the modified cost function is followed by the gradientdescent minimization method to optimize the sensing matrices iteratively. This method shows the robustness in handling complex values. The researcher DuarteCarvajalino and Sapiro [21] proposed the noniterative way to calculate taveraged mutual coherence. This method intended to make a Gram matrix closer to the identity matrix. However, this method ignores the negative eigenvalues and thus presents the problem of complex values which, causes the algorithm to fail.
It had proved that if sensing matrices satisfy restricted isometry property (RIP) [22], then there has been a high probability of superior quality signal reconstruction. On the contrary, the RIP is impractical to evaluate. Therefore, another way to satisfy the RIP and guarantee the exact reconstruction of a signal is to compute the mutual coherence (μ) between the sensing matrix (Φ) and the sparsifying matrix (Ψ). The mutual coherence (μ) of a dictionaryD_{M × N} = Φ_{M × N} × Ψ_{N × N} is defined as the biggest absolute and normalized inner product among different columns of D [19] and given by the equation (1).
where N is the length of the input signal. From linear algebra, \( 1\le \mu \left(\Phi, \Psi \right)\le \sqrt{N} \).
Thus, the minimization of mutual coherence may be one of the effective ways to boost the recovery performance of compressed sensing matrices [23].
This paper proposes the optimization of Toeplitz sensing matrices based on evolutionary algorithms such as Genetic Algorithm (GA), Simulated Annealing (SA), and Particle Swarm Optimization (PSO) algorithm for image compression. The minimization of mutual coherence may be one of the effective ways to boost the recovery performance of compressed sensing matrices. Thus, this paper proposed the minimization of the mutual coherence (μ) between the sensing matrix (Φ) and the sparsifying matrix (Ψ) using evolutionary algorithms. The proposed optimization approach provides the best random Toeplitz vector, which consequently minimizes the mutual coherence (μ) between the sensing matrix (Φ) and the sparsifying matrix (Ψ). Further, the Toeplitz measurement matrix generated using the best random Toeplitz vector and finally applied for image compression. Furthermore, this proposed approach retains the structure of the Toeplitz matrix and improves the image recovery performance of compressed sensing.
Since the novel approach of the proposed optimization method is based on an evolutionary algorithm, and hence, it is entirely different from the stateoftheart optimization methods. Until now, all the stateoftheart optimization methods use nonevolutionary approaches for optimization of sensing matrices and thus tend to lose the structure of sensing matrices. Therefore, it is not practicable to compare proposed evolutionary approaches directly with nonevolutionary approaches of stateoftheart methods. Thus, rather than, we have compared the performance of the proposed optimized Toeplitz sensing matrices based on evolutionary algorithms with nonoptimized Toeplitz sensing matrices.
The main contributions of the proposed work are as follows:

1.
We proposed a novel approach for the optimization of Toeplitz sensing matrices based on Evolutionary algorithms.

2.
We proposed the first approach for the optimization of Toeplitz sensing matrices based on the Genetic Algorithm.

3.
We proposed the second approach for the optimization of Toeplitz sensing matrices based on the Simulated Annealing (SA) Algorithm.

4.
We proposed the third approach for the optimization of Toeplitz sensing matrices based on the Particle Swarm Optimization (PSO) Algorithm.

5.
We investigated the signal reconstruction performance using Basis Pursuit (BP) and Orthogonal Matching Pursuit (OMP) algorithm for GA, SA, and PSObased optimization approaches.

6.
Finally, GA, SA, PSObased optimization approaches exhibit a significant reduction in the mutual coherence (μ) and thus improved the recovery performance of 2D images compared to nonoptimized Toeplitz sensing matrices.
The organization of the paper is as follows: Section 1 presents the formulation of an optimization problem. Section 2 elaborates on the proposed optimization method based on evolutionary algorithms. Section 4 presents results and discussion. Finally, Section 5 presents the conclusions.
Method
Let the problem needs to optimize in terms of the minimization problem. Therefore, objective/fitness function is required to minimize. This problem consists of two matrices, namely the measurement/sensing matrix (Φ_{M × N}, where M<N) and the sparsifying transform matrix (Ψ_{N × N}). The Toeplitz matrix is used as a sensing matrix to compress the given signal, whereas the Discrete Cosine Transform (DCT) is used as a sparsifying transform matrix. The problem description is as follows:
The dictionary matrix (D) given as: D_{M × N} = Φ_{M × N} × Ψ_{N × N.}
Now, the dictionary matrix D must be optimized, such that the mutual coherence (inner product) of matrix D is as small as possible as given by the equation (1).
Thus, the objective function is to optimize (minimize) the mutual coherence (μ) of the dictionary matrix (D) using an evolutionary algorithm such as Genetic Algorithm (GA), Simulated Annealing (SA), and Particle Swarm Optimization.
The minimization of the mutual coherence (μ) of the dictionary matrix (D) will satisfy the RIP condition and further results in improving the recovery performance of a sparse signal.
The statement of the optimization problem is as follows:
The objective function is defined by equation (2) as follows. Here, N is the length of the input signal.
Proposed optimization of Toeplitz sensing matrices using Genetic Algorithm (GA)
This section presents the optimization of Toeplitz sensing matrices based on the Genetic Algorithm (GA). The initial population was generated by using different random Toeplitz vectors. Then the fitness function f(x) is evaluated for all the random Toeplitz vectors. The new population made using three steps: selection, crossover, and mutation. The Roulette wheel selection technique was used to select the best parents to create new offspring. In this technique, the best parents have chosen to depend on the fitness of the population. Higher fitness indicates a greater chance to get selected. Then the bit sequence of the two parents is swapped to create the new offspring. The diversity in the new population is achieved with a mutation. Next, the old population was replaced by the new population [24]. Then the algorithm is tested for the convergence criterion such as the maximum number of iterations. Finally, when an algorithm is converged, it will return the best Toeplitz vector, which results in minimum mutual coherence (μ). Thus, this best solution vector is used to generate the Toeplitz matrix.
The algorithmic steps for optimization of Toeplitz sensing matrices using Genetic Algorithm (GA) [25] are given as follows:

(i)
Generate an initial population of n chromosomes using random Toeplitz vectors:
Here, each Toeplitz vector is considered as one of the candidate solutions for the given problem. Each Toeplitz vector corresponding to the Toeplitz matrix is generated.

(ii)
Then evaluate the fitness function f(x) of each chromosome in the population:

(iii)
Further, evaluate the mutual coherence (i.e., fitness function) (μ) between the generated Toeplitz matrix (Φ) and the sparsifying matrix (Ψ). Thus, we had evaluated the fitness function for the generated Toeplitz matrix. Similarly, evaluate the fitness function for all the generated Toeplitz vectors.

(a)
Selection: Select two candidate solutions as a parent chromosome depending on their fitness value. Here, the best parents are selected by using the Roulette wheel selection technique. It works on the principle of the higher the fitness value of a chromosome better is the chance to get selected.

(b)
Crossover: Swap the bit sequence of the chosen parent chromosomes to create a new population. We can select onepoint/twopoint/threepoint crossover for this purpose.

(c)
Mutation: It provides the variety in a new population and thus protects the algorithm to trap at the local optimum solution. However, this results in slow convergence of the algorithm.

(a)

(iv)
Now, create a new population using the following steps:

(v)
Replace the old population with a new population.

(vi)
Finally, test for the convergence criterion of the Genetic Algorithm such as the number of iterations, etc.
When an algorithm is converged, it returns the best candidate solution, i.e., it returns the Toeplitz vector, which resulted in minimum mutual coherence (μ). Otherwise, go to step (2) and repeat the procedure still end criterion meets.
The simulation shows excellent results with the following specifications:

Algorithm: Binary GA Algorithm

Population Size = 100

Selection technique: Roulette wheel selection technique

Selection rate of parents for generating offspring = 0.5 or 50% of the initial population

Number of encoding bits = 16

Mutation method: Single point crossover

Mutation rate = 0.15

The maximum iterations (stopping criteria) = 100
Figure 1 shows the convergence characteristics of GA. It is observed from Fig. 1 that the value of the fitness function reduces with an increase in the number of iterations. Moreover, the cost of the fitness function remains constant from the 10th iteration to the 100th iteration. Thus, GA shows good and stable convergence characteristics up to the 100th iteration.
Proposed optimization of Toeplitz sensing matrices using Simulated Annealing (SA) algorithm
This section presents the optimization of Toeplitz sensing matrices using Simulated Annealing (SA). Primarily, the temperature parameter (T_{0}) is set to some high value, and then it is gradually reduced using the temperature reduction factor (α). The initial solution vector (s) and the new solution vector (s_{0}) are randomly generated using a random generator and then evaluate the fitness function for both the solution vectors.
If a new solution has better fitness than the current solution, it is selected as the next solution. On the contrary, if the new solution has a worse fitness compared to the current solution, the algorithm still considers it as the next solution. The acceptance or rejection of the new solution vector as the future solution vector depends on the MetropolisHasting criterion [26]. The MetropolisHasting principle given as follows:
where δ f = f(s)–f (s_{0}) is the fitness difference between the new solution vector and the old solution vector, T = temperature parameter, P(r) = probability of acceptance or rejection of the new solution vector as a next solution vector and r∈ (0, 1), and k = 1 (Boltzmann’s constant).
A random number (r) is generated such that r∈ (0, 1). If a random number (r) < exp [(δf)/(T)], then a new solution is selected as the next solution (s_{0}= s); otherwise, a new solution is discarded. Then the temperature parameter is reduced gradually to narrow search the optimum solution. The algorithm repeated until it meets the stopping criterion, such as minimum temperature value or a number of iterations. Finally, when an algorithm is converged, it will return, the best Toeplitz vector which, results in a minimum mutual coherence (μ). Thus, this best solution vector is used to generate the Toeplitz matrix.
The algorithmic steps for the optimization of Toeplitz sensing matrices using Simulated Annealing (SA) [27] are given as follows:
The simulations are conducted with the following specifications:

The maximum numbers of iterations = 500

Initial Temperature=1

Temperature reduction factor=0.8

Stopping Temperature value= 1e8
Figure 2 shows the convergence characteristics of the SA. It is observed from Fig. 2 that the value of the fitness function reduces with an increase in the number of iterations. Moreover, the value of the fitness function remains relatively constant from the 200th iteration to the 500th iteration. Thus, SA exhibited good and stable convergence characteristics up to the 500th iteration.
Proposed optimization of Toeplitz sensing matrices using Particle Swarm Optimization (PSO) algorithm
This section presents the optimization of Toeplitz sensing matrices using Particle Swarm Optimization (PSO). Here, each particle in the population is equivalent to the candidate solution in the solution space. This solution space is generated using a random number generator. Then the fitness function is evaluated for each solution in the population. If the current particle fitness is higher than the previous local best particle fitness, then we have to update the local best particle position (PBest). Similarly, if the current particle fitness is higher than the previous global best particle fitness, then we have to update the global best particle position (GBest). Then update the position and velocity of each particle using equation (position update equation) and equation (velocity update equation). Finally, when an algorithm is converged, it will return the best Toeplitz vector, which results in minimum mutual coherence (μ). Thus, this best solution vector is used to generate the Toeplitz matrix.
The algorithmic steps for the optimization of Toeplitz sensing matrices using Particle Swarm Optimization (PSO) [28] are given as follows.

(i)
Randomly generate the initial population.

(ii)
Randomly initialize the positions and velocities of particles in the population.

(iii)
Evaluate the fitness function for each particle in the population.

(iv)
If the current particle fitness is higher than the previous local best particle fitness, then update the local best particle position (PBest).

(v)
Similarly, if the current particle fitness is higher than the previous global best particle fitness, then update the global best particle position (GBest).

(vi)
Then update the position and velocity of each particle.
where v_{i} (k) is the initial velocity, and v_{i} (k+1) is the updated velocity of the ith particle, w: inertia weight, c1, c2: Positive constant c1 and c2 are personal (cognitive) and social learning factors; PBest: personal past best position of the ith particle; GBest: Global best position of the swarm; random1 (); random2 (): random function in the range [0, 1]; and k denotes the iteration counter.

The position update equation (5) given as:
where x_{i}(k) is the initial position of the particle, and x_{i}(k+ 1) is the updated position of the ith particle.

(vii)
Go to step (iii), and repeat until stopping condition meets.
The simulations conducted with the following specifications:

Population size = 100

Inertia weight (maximum) = 0.9

Inertia weight (minimum) = 0.4

Personal/cognitive factor (c1) = 2

Social learning factor (c2) = 2

The maximum numbers of iterations =100
Figure 3 shows the convergence characteristics of the PSO. It is observed from Fig. 3 that the value of the fitness function reduces with an increase in the number of iterations. Moreover, the value of the fitness function remains constant from the 50th iteration to the 100th iteration. Thus, PSO showed good and stable convergence characteristics up to the 100th iteration.
Results and discussion
The proposed work is evaluated on 256 × 256 test images namely: “Boat.bmp,” “Barbara.bmp,” and “Mandrill.jpg” [29]. The 8 × 8 DCT block image processing is used on 256 × 256 test images. The optimized random Toeplitz sensing matrices are used to compress the image signal.
The Discrete Cosine Transform (DCT) is used as the sparsifying basis for an image signal because of its higher sparseness. The test images recovered using Basis Pursuit (BP) [30] and Orthogonal Matching Pursuit (OMP) algorithm [31]. The experimental work performed using MATLAB 9.0 software with Intel (R) Core (TM) i34130 CPU @ 3.40 GHz, 8 GB RAM system specifications. The reconstruction performance of test images evaluated using metrics such as mutual coherence (μ), number of measurements, mean square error (MSE), peak signaltonoise ratio (PSNR), signal reconstruction time, and a sensing matrix construction time.
Performance analysis of GAoptimized Toeplitz sensing matrices with BP and OMP
This section presents the performance analysis of the proposed genetic algorithmbased optimized Toeplitz sensing matrices with Basis Pursuit (BP) and Orthogonal Basis Pursuit (OMP) as a reconstruction algorithm. The reconstruction performance of test images evaluated using error metrics such as mutual coherence (μ), number of measurements (m), mean square (MSE), peak signaltonoise ratio (PSNR), signal reconstruction time, and sensing matrix construction time.
Figure 4a–c compared the mutual coherence (μ) of proposed GAoptimized Toeplitz sensing matrices with nonoptimized Toeplitz sensing matrices for different values of measurements (m). The result shows that the proposed GAoptimized Toeplitz sensing matrices exhibit a significant reduction in the mutual coherence (μ) compared to nonoptimized Toeplitz sensing matrices for “Boat.bmp,” “Barbara.bmp,” and “Mandrill.jpg” images. The reduction in mutual coherence indicates the improvement in the reconstruction performance of the test images and vice versa.
Figure 5 shows that the proposed GAOptimized Toeplitz sensing matrices with BP achieve excellent results with higher PSNR compared to OMPbased GAoptimized Toeplitz sensing matrices.
Here, the higher values of PSNR indicate the better quality of the reconstructed images. Figure 6 shows the comparison of mean square error (MSE) between the proposed GAOptimized Toeplitz sensing matrices with BP and OMP algorithms. The proposed GAoptimized Toeplitz sensing matrices with BP achieve more accurate results (i.e., reduction in MSE) compared to the GAoptimized Toeplitz sensing matrices with OMP, as shown in Fig. 6. Here, smaller values of MSE indicate a more accurate result and thus gives better quality of the reconstructed images.
Furthermore, Figure 7a–c compared the image reconstruction time required for the GAoptimized Toeplitz sensing matrices with Basis Pursuit (BP) and OMP algorithms for “Boat.bmp,” “Barbara.bmp,” and “Mandrill.jpg” images. The result shows that the GAoptimized Toeplitz sensing matrices with the OMP algorithm achieve fast image reconstruction compared to the Basis Pursuit (BP)based image reconstruction.

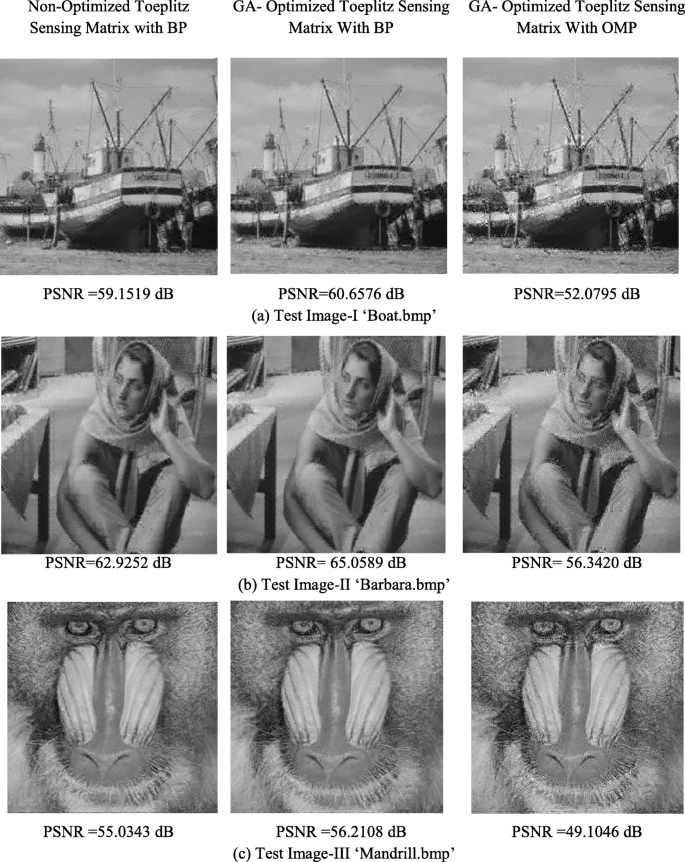

Table 1 shows the performance comparison of the proposed GAoptimized sensing matrices with Basis Pursuit (BP) and OMP algorithms for compression ratio CR (N/m) =0.5.
From Table 1, it is observed that the proposed GAoptimized sensing matrices with BP achieved higher PSNR for “Boat.bmp,” “Barbara.bmp,” and “Mandrill.jpg” test images. Similarly, it is observed that the GAoptimized sensing matrices with BP showed lower MSE compared to GAoptimized sensing matrices with OMP. On the contrary, GAoptimized sensing matrices with OMP achieved considerably fast image reconstruction compared to GAoptimized sensing matrices with BP. Additionally, GAoptimized sensing matrices with OMP show the rapid construction of sensing matrices. (Please refer to Figure 16 from Appendix 1 for reconstruction quality of test images using proposed GAOptimized sensing matrices with BP and OMP algorithm.)
Performance analysis of SAoptimized Toeplitz sensing matrices with BP and OMP
This section presents the comparative performance analysis between the SABP and SAOMP based optimized Toeplitz sensing matrices.
It is seen from Fig. 8a–c that the proposed SAoptimized Toeplitz sensing matrices exhibited a significant reduction in the mutual coherence (μ) compared to nonoptimized Toeplitz sensing matrices, for “Boat.bmp” image, “Barbara.bmp,” and “Mandrill.jpg” images.
It is noted from Fig. 9 that the proposed SAoptimized Toeplitz sensing matrices with BP achieved excellent results with higher PSNR compared to OMP based image reconstruction for “Boat.bmp,” “Barbara.bmp,” and “Mandrill.jpg” images.
It is observed from Fig. 10 that the proposed SAoptimized Toeplitz sensing matrices with BP achieve more accurate results (i.e., reduction in MSE) compared to the SAoptimized Toeplitz sensing matrices with OMP.
It is noted from Fig. 11a–c that the SAoptimized Toeplitz sensing matrices with the OMP algorithm achieved fast image reconstruction compared to the Basis Pursuit (BP) based reconstruction of the test images.

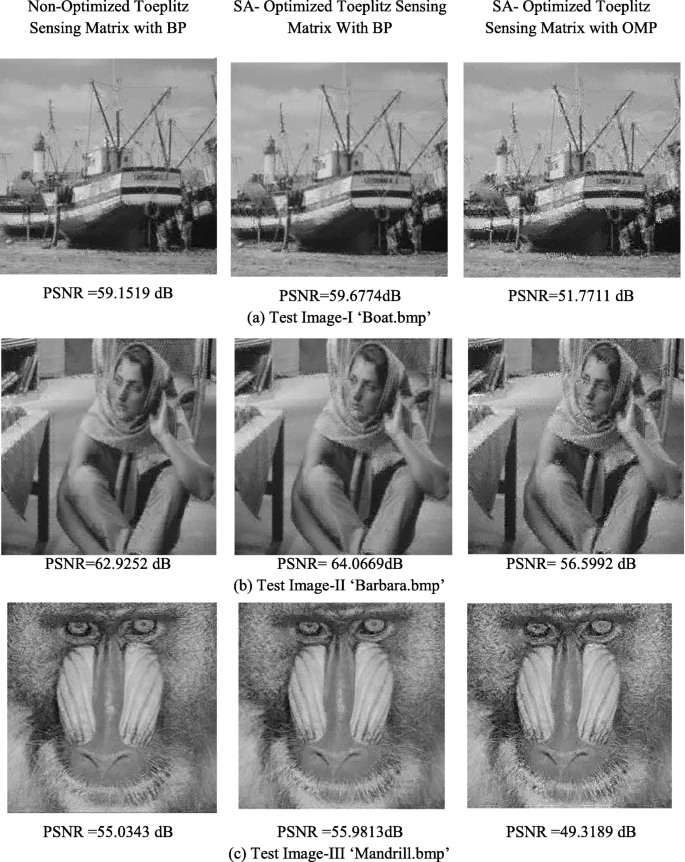

It is noted from Table 2, that the proposed SAoptimized sensing matrices with BP achieved higher PSNR for “Boat.bmp,” “Barbara.bmp,” and “Mandrill.jpg” test images. Similarly, SAoptimized sensing matrices with BP show lower MSE compared to SAoptimized sensing matrices with OMP. On the contrary, SAoptimized sensing matrices with OMP achieve considerably fast image reconstruction compared to SAoptimized sensing matrices with BP. Additionally, it also shows the rapid construction of sensing matrices. (Please refer to Figure 17 from Appendix 2 for reconstruction quality of test images using proposed SAOptimized sensing matrix with BP and OMP algorithm.)
Performance analysis of PSOoptimized Toeplitz sensing matrices with BP and OMP
This section presents the comparative performance analysis between the PSOBP and PSOOMP based optimized Toeplitz sensing matrices.
It is seen from Fig. 12a–c that the proposed PSOoptimized Toeplitz sensing matrices achieve a significant reduction in the mutual coherence (μ) compared to nonoptimized Toeplitz sensing matrices, for “Boat.bmp” image, “Barbara.bmp,” and “Mandrill.jpg” images.

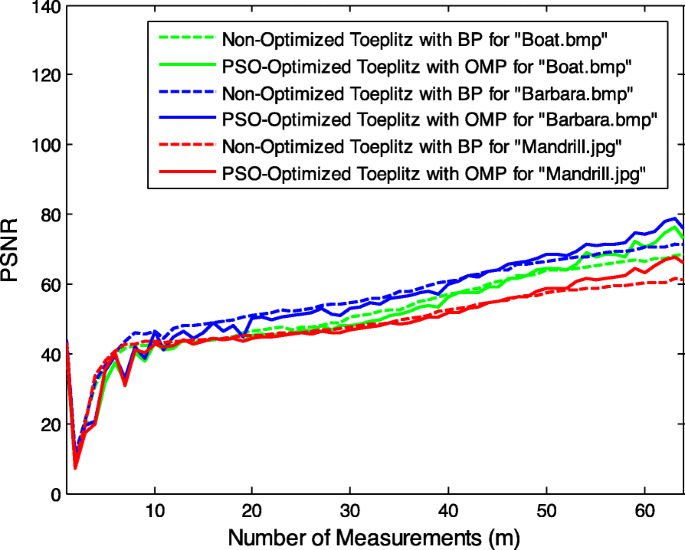

It is noted from Fig. 13 that the proposed PSOoptimized Toeplitz sensing matrices with OMP attain marginally lower PSNR compared to nonoptimized Toeplitz sensing matrices with BP.
Similarly, it is observed from Fig. 14 that the proposed PSOoptimized Toeplitz sensing matrices with OMP exhibit marginally higher MSE compared to the nonoptimized Toeplitz sensing matrices with BP. However, this is due to the fact that the reconstruction guarantees of OMP are weak and show nonuniform behavior.
It observed from Fig. 15a–c that the PSOoptimized Toeplitz sensing matrices with OMP exhibit significantly faster image reconstruction performance as compared to the nonoptimized Toeplitz sensing matrices for “Boat.bmp,” “Barbara.bmp,” and “Mandrill.jpg,” respectively.

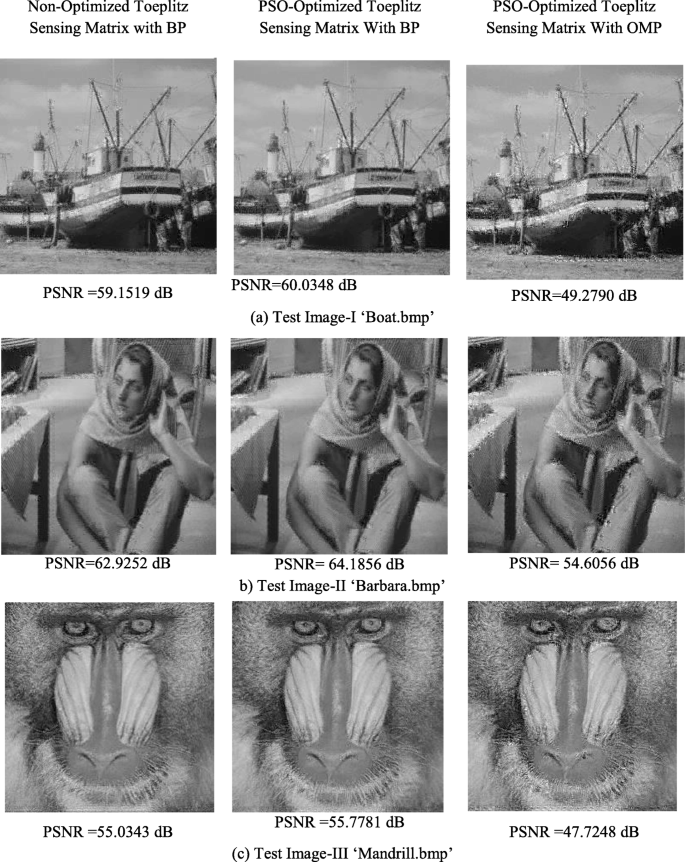

It is noted from Table 3 that the proposed PSOoptimized sensing matrices with BP achieve higher PSNR for “Boat.bmp,” “Barbara.bmp,” and “Mandrill.jpg” test images. Similarly, PSOoptimized sensing matrices with BP attain lower MSE compared to OMPOptimized sensing matrices with OMP.
On the contrary, PSOoptimized sensing matrices with OMP achieve considerably fast image reconstruction compared to PSOoptimized sensing matrices with BP. Additionally, it also shows the rapid construction of sensing matrices. (Please refer to Figure 18 from Appendix 3 for reconstruction quality of test images using proposed PSOOptimized sensing matrix with BP and OMP algorithm.)
Conclusion
In this paper, a novel approach to optimize Toeplitz sensing matrices using evolutionary algorithms such as Genetic Algorithm (GA), Simulated Annealing (SA), and Particle Swarm Optimization (PSO) algorithms for compressed sensing is discussed. Furthermore, the performance of Basis Pursuit (BP) and Orthogonal Matching Pursuit (OMP) algorithms are investigated for the reconstruction of the 2D image signal.
The minimization of mutual coherence (μ) between the sensing matrix (Φ) and the sparsifying matrix (Ψ) is one of the effective ways to boost the recovery performance of compressed sensing matrices.
The following significant conclusions are drawn based on the investigations:
The proposed optimized Toeplitz sensing matrices based on evolutionary algorithms exhibit a significant reduction in the mutual coherence (μ). Thus the proposed method clearly outperforms the nonoptimized Toeplitz sensing matrices for image compression application.
The proposed optimized Toeplitz sensing matrices based on Genetic Algorithm (GA), Simulated Annealing (SA), and Particle Swarm Optimization (PSO) algorithms with Basis Pursuit (BP) as a reconstruction algorithm achieve more accurate results (i.e., reduction in MSE) with higher PSNR compared to the nonoptimized Toeplitz sensing matrices with Basis Pursuit (BP). Furthermore, these matrices achieve significantly faster image reconstruction as well as faster construction of sensing matrices.
Further, it is noted that the proposed optimized Toeplitz sensing matrices based on Genetic Algorithm (GA), Simulated Annealing (SA), and Particle Swarm Optimization (PSO) algorithms with Orthogonal Matching Pursuit (OMP) as a reconstruction algorithm exhibits the lower values of PSNR and higher values of MSE compared to the nonoptimized Toeplitz sensing matrices with BP. Generally, this behavior present due to the greedy approach of the OMP algorithm. Moreover, this is due to the fact that the reconstruction guarantees of OMP are weak and show nonuniform behavior.
On the contrary, the optimized Toeplitz sensing matrices with OMP achieved significantly faster image reconstruction as well as rapid sensing matrix construction performance as compared to the nonoptimized Toeplitz sensing matrices.
Thus, in general, the optimized Toeplitz sensing matrices with Basis Pursuit (BP) achieve more accurate results with a robust and uniform reconstruction guarantee. However, they showed a slow signal reconstruction performance. On the other hand, the optimized Toeplitz sensing matrices with OMP show a fast reconstruction guarantee, but at the cost of the reduction in the PSNR.
Finally, the result shows the successful implementation of the proposed optimized Toeplitz sensing matrices using evolutionary algorithms such as Genetic Algorithm (GA), Simulated Annealing (SA), and Particle Swarm Optimization (PSO) algorithms for compressed sensing. Furthermore, Toeplitz sensing matrices are easy for hardware realization because of its lower computational complexity compared to random Gaussian sensing matrices.
