Iterative 2D sparse signal reconstruction with masked residual updates for automotive radar interference mitigation

Abstract

Compressive sensing has attracted considerable attention in automotive radar interference mitigation. However, these algorithms usually cannot be applied directly to commercial automotive radar as most of them are computationally intense. In this paper, we therefore introduce a computationally efficient two-dimensional masked residual updates (2D MRU) compressive sensing framework. By utilizing the sparsity of the beat signal in the frequency domain, the range-Doppler (RD) spectrum can be reconstructed with the help of undistorted samples in the beat signal. Unlike the other schemes, where a 2D signal measurement is vectorized into a 1D signal, the proposed 2D MRU can directly take a 2D signal measurement and reconstruct the corresponding RD spectrum. Furthermore, the 2D MRU framework can be easily integrated into well-known optimization schemes such as basis pursuit, iterative hard thresholding, iterative soft thresholding, orthogonal matching pursuit, and approximate message-passing algorithm. In addition to the standard iterative thresholding algorithms, we propose a novel prior-model-based iterative thresholding method to further reduce the computation time and reconstruction error. Theoretical analysis shows that the proposed framework can successfully reconstruct the RD spectrum with high probability. Moreover, numerical experiments demonstrate the superiority of the proposed framework in terms of computational complexity.

Introduction

Automotive radar plays an important role in advanced driver assistant systems as it can provide reliable safety support for modern vehicles under almost all weather conditions. To achieve a higher level of automated driving, the number of vehicles equipped with radar sensors and the number of radar sensors per vehicle are increasing rapidly. Thus, mutual interference between automotive radars increases due to the rising density of radar sensors on the road [1]. Since unexpected interference can impede the object detection by either reducing the signal-to-noise ratio (SNR) or creating ghost targets [2, 3]. Thus, mutual interference can affect the functionality of radar sensors if no countermeasures are taken.

Prior work

Different signal reconstruction algorithms, such as the zeroing method, autoregressive (AR) model-based interpolation and adaptive noise cancellation have been proposed as countermeasures for automotive radar interference mitigation [1, 4,5,6]. The zeroing method [1] is a basic technique in which the signal segment disturbed by interference is simply set to zero. In [4], a complex band receiver and an adaptive noise canceller are utilized for interference mitigation, it cancels the interference in the positive half of the frequency spectrum (\([0,\pi ]\) normalized frequency), while it uses the correlated interference in the negative half of the frequency spectrum (\([-\pi ,0]\) normalized frequency) as a reference. Solving the mutual interference issue in the frequency domain for frequency-modulated continuous wave (FMCW) radar is also considered in [5], where the signal disturbed by interference is recovered by linear predictive coding (LPC) in the short-time Fourier transform (STFT) domain. However, the interference in real-world scenarios can contain much diversity and randomness, e.g., the chirp rates of different radar sensors can be similar to each other, and there can be multiple sources of interference. Hence, the samples disturbed by interference in some chirps may spread across the entire measurement. Thus, the number of available interference-free samples in these chirps is not sufficient for LPC to provide adequate recovery in the STFT domain. Different to [5], the AR model is used in [6] for the discrete beat signal interpolation in the positions which are disturbed by interference.

Recent research results have shown that compressive sensing (CS) approaches can be used to tackle this problem [7,8,9,10]. In [7], the samples disturbed by interference are first substituted with zeros and these zeroed samples are further interpolated using the iterative method with an adaptive thresholding (IMAT) algorithm. In [8], the interference is removed by using the orthogonal matching pursuit (OMP) algorithm to project the interference-contaminated signals on a reduced chirplet basis which contains possible hypotheses for slopes and time-shifts of chirps. The interference mitigation problem is defined as a dual-basis pursuit problem and the morphological component analysis is used in [9] for separating the interference from the discrete beat signal. In [10], the sparse Bayesian learning algorithm is adopted for automotive radar interference mitigation. The range-Doppler (RD) spectrum can be acquired from the mean of the maximum a posteriori (MAP) estimate under the given remaining undistorted samples in the discrete beat signal. Most recently, the wavelet denoising technique was proposed to suppress the mutual interference in the time domain [11]. However, to apply this method in practical automotive radar systems, the threshold values related to the wavelet coefficients need to be optimized on the basis of large amounts of real world data and the interference with similar amplitude as the echo signal of the target may still remain after reconstruction.

Motivation and contribution

As exemplified above, CS algorithms usually provide better signal recovery than conventional algorithms but might require more computational resources.

Therefore, we propose a novel solution for the interference mitigation that can efficiently reconstruct the RD spectrum by directly processing the two-dimensional (2D) discrete beat signal. The proposed 2D masked residual updates (2D MRU) CS framework can be easily integrated into most existing CS schemes as well as the proposed novel prior-model-based iterative thresholding methods. Specifically, the main contributions of this paper are as follows:

Firstly, we propose a novel prior-model-based iterative thresholding method that achieves smaller reconstruction error and computation time than corresponding baseline algorithms. The update rate (typically 20 Hz) [12] in automotive radar systems indicates that rich prior information can be provided for interference mitigation, since the perceived environment may change only slightly during the short measurement cycles.

Secondly, a computationally efficient 2D MRU CS framework for RD spectrum recovery is introduced. 2D MRU avoids large vectors and high-dimensional matrix operations which typically come along with an increasing size of the measurement matrix.

Thirdly, the measurement transform matrix used in this paper is proven to satisfy the restricted isometry property (RIP) with high probability. In other words, the proposed framework can successfully reconstruct the RD spectrum with a high probability.

Fourthly, it is demonstrated that the proposed 2D MRU can be easily integrated to the established CS schemes e.g., basis pursuit, iterative soft thresholding (IST), iterative hard thresholding (IHT), OMP, approximate message-passing (AMP) and the proposed prior-model-based iterative thresholding algorithms. The performance of different algorithms that incorporate 2D MRU is evaluated and the superiority of the proposed framework in terms of computational complexity is shown.

Finally, a detection method with a higher true-positive rate is proposed for the detection of interference-contaminated samples. The detection method can be further combined with the state-of-the-art CS frameworks as well as with 2D MRU.

Organization and notations

The organization of this paper is as follows. In Sect. 2, the frequency-modulated continuous wave radar signal model is introduced. Section 3 describes the details of the proposed prior-model-based iterative thresholding algorithms and 2D framework and we prove that the proposed framework can successfully reconstruct the RD spectrum with high probability. In Sect. 4, an algorithm for the detection of interference-contaminated samples is proposed. The performance of the proposed method is evaluated through real measurements in Sect. 5. Finally, Sect. 6 concludes this paper.

Notations: We denote vectors by boldface lower-case symbols and matrices by boldface upper-case symbols. The support set of a sparse signal is denoted as \({\text {supp}}(\cdot ) .\) The empirical mean of a signal is denoted as \(\langle \cdot \rangle\) and the standard deviation is represented as \(\text {std}(\cdot )\). \(||\cdot ||_F\) is the Frobenius norm and \(\text {vec}(\cdot )\) denotes the vectorization of a matrix by stacking the columns. The lower bound and upper bound on the complexity of an algorithm are represented by \(\Omega\) and \(\textit{O}\), respectively.

Automotive FMCW radar signal model

The chirp sequence modulation [13] which is a currently widespread variant of FMCW in automotive radar system, contains M consecutive chirps, and its transmit waveform can be represented as

$$\begin{aligned} T_{x}(t) = \sum \limits _{m = 0}^{M-1} x\left( t-mT\right) . \end{aligned}$$
(1)

The individual transmit chirp signal is given by

$$\begin{aligned} x(t) = \text {exp}\left( j2 \pi \left( f_{c}t+ 0.5\alpha t^{2}\right) \right) \text {rect}_{T}(t), \end{aligned}$$
(2)

where \(f_{c}\) is the carrier frequency, \(\alpha = B/T\) denotes the slope of the transmit signal with B and T denoting the sweep bandwidth and the chirp duration, respectively, and \(\text {rect}_{T}(t)\) is the square pulse of duration T. The mth chirp of the target’s echo signal is delayed by \(\tau\) relative to the transmit signal with a normalized relative Doppler shift d [2]:

$$\begin{aligned} r_{m}(t) = A_{m}x\left( t +\left( t+mT \right) d -\tau \right) + \text {v}_{m}(t), \end{aligned}$$
(3)

where \(A_{m}\) is the received amplitude, \(\tau = 2R/c\), \(d = 2v/c\), and \(\text {v}_{m}\) denotes complex Gaussian noise. Here, R and v denote, respectively, the distance and relative radial velocity between the radar and the target, and c represents the speed of light. The beat signal at the intermediate frequency can be obtained after stretch processing, namely mixing \(r_{m}\) with the complex conjugate of the transmitted signal: \(\hat{y}_{m}(t)= r_{m}(t)x^{*}(t)\). After filtering and sampling with a period of \(T_{s}\) and collecting N samples per chirp, the discrete beat signal can be approximated as [2]

$$\begin{aligned} & \hat{y}_{{n,m}} \approx A_{m} \exp \left( {j2\pi \left( { - \alpha \tau + f_{c} d} \right)nT_{s} } \right) \\ & \quad \cdot \exp \left( {j2\pi \left( {f_{c} dmT} \right)} \right) + v_{{n,m}} \;n \in [0,N - 1]. \\ \end{aligned}$$
(4)

With the assumption that \(\check{y}_{m,n}\) represents the additive in-band interference, which can be induced by various sources of interference [14, 15], the discrete beat signal \(\mathbf{y} = \{y_{(m\cdot N+n)}\}\) for \(0 \le m \le M-1\) and \(0 \le n \le N-1\) can be therefore summarized as

$$\begin{aligned} y_{(m\cdot N+n)} = {\left\{ \begin{array}{ll} \hat{y}_{n,m} + \text {v}_{n,m} \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,m\cdot N+n \in H \\ \hat{y}_{n,m} + \check{y}_{n,m} + \text {v}_{n,m} \,\,\,\,m\cdot N+n \notin H, \end{array}\right. } \end{aligned}$$
(5)

where H is the set of sample indices without interference and \(m\cdot N+n \notin H\) denotes the indices of the samples containing interference. Figure 1 shows examples of interference-free and interference-contaminated discrete beat signals.

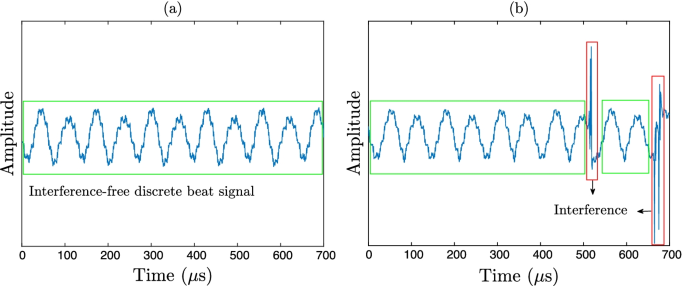

Fig. 1
figure 1

Example of a discrete beat signal without (a) and with (b) interference

We now explain the two different signal models which will play an essential role in this paper.

Summary of signal model in matrix form

To obtain target range and velocity, the 2D discrete Fourier transform (DFT) can be applied on the discrete beat signal matrix \(\mathbf{Y} = \lbrace \textit{y}_{\textit{n},\textit{m}}\rbrace \in \mathbb{C}^{\textit{N}\times \textit{M}}\),

$$\begin{aligned} \mathbf{X} = \mathbf{W} _{N}\cdot \mathbf{Y} \cdot \mathbf{W} _{M}^{\textit{T}} \end{aligned}$$
(6)

where \(\mathbf{W} _\mathbf{N} \in \mathbb{C}^{\textit{N}\times \textit{N}}\), \(\mathbf{W} _\mathbf{M} \in \mathbb{C}^{\textit{M}\times \textit{M}}\) are DFT matrices (as defined in Appendix A), and \(\mathbf{X} \in \mathbb{C}^{\textit{N}\times \textit{M}}\) denotes the 2D RD spectrum. Figure 4a shows an example RD spectrum without interference and Fig. 4b shows an example RD spectrum with interference.

Summary of signal model in vector form

Based on the 2D signal model in matrix form, the one-dimensional (1D) vector form of the signal model can be formulated. \(\mathbf{x} \in \mathbb{C}^{\textit{MN}\times 1}\) denotes the vector form of the RD spectrum and can be obtained by

$$\begin{aligned} \mathbf{x} = (\mathbf{W _\mathbf{M} }^\textit{T}\otimes \mathbf{W _\mathbf{N} }) \cdot \mathbf{y} , \end{aligned}$$
(7)

where \(\otimes\) represents the Kronecker product and \(\mathbf{y} = (\textit{y}_{\textit{0}},...,\textit{y}_{MN-1})^\textit{T}\in \mathbb{C}^{\textit{MN}\times 1}\).

Compressive sensing framework for radar interference mitigation

Compressive sensing

Compressive sensing has shown its strength in reconstructing sparse signals using far fewer samples than required by the Nyquist sampling theorem [16]. It requires a transform domain that provides a sparse representation of the observed signal. Its sensing structure, i.e. the measurement transform matrix, has to satisfy the restricted isometry property [17]. The transform domain with the low-dimensional representation is called sparse domain. A signal having \(\textit{k}\) nonzero coefficients in the sparse domain is called \(\textit{k}\)-sparse. Generally, the sparsity of the signal \(\mathbf {y}\) is measured by the \(l_{0}\) pseudo norm of its representation vector \(\mathbf{x}\) where the \(l_{0}\) pseudo norm denotes the cardinality of the support of \(\mathbf{x}\) [18]:

$$\begin{aligned} \left\| \mathbf{x} \right\| _{0} = \text {card}\{\text {supp}(\mathbf{x} )\} = \textit{k}. \end{aligned}$$
(8)

The representation of the beat signal in most automotive radar application scenarios is sparse in the RD spectrum. Hence, the interference-pruned discrete beat signal can be seen as the beat signal with a reduced sampling rate and its sparse representation can be restored by the CS algorithm. The 1D signal model in vector form can be easily connected to the CS framework. The measurement transform matrix can be written as \({\tilde{\mathbf{W }}}={\tilde{\mathbf{W }}_\mathbf{M }}\otimes {\tilde{\mathbf{W }}_\mathbf{N }}\in \mathbb{C}^{\textit{MN}\times \textit{MN}}\).

The dimensions of the inverse DFT (IDFT) matrices \({\tilde{\mathbf{W }}_\mathbf{N }}\) and \({\tilde{\mathbf{W }}_\mathbf{M }}\) are \(N\times N\) and \(M\times M\) (see Appendix A), respectively.

Assume that the number of all undisturbed samples across all chirps in (5) is q. Thus, the resulting beat signal vector is given by \({\tilde{\mathbf{y }}} = ({y}_{{i}_{0}},...,{y}_{{i}_{{q-1}}})^{T}\) with \(0<q<MN\) and \(\{i_0,...,i_{q-1}\}\subset \{0,...,MN -1 \}\), and \({\tilde{\varvec{\Psi }}} = \left( {\varvec{\psi }}_{i_0}^{{T}},...,{\varvec{\psi }}_{i_{q-1}}^{{T}}\right) ^{{T}}\) where \(\varvec{\psi }_{i_{q-1}}\) denotes the \(i_q\)-th row vector in matrix \({\tilde{\mathbf{W }}}\). The radar interference mitigation problem can be rephrased as the reconstruction of the sparse vector \(\mathbf{x}\) from the noisy measurement \({\tilde{\mathbf{y }}}={\tilde{\varvec{\Psi }}}{} \mathbf{x}\). This problem is equivalent to solving an underdetermined set of linear equations. An illustration of how to utilize the 1D CS framework for the interference mitigation of the automotive radar signal is presented in Fig. 2.

Fig. 2
figure 2

Compressive sensing framework adopted to radar interference mitigation

Under the condition that \(\mathbf{x}\) is sparse, the problem can be reduced to a minimization problem:

$$\begin{aligned} \text {P}_{0}: \hat{\mathbf{x }}=\mathop {{{\,\mathrm{argmin}\,}}}\limits _\mathbf{x \in \mathbb{C}^{MN}} \left\{ \frac{1}{2} ||{\tilde{\mathbf{y }}}-{\tilde{\varvec{\Psi }}} \mathbf{x} ||_2^2 + \nu ||\mathbf{x} ||_0 \right\} , \end{aligned}$$
(9)

with the Lagrange multiplier \(\nu\) [18]. However, due to the discrete and discontinuous nature of the \(l_{0}\) pseudo norm, the \(l_{0}\)-minimization is NP-hard in general [18]. Thus, \(\text {P}_{0}\) is computationally intractable. The \(l_{1}\)-minimization or basis pursuit [19] can be interpreted as the convex relaxation of the \(l_{0}\)-minimization, and the \(l_{1}\)-minimization is as follows

$$\begin{aligned} \text {P}_{1}: \hat{\mathbf{x }}=\mathop {{{\,\mathrm{argmin}\,}}}\limits _\mathbf{x \in \mathbb{C}^{MN}} \left\{ \frac{1}{2} ||{\tilde{\mathbf{y }}}-{\tilde{\varvec{\Psi }}} \mathbf{x} ||_2^2 + \nu ||\mathbf{x} ||_1 \right\} . \end{aligned}$$
(10)

Since \(\text {P}_{1}\) is convex, efficient solvers can be used, such as iterative shrinkage-thresholding pursuit [20]. Alternative reconstruction algorithms include greedy-type methods such as OMP [21, 22], as well as thresholding-based methods [23,24,25] and the AMP algorithm [26]. These algorithms can be easily integrated in the framework shown in Fig. 2. However, the efficiency of this framework is limited as it vectorizes the 2D signal measurement in automotive radar system to a 1D vector of dimension MN.

Restricted isometry property

In order to successfully recover a good estimate of signal \(\mathbf{x}\), the measurement transform matrix \({\tilde{\varvec{\Psi }}}\) in (10) should satisfy the restricted isometry property [17].

The selection of the measurement transform matrix has been analyzed in [18, 27]. It is shown that a random partial Fourier matrix satisfies a near-optimal RIP with high probability [27, 28]. In this work, the theoretical analysis on RIP of the measurement transform matrix \({\tilde{\varvec{\Psi }}}\) is further conducted in Lemma 1 and Theorem 1 given in Appendix B. Theorem 1 shows that \({\tilde{\varvec{\Psi }}}\) satisfies the RIP with high probability.

Structure of 1D algorithms for RD spectrum recovery

In this subsection we introduce the novel prior-model-based iterative sparsity-promoting algorithms employed in conjunction with the 1D formulation of our interference mitigation approach.

Prior-model-based iterative thresholding

When it comes to solving large-scale systems of linear equations often iterative gradient descent methods are employed rather than the Gaussian elimination [29]. The basic form of the update step of such an iterative algorithm for solving underdetermined systems like (9) and (10) is given by

$$\begin{aligned} \begin{aligned} \mathbf{r} _t&= {\tilde{\mathbf{y }}}- {\tilde{\varvec{\Psi }}}{} \mathbf{x} _t, \\ \mathbf{x} _{t+1}&= \mathcal {T}_{\lambda }(\mathbf{x} _t+\vartheta {\tilde{\varvec{\Psi }}}^T \mathbf{r} _t) . \end{aligned} \end{aligned}$$
(11)

Here \({\tilde{\varvec{\Psi }}}^T \mathbf{r} _t ={\tilde{\varvec{\Psi }}}^T({\tilde{\mathbf{y }}}- {\tilde{\varvec{\Psi }}} \mathbf{x} _t)\) represents the gradient of the approximation error (residual \(\mathbf{r} _t\)) in the t-th iteration of the algorithm. \(\mathcal {T}_{\lambda }(\cdot )\) denotes a nonlinear function that promotes the sparsity of the solution. The parameter \(0<\vartheta \le 1\) influences the convergence speed. Hard thresholding and soft thresholding have been shown to be two possibilities for the nonlinear function \(\mathcal {T}_{\lambda }(\cdot )\), where \(\lambda\) denotes the threshold value.

For the algorithms to run as efficiently as possible, the choice of the threshold value \(\lambda\) is crucial. It can remain constant for all iterations, decrease by a fixed multiplicative factor in each iteration, or be adaptively adjusted to the signal properties in each iteration. An adaptive adjustment can be derived by considering the gradient term \({\tilde{\varvec{\Psi }}}^T\mathbf {r}_t\). Assuming that the values in this term correspond to a Gaussian distribution with zero mean and standard deviation \({{\,\mathrm{std}\,}}({\tilde{\varvec{\Psi }}}^T \mathbf{r} _t)\), the threshold is given by

$$\begin{aligned} \varvec{\lambda }_t=\beta \cdot {{\,\mathrm{std}\,}}({\tilde{\varvec{\Psi }}}^T \mathbf{r} _t), \end{aligned}$$
(12)

where \(\beta\) is the threshold control parameter, typically in the range \(2<\beta <4\) [30]. This effectively reduces the noise in the representation by assuming that small signal values are part of the noise.

Since the typical measurement cycle of an automotive radar sensor is around 50 milliseconds [12], the observed movements of the targets in the RD spectra of successive measurement cycles are rather small in most application scenarios. Therefore, the prior information about the positions of the targets can be utilized to expedite the update steps of the iterative thresholding algorithms described in (11).

Instead of using the standard IST [16, 31] and IHT [32], we incorporate prior information into the thresholding process for solving (9) and (10). The prior-model-based soft thresholding function is defined as:

$$\begin{aligned} \begin{aligned} \mathcal {S}_{\lambda }(\theta _i)&={{\,\mathrm{sign}\,}}(\theta _i)\max (|\theta _i|-(1-\zeta (p_{i}))\cdot \lambda ,0), \\&\quad \text {for}~ i=0,...,MN-1, \end{aligned} \end{aligned}$$
(13)

where i denotes the index of the elements of vector \(\varvec{\theta }\). The prior probability \(p_{i}\) ensures that if a sparse maximum is likely at the i-th position, the threshold \(\lambda\) is scaled down accordingly by \((1-\zeta (p_{i}))\). This helps to reduce the number of iterations for searching an optimal estimate of \(\mathbf{x}\) and facilitates the detection of local maxima, thereby reducing the reconstruction error. The mapping function

$$\begin{aligned} \zeta :\mathbb{R}\rightarrow \mathbb{R},~\zeta (p_{i})=\frac{a\cdot p_{i}+b}{e} \end{aligned}$$
(14)

is introduced for regulating the prior model, where \(a,b,e\in \mathbb{R}\) are the control parameters.

Similarly, the prior-model-based hard thresholding function is defined as:

$$\begin{aligned} \begin{aligned} \mathcal {H}_\lambda (\theta _i)={\left\{ \begin{array}{ll} \theta _i, ~~~&{} |\theta _i| \ge (1-\zeta (p_{i}))\cdot \lambda \\ 0, &{} |\theta _i| <(1-\zeta (p_{i}))\cdot \lambda \\ \end{array}\right. }, \\ \text {for}~ i=0,...,MN-1, \end{aligned} \end{aligned}$$
(15)

where i denotes the index of the elements of vector \(\varvec{\theta }\).

Determination of the prior probability

The prior of the presence of the target at the \(\textit{i}\)-th position of \(\mathbf{x}\) is assumed to follow a normal distribution whose expected value \(\mu _{\textit{i}}\) and variance \(\sigma ^2_{\textit{i}}\) are equal to the empirical mean and variance of the peak values at this position in the latest Q-measurements:

$$\begin{aligned} p(x_{\textit{i}}) \sim \mathcal {N}(\mu _{\textit{i}},\sigma ^2_{\textit{i}}), \textit{i} \in \xi , \end{aligned}$$
(16)

where \(\xi = \xi _0 \cup \xi _1... \cup \xi _{Q-1}\) represents the set of positions of target peaks detected by a cell averaging constant false alarm rate (CA-CFAR) algorithm in the (original or recovered) RD spectraFootnote 1 of the latest Q measurements. \(\xi _0\) and \(\xi _{Q-1}\) denote the sets of detected positions of target peaks in the RD spectrum of the current measurement \(\mathbf{x} _{\eta }\) and the measurement at time \(\eta -Q+1\), respectively. The prior probability for the presence of the target at the i-th position (\(\textit{i} \in \xi\)) of the next measurement \(\mathbf{x} _{\eta +1}\) is determined by \(x_{\textit{i}}\) in \(\mathbf{x} _{\eta }\). Because the presence of target peaks at other positions (\(\textit{i} \notin \xi\)) was not observed in the latest Q-measurements, the prior probability of the these positions is initially set to zero. Then, a prior probability matrix \({\tilde{\mathbf{P }}}\in \mathbb{R}^{\textit{N}\times \textit{M}}\) can be constructed. However, since the targets may move slightly in the next measurement cycle, the prior probability should optimally be propagated from the historical target positions to the neighboring positions surrounding them. The new prior probability matrix is then recalculated as \(\mathbf{P} = \mathbf{G} \circledast {\tilde{\mathbf{P }}}\), where \(\mathbf{G}\) represents a 2D window function and \(\circledast\) denotes the convolution operator. \(p_i\) is then the i-th element of \(\text {vec}(\mathbf{P} )\).

Integration of 2D masked residual updates

Since the multiplication of a vector with the Fourier matrix can utilize the fast Fourier transform (FFT), it can significantly improve the efficiency of recovery algorithms. The microcontrollers of most automotive radar sensors have an accelerator for FFT processing with reduced computational latency. However, the previously discussed radar interference mitigation framework that vectorizes the radar measurement to match the general CS framework cannot take advantage of this benefit. More precisely, recalling the framework illustrated in Fig. 2, by removing the interference-contaminated measurement samples in \(\mathbf{y}\), the corresponding rows of the measurement transform matrix \({\tilde{\mathbf{W }}}\) are pruned. Then, the remaining measurement signal \({\tilde{\mathbf{y }}}\) and the pruned measurement transform matrix \({\tilde{\varvec{\Psi }}}\) are used with different CS solvers to compute a sparse solution of \(\hat{\mathbf{x }}\). Therefore, the FFT operator cannot be directly incorporated. In order to utilize the computational advantage of the FFT, a 2D masked residual updates framework is proposed that can be easily incorporated into existing CS solvers.

Recalling the residual updates in (11), the choice of \({\tilde{\varvec{\Psi }}}\in \mathbb{C}^{q\times MN}\) and \(\mathbf{r} _{t}\in \mathbb{C}^q\) have a clear dependency on the q-rows of interference-free samples. As the positions of interference-contaminated samples can be random [33], the size of \({\tilde{\varvec{\Psi }}}\) can vary with interference scenarios. However, the residual updates always correspond to the remaining interference-free samples. Therefore, it is possible to control the residual updates using a mask and to keep the size of the measurement transform matrix fixed. In other words, by tracking the residual updates at exact positions of the interference-free samples in \(\mathbf{y}\) with a mask, the measurement transform matrix will always have the original size of \({\tilde{\mathbf{W }}}\in \mathbb{C}^{MN\times MN}\). The advantage of a fixed size of the measurement transform matrix is that the matrix-vector multiplications for Fourier transforms can be replaced by the FFT or inverse FFT (IFFT) operations on a 2D signal matrix.

After the detection of distorted samples, the position of interference-free samples in the m-th column of the discrete beat signal matrix \(\mathbf{Y}\) is stored in an index vector \(\mathbf{b} _m\in \{0,1\}^{N}\), the value one is used to indicate the position of the interference-free samples. Then, by grouping the individual index vectors \(\mathbf{b} _m\), a mask matrix \(\mathbf{B} =[\mathbf{b} _1\cdot \cdot \cdot \mathbf{b} _M]\in \{0,1\}^{N\times M}\) is created. The notation \(\mathbf{Y} [\mathbf{B} =1]\) then describes the selection of all elements from \(\mathbf{Y}\) whose places in \(\mathbf{B}\) have the value one. We use the notation \(\mathbf{Y} [\mathbf{B} =1]\xrightarrow {p\cdot M}{\tilde{\mathbf{Y }}}\) for drawing p elements from each of M columns in \(\mathbf{Y}\), whose index is equal to one in \(\mathbf{B}\), then storing their elements in \({\tilde{\mathbf{Y }}}\in \mathbb{C}^{p\times M}\). Since the interference may generate extended segments of disturbed data in various positions of different chirps, this operation guarantees the matrix form of the computation during the pursuit of the sparse solution and it also adds additional randomness to the measurement transform matrix. Correspondingly, we use the notation \(\mathbf{Z} [\mathbf{B} =1]\xleftarrow {p\cdot M}{\tilde{\mathbf{Y }}}\) for indicating the mapping of elements from each of M columns in \({\tilde{\mathbf{Y }}}\in \mathbb{C}^{p\times M}\) to the positions in a zero matrix \(\mathbf{Z} \in \mathbb{C}^{N\times M}\), whose indices in \(\mathbf{B}\) have the value one. The mask matrix \(\mathbf{B}\) is used for tracking the residual updates at the exact positions of interference-free samples. Consequently, the update step in (11) becomes

$$\begin{aligned} \begin{aligned} \mathbf{R} _t&= {\tilde{\mathbf{Y }}} - \left( \mathbf{Y} _{\rm{rec}} [\mathbf{B} =1]\xrightarrow {p\cdot M}{} \mathbf{Y} _t\right) ,\\ \mathbf{X} _{t+1}&= \mathcal {T}_{\lambda }\left( \mathbf{X} _t+\vartheta \cdot \mathbf{W} _\mathbf{N} \cdot \mathbf{R} _{\rm{rec}}\cdot \mathbf{W} _\mathbf{M} ^{\textit{T}}\right) , \end{aligned} \end{aligned}$$
(17)

where \(\mathbf{Y} _{\rm{rec}} = {\tilde{\mathbf{W }}_\mathbf{N} }\cdot \mathbf{X} _t\cdot {\tilde{\mathbf{W }}_\mathbf{M} }^{\textit{T}}\) and \(\mathbf{R} _{\rm{rec}}=\mathbf{Z} [\mathbf{B} =1]\xleftarrow {p\cdot M}{} \mathbf{R} _t.\) We refer to this residual updates process as 2D masked residual updates.

From Theorem 1 (see Appendix B), it is known that a random row sub-matrix of \({\tilde{\mathbf{W }}}\) satisfies a near-optimal RIP with high probability. For the analysis of the RIP condition of the 2D MRU framework, we consider the equation \(\mathbf{Y} _{\rm{rec}} = {\tilde{\mathbf{W }}_\mathbf{N} }\cdot \mathbf{X} _\textit{t}\cdot {\tilde{\mathbf{W }}_\mathbf{M} }^{\textit{T}}\) instead of the 1D formulation \(\mathbf{y} _{\rm{rec}} = {\tilde{\mathbf{W }}}\cdot \mathbf{x} _t\). The theoretical guarantee of successful RD spectrum recovery discussed in Theorem 1 also applies to 2D algorithms, where q is now substituted by \(p\cdot M\). More concretely, with the help of the mask matrix \(\mathbf{B}\), \(\mathbf{Y} _{t}\) obtains values from \(\mathbf{Y} _{\rm{rec}}\) only at the selected p positions in each chirp, meaning that the valid updates of \(\mathbf{Y} _{\rm{rec}}\) are preserved in these \(p\cdot M\) entries (the same for \(\mathbf{y} _{\rm{rec}}\)). In this way, the rows with the same indices as the indices of these \(p\cdot M\) entries are “subsampled” from \({\tilde{\mathbf{W }}}\) in this particular manner for the 2D case. The advantage of incorporating 2D MRU is that the matrix-vector multiplications for Fourier transforms can be solved quickly with hardware acceleration in the automotive radar system. Algorithm 1 describes the incorporation of 2D MRU with prior-model-based IST/IHT (PM-IHT/PM-IST) for RD spectrum recovery, where \(\epsilon\) is the threshold parameter of the relative residual update.

figure a

The proposed 2D MRU framework can be easily integrated with other well-known CS solvers, e.g., fast iterative shrinkage-thresholding algorithm (FISTA) [20], OMP [21], compressive sampling matching pursuit (CoSaMP) [22], YALL1 [34], AMP [26], and generalized AMP (GAMP) [35], since these solvers make use of residual updates as well.

Computational complexity

The largest part of the computational effort of the 2D algorithms is taken by the nested FFT in each case. Since FFT in column direction is performed for all rows of the matrix and FFT in row direction is performed for all columns of the matrix, the total computational effort for 2D MRU in each iteration loop can be described by

$$\begin{aligned} & O\left( {MN\log (N) + NM\log (M)} \right) \\ & \quad = O\left( {MN(\log (N) + \log (M))} \right) \\ & \quad = O\left( {MN(\log (NM))} \right). \\ \end{aligned}$$
(18)

The computational effort of 1D solvers in each iteration loop can be described by \(\textit{O}\left( q MN\right)\), where q denotes the number of all undisturbed samples across all chirps. With the proposed approach the complexity is reduced considerably by a factor of \(\textit{O}\left( \log (NM)/q\right)\). Considering a discrete beat signal \(\mathbf{Y} \in \mathbb{C}^{128\times 256}\) where 10% samples are disturbed by interference (i.e., q equals 29491), \(\log (NM)/q \approx 1/6531\).

Detection of disturbed samples

In [36], a method was presented in which the interference is detected by iterative adaptive thresholding. Samples from a signal vector \(\mathbf{y}\) of length L are considered to be interference-contaminated samples when their absolute values exceed a threshold and the detected samples are then set to zero. \(\bar{\mathbf{y }}\) is used to represent the new signal padded with zeros. Then, with the number of detected samples D, a new threshold value can be calculated as:

$$\begin{aligned} T_D=\gamma \left( \sqrt{\frac{1}{L-D}\sum \limits _{l=1}^L \bar{y}_l^2}\right) , \end{aligned}$$
(19)

where \(\gamma\) denotes the control parameter. If the threshold \(T_D\) changes more than a predefined value \(\Delta _{T_D}\), the newly calculated threshold is used to detect further interference-contaminated samples. As soon as \(T_D\) changes by less than \(\Delta _{T_D}\) between two iterations, the algorithm terminates.

Fig. 3
figure 3

a An example discrete beat signal with interference; b The positions of the distorted samples detected by the Laplacian filter with iterative adaptive thresholding are indicated by 1. For an intuitive visualization, the amplitude of the measurement in (a) is normalized between \(-1\) and 1

In [10], a classical edge detector, namely, a Laplacian filter [37] is used to identify the anomalies and the interference-contaminated samples. The Laplacian filter based method is fast and hardly deletes interference-free samples. Still, it misses some interference-contaminated samples, since the Laplacian filter assigns a larger weight to edges. Thus, if the interference-contaminated samples are grouped, the distorted samples in the middle often cannot be detected completely. However, this flaw can be compensated by a combination with the iterative adaptive thresholding detection method. To quantitatively analyze the detection performance of different algorithms, the recall and F-measure are introduced, which are calculated as: \(\text{ Recall } =\frac{\rm{TP}}{\rm{TP}+\rm{FN}}\) and \(F=\frac{2 \text{ TP } }{2 \text{ TP } + \text{ FP } + \text{ FN } }\) where TP, FP, and FN denote the number of true-positive, false-positive, and false-negative estimates.

Since the interference-contaminated samples are the minority in the discrete beat signal, the F-measure is theoretically more important for evaluating the detection performance. However, in radar interference mitigation with CS, the amount of correctly detected interference positions has a greater impact on the recovery results. If a small amount of interference-free samples is accidentally discarded, this results in a small change in the compression ratio as defined in Sect. 5 and does not have a large impact on the recovery results. The evaluation results in Table 1 show that the combination of the two methods can correctly detect about 96% of the interference-contaminated samples. The combined method is therefore more suitable for interference mitigation with CS approaches. The undetected 4% of the interference-contaminated samples should have low amplitudes, as they would otherwise have been detected by the iterative adaptive thresholding method. Thus, these distorted samples may also generate little additional noise in the frequency domain and therefore do not affect the weak targets.

Table 1 Evaluation of interference detection methods

Figure 3 shows an example of using this combined detection method to determine the position of the anomalies. The combined method due to its superior performance in terms of the true-positive rate (recall) is used in this work for the detection of interference-contaminated samples.

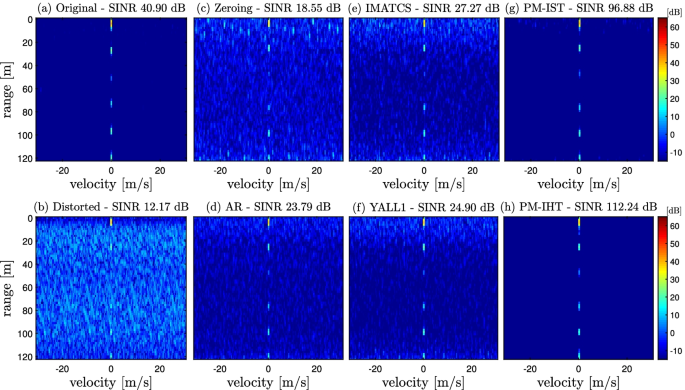

Fig. 4
figure 4

a Original RD spectrum, b Distorted RD spectrum and RD spectra recovered by c the zeroing method, d AR, e IMATCS, f YALL1, g PM-IST, and h PM-IHT, in the case that the number of discarded samples is about 10% of the total measurement

Evaluation methods and results

In this section, the performance of algorithms incorporating 2D MRU is analyzed and the evaluation results are further discussed. Firstly, the reconstruction performance of RD spectrum of real radar measurements is evaluated in terms of the run time and signal-to-interference-plus-noise ratio (SINR) in comparison with the state-of-the-art algorithms. Secondly, the time consumption and the relative reconstruction error are evaluated under different metrics, namely, the compression ratio, the amount of remaining interference-contaminated samples used in reconstruction, and the sparsity level ratio. The compression ratio \(\delta\) and the sparsity level ratio \(\rho\) are defined as

$$\begin{aligned} \delta = p/N,\quad \rho = k/(MN), \end{aligned}$$
(20)

where p is the number of samples selected for reconstruction in each chirp and k denotes the number of target peaks. For the prior-model-based iterative thresholding algorithms, the prior probability is determined based on the latest five measurement cycles (i.e., \(Q = 5\) in (16) for evaluations in this work).

Performance evaluation on real radar measurements

Recent research results have shown that the AR model [6] and CS algorithms like the iterative method with an adaptive thresholding for compressed sensing (IMATCS) [7] or the YALL1 algorithm [38] provide satisfactory recovery results of the discrete beat signal for interference mitigation. The performance of these methods along with the simple zeroing method [1], and the prior-model-based iterative thresholding algorithms (PM-IHT and PM-IST) are evaluated in terms of the run time and SINR on a real radar measurement. The real radar measurement is recorded in a test chamber with radiation-absorbent materials and the targets (at distances of 27m, 50m, 73m, 95m and 120m) are created by a target generator. The interference is produced by a radar that emits signals in the same frequency band with a larger slope than the victim radar.

Figure 4 shows the recovered RD spectra after the elimination of the severely distorted samples (ca. 10% of the total measurement) for four reference algorithms, AR, IMATCS, YALL1Footnote 2 and the zeroing method, as well as for the proposed prior-model-based iterative thresholding algorithms. The recovery performance of IMATCS may vary slightly when different thresholds are selected. It should be clarified that the parameters of IMATCS for implementation are chosen according to [7], where the value of the highest peak is used to initialize the linear threshold. The targets in the distorted RD spectrum are hard to detect, however, the targets in the recovered RD spectra can be found easily. Here, the threshold parameter of relative residual update \(\epsilon\) of the CS algorithms is set to \(10^{-6}\). The AR, IMATCS, and YALL1 algorithms can properly restore the RD spectra, while the zeroing method produces many artifact peaks. The prior-model-based iterative thresholding algorithms, however, produce superior recoveries. Since the proposed 1D and 2D prior-model-based iterative thresholding algorithms differ only in their computational load, the recovered RD spectra of the prior-model-based iterative thresholding algorithms in Fig. 4 are solely presented for the 2D case.

Table 2 Analysis results of the reconstruction in terms of the run time and SINR for different percentage (P) of discarded samples and mitigation techniques

Since the amount of disturbed samples in the discrete beat signal may vary under different types of interference, the robustness of the algorithms will be further evaluated by eliminating more samples. Table 2 shows the performance comparison of different algorithms in terms of the run time and SINR for different amounts of interference and correspondingly discarded interference-contaminated samples. For interference detection, the combined method discussed in Sect. 4 is used in this evaluation. The run time of algorithms is estimated with MATLAB based on an Intel(R) Core(TM) i5-8350U CPU@1.70GHz. It is found that the run time of the algorithms PM-IST and PM-IHT incorporating 2D MRU is less than 50 milliseconds for a dimension of \({\tilde{\mathbf{Y }}}\) up to \(128\times 256\), while the run time of the 1D implementation requires seconds to complete the recovery. The code implementation of IMATCSFootnote 3 is modified based on [39] in which every iteration step needs the eigenvalue decomposition of the measurement transform matrix. Thus, the IMATCS algorithm takes more time for recovery as the size of the measurement transform matrix is large. The size of the measurement transform matrix decreases accordingly when the size of the remaining discrete beat signal decreases. This explains why the run time of IMATCS decreases as more samples are discarded. The run time of the zeroing method is instantaneously fast and therefore difficult to measure accurately. The other advantage of the prior-model-based iterative thresholding algorithms is that they provide superior SINR improvement, since the proposed PM-IST and PM-IHT can strongly suppress the measurement noise. This can be verified in Fig. 5, where the velocity cut of the recovered RD spectrum of the target at 73 meter is shown. The signal peak of the target at 73 m is much easier to detect in the recovered RD spectra provided by the PM-IHT and PM-IST methods.

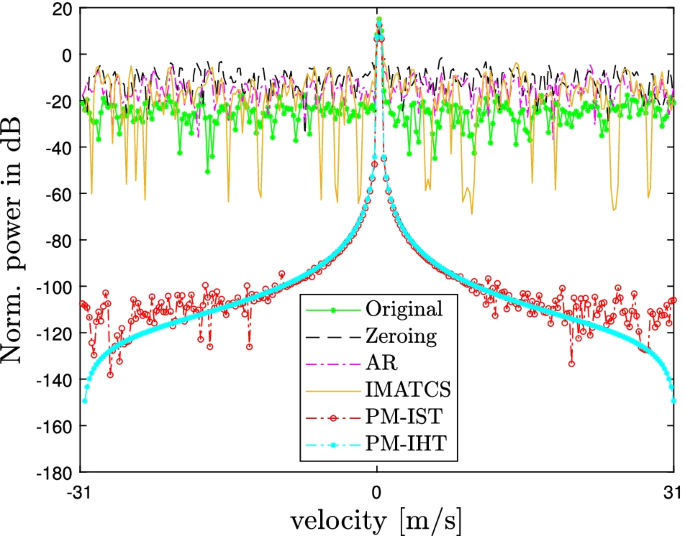

Fig. 5
figure 5

Velocity cut of RD spectra at range \(R = 73\) m

Performance evaluation of 2D algorithms on different metrics

Since different metrics such as the amount of interference-free samples used for reconstruction, the sparsity level of RD spectrum and the amount of remaining interference-contaminated samples all have an impact on the performance of different CS solvers [40], the performance of 2D algorithms are therefore further evaluated under these metrics. In this evaluation part, the representative greedy algorithm CoSaMP [22] and AMP with the proposed 2D extension are also included.

Firstly, the computation time and the mean relative absolute error (MRAE) of 2D algorithms for different compression ratio (20) is examined. The different amount of interference-free samples is used to recover the RD spectrum. The value of \(\delta\) is set between 0.1 and 1. For each \(\delta\), the simulation is repeated fifty times and the threshold parameter \(\epsilon\) is set to \(10^{-3}\). The MRAE is defined as the mean of the relative absolute error between the target peaks in the interference-free RD spectrum \(\mathbf{X} _{\rm{clean}}\) and in the reconstructed RD spectrum \(\mathbf{X} _{\rm{rec}}\):

$$\begin{aligned} {\text{MRAE}}=\frac{1}{\#_{\mathcal {Z}}} {\sum _{\{\tilde{n}, \tilde{m}\} \in \mathcal {Z}}} {\frac{\left| {\mathbf{X}} _{\text{clean}}[\tilde{n}, \tilde{m}]-{\mathbf{X}} _{\text{rec}}[\tilde{n}, \tilde{m}]\right| }{\left| {\mathbf{X}} _{\text{clean}}[\tilde{n}, \tilde{m}]\right| }}, \end{aligned}$$
(21)

where \(\tilde{n}\) and \(\tilde{m}\) are row and column indices of the RD matrix, \(\mathcal {Z}\) is the set of target peaks. \(\#_{\mathcal {Z}}\) denotes the cardinality of set \(\mathcal {Z}\).

Figure 6 shows that as more interference-free samples p of the signal are used for reconstruction, \(\delta\) becomes larger and the time needed for the execution of the algorithms decreases. This is a logical consequence of the fact that the number of candidate solutions of an underdetermined system increases and thus more iterations are required in order to find an optimal solution when fewer interference-free samples remain.

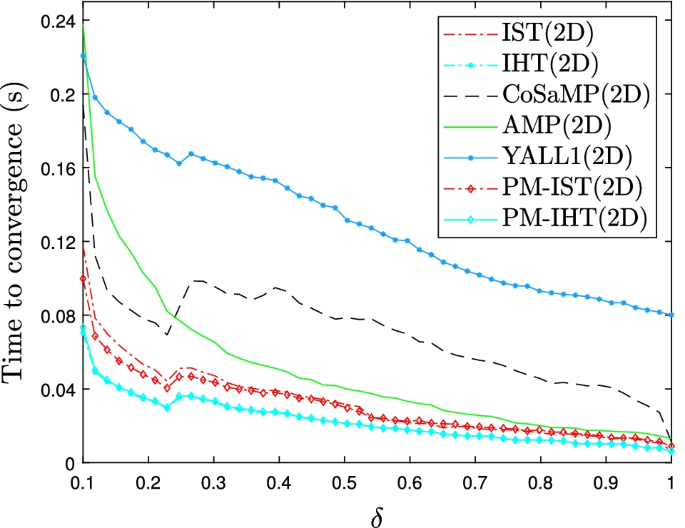

Fig. 6
figure 6

Computation time of 2D algorithms vs. compression ratio \(\delta\)

Figure 7 shows that MRAE of all target peaks (except for the target peaks recovered by YALL1, which aims to achieve a high accuracy and therefore also tries to reconstruct some noise [34]) in the restored RD spectra becomes smaller as the value of \(\delta\) increases. This shows that the more interference-free samples are left, the more accurately the target peaks will be restored. The proposed PM-IHT and PM-IST further improve the MRAE of the standard IHT and IST, although the improvements in run time are not significant. It should be noted that MRAE provides a measure of the restoration quality of target peaks, namely the sparse representations. There is therefore no direct connection between MRAE and SINR, since it is possible that an algorithm recovers the target peak with a small MRAE but a high background noise level, so that the SINR is small.

Fig. 7
figure 7

Mean relative absolute error of 2D algorithms vs. compression ratio \(\delta\)

Fig. 8
figure 8

Number of iterations of 2D algorithms vs. percentage of interference-contaminated samples used in the reconstruction

Since it is difficult to accurately identify all interference-contaminated samples, in some scenarios few interference-contaminated samples may remain after the interference detection. Therefore, we secondly evaluate the robustness of the algorithms in the case that some of the remaining samples contain interference. To simulate the reconstruction on these scenarios, different interference-free beat signals with an average sparsity level ratio (\(\rho = 0.005\)) are generated and superimposed with interference. The simulations are performed with a \(\delta\) that is always adjusted to use the maximum number of interference-free samples for reconstruction. Amounts of interference-contaminated samples between \(0.1\%\) to \(15\%\) of total remaining samples are tested. Since the distorted sample usually contains larger amplitudes, it changes the SINR of the RD spectrum of the input data. Empirically, it is shown that when the percentage of distorted samples in \(\tilde{\mathbf{Y }}\) ranges from 0.1 to 15%, the SINR (originally ca. 32 dB) decreases accordingly by a value ranging from 7 dB to 25 dB. Furthermore, as shown in Fig. 8, the number of iterations increases slightly for all algorithms, as the increasing interference quantity can influence the search direction of the sparse solution of the algorithm. Although CoSaMP requires the smallest number of iterations, its run time is still longer than that of iterative thresholding algorithms due to the relatively long computation time in each iteration. In general, the run time of the iterative thresholding algorithms is less than 20 milliseconds.

Figure 9 shows that the MRAE of all target peaks also increases slightly with the amount of remaining interference-contaminated samples. This is due to the fact that the remaining interference is also used for reconstruction, thus the recovery contains more errors. Overall, the relative errors are nevertheless low with values below 6% and CoSaMP has the smallest MRAE. Thirdly, the concordance of the local maxima and the MRAE of 2D algorithms for different sparsity level (20) is examined. The value of \(\delta\) is set to 0.5. The sparsity level \(\rho\) is set between 0.001 to 0.1. For each \(\rho\) the simulation is repeated fifty times and the threshold parameter \(\epsilon\) is set to \(10^{-3}\). Figure 10 shows that the MRAE of PM-IHT, PM-IST and AMP increases slightly as \(\rho\) increases. The value of \(\rho\) has more effect on CoSaMP, and interestingly, the MRAE of YALL1 decreases while \(\rho\) increases. Another metric worth evaluating is the concordance of the local maxima. It is important to check whether all local maxima are reconstructed, since the local maxima represent the individual targets. Moreover, for radar target tracking, the position of targets in the RD spectrum is decisive. To generate an evaluation criterion from this context, all local maxima are determined in the RD spectrum of the interference-free signal as well as in the RD spectrum of the reconstructed signal. Then, the percentage of the maxima from the interference-free signal that are present in the reconstruction is calculated. As shown in Fig. 11, the concordance of local maxima decreases as the sparsity level ratio \(\rho\) increases, i.e., more valid targets are present. The concordance of the local maxima of PM-IHT can achieve around 86% when \(\rho\) equals 0.1 while concordance of the local maxima of the other algorithms are still better than 80%. This means that more than 80% of the targets are still recognizable after recovery. This shows the robustness of these 2D CS solvers. Note that \(\rho\) is determined by the reference signal without interference, and \(\rho = 0.1\) actually corresponds to a large number of target peaks, since the denominator in \(\rho\) (see (20)) is large.

Fig. 9
figure 9

Mean relative absolute error of 2D algorithms vs. percentage of interference-contaminated samples used in the reconstruction

Fig. 10
figure 10

Mean relative absolute error of 2D algorithms vs. sparsity level ratio \(\rho\)

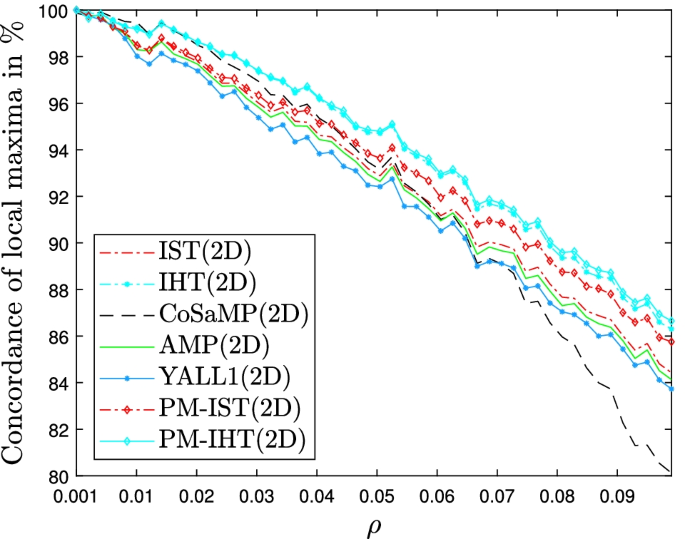

Fig. 11
figure 11

Concordance of local maxima of recovered RD spectrum vs. sparsity level ratio \(\rho\)

Fig. 12
figure 12

a Ground truth, b Distorted RD spectrum, c RD spectrum from previous measurement and RD spectra recovered by d Standard IHT and e PM-IHT

Discussion

In comparison with the 2D framework, the 1D framework is limited not only in computation time but also in hardware resources in terms of memory, since the measurement transform matrix \({\tilde{\varvec{\Psi }}}\) typically has a large size. For example, for a radar measurement of dimension \(\mathbf{Y} \in \mathbb{C}^{512\times 128}\) [4], where 10% samples of the total measurement are distorted, the corresponding matrix \({\tilde{\varvec{\Psi }}}\in \mathbb{C}^{58982\times 65536}\) becomes excessively large. In contrast to the 1D case, the 2D framework avoids additional memory for the measurement transform matrix by utilizing the built-in FFT operator. Although 2D MRU can also be integrated into the baseline method YALL1, its performance in terms of SINR and the run time is still worse than the greedy algorithms (CoSaMP) and the proposed prior-model-based iterative thresholding algorithms in general. The prior-model-based IHT shows its robustness both in the evaluation of real radar measurements and in the evaluation of CS metrics. Its run time can be even faster when the threshold parameter \(\epsilon\) is relaxed to \(10^{-2}\), for example.

Besides the benefits in terms of run time and reconstruction error, the prior-model-based iterative thresholding algorithm also has the potential to help in the reconstruction of weak targets. As shown in Fig. 12, a weak target (within the red dashed square with a power of ca. 5 dB) is slightly shifted from its position in Fig. 12c to the new position in Fig. 12a. Since its power is relatively close to the background noise compared to the other target peaks, which range from about 7 dB (bottom left) to 37 dB (top left), it cannot be properly reconstructed with the standard IHT algorithm. However, in the prior-model-based IHT, due to the presence of the target peak (ca. 9 dB) in the previous measurement, the probability of the presence of the target in the red dotted square area is increased for the next measurement cycle (namely, the probability of the presence of the target is propagated to the whole red dotted square area by convolution with a window function) and the thresholds for this area are decreased accordingly. This weak target is therefore properly reconstructed, and in the meantime, the false-positive prior information does not affect the reconstruction result, as shown in Fig. 12e.

Thus, the proposed 2D framework in conjunction with prior-model-based IHT can be a good candidate for automotive radar interference mitigation.

Conclusion

In this paper, an effective 2D masked residual updates compressive sensing framework as well as the prior-model-based iterative thresholding algorithms are proposed for automotive radar interference mitigation. 2D masked residual updates can be easily incorporated into the state-of-the-art compressive sensing algorithms and reduces the computational complexity of these algorithms. In particular, the proposed 2D masked residual updates helps these algorithms to take advantage of hardware acceleration for FFT/IFFT operations and thus massively reduces the run time for RD spectrum reconstruction. The theoretical analysis shows that the proposed framework can successfully reconstruct the RD spectrum with high probability. The superiority of the proposed framework in terms of the run time and SINR is demonstrated by incorporating the 2D masked residual updates into several baseline compressive sensing algorithms. It is shown that the proposed prior-model-based iterative thresholding algorithms improve the reconstruction results of these algorithms in terms of run time and reconstruction error. The robustness of the proposed prior-model-based iterative thresholding algorithms in conjunction with the 2D framework is also investigated in terms of several compressive sensing metrics. To improve the prior model, more sophisticated statistical models may be explored in future works.

Availability of data and materials

Not available online. Please contact the authors for data requests.

Notes

  1. The original RD spectrum refers to the interference-free RD spectrum that does not require reconstruction. The recovered RD spectrum refers to the RD spectrum recovered from a distorted measurement, and after recovery, the information of the target peaks can be used as prior information for the interference mitigation of subsequent measurement cycles.

  2. The original code implementation of YALL1 is available at: http://yall1.blogs.rice.edu/.

  3. The original code implementation of IMATCS is available at: http://ee.sharif.edu/~imat/#downloads.

Abbreviations

2D MRU:

Two-dimensional masked residual updates

RD spectrum:

Range-Doppler spectrum

OMP:

Orthogonal matching pursuit

AMP:

Approximate message-passing

SINR:

Signal-to-interference-plus-noise ratio

AR model:

Autoregressive model

FMCW:

Frequency-modulated continuous wave

LPC:

Linear predictive coding

STFT:

Short-time Fourier transform

FFT:

Fast Fourier transform

DFT:

Discrete Fourier transform

IMAT:

Iterative method with an adaptive thresholding

CoSaMP:

Compressive sampling matching pursuit

RIP:

Restricted isometry property

PM-IHT:

Prior-model-based iterative hard thresholding

PM-IST:

Prior-model-based iterative soft thresholding

MRAE:

Mean relative absolute error

References

  1. G.M. Brooker, Mutual interference of millimeter-wave radar systems. IEEE Trans. Electromag. Compat. 49(1), 170 (2007)

    MathSciNet  Article  Google Scholar

  2. C. Aydogdu, M.F. Keskin, G.K. Carvajal, O. Eriksson, H. Hellsten, H. Herbertsson, E. Nilsson, M. Rydstrom, K. Vanas, H. Wymeersch, Radar interference mitigation for automated driving: Exploring proactive strategies. IEEE Signal Process. Mag. 37(4), 72 (2020)

    Article  Google Scholar

  3. S. Chen, W. Shangguan, J. Taghia, U. Kühnau, R. Martin, Automotive radar interference mitigation based on a generative adversarial network, in Proceedings of the 2020 IEEE Asia-Pacific Microwave Conference (APMC) (2020), pp. 728–730. https://doi.org/10.1109/APMC47863.2020.9331379

  4. F. Jin, S. Cao, Automotive radar interference mitigation using adaptive noise canceller. IEEE Trans. Veh. Technol. 68(4), 3747 (2019)

    Article  Google Scholar

  5. S. Neemat, O. Krasnov, A. Yarovoy, An interference mitigation technique for FMCW radar using beat-frequencies interpolation in the STFT domain. IEEE Trans. Microw. Theory Tech. 67(3), 1207 (2019)

    Article  Google Scholar

  6. M. Rameez, M. Dahl, M.I. Pettersson, Autoregressive model-based signal reconstruction for automotive radar interference mitigation. IEEE Sens. J. 21(5), 6575 (2021). https://doi.org/10.1109/JSEN.2020.3042061

    Article  Google Scholar

  7. J. Bechter, F. Roos, M. Rahman, C. Waldschmidt, Automotive radar interference mitigation using a sparse sampling approach, in Proceedings of the 2017 European Radar Conference (EURAD) (2017), pp. 90–93

  8. A. Correas-Serrano, M.A. Gonzalez-Huici, Sparse reconstruction of chirplets for automotive FMCW radar interference mitigation, in Proceedings of the 2019 IEEE MTT-S International Conference on Microwaves for Intelligent Mobility (ICMIM) (2019), pp. 1–4

  9. F. Uysal, S. Sanka, Mitigation of automotive radar interference, in Proceedings of the 2018 IEEE Radar Conference (RadarConf18) (2018), pp. 0405–0410. https://doi.org/10.1109/RADAR.2018.8378593

  10. S. Chen, J. Taghia, U. Kühnau, T. Fei, F. Grünhaupt, R. Martin, Automotive radar interference reduction based on sparse Bayesian learning, in Proceedings of the 2020 IEEE Radar Conference (RadarConf20) (2020), pp. 1–6. https://doi.org/10.1109/RadarConf2043947.2020.9266706

  11. S. Lee, J. Lee, S. Kim, Mutual interference suppression using wavelet denoising in automotive FMCW radar systems. IEEE Trans. Intell. Transport. Syst. (2019). https://doi.org/10.1109/TITS.2019.2961235

    Article  Google Scholar

  12. M. Schiementz, Postprocessing Architecture for an Automotive Radar Network (Cuvillier, Göttingen, 2005)

    Google Scholar

  13. M. Kronauge, H. Rohling, New chirp sequence radar waveform. IEEE Trans. Aerosp. Electron. Syst. 50(4), 2870 (2014)

    Article  Google Scholar

  14. F. Norouzian, A. Pirkani, E. Hoare, M. Cherniakov, M. Gashinova, Phenomenology of automotive radar interference. IET Radar Sonar Navig. 15(9), 1045 (2021). https://doi.org/10.1049/rsn2.12096

    Article  Google Scholar

  15. G. Kim, J. Mun, J. Lee, A peer-to-peer interference analysis for automotive chirp sequence radars. IEEE Trans. Veh. Technol. 67(9), 8110 (2018)

    Article  Google Scholar

  16. Y. Eldar, G. Kutyniok, Compressed Sensing: Theory and Applications (Cambridge University Press, Cambridge, 2012)

    Book  Google Scholar

  17. E.J. Candes, J.K. Romberg, T. Tao, Stable signal recovery from incomplete and inaccurate measurements. Commun. Pure Appl. Math. 59(8), 1207–1223 (2006)

    MathSciNet  Article  Google Scholar

  18. S. Foucart, H. Rauhut, A Mathematical Introduction to Compressive Sensing (Birkhäuser Basel, Basel, 2013)

    Book  Google Scholar

  19. S.S. Chen, D.L. Donoho, M.A. Saunders, Atomic decomposition by basis pursuit. Soc. Ind. Appl. Math. 43, 1 (2001). https://doi.org/10.1137/S003614450037906X

    MathSciNet  Article  MATH  Google Scholar

  20. A. Beck, M. Teboulle, A fast iterative shrinkage-thresholding algorithm with application to wavelet-based image deblurring, in Proceedings of the 2009 IEEE International Conference on Acoustics, Speech and Signal Processing (2009), pp. 693–696. https://doi.org/10.1109/ICASSP.2009.4959678

  21. J.A. Tropp, A.C. Gilbert, Signal recovery from random measurements via orthogonal matching pursuit. IEEE Trans. Inf. Theory 53(12), 4655 (2007)

    MathSciNet  Article  Google Scholar

  22. D. Needell, J.A. Tropp, CoSaMP: Iterative signal recovery from incomplete and inaccurate samples. Appl. Comput. Harmon. Anal. 26(3), 301 (2009)

    MathSciNet  Article  Google Scholar

  23. T. Blumensath, M.E. Davies, Iterative thresholding for sparse approximations. J. Fourier Anal. Appl. 14, 629–654 (2004)

    MathSciNet  Article  Google Scholar

  24. T. Blumensath, M.E. Davies, Iterative hard thresholding for compressed sensing. Appl. Comput. Harmon. Anal. 27(3), 265 (2008)

    MathSciNet  Article  Google Scholar

  25. H. Liu, R.F. Barber, Between hard and soft thresholding: Optimal iterative thresholding algorithms. arXiv:1804.08841v4 (2019)

  26. A. Maleki, Approximate message passing algorithms for compressed sensing. Ph.D. thesis (2011)

  27. E.J. Candes, T. Tao, Near-optimal signal recovery from random projections: Universal encoding strategies? IEEE Trans. Inf. Theory 52(12), 5406 (2006). https://doi.org/10.1109/TIT.2006.885507

    MathSciNet  Article  MATH  Google Scholar

  28. I. Haviv, O. Regev, The restricted isometry property of subsampled Fourier matrices, in Proceedings of the 2016 Annual ACM-SIAM Symposium on Discrete Algorithms, pp. 288–297. https://doi.org/10.1137/1.9781611974331.ch22

  29. J.R. Shewchuk, An Introduction to the Conjugate Gradient Method Without the Agonizing Pain (Carnegie Mellon University, Pittsburgh, 1994)

    Google Scholar

  30. A. Maleki, D.L. Donoho, Optimally tuned iterative reconstruction algorithms for compressed sensing. IEEE J. Select. Top. Signal Process. 4(2), 330 (2010). https://doi.org/10.1109/JSTSP.2009.2039176

    Article  Google Scholar

  31. K. Bredies, D. Lorenz, Linear convergence of iterative soft-thresholding. J. Fourier Anal. Appl. 14, 813–837 (2008). https://doi.org/10.1007/s00041-008-9041-1

    MathSciNet  Article  MATH  Google Scholar

  32. T. Blumensath, M. Yaghoobi, M.E. Davies, Iterative hard thresholding and l0 regularisation, in Proceedings of the 2007 IEEE International Conference on Acoustics, Speech and Signal Processing - ICASSP ’07, vol. 3 (2007), pp. III–877–III–880. https://doi.org/10.1109/ICASSP.2007.366820

  33. M. Toth, P. Meissner, A. Melzer, K. Witrisal, Slow-time mitigation of mutual interference in chirp sequence radar, in Proceedings of the 2020 IEEE MTT-S International Conference on Microwaves for Intelligent Mobility (ICMIM) (2020), pp. 1–4. https://doi.org/10.1109/ICMIM48759.2020.9298996

  34. J. Yang, Y. Zhang, Alternating direction algorithms for l1-problems in compressive sensing. SIAM J. Sci. Comput. 33, 1 (2009)

    Google Scholar

  35. S. Rangan, Generalized approximate message passing for estimation with random linear mixing, in Proceedings of the 2011 IEEE International Symposium on Information Theory Proceedings (2011), pp. 2168–2172. https://doi.org/10.1109/ISIT.2011.6033942

  36. M. Umehira, T. Nozawa, Y. Makino, X. Wang, S. Takeda, H. Kuroda, A novel iterative inter-radar interference reduction scheme for densely deployed automotive FMCW radars, in Proceedings of the 2018 19th International Radar Symposium (IRS) (2018), pp. 1–10. https://doi.org/10.23919/IRS.2018.8448223

  37. X. Wang, Laplacian operator-based edge detectors. IEEE Trans. Pattern Anal. Mach. Intell. 29(5), 886 (2007)

    Article  Google Scholar

  38. T. Fei, H. Guang, Y. Sun, C. Grimm, E. Warsitz, An efficient sparse sensing based interference mitigation approach for automotive radar, in Proceedings of the 2020 17th European Radar Conference (EuRAD) (2021), pp. 274–277. https://doi.org/10.1109/EuRAD48048.2021.00077

  39. M. Azghani, F. Marvasti, Iterative methods for random sampling and compressed sensing recovery. in 10th International Conference on Sampling Theory and Applications (SAMPTA 2013) (2013)

  40. F. Salahdine, E. Ghribi, N. Kaabouch, Metrics for evaluating the efficiency of compressing sensing techniques, in Proceedings of the 2020 International Conference on Information Networking (ICOIN) (2020), pp. 562–567. https://doi.org/10.1109/ICOIN48656.2020.9016490

  41. C.F. van Loan, The ubiquitous Kronecker product. J. Comput. Appl. Math. 123(1), 85 (2000). https://doi.org/10.1016/S0377-0427(00)00393-9

    MathSciNet  Article  MATH  Google Scholar

Download references

Acknowledgements

We acknowledge support by the Open Access Publication Funds of the Ruhr-Universität Bochum.

Funding

Open Access funding enabled and organized by Projekt DEAL.

Author information

Authors and Affiliations

Authors

Contributions

SC participated in the design of the study, performs literature review, and implemented the simulations and tests, besides writing the manuscript. PS participated in the design of the study, implemented the simulations and tests, and helped to review the manuscript. JT, UK, and RM participated in the design of the study and coordination and helped to draft and review the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Shengyi Chen.

Ethics declarations

Ethics approval and consent to participate

The authors declare that they have no human participants, their data, or biological material used in this work.

Consent for publication

Informed consent was obtained from all authors included in the study.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendix

Appendix

Proof of Lemma 1

Definition 1

(DFT matrix and IDFT matrix). The DFT matrix \(\mathbf{W} _\mathbf{N} \in \mathbb{C}^{N \times N}\) is defined as the unitary matrix

$$\begin{aligned} \mathbf{W} _\mathbf{N} :=\frac{1}{\sqrt{N}}\left[ \begin{array}{ccccc} 1 &{}\quad 1 &{}\quad 1 &{}\quad \cdots &{}\quad 1 \\ 1 &{}\quad \omega _{N}^{1} &{}\quad \omega _{N}^{2} &{}\quad \cdots &{}\quad \omega _{N}^{N-1} \\ 1 &{}\quad \omega _{N}^{2} &{}\quad \omega _{N}^{4} &{}\quad \cdots &{}\quad \omega _{N}^{2(N-1)} \\ \vdots &{}\quad \vdots &{}\quad \vdots &{}\quad \ddots &{}\quad \vdots \\ 1 &{}\quad \omega _{N}^{N-1} &{}\quad \omega _{N}^{2(N-1)} &{}\quad \cdots &{}\quad \omega _{N}^{(N-1)(N-1)} \end{array}\right] \end{aligned}$$

where \(\omega _{N}:=\exp \left( -\frac{2 \pi j}{N}\right)\) is the \(N^{th}\) root of unity. The IDFT matrix \({\tilde{\mathbf{W }}_\mathbf{N} }\in \mathbb{C}^{N \times N}\) can be obtained by replacing the \(\omega _{N}\) with \(\omega ^*_{N}:=\exp \left( \frac{2 \pi j}{N}\right)\).

Lemma 1

Given two unitary IDFT (or DFT) matrices \({\tilde{\mathbf{W }}_\mathbf{N }} \in \mathbb{C}^{N \times N}\) and \({\tilde{\mathbf{W }}_\mathbf{M }} \in \mathbb{C}^{M \times M}\), the Kronecker product of these two IDFT (or DFT) matrices \({\tilde{\mathbf{W }}} = {\tilde{\mathbf{W }}_\mathbf{M }} \otimes {\tilde{\mathbf{W }}_\mathbf{N }}\) is also a unitary matrix.

Proof

Since the IDFT (or DFT) matrices \({\tilde{\mathbf{W }}_\mathbf{M }} \in \mathbb{C}^{M \times M}\) and \({\tilde{\mathbf{W }}_\mathbf{N }} \in \mathbb{C}^{N \times N}\) are both invertible, also their Kronecker product \({\tilde{\mathbf{W }}} = {\tilde{\mathbf{W }}_\mathbf{M }} \otimes {\tilde{\mathbf{W }}_\mathbf{N }}\) is invertible [41] and \({\tilde{\mathbf{W }}^{-1}} = ({\tilde{\mathbf{W }}_\mathbf{M }} \otimes {\tilde{\mathbf{W }}_\mathbf{N }})^{-1} = {\tilde{\mathbf{W }}_\mathbf{M }}^{-1} \otimes {\tilde{\mathbf{W }}_\mathbf{N }}^{-1}\). As shown in Definition 1, \({\tilde{\mathbf{W }}_\mathbf{M }}\) and \({\tilde{\mathbf{W }}_\mathbf{N }}\) are both unitary matrices, thus \({\tilde{\mathbf{W }}_\mathbf{M }}^{*} = {\tilde{\mathbf{W }}_\mathbf{M }}^{-1}\) and \({\tilde{\mathbf{W }}_\mathbf{N }}^{*} = {\tilde{\mathbf{W }}_\mathbf{N }}^{-1}\). As conjugate transposition is distributive over the Kronecker product, it follows that \({\tilde{\mathbf{W }}^{-1}} = {\tilde{\mathbf{W }}_\mathbf{M }}^{*} \otimes {\tilde{\mathbf{W }}_\mathbf{N }}^{*} = ({\tilde{\mathbf{W }}_\mathbf{M }} \otimes {\tilde{\mathbf{W }}_\mathbf{N }})^{*} = {\tilde{\mathbf{W }}^\mathbf{* }}\). This means that \({\tilde{\mathbf{W }}}\) is a unitary matrix. \(\square\)

Proof of Theorem 1

Definition 2

A complex matrix \(\mathbf{A} \in \mathbb{C}^{\textit{M}\times \textit{N}}\) satisfies the restricted isometry property of order k with restricted isometry constant \(\delta _k > 0\), if

$$\begin{aligned} (1-\delta _k)||\mathbf{x} ||_2\le ||\mathbf{A} \mathbf{x} ||_2\le (1+\delta _k)||\mathbf{x} ||_2 \end{aligned}$$
(22)

holds for any k-sparse signal \(\mathbf{x}\).

Theorem 1

Given are

  • two unitary IDFT (or DFT) matrices \({\tilde{\mathbf{W }}_\mathbf{N }} \in \mathbb{C}^{N \times N}\) and \({\tilde{\mathbf{W }}_\mathbf{M }} \in \mathbb{C}^{M \times M}\);

  • the matrix \({\tilde{\mathbf{W }}} = {\tilde{\mathbf{W }}_\mathbf{M }}\otimes {\tilde{\mathbf{W }}_\mathbf{N }}\) with \({\tilde{\mathbf{W }}} \in \mathbb{C}^{\textit{MN}\times \textit{MN}}\) satisfying \(||{\tilde{\mathbf{W }}}||_\infty \le \textit{O}(1/\sqrt{MN})\);

  • a sufficiently large MN and \(\textit{k}\), a sufficiently small \(\delta _k > 0\).

For some \(q = \textit{O}(\log ^2(1/\delta _k)\delta _k^{-2}\cdot \textit{k}\cdot \log ^2(\textit{k}/\delta _k)\cdot \log (MN))\), let \({\tilde{\varvec{\Psi }}} \in \mathbb{C}^{\textit{q}\times \textit{MN}}\) be a matrix whose q rows are chosen uniformly at random, and independently from the rows of \(\sqrt{MN/q}\cdot {\tilde{\mathbf{W }}}\). Then, matrix \({\tilde{\varvec{\Psi }}}\) satisfies the RIP of order \(\textit{k}\) with probability \(1-2^{-\Omega (\log (MN)\cdot \log (\textit{k}/\delta _k))}\).

Proof

From Lemma 1, it is known that the Kronecker product of two IDFT or DFT matrices results in a unitary matrix. [28] gives the proof that random sub-matrices of unitary matrices satisfy a near-optimal RIP with high probability. Combining Lemma 1 and the proof in [28], we can draw the conclusion of Theorem 1. \(\square\)

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Chen, S., Stockel, P., Taghia, J. et al. Iterative 2D sparse signal reconstruction with masked residual updates for automotive radar interference mitigation. EURASIP J. Adv. Signal Process. 2022, 33 (2022). https://doi.org/10.1186/s13634-022-00863-6

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s13634-022-00863-6

Keywords

  • Automotive radar
  • Interference mitigation
  • 2D compressive sensing
  • Prior model based iterative thresholding
