A signal enhancement method based on the reverberation statistical information
EURASIP Journal on Advances in Signal Processing volume 2022, Article number: 71 (2022)
Abstract
This paper proposes a reverberation suppression algorithm utilizing fractional lowerorder moments based on statistical properties. As fractional lowerorder moments can only be applied on symmetric αstable random variables, the energy redistribution method is used, so reverberation signals can obtain the characteristic exponents of the symmetric αstable distribution. To evaluate the proposed algorithm, an experiment involving simulated linear frequency modulation reverberation with the proposed method and comparison methods is performed and discussed. Moreover, an experiment is conducted using reverberation as measured from the lake. The results show that the proposed algorithm can achieve better reverberation suppression and signal enhancement performance compared with other methods.
1 Introduction
In shallow waters, reverberation caused by the scattering of transmitted signals during propagation is the main interference in underwater signal processing. Due to the reverberation generation principle, high correlations with target echoes greatly degrade some traditional methods, such as the matched filter. Obviously, it is easy to see that the signal with high signaltoreverberation ratio (SRR) cannot be obtained by increasing the source level. Usually, reverberation suppression is achieved from two aspects: transmission signal design at the transmitter and signal processing at the receiver [1].
For the former, Hague [2] and Touati [3] designed waveform based on developing CW waveform to detect the target. Dosiy [4], Collin [5] and Guan [6] designed specific type of pulses such as wideband Dopplersensitive pulses, phasecoded sequence and so on to suppress reverberation. Cox designed geometric comb waveforms and effectively suppressed reverberation in shallow water [7]. Mio improved the performance of lowfrequency sonar in handling reverberation by utilizing waveform design and the broadband characteristics of signals [8]. As some designed transmitted pulses can only mitigate the effects of reverberation, signal processing methods should be proposed for suppression. As reverberation is nonstationary colored background noise, autoregression to whiten a signal is a common method for reverberation suppression. Kay proposed a prewhitener which is based on an autoregressive model to make the target more easily detected than current FFT processor [9]. Li gave a novel space time adaptive prewhitener for reverberation based on a twodimensional autoregressive model to obtain better detection performance [10]. In recent years, nonnegative matrix factorization (NMF) theory has been widely used in reverberation suppression. Jia proposed a method that nonnegative matrix factorization is applied to express the time–frequency matrix as a lowrank matrix [11]. Lee [1] proposed an algorithm for the reverberation suppression of continuous wave signals using nonnegative matrix factorization. As NMFbased reverberation suppression algorithms are only applicable to continuous wave reverberation, Kim [12] proposed two preprocessing methods, namely dechirping transformation and modulo operation, to facilitate application of the NMF method to LFM reverberation. Array processing as an effective method to improve the signaltonoise ratio is also used for reverberation suppression. Zhu proposed an approach of sparse spatial spectral estimation based on singular value decomposition [13]. Xing proposed a direct data domain localized domain joint algorithm that can effectively suppress reverberation by combining the advantages of localized joint adaptive and space–time processing [14]. Li combined image morphology and time–frequency blind separation algorithm to separate the target echo from reverberation and derived the expression of reverberation in the WVD time–frequency domain [15]. Highorder cumulates are also widely used to enhance underwater acoustic signals. However, when characteristic index αvalue of considering signal is between 0 and 2, the secondorder and higherorder statistics of considering signal do not exist anymore. Therefore, the traditional signal processing methods based on secondorder statistics (such as power spectrum) will lead to performance degradation or even failure when processing signals are subject to alpha stable distribution.
The classical Gaussian model is generally used to explain the reverberation process when the scatterer distribution approximately satisfies the central limit theorem (CLT) [16]. However, in special marine environments when the scatterer distribution cannot meet the CLT, the reverberation amplitude distribution deviates from Gaussian. As the tail widens in the statistical distribution of seabed reverberation and there are strong nonGaussian characteristics for the amplitude fluctuations of certain impact characteristics caused by the strong instability of shallow water reverberation, the αdistribution is used to build reverberation in shallow waters. However, considering the nonzero skewness of reverberation statistics that result in its noncompliance with SαS, in this paper, an energy redistribution method based on adaptive fractional Fourier transform (FrFT) is proposed to make signals to satisfy SαS distribution. Consequently, the fractional lowerorder moment (FLOM), which is an effective tool to analyze the symmetric αstable (SαS)stable distribution signals, is applied to enhance target echoes in reverberation environments.
This paper is organized as follows. Section 2 provides a short description on the reverberation of αstable model and presents the FLOM theory and the proposed energy redistribution in fractional domain. Section 3 presents the simulation and experimental results of the proposed method in shallow waters. The conclusions follow in Sect. 4.
2 Methods
2.1 Reverberation model which followed αstable distribution
The reverberation probability density function has the same characteristics of a single peak, bell shape and thick tail as the SαS distribution, which is the most widely used and representative special distribution of the αstable distribution. Therefore, the SαS distribution can be used to describe the statistical characteristics of underwater acoustic signal noise under a reverberation background [17].
In 1925, Levy proposed αstable distribution which is also called nonGaussian stable distribution based on generalized central limit theorem. Except for a few special cases, there is no unified and closed analytical expression for the probability density function of the distribution; characteristic function is generally used to describe its distribution characteristics. The random variable obeys αdistribution law, if and only if the characteristic function is
where \(0 < \alpha \le 2,  1 \le \beta \le 1,\gamma > 0,  \infty < \delta < + \infty\), \({\text{i}}\) is the imaginary unit, and \({\text{sgn}} \left( t \right)\) is a symbolic function.
It is seen that the αstable distribution is uniquely determined from four characteristic exponents. α is the characteristic index that determines the trailing thickness of the probability density function. Distinct from the Gaussian distribution, the αstable distribution decays algebraically, and the attenuation velocity is related to α. The β parameter determines the degree of distribution symmetry. When β = 0, the distribution is also called an SαS. ϒ is the scale parameter that measures the dispersion of the distribution. The distribution is regarded as Gaussian if \(S_{2} \left( {\Upsilon ,1,\delta } \right) = N\left( {\Upsilon ,1,\delta } \right)\), Cauchy if \(S_{1} \left( {\Upsilon ,0,\delta } \right)\), and Levy if \(S_{0,5} \left( {\Upsilon ,1,\delta } \right)\).
The timedomain expression of active sonar emission waveform is \(s\left( t \right)\). Assuming the number of discrete scatterer elements satisfying the i.i.d. condition, reverberation model was built by using the element scattering model based on the generating process of the seafloor reverberation. It divided the scattering element by the scattering coefficient. Therefore, the signal received at the receiver can be expressed as
In Eq. (4), the first term on the right of the equation represents the received target signal, where \(a_{0}\) is the attenuation coefficient of the target signal which is related to the propagation loss of the acoustic signal of the excitation target in the backandforth sound path and the absorption loss of the medium to the sound energy. \(\tau_{0}\) is the time delay of target echo signal. In this paper, the Doppler effect caused by target movement is not discussed. The second term represents the reverberation. \(ss\left( {t  \tau_{i} } \right)\) is the waveform expression of sound wave scattered by the ith scatterer element. \(a_{i}\) is the attenuation coefficient of the scattering signal of the ith scatterer element which is related to the propagation loss and absorption loss before and after the scattering of the sound wave; \(g_{i}\) represents the scattering intensity coefficient of the ith scatterer element which is related to the variation coefficient of scattering intensity caused by different scattering coefficient and incident grazing angle when acoustic wave enters the ith scatterer element. The third term represents marine environmental noise.
2.2 Fractional lowerorder moments for signal enhancement in reverberation environment
In this part, the basic theory of FLOM is introduced firstly. As it can only be used to process the signal which satisfies SαS distribution [18], an energy redistribution method which is applied to redistribute the received signal energy in fractional domain is proposed in detail. Then, the target echo broadening and compression in fractional domain is analyzed.
2.2.1 Basic knowledge of fractional lowerorder moments
Assume random variable \(x \sim S\alpha S\), \(0 < \alpha \le 2\), the fractionalorder moment of the SαS random variable \(x \sim S_{\alpha } \left( {\beta ,\Upsilon ,0} \right)\) with zero location parameter \(\left( {\delta = 0} \right)\) is given by
where \(\Gamma \left( \bullet \right)\) is the gamma function,
If the random variables X and Y obey SαS distribution, the range of α is from 1 to 2. The fractional lowerorder correlation (FLOC) can be expressed as
Based on the Wigner–Ville distribution (WVD) and FLOM theories, if the random variables obey SαS distribution, the fractional lower order of WVD (FLOMWVD) expression can be written as
where \(x^{\left\langle P \right\rangle } = \left x \right^{p} {\text{sign}}\left( x \right),p < \alpha /2\).
2.2.2 Received signal redistributed in fractional domain
Considering the size of sonar arrays, as the bandwidth of transmitted acoustic signals increases, the sonar resolution unit decreases, and the number of effective scatterers in the resolution unit cell decreases. Thus, the received signal does not well satisfy an SαS random variable. However, the fractional lower order can only be used on received signals that are SαS random variables. To apply FLOM to suppress reverberations that have any characteristic exponents, an energy redistribution method based on the FrFT is proposed to redistribute the received signal to meet the required characteristic exponent.
The FrFT is a type of linear integral transformation that is performed on LFM signals and used to transform signals from one domain to another. This is known as the FrFT domain and is represented by u. Then, the pthorder FrFT on the function is denoted as \(F^{p} \left( u \right)\) and defined as
where \(\mathop K\limits^{ \sim }_{p} \left( {u,t} \right) = \sqrt {1  i\cot \left( {\frac{p\pi }{2}} \right)} \exp \left[ {i\pi \left( {u^{2} \cot \left( {\frac{p\pi }{2}} \right)  2u\csc \left( {\frac{p\pi }{2}} \right) + t^{2} \cot \left( {\frac{p\pi }{2}} \right)} \right)} \right]\), \(p \ne 2n\), \(n \in Z\). With some simplification, the above equation can be written as
where \(B_{p} = \sqrt {\frac{{1  \cot \left( {p\pi /2} \right)}}{2\pi }}\), and \(s\left( t \right)\) in Eq. (10) is expressed as
where \(f_{0}\), \(\mu\) and \(T\) are the initial frequency, frequency modulation rate and duration. In particular, when \(p = 1\), the FrFT on \(s\left( t \right)\) can be regarded as Fourier transform.
When we applied (10) to Eq. (4), the received signal in fractional domain with transform \(p\) will be
where
\(S\left( {u_{p} } \right)\), \(SS\left( {u_{p} } \right)\) and \(N\left( {u_{p} } \right)\) are the received target signal, reverberation and marine environmental noise in fractional domain, respectively.
Here, we give a reverberation model example that obeys the αdistribution (1.2176, 0.6, 0.0420, 0.0004). The characteristic exponents of the redistributed signal are shown in Table 1 with different transform p values.
The probability density curves with different transform p values (0, 0.02 and 0.22) are shown in Fig. 1. With the FrFT of different p values, the redistributed signal has different characteristic exponents.
Consider the two cases of p = 0, p = 0.22 and p = 0.02; Fig. 2a–c, respectively, shows the probability density functions. For p = 0.22, there is a thicker and less smooth tail than for p = 0.02. Furthermore, α = 1.163 and β = 0.003 for the redistributed signal (p = 0.02) are SαS random variables. More specifically, β is closest to 0 for α between 0 and 1 and is the optimal p selection principle, which is completely different from the traditional FrFT. Here, we give the influence of the FrFT on the target echo.
2.2.3 The target echo broadening and compression in fractional domain
In this part, we discuss the influence of the redistributed signal method on the target echo. Figure 3 shows the transformation relationship between the time domain and the fractional domain of the target echo.
According to Fig. 3, there are some changes in the bandwidth of the received signal in the fractional domain due to the FrFT. We assume that the frequency bandwidth of the transmitted signal is \(B\), the duration of the transmitted signal is \(T\) and the observation duration is \(T_{1}\). The transform angle of FrFT is \(p\). With the geometric relation, the bandwidth in the fractional domain can be written as
where \(\chi =  \frac{1}{{\tan \left( {{{2p} \mathord{\left/ {\vphantom {{2p} \pi }} \right. \kern\nulldelimiterspace} \pi }} \right)}}\) is related to the chirp rate of the transmitted signal in the fractional domain. The target echo broadening or compression in the fractional domain is related to the observation signal length \(T\) and the transform angle \(p\). In addition, according to Fig. 3, the information and energy of the echo signal are not changed in the fractional domain.
3 Results and discussion
3.1 The performance of the proposed method in shallow water environment
This section presents the simulation results for the proposed method to improve detection and compares it with other methods. The performance of the target echo enhancement in the reverberation environment is investigated using the peaksignaltoreverberation ratio (PSRR) under different conditions. The PSRR is defined by
where \(M_{{{\text{sig}}}}\) is the signal peak value and \(M_{{\text{rbn}}}\) is the reverberation peak value.
Figure 4 shows the results by the proposed method and matched filter in reverberation environment (SRR = 10 dB), respectively. In Fig. 4a, it is hard to observe the target component that is located at the true echo time delay (1 s). However, this component is easy to locate the target in Fig. 4b. According to Fig. 4, the proposed algorithm effectively removes reverberation, confirming that the target is clearly detected. It illustrates that the proposed algorithm suppresses the reverberation component effectively in server reverberation environments.
Figure 5 shows the SRR value of the proposed approach along with the matched filter and FLOC. The proposed algorithm (red solid line) achieves a PSRR gain (β = 0) of 6 to 12 dB under an input SRR from −24 to −9 dB. Compared with the other two methods (blue and black solid lines), the proposed method attains the best performance. Consider the case of β = 0.4, the performance of the proposed method (red dotted line) is similar to the result of β = 0 (red solid line), which suggests that the proposed method could force the received signal to obey the SαS distribution when SRR is above −12 dB. In addition, as the figure shows, the performance of matched filter (blue dashed line) and FLOC (black dashed line) descended more or less when β = 0.4 (Fig. 5).
3.2 Experimental results and discussion
To further verify the method, lake trial data from a suspended object echo signal are processed. The slope of the lake bottom is approximately 8.8\(^\circ\) as Fig. 6 shows. A monostatic sonar is used to transmit a wideband linear frequency modulated (LFM) signal. The frequency range is from 25 to 50 kHz, and the duration is 2 ms. The receiving system is an 18element uniform linear array placed 1 m from the lake surface.

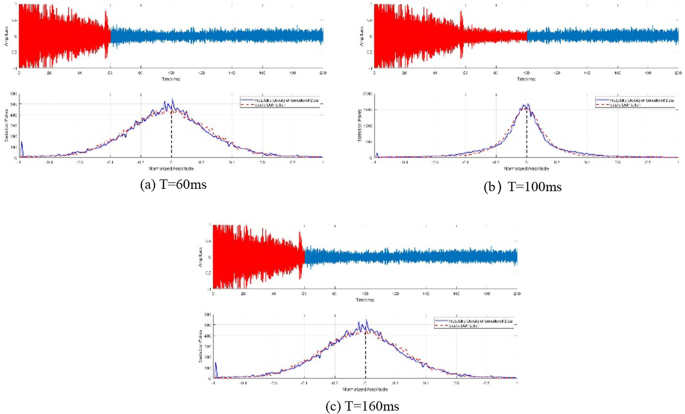

The probability density characteristics of the instantaneous values are analyzed by intercepting the data over different observation times. We consider the time durations T of 60, 100 and 160 ms. According to [19], the αstable distribution (α, β, γ, μ) parameter estimation of observation duration could be calculated.
According to Fig. 7a, the probability density curve of the considered time duration (T = 60 ms) roughly fits the ideal αdistribution (α = 1.8093, β = 0.1010 and γ = 0.1977). The fitting performance of Fig. 7b is slightly better than Fig. 7a. Particularly, compared with Fig. 7a, b, there is less fluctuation at the tail of probability density curve in Fig. 7c. Therefore, with time duration increasing, probability density curve of reverberation has a better agreement with ideal SαS distribution.
Figure 8 shows the relationship between parameters (α and β) of αdistribution and observation duration. It is easy to observe that α and β tend to be stable with the increase in observation duration. In particular, β gradually closes to zero.

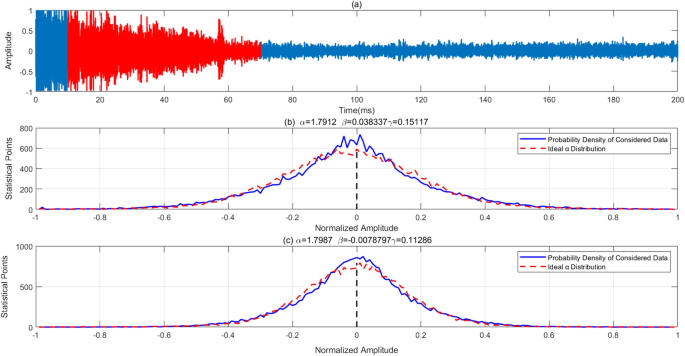

According to Fig. 9b, c, a better fit between the ideal SαS distribution and the experimental data is obtained from the proposed method. As the signal is redistributed in the fractional domain, the probability density curve of the processed signal is much smoother than the received signal.
The observed bandwidth in Fig. 10 is from 30.46 to 47.71 kHz. As the bandwidth of the transmitted signal is 25 kHz, only 69% of the bandwidth is reflected in Fig. 10. The results from the proposed method are shown in Fig. 11, indicating that the reverberation and environment interference suppression performance is much better than the traditional WVD method (marked in the ellipse). In addition, the observed bandwidth is up to 89%, which is a significant improvement. The target echo enhancement performance (marked in the ellipse) is much better than in Fig. 10.
4 Conclusions
Reverberation suppression is an essential function in active sonar systems. A suppression method is proposed using FLOM theory under an αstable distribution reverberation. Considering the limitations of FLOM theory, the energy redistribution method is applied to force the reverberation signal to obey an SαS distribution. By applying the proposed preprocessing method to the received signal, the FLOMWVD method achieves a better performance than the traditional WVD method. The simulation and experimental results show that the proposed algorithm can effectively suppress underwater reverberations and improve the SRR of underwater target echoes.
Availability of data and materials
Please contact author for data requests.
Abbreviations
 FrFT:

Fractional Fourier transform
 FLOM:

Fractional lowerorder moments
 FLOC:

Fractional lowerorder correlation
 WVD:

Wigner–Ville distribution
 SαS:

Symmetric αstable
References
S. Lee, J.S. Lim, “Reverberation suppression using nonnegative matrix factorization to detect lowDoppler target with continuous wave active sonar,” EURASIP J. Adv. Sig. Pr. 1 (2019)
D.A. Hague, J.R. Buck, An experimental evaluation of the generalized sinusoidal frequency modulated waveform for active sonar systems. J. Acoust. Soc. Am. 145, 3741–3755 (2019)
N. Touati, C. Tatkeu, T. Chonavel, A. Rivenq, Design and performances evaluation of new Costasbased radar waveforms with pulse coding diversity. IET Radar Sonr. Nav. 10, 877–891 (2016)
Y. Doisy, L. Deruaz, S.V. Ijsselmuide, S.P. Beerens, R. Been, Reverberation suppression using wideband dopplersensitive pulses. IEEE J. Oceanic Eng. 33, 419–433 (2008)
T. Collins, P. Atkins, Dopplersensitive active sonar pulse designs for reverberation processing. IEE ProcRadar Son. Nav. 145, 347–353 (1999)
C. Guan, Z. Zhou, X. Zeng, Phasecoded sequence design method for active sonar. Sensors 17, 4659 (2020)
H. Cox, H. Lai, Geometric comb waveforms for reverberation suppression. in Proceedings of 1994 28th Asilomar Conference on Signals, Systems and Computers, 2, IEEE, Pacific Grove, USA, 1994, pp. 1185–1189
K. Mio, Y. Chocheyras, Y. Doisy, Space time adaptive processing for low frequency sonar, in OCEANS 2000 MTS/IEEE Conference and Exhibition, 2, IEEE, Providence, USA, 2000, pp. 1315–1319
S. Kay, Improved active sonar detection using autoregressive prewhiteners. J. Acoust. Soc. Am. 80, 1603–1611 (1990)
W. Li, X. Ma, Y. Zhu, J. Yang, C. Hou, “Detection in reverberation using space time adaptive prewhiteners,” J. Acoust. Soc. Am. 124(4), EL236 (2008).
H. Jia, X. Li, Underwater reverberation suppression based on nonnegative matrix factorisation. J. Sound Vib. 506(1), 116166 (2021)
G. Kim, K. Lee, S. Lee, Linear frequency modulated reverberation suppression using nonnegative matrix factorization methods, dechirping transformation and modulo operation. IEEE Access 99, 110720–110737 (2020)
Y. Zhu, K. Yang, R. Duan et al., Sparse spatial spectral estimation with heavy sea bottom reverberation in the fractional fourier domain. Appl. Acoust. 160, 107132 (2020)
.X. Xing, Z.M. Cai, Ocean reverberation suppressing by direct data domain based stap, in 2012 IEEE 11th International Conference on Signal Processing, 3, IEEE, Beijing, China, 2012, pp. 2085–2088
X. Li, Y. Yang, X.X. Meng, Morphological characteristics separation of underwater target echo and reverberation in time and frequency domain. Acta Acust. 42(2), 169–177 (2017)
R.J. Urick, “Principles of underwater sound,” 3rd ed, McGrawHill Book Company, (1983).
M. Shao, C.L. Nikias, Signal processing with fractional lower order moments: stable processes and their applications. Proc. IEEE 81, 986–1010 (1993)
V.A. Aalo, A. Ackie, C. Mukasa, Performance analysis of spectrum sensing schemes based on fractional lower order moments for cognitive radios in symmetric αstable noise environments. Signal Process. 154, 363–374 (2019)
I.A. Koutrouvelis, An iterative procedure for the estimation of the parameters of stable laws. Commun. Stat. Simul. Comput. 10(1), 17–28 (2007)
