Multiharmonic Frequency Tracking Method Using The Sigma-Point Kalman Smoother

  • Sunghan Kim2Email author,
  • Anindya S. Paul1,
  • Eric A. Wan1 and
  • James McNames2
EURASIP Journal on Advances in Signal Processing20102010:467150

https://doi.org/10.1155/2010/467150

Received: 28 May 2009

Accepted: 2 February 2010

Published: 22 March 2010

Abstract

Several groups have proposed the state-space approach to tracking time-varying frequencies of multiharmonic quasiperiodic signals. The extended Kalman filter/smoother (EKF/EKS) is one of the common frequency tracking approaches seen in the literature. We introduce a multiharmonic frequency tracker based on the forward-backward statistical linearized Sigma-Point Kalman smoother (FBSL-SPKS) and compare its performance to that of the extended Kalman smoother (EKS). In all cases the FBSL-SPKS tracker outperformed the EKS tracker over a wide range of signal-to-noise (SNR) ratios. We also demonstrate its superior performance on real signals.

1. Introduction

Many natural signals contain nearly periodic rhythms with slowly varying morphologies. Example signals with this property include tremor, speech, electrocardiogram (ECG), and arterial blood pressure (ABP). In many applications the instantaneous frequency (IF) of these signals contains useful information for further analysis.

Many signal processing methods have been applied to the problem of multiharmonic frequency tracking in quasiperiodic signals. Especially, the pitch tracking in the speech signal analysis is one of the most common applications of multiharmonic frequency tracking. Pitch detection/tracking algorithms can be roughly categorized into three groups: time-domain methods such as zero-crossing, frequency-domain methods, and time-frequency-domain methods. All pitch tracking methods apply the frame-by-frame analysis due to the nature of human voice [1]. Recently Tabrikian et al. proposed the maximum a posteriori (MAP) probability pitch tracking method using harmonic model [2]. They implemented the MAP estimator by a dynamic programming procedure based on measurement collected over several frames. However, these frame-by-frame based algorithms are always not applicable especially when a local signal stationarity cannot be assumed. There are other methods that have been applied to track rhythmicity (harmonic components) in nonstationary quasiperiodic signals based on adaptive schemes [3]. The advantage of using these adaptive schemes is that one can track rhythmicity (frequencies) recursively as signal samples are acquired.

In this paper we use a Fourier series representation, which is shown in (1) Section 2.1, of multiharmonic quasiperiodic signals in which the amplitudes, phases, and frequencies are allowed to change slowly over time. The application of state space methods to continuously track the amplitudes, phases, and frequencies was pioneered by Parker and Anderson in [4] with many subsequent investigations [59]. Recently there have been several proposed methods based on particle filters [10, 11] which are highly computationally intensive and hence practically intractable.

The Kalman filter (KF) recursively estimates the optimal state of a linear state space system driven by Gaussian noise by minimizing the MSE [12]. However, it cannot be applied directly to frequency tracking because our state space model has nonlinearity due to the relationship between frequencies and observed signals. There are many types of generalizations of the KF for the case of a nonlinear state space model. The extended Kalman filter (EKF) uses a local linear approximation of the model. The algorithm is relatively simple and faster than other generalizations of the KF because it relies on a first-order Taylor series approximation of the nonlinear system around the estimate of the current state. The Sigma-Point Kalman filter (SPKF) is another generalization to nonlinear state-space models, which includes the Unscented Kalman filter (UKF) [13], Central Difference Kalman filter (CDKF) [14], and their square-root variants [15]. Like the EKF, the SPKF approximates the state distribution by a Gaussian Random Variable. The SPKF uses a deterministic sampling approach to approximate the probability density of the state-error and noise covariances by a set of carefully chosen sample points known as sigma-points. These sigma-points are chosen in such a way that they completely capture the mean and covariance of the corresponding densities. These sigma-points are then propagated through the true nonlinear system, with the posterior mean and covariance estimated using simple weighted averaging. This approach captures the posterior mean and covariance accurately to the 2nd order (3rd order is achieved for symmetric distributions) compared to EKF which only achieves 1st-order accuracy. Another advantage of the SPKF over other Kalman generalizations is that it maintains the same order of computational complexity as the EKF.

The Kalman smoother (KS) is a noncausal version of the KF. Typically, smoothers can achieve better estimates than filters since they deal with more measurements with proper design. We proposed a tremor frequency tracking method utilizing the extended Kalman smoother (EKS) in [16, 17]. However, we are unaware of any literature that investigates the estimation accuracy of smoothers in the multiharmonic frequency tracking application.

Forward-backward statistical linearized sigma-point Kalman smoother (FBSL-SPKS), which is recently proposed in [18], presents a new formulation for nonlinear smoothing using Sigma-Point Kalman filtering method. The derivation of the FBSL-SPKS is obtained by making use of the relationship between the SPKF and weighted statistical linear regression (WSLR). WSLR takes into account both the mean and covariance of the prior distribution to pseudolinearize the nonlinear dynamics. Therefore, it is more accurate than the first-order Taylor series-based linearization approach, which completely neglects the prior covariance at the point of linearization. In [18], the FBSL-SPKS is shown to obtain superior estimates than the EKS in general. To our best knowledge, however, the head-to-head performance comparison between the EKS and SPKS has not been made explicitly for the multiharmonic frequency tracking application. Especially, FBSL-SPKS has never been applied to any practical applications such as multiharmonic frequency tracking.

The first objective of our study was to implement two multiharmonic frequency trackers utilizing the EKS and FBSL-SPKS and demonstrate their feasibility of tracking the frequency of multiharmonic signals. The second objective was to compare the performance of the EKS and FBSL-SPKS trackers based on the Monte Carlo simulations and real biomedical signals. We used three performance metrics to quantify different aspects of the multiharmonic tracking performance. We only examined the smoothers since our work was focused on an offline analysis of prerecorded signals.

2. Methodology

We apply two nonlinear smoothing schemes using the EKF and SPKF approaches for multiharmonic frequency tracking problem. The EKF-based smoother, that is, the EKS, has many mathematically equivalent expressions. Here, we use a variant similar to that developed in [19] (see [20, page 374]). The nonlinear SPKF-based smoother was derived from the first principle in [18] and is referred as the FBSL-SPKS. The FBSL-SPKS is a fixed interval smoother, which uses two independent forward and backward filters for smoothing. The standard SPKF is used as a forward filter. The backward filter requires the inverse dynamics of the forward filter. While the EKS can easily invert the Taylor series based linearized dynamics, the SPKS requires a new approach to linearize the forward nonlinear dynamic model. There are two major variants of SPKS available in the literature which can solve this problem in a roundabout way. In [21], the inverse dynamic model was learned from the data by training a backward nonlinear predictor (e.g., neural network). The major disadvantages of this method are that it is application and data specific and requires a learning phase. Recently an Unscented Rauch-Tung-Striebel- (URTSS-) based smoother was proposed in [22], where a joint distribution of the current and future state is maintained in order to smoothen the current state. This method requires more computation due to doubling of the state dimension.

The FBSL-SPKS introduced a direct and straightforward formulation for forward-backward smoothing [18]. Instead of learning a backward dynamical model from the data, the proposed smoother (FBSL-SPKS) makes use of weighted statistical linear regression (WSLR) formulation of SPKF (see [18] for details). WSLR is a linearization technique that takes into account the uncertainty of the prior random variable when linearizing the nonlinear model. In this way, WSLR is more accurate in the statistical sense than the first-order Taylor series-based linearization employed by the EKF which only considers the mean of the prior densities while linearizing. By representing the forward nonlinear dynamics in terms of WSLR, a linear backward filter was derived from first principle in [18]. The forward and backward estimates were then statistically combined to obtain a smoothed estimate. This newly proposed FBSL-SPKS performed comparably with the smoothers presented in [21, 22] but with higher computational efficiency and ease of implementation.

2.1. State Space Model

We use boldface notation to denote random processes, normal face for deterministic parameters, upper case letters for matrices, lower case letters for vectors and scalars, and subscripts for time indices. The observed signal is denoted as where represent discrete time.

Our state space model is based on the one proposed in [4] with some modifications. The measurement model is based on a Fourier series representation in which the amplitudes, phases, and frequencies are allowed to change slowly over time. It can be expressed as
(1)
where is the number of the harmonics assumed to be known, the instantaneous angle, and the amplitudes of the th harmonic sinusoidal components, the trend of , and is a white noise process with zero-mean and variance . The instantaneous angle is modeled as
(2)

where is the mean frequency, is the difference between the instantaneous frequency and the mean frequency , the accumulative sum of , and the sample interval. This is one of the major differences between our state-space model and the one proposed in [4]. This modification was necessary because the FBSL-SPKS requires the state variables to have zero mean. Since is the accumulative sum of , its mean is zero. This increases numerical stability and makes it easier to invert the model for the backward filter.

Each state-space variable was modeled as follows:
(3)

where is the fluctuating component in , an autoregressive (AR) process coefficient of , and mutually uncorrelated white noise processes. A value of results in a random walk model of and results in a white noise model. The variance of determines how quickly the parameters are expected to change over time.

The state vector is defined as
(4)
Then, the state-space model can be written as follows:
(5)
(6)
(7)

where and are the linear state transition and nonlinear observation functions, respectively.

2.2. EKS Frequency Tracker Recursions

2.2.1. Forward Updates

The filtered and predicted state estimates can be computed directly from the well-known EKF recursions, which can be found in [20]. In the recursions, the derivatives of the state transition function and observation function have to be computed as part of time-update and measurement-update equations, respectively. They can be expressed as follows.
  1. (i)
    Derivative of for time-update equations is
    (8)

  2. (ii)

    Derivative of for measurement-update equations is

    (9)


The further detail of the EKF recursions can be found in [20].

2.2.2. Smoothing

There are many mathematically equivalent expressions for the extended Kalman smoother (EKS). Here we use a variant similar to that developed in [19] (see [20, page 374]). The backward recursive update equations for the EKS start with initialization at time such as
(10)
where is called the adjoint variable. The smoothed estimates can then be computed as follows.
  1. (i)

    Backward-update equations are

    (11)


2.3. SPKS Multiharmonic Frequency Tracker Recursions

Our proposed FBSL-SPKS uses a forward-backward approach. A standard SPKF is run in the forward direction using the nonlinear model shown in (5) and (7). A backward filter then computes the estimates operating on the inverse dynamics of the forward filter. WSLR formulation as described below is used to pseudolinearize the nonlinear state-space model so that it is inverse can be computed. The forward and backward estimates are then optimally combined to generate the smoothed estimates. In order to better understand the equations of FBSL-SPKS, first we describe how SPKF performs an inherent linearization called WSLR, which considers both the mean and covariance of the prior random variable (RV) at the point of linearization.
  1. (ii)

    Weighted Statistical Linear Regression (WSLR) is as follows.


Consider a prior RV which is propagated through a nonlinear function to obtain a posterior RV . Sigma-points are selected as the prior mean plus and minus the columns of the square root of the prior covariance :
(12)
where is the RV dimension and is the composite scaling parameter. The sigma-points set completely captures the mean and the covariance of the prior RV :
(13)
where is the normalized scaler weight for each sigma-point. Each prior sigma-point is propagated through the nonlinearity to form the posterior sigma-points set :
(14)
The posterior statistics can then be calculated using weighted averaging of the posterior sigma-points,
(15)
An alternate view is to consider the estimates arising from the sigma-point approach as a weighted statistical linearization of the nonlinear dynamics:
(16)
where and are the statistical linearization parameters and can be determined by minimizing the expected mean square error which takes into account the uncertainty of the prior RV . Defining is the expected mean square error with sigma-point weighting matrix :
(17)
The true expectation can be replaced as a finite sample approximation:
(18)
where the point wise linearization error is . Now taking partial derivative on with respect to we obtain
(19)
By substituting with the equation can be rewritten as follows:
(20)
After cross multiplication and differentiation, (20) simplifies to
(21)
Solving for from (21) we get
(22)
Substituting the value of obtained in (22) into and taking the partial derivative with respect to we get
(23)
Then, the equation can be rewritten as
(24)
Cross multiplication and differentiation with respect to on (24) provides
(25)
where ; solving for from (25) we get
(26)
where the prior mean ( ) and covariance ( ) are calculated in (13) from the prior sigma-points. Similarly, the posterior mean ( ) and covariances ( and ) are calculated from the posterior sigma-points. The linearization error has zero mean and covariance which is defined as follows
(27)
Replacing from(26)
(28)

From (28), , we observe that the covariance of the linearization error is added when calculating the posterior covariance . The uncertainty feedback scheme is very important especially when there is severe nonlinearity over the uncertainty region of prior RV. First-order Taylor series-based linearization employed by EKF often diverges in highly nonlinear region as it only performs linearization around the mean of the RV but neglects this error term. In general, the WSLR technique is an optimal way of linearizing any nonlinear function in the minimum mean square error (MMSE) sense as this approach explicitly takes into account the prior RV statistics (e.g., mean and covariance).

To form the SPKF estimator, we consider the nonlinear state-space model:
(29)

where is the state, is the observation at time index , and are Gaussian distributed process and observation noises, is the nonlinear dynamic model and is the nonlinear observation model function. The process and observation noise has zero mean and covariances and , respectively. The SPKF is then derived by recursively applying the sigma-point selection scheme shown above at every time index to these dynamic equations (see [13] for more details).

Alternatively, we may form the statistically linearized state-space using the WSLR technique:
(30)

where , , , and are the statistical linearization parameters and , are the linearization error with mean zero and covariance and . All the parameters can be obtained by applying (22) and (26) iteratively at each time index . Deriving the KF using the linearized state-space shown in (30) also leads to SPKF (see [21]). This statistically linearized form allows to form the dynamics of the backward filter used in forward-backward smoothing approach. As the statistically linearized state space shown in (30) is different from the standard linear state space used by the Kalman filter, the detailed derivation of the FBSL-SPKS which is demonstrated in the next sections needs to be done from the first principle. The pseudocode for the FBSL-SPKS can now be specified as follows.

2.3.1. Forward Updates

A standard SPKF is used as the forward filter. The task of the SPKF is to estimate at time index given all past and current measurements. The SPKF recursions, which operates on the nonlinear state-space model defined in (29), are written below with WSLR.
  1. (i)

    Initialization:

    (31)

  2. (ii)

    Calculation of sigma-points:

    (32)

    where .


  3. (iii)

    Time-update equations:

    (33)

  4. (iv)

    Weighted Statistical Linearization of ( ):

    (34)

  5. (v)

    Measurement-update equations:

    (35)

  6. (vi)

    Weighted Statistical Linearization of ( ):

    (36)

  7. (vii)

    where

    (37)

  8. (viii)
    Parameters: is the composite scaling parameter which is given by
    (38)
    where and are the scaler sigma-point weights and they are defined as
    (39)


where controls the size of the sigma-point distribution and should be within to avoid sampling nonlocal points when the nonlinearities are strong [21]. is the weighting term which incorporates the higher-order moments of the prior distribution. As generally sigma-points can effectively capture the first 2 moments (mean and covariance) of the distribution (for gaussian any symmetrical sigma-points set also capture the third-order moment, i.e., skewness), the parameter also can be used to minimize the error of higher-order moments of the distribution due to sigma-point approximation effects. For Gaussian prior, [13]. The parameter is used to make sure that the positive definiteness of the covariance matrices and the default choice of should work for most of the cases. is the dimension of the augmented state; and are the process and observation noise covariances.

2.3.2. Backward Updates

An information filter is used to estimate the states from the backward direction given all the present and future measurements. As the statistically linearized state-space is different from the standard linear state-space used by the Kalman filter, the time and measurement update equations had to be derived from the first principle [18]. The backward filter recursion which operates on the statistically linearized state-space shown in (30) is given as fpllows.
  1. (i)
    Initializations:
    (40)

    where is the information matrix and is defined as the information state. The state estimate and error covariance matrix for the backward filter can be denoted as and , respectively.


  2. (ii)
    Time-update equations:
    (41)
    Define as the backward gain matrix:
    (42)
    Then,
    (43)

  3. (iii)
    Measurement-update equations:
    (44)


2.3.3. Smoothing

The SPKF is run in the forward direction on the interval to compute the forward posterior estimates . The information filter is then run backwards to form the prior backward estimates . The two estimates are then optimally combined to obtain the smoothed estimate and corresponding covariance .
(45)

3. Experiment

3.1. Synthetic Time-Variant Harmonic Signals

We generated two sets of synthetic signals with time-variant harmonics whose sample rate was  kHz, mean frequency  Hz, and duration  s using (1)–(3). The first set of synthetic signals contains the rhythmicity during the entire 3 seconds duration. The second set of synthetic signals contains the rhythmicity only during the first and last one seconds, - and -  seconds. Between  and  seconds the signals are simply white Gaussian noise. The second set of synthetic signals mimics those signals whose rhythmicity is intermittent.

3.2. Parameter Selection

Tables 1 and 2 list the user-specified parameters that we used for the results and examples in this paper. In [17] we demonstrated that the ratio ( ) between the measurement noise variance and process noise variance is the critical factor that affects the performance of the EKS frequency tracker. We used the same value for the ratio ( ), which was . The other values such as and were selected based on empirical results obtained during the development of the multiharmonic frequency trackers. The user-specified parameters were chosen for the best performance of the EKS tracker [17]. We did not perform any additional tuning process for the SPKS tracker. Therefore, any bias incurred during the selection of the user-specified parameters would favor the EKS tracker.
Table 1

Summary of user-specified design parameters.

Name

Symbol

Value

AR coefficient

0.9987

Phase process noise variance

10

Frequency process noise variance

100

Amplitude process noise variance

0.0002

Average process noise variance

0.001

Measurement noise variance

1

Mean frequency

100 Hz

is a sample interval.

Table 2

Synthetic signal generation parameters.

Name

Symbol

Value

AR Coefficient

0.99999

Frequency process noise variance

0.2

Amplitude process noise variance

10

Mean frequency

100 Hz

The SPKS multiharmonic frequency tracker has a few of parameters that the EKS tracker does not have. Those parameters and their chosen values are described in Section 2.3.1.

3.3. Performance Measures

There are two main issues that need to be addressed when comparing the performance of frequency trackers: accuracy and lock-on time. The accuracy quantifies how closely the tracker estimates the state. The lock-on time is a measure of how quickly the tracker can converge to the true state.

Depending on the application, the primary objective of frequency tracking may be accurate tracking of an instantaneous frequency or "signal denoising". When the rhythmicity in a given signal is intermittent, it is also important that the frequency tracker can regain its track of the intermittent instantaneous frequency as quickly as possible [10].

We used three metrics to compare the accuracy and speed of the EKS and FBSL-SPKS multiharmonic frequency trackers. The first metric is the normalized mean-square-error (NMSE):
(46)

where is the signal duration.

The second metric is normalized frequency mean-square-error (NFMSE):
(47)

where is the instantaneous frequency (IF), is the estimated IF, and is the mean IF. NFMSE has a natural scale ranging from to . A value means that the average accuracy of the estimated IF is no better than simply using the mean IF as an estimate. Values of indicate poorer frequency tracking than a simple mean estimator and those of indicate accurate frequency tracking.

The third metric is the square-frequency-error ( ), which can be written as
(48)

When this metric is averaged over an ensemble of synthetic signals, it visualizes how rapidly the trackers lock on to the true frequency. In contrast to NMSE and NFMSE, is a function of time that shows the squared difference between the true IF and its estimate at a given time. For all of our results we calculated the NFMSE, NMSE, and SFE over an ensemble of synthetic signals.

4. Results and Discussion

4.1. Synthetic Signals

Two plots in Figure 1 show the estimated multiharmonic frequencies using the EKS (a) and FBSL-SPKS (b) trackers on top of the spectrogram of a synthetic signal generated using (1)–(3) whose SNR was  dB. At  s the EKS tracker lost track of the true frequency because the estimated third harmonic started tracking the fourth harmonic of the signal. The same situation occurred toward to the end of the signal at  s. However, the FBSL-SPKS tracker never lost its track of the true IT during the entire signal duration. Two plots in Figure 2 show the spectrograms of estimation residuals using the EKS (a) and FBSL-SPKS (b) trackers. The residual spectrogram (a) in Figure 2 depicts some harmonic structures between 1.1–1.7 s and 2.7–3.0 s due to the estimation error of the EKS tracker.

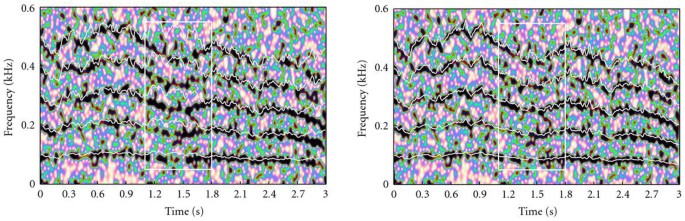

Figure 1

(a) EKS Frequency Estimate and (b) FBSL-SPKS Frequency Estimate. The black area in the spectrograms represents great power concentrated in the corresponding frequency at a given time.Spectrogram of a true signal with the estimated harmonics (white lines) using the EKS frequency trackerSpectrogram of a true signal with the estimated harmonics (white lines) using the FBSL-SPKS frequency tracker

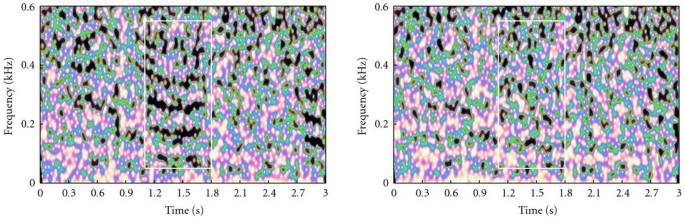

Figure 2

(a) EKS Estimation Error ( ) and (b) FBSL-SPKS Estimation Error ( ). The black area in the spectrograms represents great power concentrated in the corresponding frequency at a given time. If the harmonic tracking is successful, the black stripes in Figures 1(a) and 1(b) should be eliminated as shown in Figures 2(a) and 2(b). The EKS harmonic tracker does not track the harmonic components appropriately in the rectangular box in Figure 1(a), which results in the black stripes left in the box as shown in Figure 2(a).Spectrogram of residuals with the EKS frequency trackerSpectrogram of residuals with the FBSL-SPKS frequency tracker

Figure 3(a) shows NMSE versus SNR of the EKS and FBSL-SPKS trackers. It demonstrates that the FBSL-SPKS tracker can estimate the true signal better than the EKS tracker over a wide range of SNR. Figure 3(b) depicts NFMSE versus SNR of two multiharmonic trackers. The FBSL-SPKS tracker outperformed the EKS tracker over the entire range of SNR. The performance difference is larger at low SNR values. This is probably due to a better approximation of the state and error covariances with the sampling approach of the FBSL-SPKS as compared to the local linearization approach of the EKS.
Figure 3

(a) NMSE versus SNR (b) NFMSE versus SNR. In the plots the shaded regions represent the 5th and 95th percentile ranges of the NFMSE and NMSE, respectively.NMSE versus SNRNFMSE versus SNR

Figure 4 depicts the of the two multiharmonic trackers. It demonstrates that on average the FBSL-SPKS tracker can regain its track of the true IF faster than the EKS tracker.
Figure 4

Convergence Speed ( versus Time) at . In this figure the shaded regions represent the 5th and 95th percentile ranges of the .

Plots in Figure 5 show the estimated instantaneous frequencies using the EKS and FBSL-SPKS trackers on top of the spectrogram of a synthetic signal whose rhythmicity is present only during -  s and -  s. The FBSL-SPKS tracker started tracking the true IF accurately at s while the EKS frequency tracker failed to regain its track of the true IF. Plots in Figure 6 show the spectrograms of estimation residuals using the EKS Figure 6(a) and FBSL-SPKS Figure 6(b) trackers. The EKS tracker barely started tracking the true frequency toward the very end of the signal. However it took only  seconds for the FBSL-SPKS to start tracking the true frequency after the rhythmicity came back at  seconds.

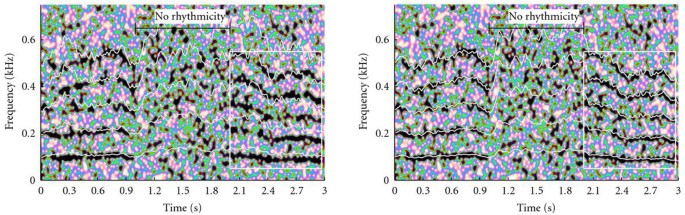

Figure 5

(a) Estimated frequencies using the EKS on top of an intermittent rhythmicity signal at . (b) Estimated frequencies using the FBSL-SPKS on top of an intermittent rhythmicity signal at SNR = −3.EKS at SNR = −3FBSL-SPKS at SNR = −3

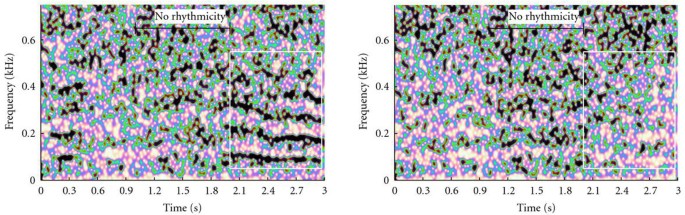

Figure 6

(a) Spectrogram of a residual signal using the EKS tracking of an intermittent rhythmical signal. (b) Spectrogram of a residual signal using the FBSL-SPKS tracking of an intermittent rhythmical signal.EKS residuals at SNR = −3FBSL-SPKS residuals at SNR = −3

4.2. Real Signal Examples

We applied both trackers to two different types of real signals: a photosenor insect activity signal and an arterial blood pressure (ABP) signal. The photosensor insect activity signal has a clear harmonic structure, which carries important entomological information. The instantaneous frequency and the harmonic amplitudes help entomologists determine what kind of insects flew over the photosensor [23, 24]. The ABP signal also has many harmonics by nature. Accurate tracking of the harmonics in the ABP signal is critical to check a patient's heart condition. However, the ABP signal can often be noisy due to signal drops and medical device interference. The following example will demonstrate that the FBSL-SPKS harmonic tracker is more robust to this type of noise than the EKS harmonic tracker.

The sampling frequency of the photosensor insect activity signal was  kHz and its duration was s. Figures 7(a) and 7(b) show the estimated harmonics using the EKS (a) and FBSL-SPKS (b) multiharmonic trackers on top of the spectrogram of a photosensor insect activity signal. Figures 8(a) and 8(b) are the spectrograms of estimation residuals using the EKS and FBSL-SPKS, respectively. The NMSE between the true and reconstructed bug signals using the FBSL-SPKS was while that using the EKS was . The FBSL-SPKS tracker could track the harmonics during the entire time period while the EKS tracker lost its track between 2.3 s and 2.9 s, which is marked with two dark grey bars. The performance difference may not be apparent in Figures 8(a) and 8(b). However, the estimated harmonic frequencies between two grey bars in Figure 7(a) show that the slight error in fundamental frequency estimation results in the complete mismatch of higher harmonic frequency estimation. This result matches the simulation results shown in Figure 3.
Figure 7

(a) Estimated frequency using the EKS on top of the spectrogram of a photosensor insect activity signal. (b) Estimated frequency using the FBSL-SPKS on top of the spectrogram of a photosensor insect activity signal.EKSFBSL-SPKS

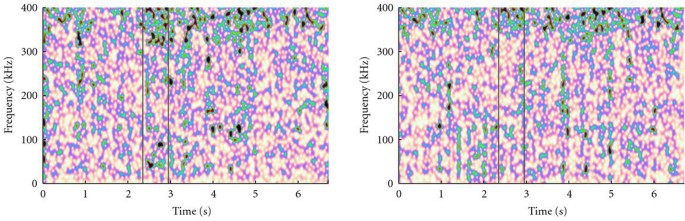

Figure 8

(a) Spectrogram of residuals using the EKS tracking of a photosensor insect activity signal. (b) Spectrogram of residuals using the FBSL-SPKS tracking of a photosensor insect activity signal.EKS residuals (NMSE = 0.104)FBSL-SPKS residuals (NMSE = 0.038)

The ABP signal was sampled at  Hz and its duration was 30 minutes. Figures 9(a) and 9(b) depict the estimated harmonics using the EKS (a) and FBSL-SPKS (b) multiharmonic trackers on top of the spectrogram of an arterial blood pressure (ABP) signal. Figures 10(a) and 10(b) are the spectrograms of estimation residuals using the EKS and FBSL-SPKS trackers, respectively. Figure 9 shows a typical example of signal drops at 25 minutes, which is common in ABP signals. While the EKS tracker could not regain its track of the right frequencies after this signal drop, the FBSL-SPKS tracker was able to regain its track. This result again demonstrated that the FBSL-SPKS harmonic tracker is more reliable than the EKS harmonic tracker.

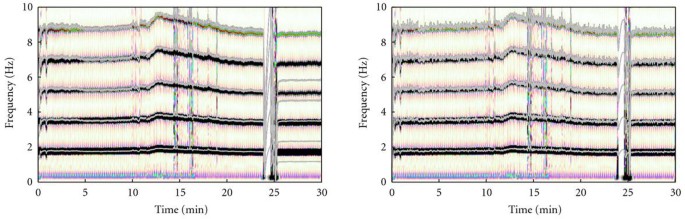

Figure 9

(a) Estimated frequency using the EKS on top of the spectrogram of an ABP signal. (b) Estimated frequency using the FBSL-SPKS on top of the spectrogram of an ABP signal.EKSFBSL-SPKS

Figure 10

(a) Spectrogram of residuals of the EKS tracking of an ABP signal. (b) Spectrogram of residuals of the FBSL-SPKS tracking of an ABP signal.EKS residuals (NMSE = 0.022)FBSL-SPKS residuals (NMSE = 0.005).

5. Conclusion

We implemented the multiharmonic tracker using the recently proposed FBSL-SPKS technique and made the head-to-head performance comparison between the FBSL-SPKS and EKS multiharmonic trackers based on synthetic and real-world signals. Using three difference performance metrics, we demonstrated that the FBSL-SPKS multiharmonic tracker is more accurate and robust to noise than the EKS multiharmonic tracker.
