Cyclic Biaxial Stress Measurement Method Using the Grain Growth Direction in Electrodeposited Copper Foil

EURASIP Journal on Advances in Signal Processing20102010:928216

https://doi.org/10.1155/2010/928216

Received: 28 December 2009

Accepted: 11 April 2010

Published: 17 May 2010

Abstract

A method that uses grain growth direction in electrodeposited copper foil to measure cyclic biaxial stress is examined in this paper. The grain growth direction is measured by image processing software after a cyclic loading test for various biaxial stress ratios is carried out. Since the grain growth occurs in two directions and its directions correspond closely with the direction of maximum shearing stress when the biaxial stress ratio is negative, the principal stress can be measured using Mohr's stress circle. On the other hand, when the biaxial stress ratio is positive, above-mentioned feature does not occur. Therefore, the first principal stress can be measured based on the grain growth density. The number of grains necessary to measure the biaxial stress is estimated by a statistical approach.

Keywords

Principal StressGrowth DirectionCircular HoleCopper FoilStainless Steel Plate

1. Introduction

The copper electroplating method is used to measure cyclic stress that causes metal fatigue [13]. If copper foil adhered to a machine element is subjected to repeated loads, grain growth occurs in the copper foil. Since the grain growth density is controlled by the maximum shearing stress and the number of cycles, the maximum shearing stress can be measured based on the grain growth density in the prescribed number of cycles [4]. This method has the advantage of detecting stress in microscopic regions like the stress concentration region. Moreover, this method can be easily applied to rotating machines and machine elements in sealed casings, since it does not need an output line like an electrical resistance strain gauge.

Since the principal stresses that are important for evaluating metal fatigue cannot be detected by this method, a new method using copper foil with circular holes has been developed [4, 5]. However, this new method is somewhat complex, because the grain growth length at hole edges as well as the grain growth density in the copper foil must be measured. This also means that two kinds of copper foils (foil with and without circular holes) are necessary for the principal stress measurement.

From the above viewpoint, we examined the principal stress measurement using only one piece of foil without circular holes. To do this, we focused on the grain growth direction, since the growth direction of an individual grain is expected to correspond closely with the direction of maximum shearing stress. The principal stress measurement becomes possible using this feature as described in the next chapter. First, we proposed the principal stress measurement method based on the grain growth direction. Second, we investigated the relative frequency distribution of the grain growth direction for various biaxial stress conditions. Finally, the number of grains necessary to measure the principal stress was estimated by regarding the relative frequency distribution as the normal distribution.

2. Biaxial Stress Measurement Method

Figure 1 shows the stress state of the copper foil depicted by Mohr's stress circle. Namely, Figures 1(a) and 1(b) show conditions when the biaxial stress ratio (= the second principal stress /the first principal stress ) is negative and positive, respectively. Since there is usually no vertical load to the surface of machine element, the principal stress perpendicular to this surface is zero. If the copper foil is adhered to this surface, the third principal stress in the foil is also zero, since the foil is very thin. Therefore, the principal stresses and are expressed as the following equation using the maximum shearing stress and the biaxial stress ratio :
(1)
(2)
We focus on the first principal stress because it is the most important in metal fatigue evaluation. Since the maximum shearing stress can be measured by the conventional method based on the grain growth density in the copper foil, the first principal stress can be obtained easily when . However, it is necessary to measure the biaxial stress ratio C in addition to in the case of . Namely, determining the sign of biaxial stress ratio is required to measure the first principal stress, since the basic equation to obtain the first principal stress is different. Figure 2 illustrates grain growth in copper. The grain growth caused by cyclic stress in copper is considered to be a kind of thermal recrystallization [6]. The dislocation movement caused by mechanical rather than thermal energy results in the grain growth. Since the shearing stress is responsible for the dislocation movement, the grain growth is considered to be controlled by the shearing stress. occurs in the direction that divides the and directions in two when as shown in Figure 1(a). Therefore, the plane in which the shearing stress becomes the maximum is an -plane, as shown in Figure 2(a). On the other hand, occurs in the direction that divides the and directions in two when as shown in Figure 1(b). So, the plane in which the shearing stress becomes the maximum is an -plane, as shown in Figure 2(b). In addition, there are two directions where the shearing stress reaches the maximum, and the interval between the two is 9 , as understood from Mohr's stress circle shown in Figure 1. As a result, the grain growth observed by electrochemical polishing occurred in the two directions and the interval between the two is 9 when . On the other hand, the grains do not show the above-mentioned features on the -plane when , since grains grow in the thickness direction. Therefore, the sign of biaxial stress ratio can be determined by using these characteristics.
Figure 1
Figure 1

Stress state in copper depicted by Mohr's stress circle.

Figure 2
Figure 2

Schematic diagram of grain growth in copper foil.

If the sign of biaxial stress ratio is determined, can be obtained easily when using (2). Since the biaxial stress ratio becomes negative in the combined stress state of bending and torsion that exists widely in actual machine elements, the principal stress measurement under this condition is important. From (1), the measurement of biaxial stress ratio is necessary in this condition. Therefore, the method using copper foil with circular holes has been developed to measure biaxial stress ratio [4, 5]. A new method using grain growth direction is examined to measure the principal stress using only a copper foil without circular holes. Figure 3 shows a machine element that receives bending moment and torsional moment at both longitudinal ends. The stress state of a small element is in the combined stress state of a bending stress σ x and a shearing stress as shown in Figure 3. Mohr's stress circle of this small element is shown in Figure 4. Since the first principal stress and the second principal stress have opposite signs, the biaxial stress ratio becomes negative. The angle between the axial direction and the direction of principal stress is expressed as
(3)
Moreover, the relationship between the direction of principal stress and the direction of maximum shearing stress is expressed as
(4)
Since the growth direction of individual grains can be expected to correspond with , the biaxial stress ratio can be obtained from (3) and (4) when is measured by using the grain growth direction. Then, the principal stress can be measured from (1). Since this new method uses only one piece of foil, the principal stress can be measured more easily than with the conventional method.
Figure 3
Figure 3

Biaxial stress state of bending and torsion.

Figure 4
Figure 4

Stress state depicted by Mohr's stress circle ( ).

3. Experimental Procedures

3.1. Test Specimen and Testing Machine

A copper foil was obtained as follows. A stainless steel plate (200 mm 100 mm 1 mm) was electroplated with copper sulfate solution [1]. Since the stainless steel plate is polished by buffing before plating, the deposited layer can easily strip from the stainless steel plate. This deposited layer is called a copper foil. All subsequent experiments were carried out by cutting this single foil to small pieces. The copper foil was about 20  m thick and the initial grain size was about 1  m [4]. This grain size is considerably smaller than the grown grain size.

A titanium alloy (Ti-6Al-4V) was used as the specimen material. The mechanical properties are shown in Table 1. Figure 5 shows the geometry and dimensions of test specimen. A plate-type specimen was used for , and a disk-type specimen was used for . A Schenck type fatigue testing machine was used, and tests were performed at a frequency of 60 Hz by mounting the bending-torsion apparatus shown in Figure 6 in the test machine when . This apparatus is able to produce various biaxial stress ratios by changing the attachment angle . Table 2 shows the relationship between the biaxial stress ratio and the attachment angle obtained by a strain gauge rosette. On the other hand, the closed-loop servohydraulic testing machine was used, and tests were carried out at the same frequency by mounting the disk-bending apparatus shown in Figure 7 in the test machine when . If the punch that has convex shape with a large curvature compresses the opposite side of the specimen surface where copper foil is adhered, the biaxial stress ratio of a copper foil becomes positive [7]. Since the stress state is different with the location on the disk, the copper foil is adhered to the central portion. The biaxial stress ratio C measured by a strain gauge rosette was 1.0. Images of grown grains were captured using a personal computer from a digital camera installed on an optical microscope (200x magnification), and we used image processing software to measure the grain growth direction.
Table 1

Mechanical properties of Ti-6Al-4V alloy.

Proof stress [MPa]

Tensile strength [MPa]

Elongation [%]

946

1033

15.2

Table 2

Biaxial stress ratio obtained by a strain gauge rosette.

Machine type

Schenck

Servo-hydraulic

30

45

60

75

90

0.16

0.33

0.52

0.72

1.0

1.0

Figure 5
Figure 5

Geometry and dimensions of test specimen. (a) Plate-type ( )(b) Disk-type ( )

Figure 6
Figure 6

Bending-torsion apparatus.

Figure 7
Figure 7

Disk-bending apparatus.

3.2. Experimental Procedure

A piece of copper foil was adhered to the central portion of a specimen using cyano-acrylate-based strain gauge cement. After the specimen was installed in the apparatus, cyclic loading tests were carried out under  MPa. The image was captured as the longitudinal direction of the plate-type specimen was corresponding to the horizontal direction of the image. On the other hand, arbitrary direction of the disk-type specimen was chosen as the horizontal direction of the image. The growth direction of individual grains was measured after electrochemically polishing and etching. was defined as the angle between the horizontal direction of the image and the principal axis of the grown grain (the axis along which a moment of inertia of area is minimized), as shown in Figure 8(b). Namely, is expressed as
(5)
, , and are the moment of inertia of area for the axis, the moment of inertia of area for the axis, and the product of inertia of area, respectively. Image processing software can automatically calculate the grain growth direction based on (5) using a binary image of the grown grains. The calculation was carried out for grains that did not coalesce with each other.
Figure 8
Figure 8

Grown grains occurred at the copper foil.

4. Results and Discussion

4.1. Statistical Distribution of the Grain Growth Direction

Figure 8 is a microphotograph of three examples of grain growth due to the cyclic stress. The direction of maximum shearing stress is also shown in the figure when . As predicted, most grains grew in two directions of the maximum shearing stress and the interval between the two is 9 in the case of . On the other hand, these features are not recognized in the case of . Figure 9 shows some examples of the relative frequency distribution of grain growth direction . In these figures, means the number of samples. The maximum shearing stress directions obtained by substituting the values of Table 2 for (3) and (4) are also shown in Figures 9(a) and 9(b). When , peaks of the distribution correspond well with the direction of maximum shearing stress and the interval from one peak to the next peak is almost 9 . These tendencies occurred for all experimental conditions in . However, these tendencies are not recognized in the case of . From these results, it can be concluded that grain growth occurs readily in the direction of the maximum shearing stress.
Figure 9
Figure 9

Relative frequency distribution diagram of .

4.2. Biaxial Stress Measurement Using the Grain Growth Direction

The following periodic function is applied to approximate the relative frequency distribution, since the peaks occur periodically when :
(6)
where is the relative frequency of , is a constant that relates to the height of the peak (amplitude), is a constant that expresses the interval of a peak (period), is a constant that denotes a phase at (initial phase), and is a constant that expresses the translation amount of upward direction. The values of each constant are listed in Table 3. The sin curve in Figure 9 graphs (6). The approximation curve corresponds well with the experimental results when . are almost 9 in the case of from Table 3. Moreover, since the grains are clearly grown in the -plane as shown in Figure 2(a), are large values compared with the case of . Therefore, the sign of biaxial stress ratio can be decided by using these parameters. Namely, we first pay attention to the value. If this value is almost 9 , biaxial stress ratio is probably negative. However, the value might be about 9 even when as a result of the approximation. Therefore, we next check the value. If this is the large value as shown in Table 3 ( ), it can be concluded that the biaxial stress ratio is negative. If not so, the biaxial stress ratio is positive.
Table 3

Biaxial stress ratio in each experimental condition.

0.16

0.33

0.52

0.72

1.0

1.0

[%]

3.11

4.13

4.50

4.78

4.85

1.99

99.3

91.9

94.6

96.1

94.7

53.1

[rad]

2.99

2.69

2.48

2.22

1.88

[%]

2.98

2.82

2.96

3.09

3.03

Next, we discuss the measurement of biaxial stress ratio when . Since the approximated equation (6) corresponds well with the experimental results, the peak value of can be obtained by differentiating this equation, and the resultant equation is
(7)
Figure 10 shows obtained by the above equation in each biaxial stress ratio and the theoretical curve of obtained by substituting (3) for (4). In this figure, is obtained from the approximation curve at . obtained by the new method using grain growth direction agrees well with a theoretical curve of . Therefore, it is possible to measure biaxial stress ratio when by substituting for in (4) and using (3). Since the maximum shearing stress can be measured by the conventional method based on the grain growth density in a microscopic region, the principal stress can be obtained by (1).
Figure 10
Figure 10

Relationship between ( ) and .

4.3. Estimation of the Number of Grains Necessary to Measure the Biaxial Stress

Since this method has the advantage of enabling measurements of the stress in a microscopic region, it is preferable to reduce the number of measured grains as much as possible. The number of grains necessary to determine the sign of biaxial stress ratio is only about 50, since the feature shown in Figure 9 is the same within the range from 50 to 150. Therefore, we pay attention to the number of grains necessary to measure the biaxial stress ratio. Namely, necessary to keep prescribed accuracy in the stress measurement can be statistically estimated.

It is thought that the distribution shown in Figures 9(a) and 9(b) consists of two groups, since there are two directions of maximum shearing stress in an -plane. Therefore, data within the range of 4 from one peak of the distribution can be assumed to be one group. The cumulative relative frequency from one group in Figures 9(a) and 9(b) is plotted on normal probability paper and shown in Figure 11. Since most data can be plotted as straight lines for each biaxial stress ratio, the grain growth direction of one group can be considered to be the normal distribution expressed by the following probability density function :
(8)
where is the population mean and is the population variance. When samples are extracted from a population with a normal distribution, the distribution of the average of the samples also becomes a normal distribution, and the standard deviation of samples becomes [8]. Therefore, when the error margin % is permitted to be based on , the probability that is in the range of can be calculated statistically [9]. Table 4 shows the values of obtained for various , and Figure 12 shows the first principal stress obtained by substituting the mean value calculated by extracting samples shown in Table 4 for in (4). The error range of obtained from is also shown in the figure. Moreover, the solid curve in the figure shows the theoretical curve obtained by substituting  MPa to (1). The first principal stress calculated by using samples was in the specified error range. Moreover, obtained by the new method agrees well with the theoretical curve. The area necessary for the principal stress measurement is only about 5 mm2, even when a condition requires many samples ( , %). Therefore, this new method can detect the cyclic biaxial stress in a small area using only one piece of copper foil.
Table 4

Number of necessary grains (Confidence value: 95%).

0.16

0.33

0.52

0.72

1.0

[%]

3

330

182

71

48

44



5

117

66

26

18

16



7

61

34

13

9

8

Figure 11
Figure 11

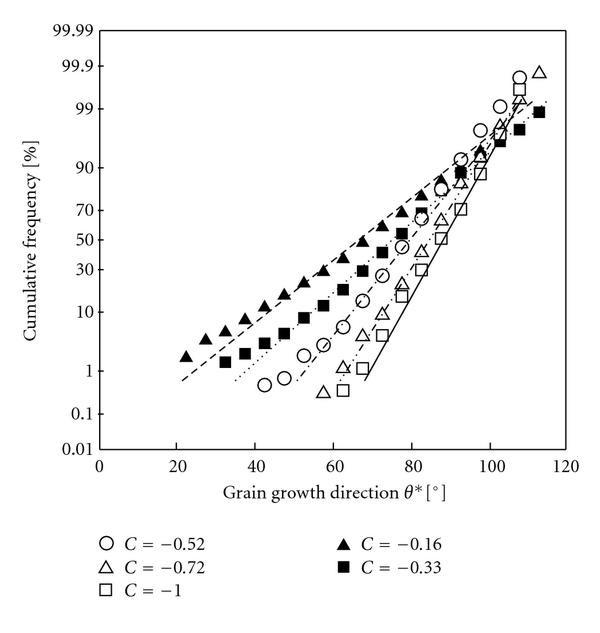

Grain growth direction plotted on normal probability paper.

Figure 12
Figure 12

Relationship between and ( %).

5. Conclusions

We examined a method that uses the growth direction of grains in copper foil to measure cyclic biaxial stress. The number of grains necessary to measure the biaxial stress was also estimated statistically.

The results obtained are summarized as follows.
  1. (1)

    When the biaxial stress ratio is negative, peaks of the relative frequency distribution of the grain growth direction corresponded well with the direction of maximum shearing stress, and the interval from one peak to another peak was almost 9 .


  2. (2)

    The above-mentioned features are not recognized when the biaxial stress ratio is positive. Therefore, the sign of biaxial stress ratio is determined by using these features.


  3. (3)

    The principal stress was obtained with Mohr's stress circle and the peak of the sin curve obtained by approximating the relative frequency distribution when the biaxial stress ratio is negative.


  4. (4)

    The grain growth direction within the range of 4 from one peak of the distribution followed the normal distribution. Therefore, the number of grains necessary for the principal stress measurement could be estimated to the demanded accuracy.


  5. (5)

    The first principal stress obtained by this new method agreed well with the result obtained by a strain gauge rosette. The area necessary for the principal stress measurement was only 5 mm2.


  6. (6)

    Since this method can measure the principal stress with only one piece of foil, it is more efficient than conventional methods.
