Harmonic Enhancement in Low Bitrate Audio Coding Using an Efficient Long-Term Predictor

EURASIP Journal on Advances in Signal Processing20102010:939542

https://doi.org/10.1155/2010/939542

  • Received: 8 February 2010
  • Accepted: 29 July 2010
  • Published:

Abstract

This paper proposes audio coding using an efficient long-term prediction method to enhance the perceptual quality of audio codecs to speech input signals at low bit-rates. The MPEG-4 AAC-LTP exploited a similar concept, but its improvement was not significant because of small prediction gain due to long prediction lags and aliased components caused by the transformation with a time-domain aliasing cancelation (TDAC) technique. The proposed algorithm increases the prediction gain by employing a deharmonizing predictor and a long-term compensation filter. The look-back memory elements are first constructed by applying the de-harmonizing predictor to the input signal, then the prediction residual is encoded and decoded by transform audio coding. Finally, the long-term compensation filter is applied to the updated look-back memory of the decoded prediction residual to obtain synthesized signals. Experimental results show that the proposed algorithm has much lower spectral distortion and higher perceptual quality than conventional approaches especially for harmonic signals, such as voiced speech.

Keywords

  • Residual Signal
  • Speech Sample
  • Spectral Distance
  • Prediction Coefficient
  • Modify Discrete Cosine Transform

1. Introduction

The main objective of speech and audio coding algorithms is to represent an input signal with as few bits as possible while maintaining high perceptual quality; however their fundamental design concepts are somewhat different. The reason can be found in the unique characteristics of input signal to be encoded, and the application areas of each codec. For example, speech coding that employs the voice production mechanism is used for bidirectional communications, while audio coding that utilizes the hearing mechanism is used for one-way broadcasting services in general. Due to the different design concept one method does not work well for other type of input signals [1].

As the communication and broadcasting networks are merging together, demands for developing a unified speech/audio codec are rapidly increasing [2]. As a first step toward this unification, MPEG standardized the MPEG-4 audio which combines a large set of codecs covering different signal characteristics and operating bit rates [3]. The 3GPP also standardized the adaptive multirate wideband plus (AMR-WB+) codec that has the combined structure with an ACELP technology and a transform-based coding (TCX) scheme [4]. Recently, MPEG has initiated a new standard to provide a unified coding tool for speech and audio signals. In response to the Call for Proposal (CfP) on the unified speech and audio coding (USAC), 8 candidate systems have been submitted, and a reference model was selected through a competitive evaluation process [5, 6]. The reference model has a combined architecture containing two separate coding branches: one comes from a modification of advanced audio coding (AAC), and the other comes from a traditional linear prediction-based coding especially the AMR-WB+ [6, 7].

To design a unified speech and audio codec, it is important to fully understand the signal characteristics of input signal as well as the type of distortions related to the codec used, that is, the effect caused by encoding speech signals with audio codec and vice versa. It is well known that transform-based codecs are inadequate to efficiently express the speech input signals, especially at low bitrates [8, 9]. Among several interpretations to explain the distortion of coded speech in transform based codecs, the smearing effect coming from a loose tracking of pitch variation is said to be one of the most significant reasons [10, 11]. In other words, relatively long transform analysis leads to roughness, because the pitch is rather frequently varied in the transform duration, and thus the harmonic components in the frequency domain are not ensured to be preserved by perceptual bit allocation. As an another aspect, it should be also noted that each peak and valley coming from the pitch harmonics might be independently coded in the transform domain, thus it is less efficient to code them as much as to be done by namely long-term prediction in many speech coders [12].

The AAC-LTP introduced a concept to the transform coder as an intention to remove the harmonic redundancy where the prediction was designed to reduce the interframe redundancy [13]. However, the quality improvement was marginal because of its inherent structural limitation in the encoding step, that is, a modified discrete cosine transform (MDCT) with a time-domain aliasing cancelation (TDAC) [14, 15]. Since the MDCT in AAC has a long frame size and needs additional one-frame delay to reconstruct the aliasing-free time domain signal, the lag of the predictor should be very long. Therefore, the prediction gain becomes low because it applies to less correlated signal. Obviously, the method could not be applicable to speech input signals having pitch harmonics, and rather it may be appropriate to code very tone-like stationary musical solo signals such as pitch-pipe and violin.

This paper proposes a new long-term prediction structure that can be integrated into transform-based audio coding algorithms. The harmonic components of input signal are first reduced by a deharmonizing long-term predictor, and then the predicted signal is encoded and decoded by a transform coder. Finally the effect of the deharmonization predictor is compensated by a long-term synthesis filter that minimizes the overall quantization error between the input and the synthesized signal. Since the look-back memory of the compensation filter has been updated by the decoded signal of the previous frame, it provides higher prediction gain, which results in much lower perceptual distortion. The performance of the proposed algorithm is verified by implementing it with the Enhanced aacPlus (EAAC) codec released by 3GPP [16]. Simulation results obtained from objective and subjective tests confirm the superiority of the proposed algorithm especially for speech and concatenated signals.

2. Limitation oF AAC-LTP

The AAC-LTP has been designed to enhance harmonic components of the input signal using a long-term predictor [13].

Figure 1 shows the encoding blocks of AAC-LTP. In addition to the typical T/F (time to frequency) transform module with the psychoacoustic model, it includes a long-term prediction (LTP) module. The residual signal remaining after the LTP process is adaptively quantized in the "Quantizer and Coding" block using the psychoacoustic model, and the encoded bitstream is packetized depending on "Bitstream Encoder/Multiplexer" block. "Long-term synthesis" and "F/T" blocks in the LTP module generate the synthesized signal that is also used for updating the loop-back memory of long-term prediction. The output of the long-term prediction, , is represented by a lag to the previously synthesized signal, and a first-order prediction coefficient, such as
(1)
where is the length of frame, is a prediction coefficient, is a prediction lag, is the previously synthesized signal, and is the aliased signal between and as shown in Figure 2. Please note that the predicted samples should be always taken from a delay of at least samples, and this filter has to employ the aliased part. Since the audio codec uses the MDCT, it is not possible to obtain a perfectly reconstructed signal without introducing one frame delay to keep the time domain aliasing cancelation (TDAC) characteristic [17]. The one frame delay has to be included because it needs one frame data of a synthesized signal when it is compared with original signal in the "Frequency Selective Control" routines, which requires to compare the encoding performance of the predicted signal to that of the original signal in the transform domain. For example, in case a current frame is predicted from the previous samples starting at , we are not able to get the samples between and since they have not been reconstructed yet.

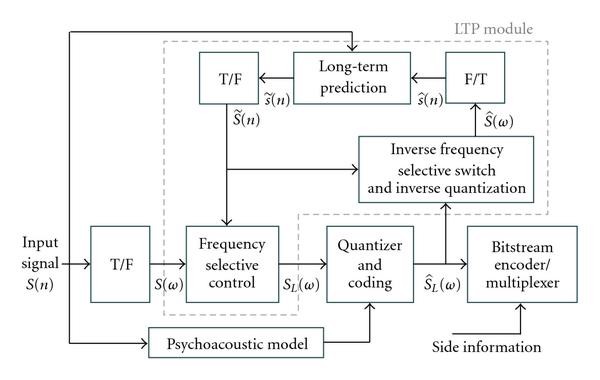

Figure 1
Figure 1

Block diagram of the encoding process of AAC-LTP [ 13 ].

Figure 2
Figure 2

Pitch searching range of AAC-LTP.

Consequently, the pitch searching range of AAC-LTP should be set between and as depicted in Figure 2. Table 1 depicts examples of LTP performance to speech input samples, which shows percentages of operated frame rates and prediction gains. This simple experiment was executed in original signal domain without quantization in order to fairly examine the effect of prediction delay to the prediction gain. The gains of the prediction, which works on previous frame signals, are compared to those with no delay. The operated frame rates show the ratio of frames that LTP processing is applied. Though the speech samples Speech 1 Speech 4 include large portion of voiced regions, the operated frame rate of selecting the AAC-LTP module is under 10%. Please also note that the gains of the prediction, obtained by the previous frame signals, are much lower than those with no delay. In other words, the AAC-LTP does not work properly for speech samples in general. Subjective listening tests also showed that the AAC-LTP did not have a good performance for speech samples [13].
Table 1

The prediction gain of AAC-LTP.



Speech 1

Speech 2

Speech 3

Speech 4

Speech 5

Speech 6

Operated frame rate (%)

4.0

8.2

1.9

2.9

22.1

28.9

prediction gain (dB)

no delay

16.78

14.94

15.00

10.27

12.48

14.12



1 frame delay

3.23

4.16

3.62

2.60

2.46

5.97

3. Proposed Algorithm

3.1. Deharmonization Predictor and Harmonic Compensation Filter

Figure 3 shows the encoder block diagram of the proposed algorithm consisting of the T/F encoder and a new long-term prediction method. The key idea of the proposed algorithm is to use a deharmonization predictor and a compensation filter simultaneously to solve the delay problem in the AAC-LTP. Figure 4 describes encoding buffers in each processing stage. At first, a residual , where indicates a frame index, is obtained through the deharmonization predictor. We have
(2)
where is prediction coefficients, is a pitch lag, and depends on the filter order. By passing the input signal, , through this transfer function, the residual component, is obtained. To improve the efficiency of the prediction, the analysis frame is divided into 4 subframes. By setting the search range of pitch delay to cover the full range of human being's fundamental frequencies, that is, 93.75 960 Hz [18, 19], the optimal pitch lag that maximizes autocorrelation is determined. After applying transformation to the residual signal, the transformed coefficients are further encoded by T/F encoder, and the quantized residual in the previous frame, is obtained as shown in Figure 4(b). To make the decoder suitable for performing an analysis-by-synthesis structure, it essentially needs an inverse transform module that converts the transformed coefficients back into time domain. Since one frame delay exists due to "T/F" and "F/T" processing [17], the next process depicted in Figure 4(c) uses the delayed residuals, . The final step of the proposed algorithm is reminimizing the quantized error of T/F encoder using the closed-loop-based long-term synthesis, which generates the most similar output among the decoded candidates. The synthesized candidate is obtained as follows:
(3)
where denotes candidates for optimal prediction coefficients, denotes a candidate for an optimal pitch lag, and determines the filter order. The closed-loop predictor does not invoke any additional delay for inner calculation. To obtain an optimal pitch value, a criterion of mean square error between the synthesized signal and the input signal is defined as follows:
(4)
where denotes optimal prediction coefficients, and denotes an optimal pitch lag. The variables and are given in (3). The optimal pitch related parameters computed in the closed-loop synthesis process should be transmitted to the decoding stage. The buffer of compensation filter is filled with the final output, for the next frame:
(5)

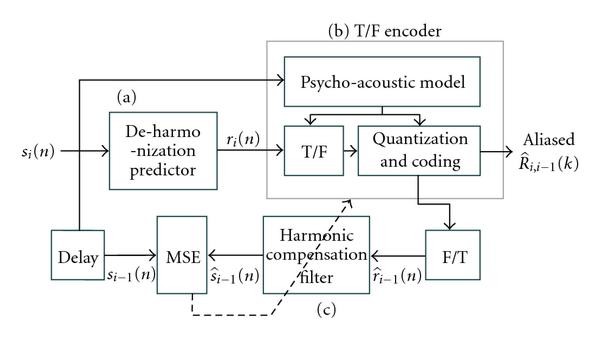

Figure 3
Figure 3

Encoder block diagram of the proposed algorithm.

Figure 4
Figure 4

Encoder buffer of the proposed algorithm in each stage. Deharmonization predictorT/F EncoderHarmonic compensation filter

3.2. The Decoder of the Proposed Algorithm

The structure of decoder consists of the T/F decoder and the long-term synthesis block as shown in Figure 5. Figure 6 describes the two blocks of memory buffer of the proposed algorithm in each decoding stage. The T/F decoder works for the quantized residual, , with previous and current aliased signals as shown in Figure 6(a). Then the synthesized signal, , is obtained through the long-term synthesis process given in (5), that is, by utilizing optimal prediction coefficients and optimal pitch lag.

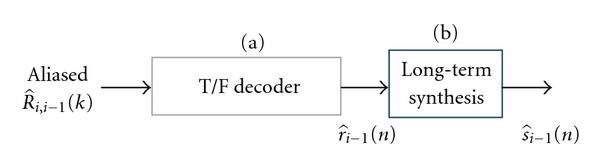

Figure 5
Figure 5

Decoder block diagram of the proposed algorithm.

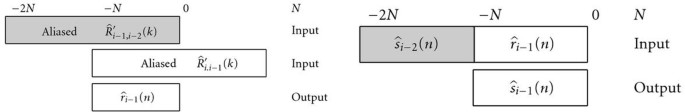

Figure 6
Figure 6

Decoder buffer of the proposed algorithm in each stage. T/F decoderlong-term synthesis

3.3. Flexible Frame Length Algorithm

With further dividing the analysis frame into subblocks, the performance of long-term prediction can be improved. The length of T/F coder is set to samples in the long window case. If the frame is divided into four subblocks with fixed length, an interval of each subblock becomes samples, which is helpful for increasing prediction gains. In this blockwise prediction method, however, it is inevitable to see artifacts at the block boundary if the prediction gain rapidly varies in consecutive blocks. Let the residual and original signal in the previous and current subframe be , , , , respectively. The transform domain signals in the overlap region are expressed as follows,
(6)
where is an overlap frame length, is a frame index, is an original signal of transform domain, and is a residual signal of transform domain. If the prediction lags between previous and current subframe are same, and the filter order is one, previous residual and current residual are expressed as
(7)
From (6) and (7), we get the residual signal represented by
(8)

The last term in (8), , causes the artifacts over all frequencies. If the original signal is band-limited, the residual signal is also band-limited. However, as the difference of the prediction gain between consecutive frames becomes larger, artifacts become more severe.

Figure 7 depicts an example of artifacts obtained by second-order differentiation. The thin solid line is the original signal, the dashed line is a residual signal with long-term prediction, and the thick solid line denotes the absolute value of the second-order difference obtained by the residual signal as follows:
(9)
where is the residual signal. The discontinuity is very large at the block boundary, which is not desirable for coding purpose. Though the overlap-and-add (OLA) method is a simple approach to minimize the distortion, it is impossible to use the technique in our case because another type of distortion such as time delay and windowing effect could occur. In this paper, a novel flexible frame length algorithm is proposed to solve the problem. The proposed algorithm is composed of two processing steps. In the first step, the boundary position of subframe is determined to minimize the net signal power at the boundary. The position of the net signal power, , is obtained by following:
(10)
where is a subframe index, is a subframe length, and is the number of adjacent samples. When the constant, , is too large, net signal power does not provide the optimal position claimed by the lowest power due to the summation of lower region and larger region. Consequently, less adjacent samples could be determined as the subboundary set in the transition period.

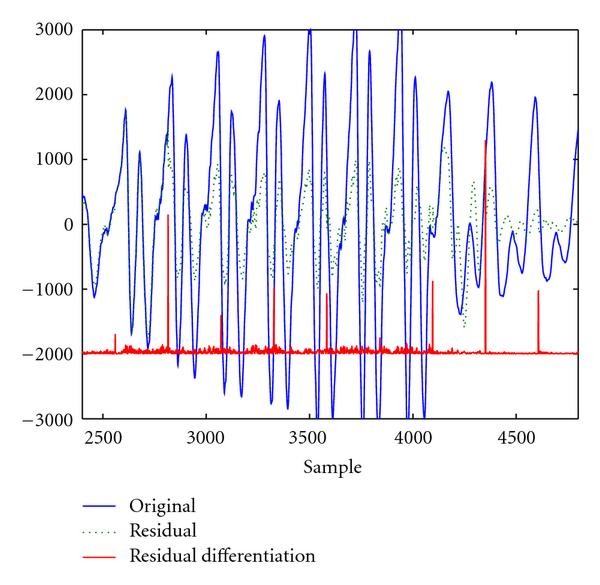

Figure 7
Figure 7

The result of long-term prediction with fixed subframe length.

The value, is adapted for changing the boundary position between subframes. Through this calibration, the discontinuity can be removed perfectly as given in Figure 8.

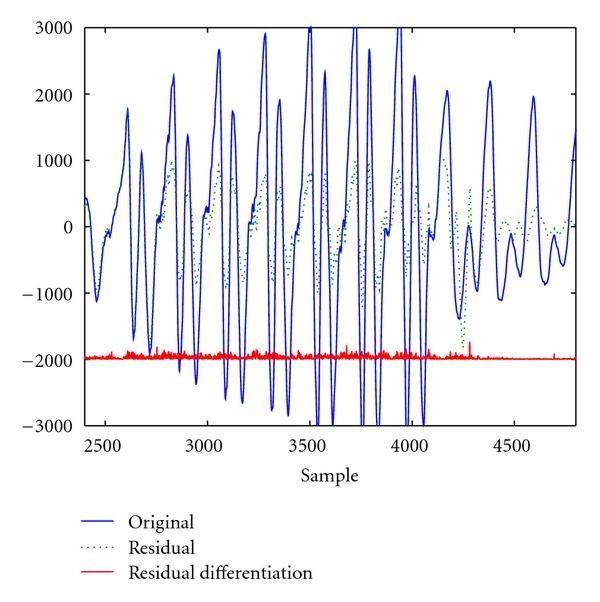

Figure 8
Figure 8

The result of long-term prediction with flexible subframe length.

4. Implementation

The proposed algorithm is integrated into the EAAC released by 3GPP because of its high encoding efficiency and good sound quality compared to the other AAC versions, but it does not have a long-term prediction module. The deharmonization predictor and the compensation filter consist of the first-order filter, which is more stable and requires small amount of additional bits.

4.1. Additional Bit Allocation

Table 2 shows the additional bit allocation required for encoding the new long-term prediction module. At first, it requires a mode bit that defines whether the LTP routine is performed or not. Please note that the prediction coefficients of the deharmonization filter and the compensation filter might not be the same if the small number of bits are allocated for the core coding step. Our simulation results show that as the difference becomes higher we may easily notice artifacts. To overcome the problem, we fixed the prediction coefficients for the deharmonization step. Although the method could not enjoy the full advantages of using LTP, it does not have the artifact problem and has reasonably good performance. Besides, It does not need to allocate additional bits for the coefficient of the deharmonization filter. If the prediction gain of the encoded frame is not high, only the mode bit is transmitted. Pitch interval is encoded by a differential quantization scheme, but the first subframe uses full pitch range to improve perceptual quality and to be robust to channel errors. To reduce discontinuous artifacts at frame boundaries, the boundary of each subframe is adaptively controlled depending on signal characteristics. For the input signal of 48 kHz sampling frequency, the proposed algorithm only requires the side information of 1kbps, and it might be further reduced when some entropy coding schemes are introduced.
Table 2

Additional bit allocation.

Parameter

sub-frame

sub-frame

sub-frame

sub-frame

Total per frame

LTP-filtering

1

1

1

1

4

Pitch info.

9

6

6

6

27

Calibration

2

6

6

6

20

Total



51

4.2. Perceptual Entropy in T/F Encoder

The T/F encoder needs to compute perceptual entropy (PE) that is defined as the number of bits required for encoding the short term spectrum of the signal [20, 21]. The perceptual entropy of residual signal is adopted as follows:
(11)

where is a power spectral density of residual signals and denotes the masking threshold density of original signals which is computed in each scale factor band. The modified PE and the masking threshold are utilized for the quantization and encoding process [16].

5. Performance Evaluation

5.1. Experimental Setup

The performance of the proposed algorithm is compared with EAAC codec. Simulation environments are summarized in Table 3. To make a fair comparison, additional side information needed for the proposed harmonic compensation method is taken into account in the bit allocation of the T/F encoder.
Table 3

Simulation environment.



Specification

Test Database

materials from MPEG USAC

Sampling frequency

48 kHz

Bitrates

12, 16, 20 kbps

Cut-off frequency

3.328 kHz

Window shape

only long window

In the encoding block diagram of the proposed algorithm depicted in Figure 3, the T/F encoder covers the frequency bandwidth of up to 3.328 kHz. To remove quality variation caused by the block-switching effect, it is processed with the long window mode only. It is true in practice because the short-window processing is hardly used in low bitrate codecs due to its bit limitation. Test signals were selected from the database used for testing the quality of reference speech and audio codecs during the initial stage of MPEG USAC standard activity [22]. To separately analyze the quality impact of the proposed algorithm, the input data set was partitioned into four clusters such as speech, music, mixed, and concatenated.

5.2. Objective Quality Analysis

Figure 9 depicts the spectrograms of original and synthesized speech in a vowel region. The output of proposed algorithm depicted in Figure 9(b) is clearly better than that of the EAAC reference (Figure 9(c)). The harmonics of the proposed algorithm are more clearly seen.
Figure 9
Figure 9

An example of speech spectrogram: (a) original signal, (b) synthesized signal using proposed algorithm, and (c) synthesized signal using EAAC without long-term prediction.

To measure similarity, the logarithmic spectral distance between original and synthesized spectrum is measured as follows:
(12)

where is the original spectrum and is the synthesized spectrum.

Figure 10 shows the spectral distance of speech in each subframe. The spectral distances of the proposed algorithm (solid line) are smaller than EAAC without using long-term prediction (dot line) especially in vowel regions (Figure 10(b)).

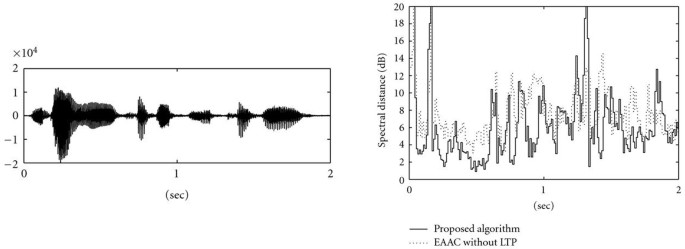

Figure 10
Figure 10

Spectral distance of speech signal. original signalspectral distance

Table 4 depicts the average spectral distance of several speech samples. It confirms that the proposed algorithm also shows the minimum distance in all the test samples.
Table 4

Average spectral distance of speech signal.

Average spectral distance (dB)

Speech 1

Speech 2

Speech 3

Speech 4

Speech 5

Speech 6

Proposed algorithm

6.13

6.45

6.77

6.17

5.81

5.27

EAAC without LTP

6.57

8.04

7.40

7.25

7.27

5.79

5.3. Subjective Quality Analysis

We performed the MUSHRA (MUltiple Stimuli with Hidden Reference and Anchor) test [23] for evaluating subjective quality at 12, 16, and 20 kbps. Eleven trained listeners were participating, and they used headphones (Sennheiser HD600). Results denote mean values and 95% confidence levels of test scores.

Figure 11 depicts MUSHRA test results for each cluster. The proposed algorithm at 12, 16, and 20 kbps shows the best quality in speech and concatenated signals. Since it is designed for improving the signal with the relative frequency of pitch variation, that is, voiced speech, it works better for speech-like signals than for other signals. The statistical t-tests with a confidence interval of 95% also prove that the proposed algorithm is significantly better than the other. Test results with music and mixed signals also show that the proposed algorithm has comparable performance to conventional audio codecs. From the results, we verify that the proposed algorithm is very efficient for speech input signal and has consistent performance to various types of input signals.
Figure 11
Figure 11

Results of MUSHRA test at (a) 12, (b) 16, and (c) 20 kbps.

6. Conclusion

Since audio codecs were designed to allocate their bits based on the psychoacoustic model in the transform domain, they did not efficiently compress speech-like components. New long-term prediction module by combining the deharmonization predictor and the harmonic compensation filter has been proposed. Similar to state-of-the-art speech codecs, the analysis frame is divided by subframes to obtain pitch information. Both subjective listening tests and objective tests confirmed the superiority of the proposed algorithm to the conventional audio codec, EAAC.
