A shrinkage probability hypothesis density filter for multitarget tracking

EURASIP Journal on Advances in Signal Processing20112011:116

https://doi.org/10.1186/1687-6180-2011-116

Received: 15 May 2011

Accepted: 24 November 2011

Published: 24 November 2011

Abstract

In radar systems, tracking targets in low signal-to-noise ratio (SNR) environments is a very important task. There are some algorithms designed for multitarget tracking. Their performances, however, are not satisfactory in low SNR environments. Track-before-detect (TBD) algorithms have been developed as a class of improved methods for tracking in low SNR environments. However, multitarget TBD is still an open issue. In this article, multitarget TBD measurements are modeled, and a highly efficient filter in the framework of finite set statistics (FISST) is designed. Then, the probability hypothesis density (PHD) filter is applied to multitarget TBD. Indeed, to solve the problem of the target and noise not being separated correctly when the SNR is low, a shrinkage-PHD filter is derived, and the optimal parameter for shrinkage operation is obtained by certain optimization procedures. Through simulation results, it is shown that our method can track targets with high accuracy by taking advantage of shrinkage operations.

Keywords

multi-target trackingtrack-before-detectPHD filter

1 Introduction

In order to extract target measurements, traditional tracking methods apply a detection threshold at every scan. The undesirable effect of detecting is that useful information is thrown away potentially in restricting the data flow. For high signal-to-noise ratio (SNR) targets, this loss of information is of little concern [1]. For low SNR targets, this loss of information could be critical for a radar tracking system. Therefore, some new algorithms using unthresholded data are more advantageous than the traditional methods in tracking low SNR targets.

The concept of simultaneous detection and tracking using unthresholded data is known in the literature as track-before-detect (TBD) approach [1]. TBD algorithms could improve the performance of a tracking system, which has been investigated for surveillance radar [2]. In [3, 4], the advantage of TBD methods is discussed and many TBD methods are reviewed and compared. As a batch algorithm using the Hough transform [5], dynamic programming [6] or maximum likelihood estimation [7], TBD could be implemented. These techniques operate on several data scans and, in general, require large computational resources [1].

As an alternative, recursive TBD method is based on a recursive single-target Bayes filter [1]. An extension of the particle filter to multitarget TBD is given in [8], and an improved approach is given in [9]. In this algorithm, a modeling setup is applied to accommodate the varying number of targets. Then, a multiple model Sequential Monte Carlo-based TBD approach is used to solve the problem conditioned on the model, i.e., the number of targets [10]. This approach has proven to be very efficient in both single and multitarget cases [3], though it restricts itself to the case in which the maximum possible number of targets is limited and known.

Another extension of the single-target Bayes filter to multitarget TBD is based on a multitarget Bayes filter. Because a single-target Bayes filter is optimal for a single target, to solve the problems introduced by multiple targets, the multitarget Bayes filter is proposed in [11]. In a multitarget Bayes filter, multitarget states and observations are modeled as random finite sets (RFS). This approach is a theoretically optimal approach to multitarget tracking in the framework of finite set statistics (FISST) [12]. However, the multitarget Bayes filter has no practical utility without an approximation strategy. To solve this problem, the probability hypothesis density (PHD) filter [13] is proposed as a tractable and calculation-simple alternative to the multitarget Bayes filter [14].

The PHD is the first moment of the multitarget posterior probability. Under some assumptions (e.g., Poisson Assumption), the PHD is an approximation of the multitarget posterior probability. Therefore, the PHD filter can be an approximation of the multitarget Bayes filter. Although a PHD algorithm for TBD is proposed in [10], this approach ignores TBD measurements should be modeled by RFSs. In [15], multitarget TBD from image observations is formulated in a Bayesian framework by modeling the collection of states as a multi-Bernoulli RFS. This work use the multi-Bernoulli update to develop a high precision multi-object filtering algorithm for image observations, although its adaptability of low SNR environment is needed to discussed in more detail.

In our previous work [16], we use the RFSs to model multitarget TBD measurements and the collection of states. In this way, a traditional PHD filter [12, 13] could be applied to multitarget TBD. Even though PHD could be an approximation of the multitarget posterior probability, the accuracy of the algorithm is limited by some reasons, which are indicated in this article. First, when the SNR is too low, the PHD cannot be a sufficient approximation of the multitarget posterior probability because the fundamental assumptions are challenged. Furthermore, for multitarget TBD, the measurements of target and noise can hardly be separated, while the PHD filter is heavily dependent on the measurements of targets [17]. In traditional tracking systems, to solve these problems, cardinalized PHD filter (CPHDF) is proposed in [18]. However, CPHDF is inefficient in multitarget TBD, because the computational complexity of CPHDF is O(m3), where m is the number of elements of the measurement set and is quite large for the TBD problem.

In this article, for extending a traditional PHD filter to be suitable for multitarget TBD, viewed from a different perspective, TBD can be regarded as a kind of classification problem of target and noise measurements. To enhance the difference between the target and noise measurements and to pursue better classification performance, the measurements need to be denoised. The threshold shrinkage algorithm [19] is an important method for image denois-ing. In general, the key points of threshold shrinkage are the following: the method of shrinkage (e.g., soft-threshold method) and the selection criterion of the threshold. In this article, a shrinkage operation is adopted that is similar to the threshold shrinkage algorithm. The optimal parameter for the shrinkage operation can be obtained via certain optimization procedures.

Furthermore, in this article, some problems of multitarget TBD in particle use are also discussed. The assumption of known SNRs is used frequently in traditional TBD algorithms [6, 8, 9]. Multiple targets with similar SNRs are common assumption in the simulations of PHD algorithms using the amplitude feature, as in [15, 20]. However, in practical use, multiple targets with different or unknown SNRs are common. In this article, for the sequential Monte Carlo (SMC) implement of the PHD filter adopted, this problem could be solved by augmenting the SNR into target state, varying the method of generating predicted particles and adjusting the update operator.

In this article, the measurement of targets is modeled by a 'nail-like' model on range-Doppler maps because of the assumptions of the classical PHD filter in the framework of FISST. Recently, a classical PHD filter has been modified to solve the problems of extended and group targets in [21, 22], respectively. Therefore, the TBD measurement model of extended targets in the framework of FISST will be discussed in future work.

The rest of this article is organized as follows: in Section 2, the multitarget TBD problem is modeled by RFSs. In Section3, the limitation of traditional PHD filter extension to TBD is investigated. In Section 4, a shrinkage option for the PHD filter is proposed with an optimal parameter. Tracking multiple targets with different or unknown SNRs is discussed in Section 5. Simulation results for the tracking systems are presented in Section 6, and finally, we conclude the article in Section 7.

2 Multitarget TBD RFS model

2.1 State of the RFS model

The target state is x k = x k , k , y k , k T , where (x k , y k ) and k , k are the position and velocity. Since there is no ordering on the respective collections of all target states, they can be naturally represented as a finite set. X k is the multitarget state-set at time step k, i.e., the set of unknown target states (which are also of unknown number).

In a single-target scenario, the state x k is modeled as random vectors. Then, the multitarget state, including target motion, birth, spawning, can be described by RFS. For target motion, given multitarget state set Xk-1, each xk-1 Xk-1either survives at time step k with probability ek|k-1(xk-1), and its transition probability density from xk-1to x k is fk|k-1(x k |xk-1). Therefore, the target motion is modeled as the RFS Sk|k-1(xk-1). In the same way, when the RFS of target birth at time k is modeled by Γ k , and the RFS of targets spawning from a target with xk-1is modeled by Bk|k-1(xk-1), the multitarget stat X k is given by
X k = x k - 1 X k - 1 S k | k - 1 ( x k - 1 ) x k - 1 X k - 1 B k | k - 1 ( x k - 1 ) Γ k .
(1)

2.2 Measurement of the RFS model

The measurements are measurements of reflected power as in [8]. n k is white complex Gaussian noise with variance σ 0 2 . In this section, assume that the intensity of all targets is I k , the SNR for the targets is defined by
SNR = 10 log I k 2 2 σ 0 2 dB .
(2)

The method to deal with multiple targets with different or unknown SNRs is discussed in Section 5.

Because of the assumptions made in the modeling process and the essential difference between an RFS and a random vector, the two conditions that should be satisfied to model TBD measurements by a RFS are the following: there is no target that generates more than one measurement vector, and no measurement vector is generated by more than one target [21]. In summary, the measurement of targets should be modeled by a 'nail-like' model on the range-Doppler-Bearing maps [the ijk cell is defined by coordinate (r i ,d j ,b l )] as follow:

R, D and B are the size of a range, the Doppler and the bearing cell. r k = ( x k ) 2 + ( y k ) 2 , d k = x k k + y k k ( x k ) 2 + ( y k ) 2 and b k = arctan y k x k R k i = r i - R 2 , r i + R 2 , D k j = d j - D 2 , d j + D 2 and B k l = b l - B 2 , b l + B 2 .

Then, the measurement model is
z k i j l = h i j l ( x k ) + n k 2
(3)
h i j l = I k if  r k R k i , d k D k j  and  b k B k l 0 else
(4)

This means the measurement of a target is like a nail on the range-Doppler-bearing maps. This 'nail-like' model is similar to the point target model in [5, 6]. At step k, the measurement provided by the sensor consists of N = N r × N d × N b measurements z k i j l , where N r , N d and N b are the number of range, Doppler and bearing cells.

The number of z k i j l is a constant N. However, the number of element of an RFS should be random and Poisson distributed for a PHD filter. Because weak signal information should be preserved by TBD algorithms, we should make sure all measurements produced by targets are included in the RFS.

Therefore, a threshold could be chosen as follows:
θ k = argmin θ k θ k + g 0 ( z k i j l ) d z k i j l s .t . p D ( x k ) = P ( z k i j l θ k ) = θ k + g k ( z k i j l | x k ) d z k i j l 0 . 99
(5)
where the likelihood function for the target is
g k ( z k i j l | x k ) = 1 2 σ 0 2 exp - z k i j l + I k 2 2 σ 0 2 I 0 I k z k i j l σ 0 2
(6)
and that for noise is
p 0 ( z k i j l ) = 1 2 σ 0 2 exp - 1 2 σ 0 2 z k i j l .
(7)

where Io() is the zero order Bessel function and z k i j l is assumed positive. The p D (x k ) is the probability detection. Because this algorithm is for TBD, it should be ensured that p D (x k ) ≈ 1.

Z k is the observation-set consisting of all measurements collected by all sensors at time-step k, no matter the measurement from the targets or from the noise. If z k i j l θ k , let z k = z k i j l . Then, the measurement RFS Z k is constructed by a subset of the z k i j l using a thresholding mechanism. The threshold can insure that p D (x k ) ≈ 1 by (5). The threshold is a function of the SNR of the targets. The element in the RFS Z k is as follows:
z k * = [ r i , d j , b l , z k ] T
(8)
and the likelihood function according
g k * ( z k * | x k ) g k ( z k | x k )
(9)
p 0 * ( z k * ) = 1 2 σ 0 2 exp - z k - θ k 2 σ 0 2
(10)
At the same time, the sensor could be modeled by
Z k = K k x k X k Θ k ( x k ) , z k * Z k
(11)

where the measurements of targets are modeled by RFS Θ k (x k ) and the noise is modeled as RFS K k . The elements in Θ k (x k ) are the measurements produced by the targets. The elements in K k are the measurements which are produced by the noise and bigger than θ k as well. It is shown that when the measurements of TBD are modeled by RFSs, multitarget TBD can be regarded as a kind of classification problem of target and noise measurements for one scan. This classification problem will be further analyzed in Section 4.

3 The traditional PHD filter extension to TBD

After multitarget TBD measurements and the collection of states are modeled by RFS, a traditional PHD filter is applied to multitarget TBD. This algorithm is reviewed in Section 3.1. However, the accuracy of the algorithm is limited by some reasons when the SNR is low, which is discussed in Section 3.2.

3.1 The algorithm

As proposed in [13], the PHD prediction and update equations are presented as follows:
D k | k - 1 ( x | Z 1 : k - 1 ) = e k | k - 1 ( ζ ) f k ( x | ζ ) D k - 1 | k - 1 ( ζ | Z 1 : k - 1 ) d ζ + b k | k - 1 ( x | ζ ) D k - 1 | k - 1 ( ζ | Z 1 : k - 1 ) d ζ + γ k ( x )
(12)
D k | k ( x | Z 1 : k ) = [ 1 - p D ( x ) ] D k | k - 1 ( x ) + z k Z k p D ( x ) g k ( z k | x ) D k | k - 1 ( x ) k k ( z k ) + p D ( ζ ) g k ( z k | ζ ) D k | k - 1 ( ζ ) d ζ
(13)

where Dk|k(x|Z1:k) the PHD is the density whose integral ∫ S Dk|k(x|Z1:k)d x on any region S of state space is n ^ k ( S ) = | X S | p k ( X k | Z 1 : k ) δ X . b k | k - 1 ( x k | x k - 1 ) and γ k (x k ) denote the intensity of Bk|k-1(xk-1) and Γ k at time k, and κ k (z k ) is the intensity of K k . Z1:kis the time-sequence of observation-sets.

Because the PHD propagation equations involve multiple integrals that have no computationally tractable closed-form expression, sequential Monte Carlo (SMC) methods are used to approximate the PHD in [12]. Let the update PHD at k - 1 step Dk-1|k-1(x|Z1:k-1) be represented by a set of particles { w k - 1 ( p ) , x k - 1 ( p ) } p = 1 L k - 1 , as
D k - 1 | k - 1 ( x | Z 1 : k ) = p = 1 L k - 1 w k - 1 * ( p ) δ ( x - x k - 1 ( p ) )
(14)
The predicted particles are generated by
x k k - 1 ( p ) ~ q k x k - 1 ( p ) p = 1 , , L k - 1 v k ( ) p = L k - 1 + 1 , , L k - 1 + J k
(15)
where q k ( | x k - 1 ( p ) ) and v k (•) are proposal density. The predicted density is
D k | k - 1 ( x | Z 1 : k - 1 ) = p = 1 L k - 1 + J k w k | k - 1 ( p ) δ ( x - x k | k - 1 ( p ) )
(16)
where
w k | k - 1 ( p ) = e k | k - 1 ( x k - 1 ( p ) ) f k ( x k | k - 1 ( p ) x k - 1 ( p ) ) + b k | k - 1 ( x k | k - 1 ( p ) x k - 1 ( p ) ) q k ( x k | k - 1 ( p ) x k - 1 ( p ) ) p = 1 , , L k - 1 γ k ( x k | k - 1 ( p ) ) v k ( x k | k - 1 ( p ) ) p = L k - 1 + 1 , , L k - 1 + J k
(17)
Set p D (x) ≡ 1, the update density will be
D k | k ( x | Z 1 : k ) = p = 1 L k - 1 + J k ω k * ( p ) δ ( x - x k | k - 1 ( p ) )
(18)
where
ω k * ( p ) = z k Z k g k * ( z k * x k | k - 1 ( p ) ) ω k | k - 1 ( p ) k k ( z k ) + p = 1 L k - 1 + J k g k * ( z k * x k | k - 1 ( p ) ) ω k | k - 1 ( p )
(19)

According to the standard treatment of particle filter, resample { ω k * ( p ) n ^ k , x k | k - 1 ( p ) } p = 1 L k - 1 + J k to get { ω k ( p ) n ^ k , x k ( p ) } p = 1 L k .

3.2 The limitation

Because k k (z k ) can be presented by the number of noise samples λ k multiplying the clutter probability density, the update operator (19) turns into
ω k * ( p ) = z k * Z k g k * z k * x k | k - 1 ( p ) λ k p 0 * ( z k : σ 0 ) + p = 1 L k - 1 + J k g k * z k * x k | k - 1 ( p ) ω k | k - 1 ( p ) ω k | k - 1 ( p )
(20)
p 0 * ( z k : σ ) = 1 2 σ 2 exp - z k - θ k 2 σ 2
(21)
Equation 21 is the likelihood function for the measurement of noise in the measurements set, which denotes the clutter probability density in theoretical filtering [12, 13], and the optimal choice of σ should be the variance of noise, as shown in (20). However, for TBD applications, the SNR is extremely low. Hence, this setting of σ = σ0 leads to the situation in which measurements generated by the target and noise are not separated correctly and heavy degradation of tracking performance is seen. In fact, the derivation of (20) depends on the hypothesis that the number of noise sample is Poisson distributed. This means the clutter follows a Poisson distribution and is independent of target-originated measurements. In this way, the PHD can be the "best fit" approximations of the multitarget posterior probability [13]. The average number of noise samples included in RFS is
λ k = N exp - θ k 2 σ 0 2 .
(22)
When N is large and λ k is relatively small, the Poisson distribution could be approximated by the distribution of a number of noise samples. However, this approximation will be destroyed when λ k become sufficiently large, which is the case in low SNR scenarios, as in Table 1.
Table 1

λ versus SNR (N = 2000)

SNR (dB)

6

7

8

9

10

λ k

1340

1098

707

344

143

When σ0 in (20) cannot make PHD a sufficient approximation of the multi-target posterior probability, choosing the "optimal" σ becomes the key problem for extending the PHD filter to be applied in TBD. As discussed in the following section, this selection can be considered as a shrinkage operation, and the optimal parameter for the shrinkage operation can be obtained via certain optimization procedures.

4 Shrinkage operation for TBD

To determine the "optimal" σ and make the noise and targets distinguishable, a different perspective should be taken. As referred to in Section 2.2, TBD can be regarded as a kind of classification problem for target and noise measurements. In other words, when a measurement is obtained, should it be classified into a target class or a noise class? To solve this problem, the Fisher class separability criterion, as a supplement of to the traditional Bayesian framework, was adopted in our design for the extension of the PHD filter. Furthermore, to enhance the difference between the target and noise measurements and pursue the better performance of classification, some attempts to reduce the noise are needed. The threshold shrinkage algorithm [19] is an important method for the image denoising. In general, the cores of threshold shrinkage are as follows: the method of shrinkage and the selection criterion of the threshold. A shrinkage operation is adopted in this section that is similar to the threshold shrinkage algorithm to some extent. The optimal parameter for the shrinkage operation, which acts as the threshold, can be obtained via certain optimization procedures. The PHD filter with the shrinkage operation is called the Shrinkage-PHD filter.

4.1 Fisher class separability criterion

It is known that the Bayesian classifier is the optimal classifier when the posterior probability can be calculated. However, as indicated in Section 3.2, the PHD cannot be a sufficient approximation of multitarget posterior probability when the SNR of the targets is low. Therefore, another classification criterion, the Fisher class separability criterion, is introduced into our methods.

The separation between the two classes of objects defined by Fisher is the ratio of the distance between the centers of classes to the scattering of the classes [23]:
S = d between 2 d within 2 = ( μ 1 - μ 0 * ) 2 d 1 2 + d 0 * 2
(23)

where μ i represents the centers of classes and d i 2 denotes the scattering of the classes. In our analysis, they are set to the mean and variance of the likelihood functions of the target and the noise, respectively.

For targets, the mean and variance are defined as follows:
μ 1 = θ z k g k ( z k | x k ) d z k 0 z k g k ( z k | x k ) d z k = 2 σ 0 2 + I k 2
(24)
d 1 2 = θ z k 2 g k ( z k | x k ) d z k 0 z k 2 g k ( z k | x k ) d z k = 4 σ 0 2 ( σ 0 2 + I k 2 )
(25)
For the noise, the mean and variance are given by
μ 0 * = μ 0 + θ k = 2 σ 0 2 + θ k
(26)
d 0 * 2 = d 0 2 = 4 σ 0 4
(27)
Therefore, the Fisher class separability is
S = ( 2 σ 0 2 + I k 2 - θ - 2 σ 0 2 ) 2 4 σ 0 2 ( σ 0 2 + I k 2 ) + 4 σ 0 4 = I k 2 2 σ 0 2 - θ k 2 σ 0 2 2 2 1 + I k 2 2 σ 0 2 .
(28)
Simulations indicated that the correlation between S and the SNR of the targets is a positive, approximately linear relationship (as shown in Figure 1). Therefore, when the SNR is low, the Fisher class separability is so small that the targets and false alarms could not be distinguished. In other words, we should enlarge the Fisher class separability of the target class and the noise class when the SNR of the targets is low.

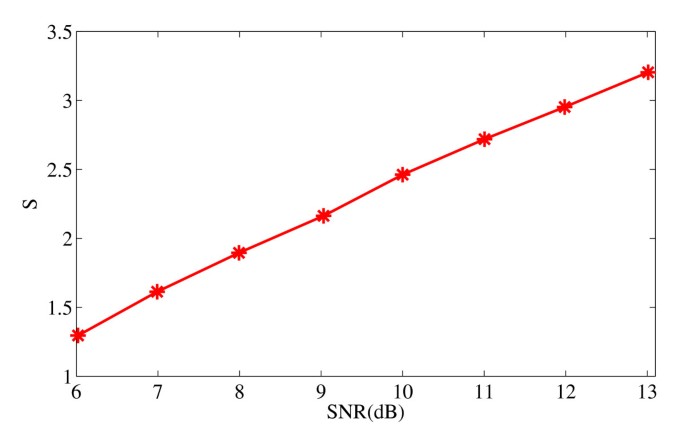

Figure 1

The Fisher class separability versus the SNR.

4.2 Shrinkage operation

To enlarge the Fisher class separability between targets and noise, some kind of "shrinkage" operation is applied to the likelihood function of the noise. That is, the parameter σ 0 2 in (26) and (27) is adjusted. If σ s ≤ σ0 is chosen instead of σ 0 2 itself, then Fisher class separability becomes
S s = ( 2 σ 0 2 + I k 2 - θ - 2 σ s 2 ) 2 4 σ 0 2 ( σ 0 2 + I k 2 ) + 4 σ s 4
(29)

Obviously, S s is larger than S whenever σ s ≤ σ0. The following question naturally arises: how does one choose the "optimal" σ s , which is the key parameter for the shrinkage process?

4.3 The optimal parameter for the shrinkage operation

To demonstrate how influences the classification problem of target and noise measurements, we can define the Mahalanobis distance [23] of measurement z k using the center of the noise class and the target class, respectively:
S s 0 ( z k , σ s ) = ( z k - θ k - 2 σ s 2 ) 2 4 σ s 4
(30)
and
S s 1 ( z k ) = ( z k - 2 σ 0 2 - I k 2 ) 2 4 σ 0 2 ( σ 0 2 + I k 2 )
(31)
Because the selection of the threshold is a difficult task for the threshold shrinkage algorithm [19] in the field of image denoising, the selection of the optimal parameter for the shrinkage-PHD filter involves similar problems. For the threshold shrinkage algorithm, an oversized threshold may result in the loss of signal. In contrast, too much noise may remain if an undersized threshold is used. In the same way, for the shrinkage-PHD filter, preserving the weak target information and reducing the noise by tracking are the major challenges to be addressed for TBD problems. Therefore, when considering the two sides, the selection criterion should be designed as follows:
σ s M = max σ s s.t. σ s σ 0 0 z s g k ( z k x k ) d z k = β S s 0 ( z s , σ s ) > S s 1 ( z s )
(32)

The first constraint represents the "shrinkage". To preserve the weak target information and classify as many low SNR targets to the target class as possible, the Mahalanobis distance of measurement with the center of noise class should be enhanced; hence, the variance of the noise class should be reduced.

The second constraint refers to the fixed probability of target loss. The reason for this term is that for TBD problems, false alarms can be reduced by integration over time. Meanwhile, if target loss occurred, the integration of the information of targets is broken off. Hence, the cost of target loss is much larger than the cost of false alarms, which is the main difference between TBD and common radar detection. Moreover, for the PHD filter, a missed detection can result in loss of the track [17]. Therefore, target loss should be fixed as β. When the β is set, a critical value z s is determined.

The third constraint means that the measurements z k determined by the second constraint should be classified as targets. When the SNR is low, Ss 0(z s , σ s ) always intersects Ss 1(z s ), so the optimal solution σ s M to (32) is deduced, as indicated in Figure 2a. With the increasing SNR, Ss 0(z s , σ s ) becomes much larger than Ss 1(z s ) and thus we choose σ s M = σ 0 , as shown in Figure 2b.
Figure 2

The Mahalanobis distance versus σ s : (a) SNR = 8dB; (b) SNR = 13dB.

Note that although the shrinkage operation could highlight the target measurement and reduce the possibility of losing the target during tracking, the noise might be incorrectly increased unavoidably. To minimize the influence of shrinkage on the classification of the noise measurement, the maximum σ s , which is consistent with the above constraints, is obtained. The optimal solutions to (32) under different SNRs are listed in Table 2.
Table 2

σ s M (β ≤ 0.05, σ0 = 0.25)

SNR (dB)

6

7

8

9

10

11

12

13

σ s M

0.48σ0

0.6σ0

0.68σ0

0.72σ0

0.76σ0

0.88σ0

0.96σ0

σ0

The update operator of the shrinkage-PHD filter can be summarized as follows:
w k , s * ( p ) = z k * Z k g k * ( z k * x k | k - 1 ( p ) ) ω k | k - 1 ( p ) λ p 0 * ( z k : σ s M ) + p = 1 L k - 1 + J k g k * ( z k * x k | k - 1 ( p ) ) ω k | k - 1 ( p )
(33)

where σ s M should be set according to Table 2.

5 Multitarget TBD in practical use

This section is to solve of the problem of tracking multiple targets with different or unknown SNRs.

As proposed in Section 4, the optimal parameter for the shrinkage operation is closely related to the SNRs of the target, and the SNRs of the target are assumed to be known and similar. However, in practical use, multiple targets with different or unknown SNRs are common. The PHD is the first moment of the multitarget posterior probability, but not the posterior probability of a certain target. Therefore, the I k in (6) and the σ s M in Table 2 are difficult to determine. Because the SMC implement of the PHD filter is adopted, this problem could be solved by adjusting the method of generating predicted particles and the update operator.

To describe how to deal with the different SNRs of multiple targets, we augment I k into x k :
x k = [ x ̃ k , I k ] T
(34)
where x ̃ k = [ x k , k , y k , k ] . The particle of the target state is x k ( p ) = [ x ̃ k ( p ) , I k ( p ) ] T . The x ̃ k | k - 1 ( p ) is generated as 15
x ̃ k | k - 1 ( p ) ~ q k ( x ̃ k - 1 ( p ) ) p = 1 , , L k - 1 v k ( ) p = L k - 1 + 1 , , L k - 1 + J k
(35)

The I k ( p ) is generated by the assumption of a uniform distribution in the range of I ̃ k , where the SNRs of all of the targets are [SNR1, SNR2, ..., SNR m ], and

corresponding to I ̃ k = [ I ( k , 1 ) , I ( k , 2 ) , , I ( k , m ) ] by
SN R m = 10 log I ( k , m ) 2 2 σ 0 2  dB
(36)

In the update operator, because σ s M is a function of the SNR, it becomes σ s M ( I k ( p ) ) in (33).

Note that the θ k in (5) should also be adjusted. Because weak signal information should be preserved by TBD algorithms, the I k in (6) is the minimum of I ̃ k .

For the targets with unknown SNRs, it is assumed that the range of the SNRs of the targets is [SNR l , SNR h ], corresponding to [I(k,l),I(k,h)]. The I k ( p ) could be normalized for the region [I(k,l), I(k,h)]. The update operator and threshold are similar to those of multiple targets with different SNRs.

6 Simulation

6.1 Multiple targets miss distance

The optimal sub-pattern assignment (OSPA) distance [15] between the estimated and true multitarget state is adopted here to estimate error.

The OSPA distance is defined as follows [15]. Let d(c)(q, y): = min(c, ||q - y||) for q , y d , and Π p denote the set of permutations on {1, 2,..., p} for any positive integer p. c is the cut-off value. Then, for Q = {q1,...,q m } and Y = {y1,..., y n },
d ̄ ( c ) ( Q , Y ) : = 1 n min π Π n i = 1 m d ( c ) ( q i , y π ( i ) ) + c * ( n - m )
(37)

if mn; and d ̄ ( c ) ( Q , Y ) : = d ̄ ( c ) ( Y , Q ) if m > n; and d ̄ ( c ) ( Q , Y ) = d ̄ ( c ) ( Y , Q ) = 0 if m = n = 0.

For example, when m = 1 and n = 2, Q1 = {q1} and Y1 = {y1,y2}, the d ̄ ( c ) ( Q 1 , Y 1 ) = 0 . 5 * ( min ( min ( | q 1 - y 1 | , c ) , min ( | q 1 - y 2 | , c ) ) + c ) .

6.2 Multiple targets with the same SNR

Consider range cells in the interval [80000, 90000] with meters as the unit and Doppler cells in the interval [-400, -150] with meters/second as the unit. N r = 200, N d = 10 and N b = 1. The size of a range and Doppler cell is as follows: R = 50 m and D = 25 m/s. L k = 2000 and J k = 800. The time interval T is equal to 1 s.

At time step 1, the first target appears with the initial target state
89000 - 200 0 0 T .
At step 10, a secondary target spawns from the first target, moving at -300 m/s in the x-direction. The standard deviation of the noise is 0.25. In the first example, the SNRs of both targets are 9 dB. The measurements are shown in Figure 3. Tracking with the shrinkage-PHD filter, we plot the PHD of the position and velocity versus time in Figures 4 and 5. It is shown that the PHD of targets can be integrated over time by simultaneous detection and tracking. Observe that both trajectories are automatically initiated and tracked. In step 3, the first target can be tracked stably. At step 11, just 1s after target spawning, the second target is already initiated and tracked.
Figure 3

Power measurements as a function of range and Doppler cells at time step 20.

Figure 4

PHD as a function of position and time step, using the shrink-PHD filter.

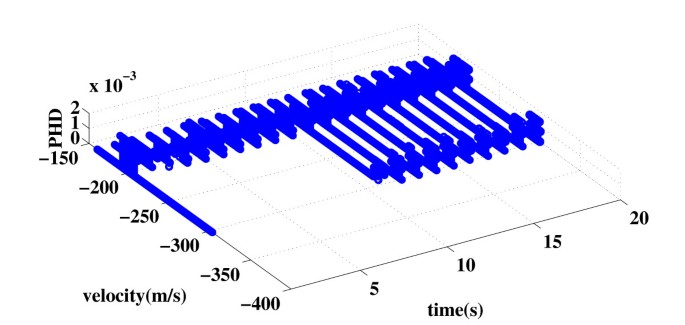

Figure 5

PHD as a function of velocity and time step, using the shrink-PHD filter.

For the second example, we conducted simulations to compare the performance of the shrinkage-PHD filter (shrinkage-PHDF), the PHD filter (PHDF) [16], and the classical multitarget particle filtering method (MPF) [8] in tracking accurately and consistently, and 50 Monte Carlo runs for the same scenario as used in the first example were performed. The states of targets are estimated by expectation-maximization (EM) algorithm. In addition, the maximum possible number of targets is limited and known for MPF, but unlimited and unknown for the PHD filter and the shrinkage-PHDF.

To measure the estimation quantitatively, the estimation errors in terms of Monte Carlo averaged OSPA distance are shown in Figures 6 and 7. For position estimation, the cut-off value c is five times the size of the range cell. For velocity estimation, the cut-off value c is two times the size of the velocity cell. It is shown that the shrinkage-PHDF estimates target position and velocity on all tracks with higher estimated precision than the MPF, because MPF requires a modeling setup to accommodate varying numbers of targets, which is very difficult to accomplish in reality. It also shows that the performance of shrinkage-PHDF is better than PHDF, which is discussed further below.
Figure 6

Comparison of the estimation errors of position given by the Monte Carlo-averaged OSPA miss distance with a measurement resolution R = 50m.

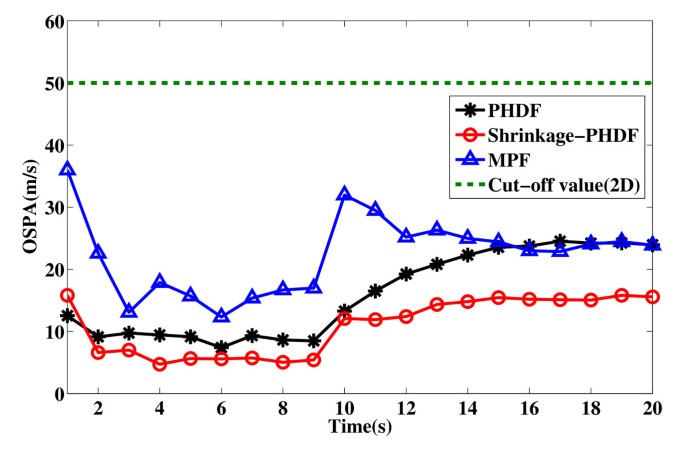

Figure 7

Comparison of the estimation errors of the velocity given by the Monte Carlo-averaged OSPA miss distance with a measurement resolution D = 25m/s.

To compare the shrinkage-PHDF and the PHDF clearly, Figures 8 and 9 show the comparison of the mean OSPA for varying SNRs. The SNR of the targets is set to known values between 6 and 13dB. When the value is between 6 and 11dB, the shrinkage-PHDF performs significantly better than the PHDF. When the value is large than 11 dB, they perform similarly. This finding illustrates the limitation of ordinary the PHDF for TBD: the PHD cannot sufficiently approximate the multitarget posterior probability when the SNR is low. The superiority of the shrinkage-PHDF takes advantage of the shrinkage operation is indicated, especially for low SNR scenarios. It is clear that for multitarget TBD, the shrinkage-PHDF performs better than the PHDF and MPF, especially when the SNR is low.
Figure 8

Comparison of the estimation errors of position given by the time-averaged OSPA miss distance with a measurement resolution R = 50m for varying SNRs.

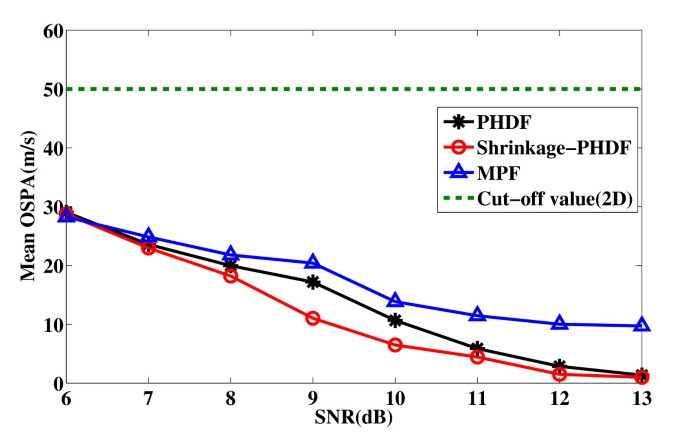

Figure 9

Comparison of the estimation errors of the velocity given by the time-averaged OSPA miss distance with a measurement resolution D = 25m/s for varying SNRs.

6.3 Multiple targets with different SNRs

In this example, the targets with different SNRs (the first target is 8 dB, the second target is 9 dB and the last one is 10 dB). At time step 1, the first target appears as in the first example. At step 7, the second target spawns form the first one, and the velocity in the x-direction is -300 m/s. The third target new-birth far from the previous two targets at the time step 13 with the initial target state [89000 -250 0 0] T . A comparison of the estimation errors of the position and the velocity of the three algorithms is shown in Figures 10 and 11. In this scene, the targets vary not only the value of SNRs but also the average number of targets. Because the SNR of the first target is lower than which in Section 6.2, the convergence velocity of the estimation first target is slower. After time step 7, comparing Figures 6 and 10, Figures 7 and 11, the varying SNRs and the number of the targets did not significantly influence the performance of the PHDF and shrinkage-PHDF. In this example, the performance of MPF is better than that in the first example. The reason is the intensity of the targets is the most important characteristic to differentiate different targets for MPF method. In this way, the SNRs of all targets should be known for MPF method.

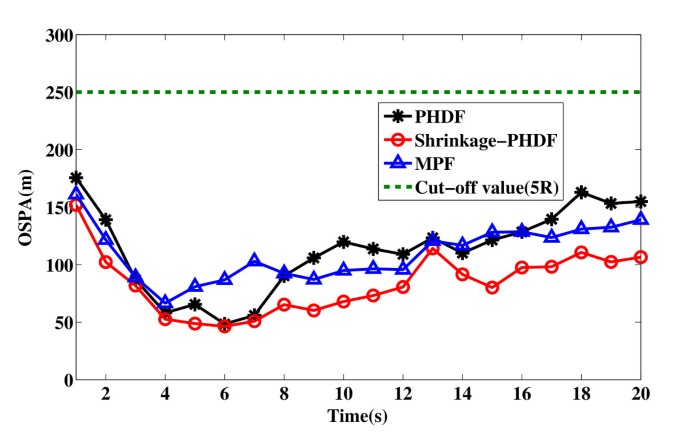

Figure 10

Comparison of the estimation errors of the position given by the Monte Carlo-averaged OSPA miss distance for multiple targets with different SNRs (8, 9 and 10dB).

Figure 11

Comparison of the estimation errors of the velocity given by the Monte Carlo-averaged OSPA miss distance for multiple targets with different SNRs (8, 9 and 10dB).

6.4 Multiple targets with unknown SNRs

The PHD filter and the shrinkage-PHD filter are compared in Figures 12 and 13. The sense is similar with that in Section 6.2, but the SNRs of the targets are unknown and the SNR of the second target changes from 9 to 10dB. It is obvious that the performance of both algorithms is similar to what was presented in Figures 6 and 7. After the 11th time step, the performance is even better than which in Section 6.2, because the value of the SNR of the second target is increased. Therefore, whether the SNRs of multiple targets are known has not significant influence on the performance of PHDF and Shrinkage-PHDF. In addition, MPF from [8] does not work when the value of the SNRs of the targets are unknown.
Figure 12

Comparison of the estimation errors of the position given by the Monte Carlo-averaged OSPA miss distance for multiple targets with unknown SNRs (9 and 10dB).

Figure 13

Comparison of the estimation errors of the velocity given by the Monte Carlo-averaged OSPA miss distance for multiple targets with unknown SNRs (9 and 10dB).

6.5 A comparison of computation resources

Table 3 shows the computation resources needed for the PHDF, the shrinkage-PHDF and MPF. All simulations were run on a PC with an Intel (R) Core TM2 Duo CPU E4500 at 2.20GHz processor. The time listed is Monte Carlo-averaged, for a run in a scenario similar to that given in Section 6.2. The amount of calculation time required for the shrinkage-PHDF and the PHDF is much less than for MPF. The calculated amount time required for the shrinkage-PHDF is slightly greater than that required for the PHD filter.
Table 3

Computation resources

Algorithm

Shrinkage-PHDF

PHDF

MPF

Computation (s)

28.66

28.12

84.20

7 Conclusion

In this article, we used the RFS to model multitarget TBD measurements and to design an efficient shrinkage-PHD filter for multitarget TBD. This filter accompanies with a shrinkage operation, and the optimal parameter for the shrinkage operation is obtained by an optimization procedure. Simulations show that the shrinkage-PHD filter takes very little time to detect new targets, and it is sensitive to the variation in the number of targets. Moreover, our algorithm can track targets with high accuracy by taking advantage of the shrinkage operation. In addition, there is no restriction on the maximum number of possible targets or known value of SNRs of targets. In a word, by the application of shrinkage-PHD filter, multiple targets could be tracked well in low SNR environments.

In the future research, a challenge to be explored for the shrinkage-PHD filter will be determining how to model the measurement of extended targets in the framework of FISST. If this issue is resolved, it is believed that our new approach will be useful in future radar systems using the TBD technique.

Declarations

Acknowledgements

This work was supported in part by the National Natural Science Foundation of China (No. 60901057).

Authors’ Affiliations

(1)
Department of Electronic Engineering, Tsinghua University Beijing, People's Republic of China

References

  1. Ristic B, Arulampalam S, Gordon N: Beyond the Kalman filter-particle filters for tracking applications. Artech House, Boston, MA; 2004:239-240.Google Scholar
  2. Zwaga JH, Driessen H, Meijer WD: Track-before-detect for surveillance radar: a recursive filter based approach. Proceedings of SPIE-International Society for Optics and Engineering 2002, 4728: 103-115.Google Scholar
  3. Hadzagic M, Michalska H, Lefebvre E: Track-before detect methods in tracking low-observable targets: a survey. Sensors Trans Mag 2005,54(1):374-380.Google Scholar
  4. Davey SJ, Rutten MG, Cheung B: A comparison of detection performance for several track-before-detect algorithms. EURASIP J Adv Signal Process 2008., (1): Article 41 2008Google Scholar
  5. Carlson BD, Evans ED, Wilson SL: Search radar detection and track with the Hough transform. I. system concept. IEEE Trans Aeros Electron Syst 1994,30(1):102-108. 10.1109/7.250410View ArticleGoogle Scholar
  6. Nichtern O, Rotman SR: Parameter adjustment for a dynamic programming track-before-detect-based target detection algorithm. EURASIP J Adv Signal Process 2008. Article ID 146925 10.1109/7.993242Google Scholar
  7. Tonissen SM, Bar-Shalom Y: Maximum likelihood track-before-detect with fluctuating target amplitude. IEEE Trans Aeros Electron Syst 1998, 34: 796-808. 10.1109/7.705887View ArticleGoogle Scholar
  8. Boers Y, Driessen JN: Multitarget particle filter track before detect application. IEE Proc Radar Sonar Navig 2004,151(6):351-357. 10.1049/ip-rsn:20040841View ArticleGoogle Scholar
  9. Boers Y, Driessen H: Particle filter track-before-detect application using inequality constraints. IEEE Trans Aeros Electron Syst 2005,41(4):1481-1487.MathSciNetGoogle Scholar
  10. Punithakumar K, Kirubarajan T, Sinha A: A sequential Monte Carlo probability hypothesis density algorithm for multitarget track-before-detect. Proceedings of SPIE 2005, 5913: 59131S.View ArticleGoogle Scholar
  11. Stone LD, Barlow CA, Corwin TL: Bayesian Multiple Target Tracking. Artech House, Boston; 1999.Google Scholar
  12. Vo B-N, Singh S, Doucet A: Sequential Monte Carlo implementation of the PHD filter for multitarget tracking. Proceedings of 6th International Conference Information Fusion 2003, 2: 792-799.Google Scholar
  13. Mahler R: Multitarget Bayes filtering via first-order multitarget moments. IEEE Trans Aeros Electron Syst 2003,39(4):1152-1178. 10.1109/TAES.2003.1261119View ArticleGoogle Scholar
  14. Vo B-N, Ma W-K: The gaussian mixture probability hypothesis density filter. IEEE Trans Signal Process 2006,54(11):4091-4104.View ArticleGoogle Scholar
  15. Vo B-N, Vo B-T, Pham NT, Suter D: Joint detection and estimation of multiple objects from image observations. IEEE Trans Signal Process 2010,58(10):5129-5241.MathSciNetView ArticleGoogle Scholar
  16. Tong H, Zhang H, Meng H, Wang X: Multitarget tracking before detection via probability hypothesis density filter. In Proceedings of the International Conference on Electrical and Control Engineering. Wuhan, China; 2010:1332-1335.Google Scholar
  17. Erdinc O, Willett P, Bar-Shalom Y: Probability hypothesis density filter for multitarget multisensor tracking. In Proceedings of the 8th International Conference on Information Fusion. Philadelphia, PA; 2005.Google Scholar
  18. Mahler R: PHD filters of higher order in target number. IEEE Trans Aeros Electron Syst 2007,43(4):1523-1543.View ArticleGoogle Scholar
  19. Weyrich N, Warhola GT: Wavelet shrinkage and generalized cross validation for image denoising. IEEE Trans Image Process 1998,7(1):82-90. 10.1109/83.650852View ArticleGoogle Scholar
  20. Clark D, Ristic B, B-N Vo, B-T Vo: Bayesian multi-object filtering with amplitude feature likelihood for unknown object SNR. IEEE Trans Signal Process 2010,58(1):26-36.MathSciNetView ArticleGoogle Scholar
  21. Mahler R: PHD filters for nonstandard targets, I: extended targets. In Proceeding of the 12th International Conference on Information Fusion. Seattle, WA; 2009.Google Scholar
  22. Lian F, Han C-Z, Liu W-F, Yan X-X, Zhou HY: Sequential Monte Carlo implementation and state extraction of the group probability hypothesis density filter for partly un-resolvable group targets-tracking problem. IET Radar Sonar Navig 2010,4(5):685-702. 10.1049/iet-rsn.2009.0109View ArticleGoogle Scholar
  23. Bishop CM: Pattern Recognition and Machine Learning. Springer, New York; 2006.Google Scholar

Copyright

© Tong et al; licensee Springer. 2011

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
