Identifying timevarying channels with aid of pilots for MIMOOFDM
EURASIP Journal on Advances in Signal Processing volume 2011, Article number: 74 (2011)
Abstract
In this paper, we consider pilotaided channel estimation for orthogonal frequency division multiplexing (OFDM) systems with a multipleinput multipleoutput setup. The channel is time varying due to Doppler effects and can be approximated by an oversampled complex exponential basis expansion model. We use a best linear unbiased estimator (BLUE) to estimate the channel with the aid of frequencymultiplexed pilots. The applicability of the BLUE, which is referred to as the channel identifiability in this paper, relies upon a proper pilot structure. Depending on whether the channel is estimated within a single OFDM symbol or multiple OFDM symbols, we propose simple pilot structures that guarantee channel identifiability. Further, it is shown that by employing more receive antennas, the BLUE can combat more effectively the Dopplerinduced interference and therefore improve the channel estimation performance.
1 Introduction
Orthogonal frequency division multiplexing (OFDM) systems have attracted enormous attention recently and have been adopted in numerous existing communication systems. OFDM gains most of its popularity thanks to its ability to transmit signals on separate subcarriers without mutual interference. To further enhance the capacity of the transmission link, OFDM systems can be combined with multipleinput multipleoutput (MIMO) features.
The fact that OFDM can transmit signals on separate subcarriers can be mathematically represented in the frequency domain by a diagonal channel matrix. This property holds only in a situation where the channel stays (almost) constant for at least one OFDM symbol interval. In practice, a timeinvariant channel assumption can become invalid due to, e.g., Doppler effects resulting from the motion between the transmitter and receiver. In such a case, the frequencydomain channel matrix is not diagonal but generally full with the nonzero offdiagonal elements leading to intercarrier interference (ICI).
To equalize such channels, the knowledge of all the elements in the channel matrix is required. In order to reduce the number of unknown channel parameters, a widely adopted approach is approximating the variation of the channel in the time domain with a parsimonious model, e.g., a basis expansion model (BEM). Consequently, channel estimation boils down to estimating the corresponding BEM coefficients. Among the various BEMs that have been proposed, this paper will concentrate on the socalled oversampled complex exponential BEM [(O)CEBEM] [1]. By tuning the oversampling factor, the (O)CEBEM is reported in [2] to fit timevarying channels much tighter than its variant, the critically sampled complex exponential BEM [(C)CEBEM] [3, 4], and it has a steady modeling performance for a wide range of Doppler spreads [5].
Based on a general BEM assumption, the OFDM channel is estimated in [6] utilizing pilots that are multiplexed with data in the frequency domain. The same paper shows that the channel estimators that view the frequencydomain channel matrix as full, such as the (O)CEBEM, render a better performance than those that view the channel matrix as diagonal [5], or strictly banded [4], such as the (C)CEBEM. In this paper, the results of [6] will be extended from a singleinput singleoutput (SISO) scenario to MIMO, with a focus on channel identifiability issues.
Estimating timevarying channels in a MIMOOFDM system gives rise to a number of additional challenges. In the first place, due to multiple transmitreceive links, more channel unknowns need to be estimated, which requires more pilots and thus imposes a higher pressure on the bandwidth efficiency. To alleviate this problem, we will employ more pilotcarrying OFDM symbols to leverage the channel correlation along the time axis as in [7, 8]. Although this comes at a penalty of a larger BEM modeling error, the overall channel estimation performance can still be improved.
Another challenge in a MIMOOFDM system is how to distribute pilots in the time, frequency and spatial domains. Barhumi et al. [9] and Minn and AlDhahir [10] proposes optimal pilot schemes but only for timeinvariant channels or systems for which the time variation of the channel within one OFDM symbol can be neglected. Except for [7, 11], much less attention has been paid to systems dealing with channels varying faster. In this paper, we will use the channel identifiability criterion as a guideline to design pilot schemes. It is noteworthy that the proposed pilot structures can be independent of the oversampling factor of the (O)CEBEM, which endows the receiver with the freedom to choose the most suitable oversampling factor.
Pilot structures can have a great impact on both channel identifiability and estimation performance. The latter is, however, difficult to tackle analytically for timevarying channels. In this paper, we will try to establish, by means of simulations, a guideline for designing pilots that render a satisfactory channel estimation performance for different channel situations.
The MIMO feature brings not only design challenges but also performance benefits. Due to the ICI, the contribution of the pilots is always mixed with the contribution of the unknown data in the received samples. By taking this interference explicitly into account in the channel estimator design, [6] shows that the resulting best linear unbiased estimator (BLUE) can cope with the interference reasonably well, producing a performance close to the CrámerRao bound (CRB). When multiple receive antennas are deployed, we observe that the channel estimation performance can even be further improved. This is attributed to the fact that each receive antenna gets a different copy of the same transmitted data. The interference is therefore correlated across the receive antennas, which can be exploited by the BLUE to suppress the interference more effectively than in the single receive antenna case. To our best knowledge, this effect has not been reported before.
The remainder of the paper is organized as follows. In Section 2, we present a general MIMOOFDM system model. In Section 3, we describe how the BLUE can be used to estimate the BEM coefficients. Channel identifiability is discussed in Section 4, based on which we propose a variety of pilot structures. The simulation results are given in Section 5, where we discuss the impact of the various pilot structures on the performance. Conclusions are given in Section 6.
Notation: We use upper (lower) bold face letters to denote matrices (column vectors). (·)*, (·)^{T} and (·)^{H} represent conjugate, transpose and complex conjugate transpose (Hermitian), respectively. [x]_{ p } indicates the p th element of the vector x, and [X]_{p,q} indicates the (p, q)th entry of the matrix X. \mathcal{D}\left\{x\right\} is used to denote a diagonal matrix with x on the diagonal, and \mathcal{D}\left\{{A}_{0},\dots ,{A}_{N1}\right\} is used to denote a blockwise diagonal matrix with the matrices A_{0}, ..., A_{N 1} on the diagonal. ⊗ and † represent the Kronecker product and the pseudoinverse, respectively. I_{ N } stands for the N × N identity matrix; 1_{M×N} for the M × N allone matrix, and W_{ K } for a Kpoint normalized discrete Fourier transform (DFT) matrix. We use {X}^{\left\{\mathcal{R},\mathcal{C}\right\}} to denote the submatrix of X, whose row and column indices are collected in the sets \mathcal{R} and \mathcal{C}, respectively; Similarly, we use {X}^{\left\{\mathcal{R},:\right\}}\left({X}^{\left\{:,\mathcal{C},\right\}}\right) to denote the rows (columns) of X, whose indices are collected in \mathcal{R}\phantom{\rule{0.3em}{0ex}}\left(\mathcal{C}\right). The cardinality of the set \mathcal{S} is denoted by \left\mathcal{S}\right.
2 System model
Let us consider a MIMOOFDM system with N_{T} transmit antennas and N_{R} receive antennas, where the channel in the time domain is assumed to be a timevarying causal finite impulse response (FIR) filter with a maximum order L. Using {h}_{p,l}^{\left(m,n\right)} to denote the timedomain channel gain of the l th lag at the p th time instant for the channel between the m th transmit antenna and n th receive antenna, we can assume that {h}_{p,l}^{\left(m,n\right)}=0for l < 0 or l > L. Note that this channel model can take the transmit/receiver filter, the propagation environment and the possible synchronization errors among different transmission links into account.
For the j th OFDM symbol that is transmitted via the m th transmit antenna, the data symbols s^{(m)}[j] are first modulated on K subcarriers by means of the inverse DFT (IDFT) matrix {W}_{K}^{H}, then concatenated by a cyclic prefix (CP) of length L_{cp} ≥ L and finally sent over the channel. At the receiver, the received samples corresponding to the CP are discarded, and the remaining samples are demodulated by means of the DFT matrix W_{ K }. Mathematically, we can express the received samples during the j th OFDM symbol as
where z^{(n)}[j] represents the additive noise related to the n th receive antenna; {H}_{\mathsf{\text{c}}}^{\left(m,n\right)}\left[j\right] denotes the channel matrix between the m th transmit antenna and n th receive antenna in the time domain, and {H}_{\mathsf{\text{d}}}^{\left(m,n\right)}\left[j\right]:={W}_{K}{H}_{\mathsf{\text{c}}}^{\left(m,n\right)}\left[j\right]{W}_{K}^{H} represents its counterpart in the frequency domain. Under the FIR assumption of the channel and letting L_{cp} = L without loss of generality, we can express the entries of {H}_{\mathsf{\text{c}}}^{\left(m,n\right)}\left[j\right] as {\left[{H}_{\mathsf{\text{c}}}^{\left(m,n\right)}\left[j\right]\right]}_{p,q}={h}_{j\left(K+L\right)+p+L,\mathsf{\text{mod}}\left(pq,K\right)}^{\left(m,n\right)} with mod(a, b) standing for the remainder of a divided by b.
Obviously, if the channel stays constant within an OFDM symbol, {H}_{\mathsf{\text{c}}}^{\left(m,n\right)}\left[j\right] will be a circulant matrix (hence the subscript c). This results in a diagonal matrix {H}_{\mathsf{\text{d}}}^{\left(m,n\right)}\left[j\right] (hence the subscript d), which means that the subcarriers are orthogonal to each other. This property is however corrupted if the time variation within an OFDM symbol is not negligible.
3 Channel estimation
For the ease of analysis, we will differentiate between two cases throughout the whole paper. The first case is based on a single OFDM symbol, which means that the channel will be estimated for each OFDM symbol individually. The other case employs multiple OFDM symbols. Because these two cases are characterized by some unique properties, we treat them separately.
3.1 Single OFDM symbol
3.1.1 Data model and BEM based on a single OFDM symbol
Let us use a BEM to model the time variation of the channel within one OFDM symbol: for the channel between the m th transmit antenna and the n th receive antenna, the l th lag during the j th OFDM symbol can be approximated as
where u_{ q } denotes the q th basis function of a BEM and {c}_{q,l}^{\left(m,n\right)}\left[j\right] the corresponding BEM coefficient. Under a CEBEM assumption,
where κ stands for the oversampling factor with \kappa =\frac{K}{K+L} used for the (C)CEBEM and \kappa >\frac{K}{K+L} for the (O)CEBEM.
Assuming that the BEM inflicts a negligible modeling error, the K(L+1) channel taps within the j th OFDM symbol will be uniquely represented by the (L + 1)(Q + 1) BEM coefficients {c}_{q,l}^{\left(m,n\right)}\left[j\right]. As a result, the frequencydomain channel matrix {H}_{\mathsf{\text{d}}}^{\left(m,n\right)}\left[j\right] given in (1) can be rewritten in terms of the BEM as
where {\mathcal{C}}_{q}^{\left(m,n\right)}\left[j\right] is a circulant matrix with {\left[{c}_{q}^{\left(m,n\right)T}\left[j\right],{0}_{1\times \left(KL1\right)}\right]}^{T} as its first column. Here, {c}_{q}^{\left(m,n\right)}\left[j\right]:={\left[{c}_{q,0}^{\left(m,n\right)}\left[j\right],\dots ,{c}_{q,L}^{\left(m,n\right)}\left[j\right]\right]}^{T}. Due to its circularity, we can express {\mathcal{C}}_{q}^{\left(m,n\right)}\left[j\right] as
where V_{ L } denotes the matrix that consists of the first L + 1 columns of \sqrt{K}{W}_{K}. Accordingly, {H}_{\mathsf{\text{d}}}^{\left(m,n\right)}\left[j\right] can be written as
Because we will only concentrate on a single OFDM symbol in this section, we drop the index j for the sake of simplicity.
Let us now use p^{(m)}to denote the pilots sent by the m th transmit antenna, whose subcarrier positions are contained in the set {\mathcal{P}}^{\left(m\right)}, and d^{(m)}to denote the data sent by the m th transmit antenna, whose subcarrier positions are contained in the set {\mathcal{D}}^{\left(m\right)}. Because in this paper we focus on frequencydomain multiplexed pilots, this implies that {\mathcal{P}}^{\left(m\right)}\bigcap {\mathcal{D}}^{\left(m\right)}=\varnothing and {\mathcal{P}}^{\left(m\right)}\bigcup {\mathcal{D}}^{\left(m\right)}=\left\{0,\dots ,K1\right\}. Further, we assume that the pilots are grouped in G clusters, each of length P+1:{p}^{\left(m\right)}={\left[{p}_{0}^{\left(m\right)T},\dots ,{p}_{G1}^{\left(m\right)T}\right]}^{T}. For the g th pilot cluster {p}_{g}^{\left(m\right)}, the positions of its elements are collected in the set {\mathcal{P}}_{g}^{\left(m\right)}=\left\{{P}_{g}^{\left(m\right)},\dots ,{P}_{g}^{\left(m\right)}+P\right\} with {P}_{g}^{\left(m\right)} standing for its starting position. Corresponding to the positions of {p}_{g}^{\left(m\right)}, let us consider the observation samples at the receiver, whose indices are collected in the set
It can be seen from the above that the number of observation samples in {\mathcal{O}}_{g}^{\left(m\right)}, given by P  D + 2ℓ + 1, is controlled by the two parameters D and ℓ. To understand the physical meaning of D, we know that for a small Doppler spread, the ICI is mostly limited to the neighboring subcarriers, which is equivalent to the assumption that the frequencydomain channel matrix has most of its power located on the main diagonal, the D/2 sub and D/2 superdiagonals for an appropriate value of D. In an ideal case where the channel matrix is strictly banded, we should choose
such that the resulting observation samples will depend exclusively on the pilots {p}_{g}^{\left(m\right)}. However, such a strictly banded assumption is not true, and the channel matrix is full in nature especially at high Doppler spreads. This implies that there is always a power leakage outside the band, which is accounted for in (6) by adding an additional parameter ℓ. The relationship between {p}_{g}^{\left(m\right)} and the corresponding observation samples is illustrated in Figure 1. As shown in [6], the choice of ℓ can have a great impact on the channel estimation performance.
The above analysis is based on a single transmit antenna. For a MIMO scenario, every receiver 'sees' a superposition of OFDM symbols from all the transmit antennas. This implies that the g th observation cluster {\mathcal{O}}_{g} must be a union of all the individual observation clusters related to the transmit antennas:
As a result, we can use the inputoutput relationship given in (1) to express {y}^{\left(n\right)\left\{{\mathcal{O}}_{g}\right\}} as
where {H}_{\mathsf{\text{d}}}^{\left(m,n\right)\left\{{\mathcal{O}}_{g},{\mathcal{P}}^{\left(m\right)}\right\}} and {H}_{\mathsf{\text{d}}}^{\left(m,n\right)\left\{{\mathcal{O}}_{g},{\mathcal{D}}^{\left(m\right)}\right\}} represent submatrices of {H}_{\mathsf{\text{d}}}^{\left(m,n\right)}, which are schematically depicted in Figure 1. As a consequence of the full matrix {H}_{\mathsf{\text{d}}}^{\left(m,n\right)}, we can see from (9) that {y}^{\left(n\right)\left\{{\mathcal{O}}_{g}\right\}} depends not only on {p}_{g}^{\left(m\right)}, but also on the data d^{(m)}as well as the other pilot clusters.
We repeat the relationship in (9) for each cluster g = 0, ..., G  1, and for each receive antenna n = 0, ..., N_{R}  1, and stack the results in one vector \stackrel{\u2323}{y}={\left[{y}^{\left(0\right)\left\{\mathcal{O}\right\}T},\dots ,{y}^{\left({N}_{\mathsf{\text{R}}}1\right)\left\{\mathcal{O}\right\}T}\right]}^{T}, with \mathcal{O}=\phantom{\rule{0.5em}{0ex}}{\mathcal{O}}_{0}\bigcup \cdot \cdot \cdot \phantom{\rule{0.3em}{0ex}}\bigcup {\mathcal{O}}_{G1}. It follows that
where z is similarly defined as \stackrel{\u2323}{y}, and
From (5), it can be shown that each diagonal block of A can be expressed as
with
The interference due to data is represented in (10) by i, which can be expressed as i = Bd with
A detailed derivation of (12)(14) for the SISO case can be found in [6]. The extension to the MIMO case is rather straightforward.
3.1.2 Best linear unbiased estimator based on a single OFDM symbol
From (10), c can be estimated by diverse channel estimators. Due to space restrictions, this paper will not list all the possible channel estimators, but will only focus on the BLUE.
The BLUE is a compromise between the linear minimum meansquare error (LMMSE) and the leastsquare (LS) estimator: it treats c as a deterministic variable, thus avoiding a possible error in calculating channel statistics, which are necessary for the LMMSE estimator; at the same time, it leverages the statistics of the data symbols and noise, which are easier to attain, such that the interference and the noise can still be better suppressed than with the LS estimator. Simulation results in [6] show that the BLUE is able to yield a performance close to that of the LMMSE estimator, even if the latter is equipped with perfect knowledge of the channel statistics.
In a nutshell, the BLUE uses a linear filter F to produce an unbiased estimate \widehat{c}=Fy, whose mean squarederror (MSE) w.r.t. c is minimized:
Let us assume that the data sent from all the transmit antennas are zeromean white with variance {\sigma}_{d}^{2}, and the noise perceived by all the receive antennas is zeromean white with variance {\sigma}_{z}^{2}. By comprising the interference i and noise z in a single disturbance term, we can follow the steps given in [[12], Appendix 6B] to derive the BLUE as:
where R(c) denotes the covariance matrix of the disturbance with c taken as a deterministic variable. Conform the assumptions on the data and noise statistics and taking (14) into account, we can show that:
Clearly, (15) cannot be resolved in closedform since the computation of R(c) entails the knowledge of c itself (contained in B). As a remedy, we apply a recursive approach. Suppose at the k th iteration, an estimate of c has been attained, which is denoted as {\widehat{c}}^{\left[k\right]}. Next, we utilize this intermediate estimate to update the covariance matrix R(c), which in turn is used to produce the BLUE for the subsequent iteration and so on:
Note that a similar idea is adopted in [13] though in a different context. To initialize the iteration, we can set {\widehat{c}}^{\left[0\right]}=0, which results in the following expression for the first iteration:
The above expression is actually the maximum likelihood estimator [12] that is obtained by ignoring the interference i.
Using the symbol Γ^{[k]}to denote the normalized difference in energy between the estimates from the present and previous iterations:
we can halt the iterative BLUE if Γ^{[k]}is smaller than a predefined value or the number of iterations K is higher than a predefined value.
In the previous section, we have mentioned that a different choice of ℓ in (9) will have an impact on the channel estimator. For the BLUE in the SISO scenario, it is shown in [6] that the best performance is attained when the whole OFDM symbol is employed for channel estimation.
3.2 Multiple OFDM symbols
In the previous section, the channel is estimated for each block separately. To improve the performance, we will exploit more observation samples in this section. It is nonetheless noteworthy that in the context of timevarying channels, the channel coherence time is rather short, which means that we cannot utilize an infinite number of OFDM symbols to enhance the estimation precision.
Considering J consecutive OFDM symbols, out of which there are V OFDM symbols carrying pilots, we use the symbol \mathcal{V} to denote the set that contains the indexes of all the pilot OFDM symbols:
where j_{ v } stands for the position of the v th pilot OFDM symbol. Further, the symbol {\mathcal{P}}^{\left(m\right)}\left[{j}_{v}\right], as analogously introduced in the previous section, represents the set of pilot subcarriers within the v th pilot OFDM symbol that is used by the m th transmit antenna. Similar extensions hold for {\mathcal{D}}^{\left(m\right)}\left[{j}_{v}\right], {\mathcal{O}}^{\left(m\right)}\left[{j}_{v}\right] and \mathcal{O}\left[{j}_{v}\right]. An interesting topic when utilizing multiple OFDM symbols is how to distribute the pilots along the time as well as frequency axis. To differentiate between various pilot patterns, let us borrow the terms used in [14] to categorize two pilot placement scenarios.^{a}
Combtype This scheme is adopted in [15–17], in which pilots occupy only a fraction of the subcarriers, but such pilots are carried by each OFDM symbol. In other words, we have \left\mathcal{V}\right\phantom{\rule{0.3em}{0ex}}\phantom{\rule{0.3em}{0ex}}=J and \left{\mathcal{P}}^{\left(m\right)}\left[{j}_{v}\right]\right\phantom{\rule{0.3em}{0ex}}\phantom{\rule{0.3em}{0ex}}<K. This is equivalent to the pilot scheme that we discussed in the previous section, but now extended to multiple OFDM symbols. An example of the combtype scheme with two transmit antennas is sketched in the left and middle plot of Figure 2.
Blocktype This scheme is considered in [18–20], in which the pilots occupy the entire OFDM symbol, and such pilot OFDM symbols are interleaved along the time axis with pure data OFDM symbols. In mathematics, \left\mathcal{V}\right\phantom{\rule{0.3em}{0ex}}\phantom{\rule{0.3em}{0ex}}=J and \left{\mathcal{P}}^{\left(m\right)}\left[{j}_{v}\right]\right\phantom{\rule{0.3em}{0ex}}\phantom{\rule{0.3em}{0ex}}<K. An example of the Blocktype scheme with two transmit antennas is sketched in the right plot of Figure 2.
3.2.1 Data model and BEM based on multiple OFDM symbols
The biggest difference between the multiple and single OFDM symbol case is that we need here to use a larger BEM to approximate the timevarying channel that spans several OFDM symbol intervals. More specifically, we need to model J(K +L) consecutive samples of the l th channel tap between the m th transmit antenna and the n th receive antenna, i.e., {\left[{h}_{0,l}^{\left(m,n\right)},\dots ,{h}_{\left(J1\right)\left(K+L\right)1,l}^{\left(m,n\right)}\right]}^{T} as
Here, u_{ q } stands for the q th BEM function that spans J(K +L) time instants, and {c}_{q,l}^{\left(m,n\right)} for the corresponding BEM coefficient. In comparison with (3), we design the CEBEM as
Hence, for the j th OFDM symbol in particular, we obtain
where u_{ q }[j] is a selection of rows j(K +L)+L through (j +1)(K +L)  1 from u_{ q }. By defining the BEM in this way, the resulting channel matrix of the j th OFDM symbol in the frequency domain will admit a slightly different expression than in (5) defined for the single OFDM symbol case:
Where {c}_{q}^{\left(m,n\right)}:={\left[{c}_{q,0}^{\left(m,n\right)},\dots ,{c}_{q,L}^{\left(m,n\right)}\right]}^{T}. Note that in (24), each OFDM symbol is associated with a different BEM sequence u_{ q }[j], but with common BEM coefficients {c}_{q}^{\left(m,n\right)}. This is in contrast to (5), where each OFDM symbol is associated with a common BEM, but with different BEM coefficients.
For each pilot OFDM symbol, we will follow the same strategy for choosing the observation samples as in the single OFDM symbol case. By iterating the I/O relationship in (10) for each pilot OFDM symbol j_{ v } = j_{0}, ..., j_{V1}, and stacking the results in one vector, we obtain
which can also be concisely expressed as
where A[j_{ v }] is defined as in (12) with the OFDM symbol index added, and \stackrel{\u0303}{i} and \stackrel{\u0303}{z} are similarly defined as \stackrel{\u0303}{y}. Further, the interference term \stackrel{\u0303}{i} in (26) can be written as
where B[j_{ v }] and d[j_{ v }] are defined as in (14) with the OFDM symbol index added.
3.2.2 Best linear unbiased estimator based on multiple OFDM symbols
We notice that (26) admits an expression analogous to (10). Hence, it is not difficult to understand that a similar iterative BLUE can be applied for channel estimation based on multiple pilot OFDM symbols. The BLUE at the (k + 1)st iteration can thus be expressed as
where \stackrel{\u0303}{R}\left(c\right) denotes the covariance matrix of the disturbance based on multiple pilot OFDM symbols. Assuming further that the data and noise from different OFDM symbol intervals are uncorrelated, we can show that
where R[j_{ v }] is defined as in (16) with the OFDM symbol index added.
The above derivations can be directly applied for the combtype pilots. For the Blocktype pilots which occupy the entire OFDM symbol, the corresponding channel estimators are not subject to data interference, i.e., \stackrel{\u0303}{i}=0. In this case, the BLUE in (28) reduces to an LS estimator:
which can be attained in just one shot.
4 Channel identifiability
In this paper, we define channel identifiability in terms of the uniqueness of the BLUE. From (17) and (28), we understand that the BLUE is unique when A or \stackrel{\u0303}{A} is of full columnrank, and R or \stackrel{\u0303}{R} is nonsingular.
Normally speaking, the nonsingularity of R or \stackrel{\u0303}{R} can be easily satisfied in a noisy channel. In contrast, the rank condition of A or \stackrel{\u0303}{A} is often difficult to examine, because its composition depends on the choice of the BEM and the pilot structure. Especially for the latter, it turns out to be very hard to give an analytical formulation for a general pilot structure. In this paper, we will adopt a specific pilot structure for each pilot OFDM symbol, which is similar to the frequencydomain Kronecker Delta (FDKD) scheme proposed in [7]. Note that for a general BEM assumption as taken in [6], the FDKD scheme always yields a good performance experimentally.

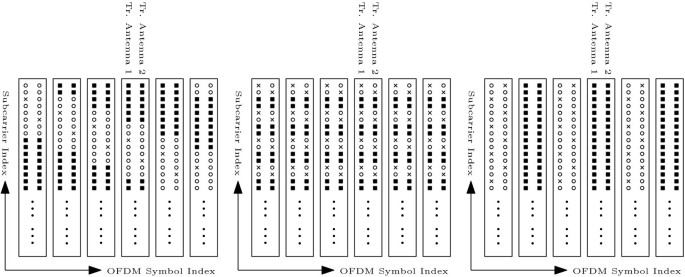

The basic pilot structure adopted in this paper can be summarized as follows:
Pilot Design Criterion 1. We group the pilots from one transmit antenna into G (cyclically) equidistant clusters, where each cluster contains only one nonzero pilot. The entire set of pilots sent by the mth transmit antenna during the vth pilot OFDM symbol can therefore be expressed in a Kronecker form as
where {\stackrel{\u0304}{p}}^{\left(m\right)}\left[{j}_{v}\right] contains all the nonzero pilots sent by the mth transmit antenna during the vth pilot OFDM symbol, and Δ^{(m)}[j_{ v }] gives the position of the nonzero pilot within the cluster.
Further, the following assumption is adopted throughout the remainder of the paper.
Assumption 1. All the subcarriers of the pilot OFDM symbol will be used for channel estimation, i.e.,
This assumption is shown in [6] to maximize the performance of the BLUE. In addition, it will greatly simplify the derivation of the channel identifiability conditions.
As in the previous sections, in order to derive the channel identifiability conditions, we find it instrumental to first explore the rank condition on A for the single OFDM symbol case and then extend the results to multiple pilot OFDM symbols.
4.1 Single OFDM symbol
The full columnrank condition of A is related to the full columnrank condition of A^{(n)}defined in (10) for an arbitrary receive antenna n. Hence, we need to examine whether
Following Pilot Design Criterion 1, [7] shows conditions to ensure that the columns of A^{(n)}are orthonormal under a (C)CEBEM assumption. However, these conditions are not suitable for an (O)CEBEM assumption as adopted in this paper, and we need to impose more restrictions, especially on the pilot design across the transmit antennas. They are summarized in the following theorem (see Appendix A for a proof).
Theorem 1. With the pilots following Pilot Design Criterion 1, the channel will be identifiable under an (O)CEBEM assumption and Assumption 1 if
and
where μ^{(m)}denotes the position of the first nonzero pilot sent by the mth transmit antenna.
The following remarks are in order at this stage.
Remark 1. For the 'optimal' pilot structure proposed in [7], each OFDM symbol contains G = L + 1 pilot clusters, with each pilot cluster satisfying (up to a scale)
Such a pilot structure complies with (34) and (35) with a (C)CEBEM assumption, i.e., \kappa =\frac{K}{K+L}.
We observe in (36) that the FDKD pilot structure contains a certain number of zeros, which are not specified in Theorem 1. These zeros are beneficial to combat the ICI, but not necessary for the rank condition. Later on, we will show that the total number of zeros within the pilot cluster plays a more significant role at high SNR where the ICI becomes more pronounced.
Remark 2. Viewing a timeinvariant channel as a special case of a timevarying channel with a trivial Q = 0, we can establish the relationship between the conditions given in (34) and (35), and the conditions given for timeinvariant channels. For instance, the pilot structure given in [9] requires the number of nonzero pilots per transmit antenna to be no fewer than L + 1. Further, the nonzero pilots from different transmit antennas must occupy different subcarriers, i.e., μ^{(m')}  μ ^{(m)}> 0 for m' ≠ m.
4.2 Multiple OFDM symbols
In many practical situations, Theorem 1 can be harsh to satisfy due to practical constraints. For instance, if the Doppler spread and/or the delay spread of the channel are large, the lower and upperbound in (34) will approach each other, making it harder to find a suitable G. Fortunately, these constraints can be loosened by employing multiple pilot OFDM symbols.
One important issue of channel estimation based on multiple pilot OFDM symbols is how to distribute the pilots along the time axis. Prior to proceeding, let us introduce two possible schemes.
Pilot Design Criterion 2. The positions of the equidistant pilots sent by the same transmit antenna are disparate for each OFDM symbol, i.e.,
Adopting the above design criterion leads to the following theorem.
Theorem 2. With the pilots following Pilot Design Criterion 1 and Pilot Design Criterion 2, then for the nth receive antenna, the corresponding {\stackrel{\u0303}{A}}^{\left(n\right)}={\left[{A}^{\left(n\right)T}\left[{j}_{0}\right],\dots ,{A}^{\left(n\right)T}\left[{j}_{V1}\right]\right]}^{T} will have a full columnrank under an (O)CEBEM assumption and Assumption 1 if
and
The proof is given in Appendix B.
Remark 3. We observe here again that the right inequality in (38) is identical to the channel identifiability condition in [9] for the timeinvariant MIMO channel based on multiple OFDM symbols.
Remark 4. For realistic system parameters, \frac{KQ}{\kappa V\left(K+L\right)}<1 holds in most cases. From (39), it is hence sufficient if μ^{(m')} ≠ μ^{(m)} for m' ≠ m: this implies that the transmitter can be transparent to the oversampling factor used by the receiver.
An alternative way of designing the pilots is given by the following construction.
Pilot Design Criterion 3. The values and positions of the equidistant pilots sent by the same transmit antenna are identical for each OFDM symbol, which implies that
Adopting the above design criterion leads to the following theorem.
Theorem 3. With the pilots following Pilot Design Criterion 1 and Pilot Design Criterion 3, then for the nth receive antenna, the corresponding {\stackrel{\u0303}{A}}^{\left(n\right)}={\left[{A}^{\left(n\right)T}\left[{j}_{0}\right],\dots ,{A}^{\left(n\right)T}\left[{j}_{V1}\right]\right]}^{T} will have a full columnrank under an (O)CEBEM assumption and Assumption 1 if
and
The proof is given in Appendix C.
Remark 5. Theorem 3 enables the transmitter to be completely transparent to the choice of the oversampling factor at the receiver.
If there is only one transmit antenna, the conditions given in Theorem 3 can be relaxed as stated in the following corollary.
Corollary 1. With the pilots following Pilot Design Criterion 1 and Pilot Design Criterion 3, if there is only one transmit antenna, the matrix {\stackrel{\u0303}{A}}^{\left(n\right)}={\left[{A}^{\left(n\right)T}\left[{j}_{0}\right],\dots ,{A}^{\left(n\right)T}\left[{j}_{V1}\right]\right]}^{T} will have full columnrank under an (O)CEBEM assumption and Assumption 1 if
The proof is given in the last part of Appendix C. This property has been explored in [21] where a SISO scenario is considered.
5 Simulations and discussions
For the simulations, we generate timevarying channels conform Jakes' Doppler profile [22] using the channel generator given in [23]. The channel taps are assumed to be mutually uncorrelated with a variance of {\sigma}_{l}^{2}=1\u2215\sqrt{L+1}. The variation of the channel is characterized by the normalized Doppler spread υ_{D} = f_{c}v/c, where f_{c} is the carrier frequency; v is the speed of the vehicle parallel to the direction between the transmitter and the receiver, and c is the speed of light.
We consider an OFDM system with 64 subcarriers. The pilots and data symbols are multiplexed in the frequency domain by occupying different subcarriers. The data symbols are modulated by quadrature phaseshift keying (QPSK). Further, we set the average power of the pilots to be equal to the average power of the data symbols.
To qualify the channel estimation performance, we use the normalized meansquare error (NMSE), which is defined as
Note that in the above criterion, the true channel {h}_{k,l}^{\left(m,n\right)} is used, which implies that we actually take also the BEM modeling error into account.
For all the numerical examples below, we adopt the stop criterion that halts the iterative BLUE if either Γ^{[k]}, which is defined in (19) as the normalized difference in energy between the previous and current estimates, is smaller than 10^{6} or the number of iterations K is higher than 30.
Study Case 1: Single OFDM Symbol
The pilots used in this study case are grouped in G = 4 clusters, each containing seven zero pilots and one nonzero pilot, i.e., P + 1 = 8. The nonzero pilot is located within the pilot cluster at the [3(m + 1)  1]st position, where m corresponds to the transmit antenna index. Because we will use an (O)CEBEM with Q = 2 and κ = 4 to fit a slower timevarying channel (υ_{D} = 8e^{4}) and a faster timevarying channel (υ_{D} = 4e^{3}), this pilot structure satisfies the 'optimal'pilot structure in (36) as well as Theorem 1 for a channel of length L = 3, which is assumed for this study case. The performance of the BLUE is given in Figure 3. We observe that the performance degrades when the number of transmit antennas is increased from one to two. But more interestingly, this performance degradation can be alleviated by using more receive antennas, especially for the faster channels (the right plot). We will discuss this effect in more detail later on.
In the subsequent study cases, we will focus on pilots carried by multiple OFDM symbols. We compare three different pilot structures as summarized in Table 1, where we use V_{ a } to denote the number of pilot OFDM symbols that satisfy Pilot Design Criterion 2, and V_{ b } to denote the number of pilot OFDM symbols that satisfy Pilot Design Criterion 3. The positions of the zero and nonzero pilots and data symbols of the three pilot structures are schematically given in Figure 2. Note also that the, optimal' pilot structure in (36) is carried by all the OFDM symbols in Combtype I.
Study Case 2: Short Channels
In this study case, we again examine channels with υ_{D} = 8e^{4} and υ_{D} = 4e^{3}. To fit the time variation of the channel for J = 6 consecutive OFDM symbols, we use at the receiver an (O)CEBEM with Q = 2 and κ = 3 if υ_{D} = 8e^{4} and with Q = 4 and κ =1.5 if υ_{D} = 4e^{3}. Further, we focus on a channel with length L = 3 and compare the performance of the pilot structures listed in Table 1. The results are given in Figure 4, where we observe that Combtype I renders a much better performance than the other two, especially when the channel varies faster (the right plot). This can be attributed to the zeros in the pilot cluster that protect the nonzero pilots from the interference much more effectively.
Again, we observe that the channel estimation performance degrades with more transmit antennas, but improves with more receiver antennas especially at high SNR. In contrast, this does not happen to the Blocktype scheme. We understand that the interference induced by the Doppler spread to the channel estimator becomes the dominant nuisance at high SNR. At the same time, this interference is a function of the transmitted data and hence strongly correlated among different receive antennas. The BLUE is able to exploit this correlation to combat the interference better. The following heuristic analysis enables a better insight into this effect.
It can be shown that the variance of the BLUE equals the trace of {\left({\stackrel{\u0303}{A}}^{H}{\stackrel{\u0303}{R}}^{1}\stackrel{\u0303}{A}\right)}^{1}, where \stackrel{\u0303}{R}, as defined in (29), expresses the correlation of the interference as well as the noise. Because \stackrel{\u0303}{R} is a block diagonal matrix with R[j_{ v }] as its v th diagonal block, we focus further on R[j_{ v }]. From its definition in (16), and by applying the matrix inversion lemma in [24], its inverse can be written as
where the last is attained at high SNR when \frac{{\sigma}_{d}^{2}}{{\sigma}_{z}^{2}}\to \infty. The presence of B[j_{ v }] in (45) is associated with the interference. We observe that the N_{R}K × N_{R}K matrix R^{1}[j_{ v }] lies in the noise subspace of B[j_{ v }], i.e., R^{1}[j_{ v }]B[j_{ v }] = 0. Suppose the N_{R}K × N_{T} (K  G(P + 1)) matrix B[j_{ v }] has full columnrank N_{T} (K  G(P + 1)). We then have
The above suggests that the rank of {\stackrel{\u0303}{R}}^{1} increases with the number of receive antennas, the number of pilot OFDM symbols as well as the number of pilots within the OFDM symbol, but decreases with the number of transmit antennas. A higher rank of {\stackrel{\u0303}{R}}^{1} is beneficial to the condition of the matrix {\stackrel{\u0303}{A}}^{H}{\stackrel{\u0303}{R}}^{1}\stackrel{\u0303}{A}, which is in turn related to the trace of {\left({\stackrel{\u0303}{A}}^{H}{\stackrel{\u0303}{R}}^{1}\stackrel{\u0303}{A}\right)}^{1}. Following such a reasoning, it is not difficult to understand that increasing the number of receive antennas is beneficial to the performance just as increasing the number of pilots or decreasing the number of transmit antennas. To the best of our knowledge, this effect of the number of receive antennas on the channel estimation performance is not widely recognized. The main reason is that most works are based on a scenario where the interference is absent at the receiver, e.g., for timeinvariant channels, or in the case of the Blocktype scheme, where the pilots occupy the whole OFDM symbol and there is no interference either.
Note that the rank of {\stackrel{\u0303}{R}}^{1} also increases with the number of pilot OFDM symbols. Comparing Figure 4 with 3, we can indeed observe a performance improvement. However, for faster fading channels, multiple OFDM symbols work only better at lowtomoderate SNR, but suffer from a noise floor at high SNR, where the BEM modeling error plays a dominant role. The BEM modeling error will become larger if more OFDM symbols are considered and/or the channel varies faster. Increasing the BEM order Q can enhance the BEM modeling performance at the penalty that more channel unknowns need to be estimated. An alternative is not to estimate the channel of all the OFDM symbols, but only the middle part, e.g., the 3rd and 4th symbols. This means that the channel estimator will work like an overlapping sliding window, an approach that is adopted in [25].
Study Case 3: Long Channels
We examine now a much longer channel with length L = 15, for which the results are given in Figure 5. Note that in this figure, we do not list the performance of Combtype I because it failed in the simulation. We will explore the reason later on. Figure 5 shows that Combtype II performs in general better than the Blocktype, especially when the channel varies faster. Note that the channels where the data are located are not estimated directly in the Blocktype scheme, but actually result from an implicit interpolation of the channels estimated at the pilot OFDM symbols. The resulting interpolation error gives rise to a performance penalty.
The channel equalization performance based on the estimated channels is given in Figure 6, where the bit error rate (BER) is used as the performance measure. The results in Figure 6 follow similar trends as shown in Figure 5 except for the MISO case with N_{T} = 2 and N_{R} = 1. In this case, the equalizer fails because there are more unknowns than observation samples.
Study Case 4: Why Combtype I Fails for Long Channels
For channels with a long delay spread, it is not possible for Combtype I to satisfy Theorem 1. Although by using multiple symbols, Theorem 2 can still be met, the condition number of \stackrel{\u0303}{A} drastically increases once the channel order L + 1 supersedes the number of pilot clusters G. Here, we define the condition number of a nonsquare matrix \stackrel{\u0303}{A} as
where {\lambda}_{n}\left(\stackrel{\u0303}{A}\right) stands for the n th singular value of \stackrel{\u0303}{A}. A condition number equal to infinity means that the matrix is rank deficient. In Figure 7, we depict the condition number as a function of the channel length for the SISO case N_{T} = 1 and N_{R} = 1, where one can observe that the condition number of \stackrel{\u0303}{A} rapidly increases for Combtype I, once the channel length becomes larger than the number of pilot clusters. In contrast, with a sufficient number of pilot clusters, the condition number for Combtype II and Blocktype stays constant.

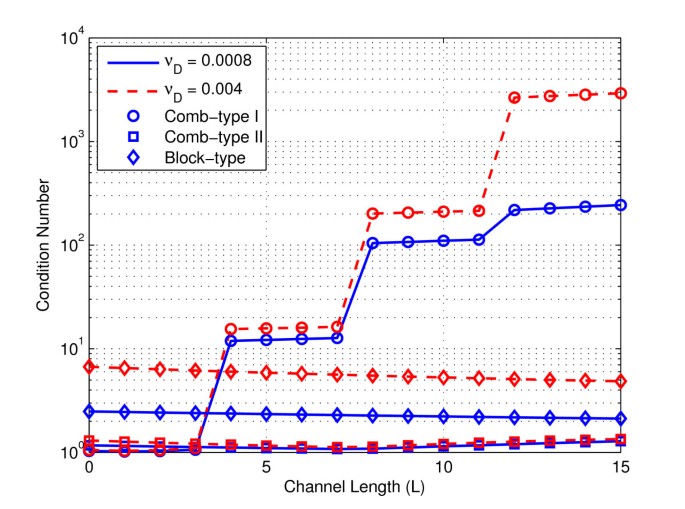

The condition number of \stackrel{\u0303}{A} is important to the variance of the BLUE, which is given before as the trace of {\left({\stackrel{\u0303}{A}}^{H}{\stackrel{\u0303}{R}}^{1}\stackrel{\u0303}{A}\right)}^{1}. An illconditioned \stackrel{\u0303}{A} makes the BLUE more sensitive to the interference and noise. In the worst case, the adaptive BLUE will be unable to even converge to a local minimum. In Figure 8, we show the channel estimation performance of all three pilot structures at SNR = 40 dB for the SISO case, where the results exhibit the same tendency as the corresponding condition numbers.
Study Case 5: Convergence performance
As mentioned at the beginning of this section, we have adopted a stopping criterion that halts the BLUE if either Γ^{[k]}< 10^{6} or K ≥ 31. The actual number of iterations is dependent on several factors such as the channel, the SNR, the number of transmit/receive antennas. As an example, we show in this case the convergence performance for the Combtype II pilots over the channel with L = 15 and υ_{D} = 4e^{3}. Figure 9 shows the average number of iterations versus SNR required for different MIMO setups, where the MISO case N_{T} = 2 and N_{R} = 1 requires the most iterations especially at high SNR. In this case, \stackrel{\u0303}{A} has obviously a larger condition number than the other two cases, although it still retains full columnrank. We have learned from Study Case 4 that when the SNR increases, the condition number of \stackrel{\u0303}{A} plays a more pronounced role in the trace of {\left({\stackrel{\u0303}{A}}^{H}{\stackrel{\u0303}{R}}^{1}\stackrel{\u0303}{A}\right)}^{1}, which in turn influences the convergence behavior of the BLUE, and thus explains the large discrepancy in the number of iterations at high SNR. Figure 10 shows the average value of Γ^{[k]}during each iteration. With the adopted stopping criterion, we can conclude from this figure that the BLUE halts after around six iterations in most cases.
6 Conclusions
In this paper, we have discussed how to design pilots to estimate timevarying channels in a MIMOOFDM system. We underline that the proposed pilot design criteria can be made (almost) independent of the oversampling factor of the (O)CEBEM such that each receiver can independently choose the best (O)CEBEM.
We have compared the performance of three different pilot structures, all conform the proposed design criteria. By means of simulations, we have shown that

Each pilot OFDM symbol should contain as few pilot clusters as possible provided there are more than the channel order.

Combtype pilots can estimate the timevarying channel better than the Blocktype pilots because they suffer from a smaller interpolation error.

For combtype pilots, it is possible to improve the channel estimation performance by employing more receive antennas, which combats the interference more effectively.
Appendices
A Proof of Theorem 1
Because each pilot cluster now contains only one nonzero pilot, we can express the positions of the equispaced nonzero pilots sent by transmit antenna m as
with X = K/G. Since the zero pilots have no contribution, we can rewrite A^{(n)}, defined in (12), in the following form
Compared to (13), we keep here only the rows/columns that correspond to the positions of the nonzero pilots, which are represented by {\stackrel{\u0304}{\mathcal{P}}}^{\left(m\right)}. In addition, we have dropped the observation sample index \mathcal{O} in the above as a result of Assumption 1.
The following two lemmas determine the rank of {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)} and {\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)}.
Lemma 1. If K/[N_{ T }(Q +1)] ≥ G, and {\mu}^{\left(m+1\right)}{\mu}^{\left(m\right)}>\frac{KQ}{\kappa \left(K+L\right)}, the matrix {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)} has full columnrank N_{ T }G(Q + 1).
Proof. Let us first examine the m th submatrix of {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)}:
Given the property that {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)} contains equidistant elements, we can express {W}_{K}^{\left\{{\stackrel{\u0304}{\mathcal{P}}}^{\left(m\right)},:\right\}} as
with \theta :={\left[{\mathsf{\text{e}}}^{\u0237\frac{2\pi}{X}0},\dots ,{\mathsf{\text{e}}}^{\u0237\frac{2\pi}{X}\left(X1\right)}\right]}^{T} and \xi :={\left[{\mathsf{\text{e}}}^{\u0237\frac{2\pi}{GX}0},\dots ,{\mathsf{\text{e}}}^{\u0237\frac{2\pi}{GX}\left(G1\right)}\right]}^{T}. The rank of {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(m,n\right)} will not change if we leftmultiply it with {W}_{K}^{H}, and rightmultiply it with \left({I}_{Q+1}\otimes {W}_{G}^{H}\right), which leads to
The above matrix is obviously a stack of X × (Q+1) submatrices, each being diagonal of size G. To be more specific, the (x, q)th submatrix {\left[{W}_{K}^{H}{\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(m,n\right)}\left({I}_{Q+1}\otimes {W}_{G}^{H}\right)\right]}^{\left\{xG:\left(x+1\right)G1,qG:\left(q+1\right)G1\right\}} admits an expression as
In the above, we have downsampled the BEM sequence u_{ q } into lengthG subsequences with the x th subsequence being {u}_{q,x}:={\left[{\left[{u}_{q}\right]}_{xG},\dots ,{\left[{u}_{q}\right]}_{\left(x+1\right)G1}\right]}^{T} for x = 0, ..., X  1.
In order to obtain a better perception of its rank, we apply an rowpermutation and columnpermutation on {W}_{K}^{H}{\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(m,n\right)}\left({I}_{Q+1}\otimes {W}_{G}^{H}\right), which renders a newblock diagonal matrix
where Π_{ G } and {\stackrel{\u0304}{\Pi}}_{G} are both depthG interleave matrices with appropriate dimensions;^{b} and
With u_{ q } defined as the q th basis of the (O)CEBEM given in (3), we can rewrite {\Phi}_{g}^{\left(m\right)} after some algebra as
With {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)}=\left[{\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(0,n\right)},\dots ,{\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left({N}_{\mathsf{\text{T}}}1,n\right)}\right], we apply the procedure from (49) until (55) on all the submatrices {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(m,n\right)} for m = 0, ..., N_{T}  1. It is not difficult to realize the rank of {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)} is determined by the rank of the matrix \left[{\stackrel{\u0304}{\Phi}}^{\left(0\right)},\dots ,{\stackrel{\u0304}{\Phi}}^{\left({N}_{\mathsf{\text{T}}}1\right)}\right] multiplied by G. It is tall if X = K/G ≥ N_{T}(Q + 1). Besides, it contains distinctive columns of a larger κX(K + L)point DFT matrix if μ^{(m+1)} κ(K + L) > μ ^{(m)}κ(K + L) + KQ, which is hence of full columnrank. □
Lemma 2. If G ≥ (L + 1), the matrix {\stackrel{\u0304}{A}}_{d}^{\left(n\right)} has full columnrank N_{ T }(L + 1)(Q + 1).
Proof. Expressing {\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)} in the form of {\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)}=\mathcal{D}\left\{{\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(0,n\right)},\dots ,{\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left({N}_{\mathsf{\text{T}}}1,n\right)}\right\}, we can see that the rank of its m th submatrix
is determined by the rank of {V}_{\mathsf{\text{L}}}^{\left\{{\stackrel{\u0304}{\mathcal{P}}}^{\left(m\right)},:\right\}}. The latter is a submatrix of the Vandermonde matrix W_{ K }, and is thus of full columnrank L+1 if G ≥ L+1.
In this case, the matrix {\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)} is of full columnrank N_{T}(L + 1). □
For the matrix product {A}^{\left(n\right)}={\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)}{\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)}, the rank inequality [24] reads
Combining Lemma 1 and Lemma 2 concludes the proof.
B Proof of Theorem 2
Similar to (48), we can express {\stackrel{\u0303}{A}}^{\left(n\right)} as {\stackrel{\u0303}{A}}^{\left(n\right)}:={\stackrel{\u0303}{\stackrel{\u0304}{A}}}_{\mathsf{\text{c}}}^{\left(n\right)}{\stackrel{\u0303}{\stackrel{\u0304}{A}}}_{\mathsf{\text{d}}}^{\left(n\right)} with
where {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)T}\left[{j}_{v}\right] and {\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)T}\left[{j}_{v}\right] are defined in (48) but with the symbol index j_{ v } added.
We first prove the full columnrank condition of {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)}\left[{j}_{v}\right] by following the same steps as in Lemma 1 except for (55), where we need to plug in the (O)CEBEM that is based on multiple blocks as defined in (22). As a result, we obtain after some algebra that
with K' := κV(K + L). Like in Lemma 1, the rank of {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)}\left[{j}_{v}\right] is determined by the rank of \left[{\stackrel{\u0304}{\Phi}}^{\left(0\right)},\dots ,{\stackrel{\u0304}{\Phi}}^{\left({N}_{\mathsf{\text{T}}}1\right)}\right] multiplied by G. It is tall if X = K / G ≥ N_{T}(Q + 1). Besides, if μ^{(m+1)}K' > μ^{(m)}K' + KG, this matrix contains distinctive columns of a larger XK'point DFT matrix, and is in that case of full columnrank.
To check the rank of {\stackrel{\u0303}{\stackrel{\u0304}{A}}}_{\mathsf{\text{d}}}^{\left(n\right)}, we permute its rows, which admits an expression as
where
Because {\stackrel{\u0303}{\stackrel{\u0304}{\mathcal{P}}}}^{\left(m\right)} contains VG distinctive elements, {V}_{\mathsf{\text{L}}}^{\left\{{\stackrel{\u0303}{\stackrel{\u0304}{\mathcal{P}}}}^{\left(m\right)},:\right\}} is a tall Vandermonde matrix if VG ≥ L + 1.
Since {\stackrel{\u0303}{\stackrel{\u0304}{A}}}_{\mathsf{\text{c}}}^{\left(n\right)} and {\stackrel{\u0303}{\stackrel{\u0304}{A}}}_{\mathsf{\text{d}}}^{\left(n\right)} are both of full columnrank, we can utilize the rank inequality in [24] to conclude the proof.
C Proof of Theorem 3 and Corollary 1
The identical pilot assumption implies that {\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)}\left[{j}_{0}\right]=\cdots ={\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)}\left[{j}_{V1}\right] and therefore
where {\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)T}\left[{j}_{v}\right] and {\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)T}\left[{j}_{v}\right] are defined in (48) with the symbol index j_{ v } added. Obviously, {\stackrel{\u0304}{A}}_{\mathsf{\text{d}}}^{\left(n\right)}\left[{j}_{0}\right] is of full columnrank if G ≥ N_{T}(L + 1). To prove the full columnrank condition of {\left[{\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)T}\left[{j}_{0}\right],\dots ,{\stackrel{\u0304}{A}}_{\mathsf{\text{c}}}^{\left(n\right)T}\left[{j}_{V1}\right]\right]}^{T}, we can follow similar steps as in Appendices A and B, which lead eventually to the full columnrank condition of a larger matrix
where {\Phi}_{g}^{\left(m\right)}\left[{j}_{v}\right] is defined in (59). If the above is not of full columnrank, then there should exist a vector {\left[{a}_{0}^{T},\dots ,{a}_{{N}_{\mathsf{\text{T}}}1}^{T}\right]}^{T}, which contains at least one nonzero element, such that
