Experimental study of image representation spaces in variational disparity calculation

EURASIP Journal on Advances in Signal Processing20122012:254

https://doi.org/10.1186/1687-6180-2012-254

Received: 16 September 2011

Accepted: 13 November 2012

Published: 10 December 2012

Abstract

Correspondence techniques start from the assumption, based on the Lambertian reflection model, that the apparent brightness of a surface is independent of the observer’s angle of view. From this, a grey value constancy assumption is derived, which states that a change in brightness of a particular image pixel is proportional to a change in its position. This constancy assumption can be extended directly for vector valued images, such as RGB. It is clear that the grey value constancy assumption does not hold for surfaces with a non-Lambertian behaviour and, therefore, the underlying image representation is crucial when using real image sequences under varying lighting conditions and noise from the imaging device. In order for the correspondence methods to produce good, temporally coherent results, properties such as robustness to noise, illumination invariance, and stability with respect to small geometrical deformations are all desired properties of the representation. In this article, we study how different image representation spaces complement each other and how the chosen representations benefit from the combination in terms of both robustness and accuracy. The model used for establishing the correspondences, based on the calculus of variations, is itself considered robust. However, we show that considerable improvements are possible, especially in the case of real image sequences, by using an appropriate image representation. We also show how optimum (or near optimum) parameters, related to each representation space, can be efficiently found.

Keywords

Mean Square ErrorInput ImageImage NoiseRegularisation TermImage Representation

Introduction

The optical flow constraint [1], based on the Lambertian reflection model, states that a change in the brightness of a pixel is proportional to a change in its position, i.e., the grey level of a pixel is assumed to stay constant temporally. This same constancy concept can be used also in disparity calculation by taking into account the epipolar geometry of the imaging devices (e.g., a stereo-rig). The grey level constancy, that does not hold for surfaces with a non-Lambertian behaviour, can be extended for vector valued images with different image representations. In this study, we use a method based on the calculus of variations for approximating the disparity map. Variational correspondence models typically have two terms, the first one being a data term (e.g., based on the grey level constancy), while the second one is a regularisation term used to make the solution smooth. In order to make the data term more robust with respect to non-Lambertian behaviour, different image representations can be used. Some of the problems in establishing correspondences arise from the imaging devices (e.g., camera/lens parameters being slightly different, noise due to imaging devices) and some, from the actual scene being observed (e.g., lighting conditions, geometrical deformations due to camera setup). Typically, illumination difference and optics related ‘errors’ are modelled as a multiplicative type of error, while the imaging device itself is modelled as a combination of both multiplicative and additive ‘errors’. It is clear that the underlying image representation is crucial in order for any correspondence method to generate correct, temporally coherent estimates in ‘real’ image sequences.

In this article, we study how combinations of different image representations behave with respect to both illumination errors and noise, ranking the results accordingly. We believe that such information is useful to the part of the visual community that concentrates on applications, such as obstacle detection in vehicle related scenarios [2], segmentation [3], and so on. Although other authors address similar issues [4, 5], we find these to be slightly limited in scope due to a reduced ‘test bench’, e.g., a small number of test images or image representations. Also, in most of the cases, the way in which the parameters related to the model(s) have been chosen is not satisfactorily explained. Therefore, the main contribution of our article is an analysis of the different image representations supported by a more detailed and systematical evaluation methodology. For example, we show how optimum (or near optimum) parameters for the algorithm, related to each representation space, can be found. This is a small but important contribution in the case of real, non controlled, scenarios. The standard image representation is the RGB-space, the others being (obtained via image transformations): gradient, gradient magnitude, log-derivative, HSV, rϕθ, and phase component of an image filtered using a bank of Gabor filters.

This work is a comparative study of the chosen image representations, and it is beyond the scope of this article to explain why certain representations perform better than others in certain situations. Under realistic illumination conditions, with surfaces both complying and not complying with the Lambertian reflection model, theoretical studies can become overly complex, as we show next. It is typically thought that chromaticity spaces are illumination invariant, but under realistic lightning conditions, this is not necessarily so [6]. One of the physical models that explains light reflected by an object is the Dichromatic Reflection Model [7] (DRM), which in its basic form assumes that there is a single source of light [7], which is unrealistic in the case of real images (unless the lightning conditions can be controlled). A good example of this is given by Maxwell et al. in their Bi-Illuminant Dichromatic Reflection article [6]: in a typical outdoor case, the main illuminants are sunlight and skylight, where fully lit objects are dominated by sunlight while objects in the shade are dominated by skylight. Thus, as the illumination intensity decreases, the hue of the observed colour becomes bluish. For the above mentioned reasons, chromatic spaces (e.g., HSV, rϕθ) are not totally illumination invariant under realistic lightning conditions. Therefore, in general, we do not speak of illumination invariance in this article but of illumination robustness or robust image representation with respect to illumination changes and noise. By illumination error, we refer to varying illumination conditions between the left- and right stereo cameras.

Next, Section 1 presents the relevant related study, some sources of error, and the variational method. Finally, in Sections 1, 1, and 1, we describe the proposed methodologies, results, and conclusions.

Background material and related study

Related study

The idea of robust ‘key-point’ identification is an important aspect of many vision related problems and has lead to such concepts as SIFT [8] (scale invariant feature transform) or SURF [9] (speeded up robust features). This study relates to identifying robust features as well, however, in the framework of variational stereo. Several studies comparing different data- or smoothness terms for optical-flow exist, for example, those of Bruhn [10] and Brox [11]. A similar study to the one presented here, carried out in a smaller scale for the optical-flow, has been done by Mileva et al. [4]. On the other hand, in [5], Wöhler et al. describe a method for 3D reconstruction of surfaces with non-Lambertian properties. However, many comparative studies do not typically explain in detail how the parameters for each different competing algorithm or representation were obtained. Also, sometimes it is not mentioned, if the learn and test sets for obtaining the parameters were the same. This poses problems related to biasing and over-training. If the parameters have been obtained manually, they are prone to bias from the user: expected results might get confirmed. On the other hand, if the learn and test sets were the same or they were too small, it is possible that over-training has taken place and, therefore, the results are not generalisable. We argue that in order to properly rank a set of representation spaces or different algorithms, with respect to any performance measure, optimum parameters related to each case need to be searched consistently, with minimum human interference, avoiding over-fitting.

Where our study differs from the rest is that (a) we use an advanced optimisation scheme to automatically optimise the parameters related to each image representation space, (b) image sets for optimisation (learning) and testing are different in order to avoid over-fitting, (c) we study the robustness of each representation space with respect to several image noise and illumination error models, and (d) we combine the results for both noise and illumination errors. Thus, the methodology can be considered to be novel.

Sources of error

Since the approach of this article is more experimental than theoretical, we only quickly cover some of the sources of error suffered by correspondence methods. Although optical-flow and stereo are similar in nature, they differ in a very important aspect: in stereo, the apparent movement is due to a change of position of the observer (e.g., left and right cameras), whereas in the optical-flow case, both the observer and the objects in the scene can move with respect to each other. Thus, stereo and optical-flow do not suffer from exactly the same shortcomings. For example, in the case of stereo, shadows cast upon objects due to illumination conditions can provide information when searching corresponding pixels between images. In the case of optical-flow, a stationary shadow cast upon a moving object makes it more difficult to find the corresponding pixels. Also, as it was already mentioned in Section 1, the imaging devices also cause problems in the form of noise, motion blur, and so on. Thus, an image representation space should be robust with respect to (a) small geometrical deformations (geometrical robustness), (b) changes in the illumination level (illumination robustness), both global and local, and (c) noise present in the images (e.g., due to the acquisition device). Our analysis was carried out for stereo but is directly applicable to optical-flow as well.

Variational stereo

We have chosen to use a variational method for several different reasons: (a) transparent modelling of the correspondence problem; (b) extending the model is straightforward; (c) the same mathematical formalism can be used for both optical-flow and stereo; and (d) the governing differential equation(s) can be solved efficiently [12]. The original idea of solving optical-flow in a variational framework is by Horn and Schunck [1]. The particular method that we have used was introduced by Slesareva et al. in [13] and is based on the optical-flow method of Brox et al. [14]. The characteristics of this method are: error functions for both the data and the regularisation terms are non-quadratic [14, 15]; the regularisation term is nonlinear isotropic [12, 16], based on the flow (flow-driven) and warping over several scales (multi-resolution strategy) is used in order to recover greater displacements with late linearisation [14, 17, 18] of the constancy terms. A Matlab/MEX code of the algorithm can be downloaded froma.

Before going any further, we introduce the used notation, so that the rest of the text would be more readable.

Notation

We consider the (discrete) image to be a mapping I ( x , k ) : Ω R K + , where the domain of the image is Ω:=[1, …, N]×[1, …, M], M and N being the number of columns and rows of the image, K defines number of the channels, and x = ( x , y ) . In our case K=3, since the input images are RGB, that is, I ( x , k ) : = [ R ( x ) G ( x ) B ( x ) ] . The input image is then transformed into the desired image representation by I ( x , k ) T ( x , kt ) so that T ( x , kt ) : Ω R KT + , where KT is the number of channels of the transformed image and Ω is as defined previously. We use subindices L and R to refer to the left- and the right images. Superindex w means that the components in question are ‘warped’ using the disparity d. For example, T R w = T x + d ( x , y ) , t R means that all the components of the right image are warped as per disparity d=d(x,y). For ‘warping’ we use bilinear interpolation.

Model

The energy functional to be minimised is as follows:
E ( d ) = Ω t = 1 2 b t D t ( T L , T R , d ) dx + α Ω S ( d ) dx E ( d ) = Ω b 1 D 1 ( T L , T R , d ) + b 2 D 2 ( T L , T R , d ) combined data term dx + α Ω S ( d ) dx
(1)
where D1(I L ,I R ,d) and D2(I L ,I R ,d) are components of the combined data term, S(d) is the regularisation term, and T{L,R}refers to the transformed versions of the left and the right images (all the channels). b1≥0, b2≥0 and α≥0 are the parameters of the model, defining the weight of the corresponding term. Both the data and the regularisation terms are defined as:
D t ( T L , T R , d ) : = kt = 1 KT Ψ T L , kt T R , kt w 2 2 , t S ( d ) : = Ψ d 2 2
(2)

where TL,kt=T(x,y,kt) L is the kt th channel of the left transformed image, T R , kt w = T x + d ( x , y ) , y , kt R is the kt th channel of the right transformed image warped as per disparity d=d(x,y), Ψ ( s 2 ) = s 2 + ε 2 is a non-quadratic error function, and ·2is the L2norm. For ‘warping’ we use bilinear interpolation. We would like to point out that even if formal definitions for all the D t are ‘equal’, the used image representation (i.e., transformation) is not necessarily the same for each t. We could have used an additional index for pointing out this fact, but we feel it should be clear from the context.

Because of the ambiguities related to the different representations and the L2 norm, here we give a concrete example of (2) for the I (see 1) and |I| (see 1) representations. More specifically, we use I representation for D1and |I| for D2. For clarity’s sake, we refer directly to the channels R, G and B, while subindices {L, R} indicate which image (left or right) is in question. Terms of the I representation are:
I L : = R L ∂x R L ∂y G L ∂x G L ∂y B L ∂x B L ∂y I R : = R R ∂x R R ∂y G R ∂x G R ∂y B R ∂x B R ∂y ,
(3)
whereas terms of the |I|representation are:
| I L | : = R L ∂x R L ∂y G L ∂x G L ∂y B L ∂x B L ∂y | I R | : = R R ∂x R R ∂y G R ∂x G R ∂y B R ∂x B R ∂y
(4)
In the (4) case the inner brackets (i.e., [·]) are used to indicate over which terms the norm is calculated. In other words, in (3) KT=6, whereas in (4) KT=3. Next step is to ‘plug’ terms of each representation into Equation (2) in order to get the actual data terms. For the I we have:
D 1 ( I L , I R , d ) = Ψ R L ∂x R R w ∂x 2 + Ψ R L ∂y R R w ∂y 2 + Ψ G L ∂x G R w ∂x 2 + Ψ G L ∂y G R w ∂y 2 + Ψ B L ∂x B R w ∂x 2 + Ψ B L ∂y B R w ∂y 2
(5)
The same for the |I|is:
D 2 ( | I L | , | I R | , d ) = Ψ R L ∂x R R w ∂x 2 + R L ∂y R R w ∂y 2 + Ψ G L ∂x G R w ∂x 2 + G L ∂y G R w ∂y 2 + Ψ B L ∂x B R w ∂x 2 + B L ∂y B R w ∂y 2
(6)
where the superindex w refers to warping as previously, i.e., T R , kt w = T x + d ( x , y ) , y , kt R . In order to complete the example, using the above mentioned representations, the complete energy functional would be written as:
E ( d ) = Ω b 1 Ψ R L ∂x R R w ∂x 2 + b 1 Ψ R L ∂y R R w ∂y 2 + b 1 Ψ G L ∂x G R w ∂x 2 + b 1 Ψ G L ∂y G R w ∂y 2 + b 1 Ψ B L ∂x B R w ∂x 2 + b 1 Ψ B L ∂y B R w ∂y 2 + b 2 Ψ R L ∂x R R w ∂x 2 + R L ∂y R R w ∂y 2 + b 2 Ψ G L ∂x G R w ∂x 2 + G L ∂y G R w ∂y 2 + b 2 Ψ B L ∂x B R w ∂x 2 + B L ∂y B R w ∂y 2 dx + α Ω Ψ d 2 2 dx
(7)

As we can see from Equations (5) and (6), error function Ψ(·) acts differently for ‘scalar’ and ‘vector’ fields. In (5), each of the components has its own error function, while in (6), the components are ‘wrapped’ inside the same error function. In order to have a better insight how this affects robustness, let us suppose that at a given position, the vertical derivative could not approximated well and, thus, would be considered an outlier. In the I case, only the vertical derivative would be suppressed (i.e., the component considered an outlier), while the horizontal derivative would still be used for approximating the disparity. In the |I| case, however, the whole term would be suppressed and the horizontal derivative would not be used either for approximating the disparity.

Now, with both the energy functional and the related data terms described, a physical interpretation of the model can be derived: we are looking for a transformation described by d that transforms the right image representation into the left image representation, with the d being piecewise smooth. By transforming the right image into the left image, we mean that the image features described by the data term(s) align.

Since the model is well known, we only quickly cover its characteristics. A quadratic error function typically gives too much weight to outliers, i.e., where the data does not fit well with the model. In the data term case, these outliers arise from where the Lambertian reflection model does not accurately describe surfaces of the objects being observed or from occluded regions (i.e., features seen only in one of the images). On the other hand, in the case of the regularisation term, outliers are those approximations that do not belong to the surface in question and, thus, regularisation across object boundaries belonging to different surfaces takes place. The use of a non-quadratic error function [15] makes the model more robust with respect to the outliers. In the case of the regularisation term, this means that the solution is piece-wise smooth [16, 17]. As can be observed from (2), each channel in both data terms has its own penalisation function Ψ(s2 + ε2) [19]. Since the error functions are now separate, this implies that if one of the constancy assumptions is rejected due to an outlier, other channels can still generate valid estimations, thus increasing the robustness of the method. Theoretically, any number of different representations could be used in the data term, but we have limited the number to two in this work in order to keep the computational cost at a reasonable level.

Solving the equations

The functional (1) is minimised using the corresponding Euler-Lagrange equation. A necessary, but not sufficient, condition for a minimum (or a maximum) is for the Euler-Lagrange equation to be zero. As it was mentioned earlier, late linearisation of the data term is used. This means that linearisation of the data term is postponed until discretisation of rest of the terms [12, 14, 17, 18]. Because of late linearisation, the model has the benefit of coping with large displacements, which, however, comes at a price: the energy functionals are non-convex. Due to the non-convexity, many local minima possibly exist and, therefore, finding a suitable relevant minimiser becomes more difficult. Another difficulty is due to the non-linearity of the robust error function. One such way of finding a relevant minimiser are the so called continuation methods (e.g., Graduated Nonconvexity [20]): search for a suitable solution is started from a simpler, smoothened version of the problem which is used to initialise the search at a finer scale. This is also known as a coarse-to-fine multi-resolution (or multigrid) strategy [12, 14, 18, 21]. The multi-resolution strategy has two very important implications that are interconnected. First, this means that the solution to the partial differential equation (PDE) is searched using a multigrid technique which has a positive effect on the convergence rate [12, 21]. Second, the problem of physically irrelevant local minima is also efficiently overcome by the this scheme: a solution from a simplified version of the problem (coarse scale) is used to initialise the next finer scale [12, 18]. While this does not guarantee that a global minimiser is found, it does, however, prevent getting stuck on a non-relevant local minimum [20]. In order to deal with the non-linearities, a lagged diffusivity fixed point method is used [10, 11]. The solver used for the linearised versions of the equations is alternating line relaxation (ALR) which is a Gauss-Seidel type block solver [10, 21].

Proposed methodologies

Searching for optimal parameters with differential evolution

Since the main idea of this study is to rank the chosen image representation spaces with respect to robustness, we have to find an optimum (or near optimum) set of parameter vectors b1b2α for each different case, avoiding over-fitting. As was already mentioned, using a human operator would be prone to bias. Therefore, we have decided to use a gradient free, stochastic, population based function minimiser called differential evolutionb(DE) [22, 23]. The rationale for using DE is that it has empirically been shown to find the optimum (or near optimum), it is computationally efficient, and the cost function evaluation can be efficiently parallelised. The principal idea behind DE is to represent the parameters to be optimised as vectors where each vector is a population member whose fitness is described by the cost function value. A population at time t is also known as a generation. Therefore, it can be understood that the system evolves with respect to artificial time t, also known as cycles. By recurring to the survival of the fittest theorem, the ‘fittest’ members contribute more to the coming populations and, thus, their characteristics overcome those of the weak members, therefore minimising (or maximising) the function value [22, 23]. Two members (parents) are stochastically combined into a new one (offspring), possibly with mutation, which then competes against the rest of the members of the coming generations. Therefore, in our case, a single member is a vector given by b1b2α while the cost function value is the mean squared error (MSE) given by Equation (31).

In order to compare the results obtained using different combinations of the image representations, we adopt a strategy typically used in pattern recognition: the input set (a set of stereo-images) is divided into a learning, a validation, and a test set. The learning set is used for obtaining the optimal parameters while the validation set is used to prevent over-fitting: during the optimisation, when the error for the validation set starts to increase, we stop the optimisation process, therefore keeping the solution ‘general’. This methodology is completely general and can be applied to any other image registration algorithm with only some small modifications. DE itself is computationally cost efficient, the problem being that several function evaluations (one per population member) per cycle are needed. The following table displays the parameters related to the DE, thus allowing us to approximate the computational effort.

From Table 1, we can see that a total of 34,0000 cost function evaluations are done in order to find the parameters. On the average, each cost function evaluation takes approx. 5 s (Matlab/MEX implementation). Therefore, it would take around 19.7 days ‘wall clock time’ to find the parameters. As is explained in Section 1, we repeat this procedure 5 times. However, the optimisation can be parallelised by keeping the members on the master computer and by calculating the function values on several slave computers simultaneously, which was the adopted strategy. This method of parallelising DE is certainly not new and has been reported earlier by, for example, Plagianakos et al. [24], Tasoulis et al. [25], and Epitropakis et al. [26]. The whole system was implemented on a ‘Ferlin’ LSF-type cluster (Foundation Level System) at the PDC Center for High Performance Computing, KTH, Stockholm, Sweden. The cluster consists of 672 computational nodes (each node consists of two quad-core Intel CPUs). By using four computational nodes (i.e., 32 cores), the total ‘wall clock time’, for all the five different runs (see Section 1), was approximately 5 days.
Table 1

DE parameters

Parameter

Value

Population members

25

Iterations

20

Training + validation sets

15 + 5

Image representations

34

Total

34,0000

Image transformations

In this section, we describe the image transformations that we have decided to evaluate. We have chosen the most common image representations as well as other transformations that have been proposed in the literature, due to their robustness and possibility of real-time implementation. All combinatorial pairs of NONE, RGB, RGBN, I, HS(V), (r)ϕθ, PHASE, LOGD and |I| are tested, except |I|and PHASE+LOGD. The 34 different tested combinations can be seen in Appendix 1, Table 2. As it was already mentioned previously, Mileva et al. tested some of the same representations earlier in [4]. Some combinations were left out because of practical issues related to the computational time (see Section Searching for optimal parameters with differential evolution for more information related to the computational time). A preliminary ‘small scale’ experiment was conducted in order to see which representations would be studied more carefully. In the following section, we briefly describe the different input representations under study.
Table 2

Tested illumination error types

Global

Local

Additive (GA)

Additive (LA)

Multiplicative (GM)

Multiplicative (LM)

Multiplicative and additive (GMA)

Multiplicative and additive (LMA)

RGBN (normalized RGB)

In the RGBN case, the standard RGB representation is simply normalised by using a factor N. In our tests, both images are normalised by using their own factor which is N i = max ( R i , G i , B i ) , i being the image in question (e.g., left or right image). The transformation is given by Equation (8).
R G B T R N G N B N T
(8)

RGBN is robust with respect to global multiplicative illumination changes.

I

The transformation is given by:
R G B T R x R y G x G y B x B y T
(9)

where sub-index states with respect to which variable the term in question has been derived. Gradient constancy term is robust with respect to both global and local additive illumination changes.

|I|

The transformation is given by:
R G B T R x R y G x G y B x B y T
(10)

where sub-index states with respect to which variable the term in question has been derived. In general, this term is illumination robust with respect to both local and global additive illumination changes.

HS(V)

HSV(Hue saturation value) is a cylindrical representation of the colour-space where the angle around the central axis of the cylinder defines ‘hue’, the distance from the central axis defines ‘saturation’, and the position along the central axis defines ‘value’ as in:
R G B T H S V T H = 0 , if max = min 60 ° × G B max min , if max = R 60 ° × B R max min + 120 ° , if max = G 60 ° × R G max min + 240 ° , if max = B S = 0 , if max = 0 max min max , otherwise V = max
(11)

where min = min ( R , G , B ) and max = max ( R , G , B ) . As can be understood from (11), the H and S components are illumination robust, while the V component is not and, therefore, it is excluded from the representation. In the rest of the text, HS(V) refers to image representation with only the H and S components.

(r)ϕθ

While HSV describes colours in a cylindrical space, rϕθ does so in a spherical one. r indicates the magnitude of the colour vector while ϕ is the zenith and θ is the azimuth, as in:
R G B T r θ ϕ T r = R 2 + G 2 + B 2 θ = arctan G R ϕ = arcsin R 2 + G 2 R 2 + G 2 + B 2
(12)

As can be observed from (12), both the ϕ and θ are illumination robust while magnitude vector r is not and, therefore, we exclude r from the representation. In the rest of the text, (r)ϕθ and spherical refer to an image representation based on the ϕ and θ.

LOGD

With LOGD we refer to log-derivative representation and the corresponding transformation is as follows:
R G B T ( ln R ) x ( ln G ) x ( ln B ) x × ( ln R ) y ( ln G ) y ( ln B ) y T
(13)

where sub-index states with respect to which variable the term in question has been derived. The log-derivative image representation is robust with respect to both additive and multiplicative local illumination changes.

PHASE

The reason for choosing the phase representation is threefold: (a) the phase component is robust with respect to illumination changes; (b) cells with a similar behaviour have been found in the visual cortex of primates [27], which might well mean that evolution has found this kind of representation to be meaningful (even if we might not be able to exploit it completely yet); and (c) the stability of the phase component with respect to small geometrical deformations (as shown by Fleet and Jepson [28, 29]). The phase is a local component extracted from the subtraction of local values. Therefore, it does not depend on an absolute illumination measure, but rather on the relative illumination measures of two local estimations (which are subtracted). This makes this estimation robust against illumination artifacts (such as shadows, which increase or decrease local illumination but do not affect local ratios so dramatically). In a similar way, if noise (multiplicative or additive) affects a certain local region uniformly, in average the illumination ratio (in which phase is based) will be less affected than the absolute illumination value. The filtering stage with a set of specific filters can be regarded as band-pass filtering, since only the components that match the set of filters are allowed (or not discarded) for further processing. Gabor filters have specific properties that make them of special interest in general image processing tasks [30].

We define the phase component of a band-pass filtered image as a result of convolving the input image with a set of quadrature filters [2830] as proceeds. The complex-valued Gabor filters are defined as:
h ( x ; f 0 , θ ) = h c ( x ; f 0 , θ ) + i h s ( x ; f 0 , θ )
(14)
where x=(x y) is the image position, f0 denotes the peak frequency, θ the orientation of the filter in reference to the horizontal axis, and h c (·)and h s (·)denote the even (real) and odd (imaginary) parts. The filter responses (band-pass signals) are generated by convolving an input image with a filter as in:
Q ( x ; θ ) = I h ( x ; f 0 , θ ) = C ( x ; θ ) + iS ( x ; θ )
(15)
where I denotes an input image, denotes convolution, and C(x;θ)and S(x;θ)are the even and odd responses corresponding to a filter with an orientation θ. From the even and odd responses, two different representation spaces can be built, namely phase and energy as follows:
E ( x ; θ ) = C ( x , θ ) 2 + S ( x ; θ ) 2 ω ( x ; θ ) = arctan S ( x ; θ ) C ( x ; θ )
(16)
where E(fx;θ) is the energy response and ω(x;θ), the phase response of a filter corresponding to an orientation θ. As can be observed from (15), the input image I can contain several components (e.g., RGB, HSV) where each component would be convolved independently to extract energy and phase. However, in order to maintain the computation time reasonable, the input images are first converted into grey-level images, after which the filter responses are calculated. Therefore, the transformation can be defined by:
R G B T ω ( x ; θ ) for all θ
(17)
Figure 1 shows phase information for the Cones image from the Middlebury databasec.
Figure 1

Phase response of Cones stereo-image: (a) original image; (b) phase response corresponding to θ  = 0 ; (c) phase response corresponding to θ  = 22.5 ; (d) phase response corresponding to θ  = 45 .

Induced illumination errors and image noise

Here, we introduce, along with the related mathematical formulations, the used models for simulating both illumination errors and image noise. Tables 3 and 4 display the error and noise models, in their respective order.
Table 3

Tested image noise types

Luminance

Chrominance

Salt & pepper

mild (nLM)

mild (nCM)

mild (nSPM)

severe (nLS)

severe (nCS)

severe (nSPS)

Table 4

Learn-, validation-, and test sets

Run

Learn

Test

Validation

1

Lampshade2

Cloth1

Rocks2

Aloe

Bowling2



Baby3

Reindeer

Baby2

Baby1

Laundry



Cones

Plastic

Tsukuba

Books

Moebius



Art

Wood1

Rocks1

Lampshade1

Venus



Dolls

Cloth3

Cloth2

Wood2

Teddy

From Table 3, we can observe that both global and local illumination errors are used. The difference between these types is that in the former case, the error is the same for all the positions, while in the latter, the error is a function of the pixel position. In the illumination error case (both local and global), we apply the error only on one of the images. Especially in the local illumination error case, this simulates a ‘glare’.

From Table 4, we can see that luminance, chrominance, and salt&pepper image noise types are used. The difference between the luminance and the chrominance is that in the former case, the noise affects all the channels, while in the latter, only one channel is affected. We apply the noise model to both of the images (i.e., left- and right image). Figure 2 displays some of the illumination errors and image noise for the Baby2 case from the Middlebury databased.
Figure 2

Baby2. (a) Original; (b) Local multiplicative and additive (LMA); (c) Severe luminance (nLS); (d) Severe salt&pepper (nSPS).

It can be argued that the noise present in the images could be reduced or eliminated by using a de-noising pre-processing step, and thus, the study should be centred more towards illumination type of errors. However, if any of the tested image representations proves to be sufficiently robust with respect to both illumination errors and image noise, this would mean that less pre-processing steps would be needed. This certainly would be beneficial in real applications, possibly suffering from a restricted computational power.

Before describing the mathematical formulations for each of the models previously mentioned, we need to make certain definitions.

However, before going any further, we would like to point out that the illumination error and noise models are applied on the RGB input images before transforming these into the corresponding representations. For the sake of readability, the used notation is explained here again. We consider the (discrete) image to be a mapping I ( x , k ) : Ω R K + , where the domain of the image is Ω:=[1,…,N]×[1,…,M], M and N being the number of columns and rows of the image, while K defines the number of the channels. In our case K=3, since the input images are RGB. Minimum and maximum values, after having applied the error or noise models, of the images are limited to [0,…,255]. The position vector can be written as follows: x ( i ) = x ( i ) , y ( i ) , where i[1,…,P] with P being the number of pixels (i.e., P=MN). When referring to individual pixels, instead of writing I x ( i ) , k ) , we write I(i, k)with i defined as previously and k being the channel in question.

Global illumination errors

Global illumination errors are defined as follows:
GA : I ( i , k ) I ( i , k ) + ga ,
(18)
GM : I ( i , k ) I ( i , k ) gm ,
(19)
GMA : I ( i , k ) I ( i , k ) gm + ga ,
(20)

where i=1,…,P, k=1,…,3, and ga is the additive error, while gm is the multiplicative error. For additive error, we have used ga=25 and for multiplicative error, we have used gm=1.1.

Local illumination errors

We define the local illumination error function as a mapping E : Ω R , with the domain as previously. In this study, we have used a scaled multivariate normal distribution, 2 ( x ( i ) , μ , Σ ) sF , to approximate the local illumination errors that change as a function of the position. Mean μ, covariance Σ, and scaling factor sF are defined as follows:
μ = ( N / 2 , M / 2 ) , Σ = 6 N 20 2 0 0 6 M 20 2 , sF = 0 . 35 ( 2 Π | Σ | 1 / 2 )
(21)
where N and M are the number of columns and rows in the image (as previously) and |Σ| is determinant of the covariance. Scaling factor sF simply scales the values between [0,…,0.35]. In other words, we simulate an illumination error that influences most the centre of the the image in question, as can be observed from Figure 2 (LMA case). With the above in place, we define the local illumination error function as E i : = 2 x ( i ) , μ , σ sF and, thus, the local illumination errors are as follows:
LA : I ( i , k ) I ( i , k ) + 255 E ( i )
(22)
LM : I ( i , k ) I ( i , k ) 1 + E ( i )
(23)
LMA : I ( i , k ) I ( i , k ) 1 + E ( i ) + 255 E ( i )
(24)

where i=1,…,P and k=1,…,3. The multiplier 255 is simply due to the ‘scaling’ of the image representation (i.e., [0,…,255]).

Luminance noise

In order to simulate both luminance and chrominance noise, we have generated two vectors of random numbers from normal distribution with different parameters. We denote these vectors as N m : = [ N 1 ( 0 , 10 ) , , N 1 ( 0 , 10 ) ] and N s : = [ N 1 ( 0 , 30 ) , , N 1 ( 0 , 30 ) ] , where the first vector simulates mild noise and the second one more severe noise. We use the same vectors for all the images and for both the luminance and chrominance types of noise.
nLM : I ( i , k ) I ( i , k ) + N m ( k 1 ) P + i
(25)
nLS : I ( i , k ) I ( i , k ) + N s ( k 1 ) P + i
(26)

where i=1,…,P and k=1,…,3. The index (k−1)P + i just makes sure that a different value is applied to each pixel in each channel.

Chrominance noise

Below, models for the chrominance type of noise are shown:
nCM : I ( i , k ) I ( i , k ) + N m i
(27)
nCS : I ( i , k ) I ( i , k ) + N s i
(28)

where i=1,…,P and k=1.

Salt&pepper noise

In order to simulate the salt&pepper type of noise, we have generated a vector from uniform distribution. We denote this vector as SP:=[U(0,1),…,U(0,1)]. We use this same vector for generating this type of noise for all the images.
nSPM : I ( i , k = 0 , , 3 ) = 255 , if SP ( i ) 0 . 95 0 , if SP ( i ) 0 . 05
(29)
nSPS : I ( i , k = 0 , , K ) = 255 , if SP ( i ) 0 . 90 0 , if SP ( i ) 0 . 10
(30)

where i=1,…,P.

Experiments

The purpose of the experiments was to study, both quantitatively and qualitatively, how each of the chosen image representations performs using both the original images and images with induced illumination errors or noise. This kind of analysis not only allows us to study how each of the representations behaves using the original images (naturally containing some noise due to the imaging devices), but also gives an insight of how robust each of the representations actually is: those representations that produce similar results with or without induced errors can be regarded to be robust. Due to the availability of stereo-images (with different illumination/exposure times) at the Middleburye database, with ground-truth, these were used for the quantitative experiments (Figure 3). We have used images that correspond to a size of approximately 370 × 420 (rows ×columns). For the qualitative analysis and functional validation, images from the DRIVSCOf and the GRASPgprojects were used.
Figure 3

Stereo-images from the Middlebury database used in the quantitative experiments. (a) Aloe; (b) Art; (c) Baby1; (d) Baby2; (e) Baby3; (f) Books; (g) Bowling; (h) Cloth1; (i) Cloth2; (j) Cloth3; (k) Cones; (l) Dolls; (m) Lampshade1; (n) Lampshade2; (o) Laundry; (p) Moebius; (q) Plastic; (r) Reindeer; (s) Rocks1; (t) Rocks2; (u) Teddy; (v) Tsukuba; (w) Venus; (x) Wood1; (y) Wood2.

Even if no vigorous image analysis was used when choosing the images, both the learn- and test sets were carefully chosen by taking the following into consideration: (a) none of the sets contains known cases where the variational method is known to fail completely; (b) both very textured (e.g., Aloe and Cloth1) and less textured cases (e.g., Plastic and Wood1) are included. Even though less textured cases are considerably more difficult for stereo algorithms, these were included so that the parameters found by the DE algorithm would be more ‘generic’. In Appendix 1, Table 9, typical disparity values for each image are given, along with an example of the mean squared error for the calculated disparity maps. The reason for not including cases where the algorithm fails is that in these cases, the effect of the used image representation would be negligible and thus, would not convey useful information for our study. The variational methods (and any other method known to us) are known to fail with images that do not contain enough spatial features in order to approximate the disparity correctly. However, in [31] we propose a solution to this problem by using both spatial and temporal constraints.

K-fold cross-validation

Because of the limited size of the data set for the quantitative experiment, a set of 25 different stereo-images, we have used a technique called k-fold cross-correlation[32, 33] to statistically test how well the obtained results are generalisable. In our case, due to the size of the data set, we use a 5-fold cross-correlation: the data set is broken in five sets, each containing five images. Then, we run the DE and analyse the results five times using three of the sets for learning, one for validation, and one for testing. In each run the sets for learning, validation and testing will be different. Results are based on all of the five runs. Below, there is a list of sets for the first run (Table 5).Information related to the image sets for all the different runs can be found in Appendix 1, Table 6.
Table 5

Ranking for combined error+noise and original images

Rank

Error + noise

MSE

Original images

MSE

1.

I+PHASE

72.3

I+HS(V)

35.1

2.

I

83.6

HS(V)+LOGD

37.5

3.

PHASE+|I|

84.1

I+RGB

39.0

4.

I+LOGD

87.4

I+RGBn

39.4

5.

PHASE

92.3

HS(V)+PHASE

40.6

6.

(r)ϕθ+PHASE

92.4

(r)ϕθ+PHASE

42.2

7.

I+|I|

92.6

I

44.9

8.

RGBn+LOGD

92.8

I +LOGD

45.6

9.

LOGD

97.5

I+PHASE

46.0

10.

RGB+PHASE

102.7

RGB+LOGD

46.0

11.

LOGD+|I|

105.5

RGBn+LOGD

46.8

12.

RGBn+|I|

111.5

RGBn+PHASE

47.1

13.

HS(V)+|I|

112.0

PHASE+|I|

47.7

14.

RGB+|I|

112.9

RGB+PHASE

47.9

15.

I+RGBn

114.8

PHASE

48.3

16.

RGBn+PHASE

120.0

LOGD

50.7

17.

HS(V)+PHASE

120.2

HS(V)+(r)ϕθ

53.2

18.

RGB+LOGD

125.7

(r)ϕθ

53.6

19.

I+(r)ϕθ

134.1

LOGD+|I|

55.2

20.

(r)ϕθ+|I|

139.8

HS(V)+|I|

55.9

21.

I+RGB

175.0

(r)ϕθ+|I|

56.9

22.

I+HS(V)

180.4

RGB+|I|

57.7

23.

HS(V)+LOGD

278.4

I+|I|

59.8

24.

HS(V)

293.8

RGBn+|I|

62.1

25.

RGB+HS(V)

360.8

RGBn+HS(V)

74.8

26.

RGBn+HS(V)

373.8

I+(r)ϕθ

99.3

27.

RGBn

374.4

(r)ϕθ+LOGD

103.7

28.

RGB

380.7

RGB+(r)ϕθ

119.4

29.

RGB+RGBn

394.3

HS(V)

134.3

30.

(r)ϕθ+LOGD

394.8

RGBn+(r)ϕθ

166.3

31.

HS(V)+(r)ϕθ

563.8

RGB+HS(V)

178.8

32.

(r)ϕθ

712.2

RGB

224.8

33.

RGBn+(r)ϕθ

716.7

RGB+RGBn

239.1

34.

RGB+(r)ϕθ

727.4

RGBn

260.3

Combined error+noise is MSE of all the different illumination errors and noise types.

Table 6

Combined ranking

Rank

Representation space

Summed rank

1.

I

9

2.

I+PHASE

10

3.

I+LOGD

12

4.

(r)ϕθ+PHASE

12

5.

PHASE+|I|

16

6.

I+RGBN

19

7.

RGBN+LOGD

19

8.

PHASE

20

9.

HS(V)+PHASE

22

10.

I+HS(V)

23

11.

I+RGB

24

12.

RGB+PHASE

24

13.

HS(V)+LOGD

25

14.

LOGD

25

15.

RGB+LOGD

28

16.

RGBN+PHASE

28

17.

I+|I|

30

18.

LOGD+|I|

30

19.

HS(V)+|I|

33

20.

RGB+|I|

36

21.

RGBN+|I|

36

22.

(r)ϕθ+|I|

41

23.

I+(r)ϕθ

45

24.

HS(V)+(r)ϕθ

48

25.

(r)ϕθ

50

26.

RGBN+HS(V)

51

27.

HS(V)

53

28.

RGB+HS(V)

56

29.

(r)ϕθ+LOGD

57

30.

RGB

60

31.

RGBN

61

32.

RGB+RGBN

62

33.

RGB+(r)ϕθ

62

34.

RGBN+(r)ϕθ

63

The summed rank column is the sum of the rankings given in Table 7 for each representation. The ranking here is based on the summed rank (the lower, the better).

Error metric

The error metric that we have used is the mean squared error (MSE), defined by:
MSE : = 1 SP j = 1 S i = 1 P ( d i ) j ( dg t i ) j 2
(31)

where d is the calculated disparity map, dgt is the ground truth, P is the number of pixels, and S is the number of images in the set (e.g., for a single image S=1) for which the mean squared error is to be calculated for.

As can be observed from Table 7, the most robust representation was I+PHASE, while the second one was I without any combinations. Since both I and PHASE represent different physical quantities (gradient and phase of the image signal, as the names suggest), and both of these have been shown to be robust, it is not surprising that a combination of these was the most robust representation. In general, representations based on both I and PHASE were amongst the most robust representations. On the other hand, I+LOGD was the most accurate representation with the original images (i.e., without induced errors or noise). In general, representations based on I have produced good results with the original images.
Table 7

Tested image representation combinations

Term

Term



None

RGB

RGBN

|I|

HS(V)

(r)ϕθ

Phase

LOGD

None



RGB

X



X

X

X

X

X

X

RGBN

X



X

X

X

X

X

I

X

X

X

X

X

X

X

X

HS(V)

X



X



X

X

X

(r)ϕθ

X



X



X

X

Phase

X



X



LOGD

X



X


As can be observed from Table 8, the best combined ranking was produced by I alone. Also, it can be noted that the first three are all based on I. However, I+PHASE is slightly more robust than I alone, but not as accurate. This is clear from the figures presented in Section 1.
Table 8

Learn-, validation-, and test sets

Run



 Learn



Test

Validation

1

Lampshade2

Cloth1

Rocks2

Aloe

Bowling2



Baby3

Reindeer

Baby2

Baby1

Laundry



Cones

Plastic

Tsukuba

Books

Moebius



Art

Wood1

Rocks1

Lampshade1

Venus



Dolls

Cloth3

Cloth2

Wood2

Teddy

2

Baby1

Cloth1

Teddy

Art

Rocks1



Aloe

Wood1

Reindeer

Baby2

Rocks2



Lampshade1

Laundry

Bowling2

Cloth3

Cloth2



Dolls

Wood2

Lampshade2

Plastic

Books



Cones

Baby3

Moebius

Tsukuba

Venus

3

Aloe

Rocks1

Lampshade1

Baby1

Baby3



Dolls

Venus

Moebius

Bowling2

Wood2



Laundry

Tsukuba

Rocks2

Lampshade2

Plastic



Cones

Baby2

Books

Reindeer

Cloth2



Wood1

Art

Cloth3

Teddy

Cloth 1

4

Baby3

Cones

Tsukuba

Baby1

Books



Rocks2

Art

Cloth3

Cloth2

Lampshade2



Laundry

Dolls

Reindeer

Teddy

Cloth1



Plastic

Bowling2

Lampshade1

Venus

Rocks1



Aloe

Wood2

Baby2

Wood1

Moebius

5

Bowling2

Books

Reindeer

Baby2

Teddy



Tsukuba

Cloth3

Rocks2

Cloth1

Baby3



Moebius

Aloe

Laundry

Plastic

Venus



Cones

Wood1

Art

Rocks1

Cloth2



Lampshade1

Dolls

Lampshade2

Wood2

Baby1

Results

In this section, we present the results, both quantity and visual quality-wise. First, the results are given by ranking how well each representation has done, both accuracy and robustness-wise. Then, we study how combining different representations has affected the accuracy and the robustness of these combined representations. After this, we present the results for some real applications visual quality-wise, since ground-truth is not available for these cases.

Ranking

Here, we rank each of the representation spaces in order to gain a better insight on the robustness and accuracy of each representation. By robustness and accuracy, we mean the following: (a) a representation is considered robust when results based on it are affected only slightly by noise or image errors; (b) a representation is considered accurate when results based on this gives good results using the original (i.e., noiseless) images. While this may not be the standard terminology, we find that using these terms makes it easier to explain the results. In Table 7, each of the representations is ranked with respect to (a) the original images and (b) the combined illumination errors and noise types, while Table 8 combines the aforementioned results into a single ranking. The MSE value in the tables is based on all the different runs (see Section 1). In the case of the combined error and noise (error+noise in the tables), the MSE value is calculated based on all the different illumination errors and noise types for the five different runs.

Improvement due to combined representation spaces

In the following, we show how each of the basic representations (1st column in Appendix Appendix 1, Table 2) has benefited, or worsened, by being combined with different representations. In other words, we show, for example, how the error for I changes when combined with |I|, therefore, allowing us to deduce if I benefits from the combination. Results are given with respect to error, thus, a positive change in the error naturally means greater error and vice versa. Figure 4 displays the results for I, PHASE, and LOGD, while Figure 5 gives the same for (r)ϕθ, HS(V) and RGB. We have left out results for RGBN on purpose, since this was the worst performer and the results, in general, were similar to those of RGB.

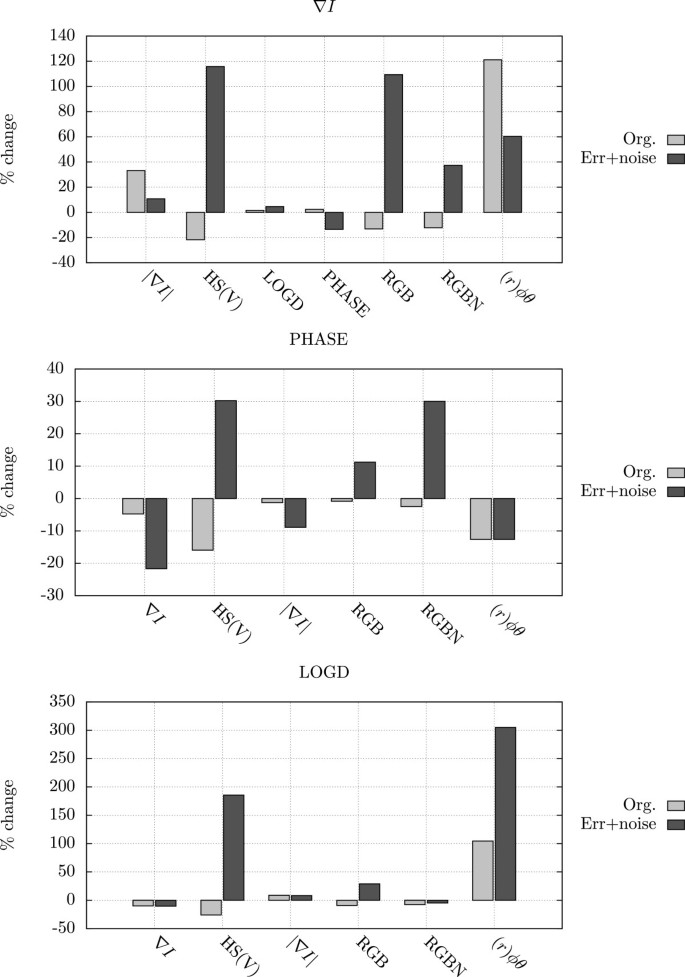

Figure 4

Change in error due to combined representation. Results for I, PHASE, and LOGD. A positive value indicates an increase in error, while a negative value indicates a decrease in error.

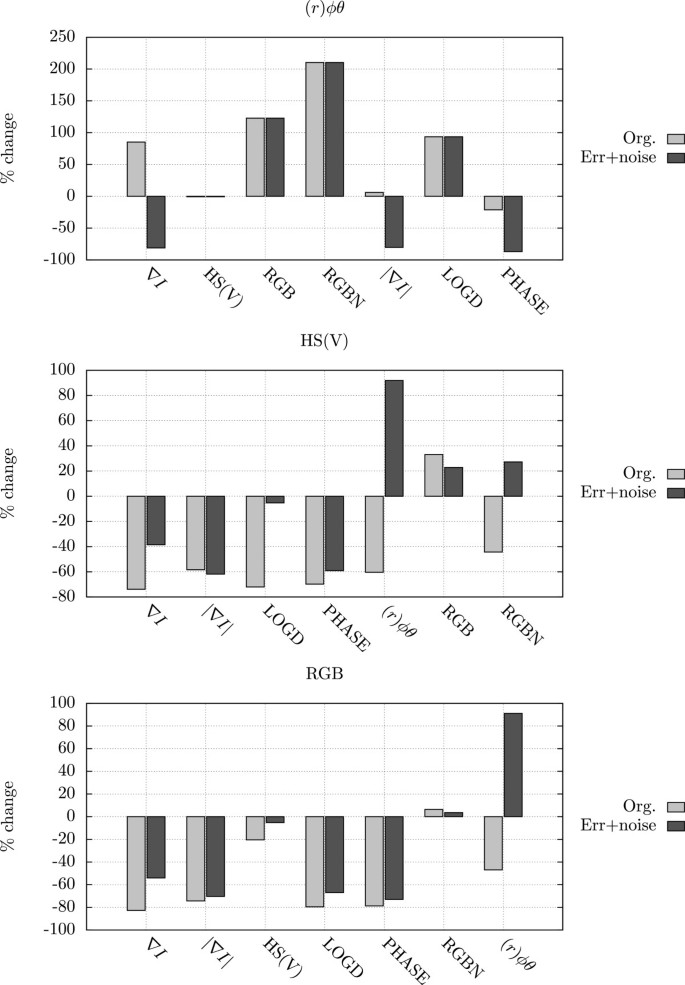

Figure 5

Change in error due to combined representation. Results for (r)ϕθ, HS(V), and RGB. A positive value indicates an increase in error, while a negative value indicates a decrease in error.

As it can be observed, combining I with any of the representations, apart from (r)ϕθ, has improved both accuracy and robustness. Combining (r)ϕθ with I improves robustness but at the same time, worsens accuracy. The situation with PHASE is similar: combining PHASE with other representations, apart from I, has improved both accuracy and robustness; when combined with I, accuracy worsens slightly while robustness improves. From Table 7, it can be observed that I+PHASE is more robust than I alone (first and second positions) with error+noise, while I ranks seventh and I+PHASE ranks ninth with the original images.

Visual qualitative interpretation

Figures 6, 7, and 8 display results visually for the Cones, DRIVSCO, and GRASP cases, using the following image representations: I, I+PHASE, I+HS(V), PHASE, and RGB. A video of the results for DRIVSCO is available ath. These representations were chosen since (a) I was the overall ‘winner’ for the combined results (see Table 8); (b) I+PHASE was the most robust one; (c) I+HS(V) was the most accurate one; (d) PHASE is both robust and accurate, and (e) RGB is the ‘standard’ representation from typical cameras. The parameters used were the same in all the cases presented here and are those from the 1st run (out of five) for the 5-fold cross-validation. The reasoning here is, confirmed by the results, that any robust representation should be able to generate reasonable results for any of the parameters found in the cross-validation scheme.
Figure 6

Cones. (a) Ground truth; (b)I; (c)I+PHASE; (d)I+HS(V); (e) PHASE; (f) RGB.

Figure 7

DRIVSCO scene. (a) Left image; (b)I; (c)I+PHASE; (d)I+HS(V); (e) PHASE; (f) RGB.

Figure 8

GRASP scene. (a) Left image; (b)I; (c)I+PHASE; (d)I+HS(V); (e) PHASE; (f) RGB.

As can be observed from Figure 6, the results are somewhat similar for all the representations. However, as it can be observed, RGB has visually produced slightly worse results.

Figure 7 shows results for the DRIVSCOisequence (Additional file 1). Here, I+PHASE has produced the most concise results: results for the road are far better than with any of the other representations. On the other hand, I+HS(V) has produced the best results for the trailer: obtaining correct approximations for the trailer is challenging since it tends to ‘fuse’ with the trees. RGB has produced very low quality results and, for example, scene interpretation based on these results would be very challenging if not impossible.

Additional file 1: DRIVSCO sequence disparity results. Disparity calculation results for the DRIVSCO sequence using different image representations. (FLV 5 MB)

Figure 8 shows results for a robotic grasping scene. Both I and I+HS(V) have produced good results: the object of interest lying on the table is recognisable in the disparity map. I+PHASE or PHASE alone has increased ‘leakage’ of disparity values between the object of interest and the shelf. On the other hand, PHASE representation has produced the best results for the table, especially for the lowest part. Again, RGB has produced low quality results.

Altogether, visual qualitative interpretation of the results using real image sequences is in line with the quantitative analysis. Both I and I+PHASE produce good results even with real image sequences. However, the former produces slightly more accurate results while the latter representation is more robust.

Conclusions

We have shown that the quality of a disparity map, generated by a variational method, under illumination changes and image noise, depends significantly on the used image representation type. By combining different representations, we have generated and tested 34 different cases and found several complementary spaces that are affected only slightly even under severe illumination errors and image noise. Accuracy differences of 7-fold (without noise) and 10-fold (with noise and illumination errors) were found between the best and worst representation maps, which highlights the relevance of an appropriate input representation for low level estimations such as stereo. This accuracy enhancing and robustness to noise can be of critical importance in specific application scenarios with real uncontrolled scenes and not just well behaving test images (e.g., automatic navigation, advanced robotics, CGI). Amongst the tested combinations, the I representation stood out as one of the most accurate and least affected by illumination errors or noise. By combining I with PHASE, the joined representation space was the most robust one amongst the tested spaces. This finding was also confirmed by the qualitative experiments. Thus, we can say that the aforementioned representations complement each other. These results were also confirmed in a qualitative evaluation of natural scenes in uncontrolled scenarios.

There are some studies similar to ours, carried out in a smaller scale. However, the other studies typically provide little information related to how the optimum (or near optimum) parameters of the algorithm are achieved, related to each representation space: in this study, we have used a well known, derivative free, stochastic algorithm called DE for the reasons given in the text. We argue that manually obtained parameters are subjected to a bias from the human operator and therefore, can be expected to confirm expected results. Three different sets of images were used for obtaining the parameters and testing each of the representations, in order to avoid over-fitting. The proposed methodology for estimating model parameters can be extended to many other computer vision algorithms. Therefore, our contribution should lead to more robust computer vision systems capable of working with real applications.

Future study

The weighting factors (b1 and b2 in (1)) for each image representation are applied equally to all of the ‘channels’. Since some of the channels are more robust than others, like in the case of HSV for example, each channel should have its own weighting factor. Since this study allows us to cut down the number of useful representations, we propose to study the best behaving ones in more detail with separate weighting factors where needed.

Appendix 1

Imagerepresentations and sets

Typical disparity values

The following table displays minimum, maximum, mean, and standard deviation (STD) of ground-truth disparity for each of the used images. Also, in the same table we give the MSE (mean squared error), for each of the images, calculated using the parameters from the 1st run for the I based image representation. The lowest numbers are the mean, standard deviation and MSE for the whole image set. The number on the lowest row in the table are the mean, standard deviation and MSE for the whole image set.

As it can be observed from Table 9, for some of the images the MSE is some what big. This does not come as a complete surprise since some of the images, such as Wood1, Wood2, Lampshade1, and Lampshade2 contain only few useful spatial features for approximating the disparity correctly. As future study, it would be interesting to divide the images into two categories (ones with sufficient spatial features and ones with only very few spatial features), and then search for the optimum parameters using the DE algorithm. Now, if there would be considerable improvement in either of the sets, then this would suggest that the parameters should be chosen based on previous image analysis step.
Table 9

Typical disparity values for each image, and MSE for each image using parameters from the 1st run for I image representation


Min

Max

Mean

Std

MSE

Aloe

14.33

70.33

24.13

9.34

43.7

Art

24.33

74.67

44.36

14.37

95.5

Baby1

8.33

45.33

27.79

10.66

24.6

Baby2

13.33

51.67

28.95

12.05

7.8

Baby3

15.67

51.00

42.15

6.93

11.7

Books

21.67

73.67

43.00

14.71

8.7

Bowling2

13.33

66.00

46.88

15.96

116.0

Cloth1

13.00

57.33

38.28

8.93

0.6

Cloth2

14.00

76.00

53.24

12.37

30.6

Cloth3

15.00

55.33

36.28

11.31

5.1

Cones

5.50

55.00

33.54

11.58

8.7

Dolls

3.00

73.67

45.85

14.09

4.2

Lampshade1

14.00

64.67

35.87

15.90

78.2

Lampshade2

8.67

65.33

38.92

14.46

75.5

Laundry

11.67

77.33

40.29

12.95

27.3

Moebius

21.33

72.67

37.19

11.20

12.7

Plastic

7.67

65.33

45.27

13.36

15.4

Reindeer

3.67

67.00

41.54

15.01

112.8

Rocks1

19.33

56.67

37.53

9.50

1.7

Rocks2

23.33

56.00

38.57

7.00

1.3

Teddy

12.50

52.75

27.38

9.02

8.8

Tsukuba

5.00

14.00

6.79

2.67

2.1

Venus

3.00

19.75

8.89

4.09

1.0

Wood1

21.67

71.67

40.83

12.71

102.5

Wood2

14.33

72.33

48.89

15.46

126.6



37.08

15.82

36.9

Endnotes

Declarations

Acknowledgements

We thank Dr. Javier Sánchez and Dr. Luis Álvarez from the University of Las Palmas de Gran Canaria, and Dr. Stefan Roth from the technical University of Darmstadt for helping us out getting started with the variational methods. Further, we would like to thank Dr. Andrés Bruhn for our fruitful conversations during the DRIVSCO workshop 2009. Also, we would like to thank the PDC Center for High Performance Computing of Royal Institute of Technology (KTH, Sweden) for letting us use their clusters. This work was supported by the EU research project TOMSY (FP7-270436), the Spanish Grants DINAM-VISION (DPI2007-61683) and RECVIS (TIN2008-06893-C03-02), Andalusia’s regional projects (P06-TIC-5060 and TIC-3873) and Granada Excellence Network of Innovation Laboratories’ project PYR-2010-19.

Authors’ Affiliations

(1)
Departamento de Arquitectura y Tecnología de Computadores, Escuela Técnica Superior de Ingenierías y de Telecomunicación, Universidad de Granada, Spain

References

  1. Horn BKP, Schunck BG: Determining optical flow. Artif. Intell 1981, 17: 185-203. 10.1016/0004-3702(81)90024-2View ArticleGoogle Scholar
  2. Huang Y, Young K: Binocular image sequence analysis: integration of stereo disparity and optic flow for improved obstacle detection and tracking. EURASIP J. Adv. Signal Process 2008, 2008: 10.MATHGoogle Scholar
  3. Björkman M, Kragic D: Active 3D segmentation through fixation of previously unseen objects. In Proceedings of the British Machine Vision Conference. BMVA Press; 2010:pp. 119.1-119.11. 10.5244/C.24.119Google Scholar
  4. Mileva Y, Bruhn A, Weickert J: Illumination-robust variational optical flow with photometric invariants. In DAGM07- Volume LNCS. Heidelberg, Germany; 2007:152-162.Google Scholar
  5. Wöhler C, d’Angelo P: Stereo image analysis of non-lambertian surfaces. Int. J. Comput. Vision 2009, 81(2):172-190. 10.1007/s11263-008-0157-1View ArticleGoogle Scholar
  6. Maxwell B, Friedhoff R, Smith C: A bi-illuminant dichromatic reflection model for understanding images. In in IEEE Conference on Computer Vision and Pattern Recognition (CVPR 2008). Anchorage, Alaska, USA; 2008:1-8.View ArticleGoogle Scholar
  7. Shafer S, Using color to separate reflection components: Tech. rep. 1984. [TR 136, Computer Science Department, University of Rochester]Google Scholar
  8. Lowe DG, Distinctive image features from scale-invariant keypoints: Int. J. Comput. Vision. 2004, 60: 91-110.View ArticleGoogle Scholar
  9. Bay H, Ess A, Tuytelaars T, Gool LV: Speeded-up robust features (SURF). Comput. Vis. Image Underst 2008, 110: 346-359. 10.1016/j.cviu.2007.09.014View ArticleGoogle Scholar
  10. Bruhn A: Variational optic flow computation: accurate modelling and efficient numerics. PhD thesis. Saarland University, Saarbrücken, Germany; 2006.Google Scholar
  11. Brox T: From pixels to regions: partial differential equations in image analysis, . PhD thesis. Saarland University, Saarbrücken, Germany; 2005.Google Scholar
  12. Bruhn A, Weickert J, Kohlberger T, Schnörr C: A multigrid platform for real-time motion computation with discontinuity-preserving variational methods. Int. J. Comput. Vision 2006, 70(3):257-277. 10.1007/s11263-006-6616-7View ArticleGoogle Scholar
  13. Slesareva N, Bruhn A, Weickert J: Optic flow goes stereo: a variational method for estimating discontinuity-preserving dense disparity maps. In DAGM05- Volume LNCS 3663. Vienna, Austria; 2005:pp. 33-40.Google Scholar
  14. Brox T, Bruhn A, Papenberg N, Weickert J: High accuracy optical flow estimation based on a theory for warping. In ECCV04-Volume LNCS 3024. Prague, Czech Republic; 2004:pp. 25-36.Google Scholar
  15. Black M, Anandan P: Robust dynamic motion estimation over time. In Proc. Computer Vision and Pattern Recognition. Maui, Hawaii, USA; 1991:pp. 296-302.Google Scholar
  16. Weickert J, Schnörr C: A theoretical framework for convex regularizers in PDE-based computation of image motion. Int. J. Comput. Vision 2001, 45(3):245-264. 10.1023/A:1013614317973View ArticleMATHGoogle Scholar
  17. Nagel H, Enkelmann W: An investigation of smoothness constraints for the estimation of displacement vector fields from image sequences. PAMI 1986, 8(5):565-593.View ArticleGoogle Scholar
  18. Alvarez L, Weickert J, Sánchez J: Reliable estimation of dense optical flow fields with large displacements. Int. J. Comput. Vision 2000, 39: 41-56. 10.1023/A:1008170101536View ArticleMATHGoogle Scholar
  19. Zimmer H, Bruhn A, Weickert J, Valgaerts L, Salgado A, Rosenhahn B, Seidel H: Complementary optic flow. In EMMCVPR , vol. 5681 of Lecture Notes in Computer Science. Bonn, Germany; 2009:pp. 207-220.Google Scholar
  20. Blake A, Zisserman A: Visual Reconstruction. The MIT Press, Cambridge, Massachusetts London, England; 1987.Google Scholar
  21. Trottenberg U, Oosterlee C, Schüller A: Multigrid. Academic Press, A Harcourt Science and Technology Company Harcourt Place. 32 Jamestown Road, London NW1 7BY UK; 2001.MATHGoogle Scholar
  22. Storn R, Price K: Differential evolution—a simple and efficient adaptive scheme for global optimization over continuous spaces. Tech. rep 1995. [TR-95-012, ICSI]Google Scholar
  23. Storn R, Price K: Differential evolution—a simple, efficient heuristic for global optimization over continuous spaces. J. Global Optimiz 1997, 11(4):341-359. 10.1023/A:1008202821328MathSciNetView ArticleMATHGoogle Scholar
  24. Plagianakos VP, Vrahatis MN: Parallel evolutionary training algorithms for hardware-friendly neural networks. Nat. Comput 2002, 1: 307-322. 10.1023/A:1016545907026MathSciNetView ArticleMATHGoogle Scholar
  25. Tasoulis DK, Pavlidis N, Plagianakos VP, Vrahatis MN: Parallel differential evolution. In In IEEE Congress on Evolutionary Computation (CEC). Portland, OR, USA; 2004:pp. 1-6.Google Scholar
  26. Epitropakis MG, Plagianakos VP, Vrahatis MN: Hardware-friendly higher-order neural network training using distributed evolutionary algorithms. Appl. Soft Comput 2010, 10: 398-408. 10.1016/j.asoc.2009.08.010View ArticleGoogle Scholar
  27. Hubel D, Wiesel T: Anatomical demonstration of columns in the monkey striate cortex. Nature 1969, 221: 747-750. 10.1038/221747a0View ArticleGoogle Scholar
  28. Fleet D, Jepson A: Stability of phase information. IEEE Trans. Pattern Anal. Mach. Intell 1993, 15(12):1253-1268. 10.1109/34.250844View ArticleGoogle Scholar
  29. Fleet D, Jepson A: Phase-based disparity measurement. Comput. Vision Graphics Image Process 1991, 53(2):198-210.MATHGoogle Scholar
  30. Sabatini S, Gastaldi G, Solari F, Pauwels K, Hulle MV, Díaz Jx, Ros J, Pugeault N, Krüger N: A compact harmonic code for early vision based on anisotropic frequency channels. Comput. Vis. Image Underst 2010, 114: 681-699. 10.1016/j.cviu.2010.03.008View ArticleGoogle Scholar
  31. Ralli J, Díaz J, Ros E: Spatial and temporal constraints in variational correspondence methods. Mach. Vision Appl 2011, 1-13.Google Scholar
  32. Devijver PA, Kittler J: Pattern Recognition: a Statistical Approach. Prentice Hall; 1982. ISBN 13: 9780136542360, ISBN 10: 0136542360MATHGoogle Scholar
  33. Kohavi R: A study of cross-validation and bootstrap for accuracy estimation and model selection. In Proceedings of the 14th International Joint Conference on Artificial Intelligence- Volume 2. Morgan Kaufmann, Montreal, Quebec, Canada; 1995:pp. 1137-1143.Google Scholar

Copyright

© Ralli et al; licensee Springer. 2012

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Advertisement
