Nonidentical smoothing operators for estimating timefrequency interdependence in electrophysiological recordings
EURASIP Journal on Advances in Signal Processing volume 2013, Article number: 73 (2013)
Abstract
Synchronization of neural activity from distant parts of the brain is crucial for the coordination of cognitive activities. Because neural synchronization varies both in time and frequency, time–frequency (TF) coherence is commonly employed to assess interdependences in electrophysiological recordings. TF coherence entails smoothing the cross and power spectra to ensure statistical consistency of the estimate, which reduces its TF resolution. This tradeoff has been described in detail when the cross and power spectra are smoothed using identical smoothing operators, which may yield spurious coherent frequencies. In this article, we examine the use of nonidentical smoothing operators for the estimation of TF interdependence, i.e., phase synchronization is characterized by phase locking between signals captured by the cross spectrum and we may hence improve the tradeoff by selectively smoothing the auto spectra. We first show that the frequency marginal density of the present estimate is bound within [0,1] when using nonidentical smoothing operators. An analytic calculation of the bias and variance of present estimators is performed and compared with the bias and variance of standard TF coherence using Monte Carlo simulations. We then test the use of nonidentical smoothing operators on simulated data, whose TF properties are known through construction. Finally, we analyze empirical data from eyesclosed surface electroencephalography recorded in human subjects to investigate alphaband synchronization. These analyses show that selectively smoothing the auto spectra reduces the bias of the estimator and may improve the detection of TF interdependence in electrophysiological data at high temporal resolution.
1 Introduction
Coherence analysis has widely been used for investigating functional connectivity between electrophysiological signals to study the role of neural synchronization in perception, action, and cognition [1–3]. Neural synchronization has been reported in different frequency bands and to vary over time and is hence commonly assessed using time–frequency (TF) coherence. TF coherence has been used in many fields of science, including neuroscience [4–10]. Shorttime Fourier transform (STFT) and wavelet transformation are typically used to estimate the TF distribution of the signals of interest, which can be interpreted as the spectral density estimation. Other approaches include the quadratic TF distribution from Cohen’s class [11], such as the WingerVille [11, 12] and the ChoiWilliams distribution [13].
Smoothing the cross and auto spectra is required for the estimation of TF coherence [7, 14]. Given an arbitrary TF decomposition method, smoothing the cross and auto spectra can be performed via one of the following approaches; (a) Smoothing of periodigrams via ensemble averaging, which is based on the Welch’s overlapped segment averaging (WOSA) method [15]. This approach yields magnitudesquared coherence (MSC), see also [16]. (b) Smoothing in one or both of the time and frequency domains. In wavelet coherence, an explicit scaledependent 2D smoothing operator has previously been used, e.g., a Gaussian envelope of the Morlet wavelet function as the timesmoothing operator and a boxcar filter with a specific width as the scale (or frequency) smoothing operator [7, 17, 18]. (c) Smoothing of both cross and auto spectra via averaging a set of spectra estimated by multiple orthogonal taper functions [10, 19]. Multiwavelet coherence was proposed based on the concept of Thomson’s multitaper technique [20] and involves a set of orthogonal wavelet taper functions, the socalled Morse wavelet. Smoothing in the TF plane is implicit when the cross and auto spectra are averaged across the set of taper functions [20–22]. It has been shown that multiwavelet coherence has a lower variance compared to explicit 2D smoothing operators [21].
All these approaches estimate coherence by using identical smoothing operators for the cross and auto spectra. The use of identical smoothing operators indicates that TF coherence satisfies the CauchySchwarz inequality and is hence bounded within [0,1] (see also [20, 21]). Smoothing entails an inherent tradeoff between statistical consistency and TF resolution, i.e., wider smoothing windows result in improved accuracy and precision at the cost of reduced resolution in TF plane [23]. When using identical smoothing operators the estimator fails when smoothing goes to 1, as the numerator and denominator become identical. Because phase synchronization is characterized by phase locking between signals, captured by the cross spectrum, we may improve the temporal resolution by selectively smoothing the auto spectra. When using nonidentical smoothing operators, the bias of the estimator may not go to 1 when the cross spectrum is not smoothed, resulting in an estimator with improved temporal resolution. In particular, we consider the case in which only the auto spectra are smoothed. The resulting estimate is not bound within [0,1], but it can be shown that its frequency marginal density is equivalent to standard coherence as a function of frequency.
We first test the effect of nonidentical smoothing operators in simulated data and quantify its performance based on the sensitivity, specificity, and zscore. We then apply this method to empirical data of surface electroencephalography (EEG) and assess corticocortical connectivity between occipital channels estimated using identical and nonidentical smoothing operators. The marginalcovariance densities are used to compare the observed correlations in the time and frequency domains. These analyses show that the use of nonidentical smoothing operators may help to detect weak correlations in electrophysiological data and open up new possibilities for quantifying TF interdependences.
2 Methods
We first provide a short overview of TF decomposition methods before introducing a generalized TF coherency function. We then derive two specific estimators based on nonidentical smoothing operators. Two simulated datasets are generated for testing the estimators. The first example involves signals whose correlations vary in time and in the second example correlations vary in time and frequency. The empirical dataset consists of EEG data from two occipital channels in three subjects to investigate synchronization in the alpha frequency band (8–12 Hz), which is commonly observed over occipital cortex.
2.1 Spectral decomposition
Both the STFT [24] and the wavelet transform [5, 25–27] have extensively been used for spectral decomposition. There is a tradeoff between spectral and temporal resolution depending on window length: short windows give poor spectral but good temporal resolution, and vice versa for long windows. Temporal and spectral resolutions remain constant over frequencies for STFT, as a fixed window length is used. In contrast, the wavelet transform has varying TF resolution, because signal are decomposed by rescaling and shifting a mother wavelet function. Irrespective of the differences between spectral decomposition methods, it has been shown that the Fourier, Hilbert, and waveletbased techniques are in fact mathematically equivalent when using the most frequently employed class of wavelets [28]. Recently, statistical properties including the bias and variance of the phase estimators such as Fourier, Hilbert, and waveletbased techniques have been discussed in [29].
Using WOSA, the signal is first partitioned into L equivalent segments. Each segment is then weighted with a suitable window w[m] (positive, square integrable, integrates to one), e.g., a unit power Hamming window. The Fourier transform of each weighted segment is computed and the estimation of power spectral density (PSD) is obtained by averaging over L overlapping segments [24], estimating the cross spectral density (CSD), PSD, and the discrete Fourier transform of signal x _{ l }[n] as
where k denotes the discrete frequency, asterisk (^{∗}) the complex conjugate, x _{ l }[n] = x[l(M − q) + n] and y _{ l }[n] = y[l(M − q) + n] where l = 1,2,…,L and n=1,2,…,N, $j=\sqrt{1}$. L and N are, respectively, the total number of overlapping windows and data samples in x[n], M and q denote the width of a weighting window function w[m] and the overlapping samples, respectively. Alternatively, the wavelet transform and waveletPSD of discrete signal x[n] at scale or frequency a, (0 < a < ∞) and translation or time b, ($b\in \mathbb{R}$) can be expressed as
where Δ t denotes the sampling interval, and ψ(.) a permissible wavelet function such as a complex Morlet wavelet function [20, 21].
2.2 TF coherence
Coherence quantifies linear correlations between two stochastic processes, or two observations x[n] and y[n], from a linear timeinvariant system as a function of frequency, or time and frequency. Here, we define a generalized coherency function as
where ${\widehat{p}}_{\mathit{\text{xy}}}[l,k]$ denotes the CSD estimate between x _{ l }[n] and y _{ l }[n], ${\widehat{p}}_{\mathit{\text{xx}}}[l,k]$ the PSD estimate, and S _{1}{.} and S _{2}{.} the smoothing operators for the numerator (CSD) and denominator (PSDs), respectively. If we assume identical smoothing operators (i.e., S _{1}{.} ≡ S _{2}{.}), we obtain standard TF coherency, which is normative (i.e., $0\le \left{\widehat{\Gamma}}_{\mathit{\text{xy}}}\right[l,k\left]\right\le 1$), see also [7, 15, 17, 30].
The smoothing operators S _{1}{.} and S _{2}{.} can be 1D function of time [16], or an explicit 2D smoothing operator in both time and frequency [7, 17, 22], or an average over a set of orthogonalbased spectral estimates such as multitaper approaches [10, 19, 22]. Using a timedomain smoothing operator, S _{time} (∙k), we obtain standard MSC as
and TF coherence as
where the numerator and denominator of Equation (4) are estimated as in Equation (1). The smoothing window v[m], a suitable smoothing window (positive, square integrable, integrates to one)—e.g., a unit power Hamming window function of length M _{1}—is used as timedomain smoothing operator S _{time}(∙k), where $\u229b$ denotes the convolution operator. Note that smoothing process is implemented by convolving the TF CSD and PSDs with smoothing window v[m] at any given frequency k. In the present context and for comparison purposes, we use a weighting window in the STFT, i.e., normalized Hamming window of 0.5 s in duration, and smoothing window, v[m], of 0.75 s duration. In this study, a normalized Hamming window was also used for smoothing the cross and auto spectra defined in Equations (5) and (11), and refer to TF interdependence using identical smoothing operators as Method 1.
Smoothing in both time and frequency has been proposed to improve the consistency of the TF coherence [22], which can be expressed as S{p _{ x y }[l,k]} = S _{freq}(S _{time}(p _{ x y }k)l). In the wavelet coherence approach, the Gaussian envelope of the Morlet wavelet with unit power is used as the timedomain smoothing operator, and a frequencydomain filter, a boxcar function of the width δ, as the frequencydomain smoothing operator,
where ${S}_{\text{freq}}\left({p}_{\mathit{\text{xy}}}\rightl)={p}_{\mathit{\text{xy}}}[l,k]{c}_{2}\prod ({\sigma}_{k}\mathrm{\delta a})$. Here $\prod \left(.\right)$ denotes the boxcar function, σ _{ l } and σ _{ k } the time and frequency localization parameters, respectively. The coefficients c _{1} and c _{2} normalize the filters to unit energy. Subsequently, identical smoothing operators are applied to the temporal PSDs p _{ x x }[l,k] and p _{ y y }[l,k] [22]. Alternatively, multiple orthogonal tapers are used to estimate the spectral densities [10, 19] and smoothing is performed implicitly by averaging over these tapers. The use of a set of orthogonal wavelet functions allows a low variance estimation of the spectral density [21, 22, 31], and TF coherence can hence be estimated as
where ${\widehat{p}}_{\mathit{\text{xy}}}[l,k;p]$ is the p th spectral density estimate obtained from p th orthogonal taper or wavelet function.
2.3 Nonidentical smoothing operators
We now relax the constraint of identical smoothing operators and investigate Equation (3) when S _{1}{.} ≠ S _{2}{.}. Note that by relaxing this constraint the estimator does not satisfy the CauchySchwarz inequality and hence is not bound within [0,1]. We will first consider the case in which we only smooth the PSDs, i.e., S _{time}(∙k), is applied to the denominator of Equation (3) only. In particular, we rescale the temporal complexvalued CSD between signals x _{ l }[n] and y _{ l }[n] by the ensemble averaged PSDs as
where ${\widehat{p}}_{\mathit{\text{xx}}}\left[k\right]=\frac{1}{L}{\widehat{p}}_{x}\left[k\right]$, which is given in Equation (1). Although this estimator (Method 2) is not bound within [0,1], we can easily show that the frequencymarginal density of $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k]{}^{2}$ approaches the MSC given in Equation (4) and hence is bound within [0,1] as shown by
where $\mathbb{E}$ is the mathematical expectation, ${\widehat{\theta}}_{R}[l,k]$ and ${\widehat{\theta}}_{I}[l,k]$ denote the real and imaginary parts of ${\widehat{\theta}}_{\mathit{\text{xy}}}[l,k]$. That is, Equation (9) represents the rescaled TF interdependence estimate in which the MSC can be obtained by temporally smoothing ${\widehat{\theta}}_{\mathit{\text{xy}}}[l,k]$.
Since the numerator in Equation (9) is not smoothed the variance of this estimate will be higher than the variance of Equation (5), but its temporal resolution is also higher than estimates obtained from Equation (5). To facilitate comparison between both approaches, we hence smooth ${\widehat{\theta}}_{\mathit{\text{xy}}}[l,k]$ by substituting the numerator of Equation (5) in the numerator of Equation (9), which yields
That is, the smoothed CSD is rescaled by the inner product of the ensembleaveraged PSDs (Method 3). (The MATLABfunction of Methods 1,2, and 3 can be found in the following link: http://www.sng.org.au/Downloads)
2.3.1 The bias and variance of TF interdependence estimators, ${\widehat{\theta}}_{\mathit{\text{xy}}}[l,k]$ and ${\widehat{\Xi}}_{\mathit{\text{xy}}}[l,k]$
It is well known that the standard TF coherence function, (see Equation (5)), between two random Gaussian processes is distributed as a chisquared random variable with ν degrees of freedom, shown as ${\chi}_{\nu}^{2}$, [7, 17]. Statistical properties of MSC, (see Equation (4)), was shown to have a specific probability density function (PDF) and cumulative distribution function [16, 32]. Recently, Cohen and Walden [18, 31] have shown that temporally smoothed wavelet coherence, (see Equation (7)), of two stationary processes with Normal distribution and zero mean is distributed as the Goodman’s distribution with an appropriate degrees of freedom. Therefore, the bias and variance of the standard TF coherence and MSC have explicitly been stated and addressed in the literature. In this section, the aim is to analytically calculate the bias and variance of TF interdependence estimators, $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$, see Equation (9), and $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$, see Equation (11). We define the bias and variance of the estimators $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ and $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ as follows (derivations of analytic calculation of the bias and variance are given in Appendix)
where $\mathbf{A}\triangleq \left{\widehat{p}}_{x{y}_{{}_{l}}}\right[k\left]\right$ and $\mathbf{B}\triangleq \sqrt{{\widehat{p}}_{\mathit{\text{xx}}}\left[k\right]{\widehat{p}}_{\mathit{\text{yy}}}\left[k\right]}=\sqrt{{L}_{\mathit{\text{xy}}}^{2}\left[k\right]+{Q}_{\mathit{\text{xy}}}^{2}\left[k\right]}={\widehat{p}}_{\mathit{\text{xy}}}\left[k\right]$, where L _{ x y }[k] and Q _{ x y }[k] denote the real and imaginary parts of the ensemble cross spectra, respectively. Using Equation (12a) approximates the bias of estimators $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ and $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ as $\mathbb{E}\left\{\right.\frac{\mathbf{A}}{\mathbf{B}}\left\}\right.\approx \frac{2.1}{\sqrt{\pi {D}_{{w}_{d}}}}$ and $\mathbb{E}\left\{\right.\frac{\stackrel{\u0304}{\mathbf{A}}}{\mathbf{B}}\left\}\right.\approx \frac{2.1}{{M}_{1}\sqrt{\pi {D}_{{w}_{d}}}}$, where $\stackrel{\u0304}{\mathbf{A}}$ and M _{1} denote the cross spectra and the width of a smoothing window, v[m], respectively (see Appendix). ${D}_{{w}_{d}}={R}_{w}\left[0\right]+\frac{8}{{\pi}^{2}}{R}_{w}\left[1\right]+(1\frac{8}{{\pi}^{2}}){R}_{w}\left[3\right]$ is the scaled correlation function of the Fourier transform of a weightingwindow function, such that ${R}_{w}\left[d\right]=\sum _{m=1}^{Md}W\left[m\right]W[m+d]$, where $W\left[k\right]=\mathcal{F}\left\{w\right(m\left)\right\}$ denotes the Fourier transform of a weighting window function w(m) of length M [16]. In this article, ${D}_{{w}_{d}}\approx 1.8$ (see Appendix). Accordingly, using Equation (12b) approximates the variance of estimators $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ and $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ as $\text{Var}\left\{\right.\frac{\mathbf{A}}{\mathbf{B}}\left\}\right.\approx \frac{0.54}{{D}_{{w}_{d}}}$ and $\text{Var}\left\{\right.\frac{\stackrel{\u0304}{\mathbf{A}}}{\mathbf{B}}\left\}\right.\approx \frac{0.54}{2{M}_{1}{D}_{{w}_{d}}}$, respectively (see Appendix).

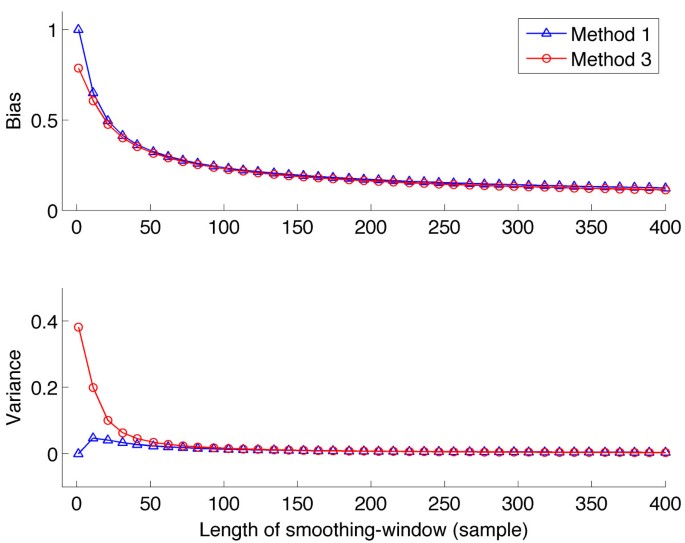

In order to verify the calculation of the bias and variance, Monte Carlo simulations have been performed for 1,000 realizations. Resulting bias and variance of the TF coherence estimators, $\left{\widehat{\Gamma}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ and $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$, are given in Figure 1. It is shown that the bias of estimator $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ (Method 3) (≈ 0.8) is lower than that of estimator $\left{\widehat{\Gamma}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ (Method 1) where a smoothingwindow is not used. Naturally, the variance of estimator $\left{\widehat{\Gamma}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ (Method 1) goes to zero, because it attributes the value of 1 to all TF coherence estimates when no smoothing is applied. On the other hand, the variance of estimator $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ (Method 3) is not zero (≈ 0.4) when no smoothing is applied to the cross spectrum. This indicates that method 3 can differentiate between coherent and noncoherent TF points at maximal temporal resolution, as smoothing is not required. The bias and variance obtained from an analytic calculation (i.e., Equations (28a), (28b)) closely agree with simulation results shown in Figure 1, verifying the analyses performed to approximate the bias and variance of the present TF interdependence estimators.
2.4 Simulated data
To compare three methods and test the use of nonidentical smoothing operators, we derived from two simulated datasets with different properties:

(1)
Signal pairs with timevarying coherence, i.e., Gaussian noise modulated at 0.6 and 1.2 Hz.

(2)
Signal pairs with frequencyvarying coherence, i.e., a jump in synchronous frequencies from 10 to 20 Hz.
After comparing the methods in these basic examples, we then explore their ability to characterize dynamic correlations in human EEG data, where the ground truth is not known in advance.
2.4.1 Simulated dataset 1
We first consider an example proposed by Lachaux et al. [8] to evaluate TF coherence. Two independent discrete noise sequences ${\left\{{\alpha}_{{1}_{n}}\right\}}_{n=1}^{N}$ and ${\left\{{\alpha}_{{2}_{n}}\right\}}_{n=1}^{N}$ with mean 0 and variance 1 were drawn from normal distribution and modulated by a sinusoid signal β[n], where N is the total number of samples. This modulation produces two discrete signals S _{1}[n] = α _{1}[n] + β[n]α _{2}[n], and S _{2}[n] = α _{2}[n] + β[n]α _{1}[n], which are synchronized and desynchronized over time. We defined a pure sinusoid signal β[n] as β[n] = a (1 + sin[2π f n]). Following Lachaux et al. [8], we choose f = 0.6 Hz. In addition, to assess the temporal resolution of the different methods, we also consider f = 0.9 Hz and f = 1.2 Hz, i.e., in this example coherence is modulated at a higher frequency. The amplitude a determines the boundaries of the coherence, see Equation (13). Since α _{1}[n] and α _{2}[n] are Gaussian noise with variance σ ^{2} = 1, the power spectra of α _{1}[n] and α _{2}[n] are both equal to σ ^{2} = 1 for all frequencies, and their cross spectra are equal to 0. The coherence between signals S _{1}[n] and S _{2}[n] can analytically be defined as a function of β[n] as follows:
where $F\left[n\right]=\frac{1}{a}\beta \left[n\right]$, and a ∈ [0.01,0.5]. By substituting a _{max} = 0.5 and a _{min} = 0.01 into Equation (13), one respectively obtain two bounds for timevarying coherence, one is 0 ≤ Υ [0.5,n] ≤ 1 and the other is 0 ≤ Υ [0.01,n] ≤ 1.6 × 10^{−3}.
The methods were assessed for different levels of coherence by considering a∈[0.01,0.5]. To test for statistical significance of the estimated TF interdependence, sets of surrogate data of linear independent signals were created. For each amplitude a, 100 surrogates were generated by randomizing the corresponding Fourier phases [33], i.e., by destroying the temporal structure in the data while leaving amplitudes intact. TF interdependence was computed between the surrogate sets and 95% confidence intervals were determined for each method independently. The analytic coherence is continuously distributed and we assess the performance of the different methods by regressing estimated TF interdependences on the analytic coherence.
2.4.2 Simulated dataset 2
In the second example, coherence varies both in time and frequency and we assess the methods by varying the signaltonoise ratio (SNR). We simulated two independent discrete signals S _{3}[n] = [x _{1}[n] + η _{1}[n], x _{2}[n] + η _{2}[n]] and S _{4}[n] = [x _{1}[n] + η _{3}[n], x _{2}[n] + η _{4}[n]] of 20s duration. Note that n denotes the discrete time index. η[n] is Gaussian noise: $\eta \left[n\right]\sim \mathcal{N}({\mu}_{\eta}=0,{\sigma}_{\eta}^{2}=1)$. Two sinusoid signals x _{1}[n] = A sin[2π 10n] and x _{2}[n] = A sin[2π 20n] were contaminated by four independent Gaussian noise sequences η _{ i }[n],i = 1,2,3,4 as stated above. To produce signals with different amplitudes, we defined a range of amplitudes A by using a wide range of SNR,
The three methods were compared for different levels of SN R ∈ [−30,10] dB, where dB is a logarithmic unit that indicates the ratio of a physical quantity (noise strength, signal strength, etc). Here, we set A _{no i s e } = 0.2. Performance of the methods was assessed by quantifying the sensitivity, specificity, and zscore. Sensitivity and specificity are statistical measures of the performance of a binary classification test defined as
where TP, TN, FP, and FN denote number of true positives, true negatives, false positives, and false negatives, respectively. By construction, signals S _{3}[n] and S _{4}[n] are either fully correlated or uncorrelated for each point in the TF plane, i.e., they are binary. To binarize the estimated TF interdependence we again determined the 95% confidence interval by phaserandomizing the data (see Section 2.4.1), assigning all TF points exceeding the threshold to 1 and the rest to 0. In addition, the zscores were determined at each specific SNR as
where $\stackrel{\u0304}{X}$ denotes mean of the estimate at TF points where true coherence is present and μ and σ _{ x } the mean and standard deviation of the estimate at TF points were true coherence is absent (null distribution). Note that the true coherence is represented in Figure 2.
2.4.3 Experimental data (human EEG)
We then sought an exploratory assessment of the different estimators of TF interdependence in characterizing synchronization in an exemplar physiological dataset, namely human EEG. We studied the correlations between two scalp channels over occipital cortex, i.e., O _{1} and O _{2}. EEG was acquired from three healthy human subjects while they were sitting still with their eyes closed for 10 min. EEG data were sampled at F s = 500 Hz and digitized by an analogtodigital convertor with a resolution of 16 bits/sample. The protocol was approved by the Human Research Ethics Committee of The University of New South Wales and all subjects gave their voluntary and informed consent. EEG data recorded over occipital areas were chosen because it is known to contain complex patterns of intermittent synchronization within the alpha frequency range (8–13 Hz), see [34].
Because the true coherence between empirically recorded signals is not known, we assess the methods based on the marginal densities of the covariance matrix. We first determine the timedomain and frequencydomain zerolag covariance matrices. The timedomain covariance matrix of $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ is estimated as ${\widehat{R}}_{\mathit{\text{xy}}}^{(L\times L)}=\mathbb{E}\left\{\right{\widehat{\Xi}}_{\mathit{\text{xy}}}[l,k]\left\right{\widehat{\Xi}}_{\mathit{\text{xy}}}^{H}[l,k]\left\right\}$ where H denotes Hermitain transposition (i.e., conjugate transposition). Analogously, the frequencydomain covariance matrix is estimated as ${\widehat{R}}_{\mathit{\text{xy}}}^{(K\times K)}=\mathbb{E}\left\{\right{\widehat{\Xi}}_{\mathit{\text{xy}}}^{H}[l,k]\left\right{\widehat{\Xi}}_{\mathit{\text{xy}}}[l,k]\left\right\}$. Therefore, the timedomain zerolag covariance matrix of $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ can be estimated as
where ${\mu}_{{l}_{1}k}$ denotes the mean value of $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[{l}_{1},k\left]\right$ at timewindow l _{1} and given frequencies k = 1,2,…,K. Similarly, the frequencydomain zerolag covariance matrix $\left{\widehat{R}}_{\mathit{\text{xy}}}^{(K\times K)}\right$ is expressed as
The diagonal of matrices ${\widehat{R}}_{\mathit{\text{xy}}}^{(L\times L)}$ and ${\widehat{R}}_{\mathit{\text{xy}}}^{(K\times K)}$ reflect the variance and reveal the dominant temporal interaction and spectral correlation between signals x[n] and y[n], which is used to compare the different methods.
3 Results
3.1 Simulations
Two basic datasets were generated to compare three methods on signals with known properties. Figure 2 shows the analytic (or the truevalued) timevarying coherence obtained from Equation (13) at amplitude a = 0.5 for dataset 1, and the desired TF coherence for the frequencyvarying coherence described in dataset 2. TF interdependence was assessed with different estimators as defined in Equations (5), (9), and (11), which use either identical and nonidentical smoothing operators. In the first simulated dataset, the time course of all three methods follows the analytic timevarying coherence, although some differences can be observed (Figure 3). Using identical smoothing operators, estimated correlation levels are generally quite high (Figure 3A). Indeed, if we determine the number of statistically significant TF points using phaserandomized surrogate data, we see that the null hypothesis is rejected in at least >50% of the simulations even for TF points where true coherence is absent (Figure 3B). These are false positive observations as the apparent statistical significance is high but the true rate is zero. Because analytic coherence is identical across frequencies, we investigate timemarginal density of all three methods, which again confirms the raised lower bound of the coherency estimate when using identical smoothing operators (Figure 3C).

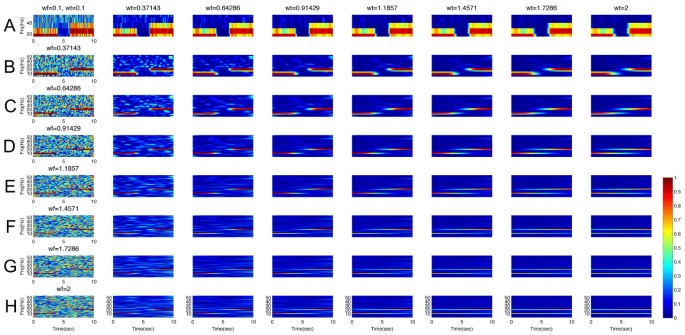

As expected, not smoothing the CSDs, as described in Equation (5), strongly increases the variance of the estimate (Figure 3D). However, the estimator still reflects the analytic coherence as shown by the statistical analysis (Figure 3E) and its timecourse (Figure 3F). The variance of the estimate is reduced after smoothing the CSDs, as described in Equation (11) (Figure 3G). Although the variance of the estimate is still higher compared to the first method based on identical smoothing operators, the range of the estimate has increased. The percentage of simulations in which the null hypothesis is rejected varies between 30 and 100% (Figure 3H) and the time course reveals a lower value around 0.15 (Figure 3I).
We then assessed the performance of the three estimators by linear regression of the estimated interdependence (Figure 4) against the analytic coherence (Figure 2). The top row of Figure 4 shows an example of the regression lines for the three methods. Using identical smoothing operators, estimated coherency is bounded in [0,1], the estimate is largely restricted to values >0.5 as reflected by the large offset (0.55) and small slope (0.37) of the regression line (Figure 4A). The estimator predicts analytic coherence well, as shown by the correlations coefficient (r) of 0.67. Using nonidentical smoothing operators, estimated coherence is no longer bounded in [0,1] and reveals increased variance (Figure 4B,C). However, the regression line is closer to that of an ideal estimator (X=Y), as revealed by a lower offset (0.41) and a larger slope (0.69) (Figure 4C). Due to larger variation in the estimate, the correlation coefficient for nonidentical smoothing operators is lower (r=0.47) than for identical smoothing operators. This is true for the whole range of amplitudes (a∈[0.01,0.5]) when coherence is modulated at 0.6 Hz (Figure 4D). Methods 1 and 3 use a temporal smoothing window with a length of 0.75 s. If coherence is modulated at 1.2 Hz (or 0.833 s period length), the changes in coherence within each cycle get smoothed out as the length of the smoothing window is close to the period length of the modulation. Method 2 does not involve smoothing of the cross spectrum and hence is still able to capture the cyclic changes in coherence. When coherence is modulated at lower rates (e.g., 0.6 Hz) methods 1 and 3 perform better as the smoothing window is shorter than the period length of the modulation of coherence and smoothing improves the SNR. This result confirms the superior temporal resolution of method 2 in this setting. As Figure 4D–F shows, there is a decreasing trend in the r values of methods 1 and 3 due to the smoothing window. This indicates that method 1 reduces the variance of estimates when using a smoothing operator, but this comes at the expense of reducing the temporal resolution. This is revealed by a decreasing value of r. As shown in Figure 4D–F, method 2 does not deviate far from r ∼ 0.2 while the modulation frequency increases.
In the second dataset, coherence is varied in time and frequency reflecting a jump in time from 10 to 20 Hz (Figure 2B). Again, all three methods are able to detect this coherence pattern (Figure 5, top row), i.e., showing correlations at frequencies f _{1} = 10 Hz (from 0 to 8 s) and f _{2} = 20 Hz (from 12 to 20 s). Similar to the results from dataset 1, method 1 (based on identical smoothing operators) shows the highest level of background coherence (Figure 5A). In contrast, coherence levels for method 2 are relatively reduced for both the synchronous TF points as the noncoherent background (Figure 5B). The smoothed version of method 2 shows higher levels at the coherent TF points combined with low background levels (Figure 5C). The time and frequency marginal densities of method 3 also correctly reflect the coherent time points (Figure 5F) and frequencies (Figure 5I), whereas method 1 shows more spurious offdiagonal correlations (Figure 5G). In this example, the input variable in binary, i.e., coherence is either 0 or 1, and we use signal detection theory to quantify performance. Estimated TF interdependence was binarized by defining a 95% confidence interval using a resampling technique and all TF points were set at 0 or 1 depending on this threshold. We then quantified the sensitivity and specificity of the three methods. The specificity was constant at 0.95 because we used a 95% confidence interval to binarize the data. The sensitivity increased for all three methods with increasing SNRs showing a jump from 0.5 to approximately 1 around SNR of −10 dB. Method 3 had slightly higher sensitivity at these intermediate SNR levels, although the difference was marginal. The zscore, reflecting the ratio between estimated interdependence at correlated and uncorrelated TF points (Equation (16)), showed a similar increase at higher SNR levels. Method 3 has the highest zscore across all levels of SNR reflecting the increased contrast between correlated and uncorrelated TF points.
These two basic simulations show that using nonidentical smoothing operators and selectively smoothing the numerator and denominator of the TF coherence function increases the range of the estimate and allows detecting a broader range of correlations. The increased range helps to decrease the number of false positives and reduces spurious correlation patterns. However, the increased range comes at the cost of increased variance of the estimate.
3.2 EEG data
We finally apply three methods to empirical data to characterize dynamic patterns of interdependences between left and right of human occipital cortexes, as reflected in surface EEG recordings at channels O _{1} and O _{2}. Data segments for three subjects are shown in the top row of Figure 6 revealing intermittent episodes of alpha activity. The TF interdependences estimated with method 1 show high levels of correlations uniformly across time and frequency (Figure 7, row A). In contrast, methods 2 and 3 reveal a more heterogeneous TF estimate reflecting a larger range of estimated values (Figure 7, rows B and C, respectively). Because the underlying properties of the signals are unknown, we use the frequencymarginal densities of the estimates (see Equation (18)) to obtain the correlated frequencies. Method 1 revealed uniformly correlated frequencies, i.e., interdependences are not restricted to any particular frequency and numerous offdiagonal correlations are present. In contrast, the frequencydomain covariance matrix of methods 2 and 3 shows specific correlated frequencies between the two EEG signals, O _{1} and O _{2} isolated to the alpha frequency range (8–12 Hz) in all three subjects (Figure 7 at rows E and F). Although some offdiagonal correlations are present, they are strongly reduced compared to method 1.
4 Discussion
In this article, we assess the use of nonidentical smoothing operators for estimating TF interdependence. Traditionally, the cross and auto spectra are smoothed using identical smoothing operators to assure that the estimate is bound within [0,1]. By relaxing this constraint, we examine the possibility of selectively smoothing the auto spectra to improve the tradeoff between TF resolution and statistical consistency. Analytic and simulation analysis of the bias and variance showed that the use of nonidentical smoothing operators reduces the bias of the estimate when smoothing vanishes, which allows to design an estimator with maximal temporal resolution. However, the reduced bias comes at the cost of increased variance of the estimate and the estimate is no longer bound within [0,1]. Two stimulated datasets showed that the reduced bias results in an increased range and reduced false positive of the estimate, but lower correlation with the true distribution due to increased variance. When applying these methods to two occipital EEG channels, the reduced range of the estimate obtained with identical smoothing operators resulted in spurious correlation patterns. In contrast, the estimator based on nonidentical smoothing operators revealed a larger range and selectively detected correlations in the alpha frequency band. Together these results show that nonidentical smoothing operators may be useful when high temporal resolution or low false positive rates are required.
All three estimators are based on timedomain smoothing operators. In the first method, the cross and auto spectra are smoothed with a short temporal window. In the second method, the temporal CSD is normalized by the ensemble averaged PSDs. Finally, in the third method, the smoothed CSD is normalized by the ensemble averaged PSDs. Two datasets were constructed to compare the three estimators. In the first dataset coherence changed continuously over time. Using nonidentical smoothing operators (method 3) resulted in an increased range and reduced bias compared to identical smoothing operators (method 1), as reflected by a reduction in false positives (Figure 3H) and a regression line with a smaller offset and increased slope (Figure 4C). However, the regression coefficient, r, was lower for method 3 than for method 1 due to increased variance of the estimate. Using identical smoothing operators (method 1), the combination of higher bias and lower temporal resolution may lead to spurious correlations (false positives), as high correlations spread in the TF plane. In particular, we found that wider smoothing window yields spurious coherent frequencies where a narrower weightingwindow is used (see Figures 7 and 8). In this framework, the role of nonidentical smoothing operator is to avoid production of spurious coherent frequencies and improve the temporal resolution of the estimate.
In the second dataset, coherence changes discretely reflecting a jump from one frequency to another over time. Method 3 showed a slightly higher sensitivity and increased zscore reflecting the increase in contrast between correlated TF points and background levels (Figure 5). When applying these estimators to restingstate EEG to detect TF interdependences between two occipital channels, using nonidentical smoothing operators suggested a broader range of estimated correlations across frequencies and an apparent reduction of uniform correlations across all frequencies (Figure 7, row D), isolating the alpha rhythm as the dominant synchronous oscillation in these scalp EEG data. The increased range and reduced bias of method 3 may hence be useful to detect TF interdependences in electrophysiological data, such as EEG, in which correlations are sparse. Under these circumstances it may be more important to reduce the number of false positives by reducing background coherences levels.
The two estimators using nonidentical smoothing operators were derived by normalizing the temporal CSD by the ensembleaveraged PSDs, instead normalizing each TF area in the CSD by the PSDs in the same area. This results in an increase range of the estimate when the PSDs are not constant over time. That is, because the CSDs are normalized by the average spectral power, estimated TF interdependences will fluctuate with temporal fluctuations in power. Although this may not be desirable for all types of signals, several studies have shown that modulations in synchronization and spectral power often coincide in neural data [35, 36], which may improve the detection of TF interdependence using nonidentical smoothing operators. Another consequence of normalizing the CSD by the ensembleaveraged PSD is that only the frequency marginal density of the (squared) estimate is bound within [0,1] but the timeresolved estimate itself not. Although the scaling of the timeresolved measure is essentially identical to coherence as shown by its frequency marginal density, it can be projected on the interval of [0,1] using Fisher transform to facilitate interpretation (see Figure 3F, I and [37]). For the sake of simplicity we used a normalized Hamming window as a temporal smoothing window to compare the use of nonidentical smoothing operators. There is however no limitations for using more sophisticated smoothing functions, such as 2D smoothing operators [18] or a multitaper technique [21].
5 Conclusion
By relaxing the constraint of using identical smoothing operators for the cross and auto spectra, we open up broader possibilities for the estimation of interdependence in the TF space. We specifically considered an example of nonidentical smoothing operator by normalizing the temporal CSD by the ensembleaveraged PSDs. This method revealed a reduced bias and increased range at the cost of increased variance of the estimate and may be useful for detecting TF interdependences in restingstate EEG where correlations between signals are sparse and changes over time.
Appendix
In this section, we provide the analytic calculation of the bias and variance of the present TF interdependence estimators. Let us consider two discrete, independent realvalued random processes, drawn from a Gaussian distribution with mean of zero and variance of ${\sigma}_{X}^{2}$. We denote these two random processes $\left\{{x}_{n}\right\}\sim \mathcal{N}(0,{\sigma}_{x}^{2})$ and $\left\{{y}_{n}\right\}\sim \mathcal{N}(0,{\sigma}_{y}^{2})$. We now derive the bias and variance of the present TF interdependence estimators of these two processes.
Bias and variance of the TF interdependence estimator $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$
We define the bias of $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ as
where $\mathbb{E}$ denotes the mathematical expectation, θ _{ x y }[l,k] the true TF interdependence between two independent random variables x and y, i.e., θ _{ x y }[l,k] = 0, A and B the two random variables denoting magnitude of cross spectra at l th segment and magnitude of the product of power spectra, respectively, and L _{ x y }[k] and Q _{ x y }[k] the real and imaginary parts of the ensemble cross spectra, respectively. Therefore, the key point is to approximate the term $\mathbb{E}\left\{\frac{\mathbf{A}}{\mathbf{B}}\right\}$. Analogously, we define the variance of $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ as
Since $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ is a function of two random variables, and hence we may write $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ as a form of $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right=f(\mathbf{A},\mathbf{B})$. We can generalize the expectation and variance of a function of two or more random variables using Taylor series expansion. In statistical signal processing, the expansion is evaluated at the expected value and variance of a random variable, X. For example, for an univariate random variable, evaluation of the expansion of f(X) at $\mathbb{E}\left[X\right]$ is calculated as
where H.O.T. stands for the higherorder terms, and f ^{′}(.) and f ^{″}(.) denote the first and second derivatives of a function of random variable X, respectively. It is easy to show the expected value and variance of f(X) by using the Taylor expansion
noting that $\mathbb{E}[X{\mu}_{X}]=0$, where μ _{ X } and ${\sigma}_{X}^{2}$ are the mean and variance of X. The variance of f(X) is derived from variance definition and the Taylor expansion:
It is now possible to generalize this concept to function of more than one random variable using multivariate Taylor expansion, which is referred to as delta method [38–40]. Using the delta method, the variance of a function of two random variables X _{1} and X _{2} are defined as
Applying multivariate Taylor expansions of Equation (22), and (24) to a ratio of two random variables A, see Equation (19b), and B, see Equation (19c), we define the bias and variance of ${\widehat{\theta}}_{\mathit{\text{xy}}}[l,k]$ as [39–41]
The terms shown in Equations (25a) and (25b) give an approximation of the bias and variance of the TF interdependence estimator $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$. It was shown that the standardized A–i.e., $\sqrt{\frac{{L}_{x{y}_{{}_{l}}}^{2}\left[k\right]}{{\sigma}_{{1}_{{}_{l}}}^{2}}+\frac{{Q}_{x{y}_{{}_{l}}}^{2}\left[k\right]}{{\sigma}_{{2}_{{}_{l}}}^{2}}}$, where ${\sigma}_{{1}_{{}_{l}}}^{2}=\text{Var}\left[{L}_{x{y}_{{}_{l}}}\right[k\left]\right]={\sigma}_{{2}_{{}_{l}}}^{2}=\text{Var}\left[{Q}_{x{y}_{{}_{l}}}\right[k\left]\right]=\frac{1}{2}{\sigma}_{x}^{4}{\sigma}_{y}^{4}$ (see [42])—has a Rayleighdistribution with the PDF ${f}_{Z}\left(z\right)=z{e}^{{z}^{2}/2},\phantom{\rule{1em}{0ex}}z\ge 0$ whose mean and variance are $\sqrt{\pi /2}$ and (4 − π)/2, respectively [43]. So, the mean and variance of A are calculated as
Analogously, since random variable B is the squareroot of the product of the ensemble power spectra ${\widehat{p}}_{\mathit{\text{xx}}}\left[k\right]$ and ${\widehat{p}}_{\mathit{\text{yy}}}\left[k\right]$ derived from the WOSA approach, it can be shown that the standardized B—i.e., $\sqrt{\frac{{L}_{\mathit{\text{xy}}}^{2}\left[k\right]}{{\sigma}_{1}^{2}}+\frac{{Q}_{\mathit{\text{xy}}}^{2}\left[k\right]}{{\sigma}_{2}^{2}}}$, where ${\sigma}_{1}^{2}=\text{Var}\left[{L}_{\mathit{\text{xy}}}\right[k\left]\right]={\sigma}_{2}^{2}=\text{Var}\left[{Q}_{\mathit{\text{xy}}}\right[k\left]\right]=\frac{1}{2}\sqrt{{D}_{{w}_{d}}}{\sigma}_{x}^{4}{\sigma}_{y}^{4}$—has a Rayleighdistribution with PDF ${f}_{Z}\left(z\right)=z{e}^{{z}^{2}/2},\phantom{\rule{1em}{0ex}}z\ge 0$ whose mean and variance are $\sqrt{\pi /2}$ and (4 − π)/2, respectively. Therefore, the mean and variance of B are given by
where ${D}_{{w}_{d}}={R}_{w}\left[0\right]+\frac{8}{{\pi}^{2}}{R}_{w}\left[1\right]+(1\frac{8}{{\pi}^{2}}){R}_{w}\left[3\right]$ is the scaled correlation function of the Fourier transform of a weighting window function, such that ${R}_{w}\left[d\right]=\sum _{m=1}^{Md}W\left[m\right]W[m+d]$, where $W\left[k\right]=\mathcal{F}\left\{w\right(m\left)\right\}$ denotes the Fourier transform of a weightingwindow function w(m) of length M[16]. We approximated the value of ${D}_{{w}_{d}}$ when M = 100 as ${D}_{{w}_{d}}\approx 1.8$ by using a simulation. Note that cov(A,B) = 0because Rayleigh random variables A and B are uncorrelated since processes {x _{ n }} and {y _{ n }} are drawn from Gaussian distribution [42]. Therefore, Equations (25a) and (25b) can be rewritten as
Bias and variance of TF interdependence estimator $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$
TF interdependence, $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$, has a smoothed cross spectra (see Equation (11)), whereas $\left{\widehat{\theta}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ does not. The mean and variance of denominators of Equations (9) and (11) are however identical. Torrence and Compo [7] and Torrence and Webster [17] showed smoothing in both time and frequency domains, whereas we only use a time domain smoothing operator, which is implemented by a running average (or convolution). It was originally shown that the variance of the smoothed cross spectra can be reduced by the factor of [$\approx \frac{1}{2{M}_{1}}$], where M _{1} is the length of smoothing window in seconds (or samples) [42]. We show the effect of smoothed cross spectra in the bias and variance of TF interdependence estimator $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$. A normalized Hamming window was used as the smoothing window in this study. Therefore, the bias and variance of the TF interdependence estimator $\left{\widehat{\Xi}}_{\mathit{\text{xy}}}\right[l,k\left]\right$ can be approximated by using Equations (25a) and (25b)
Noting that $\mathbb{E}\left[\mathbf{\u0100}\right]=\frac{1}{{M}_{1}}\mathbb{E}\left[\mathbf{A}\right]$, where $\mathbf{\u0100}$ denotes the smoothed cross spectra using a moving average (or convolution, see the numerator of Equation (11)). Equation (29b) indicates that the bias and variance are reduced by a factor of $\frac{1}{{M}_{1}}$ and $\frac{1}{2{M}_{1}}$ compared to Equations (28a) and (28b), respectively. The main disadvantage of large M _{1} is the reduction of the time resolution by changing the distribution of time points of the TF plane at a given frequency k. That is, larger M _{1} induces uniform distribution to the temporal evolution of TF points at any given frequency k (Figure 8 bottom rows of the right columns).
Empirically, the length of the smoothing window M _{1} should be close to but longer than weighting window used in the Fourier transform. Figure 8 shows the results using identical smoothing windows (method 1), while Figure 9 shows the results for nonidentical smoothing windows (method 3). The columns represent changes in length of the weighting window in the TF decomposition, whereas the rows represent changes in the length of the smoothing window. It can be seen that applying a wider smoothing window to the TF plane reduces the variance of the estimated at the cost of the reduction of the temporal resolution.
References
 1.
Schnitzler A, Gross J: Normal and pathological oscillatory communication in the brain. Nat. Rev. Neurosci 2005, 6(4):285296.
 2.
Varela F, Lachaux JP, Rodriguez E, Martinerie J: The brainweb: phase synchronization and largescale integration. Nat. Rev. Neurosci 2001, 2(4):229239.
 3.
Buzsaki G, Draguhn A: Neuronal oscillations in cortical networks. Science 2004, 304(5679):19261929. 10.1126/science.1099745
 4.
Bruckstein A, Donoho D, Elad M: From sparse solutions of systems of equations to sparse modeling of signals and images. SIAM Rev 2009, 51: 3481. 10.1137/060657704
 5.
Grinsted A, Moore J, Jevrejeva S: Application of the cross wavelet transform and wavelet coherence to geophysical times series. Nonlinear Process. Geophys 2004, 11(5–6):561566.
 6.
Spencer K, Nestor P, Niznikiewicz M, Salisbury D, Shenton M, McCarley R: Abnormal neural synchrony in schizophrenia. J. Neurosci 2003, 23(19):74077411.
 7.
Torrence C, Compo G: Apractical guide to wavelet analysis. Bull. Am. Meteorol. Soc 1998, 79: 6178. 10.1175/15200477(1998)079<0061:APGTWA>2.0.CO;2
 8.
Lachaux JP, Lutz A, Rudrauf D, Cosmelli D, Le Van Quyen M, Martinerie J, Varela F: Estimating the timecourse of coherence between singletrial brain signals: an introduction to wavelet coherence. Neurophysiologie Clinique 2002, 32(3):157174. 10.1016/S09877053(02)003015
 9.
Plett M, Transient detection with cross wavelet transforms and wavelet coherence: IEEE Trans. Signal Process. 2007, 55(5I):16051611.
 10.
Xu Y, Haykin S, Racine R: Multiple window timefrequency distribution and coherence of EEG using Slepian sequences and Hermite functions. IEEE Trans. Biomed. Eng 1999, 46(7):86166. 10.1109/10.771197
 11.
Cohen L: Timefrequency distributions—a review. Proc. IEEE 1989, 77(7):941981. 10.1109/5.30749
 12.
Tzallas A, Tsipouras M, Fotiadis D: Epileptic seizure detection in EEGs using timefrequency analysis. IEEE Trans. Inf. Technol. Biomed 2009, 13(5):703710.
 13.
Choi HI, Williams WJ: Improved timefrequency representation of multicomponent signals using exponential kernels. IEEE Trans. Acoust. Speech Signal Process 1989, 37(6):862871. 10.1109/ASSP.1989.28057
 14.
Liu P: Wavelet spectrum analysis and ocean wind waves. Wavelets Geophys 1994, 151166.
 15.
Carter G: Coherence and time delay estimation. Proc. IEEE 1987, 75(2):236255.
 16.
Bortel R, Sovka P: Approximation of statistical distribution of magnitude squared coherence estimated with segment overlapping. Signal Process 2007, 87(5):11001117. 10.1016/j.sigpro.2006.10.003
 17.
Torrence C, Webster P: Interdecadal changes in the ENSOmonsoon system. J. Climate 1999, 12(8 PART 2):26792690.
 18.
Cohen E, Walden A: A statistical study of temporally smoothed wavelet coherence. IEEE Trans. Signal Process 2010, 58(6):29642973.
 19.
Thomson DJ: Spectrum estimation and harmonic analysis. Proc. IEEE 1982, 70(9):10551096.
 20.
Daubechies I: Timefrequency localization operators: a geometric phase space approach. IEEE Trans. Inf. Theory 1988, 34(4):605612. 10.1109/18.9761
 21.
Olhede S, Walden A: Generalized Morse wavelets. IEEE Trans. Signal Process 2002, 50(11):26612670. 10.1109/TSP.2002.804066
 22.
Brittain JS, Halliday D, Conway B, Nielsen J: Singletrial multiwavelet coherence in application to neurophysiological time series. IEEE Trans. Biomed. Eng 2007, 54(5):854862.
 23.
Brillinger DR: Time Series Data Analysis and Theory Holt. Rinehart& Winston, New York; 1975.
 24.
Welch PD: The use of fastFourier transform for the estimation of power spectra: a method based on time averaging over short, modified periodograms. IEEE Trans. Audio Electroacoust 1967, AU15: 7073.
 25.
Jiang X, Mahadevan S: Wavelet spectrum analysis approach to model validation of dynamic systems. Mech. Syst. Signal Process 2011, 25(2):575590. 10.1016/j.ymssp.2010.05.012
 26.
Breakspear M, Stam CJ: Dynamics of a neural system with a multiscale architecture. Philos. Trans. R. Soc. B 2005, 36: 10511074.
 27.
Boonstra TW, Daffertshofer A, Breakspear M, Beek PJ: Multivariate timefrequency analysis of electromagnetic brain activity during bimanual motor learning. NeuroImage 2007, 36(2):370377. 10.1016/j.neuroimage.2007.03.012
 28.
Fourier Hilbert, A Bruns: and waveletbased signal analysis: are they really different approaches? J. Neurosci. Methods 2004, 137: 321332. 10.1016/j.jneumeth.2004.03.002
 29.
Lepage KQ, Kramer MA, Eden UT: Some sampling properties of common phase estimators. Neural Comput 2013, 25: 121. 10.1162/NECO_a_00383
 30.
Aydin S: Comparison of power spectrum predictors in computing coherence functions for intracortical EEG signals. Ann. Biomed. Eng 2009, 37: 192200. 10.1007/s1043900895798
 31.
Cohen E, Walden A: A statistical analysis of Morse wavelet coherence. IEEE Trans. Signal Process 2010, 58(3 PART 1):980989.
 32.
Carter G, Knapp CH, Nuttall AH: Estimation of the magnitudesquared coherence function via overlapped fast Fourier transform processing. IEEE Trans. Audio Electroacoust 1973, AU21(4):337344.
 33.
Kants H, Schreiber T Cambridge University Press, Cambridge, MA; 2003.
 34.
Freyer F, Aquino K, Robinson PA, Ritter P, Breakspear M: Bistability and nonGaussian fluctuations in spontaneous cortical activity. J. Neurosci 2009, 29(26):85128524. 10.1523/JNEUROSCI.075409.2009
 35.
Daffertshofer A, van Wijk BCM: On the influence of amplitude on the connectivity between phases. Front. Neuroinf 2011, 5(6):112.
 36.
van Wijk BCM, Beek PJ: A Daffertshofer, Neural synchrony within the motor system: what have we learned so far? Front. Human Neurosci 2012, 6: 252263.
 37.
Amjad AM, Halliday DM, Rosenberg JR, Conway BA: An extended difference of coherence test for comparing and combining several independent coherence estimates: theory and application to the study of motor units and physiological tremor. J. Neurosci. Methods 1997, 73: 6979. 10.1016/S01650270(96)022145
 38.
Lee ES: Analyzing Complex Survey Data No. 071 in 07. SAGE Publications, London; 2006.
 39.
Kish L: Survey Sampling. Wiley, New York; 1965.
 40.
Kalton G: Introduction to Survey Sampling: Quantitative Applications in the Social Sciences, No. 035 in 07. SAGE Publications, London; 1983.
 41.
Davison AC: Statistical Models. Cambridge University Press, Cambridge, Ma; 2008.
 42.
Jenkins G, Watts D: Spectral Analysis and Its Applications. Holden Day, San Francisco, CA; 1968.
 43.
Günter AI: Bias and variance of averaged and smoothed periodogrambased logamplitude spectra. In Proceedings of the 2nd International Symposium on Image and Signal Processing and Analysis, IEEE ISPA. PulaCroatia), (University Computing Center, ZagrebCroatia; 2001:452457.
