A multisource fusion framework driven by user-defined knowledge for egocentric activity recognition

EURASIP Journal on Advances in Signal Processing20192019:14

https://doi.org/10.1186/s13634-019-0612-x

  • Received: 13 August 2018
  • Accepted: 4 February 2019
  • Published:

Abstract

Recently, egocentric activity recognition has attracted considerable attention in the pattern recognition and artificial intelligence communities because of its widespread applicability to human systems, including the evaluation of dietary and physical activity and the monitoring of patients and older adults. In this paper, we present a knowledge-driven multisource fusion framework for the recognition of egocentric activities in daily living (ADL). This framework employs Dezert–Smarandache theory across three information sources: the wearer’s knowledge, images acquired by a wearable camera, and sensor data from wearable inertial measurement units and GPS. A simple likelihood table is designed to provide routine ADL information for each individual. A well-trained convolutional neural network is then used to produce a set of textual tags that, along with routine information and other sensor data, are used to recognize ADLs based on information theory-based statistics and a support vector machine. Our experiments show that the proposed method accurately recognizes 15 predefined ADL classes, including a variety of sedentary activities that have previously been difficult to recognize. When applied to real-life data recorded using a self-constructed wearable device, our method outperforms previous approaches, and an average accuracy of 85.4% is achieved for the 15 ADLs.

Keywords

  • Egocentric activity recognition
  • Activity of daily living
  • Multisource fusion
  • Knowledge-driven model
  • Dezert–Smarandache theory

1 Introduction

In recent years, a variety of camera-based smart wearable devices have emerged in addition to smart watches and wristbands, such as Google Glass, Microsoft SenseCam, and Narrative. These wearables usually contain not only a camera, but also other sensors such as inertial measurement units (IMUs), global positioning system (GPS), temperature sensors, light sensors, barometers, and physiological sensors. These sensors automatically collect video/image, motion/orientation, environmental, and health data. Because these data are collected from the viewpoint of the wearer, they are called egocentric or first-person data. Tools for the automatic analysis and interpretation of egocentric data have been developed and applied to healthcare [1, 2], rehabilitation [3], smart homes/offices [4], sports [5], and security monitoring [6]. Egocentric activity recognition has now become a major topic of research in the fields of pattern recognition and artificial intelligence [7, 8].

Traditional methods of egocentric activity recognition often utilize motion sensor data from the IMU only and process these data using conventional classification techniques [9]. However, the performance of motion-based methods depends on the location of the IMU sensor on the body, and the classification accuracy tends to be lower when used to distinguish more complex activities in daily living (ADL), especially for certain sedentary activities. A wearable camera can provide more ADL information than motion sensors alone. Therefore, vision-based activity recognition using a wearable camera has become the focus of research in the field of egocentric activity recognition [10, 11].

In recent years, with the continuous development of the deep learning framework, the accuracy of image/video recognition has been improved greatly, and numerous vision-based activity recognition methods, such as deep learning, have emerged [1214]. It has been reported that deep learning achieved a performance improvement of roughly 10% over the traditional trajectory tracking methods [14]. Although there has been significant progress in egocentric ADL recognition, the performance of vision-based methods is still subject to a number of constraints, such as the location of the wearable camera on the human body, image quality, variations in lighting conditions, occlusion, and illumination. In practical applications, no single sensor can be applied for all possible conditions. A common practice to avoid the risk of misrecognition by a single sensor is to fuse multiple recognition results for the same target from different sensors. Therefore, efforts have been made to combine vision and other sensor data for egocentric ADL recognition. For example, egocentric video and IMU data captured synchronously by Google Glass were used to recognize a number of ADL events [15]. Multiple streams of data were processed using convolutional neural networks (CNNs) and long- and short-term memory (LSTM), and the results were fused by maximum pooling. The average accuracy for 20 distinct ADLs reached 80.5%, whereas using individual video and sensor data only yielded accuracies of 75% and 49.5%, respectively. In [16], the dense trajectories of egocentric videos and temporally enhanced trajectory-like features of sensor data were extracted separately and then fused using the multimodal Fisher vector approach. The average recognition accuracy after fusion was 83.7%, compared to 78.4% for video-only and 69.0% for sensor-only data. These results show that, for egocentric ADL recognition, it is beneficial to integrate IMU sensors and cameras at both the hardware and algorithm levels.

Some commonly used multisource fusion methods include Bayesian reasoning, fuzzy-set reasoning, expert systems, and evidence theory composed of Dempster–Shafer evidence theory (DST) [17] and Dezert–Smarandache theory (DSmT) [18]. Among these methods, DST and DSmT have a simple form of reasoning and can represent imprecise and uncertain information using basic belief assignment functions, thus mimicking human thinking in uncertainty reasoning. By generalizing the discernment framework and proportionally redistributing the conflicting beliefs, DSmT usually outperforms DST when dealing with multisource fusion cases with conflicting evidence sources.

In egocentric ADL recognition using evidence theory, an activity model is often required to convert the activity data or features from different sources to the basic belief assignment (BBA). Generally, activity models can be divided into two types: data-driven and knowledge-driven [19]. Most ADLs have certain regularities because they occur at a relatively fixed time and place, and interact with a fixed combination of objects. As a result, abundant information about when, where, and how ADLs occur can be used to establish a knowledge base. Therefore, for ADL recognition, the knowledge-driven model is more intuitive and potentially powerful. Although no special knowledge-driven model for egocentric ADL recognition currently exists, some knowledge-driven models have been established in fields such as ADL recognition in smart homes, e.g., descriptive logic model [20], event calculus model [21], and activity ontology model [22]. Although these models offer semantic clarity and logical simplicity, they are usually complex. Users must contact the developers to convert their own daily routines into model parameters. Considering that this kind of model is best created by the wearers themselves, the current methods for knowledge representation require substantial simplification to improve their usability and adaptability for egocentric ADL recognition.

In this study, we propose a new knowledge-driven multisource fusion framework for egocentric ADL recognition and apply it to egocentric image sequences and other sensor data captured by a self-developed chest-worn device (eButton) [23] for diet and physical activity assessment. The main contributions of this study are as follows:
  1. (1)

    A knowledge-driven multisource fusion framework based on DSmT is established for the fusion of prior knowledge, vision-based results, and sensor-based results. This framework enables the accurate recognition of up to 15 kinds of ADLs, including a variety of sedentary activities that are hard to recognize using traditional motion-based methods, e.g., computer use, meetings, reading, telephone use, watching television, and writing.


  2. (2)

    The proposed knowledge-driven ADL model can be established by the device user. Previously, users were required to consult with an expert who could represent the user’s life experience quantitatively using certain index values. Our framework simplifies this process significantly, allowing individuals to express their ADL routines using a set of simple association tables.


  3. (3)

    A novel activity recognition algorithm based on egocentric images is proposed. With the help of “bags of tags” determined by CNN-based automatic image annotation, the complex image classification task is reduced to a text classification problem. Furthermore, the entropy-based term frequency-inverse document frequency (TF-IDF) algorithm is used to perform feature extraction and ADL recognition.



The remainder of this paper is organized as follows. Our methods for ADL recognition are described in detail in Section 2. A series of experimental results demonstrating the performance of the proposed framework are presented in Section 3. The comparison with existing methods is shown in Section 4. Finally, we conclude this paper in Section 5 by summarizing our approach and results and discussing some directions for future research.

2 Methods

Our multisource ADL recognition method is illustrated in Fig. 1. Conceptually, it consists of four main components: (1) basic information about the ADL routines of an individual (the user of the wearable device) is acquired using a “condition–activity” association table, (2) a CNN-based automatic image annotation pre-classifies the textual results using an entropy representation, (3) a set of motion and GPS data is processed and pre-classified using a support vector machine (SVM), and (4) a final classification is performed analytically by fusing the pre-classified results represented in terms of BBAs based on the DSmT framework.
Fig. 1
Fig. 1

Architecture of the proposed method

2.1 BBA of user knowledge

It is widely accepted that “the person who knows you the best is yourself,” although this is not universally true (e.g., a doctor may know better regarding illnesses). Nevertheless, people know their own lifestyle and ADL routines far better than other people or a computer. Therefore, we develop a knowledge-driven ADL model that can be established by the user of a wearable device. Previously, such a model would require the person to consult an expert who represents the user’s life experience quantitatively using certain index values [2022]. In our framework, we simplify this process significantly to allow individuals to express their ADL routines using a set of simple association tables.

Let us consider r sources of information ɛ1, ɛ2, …, ɛr. As each source may contain multiple information entities, each source ɛi is represented as a vector. With this definition, we represent pairwise relationships (ɛi, ɛj) from the r sources as a rectangular matrix. The matrix entry in row ɛi and column ɛj expresses the strength (a positive number) of the relation between these two elements. As the relationship between the two elements is not commutative, i.e., A leads to B does not imply B leads to A, the relationship matrix for (ɛi, ɛj) is generally asymmetric. As an important special case, (ɛi, ɛj) for i = j represents the relationships among the elements of ɛi. According to Zintik and Zupan [24], all (ɛi, ɛj) can be tiled into a large, sparse global matrix.

As our knowledge-driven model runs under the framework of the Dezert–Smarandache theory, all activity-related conditions (e.g., time, place, order of occurrence) must be specified through the construction of numerical BBAs. Thus, if we view the ADLs and the conditions as different information sources, we can use the above theoretical framework to represent ADLs in relationships with certain conditions, including their time, place, and order of occurrence, and then fill the pairwise matrices (or tables) numerically. In our application, we require a simple and intuitive form that can be used by individuals. Therefore, we design each matrix as an association table containing integer values from 0 (impossible) to 10 (assured). For example, to represent one’s ADLs at different clock times, a hypothetical individual’s time–activity table is presented in Table 1. In this table, the wearer can adjust the time period according to his/her daily routine, especially activities with relatively clear start times, such as getting up, starting work, leaving work, and sleeping. Multiple time–activity tables may be required for weekdays and weekends/holidays (see the examples in Appendixes 1 and 2). Similarly, a location–activity table and an activity transition table (i.e., a table specifying the previous activity and the current activity) can be designed to further enrich the knowledge-driven model. Our experiments indicate that such tables can be completed quickly with little training.
Table 1

Sample time–activity table

Time period

Cleaning

Computer use

Eating

Entertainment

Lying down

Meeting

Reading

…*

Watching TV

Writing

0:01–6:50

0

0

0

0

10

0

0

0

0

6:51–7:20

2

2

10

0

0

0

3

0

1

7:21–7:30

0

0

0

0

0

0

0

0

0

21:01–22:00

2

10

1

0

0

0

3

9

2

22:01–00:00

1

10

2

0

5

0

0

9

0

*Six columns (indicated by “…”) are omitted in the table, namely “shopping,” “talking,” “telephone use,” “transportation,” “walking outside,” and “washing up”

Considering that the BBA value for each activity should be between 0 and 1 (see Section 2.4), we apply row-wise normalization according to the sum of all integer values in that row. For the example in Table 2, if the clock time is 21:18:00, the corresponding BBA is constructed by dividing all integer values in the “21:01–22:00” row by the sum of these values.
Table 2

BBA values of the user-provided knowledge of ADLs, based on Table 1 and a time stamp of 21:18:00

Time period

Cleaning

Computer use

Eating

Entertainment

Lying down

Meeting

Reading

…*

Watching TV

Writing

21:01–22:00

0.0488

0.2439

0.0244

0

0

0

0.0732

0.2195

0.0488

*Six columns (indicated by “…”) are omitted in the table, namely “shopping,” “talking,” “telephone use,” “transportation,” “walking outside,” and “washing up”

2.2 BBA of images

In our case, activity recognition from egocentric images must be performed indirectly, because the person wearing the camera is unlikely to appear in the images. We perform the recognition task using the concept of a combination of objects (CoO) [25, 26]. For example, “computer use” is likely to have a CoO consisting of a computer, monitor, screen, keyboard, and table. When this CoO is fully or partially observed, the underlying activity can be guessed with a certain degree of confidence. In this study, the two main steps for ADL recognition using the CoO concept are (1) extraction of CoO and (2) construction of an ADL classifier. These steps are detailed below.

2.2.1 Semantic feature extraction by CNN

In this study, we are mainly concerned with whether ADL-related objects are present in the input image, rather than their order of presentation (although the order may also carry some information). Ignoring the order, we perform the CoO detection task in two steps. In the first step, all objects in the input image are detected and represented in the form of a textual list. This is essentially a process of automatic image annotation. In the second step, we check whether there is a CoO corresponding to a particular ADL in the list.

Recently, with the continuous development of the deep learning framework, automatic image annotation can produce impressive image annotation results with the aid of well-trained CNNs. A CNN is a class of deep, feed-forward artificial neural networks that generally include a convolutional layer, a pooling layer, and a fully connected layer. Some well-known pre-trained CNNs include AlexNet [27], VGGNet [28], and ClarifaiNet [29, 30] which are pre-trained using a large image database such as ImageNet [31]. The typical process of automatic image classification and annotation using the pre-trained CNN is shown in Fig. 2 (considering the VGG-16 network in VGGNet as an example). The output of the automatic image annotation is a series of textual tags, which can be defined as “bag of tags” (BoTs). As the BoTs are extracted from a specific image, it can be regarded as the high-level semantic feature of the image.
Fig. 2
Fig. 2

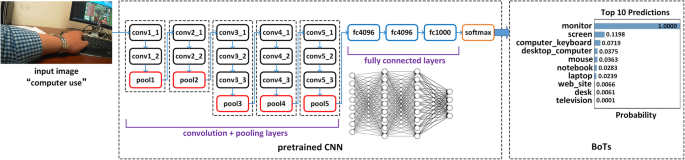

The typical process of automatic image classification and annotation using pre-trained CNN

After comparison, we find that the textual tags extracted by ClarifaiNet are more consistent with the objects in the images of our egocentric dataset. Therefore, we use ClarifaiNet and adopt a process exemplified in Fig. 2 to obtain the BoTs of each frame in the egocentric image sequence, i.e.,
$$ {\mathrm{BoTs}}_i={\mathrm{CNN}}_{\mathrm{ClarifaiNet}}\left({I}_i\right)=\left\{{T}_1^i,{T}_2^i,\dots, {T}_L^i\right\} $$
(1)
where Ii is the ith frame in the image sequence, T is the extracted tag, and L is the number of tags extracted from one frame of the image (when using ClarifaiNet, the default value of L is 20). An example of BoTs is shown in Table 3, and the images corresponding to these BoTs are shown in Fig. 3.
Table 3

BoTs produced by ClarifaiNet for the egocentric images in Fig. 3

Image no.

BoTs

1

2

3

4

5

6

7

a

Computer

Technology

Business

Laptop

People

Indoors

Keyboard

b

Computer

Technology

Keyboard

Internet

Laptop

Business

Electronics

c

Room

No person

Table

Business

Computer

Indoors

Office

d

Computer

Technology

Laptop

Internet

No person

Business

Keyboard

e

Food

People

Knife

Indoors

Meat

Restaurant

Cooking



f

Food

No person

Meat

Fish

Dinner

Meal

Plate

g

Food

Indoors

People

Knife

Sugar

Fruit

Cooking

h

People

Indoors

Container

Drink

Food

Table

Tableware

Fig. 3
Fig. 3

Examples of egocentric images of different activities. ad are the egocentric images of “computer use”; eh are the egocentric images of “eating”

2.2.2 BBA construction from BoTs

As mentioned above, CNN-produced BoTs can be regarded as a high-level semantic feature from the specific egocentric image. Hence, it can be used in the classification of the ADL corresponding to the image. For example, the tags in Table 3 correspond to two ADLs, “computer use” and “eating.” We can select certain keywords to represent these activities, e.g., “computer use” can be represented by the set {“computer,” “technology,” “laptop,” “keyboard,” “internet”} and “eating” corresponds to the set {“food,” “meat,” “cooking,” “plate”}. Table 3 also indicates that both sets contain some less general or non-distinctive tags such as “no person,” “people,” and “indoors.” Moreover, there may be substantial differences among the tags extracted from the same activity class because of different image contexts and acquisition parameters (e.g., distance, view angle). Therefore, the classification accuracy depends on selecting tags that not only describe the target activity within a class, but also distinguish activities across classes.

With the BoTs constructed in this way, ADL recognition from egocentric images becomes a semantic textual classification task. We approach this task using the vector space model [32] to represent BoTs and establish a text classifier. First, we compute the term frequency-inverse document frequency (TF-IDF) measure, which is widely used for weighting textual features, given by [33]
$$ {tf}_{i,j}\cdot {idf}_i=\frac{n_{i,j}}{\sum_k{n}_{k,j}}\cdot \log \frac{\left|D\right|}{\left|\left\{j:{t}_i\in {d}_j,{d}_j\in D\right\}\right|+1} $$
(2)
where tfi, j and ni, j denote the term frequency and number of occurrences of ti in document dj, respectively; ∑knk, j is the sum of the occurrences of all terms in document dj (i.e., the total number of terms); idfi is the inverse document frequency (a measure of whether the term is common or rare across all documents) of term ti; |{j : tidj,  djD}| is the number of documents containing term ti in document set D; and |D| is the number of documents in D. Note that (2) does not apply to the case where the document set contains different types of documents, i.e., it cannot be used directly to classify a BoT set containing different ADLs. To apply TF-IDF to document sets containing multiple types of documents, a number of modified algorithms have been developed, including bidirectional normalization for the term frequency [34], constraints imposed by the mutual information [35], and the application of information entropy [36]. The entropy-based TF-IDF generally provides better classification because the statistical features of the terms among different types of documents can be well-represented by the information entropy. We modify the entropy approach by adding an inter-class entropy factor e1i, k and an intra-class entropy factor e2i to (2). This allows the BoT classifier to “compact” the intra-class activities while “separating” inter-class activities, as described below.
Assuming that the total number of the ADLs to be classified is K, the corresponding egocentric image set is A = {A1, A2,  … , AK}. For the kth activity AkA, the total number of images is |Ak| and all BoTs extracted from each image in Ak constitute the BoT subset \( {B}_{A_k}=\left\{{B}_1,{B}_2,\dots, {B}_{\left|{A}_k\right|}\right\} \). For the BoT set of A, we then have \( {B}_A=\left\{{B}_{A_1},{B}_{A_2},\dots, {B}_{A_k},\dots, {B}_{A_{K-1}},{B}_{A_K}\right\} \) with \( \left|A\right|=\sum \limits_{k=1}^K\left|{A}_k\right| \). Assume that there are N unique tags T = {T1, T2,  … , TN} in BA. For any tag TiT, its inter-class entropy factor for \( {B}_{A_k} \), called e1i, k, can be defined as
$$ e{1}_{i,k}=-\sum \limits_{j=1}^{\left|{A}_k\right|}\frac{C\left({B}_j,{T}_i\right)}{C\left({B}_{A_k},{T}_i\right)}\cdot {\log}_2\frac{C\left({B}_j,{T}_i\right)}{C\left({B}_{A_k},{T}_i\right)} $$
(3)
where C(Bj, Ti) is the number of occurrences of tag Ti in Bj (i.e., the jth subset of \( {B}_{A_k} \)), given by
$$ C\left({B}_j,{T}_i\right)={\sum}_l\left[{T}_i=={B}_j(l)\right],\kern0.5em {B}_j\in {B}_{A_k}, $$
(4)
where the double equation signs denote “whether the two operands are equal,” resulting in a binary output for the bracketed variable. Using (4), \( C\left({B}_{A_k},{T}_i\right) \) can be expressed as
$$ C\left({B}_{A_k},{T}_i\right)=\sum \limits_{j=1}^{\left|{A}_k\right|}C\left({B}_j,{T}_i\right). $$
(5)
The intra-class entropy of Ti for BA, called e2i, can be defined as
$$ e{2}_i=-\sum \limits_{k=1}^K\frac{D\left({B}_{A_k},{T}_i\right)}{D\left({B}_A,{T}_i\right)}\cdot {\log}_2\frac{D\left({B}_{A_k},{T}_i\right)}{D\left({B}_A,{T}_i\right)} $$
(6)
where \( D\left({B}_{A_k},{T}_i\right) \) is the number of BoTs containing tag Ti in subset \( {B}_{A_k} \), defined as
$$ D\left({B}_{A_k},{T}_i\right)=\left|\left\{j:{T}_i\in {B}_j,\kern1em {B}_j\in {B}_{A_k}\right\}\right|. $$
(7)
From this definition of \( D\left({B}_{A_k},{T}_i\right) \), we can express D(BA, Ti) as
$$ D\left({B}_A,{T}_i\right)=\sum \limits_{k=1}^KD\left({B}_{A_k},{T}_i\right)=\sum \limits_{k=1}^K\left|\left\{j:{T}_i\in {B}_j,\kern1em {B}_j\in {B}_{A_k}\right\}\right|. $$
(8)
It can be observed from (3) that e1i, k is used to describe the distribution of tag Ti in \( {B}_{A_k} \), which corresponds to the particular activity Ak. Moreover, the more uniform the distribution of Ti in \( {B}_{A_k} \), the larger the value of e1i, k and, consequently, the greater the contribution of the Ti to the classification of activity Ak. Similarly, in (6), e2i is used to describe the distribution of tag Ti across the BoT subsets in BA, which corresponds to all different activities. When e2i reaches its maximum, however, the Ti are uniformly distributed among the BoT subsets in BA, which means that Ti has no ability to distinguish different activities. Therefore, the value of e2i is inversely proportional to its contribution to the classification, which is the opposite of e1i, k. Balancing these two effects, the entropy-based TF-IDF is given by
$$ {tf}_{i,k}\cdot {idf}_i\cdot e{1}_{i,k}\cdot R\left(e{2}_i\right)={tf}_{i,k}\cdot {idf}_i\cdot e{1}_{i,k}\cdot \left(1-\frac{e{2}_i}{\log_2K+\lambda}\right) $$
(9)
where R(e2i) = 1 − e2i/(log2K + λ) is used to remap e2i so that its value is proportional to the contribution in the classification. The parameter λ is an empirically determined small positive constant that guarantees R(e2i) > 0.
Using (9), the BoT classifier can be obtained by applying a suitable training procedure. Specifically, the entropy-based TF-IDF weight of each tag in the sample BoT set is calculated, and the M tags with the highest weight values are extracted from \( {B}_{A_k} \) to form the class center vector ζk corresponding to activity Ak. All class center vectors constitute the BoT classifier, given by
$$ {\mathrm{Classifier}}_B=\left\{{\zeta}_1,{\zeta}_2,\dots, {\zeta}_k,\dots, {\zeta}_K\right\}. $$
(10)
An example of the BoT classifier is presented in Table 4.
Table 4

Example of the BoT classifier

Activity

ζk with the entropy-based TF-IDF value

1

2

3

4

5

6

Computer use

Keyboard

Monitor

Screen

Internet

Electronics

Laptop

0.4328

0.3792

0.3255

0.3127

0.3071

0.2662

Eating

Food

Drink

Restaurant

Dinner

Cooking

Bowl

0.3678

0.3286

0.3240

0.2894

0.2594

0.2361

Shopping

Stock

Market

Shopping

Shop

Merchandise

Supermarket

0.4216

0.4185

0.4079

0.3363

0.2724

0.2373

Washing up

Bathroom

Wash

Bath

Hygiene

Faucet

Bathtub

0.4955

0.4375

0.2879

0.2859

0.2789

0.2699



Transportation

Dashboard

Steering wheel

Control

Fast

Drive

Driver

0.2769

0.2769

0.2733

0.2716

0.2696

0.2669



When using the classifier defined in (10), the cosine similarity between the input BoT and the center vector of each class (i.e., ζk) can be calculated, and the class whose center is closest to the input is assigned as the classification result. In addition, as the cosine similarity is between 0 and 1, it can be directly used to form the BBA for images; an example of this can be seen in the third row (BBA of image) of Table 6.

2.3 BBA of IMU and GPS sensors

For IMU sensors, the output data are multiple 1-D waveforms that can be processed using traditional pattern recognition methods [9]. First, the data are divided into non-overlapping segments, and the structural and statistical features of each segment are extracted. These features are used to train a classifier. The training ends when a certain stopping criterion is met.

IMU sensors include an accelerometer and a gyroscope, each producing three traces of signals in the x-, y-, and z-axes. These signals are divided into 3-s segments without overlapping. To synchronize them with the corresponding images, each segment is centered around the time stamp in the image data. The features extracted in each segment include the mean, standard deviation, correlation, signal range (difference between maximum and minimum), root mean square, signal magnitude area [37], autoregressive coefficients (calculated up to the sixth order), and the binned distribution (selected to be 10) [38]. These features are combined with the GPS velocity and coordinates (if unavailable, the most recent GPS data are used) to form 127-dimentional feature vectors that are fed into a multiclass SVM for training and classification.

Support vector machine (SVM) [39] is a supervised machine learning method widely used in classification and regression analysis. SVM can improve the generalization ability of a learning machine by minimizing the structural risk; hence, it can also yield reasonably good statistical rules for a relatively small sample size. The dual objective function of SVM can be given by the Lagrangian multiplier method as shown below
$$ \underset{\alpha_i\ge 0}{\max}\underset{w,b}{\min}\mathcal{L}\left(w,b,\alpha \right)=\underset{\alpha_i\ge 0}{\max}\underset{w,b}{\min}\left(\frac{1}{2}{\left\Vert w\right\Vert}^2-\sum \limits_{i=1}^n{\alpha}_i\left({y}_i\left({w}^T{x}_i+b\right)-1\right)\right) $$
(11)
where x is the input data, y is the category to which x belongs, w is the vector perpendicular to the classification hyperplane, b is the intercept, and α is the Lagrange multiplier.
After solving (11) using the quadratic programming algorithm and introducing the kernel function κ(x1, x2) = (〈x1, x2〉 + 1)2 to map the data to the high-dimensional space, SVM can perform a nonlinear classification according to the following binary prediction:
$$ {g}_{\mathrm{SVM}}(x)=\operatorname{sign}\left({w}^Tx+b\right)=\operatorname{sign}\left(\sum \limits_{i=1}^N{\alpha}_i{y}_i\kappa \left({x}_i,\kern0.5em x\right)+b\right). $$
(12)

Commonly used kernel functions include polynomial kernel and radial basis function.

The SVM is fundamentally a two-class classifier; however, it can be extended to multiclass problems by using one-against-one or one-against-all voting schemes. In addition, the basic SVM classifier can only output the classification label rather than the probability or possibility for evidence fusion. To solve this problem, the “libsvm” [40] toolkit, which converts the output of the standard SVM to a posterior probability using a sigmoid-fitting method [41], is utilized. An example is provided in the fourth row (BBA of sensors) of Table 6.

2.4 Hierarchical fusion of knowledge, image, and sensor data by DSmT

In DSmT, the discernment framework Θ = {θ1, θ2,  … , θn} is extended from the power set 2Θ in Dempster–Shafer theory to the hyper-power set. The hyper-power set, denoted by DΘ, admits the intersections of elements on the basis of the power set. For example, if there are two elements in the discernment framework Θ = {θ1, θ2}, the power set is 2Θ = {, θ1, θ2, θ1θ2} and the hyper-power set is DΘ = {, θ1, θ2, θ1θ2, θ1 ∩ θ2}. The BBA defined on the hyper-power set DΘ is
$$ \left\{\begin{array}{l}m\left({X}_i\right):{D}^{\Theta}\to \left[0,1\right],\kern1em {X}_i\in {D}^{\Theta}\\ {}m\left(\varnothing \right)=0,\kern1em \sum \limits_{\theta \in {D}^{\Theta}}m\left(\theta \right)=1\end{array}\right. $$
(13)
The combination rule is the core of evidence theory. It combines the BBAs of different sources within the same discernment framework to produce a new belief assignment as the output. In the DSmT framework, the most widely used combination rule is the Proportional Conflict Redistribution (PCR) rule. There are six PCR rules (PCR1–PCR6), defined in [18]. Their differences are mainly in the method of proportional redistribution of the conflicting beliefs. Among these rules, PCR5 is widely used to combine two sources and PCR6 is usually applied to more than two sources. In particular, PCR6 is the same as PCR5 when there are exactly two sources. If s represents the number of sources, the PCR5/PCR6 combination rule for s = 2 is
$$ {\displaystyle \begin{array}{l}{m}_{1\oplus 2}^{PCR5/ PCR6}(A)=\\ {}\sum \limits_{\begin{array}{l}{X}_1,{X}_2\in {D}^{\Theta}\\ {}{X}_1\cap {X}_2=A\end{array}}{m}_1\left({X}_1\right){m}_2\left({X}_2\right)+\sum \limits_{\begin{array}{l}X\in {D}^{\Theta}\\ {}X\cap A=\varnothing \end{array}}\left[\frac{m_1^2(A){m}_2(X)}{m_1(A)+{m}_2(X)}+\frac{m_2^2(A){m}_1(X)}{m_2(A)+{m}_1(X)}\right]\end{array}} $$
(14)
where m1  2 denotes m1m2, i.e., sources 1 and 2 are used for evidence fusion for the focal element A in discernment framework DΘ. The PCR6 combination rule for s > 2 is
$$ {\displaystyle \begin{array}{l}{m}_{1\oplus 2\oplus \dots \oplus s}^{PCR6}(A)=\sum \limits_{\begin{array}{l}{X}_1,{X}_2,\dots, {X}_s\in {D}^{\Theta}\\ {}\kern1.5em {\cap}_{i=1}^s{X}_i=A\end{array}}\prod \limits_{i=1}^s{m}_i\left({X}_i\right)+\\ {}\sum \limits_{\begin{array}{l}{X}_1,{X}_2,\dots, {X}_{s-1}\in {D}^{\Theta}\\ {}{X}_i\ne A,i\in \left\{1,2,\dots, s-1\right\}\\ {}\kern1em \left({\cap}_{j=1}^{s-1}{X}_i\right)\cap A=\varnothing \end{array}}\sum \limits_{k=1}^{s-1}\sum \limits_{\left({i}_1,{i}_2,\dots, {i}_s\right)\in P\left(1,2,\dots, s\right)}\left[\sum \limits_{p=1}^k{m}_{i_p}(A)\cdot \frac{\prod \limits_{j=1}^k{m}_{i_j}(A)\prod \limits_{p=k+1}^{s-1}{m}_{i_p}\left({X}_p\right)}{\sum \limits_{j=1}^k{m}_{i_j}(A)+\sum \limits_{p=k+1}^{s-1}{m}_{i_p}\left({X}_p\right)}\right]\end{array}} $$
(15)
where P(1,  … , s) is the set of all permutations of elements {1,  … , s}.
In the proposed approach, when DSmT is used for ADL recognition, the discernment framework contains 15 ADLs, as detailed in Eq. (16) and Table 5.
$$ {\displaystyle \begin{array}{l}\Theta =\left\{{A}_1,{A}_2,\dots, {A}_{15}\right\}=\\ {}\Big\{{}^{``}\mathrm{cleaning},{}^{"``}\mathrm{computer}\kern0.5em \mathrm{use},{}^{"``}\mathrm{eating},{}^{"``}\mathrm{entertainment},{}^{"}\kern0.5em \\ {}{\kern0.24em }^{``}\mathrm{lying}\kern0.5em \mathrm{down},{}^{"``}\mathrm{meeting},{}^{"``}\mathrm{reading},{}^{"``}\mathrm{shopping},{}^{"``}\mathrm{talking},{}^{"}\\ {}{\kern0.24em }^{``}\mathrm{telephone}\kern0.5em \mathrm{use},{}^{"``}\mathrm{transportation},{}^{"``}\mathrm{walking}\kern0.5em \mathrm{outside},{}^{"}\kern0.5em \\ {}{\kern0.24em }^{``}\mathrm{washing}\kern0.5em \mathrm{up},{}^{"``}\mathrm{watching}\kern0.5em \mathrm{TV},{}^{"``}{\mathrm{writing}}^{"}\Big\}\kern0.86em \end{array}} $$
(16)
Table 5

The description of the discernment framework defined in Eq. (16)

Θ

1

Cleaning (CN)

6

Meeting (MT)

11

Transportation (TP)

2

Computer use (CU)

7

Reading (RD)

12

Walking outside (WO)

3

Eating (ET)

8

Shopping (SP)

13

Washing up (WU)

4

Entertainment (EM)

9

Talking (TK)

14

Watching TV (TV)

5

Lying down (LD)

10

Telephone use (TU)

15

Writing (WT)

As the total number of sources is three (i.e., knowledge, image, and sensor data), PCR6 should be selected as the evidence combination rule if all sources are used in the data fusion process. An example of the fusion result from three sources using (15) is presented in Table 6. In this example, the BBAs of knowledge, image, and sensor data are derived from the time–activity table, cosine similarity between current BoT and class center, and posterior probability of the support vector machine classifier’s output, respectively.
Table 6

Example of three-source fusion using the PCR6 rule



CN

CU

ET

EM

LD

MT

RD

SP

TK

TU

TP

WO

WU

TV

WT

BBA of knowledge

0.1860

0.0233

0.2326

0.1163

0

0

0.0233

0

0.1163

0.1860

0

0.0698

0.0233

0.0233

0

BBA of image

0.0401

0.0260

0

0.4452

0

0.1526

0.0610

0

0.0939

0.1505

0

0

0

0

0.0308

BBA of sensors

0.0041

0.0303

0.0078

0.0558

0.0338

0.0076

0.0077

0.0229

0.1781

0.0264

0.0101

0.0174

0.0178

0.5602

0.0200

Fusion result

0.0565

0.0057

0.0754

0.2561

0.0031

0.0427

0.0103

0.0015

0.1017

0.0960

0.0003

0.0106

0.0022

0.3341

0.0037

Conditions: the time stamp of the camera is 17:30:57 on Thursday. The captured image can be seen in Fig. 6(d), and the ground truth is “entertainment”

Italics represent the maximum value of the BBA for all activities of the same information source, and the corresponding activity is the recognition result of that information source

In our case, the information sources differ greatly in the signal type and processing algorithm, e.g., the image source provides a specific combination of objects, whereas the sensor source provides the motion status of the person wearing the device. Hence, the corresponding recognition results are often different. This can be observed in Table 6. For the same activity, the recognition results from the image and sensor sources are “entertainment” and “watching TV,” respectively. In fact, “entertainment” (specifically “playing poker” in this case) and “watching TV” are both sedentary activities, and it is difficult to distinguish them using motion sensors (both the IMU and GPS sensors). Therefore, the recognition result from the image source should be more reliable. However, after fusion, the final recognition result is “watching TV” because the belief value of “entertainment” assigned by the BBA of the sensors is very low.

Based on previous research [15, 16] and our own study (described in Section 3), most ADLs achieve significantly higher accuracy when using vision-based data than with motion sensor-based data. Thus, in many cases, if the three sources of information are fused directly, the accuracy of the output is often affected by the low specificity of the motion sensors. However, we still need to use motion sensors to identify ADLs that have significant motion signatures, such as “cleaning,” “walking outside,” and “lying down.” Therefore, considering the reliability of each information source, we consider user knowledge and image sources to be high-priority data and the motion sensor source to be low-priority data, i.e., we supplement the sensor information only when the fusion of user knowledge and image sources leads to a conflict.

We implement the source-priority concept using a two-level hierarchical fusion network with descending candidate sets (2-L HFNDCS, see Fig. 4), similar to the implementation strategy proposed in [42, 43]. When the two-source fusion between the knowledge and image-based methods provides a conflicting result, motion sensor data are added to the pool of evidence for a second-level three-source fusion. Instead of considering all activities, only the candidate activities identified by two-source fusion are used as the input for the three-source fusion. The initial number of candidate activities is given in advance, and this number can be adjusted according to subsequent test results. The output of the final fusion is the activity with the highest belief among the candidate activities. The 2-L HFNDCS algorithm can be described as follows.
Fig. 4
Fig. 4

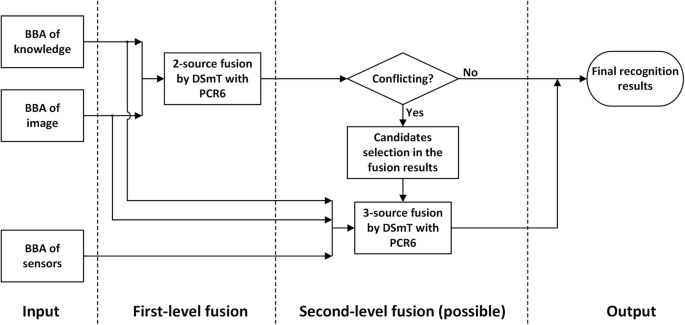

Architecture of 2-L HFNDCS

3 Experimental results

3.1 Experimental setup and data acquisition

Previously, our laboratory developed eButton (Fig. 5), a disk-like wearable device the size of an Oreo cookie that can be used to study human diet, physical activity, and sedentary behavior [23]. The eButton is equipped with a camera, IMU, and other sensors that are not used for the current study, such as those for measuring the temperature, lighting, and atmospheric pressure. The resolution of the camera is 1280 × 720 pixels. To save power, the camera acquires one image every 4 s. The built-in IMU contains a three-axis accelerometer and a three-axis gyroscope with a sampling frequency of 90 Hz. The GPS data are acquired from the wearer’s mobile phone at 1-s intervals and synchronized with the eButton data using time stamps.
Fig. 5
Fig. 5

Appearance of the eButton and examples of its wearing methods

Two volunteers with regular daily routines and relatively invariant living environments were selected for our experiments. After signing a consent form approved by the Institutional Review Board, they were asked to fill out the time–activity table described above. Their time–activity tables are provided in Appendixes 1 and 2. The volunteers then wore the eButton for a relatively long time (approximately 10 h per day for about 3 months). To form a gold standard for performance comparison, the resulting egocentric data were manually reviewed and annotated. For regular daily routines, the environment and motion patterns corresponding to certain activities were very similar. In contrast, the frequency and duration vary widely among less regular activities, resulting in a large imbalance among the number of samples corresponding to different activities. To reduce this data imbalance, a key frame extraction method was used [44, 45]. As the two eButton wearers each participated in the study for about 3 months, we had sufficient data to form two independent datasets (one for training and one for testing). We combined these data to form an egocentric activity dataset, called the eButton activity dataset [47].
Table 7

Numbers of key frames in the image subset

Set

CN

CU

ET

EM

LD

MT

RD

SP

TK

TU

TP*

WO

WU

TV**

WT

Training set

W1

127

139

115

117

153

99

146

170

79

106

185

101

102

84

97

W2

123

119

149

105

120

84

112

107

80

95

106

97

113

108

Test set

W1

113

139

155

59

178

92

101

149

70

99

184

146

90

70

125

W2

120

95

159

87

197

95

91

91

42

98

128

98

95

109

*Transportation method differs between the two wearers; W1 drives and W2 uses the bus

**W2 does not watch TV

In the eButton activity dataset, each wearer (referred to as W1 and W2) has a separate set of time–activity tables, a training set, and a test set. Although the training set and the test set do not overlap, they both have the same structure: a subset of egocentric images, a subset of motion sensor data, and a GPS data file. In the subset of egocentric images, each activity to be recognized corresponds to an image sequence. Each frame in the image sequence was extracted by the key frame extraction method [44, 45]. The number of key frames corresponding to different activities is listed in Table 7, and some sample frames are shown in Fig. 6. The file name of each key frame includes the specific time stamp. In the motion sensor subset, there is a one-to-one correspondence between the motion sensor data and the images in the image subset, i.e., each image corresponds to a motion sensor data file. The motion sensor files contain all raw sensor data (three-axis acceleration and three-axis gyroscope) from within a 3-s window centered around the stamp time of the image. There is also a one-to-one correspondence between the GPS data and the image subset. The GPS data (including time, coordinates, velocity, etc.) are synchronized with the time stamp of an image and recorded in one row of the GPS data file.
Fig. 6
Fig. 6

The sample image of each activity in the training set. Images a through o correspond to “cleaning,” “computer use,” “eating,” “entertainment,” “lying down,” “meeting,” “reading,” “shopping,” “talking,” “telephone use,” “transportation” (driving), “walking outside,” “washing up,” “watching TV,” and “writing,” respectively

Fig. 7
Fig. 7

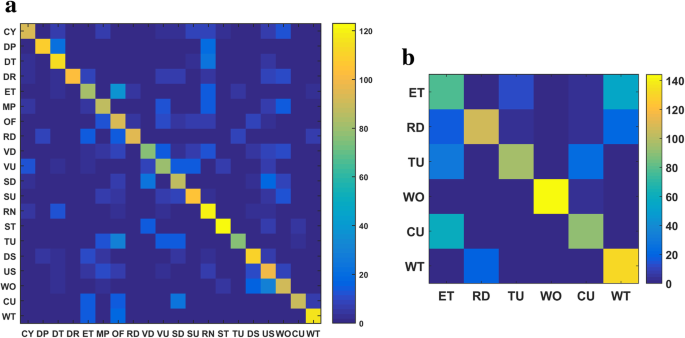

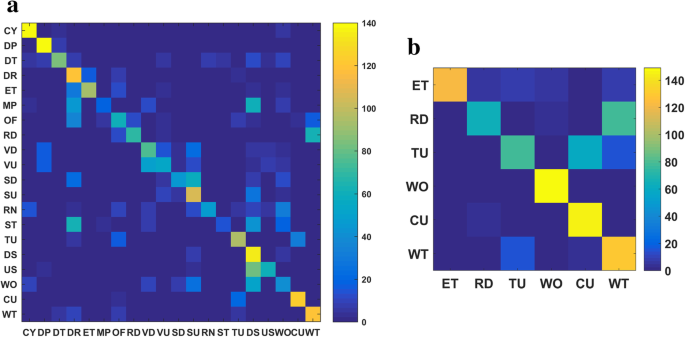

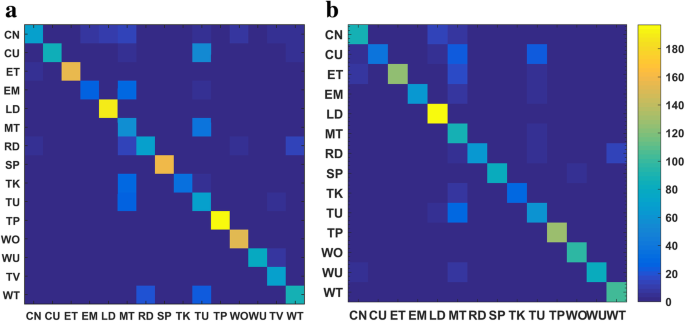

Confusion matrices for the image-based method as applied to a wearer 1 and b wearer 2

3.2 Experimental results

All data were analyzed using Matlab 8.6 on a PC running Windows 10 Pro. To facilitate the performance evaluation and comparison, the F1 measure [46], which is commonly used in the field of pattern recognition, was selected as the criterion for evaluating different classification methods. F1 is defined as
$$ {\displaystyle \begin{array}{l}{F}_1=2\cdot PR/\left(P+R\right)\\ {}P= TP/\left( TP+ FP\right),\kern1em R= TP/\left( TP+ FN\right)\end{array}} $$
(17)
where P is precision and R is recall. TP, FP, and FN represent the number of true samples, false positive samples, and false negative samples, respectively, derived from the confusion matrix. F1 is also called the harmonic mean of recall and precision.
Fig. 8
Fig. 8

Confusion matrices for the fusion results obtained by 2-L HFNDCS as applied to a wearer 1 and b wearer 2

3.2.1 ADL recognition results using images

Bag of tags (BoTs) were extracted from all key frames in both the training and test sets using the ClarifaiNet with the “General” model [30]. In the process of obtaining the entropy-based TF-IDF classifier for the training set, the positive constant λ used to remap item R(e2i) was empirically selected to be 0.01 and the number of tags was M = 20. The confusion matrices and F1 measures of the recognition results are presented in Figs. 7 and 10, respectively.

The results in Figs. 7 and 10 indicate that the image-based method achieves fairly high recognition accuracy for ADLs with different environments and combination of objects (CoOs). In contrast, when the classifier is used to distinguish among activities with similar environments and CoOs, the recognition results are less accurate. Specifically, the following situations are notable: (1) The environments and CoOs of different activities are almost identical. For example, there is no essential difference between “reading” and “writing,” except for the presence of a pen. If this key object is not correctly recognized, it is very difficult to distinguish these two activities. (2) Although the objects in use are not the same, the BoTs extracted from these objects are very similar. For example, the BoTs extracted from “computer use” and “telephone use” are very similar, as both contain tags such as “screen,” “electronics,” and “information,” making it hard to distinguish whether the wearer is using a computer or a telephone. (3) There are overlaps among some activities. For example, overlaps occur among “meeting,” “computer use,” and “talking,” because meetings usually include operating a computer and talking, resulting in errors in some short-term recognition results. Nevertheless, there are usually differences in the duration of these competing activities; for example, computers and telephones are generally not used at the same time, and many meetings have a relatively fixed schedule. Additionally, there are some differences among the motion status of activities with similar BoTs, which can be reflected by IMU and GPS sensor data. Therefore, the accuracy of ADL recognition can be further improved by fusing the knowledge and recognition results from the sensors.

3.2.2 ADL recognition results using motion sensors

For the SVM classifier in the sensor-based method, the size of the time window for feature extraction is 3 s; the features extracted from this time window constitute a 127-dimentional vector, as described in Section 2.4. In training the classifier, the SVM uses a radial basis function as the kernel. For the training samples of W1 and W2, the cost and gamma parameters (c, g) were determined using cross-validation to be (16, 0.33) and (5.29, 0.57), respectively. The F1 measure of the sensor-based method when applied to the test datasets of the two wearers is plotted in Fig. 10.

As mentioned above, motion sensors usually offer better discrimination between activities with a clearly different motion status. As seen in Fig. 10, the motion sensor-based method achieves better recognition accuracy for activities such as “cleaning,” “lying down,” “transportation,” and “walking outside.” For sedentary activities such as “reading,” “telephone use,” “watching TV,” and “writing,” the discrimination is relatively poor. Therefore, the recognition results from the sensor-based method are not suitable for direct fusion with the knowledge and image-based recognition results; they can only be used as auxiliary evidence in the 2-L HFNDCS algorithm.

3.2.3 Fusion of three data sources using 2-L HFNDCS

After obtaining the BBAs of the image and motion sensor-based methods, the 2-L HFNDCS algorithm was applied to fuse this with the knowledge BBA. Analysis of the confusion matrices from the image-based method (Fig. 7) indicates that the most confusing activities are sedentary activities, and no more than three other activities are frequently confused with each individual sedentary activity. Therefore, in the implementation of 2-L HFNDCS, the number of candidate activities for the second-level fusion was set to Nc = 3. The confusion matrix of the recognition results after fusion using 2-L HFNDCS is presented in Fig. 8. The F1 measure of the fusion results for the three sources is illustrated in Fig. 10.

3.2.4 Fusion results of the image-based method and the sensor-based method using simplified 2-L HFNDCS

To verify the effect of prior knowledge, the BBA of the knowledge data was removed so that only the image-based results and the sensor-based results were fused. The fusion process still tries to adopt the 2-L HFNDCS algorithm, but the first fusion layer is no longer needed because there is no knowledge BBA. Thus, the algorithm can be simplified. Considering the reliability difference between the image-based and sensor-based results, the process of candidate selection is retained in the second layer and candidate activities are directly selected from the image-based results (note that Nc = 3). The simplified 2-L HFNDCS without knowledge BBA is illustrated in Fig. 9. The F1 measure of the fusion results for the image-based method and the sensor-based method is also illustrated in Fig. 10.

Comparing Figs. 7 and 8, it is clear that the recognition accuracy of confusing activities such as “entertainment,” “meeting,” “reading,” and “talking” is greatly improved when the time–activity table is added. Moreover, after fusion, the recognition accuracy for some sedentary activities that cannot be adequately distinguish by the image-based method, such as “computer use,” “telephone use,” “reading,” and “writing,” is also improved to a certain extent. In addition, as seen from Fig. 10, the image-based recognition accuracy of activities that are closely related to the motion status, such as “cleaning,” “lying down,” and “walking outside,” is also improved by the fusion with sensor-based results.
Fig. 9
Fig. 9

Architecture of the simplified 2-L HFNDCS

Fig. 10
Fig. 10

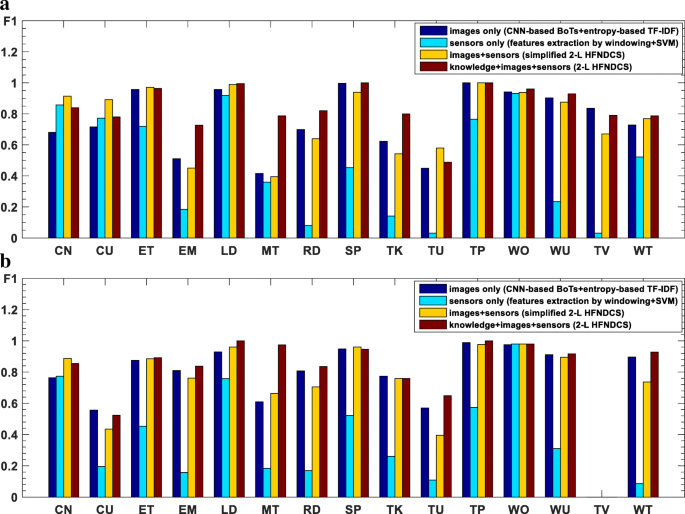

F1 measures of four methods as bar graphs for a wearer 1 and b wearer 2

4 Comparison and discussion

There are two existing ADL recognition methods that fuse egocentric visual and sensor data [15, 16]. These methods do not use a knowledge-driven model and are applicable to multimodal egocentric activity data [16] recorded by the motion sensor and video camera in Google Glass. The dataset described in [16] contains 20 different activities grouped into four top-level categories for multiple wearers (see Table 8). The method proposed in [15] performs ADL recognition by passing egocentric video through a two-stream convolutional neural network and applying motion sensor data to a multistream long and short-term memory. The recognition results are then fused by means of maximum pooling. In the method of [16], the dense trajectories of egocentric video and the temporally enhanced trajectory-like features of sensor data are extracted separately. The recognition results are then fused by a multimodal Fisher vector. As the dataset presented in [16] is openly available (http://people.sutd.edu.sg/~1000892/dataset), we can compare the results given by the proposed method with those of previous methods based on the same open datasets.
Table 8

Activity categories of the egocentric activity dataset presented in [15]

Ambulation

 1

Walking (WO)

 2

Walking upstairs (US)

 3

Walking downstairs (DS)

 4

Riding elevator up (VU)

 5

Riding elevator down (VD)

 6

Riding escalator up (SU)

 7

Riding escalator down (SD)

 8

Sitting (ST)

Daily activities

 9

Eating (ET)

 10

Drinking (DR)

 11

Texting (TU)

 12

Making phone calls (MP)

Office work

 13

Working at PC (CU)

 14

Reading (RD)

 15

Writing sentences (WT)

 16

Organizing files (OF)

Exercise

 17

Running (RN)

 18

Doing push-ups (DP)

 19

Doing sit-ups (DT)

 20

Cycling (CY)

4.1 Performance comparison on their respective datasets

The proposed method was applied to the eButton datasets (described in Section 3.1), and the other two methods were applied to the dataset described in [16]. Although they were applied to different datasets, all three methods fused the vision and motion sensor data. As a result, the recognition accuracy can be compared for different information sources. The comparison results are presented in Table 9, where the average accuracy is reported over all activities and wearers.
Table 9

Comparison of different methods on their respective datasets



Proposed method (%)

Method proposed in [15] (ConvNets+LSTM) + pooling fusion (%)

Method proposed in [16] (DT + temporal enhanced features) + Fisher vector (%)

Average pooling

Maximum pooling

Vision

79.2

68.5%

75.0

78.4

Sensors

43.1

49.5

69.0

Fusion

85.4

76.5

80.5

83.7

Proposed method was applied to the eButton datasets described in Section 3.1; the other two methods were applied to the datasets described in [16]

4.2 Discussion of the comparison on the respective datasets

In Table 9, the vision-based accuracy of all three methods is similar. However, there are greater differences in the sensor-based accuracy of the proposed and existing methods, because the eButton dataset contains more sedentary activities that are difficult to distinguish using motion sensors alone, such as “entertainment,” “meeting,” and “watching TV.” Nevertheless, the accuracy of the proposed method using the fused data is higher than that of the two existing methods, mainly because our framework introduces user knowledge into the recognition process.

4.3 Performance comparison on the same dataset

As the methods proposed in [15, 16] use egocentric video, the vision data are taken from the egocentric video in the open multimode dataset. However, the vision-based method proposed in this paper uses an egocentric image sequence, so it cannot use this open dataset directly. To enable the proposed method to be applied to the dataset in [16], we must convert the egocentric video to an egocentric image sequence. Each video and its corresponding motion sensor data are 15-s long, and the sampling rate of the motion sensor is 10 Hz. Thus, we can use the same sampling rate to convert the video to an image sequence and form a one-to-one correspondence between the images and the motion sensor data. After conversion, the egocentric image set has 20 (activities) × 10 (videos/activity) × (150 frames/video) = 30,000 frames. After extracting 20% of the key frames (6000 frames) using the key frame extraction method, two non-overlapping datasets (training set and test set) were generated (see Table 10). We define this converted dataset as \( \mathcal{M} \)-20.
Table 10

Composition of the converted dataset \( \mathcal{M} \)-20

Set

CY

DP

DT

DR

ET*

MP

OF

RD

VD

VU

SD

SU

RN

ST

TU

DS

US

WO

CU

WT

Training

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

Test

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

150

*Italics indicate that the activity is the same as the corresponding activity in the eButton dataset used in this paper. The same six activities constitute \( {\mathcal{M}}_S \)-6

Note that the methods proposed in [15, 16] do not use a prior knowledge model, and so their data (including the converted dataset \( \mathcal{M} \)-20) do not contain any prior knowledge, i.e., there is no corresponding time–activity table. Therefore, in applying the proposed method to \( \mathcal{M} \)-20, only the image and motion sensor data were fused. In addition, considering that the activities to be recognized in \( \mathcal{M} \)-20 are quite different from those in the eButton dataset, the same six activities were extracted from the two datasets to evaluate the ability of the proposed method to recognize the same activities in different datasets. The six activities were “eating,” “reading,” “texting” (“telephone use” in eButton dataset), “walking” (“walking outside” in eButton dataset), “working at PC” (“computer use” in eButton dataset), and “writing sentences” (“writing” in eButton dataset). The data from these activities formed a separate subset, defined as \( {\mathcal{M}}_S \)-6. Both \( \mathcal{M} \)-20 and \( {\mathcal{M}}_S \)-6 were used to evaluate the proposed method.

In applying the proposed method to\( \mathcal{M} \)-20 and \( {\mathcal{M}}_S \)-6, the parameter values of the entropy-based TF-IDF algorithm used for the egocentric images in the training set are consistent with those used to analyze the eButton dataset. The confusion matrices produced by applying the trained BoT classifier to the \( \mathcal{M} \)-20 and \( {\mathcal{M}}_S \)-6 test sets are shown in Fig. 11. For the motion sensor data, feature extraction by windowing is not required because there is a one-to-one correspondence with the images produced during the conversion from video to image sequence, and the motion sensor data frame (a 19-dimensional vector) can be directly used as a feature in training the SVM. The kernel function is again the radial basis function. Using cross-validation, the cost and gamma parameters (c, g) of \( \mathcal{M} \)-20 and \( {\mathcal{M}}_S \)-6 were found to be (256, 9.19) and (5.278, 1.74), respectively. The confusion matrices produced by applying the trained SVM classifier to the \( \mathcal{M} \)-20 and \( {\mathcal{M}}_S \)-6 test sets are shown in Fig. 12.
Fig. 11
Fig. 11

The confusion matrices of the trained BoT classifier applied to the test set of a \( \mathcal{M} \)-20 and b \( {\mathcal{M}}_S \)-6. \( \mathcal{M} \)-20 and \( {\mathcal{M}}_S \)-6 are the converted datasets extracted from the multimodal egocentric activity dataset proposed in [26]

According to Fig. 11, the number of candidate activities in the next fusion process is Nc = 8 (\( \mathcal{M} \)-20) and Nc = 4 (\( {\mathcal{M}}_S \)-6). As there is no time–activity table in the dataset, i.e., there is no knowledge BBA, the simplified 2-L HFNDCS algorithm without prior knowledge (see Section 3.2.4) was employed to obtain the fusion result of the image-based method and sensor-based method. The fused F1 measures of \( \mathcal{M} \)-20 and \( {\mathcal{M}}_S \)-6 are shown in Fig. 13. The average of the F1 measure over all activities was computed, and a comparison of the proposed method and the methods in [15, 16] on the same dataset is presented in Table 11.
Table 11

Comparison of different methods applied to the same dataset



Proposed method

Method in [15]

Method in [16] (%)

\( \mathcal{M} \)-20 (Nc = 8) (%)

\( {\mathcal{M}}_S \)-6 (Nc = 4) (%)

Maximum pooling (%)

Vision

53.2

75.8

75.0

78.4

Sensors

65.8

72.2

49.5

69.0

Fusion

72.3

85.2

80.5

83.7

Fig. 12
Fig. 12

The confusion matrices of the trained SVM classifier applied to the test set of a \( \mathcal{M} \)-20 and b \( {\mathcal{M}}_S \)-6

Fig. 13
Fig. 13

F1 measures of the fusion results for \( \mathcal{M} \)-20 (a) and \( {\mathcal{M}}_S \)-6 (b) by simplified 2-L

4.4 Discussion of the comparison on the same dataset

From the results in Table 11, it is apparent that applying the proposed method to \( \mathcal{M} \)-20 produced much lower recognition performance in the proposed vision-based method than in the existing methods. This is because the vision-based part of the proposed method is based on the combination of objects in the static images, whereas the methods in [15, 16] use vision-based motion features extracted from the video (optical flow [15] and dense trajectories [16]). Thus, for activity pairs with similar scenes but different vision-based motion features, such as “riding elevator up” and “riding elevator down,” “riding escalator up” and “riding escalator down,” “walking upstairs” and “walking downstairs,” “walking,” and “running,” the methods in [15, 16] will achieve better recognition performance. Note that, for some outdoor activities with similar scenes but large differences in motion speed, such as “making phone calls” (walking slowly while making phone calls outside), “walking,” and “running,” the proposed method can distinguish them using the speed value obtained from the GPS sensor. However, the dataset used in this experiment contains no GPS data, leading to poor recognition performance of these activities by the proposed method.

The comparison shows that the proposed method is better suited for recognition of ADLs with larger scenes or object differences. This result is validated by the high recognition accuracy of the proposed method when applied to dataset \( {\mathcal{M}}_S \)-6. Compared to the existing methods, the key factor in the proposed framework is the introduction of the prior knowledge model. Considering that neither \( \mathcal{M} \)-20 nor \( {\mathcal{M}}_S \)-6 contains any prior knowledge data, the recognition performance could be expected to improve significantly once the wearers’ daily routines (time–activity tables) are introduced.

In addition, for the methods proposed in [15, 16], it is necessary to extract optical flow between adjacent frames by means of the time-consuming optical flow field estimation algorithm. Even in the multistream deep learning framework proposed by [15], in the video processing part, three convolutional networks are used to accomplish feature extraction of single-frame images, optical flow, and stabilized optical flow. In contrast, the proposed algorithm only deals with a single-frame image and does not need to extract the optical flow. Only a pre-trained convolutional neural network is needed to extract the semantic features of a single image. Therefore, the computational complexity of the proposed algorithm is much lower than that of the methods proposed in [15, 16]. Detailed complexity comparison can be seen in Table 12.
Table 12

Comparison of the complexity of different methods



Proposed method

Method in [15]

Method in [16]

Vision

One pre-trained CNN (single image) + entropy-based TF-IDF

Three-stream CNN (single frame, optical flow, and stabilized optical flow)

Optical flow-based dense trajectory

Low

High

Very high

Sensors

SVM

Four-stream LSTM

Temporal enhanced trajectory-like features

Low

Medium

Low

Fusion

DSmT

Average or maximum pooling

Multimodal Fisher vector

Medium

Low

Medium

5 Conclusion

A knowledge-driven multisource fusion framework for egocentric activity of daily living (ADL) recognition is presented in this paper. The framework is based on Dezert–Smarandache theory (DSmT) and consists of information from three sources: a set of knowledge obtained from the wearer, a set of images from a wearable camera, and a set of sensor data from an IMU and a GPS sensor. With regard to user knowledge, we propose a convenient model building method, which only requires the user to fill in a time–activity table through a user-friendly interface. For the egocentric image sequence, we propose a novel egocentric ADL recognition algorithm based on image semantic features. An advanced automatic annotation algorithm is used based on a pre-trained CNN to obtain semantic information from each image, and an entropy-based algorithm is subsequently applied to further extract semantic features, so as to reduce the image classification problem to a text classification problem. In addition, in the DSmT-based multisource fusion part, we propose a hierarchical fusion architecture to eliminate the reliability differences between different information sources. Our experimental results show that the recognition performance for a number of ADLs that have previously been considered difficult can be significantly improved through the fusion of user knowledge with information from images and motion sensors. When applied to a self-built egocentric activity dataset, the proposed method achieved an average recognition accuracy of 85.4% across 15 predefined ADL classes, significantly higher than the accuracy that can be reached without incorporating user knowledge.

Abbreviations

2-L HFNDCS:

Two-level hierarchical fusion network with descending candidate sets

ADL:

Activities of daily living

BBA:

Basic belief assignment

BoTs:

Bags of tags

CNN:

Convolutional neural network

CoO:

Combination of objects

DSmT:

Dezert–Smarandache theory

DST:

Dempster–Shafer evidence theory

GPS:

Global positioning system

IMU:

Inertial measurement unit

LSTM:

Long- and short-term memory

PCR:

Proportional Conflict Redistribution

SVM:

Support vector machine

TF-IDF:

Term frequency-inverse document frequency

Declarations

Acknowledgements

The authors would like to acknowledge all the participants for their significant contributions to this research study, as well as Clarifai for providing online service.

Funding

This work was supported in part by the National Institutes of Health (NIH) Grants (No. U01HL91736, R01CA165255) of the United States; the National Natural Science Foundation of China (Grant No. 61601156, 61602430, 61102132); the State’s Key Project of Research and Development Plan of China (Grant No. 2016YFE0108100); Zhejiang Provincial Natural Science Foundation of China (Grant No. Q16F010019).

Availability of data and materials

The multimodal egocentric activity data used in the performance comparison is presented in [25, 26]. It is available at http://people.sutd.edu.sg/~1000892/dataset. The eButton activity datasets used in this work are available from the corresponding author on reasonable request.

Authors’ contributions

MS, WJ, and HY conceived the idea of the study. HY designed the framework of the study. HY collected the data. ZL and FG carried out part of the algorithms. WJ analyzed the data and the results. HY wrote the manuscript. MS, DY, and HZ revised the manuscript. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
College of Electronics and Information, Hangzhou Dianzi University, Hangzhou, 310018, China
(2)
Department of Electrical and Computer Engineering, University of Pittsburgh, Pittsburgh, USA
(3)
Department of Computer Science, Ocean University of China, Qingdao, China
(4)
Institute of Power Consumption and Energy Efficiency, China Electric Power Research Institute, Beijing, 100192, China
(5)
Image Processing Center, School of Astronautics, Beihang University, Beijing, China
(6)
Department of Neurological Surgery, University of Pittsburgh, Pittsburgh, USA

References

  1. L. Zhang, Y. Gao, W. Tong, G. Ding, A. Hauptmann, in Proceedings of the 19th International Conference on Multimedia Modeling (MMM 2013). Multi-camera egocentric activity detection for personal assistant (Huangshan, China, 2013), Springer, pp. 499–501Google Scholar
  2. S.F. KaiZhan, FabioRamos, Multi-scale conditional random fields for first-person activity recognition on elders and disabled patients. Pervasive Mob. Comput. 16, 251–267 (2015)View ArticleGoogle Scholar
  3. A. Behera, D.C. Hogg, A.G. Cohn, in Proceedings of the 11th Asian Conference on Computer Vision (ACCV 2012). Egocentric activity monitoring and recovery (Daejeon, 2012), Springer, pp. 519–532Google Scholar
  4. D. Surie, T. Pederson, F. Lagriffoul, L.-E. Janlert, D. Sjölie, in Proceedings of the 4th international conference on Ubiquitous Intelligence and Computing. Activity recognition using an egocentric perspective of everyday objects (Hong Kong, 2007), Springer, pp. 246–257Google Scholar
  5. K.M. Kitani, T. Okabe, Y. Sato, A. Sugimoto, in Proceedings of 2011 IEEE Conference on Computer Vision and Pattern Recognition (CVPR 2011). Fast unsupervised ego-action learning for first-person sports videos (Colorado Springs, CO, USA, 2011), IEEE, pp. 3241–3248Google Scholar
  6. Y. Hoshen, S. Peleg, in Proceedings of 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR 2016). An egocentric look at video photographer identity (Las Vegas, 2016), IEEE, pp. 4284–4292Google Scholar
  7. A. Betancourt, P. Morerio, C.S. Regazzoni, M. Rauterberg, The evolution of first person vision methods: a survey. IEEE Trans. Circuits Syst. Video Technol. 25, 744–760 (2015)View ArticleGoogle Scholar
  8. W. Jiang, Z. Yin, in Proceedings of the 23rd ACM international conference on Multimedia. Human activity recognition using wearable sensors by deep convolutional neural networks (Brisbane, 2015), ACM, pp. 1307–1310Google Scholar
  9. O.D. Lara, M.A. Labrador, A survey on human activity recognition using wearable sensors. IEEE Commun. Surv. Tutorials 15, 1192–1209 (2013)View ArticleGoogle Scholar
  10. T.H. Nguyen, J.C. Nebel, F. Florez-Revuelta, Recognition of activities of daily living with egocentric vision: a review. Sens. (Basel) 16, 72: 1-24 (2016)Google Scholar
  11. M. Bolaños, M. Dimiccoli, P. Radeva, Toward storytelling from visual lifelogging: an overview. IEEE. Trans. Hum. Mach. Syst. 47, 77–90 (2017)Google Scholar
  12. M. Bolaños, M. Garolera, P. Radeva, in Proceedings of the 2015 Iberian Conference on Pattern Recognition and Image Analysis (IbPRIA). Object discovery using CNN features in egocentric videos (Santiago de Compostela), Springer, pp. 67–74Google Scholar
  13. M. Ma, H. Fan, and K. M. Kitani, in Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR). Going deeper into first-person activity recognition (Las Vegas, 2016), IEEE, pp. 1894–1903Google Scholar
  14. Y. Li, Z. Ye, J.M. Rehg, in Proceedings of the 2015 IEEE Conference on Computer Vision and Pattern Recognition (CVPR). Delving into egocentric actions (Boston, 2015), IEEE, pp. 287–295Google Scholar
  15. S. Song, V. Chandrasekhar, B. Mandal, L. Li, J.-H. Lim, G.S. Babu, et al., in Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition Workshops (CVPRW). Multimodal multi-stream deep learning for egocentric activity recognition (Las Vegas, 2016), IEEE, pp. 378–385Google Scholar
  16. S. Song, N.-M. Cheung, V. Chandrasekhar, B. Mandal, J. Lin, in Proceedings of the 2016 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). Egocentric activity recognition with multimodal fisher vector (Shanghai, 2016), IEEE, pp. 2717–2721Google Scholar
  17. G. Shafer, Perspectives on the theory and practice of belief functions. Int. J. Approx. Reason. 4, 323–362 (1990)MathSciNetView ArticleGoogle Scholar
  18. F. Smarandache, J. Dezert, Advances and Applications of DSmT for Information Fusion (American Research Press, Rehoboth, 2004)MATHGoogle Scholar
  19. L. Chen, J. Hoey, C.D. Nugent, D.J. Cook, Z. Yu, Sensor-based activity recognition. IEEE Trans. Syst. Man Cybern. Part C Appl. Rev. 42, 790–808 (2012)View ArticleGoogle Scholar
  20. B. Bouchard, S. Giroux, A. Bouzouane, A smart home agent for plan recognition of cognitively-impaired patients. J. Comput. 1, 53–62 (2006)View ArticleGoogle Scholar
  21. L. Chen, C. Nugent, M. Mulvenna, D. Finlay, X. Hong, M. Poland, A logical framework for behaviour reasoning and assistance in a smart home. Int. J. Assistive. Robot. Mechatronics. 9, 20–34 (2008)Google Scholar
  22. A.R.J. Francois, R. Nevatia, J. Hobbs, R.C. Bolles, J.R. Smith, VERL: an ontology framework for representing and annotating video events. IEEE Multimedia 12, 76–86 (2005)View ArticleGoogle Scholar
  23. M. Sun, L.E. Burke, Z.H. Mao, Y. Chen, H.C. Chen, Y. Bai, et al., in Proceedings of the 51st ACM/EDAC/IEEE Design Automation Conference (DAC). eButton: a wearable computer for health monitoring and personal assistance (San Francisco, 2014), ACM, pp. 1–6Google Scholar
  24. M. Žitnik, B. Zupan, Data fusion by matrix factorization. IEEE Trans. Pattern Anal. Mach. Intell. 37, 41–53 (2015)View ArticleGoogle Scholar
  25. K. Matsuo, K. Yamada, S. Ueno, S. Naito, in Proceedings of the 2014 IEEE Conference on Computer Vision and Pattern Recognition Workshops (CVPRW). An attention-based activity recognition for egocentric video (Columbus, 2014), IEEE, pp. 565–570Google Scholar
  26. A. Fathi, Y. Li, J.M. Rehg, in Proceedings of the 12th European Conference on Computer Vision (ECCV 2012). Learning to recognize daily actions using gaze (Florence), Springer, pp. 314–327Google Scholar
  27. A. Krizhevsky, I. Sutskever, G.E. Hinton, in Advances in Neural Information Processing Systems 25 (NIPS 2012). ImageNet classification with deep convolutional neural networks (2012), MIT, pp. 1097–1105Google Scholar
  28. K. Simonyan and A. Zisserman, Very Deep Convolutional Networks for Large-scale Image Recognition, arXiv preprint arXiv:1409.1556., (2014)Google Scholar
  29. M.D. Zeiler, R. Fergus, in Proceedings of the 2014 European Conference on Computer Vision (ECCV). Visualizing and understanding convolutional networks (Zurich), Springer, pp. 818–833Google Scholar
  30. Clarifai Inc. Clarifai API. Available: https://www.clarifai.com/developer/. Accessed 25 Feb 2018
  31. J. Deng, W. Dong, R. Socher, L.-J. Li, K. Li, L. Fei-Fei, in Proceedings of the 2009 IEEE Computer Vision and Pattern Recognition (CVPR). ImageNet: a large-scale hierarchical image database (Miami), IEEE, pp. 248–255Google Scholar
  32. G. Salton, A. Wong, C.S. Yang, A vector space model for automatic indexing. Commun. ACM 18, 613–620 (1975)View ArticleGoogle Scholar
  33. G. Salton, E.A. Fox, H. Wu, Extended Boolean information retrieval. Commun. ACM 26, 1022–1036 (1983)MathSciNetView ArticleGoogle Scholar
  34. J.H. Paik, in Proceedings of the 36th International ACM SIGIR Conference on Research and Development in Information Retrieval. A novel TF-IDF weighting scheme for effective ranking (Dublin), ACM, pp. 343–352Google Scholar
  35. L.P. Jing, H.K. Huang, H.B. Shi, in Proceedings of the 2002 IEEE International Conference on Machine Learning and Cybernetics. Improved feature selection approach TFIDF in text mining (Beijing), IEEE, pp. 944–946Google Scholar
  36. Y. Jiao, M. Cornec, J. Jakubowicz, in Proceedings of the 1st International Symposium on Web Algorithms. An entropy-based term weighting scheme and its application in e-commerce search engines (Deauville, 2015), HAL, pp. 1–6Google Scholar
  37. A.M. Khan, Y.-K. Lee, S.Y. Lee, T.-S. Kim, A triaxial accelerometer-based physical-activity recognition via augmented-signal features and a hierarchical recognizer. IEEE Trans. Inf. Technol. Biomed. 14, 1166–1172 (2010)View ArticleGoogle Scholar
  38. J.R. Kwapisz, G.M. Weiss, S.A. Moore, Activity recognition using cell phone accelerometers. ACM SigKDD Explorations Newsletter 12, 74–82 (2011)View ArticleGoogle Scholar
  39. C. Cortes, V. Vapnik, Support-vector networks. Mach. Learn. 20, 273–297 (1995)MATHGoogle Scholar
  40. C.C. Chang, C.J. Lin, LIBSVM: a library for support vector machines. ACM Trans. Intell. Syst. Technol. (TIST) 2, 27 (2011)Google Scholar
  41. J.C. Platt, Probabilistic outputs for support vector machines and comparisons to regularized likelihood methods. Adv. Large. Margin. Classif 10, 61–74 (1999)Google Scholar
  42. Q. Ma, B. Fosty, C.F. Crispim-Junior, F. Brémond, in Proceedings of the 10th IASTED International Conference on Signal Processing, Pattern Recognition and Applications. Fusion framework for video event recognition (Innsbruck), HAL, pp. 1–8Google Scholar
  43. Y. Xia, C. Wu, Q. Kong, Z. Shan, L. Kuang, in Proceedings of International Conference on Modeling Decisions for Artificial Intelligence, A Parallel Fusion Method for Heterogeneous Multi-Sensor Transportation Data (Hunan, 2011), Springer, pp. 31–42Google Scholar
  44. W. Zhang, W. Jia, M. Sun, in Proceedings of the 2010 IEEE 36th Annual Northeast Bioengineering Conference. Segmentation for efficient browsing of chronical video recorded by a wearable device (New York), IEEE, pp. 1–2Google Scholar
  45. Z. Li, Z. Wei, W. Jia, M. Sun, in Proceedings of 2013 35th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC). Daily life event segmentation for lifestyle evaluation based on multi-sensor data recorded by a wearable device (Osaka, 2013), IEEE, pp. 2858–2861Google Scholar
  46. D.M. Powers, Evaluation: from precision, recall and F-measure to ROC, informedness, markedness and correlation. J. Mach. Learn. Technol. 2, 37–63 (2011)Google Scholar
  47. H. Yu, G. Pan, M. Pan, C. Li, W. Jia, L. Zhang, et al., A hierarchical deep fusion framework for egocentric activity recognition using a wearable hybrid sensor system. Sensors (Basel) 19, 546: 1-28, (2019)Google Scholar

Copyright

© The Author(s). 2019

Advertisement
