Intelligent resource allocation scheme for cloudedgeend framework aided multisource data stream
EURASIP Journal on Advances in Signal Processing volume 2023, Article number: 56 (2023)
Abstract
To support multisource data stream generated from Internet of Things devices, edge computing emerges as a promising computing pattern with low latency and high bandwidth compared to cloud computing. To enhance the performance of edge computing within limited communication and computation resources, we study a cloudedgeend computing architecture, where one cloud server and multiple computational access points can collaboratively process the computeintensive data streams that come from multiple sources. Moreover, a multisource environment is considered, in which the wireless channel and the characteristic of the data stream are timevarying. To adapt to the dynamic network environment, we first formulate the optimization problem as a markov decision process and then decompose it into a data stream offloading ratio assignment subproblem and a resource allocation subproblem. Meanwhile, in order to reduce the action space, we further design a novel approach that combines the proximal policy optimization (PPO) scheme with convex optimization, where the PPO is used for the data stream offloading assignment, while the convex optimization is employed for the resource allocation. The simulated outcomes in this work can help the development of the application of the multisource data stream.
1 Introduction
Owing to the rapid advancement and innovation of wireless communication in the 5th generation (5G), an increasing number of smart devices are linked to the Internet through wireless communication, which facilitates the birth and development of the Internet of Things (IoT). In IoT networks, one typical application is how to process multisource data streams generated from IoT devices [1,2,3]. In particular, the characteristic of the data stream is highdimensional, heterogeneous, and computeintensive, which leads to a considerable cost for processing at the devices [4,5,6]. To solve this problem, mobile cloud computing (MCC) is devised as a new computing pattern by uploading data streams to a more powerful cloud server for computing. Based on MCC, energy consumption can be significantly reduced at the devices. However, there exists an unbearable latency in the MCC networks. As the distance is often far from the devices to the cloud server, the transmission latency becomes a bottleneck [7,8,9].
In order to handle the issue caused by cloud computing, mobile edge computing (MEC) emerges as a promising computing pattern with the advantage of low latency and high bandwidth [10,11,12]. By setting the edge server closer to the devices, the IoT devices can upload more computational tasks to the edge server in order to obtain ultralow latency. For the MEC networks, one significant part is to make offloading ratio assignments [13, 14]. Literature [15, 16] studied a MEC network with task dependency and proposed some static numerical solutions to reduce the delay and energy overhead. In reality, the network environment was dynamic, where the wireless channel was timevarying, and the characteristic of the data stream was variable [17, 18]. For this case, some dynamic offloading methods were devised based on deep reinforcement learning (DRL) [19, 20]. The researchers in [21] proposed a Qlearning based binary offloading strategy to reduce the task execution time. Moreover, to make offloading strategy more flexible, a partial task unpacking decision was proposed based on the Deep Q network (DQN) [20]. In further, with the massive increase in the number of devices and the limited computing resources of CAP, joint optimization of resource allocation and offloading strategy were widely studied for the MEC network [22]. Literature [23] applied the Lyapunov optimization for resource allocation and offloading strategy while ensuring the maximization of longterm quality of experience (QoE). The authors in [24] proposed a lowcomplexity algorithm for the realtime MEC system. Furthermore, physical layer security was taken into consideration to ensure a secure transmission rate, meanwhile decreasing the system delay for the MEC network [20].
In addition, the performance of the MEC network has been widely investigated. Literature [9, 25] studied an intelligent reflect surface (IRS)aided MEC network and derived the closedform of outage probability of system latency. The researchers in [26] evaluated and optimized the performance of the cacheaided relaying MEC network. Moreover, a hybrid spectrum access technology was studied to improve the performance of the nonorthogonal multiple access (NOMA)based network [27]. Furthermore, literature [28] considered a realistic scenario that the perfect estimation was tough to obtain and devised a dynamic resource allocation to maximize the energy efficiency for the NOMAbased MEC network. Although edge computing can effectively relieve the burden on the core network compared to cloud computing, its constrained computing and communication resources became the barrier to development [29]. Thereby, collaborative computing between the cloud server and edge server can further enhance the performance of the MEC network [30].
However, the works listed above mainly focus on the resource allocation as well as offloading strategy to improve the performance of the MEC network, which fails to consider a charge service mechanism. If users are allocated more computational resources, they need to pay more. Meanwhile, each user should have a budget constraint that decides how many resources can be purchased. Therefore, the service mechanism may influence the performance of the MEC system. As far as we know, few works consider the charge service in the collaborative computing network. Motivated by this, a charge service mechanism is incorporated for the cloudedgeend computing network. The main contributions of this work are listed as follows:

To improve the performance of MECassisted multisource data stream computing, we study a cloudedgeend computing architecture in the case of a dynamic environment, where the wireless channel is timevarying, and the data stream characteristic is variable. Moreover, the charge service mechanism is involved in the considered network.

In order to guarantee the effectiveness of the considered computing framework, we formulate an optimization for minimizing system latency by optimizing the offloading strategy assignment, the computation resource allocation, and the bandwidth resource allocation under the device’s budget jointly.

We design a novel approach that combines DRL with convex optimization, named “ECCPPO.” Specifically, the DRL is used for offloading strategy assignment subproblem, while the convex optimization is applied for the resource distribution subproblem.

Simulated outcomes reveal the designed scheme “ECCPPO” works effectively on the dynamic network and can help improve the performance of the application of the multisource data stream.
2 System model

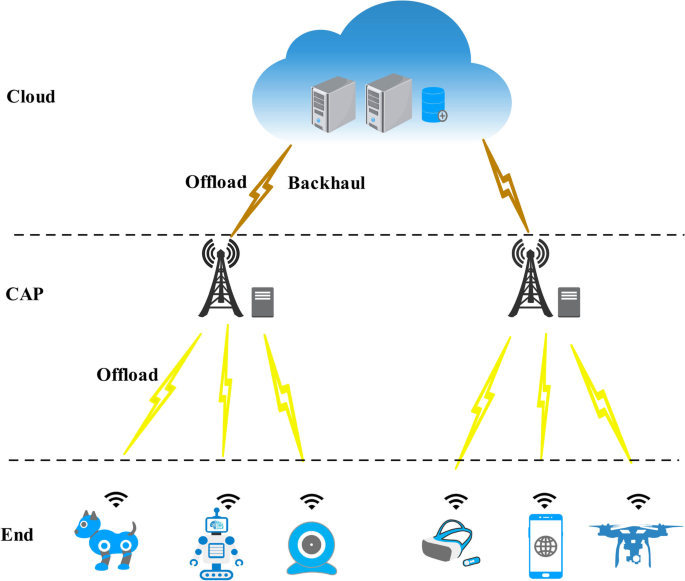

As depicted in Fig. 1, we present a collaborative cloudedgeend threetier architecture with M IoT devices, N computational assess points (CAPs), and one centralized cloud server with powerful computation capacity. We use \({\mathcal {M}} = \{1, 2,\ldots , M\}\) and \({\mathcal {N}} = \{1, 2,\ldots , N\}\) to denote the IoT device set and the CAP set, respectively. Specifically, each CAP comprises one base station and one MEC server, which can serve multiple devices. Meanwhile, each device has already connected with one CAP via a wireless channel, and each CAP has associated with the cloud server through different wireless backhaul links in advance [31].
We assume that each IoT device generates a computeintensive data stream in real time, which can be arbitrarily divided into several parts and executed simultaneously at the device, the CAP, and the cloud server. Generally speaking, the computation capacity of the device terminal is insufficient compared to the CAP and the cloud server. Therefore, the devices need to offload a portion of the data streams to the CAP or the cloud server. In addition, we also consider a practical scenario that the CAP and the cloud should charge the devices based on the size of the data stream and computation resource allocated to the devices, while the devices should purchase computation resources according to individual economic budgets. In the following, we will present the transmission, computation, and pricing models in detail.
2.1 Transmission model
As mentioned, the uplink channels from device m to CAP n and CAP n to the cloud server are wireless for offloading data streams. Besides, we presume those channels are independent, identically distributed (i.i.d), and modeled as Rayleigh channels. Specifically, let \(p^{\text {trans}}_m\) and \(p^{\text {trans}}_n\) denote the transmit power of device m and CAP n, respectively. \(h_{m,n} \sim \mathcal{CN} (0, \varpi _1)\) and \(g_{m, n} \sim \mathcal{CN} (0, \varpi _2)\) are the instantaneous channel parameters between device m to CAP n and CAP n to the cloud, respectively. Then, according to Shannon’s theory, the corresponding transmission rate are, respectively, given by,
where \(\sigma ^2\) represents the variance of additive white Gaussian noise (AWGN) [32,33,34]. \(w_{m,n}^{\text {CAP}}\) and \(w_{m, n}^{c}\) are the wireless bandwidth allocated by CAP n and the cloud, which satisfies the following constraint
where \(W_n^{\text {CAP}}\) and \(W^{c}\) are the total bandwidth of CAP n and the cloud server.
2.2 Computational model
For this part, we pay attention to the computational model to minimize the latency of transmission and computation. At first, device m determines to offload \(\alpha _m\) portion of data stream \(l_m\) to the CAP n based on some strategies. When receiving the partial data stream \(\alpha _m l_m\) from device m, CAP n will judge the computational burden and its own computation capacity. If the computational burden is heavy, CAP n needs further offload \(\beta _m\) proportion of the received data stream \(\alpha _m l_m\) to the cloud server with much more computation capacity. Otherwise, the CAP can process the data streams on its own. The detailed procedure for processing data stream \(l_m\) is shown in Fig. 2.
Let \(\phi _m = (\alpha _{m}, \beta _{m})\) denote the data stream offloading ratio vector, where \(\alpha _{m} \in \{0, 1\}\) and \(\beta _{m} \in \{0, 1\}\). For each device \(m \in {\mathcal {M}}\), the size of data stream \(l_m\) for computing at local, the CAP, and the cloud are given as, respectively,
Similarly, for data stream \(l_m\), the local device’s computational latency, the CAP’s computational latency, and the cloud’s computational latency are given as, respectively,
where \(\omega\) denotes the CPU cycles computing per bit data stream, \(\kappa\) represents the unit conversion factor from Mbs to bits, \(f_{m,n}^\text {CAP}\) and \(f_m^\text {c}\) are the CPU frequency allocated by the CAP n and the cloud server, and \(f_m^l\) denote the device m’s computation capacity. According to (1) and (2), the transmission latency from device m to CAP n and CAP n to the cloud are written as, respectively,
Since the results feedback is small, we ignore the return latency. We assume that each device and each CAP has a transmitting unit and a computing unit, which can work simultaneously. Thus, data stream \(l_m\) can be processed and transmitted in parallel. Therefore, the latency for processing data stream \(l_m\) is given by
Moreover, the CAP’s server or the cloud server should create a virtual machine for each device. Thereby, all data streams of the M devices can be executed simultaneously. The total processing latency of all devices are
2.3 Pricing model
The pricing model consists of two parts: basic service fee \(\tau _m\) and calculation service fee \(\pi _m\). The former is related to the size of the data stream \(l_m\) transmitted to the CAP or the cloud server, while the latter is correlated with the computational resource. According to [35], the payment for offloading data stream \(l_m\) is
where \(\zeta _1\) denotes the unit price for transmitting per Mb of the data stream from device m to the CAP, \(\zeta _2\) represents the price coefficient per Mb of the data stream transmitted from the CAP to the cloud, and \(\eta _1\) and \(\eta _2\) are the unit price of computing capacity for the CAP and the cloud. In addition, each device m has a finite budget to buy the service, and the limitation for the budget of device m is given by
3 Problem formulation
In this part, we first denote a sequence time slot \(k = \{1,2,\ldots , K\}\), where the total system delay at time slot k is presented by \(T^{\text {total}}(k)\). Then, at each time slot k, our goal is to obtain a minimum total system delay under the constrained devices’ budget by jointly optimizing offloading ratio assignment, bandwidth resource management, and computation resource allocation in the considered network, given by
where \(\text {C}_1\) ensures the range of the offloading assignment \(\alpha _m\) and \(\beta _m\). \(\text {C}_2\) and \(\text {C}_3\) represent the sum of the bandwidth resources assigned to each device, which cannot exceed the entire bandwidth at the CAP or the cloud server. Analogously, \(\text {C}_4\) and \(\text {C}_5\) denote the limitation of computational resource allocation at the CAP or the cloud server, while \(\text {C}_6\) is the maximal budget of each device for purchasing resource services. For convenience, we denote the vectors \(\varvec{\phi } = \{\phi _{m}\}\), \(\varvec{w} = \{w^{\text {CAP}}_{m, n}, w^{c}_{m, n}\}\), and \(\varvec{f} = \{f^{\text {CAP}}_{m,n},f^c_m\}\) as the offloading assignment, bandwidth resources management, and computation resources allocation, respectively.
In this article, what is noteworthy is that a multisource environment is considered, where the wireless channel is timevarying and the characteristic of the data stream is dynamic at each time slot. To adapt to the multisource environment and minimize the system latency, we design an algorithm to make decisions at each time slot. In particular, the decisionmaking at the current time slot k can be used as a reference for that at the next time slot \(k+1\). Therefore, we can design the data stream offloading process with resource allocation as a Markov Decision Process (MDP), detailed in the next subsection.
3.1 MDP
As illustrated in the last section, we formulate the data stream offloading problem as an MDP with a tuple \(\{{\mathcal {S}},{\mathcal {A}},{\mathcal {P}},{\mathcal {R}},\gamma \}\). We use \(a_k \in {\mathcal {A}}, r_k \in {\mathcal {R}}\), and \(s_k \in {\mathcal {S}}\) to denote the action, reward, as well as state at time frame k, respectively.
3.1.1 State space
For the considered network, we consider a multisource scenario, where the data stream is heterogeneous and the channel gain is timevarying at each time slot. Therefore, at the beginning time slot k, the system state is depicted as \(s_k = \{T^{\text {total}}(k1), \varvec{\phi } (k1),\varvec{L}(k), \varvec{H}(k), \varvec{G}(k)\}\), where \(\varvec{L}(k) = [l_1(k), l_2(k), \ldots , l_M(k)]\) denotes the data stream vector, \(\varvec{H}(k) = [h_{1,n}^2(k), h_{2,n}^2(k), \ldots , h_{M,n}^2(k)]\) and \(\varvec{G}(k) = [g_{1,n}^2(k), g_{2,n}^2(k), \ldots , g_{M,n}^2(k)]\) are the instantaneous channel gain vector.
3.1.2 Action space
Recall the problem \({\textbf {P1}}\), the main factors affecting the system latency are offloading strategy \(\varvec{\phi } (k)\), bandwidth resource management \(\varvec{w}(k)\), and computation resource allocation \(\varvec{f}(k)\). Hence, the action is defined as \(a_k = \{\varvec{\phi } (k), \varvec{w}(k), \varvec{f}(k)\}\). Mention that the number of pairs \(\{state, action\}\) is infinite, due to the continuous values of \(a_k\) and \(s_k\). Therefore, it is inefficient to use a table to store all pairs or apply a valuebased method to solve \({\textbf {P1}}\). To solve this problem, we use a deep neural network (DNN) \(\psi (as; \theta ^a)\) to approximate policy function \(\psi (as)\), guiding the agent to do action a under state s.
3.1.3 Reward function
The core of the reward function is to evaluate the qualify of action \(a_t\). Specifically, a positive reward will be given, if the agent makes a decision that efficiently minimizes the system latency and vice versa. Thereby, we defined the reward function related to time slot t as
For this considered network, there exists a central control at the cloud for the considered network, which can obtain all the device information and the whole system network status. Therefore, the central control is regarded as an agent. At the beginning time slot k, the agent first observes the system state \(s_k\) and makes a decision \(a_k\) based on \(\psi (as)\). Then, the system will give an immediate reward \(r_k\) to the agent, and alter its state from \(s_k\) to \(s_{k+1}\) with a transit probability \({\mathcal {P}}\). This process will last for a long time until an end state \(S_{end}\) is observed. Meanwhile, the agent’s target is to acquire an optimal \(\psi ^*(as)\) to obtain a longterm accumulated reward \(C_k\) from the original state \(s_k\), given by
where \(\gamma\) is the discount factor.
Although we formulate a specific MDP to deal with \({\textbf {P1}}\), it is still untoward to solve, due to the max operator and many variables. Since \({\textbf {P1}}\) is a minmax problem, and we can transform \({\textbf {P1}}\) into a mean weightedsum problem \({\textbf {P2}}\) according to [29, 36, 37], given as
Note that P2 is also an MDP problem. However, we find that the transition probability of the wireless channels and the data streams’ characteristics are unknown. Moreover, the dimension of the action is high and causes a huge action space. In further, the variable of offloading assignment \(\varvec{\phi }(k)\) and resource allocation \(\{\varvec{w}(k), \varvec{f}(k)\}\) are tightly coupled, leading to difficulty in convergence. To deal with these issues, we decompose problem P2 into offloading strategy allocation subproblem and resources allocation subproblem, where we design a novel DRLbased approach to handle the subproblems efficiently, specified in the following.
4 Problem decomposition
As illustrated before, the dimension of action is high, which leads to a huge action space. Moreover, the subaction, which includes offloading ratio assignment \(\varvec{\phi }\), bandwidth allocation \(\varvec{w}\), and computational allocation \(\varvec{f}\), are closely related. Besides, we perceive a vital phenomenon that the data stream offloading \(\varvec{\phi }\) assignment affects the transmission delay and the computational simultaneously, but the bandwidth allocation \(\varvec{w}\) and the computation allocation \(\varvec{f}\) can only influence them, respectively. Therefore, we decompose P2 into a resources allocation subproblem and an offloading strategy allocation subproblem. The former subproblem is only related to the bandwidth resource allocation and computation resource allocation, and the latter subproblem is involved with the offloading assignment. We solve the former and the latter subproblems by convex optimization and DRL methods, respectively.
4.1 Convex optimization based for resource allocation subproblem
It is obvious that, at any time slot, the resource allocation subproblem to optimize \((\varvec{w}, \varvec{f})\) is a convex optimization problem with linear and convex constraints, given the offloading strategy \(\varvec{\phi }\). Therefore, we convert P2 into
The optimal solution can be obtained with the standard convex optimizer, which often needs iteration to solve. To get the optimal solution without iteration, we further slack the budget’s constraint (19g), converting P3 into a Lagrange problem, written as,
where \(\beta , \delta , \mu\) and \(\nu\) are Lagrangian multipliers. Let us take the partial derivatives \(\varvec{f}\) and \(\varvec{w}\),
where
By setting the partial derivative (25) to zero, we can get a optimal solution \(\varvec{w^*} = \{w^{\text {CAP}}_{m,n}, w^{c}_{m,n}\}, \forall m \in {\mathcal {M}}\) and \(\varvec{f^*} = \{f^{\text {CAP}}_{m,n}, f^{c}_{m}\}, \forall m \in {\mathcal {M}}\),
Note that \(\varvec{w^*}\) is always effective, since it has nothing to do with the device’s budget, while \(\varvec{f^*}\) is available only if the constraint (19g) holds. Otherwise, the optimal solution \(\varvec{f^*}\) is obtained by the conventional convex tools, e.g., the CVX tools.
4.2 Proximal policy optimization
In this part, we employ the proximal policy optimization (PPO) strategy to solve the offloading ratio assignment subproblem owing to its advantage of stability and practicability [38, 39]. The PPO strategy originates from the actorcritic scheme, which can effectively deal with continuous action space. Specifically, we use \(\psi (as; \theta ^a)\) and \(V(s;\theta ^v)\) to denote the actor and critic network, where \(\theta ^a\) and \(\theta ^v\) are the parameter sets of the two DNNs, respectively. The actor DNN \(\psi (as; \theta ^a)\) is responsible for making decisions a given state s, while the critic DNN \(V(s; \theta ^\nu )\) is to assess the value of state s.
For the critic network, in order to reduce the error between real value and estimated value generated by \(V(s; \theta ^\nu )\), the temporaldifference (TD) scheme is utilized for the loss function, designed by
where \({\mathbb {E}}_k(\cdot )\) is the expectation operator over k samples.
Let \(\varrho = (s_1, a_1, r_1, \ldots , s_k, a_k,r_k)\) denote a trajectory in an episode. Generally speaking, the traditional actor network is relied on the policy gradient method, which needs a complete sequence trajectory \(\varrho\) and updates itself in one episode, leading to slow convergence and local optima. To deal with this issue, the wellknown method PPOclip [40] is adapted for the actor network, given by
where \(F(\theta ^a_{new})\) represents the ratio of the difference between the old and new strategies, given by
The function \(\text {CLIP}(y)\) is the clip operator constraining the value of x in \([1  \varepsilon , 1 + \varepsilon ]\), expressed by
where \(\varepsilon\) denotes the clip factor. In addition, \({\hat{A}}_k\) represents the advantage function applied to reduce variance but may increase bias. To make a balance between variance and bias, the generalized advantage estimation (GAE) method [41] is used for the advantage function, written as
where \(\chi\) is the tradeoff coefficient between variance and bias. In the next part, we will present the PPObased training workflow for data stream offloading subproblem.
4.3 DRLbased training workflow for data stream offloading assignment subproblem
For the offloading decision subproblem, we only focus on using the DRL to get the offloading strategy \(\varvec{\phi }(k)\) at each time slot k, given \(\varvec{w}(k)\) and \(\varvec{f}(k)\). The agent training procedure begins with the initialization of parameter sets \(\theta ^{\nu }\), \(\theta ^a_{new}\), and \(\theta ^a_{old}\), respectively, and of the experience pool \({\mathcal {B}}\). At the beginning time slot k, the agent estimates the channel parameters by some channel estimations and obtains the basic devices’ data. Then, the agent makes an offloading decision \({a_k}\) by running policy \(\psi (\cdot s_k, \theta ^a_{old})\) and execute the convex optimization to acquire \(\varvec{w}(k)\) and \(\varvec{f}(k)\). Meanwhile, the system gives a reward \(r_k\) and moves to the next state \(s_{k+1}\). Then, the agent collect the experience \((s_k, a_k, r_k, s_{k+1})\) into experience pool \({\mathcal {B}}\) for updating, and interacts with the system K times. As \({\mathcal {B}}\) is full, the agent updates the parameter sets \(\theta ^a_{new}\) and \(\theta ^\nu\) by using PPOclip methods. We regard the training workflow as one episode and train the agent for N episodes.
For the considered system, we only use the DRL to obtain the offloading ratio assignment \(\varvec{\phi }\), and acquire the resource allocation \(\varvec{w}\) and \(\varvec{f}\) by the convex optimization, as this can improve the performance of the agent. Moreover, importance sampling is utilized according to the PPOclip methods, where the agent samples data based on the old policy \(\psi (\cdot s; \theta _{old}^a)\) for updating the parameters \(\theta _{new}^a\) of the new policy \(\psi (\cdot s; \theta _{new}^a)\), which can reuse the data to speed up the convergence. The detailed algorithm is presented in Algorithm 1.
5 Simulation
This section will show some simulation outcomes to evaluate the practicability of the devised optimization algorithm for data stream offloading and resource allocation. In the simulations, the considered network experiences Rayleigh flat fading channels, and a pathloss model is considered with a loss exponential 3 [42, 43]. Besides, the distance from devices to the cloud is normalized as unity, where the distance from devices to CAPs is denoted as \(d \in (0, 1)\). Similarly, the distance from CAPs to the cloud is \((1d)\). For such, \(\varpi _1 = d^{3}\) and \(\varpi _2 = (1  d)^{3}\). If not specified, we set \(d = 0.2\), \(p^{\text {trans}}_n = 2\) W, and \(p^{\text {trans}}_m = 1\) W. For the network, there exist 2 heterogeneous CAPs with different computation capacities, which are set to \(8 \times 10^8\) and \(1.2 \times 10^9\) cycles per second (cyc/s), while the cloud server has a more powerful computation capacity with \(1 \times 10^{10}\) cyc/s. Logically, each IoT application m has a smaller computation capacity, following a distribution \(f^l_m \sim {\mathcal {U}} (1 \times 10^8, 1.5 \times 10^8)\) cyc/s. In addition, each CAP is connected to 4 different computational sizes of data streams, subjecting to the uniform distribution with \(l_1 \sim {\mathcal {U}} (120, 160)\), \(l_2 \sim {\mathcal {U}} (130, 140)\), \(l_3 \sim {\mathcal {U}} (60, 80)\) and \(l_4 \sim {\mathcal {U}} (40, 60)\) Mb, respectively. For the service charge part, the basic service prices \(\eta _1\) and \(\eta _2\) are set to 0.1 and 0.2 per Mb, while the calculation service prices \(\eta _1\) and \(\eta _2\) are set to 10 and 2 per computation unit. The detailed network parameters are listed in Table 1.
For the DRL framework, the critic DNN has two fully connected layers with 64 and 128 nodes, and the actor DNN consists of three fully connected layers with 64, 256, and 64 nodes, respectively. To enhance the fitness of DNN, the Rectified Linear Unit (ReLU) is used as the activated function. Moreover, the DRL training process is sped up by adapting the Adam optimizer method. In addition, the DRL training process consists of 200 episodes and each episode has 256 time slots, where the hyperparameters \(\varepsilon\), \(\gamma\), \(\chi\), and \({\mathcal {B}}\) are set to 0.2, 0.92, 0.95, and 128, respectively. To avoid accidents, the training process repeats at least 10 times.
In the simulations, we present six offloading schemes for comparison

ALLLocal: data streams of M devices are computed locally.

ALLCAP: data streams of M devices are fully offloaded to the CAP for computing with average resource allocation.

ALLCloud: data streams of M devices are fully offloaded to the cloud for computing with average resource allocation.

ECCPPO: the proposed strategy by using the cloudedgeend computing framework for resource allocation and data stream offloading assignment.

MECPPO: the computation of data streams is assisted by the CAP using the proposed strategy.

MCCPPO: the computation of data streams is assisted by the cloud server using the proposed strategy.

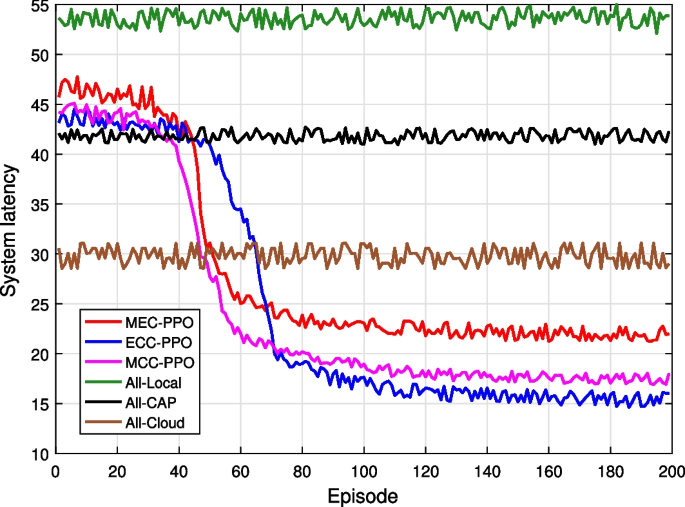

Figure 3 presents the convergence of the devised strategy with the device’s budget \(U = 160\). As seen from Fig. 3, the system latency of the “ECCPPO” strategy drops slowly in the first 20 episodes, but then faster in the next 60 episodes, eventually converging at about 100 episodes. Thanks to “ECCPPO,” the action space is largely reduced. Therefore, the DRL agent tends to find a feasible solution after a few training episodes. Moreover, the proposed “ECCPPO” scheme shows excellent potential in minimizing the system latency, compared to the other five schemes. In particular, in the 140th episode, the system latency of the “ECCPPO” scheme is close to 15 s approximately, which is the lowest value in the six proposed schemes, about \(16\%, 31\%, 50\%, 62\%, \text {and } 70\%\) lower than “MCCPPO,” “MECPPO,” “ALLCloud,” “AllCAP,” and “AllLocal” schemes, respectively. The above results in Fig. 3 indicate the effectiveness of the devised scheme for the considered network.
Figure 4 illustrates the impact of the device’s budget on the system latency, where the budget ranges in [60, 160]. Obviously, since the device with more budget can buy more computation resources, the performance of the “MCCPPO,” “MECPPO,” and “ECCPPO” strategies becomes better as the device’s budget increases. Meanwhile, the system latency of “ALLCloud” and “ALLLocal” strategies remains stable, as the devices’ budget has nothing to do with the fullying offloading strategy. Besides, there exists a little reduction in the system latency when the budget goes from 140 to 160. This is mainly because the transmission latency rather than the computation latency affects the system performance when the device’s budget has high budget. Moreover, the system latency of the “ECCPPO” strategy is the lowest of the five strategies whether the user budget is high or not low, which illustrates the superiority of the proposed “ECCPPO” strategy in reducing system latency.
Figure 5 reveals the influence of the number of devices on the system performance, in which the number of devices M varies from 6 to 16. Obviously, the system overhead of all schemes rises as the number of devices rises. That is reasonable since the growing number of devices generates more computational data stream and thereby puts a heavy computational burden on the cloudedgeend system. Although the number of devices impacts the system overhead seriously, we still observe the proposed “ECCPPO” approach performs better than other ones, which further verifies the superiority of the proposed method for data stream unpacking and resource allocation.
Figure 6 depicts the influence of CAP’s bandwidth on the system’s overhead among the three schemes, where the bandwidth at each CAP ranges in [2, 10] MHz. From Fig. 6, each scheme shows a small gap between \(M =8\) and \(M =12\). That is reasonable, as the number of device users increases, the task data stream offloaded to the server becomes larger, further increasing the pressure on the network transmission and resulting in significant transmission delays. Therefore, the increasing number of devices M significantly affects the system performance. Moreover, the system performance improves as the bandwidth increases at each CAP. That result is as expected since increasing bandwidth can effectively increase wireless transmission capacity, which can reduce transmission latency and thus enhance the system’s performance. In further, the “ECCPPO” scheme behaves best among the three strategies. For example, when the bandwidth of CAP equals 8 Mhz and \(M = 12\), the performance of “ECCPPO” scheme is about \(14\%\) and \(16\%\) better than that of “MCCPPO” and “MECPPO” schemes. This result verifies the effectiveness of the designed cloudedgeend framework.

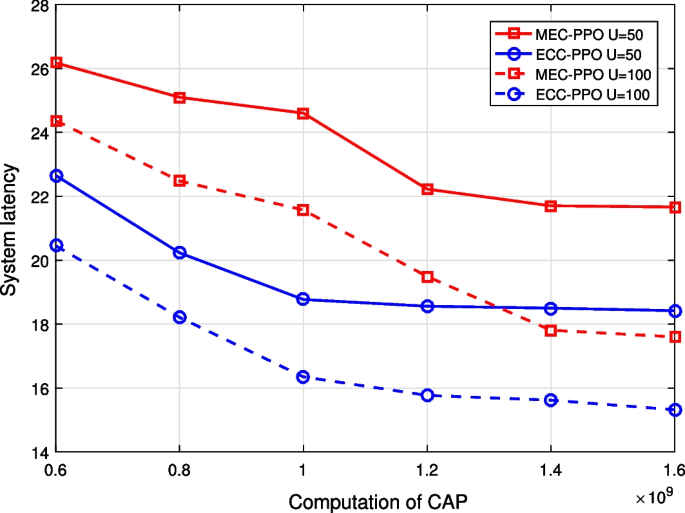

Figure 7 shows the influence of CAP’s computation on the system performance with the device’s budget \(U = 50\) and \(U = 100\). As expected, the system latency decreases swiftly and then remains steady when the CAP’s computation capacity changes from \(0.6 \times 10^9\) cyc/s to \(1.6 \times 10^9\) cyc/s. This is owing to the fact, the growth of the number of computing resources leads to a reduction in the completion time of each offloading data stream, while it is also important to ensure the constraint of the computational resource unit that the device can purchase. Moreover, the “ECCPPO” scheme performs better than the “MECPPO” scheme when the computation resource at the CAPs is sufficient, which shows the superiority of the collaborative cloudedgeend framework for intelligent resource allocation.
Figure 8 demonstrates the impact of the cloud server’s computation capacity on the system overhead with the device’s budget \(U = 50\) and \(U = 100\). From Fig. 8, the system overhead gradually decreases as the computation resource of the cloud server increase. This is because the cloud server with much computation capacity can process data streams more efficiently, and more data streams can be offloaded to the cloud to reduce overall system latency. Besides, the device’s budget U is also an important factor influencing the system overhead. When the computation resource of the cloud server is abundant, the system latency of the “ECCPPO” scheme with \(U = 100\) is much lower than that with \(U = 50\). Moreover, the “ECCPPO” scheme performs better than the “MCCPPO”, which shows the advantage of the devised cloudedgeend architecture in resource allocation and data stream offloading assignment.
6 Conclusion
To enhance the performance of MECassisted multisource data stream computing, we investigated a cloudedgeend computing network, where the CAPs and the cloud server can collaboratively help process the data streams from IoT devices. For this considered network, the wireless channel was timevarying, and the characteristic of the data streams was variable. To adapt to this dynamic network, we proposed a novel approach that combined the PPO with the lagrangian multiplier method for offloading ratio assignment and resource allocation. Finally, simulation outcomes demonstrated the superiority of the devised scheme and could help develop the multisource data stream application. In future works, we will discuss more MEC scenarios, e.g., NOMAbased MEC network and IRSassisted MEC network, and utilize multiagent reinforcement learning to deal with the offloading strategy.
