Chaos detection scheme for multiple variablefrequency signals with overlapping frequencies
EURASIP Journal on Advances in Signal Processing volumeÂ 2023, ArticleÂ number:Â 91 (2023)
Abstract
As one of the most critical technologies in signal detection, weak signal detection has received a great deal of attention in many areas. Traditional methods perform well when the number of signal is single and the form of signal is simple, which are quite different from the situation in some real applications (e.g., the marine communication scenario). In this paper, we consider the problem of highprecision frequency detection of multiple variablefrequency signals with overlapping frequencies (MVFSO) in the low signaltonoise ratio scenario, whose key point is how to detect the parameters (frequency range and frequency modulation rate) of each signal. To solve the problem, a novel chaos detection scheme based on Duffing difference oscillator is proposed. In this scheme, the wide frequency detection range of the critical state is used to determine the frequency range of the signals quickly, and the Lyapunov exponent is used to discriminate the output state of the system qualitatively. Furthermore, combining with the time points of the periodic state of the system, we can obtain the FMR of the corresponding signal by analyzing overlapping frequency ratio. Numerical results are provided to verify the practical effectiveness of the proposed scheme.
1 Introduction
Weak signal detection (WSD) is long standing yet still one of the most important problems in signal detection. It relies on the fact that the signal detection environment is becoming more and more challenging [1]. WSD has a variety of applications such as deepspace communications [2], disaster identification [3], radiofrequency identification [4, 5], multipleinput multipleoutput [6], unmanned aerial vehicle [7], and sonar navigation [8], to name just a few. Recently, as the different types of noises and various forms of signals exist widely, the highaccuracy WSD technique has received much attention. Among various WSD schemes, the highprecision frequency detection of single nonvariablefrequency signal (SNVFS), single variablefrequency signal (SVFS), multiple nonvariablefrequency signals (MNVFS), and multiple variablefrequency signals (MVFS) have been widely studied in low SNR regime [9]. Due to MVFS with faraway frequencies from each other (MVFSF) can be decomposed into many SVFS with a filter bank that consists of nonoverlapping bandpass filters, the detection of MVFSF has not been a serious concern. However, when these frequency ranges are overlapped, the detection accuracy is severely degraded. Thus, it is of importance to come up with solutions to the highprecision detection of MVFSO.
Over the years, various WSD schemes targeted for the noisy and reverberant environments have been proposed. Roughly speaking, these schemes can be divided into two categories. The first category is the linear detection methods where the target signal is detected by the linear filtering. Popular approaches in this class include correlation detection, timedomain averaging, and adaptive noise cancellation technology [10]. However, it is challenging to achieve satisfying performance under low SNR since the target signal is also filtered. The second category is nonlinear detection methods, such as higherorder statistics, stochastic resonance, and chaos theory. Higherorder statistics methods can obtain much more useful information about the target signal than the secondorder statistics by a high computation complexity [11]. Stochastic resonance methods convert a part of noise energy into signal energy, which improves the SNR of the system output under certain condition [12]. Chaos theory detects the frequency of the weak single periodic signal by changing the system output state [13]. In general, above schemes may face either one or a combination of the following problems: suppressed weak target signal, unsatisfied performance in low SNR, high computational cost, the unreliable performance in practical, and nonrealistic assumptions on signal or noise models.
Benefited from the sensitivity to the initial condition and the immunity to the AWGN (additive white Gaussion noise), the chaotic system can detect the weak signal with the same frequency as the oscillators without considering the strong background noise. However, existing researches mainly focus on the detection of SNVFS in the low SNR scenario. In [14], the chaos detection scheme for MNVFS has been proposed, which is only a simple extension of SNVFS. In [15], a chaosbased detection scheme for SVFS has been proposed, which extends the chaos theory to application in radar communication. There are many challenges in multiple signals detection based on chaos theory, which is shown in Fig.Â 1. In Fig.Â 1, we can decompose MVFSF into many SVFS [15] with a filter bank that consists of identical nonoverlapping bandpass filters. However, it can not be applicable in the situation of MVFSO.
In this paper, we propose a chaosbased scheme to detect the frequencies of MVFSO in the low SNR regime. Specifically, utilizing the characteristics of the critical state, we can quickly determine the frequency range of the target signals, then obtain the periodic stateâ€™s time points of the system based on the Lyapunov exponent (LE). To analyze MVFSO, we introduce the overlapping frequency ratio (OFR) of the signals. When OFR is small, the scheme can achieve accurate detection of MVFSO based on the satisfying performance for SVFS. As OFR increases, if the overlapping frequencies of signals are different, our scheme still has high detection accuracy. Furthermore, when the frequency range of a signal is contained totally in that of the other signal (OFR equals 1), we can still obtain the related parameters of the signal that has a wider frequency range. As such, the chaoticbased scheme for MVFSO shows strong robustness in the complex real communication environment.
The rest of this paper is organized as follows. Section 2 describes the signal model of multiple variablefrequency and chaotic systems. Section 3 presents the proposed chaotic scheme based on chaos theory. The detection scheme for MVFSO is shown in Sect. 4. Simulation results are presented in Sect.Â 5. Finally, we conclude the paper in Sect.Â 6.
2 Problem formulation and analysis
2.1 Multiple variablefrequency signals model
We consider the chirp signal given by:
where \({A_m}\) and \({k_m}\) are the amplitude and frequency modulation rate (FMR) of \({s_m}\), the frequency \(f_m\) is timevariant.
Multiple chirp signals with the number M are shown as follows:
Considering the rapid development of communication technology, the detection of several signals with overlapping frequencies widely exists. Here, we set \(M=2\), \({\omega _m} = 2\pi {f_m}\), consider the real part in the practical application, (2) can be expressed as follows:
Denote \(\left[ {f_{s_1}^1,f_{s_1}^2} \right]\) and \(\left[ {f_{s_2}^1,f_{s_2}^2} \right]\) as the frequency range of signal \({s_1}\left( t \right)\) and \({s_2}\left( t \right)\), respectively. Here, \(\left( {f_{{s_1}}^2  f_{{s_1}}^1} \right) > \left( {f_{{s_2}}^2  f_{{s_2}}^1} \right)\). When the two signals overlap each other, \({k_1} \ne {k_2}\), we define \(p_1\) as the ratio of the overlapping frequency to the total frequency of signal \(s_1\), which is shown as
where \({f_{\text {overlapping}}}=({f_{{s_1}}^2}{f_{{s_2}}^1})\) and \({{f_{\text {total}}}}=({f_{{s_1}}^2}{f_{{s_1}}^1})\) of \(s_1\), respectively. Similarly, we can obtain \(p_2\) of \(s_2\).
2.2 Chaotic system
The Holmesâ€“Duffing oscillator is expressed as follows:
where \(\ddot{x}\left( t \right)\) and \(\dot{x}\left( t \right)\) are the secondorder and firstorder derivatives of \(x\left( t \right)\), \(bx(t) + c {x^3}(t)\) is nonlinear restoring force, a is damping ratio, and \(\zeta\) and \(\omega\) are the amplitude and frequency of the driving force \(\zeta \cos (\omega t)\), respectively.
Let \(t = \omega \tau\), we can obtain the dynamic equation:
The Duffing oscillator system is illustrated in Fig.Â 2.
In Fig.Â 2, Wave is the driving force, Fcn is the nonlinear restoring force, and Integ1 and Integ2 are the integrals. G1 and G2 are the coefficients of the integrator, and G3 is the damping ratio. Moreover, the timedomain waveform and phase diagram will be displayed on the Scope and XY Graph, respectively. When \(a=0.5\), \(b= 1\), and \(c=1\), as the amplitude \(\zeta\) increases, the phase diagram will change from the chaotic state to the critical state and then the largescale periodic state. In the critical state, both chaotic state and largescale period state occur alternatively. The timedomain waveforms and the corresponding phase diagrams are shown in Fig.Â 3.
Also, since the inputs of the target weak signal and oscillator have the same frequency components, the amplitude will increase, and the output state will be changed.
In phase space, Lyapunov exponents (LE) can be used to discriminate the output state of system qualitatively [16], which denotes the average exponential rates of divergence or convergence of error \(\left {\delta r} \right\) between two adjacent points on the orbit through time t.
The definition of LE is expressed as follows:
where \({r_0} \in {{\textbf {R}}}\), \({{\textbf {R}}}\) is the space orbit of phase space.
From (7), we can get conclusions as follows: (1) If the nearby orbits converge, \(\left {\delta r\left( {{r_0},t} \right) } \right /\left {\delta r\left( {{r_0},0} \right) } \right < 1\) and LE \(< 0\), then the system is stable, and the output state is largescale periodic state. (2) If the nearby orbits diverge, \(\left {\delta r\left( {{r_0},t} \right) } \right /\left {\delta r\left( {{r_0},0} \right) } \right > 1\) and LE \(> 0\), then the system becomes unstable, and the output state is changed into chaotic state. Based on the system in Fig.Â 2, the relationship between Lyapunov exponents (LE) and the amplitude \(\zeta\) is illustrated in Fig.Â 4.

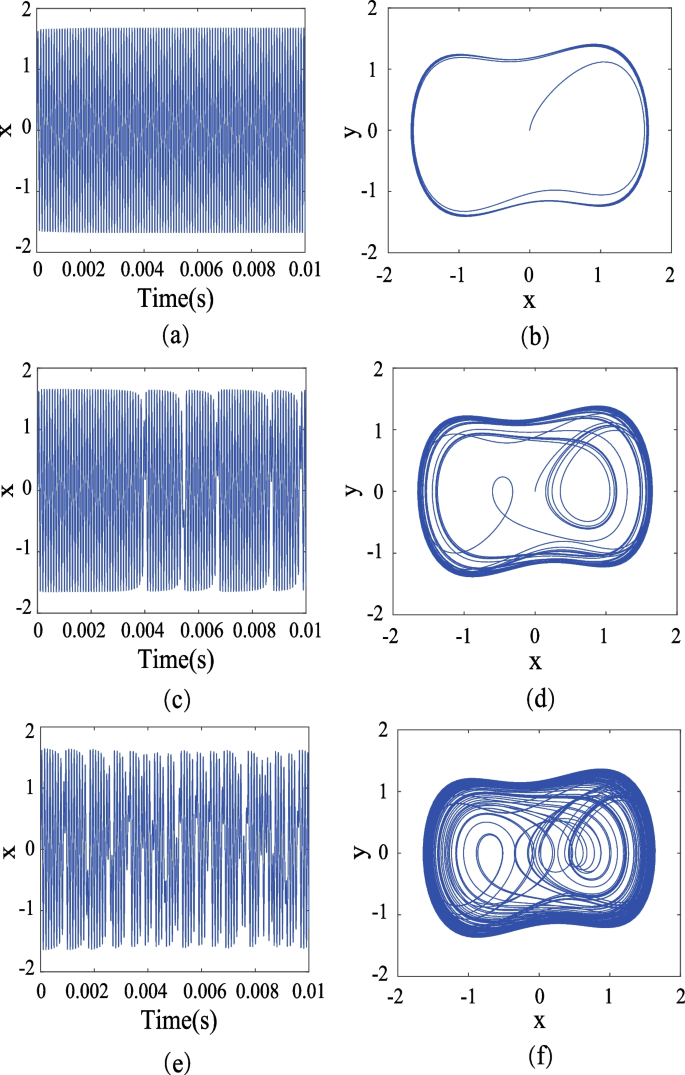

From Fig.Â 4, we can discriminate the output state as a chaotic state or periodic state according to that LE is positive or negative.
3 Detection scheme based on chaos theory
3.1 Duffing difference system
In the critical state, to get a better performance to discriminate between the chaotic state and the largescale periodic state, we build a chaotic system consist of two Duffing oscillators, named Duffing difference system. Its model established is shown in Fig.Â 5. The parameters setting are similar to those in Fig.Â 2, which are not repeated here. And the timedomain waveform of the critical state in the Duffing difference system is shown in Fig.Â 6.

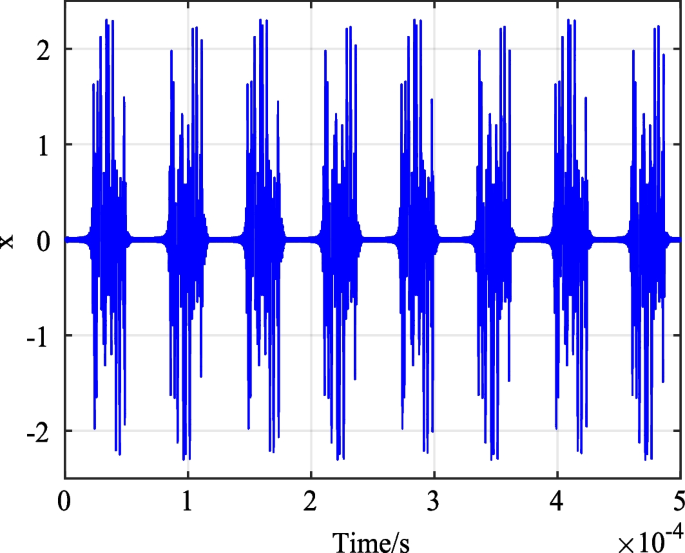

From Fig.Â 6, we can see that it has more apparent discrimination between the chaotic state and the largescale periodic state in a critical state. Comparing to the timedomain waveform of critical state in Fig.Â 3c, the Duffing difference system has more strong robustness in the low SNR scenario.
3.2 Frequency detection range
During the period of the critical state, there are infinite combinations of chaotic state and largescale period state. Setting the frequency of the target signal and system driving force is \({f_1}\) and f, respectively, and the frequency difference is \(\Delta f{ = }\left {f  {f_1}} \right\). Experimental results show that there is a visible critical state or largescale periodic state when \(\Delta f/f \le 0.03\), which leads to the inaccurate in the determination of the period of the critical state T. Otherwise, \(\Delta f/f > 0.03\), the output state becomes chaotic gradually [17]. For example, setting \(f =1 \times {10^4}\)Hz, when \({f_1}=1.03 \times {10^4}\)Hz and \(1.04 \times {10^4}\)Hz, respectively, the output timedomain waveforms are shown in Fig.Â 7.
Benefiting from the frequency detection range of the critical state is \(2\left {{f_{t\arg et}}  {f}} \right\), we can expand the frequency search range of target signal and determine whether the frequency is in \(2\left {{f_{t\arg et}}  {f}} \right\) or not quickly.
4 The detection scheme for MVFSO
According to the different values of \(k_m\), the timedomain waveforms of two signals are shown in Fig.Â 8, and the other parameters are shown in Table 1, where \(f_i\) is the instantaneous frequency of the time \(t_i\), and \(k_m\) is the FMR of \(s_m\). In the case of MVFSDO, although the amplitude of the overlapping frequency increases, it is not useful for the weak signal detection of the chaotic system. Here, we can obtain the relevant parameters of the superimposed chirp signal, but the number of signals contained in it is not obtained, then we cannot get a satisfying performance. It can be explained by the basic idea of the chaotic detection system, which can detect the target signal with the same frequency as oscillatorâ€™s in a signal set, that is, the frequency selecting essentially, and it is impossible to detect the frequency range of each signal in MVFSO further.
An aim of this paper is the frequency detection of each signal in MVFSO when SNR is low. Firstly, a chaotic system based on Duffing differential array with a random frequency value is built. Then, we input the target signals to the system to determine which oscillatorâ€™s frequency f is in the frequency range of the target signals. Secondly, we set f as the center frequency of the array and select several frequencies with the same interval to further obtain the signalsâ€™ frequency range. After that, the periodic stateâ€™s time points \(t_i\) are obtained utilizing the LE method. Combining with the corresponding oscillatorâ€™s frequency \(f_i\), we can get the FMR by fitting the dataset \(\left( {{f_i}, {t_i}} \right)\). Finally, by analyzing the FMR values, we can obtain the number of signals, FMR, and the frequency range of each signal.
In the scheme above, we face two challenging points:

1.
How to determine the frequency range of the target signals quickly.

2.
How to get the parameters of each signal according to the dataset \(\left( {{f_i}, {t_i}} \right)\).
For the first challenging point, by the analysis of the characteristic of the critical state of a chaotic system, we know that it has a wide frequency detection range (0.97fâ€“1.03f with f is the frequency of oscillator) rather than a singlefrequency value [17], which results in inaccurate detection of SNVFS. However, for MVFSO, this characteristic can be used to determine which oscillatorâ€™s frequency is in the range of the target signals quickly, which increases the detection speed. The chaotic difference system based on Duffing oscillator for chirp signals is shown in Fig.Â 9.
For the second challenging point, we introduce the OFR of multiple signals to analyze the detection performance of variablefrequency signals. The proposed scheme can obtain high detection accuracy of MVFSO in the following cases:

1.
All the \(p_m\) are small.

2.
All the \(p_m\) are large while the overlapping frequencies are different.

3.
One of the \(p_m\) equals 1.
These cases are shown in Table 2 in detail. The algorithm is involved and consists of more than ten steps. Here, we summarize the key steps.

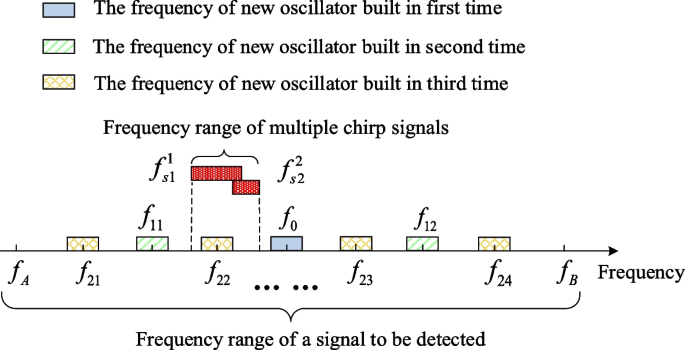

Step 1: The frequency range of the background environment and multiple chirp signals are \(\left[ {{f_A},{f_B}} \right]\) and \(\left[ {f_{{s_1}}^1,f_{{s_2}}^2} \right]\), respectively. We add the oscillator with frequency \({f_0} = \left( {{f_B} + {f_A}} \right) /2\) by the median detection method (MDM), and then, the LE method is used to determine the output state. The output state is chaotic state when LE is positive, the frequencies of new oscillators (\({f_{11}} = \left( {{f_0} + {f_A}} \right) /2\), \({f_{12}} = \left( {{f_0} + {f_B}} \right) /2\)) will be added and then repeat (7) until LE becomes negative. If we denote \(\Phi = \left\{ {{f_A},{\hspace{1.0pt}} {f_0},{\hspace{1.0pt}} {f_B}} \right\}\), we add the new oscillatorâ€™s frequency \(f_{ij}\) to set \(\Phi\) and then update the elements in ascending order, which is shown as:
where \(\Phi \left[ 1 \right] = {f_A}\), \(\Phi \left[ 2 \right] = {f_0}\), \(\Phi \left[ 3 \right] = {f_B}\), \(i = 1,2,3, \cdots\), \({N_0} = 3\), \({N_i} = 2{N_{i  1}}  1\), \({n_i} = {N_i}  {N_{i  1}}\), and \(j = 1,2,3, \cdots ,{n_i}\), floor is down integral function. We can obtain the frequency f when the output state of the system is periodic state and the corresponding LE is negative. The diagram of the frequency selection of the new Duffing oscillator is shown in Fig.Â 10.
Step 2: We set f as the center frequency, the Duffing array is built to detect the target signals. Based on (7), we can obtain the frequency and time point when the LE value is negative, which is dataset \(\left( {{f_i},{t_i}} \right)\).
Step 3: The FMR can be obtained by linear fitting based on the dataset \(\left( {{f_i},{t_i}} \right)\). Three cases are analyzed as follows:
Case 1: There are two intersecting straight line segments with an inflection point, which note as \({k_1}\), \({k_2}\).
Case 2: There are two nonintersecting straight line segments, which are the \({k_1}\), \({k_2}\) of signal \({s_1}\), \({s_2}\). Note that if the overlapping frequencies of the two signals are the same, which will reduce the detection accuracy greatly due to the overlapping frequencies are useless. Otherwise, the proposed scheme can obtain satisfying performance when the overlapping frequencies of the two signals are different.
Case 3: There are three straight line segments, two of which intersect with an inflection point, and the third line segment does not intersect, so there is a break point. Considering the frequency range of signal \(\left( {f_{{s_1}}^2  f_{{s_1}}^1} \right) > \left( {f_{{s_2}}^2  f_{{s_2}}^1} \right)\), we can obtain the \({k_1}\), \({k_2}\) of signal \({s_1}\), \({s_2}\), and \(p_2\) equals to 1.
When the number of signals is more than two, it is necessary to analyze the overlapping frequency further, which will be studied in detail in the future.
5 Simulation results
In this section, we present the detection of MVFSO by the chaotic system consisted of Duffing difference oscillator array, and then, we analyze the simulation results. Simulation parameters of chaotic system are shown in Table 3. Considering three cases of two chirp signals with overlapping frequencies, the detailed parameters are shown in Table 4.

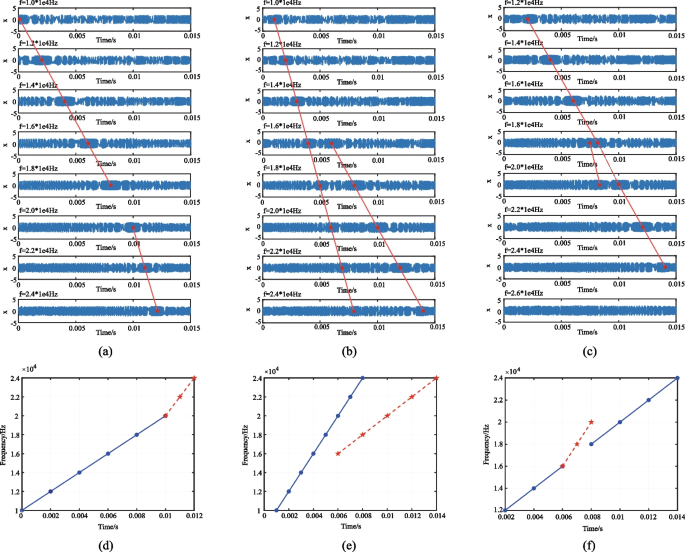

Case 1: Fig.Â 11a shows the timedomain waveform of the output state of the system when \({p_1} = 1/3\) and \({p_2} = 1/5\). The FMR is obtained by linear fitting of the dataset \(\left( {{f_i}, {t_i}} \right)\), which is shown in Fig.Â 11d. Since the overlapping frequency range is small, we can obtain the FMR accurately by the nonoverlapping frequency.
Case 2: When OFR increases (\({p_1} = 2/3\) and \({p_2} = 3/5\)), we should consider whether the overlapping frequencies of the two signals are same or not. If they are the same, the frequency characteristics of each signal no longer exist in the overlapping part, which leads to the output state of the system becoming chaotic. Otherwise, if they are different, benefiting from the sensitivity to the specific frequency and the immunity to interference, the proposed scheme can still obtain the high detection accuracy of each signal in MVFSO. FigureÂ 11b shows the timedomain waveform of the system output state when the overlapping frequencies of the two signals are different, and the FMRs are shown in Fig.Â 11e.
Case 3: When one of the OFRs increases to 1, we consider \({p_1} = 1/4\) and \({p_2} = 1\). From Fig.Â 11c, the FMR of \(s_1\) can be obtained by the nonoverlapping frequency range of the signal. Although we can detect several frequencies of \(s_2\), the detection accuracy is low, which exhibits in Fig.Â 11f.
Generally, the proposed scheme in this paper can get satisfying detection performance in MVFSO, which demonstrates that the chaos theory has potential advantages in MVFS. Although the target signals are multiple and the environment is complex, we still can obtain the highprecision detection by rational system model, which proves the great potential research value of chaos theory in WSD.

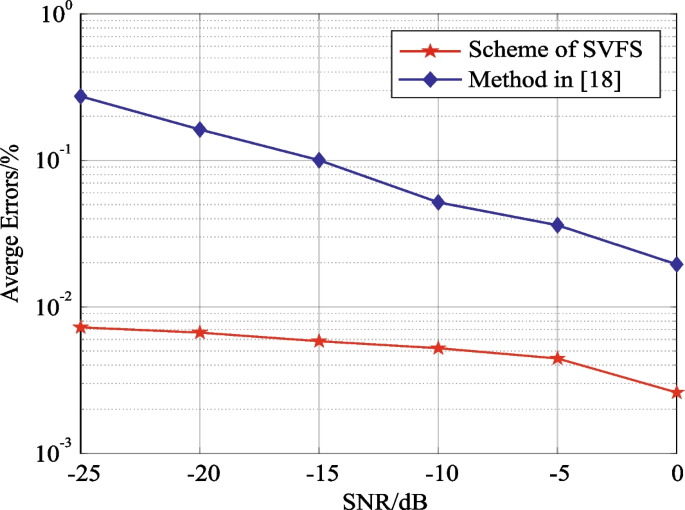

Considering that there are seldom detection schemes for MVFSO scenarios, we choose the detection performance of SVFS for comparison, which is a subset of MVFSO. FigureÂ 12 shows the performance comparison between the literature [18] and the proposed scheme of SVFS. Benefited from the Duffing difference system and algorithm based on LE in the proposed scheme, we can achieve highprecision detection of SVFS in ultralow SNR regime. In other words, our detection scheme for MVFSO has significant advantages over the other solutions.
6 Conclusions and future work
In this paper, we proposed a new chaotic detection scheme to detect the frequency of each signal in MVFSO. This scheme is different from the usual WSD methods since it takes advantage of Duffing difference array to improve the precision. We have shown that the performance of our scheme is satisfied in low SNR. Another advantage of our scheme is that it introduces the overlapping frequency ratio (OFR) to analyze the performance of detection of MVFSO. To guarantee the detection speed, we use the Lyapunov exponent to discriminate the output state of the system qualitatively. Meanwhile, using the wide frequency detection range of the critical state, we can obtain the highaccuracy frequency detection of MVFSO in the complex communication environment. Simulations are carried out to show the effectiveness of the proposed detection scheme in the situation of MVFSO while ensuring the detection accuracy of FMR. We believe that our detection scheme represents a new way of multisignal detection and would be able to improve WSD not only for under the strong noise but also for a complex signal having multiple harmonics.
Nowadays, there are two typical application scenarios of MVFSO:

1.
Multiple motion targets transmit signals with a fixed frequency. The detection of MVFSO can obtain the motion parameters of multiple targets (e.g., speed and distance).

2.
Multiple fixed targets transmit signals with variable frequencies. The detection of MVFSO can obtain more information on multiple targets (e.g., emergency and encrypted message).
Although the detection scheme of MVFSO has obtained a satisfying performance in theory, there is a lot of research on the application. The impact of different noise forms on accuracy, power consumption, and time consumption is worthy of further study.
Availability of data and materials
The data supporting the findings of this study are included in the article. Please contact the author if any help needs.
Abbreviations
 WSD:

Weak signal detection
 SNVFS:

Single nonvariablefrequency signal
 SVFS:

Single variablefrequency signal
 MNVFS:

Multiple nonvariablefrequency signals
 MVFS:

Multiple variablefrequency signals
 MVFSO:

MVFS with overlapping frequencies
 MVFSF:

MVFS with faraway frequencies
 SNR:

Signaltonoise ratio
 FMR:

Frequency modulation rate
 AWGN:

Additive white Gaussion noise
 LE:

Lyapunov exponent
 OFR:

Overlapping frequency ratio
 MDM:

Median detection method
References
G. Kaddoum, Wireless chaosbased communication systems: a comprehensive survey. IEEE Access 4, 2621â€“2648 (2016)
Z. Zhang, J. Wang, H. Zhang, Jointdetection for high accelerating Dopplershift in deepspace communications, in Proceedings IEEE WCNC, New Orleans, USA, p. 476â€“481 (2015)
J. Ye, T. Kobayashi, X. Wang, H. Tsuda, M. Murakawa, Audio data mining for anthropogenic disaster identification: an automatic taxonomy approach. IEEE Trans. Emerg. Top. Comput. 8(1), 126â€“136 (2020)
J. Edwards, Signal processing opens the internet of things to a new world of possibilities: research leads to new internet of things technologies and applications. IEEE Signal Process. Mag. 35(5), 9â€“12 (2018)
L. Zhang, W. Xiang, X. Tang, Q. Li, Q. Yan, A time and energyaware collision tree protocol for efficient largescale RFID tag identification. IEEE Trans. Ind. Inform. 14(6), 2406â€“2417 (2018)
Z. Sun, Y. Xiao, P. Yang, S. Li, W. Xiang, Transmit antenna selection schemes for spatial modulation systems: search complexity reduction and largescale mimo applications. IEEE Trans. Veh. Technol. 66(9), 8010â€“8021 (2017)
J. Yang, X. Xu, D. Yin, Z. Ma, L. Shen, A space mapping based 0â€“1 linear model for onboard conflict resolution of heterogeneous unmanned aerial vehicles. IEEE Trans. Veh. Technol. 68(8), 7455â€“7465 (2019)
A.B. Gershman, V.I. Turchin, V.A. Zverev, Experimental results of localization of moving underwater signal by adaptive beamforming. IEEE Trans. Signal Process. 43(10), 2249â€“2257 (1995)
D. Chen, S. Shi, X. Gu, B. Shim, Weak signal frequency detection using chaos theory: a comprehensive analysis. IEEE Trans. Veh. Technol. 70(9), 8950â€“8963 (2021)
X. Yu, I. Reed, Adaptive detection of signals with linear feature mappings and representations. IEEE Trans. Signal Process. 43(12), 2953â€“2963 (1995)
B.S. Lin, B.S. Lin, F.C. Chong, F. Lai, A functional link network with higher order statistics for signal enhancement. IEEE Trans. Signal Process. 54(12), 4821â€“4826 (2006)
Z. Qiao, Y. Lei, N. Li, Applications of stochastic resonance to machinery fault detection: a review and tutorial. Mech. Syst. Signal Proc. 122(MAY1), 502â€“536 (2019)
J.Â Hou, X.Â Yan, P.Â Li, X.Â Hao, Weak wideband signal detection method based on smallscale periodic state of Duffing oscillator. Chin. Phys. B. 27(3) (2018)
H.Z. Lu, Z.H. Lai, T.H. Wu, A method for weak multifrequency signal feature extraction based on chaotic duffing oscillator. Appl. Mech. Mater. 568â€“570, 155â€“161 (2014)
D. Chen, S. Shi, X. Gu, Weak chirp signal detection and estimation utilizing duffing oscillator based on le method, in IEEE Wireless Communications and Networking Conference (WCNC) 2019, 1â€“7 (2019)
K. Nguyen, T. Nhung, A. Hoa et al., Lyapunov exponents for dynamic equations on time scales. Dyn. Syst. Appl. 27(2), 367â€“386 (2018)
G. Wang, D. Chen, J. Lin et al., The application of chaotic oscillators to weak signal detection. IEEE Trans. Ind. Electron. 46(2), 440â€“444 (1999)
Antonio H. Costa, Rogerio EnrÃquezCaldera, Maribel TelloBello, Carlos R. BermÃºdezGÃ³mez, High resolution timefrequency representation for chirp signals using an adaptive system based on Duffing oscillators. Digit. Signal Prog. 55, 32â€“43 (2016)
