# A survey on filtered-x least mean square-based active noise control systems with emphasis on reducing computational complexity

*EURASIP Journal on Advances in Signal Processing*
**volume 2023**, Article number: 128 (2023)

## Abstract

Active noise control (ANC) is gaining ever-increasing attention owing to its powerful ability to attenuate low-frequency noise. The computational complexity of an ANC system may directly affect its computational efficiency, control performance, and hardware costs. Therefore, the focus of this paper is mainly on discussing the development of ANC systems with emphasis on reducing computational complexity. The ANC systems are classified into two groups of narrowband and broadband systems. The computational complexity analysis is provided to show the computational merit of each system with respect to the conventional ANC systems. In addition, numerical simulations are performed to evaluate the convergence speed and noise reduction performance of the considered systems. The results show that, in the narrowband ANC systems, the LFE-NANC, CFX-NANC and BFX-NANC systems enjoy better overall performance in terms of the computational complexity, convergence speed and steady-state error, and in the broadband ANC systems, the DF-BANC system has the lowest computational complexity but cannot effectively attenuate the broadband noise with high spectral dynamics, whereas the DS-BANC and MDS-BANC systems can. This study provides in-depth insight into current typical low-complexity ANC systems.

## 1 Introduction

In 1936, Lueg [1] first put forward active noise control (ANC) technique based on the principle of sound wave interference. This technique introduces a controllable secondary source to generate a secondary sound with the same amplitude but opposite phase to cancel the primary noise. Compared to passive noise control (PNC) technique, ANC technique possesses the advantages of exceptional low-frequency control effect, flexible parameter setting and easy implement. Furthermore, the considerable advancement of large-scale integrated circuits and digital signal processing has facilitated ANC technique a wide range of noise control applications, such as vehicle noise control [2,3,4], vessel noise control [5,6,7], and airplane noise control [8,9,10], etc.

According to the spectral characteristics of primary noise, ANC systems can be divided into narrowband and broadband ANC systems [11, 12]. Currently, the parallel-form narrowband ANC systems are more popular than the direct-form ones, and they usually connect multiple two-weight adaptive notch filters in parallel to control multi-tonal noise [13,14,15]. Figure 1 shows the block diagram of the conventional filtered-x least mean square (FXLMS) algorithm-based narrowband ANC (FX-NANC) system. In each frequency channel of this system, a synthesized cosine wave and a synthesized sine wave are used as the reference signals, and their amplitudes and phases are adaptively modulated by the adaptive notch filter to track the primary noise. The frequency information used to synthesize the cosine and sine waves is usually given directly or calculated from other signals such as rotating speed signal. According to the principle of FXLMS algorithm, the reference signal needs to be filtered with the estimate of the secondary path to obtain the filtered reference signal for weight updating. Therefore, in each frequency channel, two reference-filtering operations are required for the cosine and sine reference signals. Each reference-filtering operation is actually a convolution operation in the mathematical sense, and the number of multiplications and additions involved depends on the length of the estimated secondary path. This means that when the number of the controlled tonal components and/or the length of the estimated secondary path increases, the computational burden of this system in terms of reference filtering will severely limit its real-world applications.

As for broadband ANC systems, the conventional broadband ANC system is also based on the FXLMS algorithm (the system is called FX-BANC system), as shown in Fig. 2. Different from the FX-NANC system, the FX-BANC system uses a high-order transverse finite impulse response (FIR) filter as the control filter. At each sample point, the system needs to generate the control signal for secondary output and the filtered reference signal for weight updating. Therefore, when the length of the control filter and/or the length of the estimated secondary path is large, the computational load regarding convolution operations of the FX-BANC system will be much more than the FXLMS recursion requirements.

Over the past few decades, ANC research has made significant progress in critical performance improvements, including accelerating convergence speed, enhancing robustness and reducing computational complexity. The main approaches to improve the convergence speed of the conventional ANC systems include adaptive variable step size method [16,17,18], variable tap-length method [19,20,21] and eigenvalue equalization method [22]. The robustness enhancement approaches for impulse noise are mainly threshold setting method [23, 24], logarithmic transformation method [25] and fractional moment method [23, 26].

A low-computational ANC system can ensure fast computational efficiency to meet the demands of high sampling rate, which is very beneficial especially when tracking time-varying non-stationary noise. Besides, according to Shannon sampling theory, a high sampling rate is also necessary when the controlled noise is a broadband noise such as vehicle interior noise at high speeds. On the other hand, the low computational effort of an ANC system means that it will consume fewer hardware resources, so one may use cheaper hardware available in the market or possibly include the entire ANC system in the controller already installed on the machine. This way, the ANC technique will become more applicable to real machines and products, and can meet the stringent cost requirements of machinery manufacturers. In efforts to pursue efficient ANC systems, various improvement measures have been proposed for the conventional narrowband and broadband ANC systems. The typical approaches for the narrowband ANC system include the delay compensation method [27, 28], bandpass filter method [29], local secondary path estimation method [30,31,32,33], filtered-error structure method [34,35,36], and complex signal representation method [37]. As for the broadband ANC system, the most commonly used improvement approaches are the delayless frequency-domain adaptive filtering method [38,39,40] and the delayless subband adaptive filtering method [8, 38, 41,42,43].

In addition, a multi-channel ANC system equipped with multiple secondary sources and error microphones needs to be utilized in order to achieve large three-dimensional spatial noise suppression. The conventional multi-channel ANC system is based on the centralized control strategy with good global noise attenuation performance [11, 44, 45]. Nevertheless, the computational complexity of the system increases largely when the number of channels increases. To alleviate the computational burden of multi-channel ANC systems, the decentralized control strategy [46,47,48] and the distributed control strategy [41, 49,50,51,52] have been widely investigated. This study focuses on analyzing and discussing the methods to reduce the computational complexity of the system in [27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43]; and therefore, it is based on single-channel systems.

As described above, ANC technique has been developed extensively, and some review papers on ANC have been published [12, 53,54,55,56]. However, few of them focus on the problem of computational savings. The motivation for this paper is therefore to survey some typical computationally efficient narrowband ANC systems and broadband ANC systems, respectively. The computational complexity of the considered systems is analyzed and compared. Furthermore, to explore the impact caused by reducing computational complexity, the convergence speed and noise reduction performance of the systems are also investigated. This paper is organized as follows. In Sects. 2 and 3, typical computationally efficient narrowband and broadband ANC systems are reviewed, respectively, and the computational complexity analysis is provided. Section 4 evaluates the convergence speed and noise reduction performance of the systems by numerical simulations. Finally, conclusions are summarized in Sect. 5.

## 2 Computationally efficient narrowband ANC systems

### 2.1 Conventional FX-NANC system

Firstly, the conventional narrowband ANC system namely the FX-NANC system is introduced. In Fig. 1, *P*(*z*) is the true primary path, *S*(*z*) is the true secondary path, \(\hat{S}(z)\) is the estimate of the true secondary path, *d*(*n*) is the primary noise signal, *e*(*n*) is the residual noise signal, and the other symbol definitions are given in the following derivation.

The cosine and sine reference signals corresponding to the frequency *ω*_{i} of the *i*th tonal component are expressed as

and then when there are *q* tonal components to be controlled, the total output of all the adaptive notch filters may be given by

where \(\left\{ {\hat{a}_{i} (n),\hat{b}_{i} (n)} \right\}_{i = 1}^{q}\) are the weights of the control filters, and *n* is the time (or sample point) index.

The residual error signal of the system is defined as

where \(\left\{ {s_{m} } \right\}_{m = 0}^{M - 1}\) are the impulse response coefficients of the true secondary path *S*(*z*) with length *M*.

Based on the FXLMS algorithm, the instantaneous squared error signal is minimized and the weights of the control filters are updated as

for *i* = 1, 2,…, *q*, where \(\left\{ {\mu_{i} } \right\}_{i = 1}^{q}\) are the step sizes, and

where \(\left\{ {\hat{s}_{m} } \right\}_{m = 0}^{{\hat{M} - 1}}\) are the impulse response coefficients of the estimated secondary path \(\hat{S}(z)\) with length \(\hat{M}\) and may be used to replace \(\left\{ {s_{m} } \right\}_{m = 0}^{M - 1}\). And it should be noted that the derivation of Eqs. (7) and (8) contains an assumption that \(\hat{a}_{i} (n) \approx \hat{a}_{i} (n - m)\) and \(\hat{b}_{i} (n) \approx \hat{b}_{i} (n - m)\) for slow convergence.

Finally, the formulas of updating the control filter weights are rewritten as

where \(x^{\prime}_{ai} (n)\) and \(x^{\prime}_{bi} (n)\) are the filtered reference signals and expressed as

From Eqs. (9) and (12), it can be observed that the weight updating based on the FXLMS algorithm originally requires only 3 multiplications per input sample in each frequency channel, while the generation of the filtered reference signals requires \(2\hat{M}\) multiplications. The length of the estimated secondary path usually needs to be large enough such as \(\hat{M} = 256\) to ensure that the estimated model can accurately characterize the true secondary path. Therefore, the length \(\hat{M}\) imposes a huge computational burden on the FX-NANC system. On the other hand, when the target noise is a multi-harmonic noise generated by rotating machinery, the number *q* of the controlled tonal components is also large. As a result, \(2q\hat{M}\) multiplications per input sample are required for the reference-filtering operations, and the length \(\hat{M}\) and the number *q* are considered as the main sources of computational complexity for the FX-NANC system. To improve the computational efficiency of this system especially for non-stationary noise scenarios, some efforts may be made in relieving the computational requirements for reference filtering.

### 2.2 DFX-NANC system

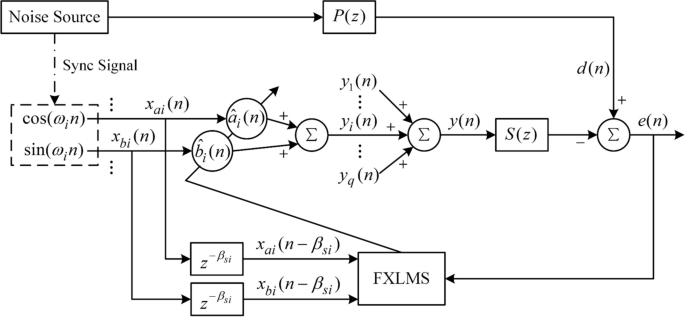

The delay compensation method proposed by Ziegler [27] is the earliest method used to reduce the computational cost of reference-filtering operations. It employs the delay estimation of the secondary path to substitute the secondary path and use a certain number of delay samples to represent the delay estimation. In other words, this method simplifies the convolution operations of reference filtering to pure sample delay operations, which significantly reduces the computational effort of the narrowband ANC system. The corresponding improved system is called delay FX-NANC (DFX-NANC) system, as illustrated in Fig. 3.

Assuming that the corresponding phase-frequency response of the estimated secondary path at the controlled frequency *ω*_{i} is represented by \(\hat{\varphi }_{si}\) (since the secondary path only plays the role of delay rather than advance prediction in phase, \(\hat{\varphi }_{si}\) should be kept in the range of [− 2π, 0]), the number of delay samples at *ω*_{i} may be calculated by

Accordingly, the filtered reference signals in the DFX-NANC system are expressed by

From Eqs. (14) and (15), it can be easily seen that the reference-filtering operations do not need to perform any multiplications or additions, and thus the DFX-NANC system has notably less computational cost with respect to the FX-NANC system. However, when the controlled frequency *ω*_{i} is high, the number of delay samples \(\beta_{si}\) cannot accurately characterize the delay estimation of the secondary path, which may lead to the deterioration of the convergence speed and noise attenuation performance of the system. Besides, the amplitude effect of the secondary path is not considered at all in the delay compensation method.

### 2.3 BFX-NANC system

In [29], Xiao proposed a bandpass filter bank-based FX-NANC (BFX-NANC) system. With the use of bandpass filter bank, only two convolution operations for reference filtering need to be performed for all the frequency channels. It is realized by the following strategy: Firstly, all the cosine reference signals and all the sine reference signals are summed respectively; and then, the resulting summed reference signals are filtered by the estimation secondary path to generate the total filtered reference signals; finally, the total filtered reference signals are decomposed by the bandpass filters and a series of individual filtered reference signals are obtained.

The block diagram of the BFX-NANC system is shown in Fig. 4. The sum of the cosine reference signals and the sum of the sine reference signals for all the controlled frequencies are expressed respectively by

and then these two summed reference signals are filtered by the estimated secondary path, as

By using a bank of bandpass filters derived from a second-order IIR notch filter [57], the individual filtered reference signals corresponding to the frequency *ω*_{i} are calculated by

where the transfer function of the bandpass filter used is given by

*c*_{i} = − 2cos*ω*_{i} is the frequency-dependent coefficient and 0 < *ρ* < 1 is the pole-attraction parameter.

On the basis of the above strategy, only two convolution operations are required for reference filtering in the whole BFX-NANC system, and thus the system has less computational cost compared to the FX-NANC system. Nevertheless, as shown in Eqs. (20) and (21), the system needs eight additional multiplications due to the bandpass filters, and at the same time the bandpass filters may also cause some convergence delay.

### 2.4 LFX-NANC system

Generally, the global secondary path over the entire frequency range (the maximum frequency is actually the Nyquist frequency) is modeled using a long FIR filter based on the random white noise method. To reduce the length of the modeling filter, Delegà et al. [30] employed the bandpass filters with the same structure as in Sect. 2.3 and proposed a local secondary path estimation method. The idea behind this method is that the global secondary path can be divided into multiple local secondary paths according to frequency subbands, and correspondingly the single high-order global model can be replaced by a set of low-order local models. It is assumed that the entire frequency range is divided into *K* subbands and the local secondary path estimates are represented by \(\hat{S}_{k} (z)\), *k* = 1, 2,…, *K*. Then, if the frequency *ω*_{i} lies in the *k*th subband, the corresponding local model is denoted by \(\hat{S}_{ki} (z)\). The block diagram of the local secondary path estimation based FX-NANC (LFX-NANC) system is presented in Fig. 5. The expressions of the filtered reference signals in the system are written as

where \(\left\{ {\hat{s}_{k,m} (n)} \right\}_{m = 0}^{{\hat{M}_{l} - 1}}\) are the impulse response coefficients of the local secondary path model \(\hat{S}_{k} (z)\) (or \(\hat{S}_{ki} (z)\)) with length \(\hat{M}_{l}\).

The length \(\hat{M}_{l}\) can be taken as a much smaller value compared to the length \(\hat{M}\) of \(\hat{S}(z)\) (\(\hat{M}_{l} \le \hat{M}\)), and thus the computational load of reference filtering in the LFX-NANC system is greatly decreased. But it was shown in [32, 33] that Delegà’s local secondary path estimation method cannot guarantee good spectral estimation accuracy at most frequencies of each subband, especially when the dynamic range of amplitude-frequency response of the secondary path is large. Therefore, the convergence performance of the LFX-NANC system may be limited.

### 2.5 FE-NANC system

Considering different algorithm structures, Zhu et al. [34] adopted the filtered-error structure instead of the usual filtered-reference structure to develop a filtered-error least mean square (FELMS) based narrowband ANC (FE-NANC) system. The block diagram of the FE-NANC system is shown in Fig. 6, where \(\hat{S}^{\prime}(z)\) is the error filter. In this system, the sole error signal is filtered by the error filter, and then the filtered error signal is used to update the control filter weights in all the frequency channels. Accordingly, only one convolution operation for error filtering is required in the whole FE-NANC system, regardless of the number of tonal components. Defining two expressions as follows:

Let *v* = *n–m*, thereby Eqs. (25) and (26) are rewritten as

Since \(\sum\limits_{m = 0}^{{\hat{M} - 1}} {\hat{s}_{m} e(v + m)}\) cannot be implemented with a causal system, \(e(v + m)\), \(x_{ai} (v)\) and \(x_{bi} (v)\) are delayed by \(\hat{M} - 1\) samples. Then

Defining \(j = \hat{M} - 1 - m\) and

where \(\left\{ {\hat{s}_{{\hat{M} - 1}} ,\hat{s}_{{\hat{M} - 2}} ,...,\hat{s}_{0} } \right\}\) may be considered as the weights of the error filter \(\hat{S}^{\prime}(z)\).

Finally, the control filter weights of the FE-NANC system are updated by

where *e'*(*n*) denotes the filtered error signal, and the formulas are based on the assumptions: \(e^{\prime}(n) \approx e^{\prime}(v)\), \(x_{ai} (n - \hat{M} + 1) \approx x_{ai} (v - \hat{M} + 1)\) and \(x_{bi} (n - \hat{M} + 1) \approx x_{bi} (v - \hat{M} + 1)\). It is noted that the length \(\hat{M}\) of the estimated secondary path plays an important role in the above sample delay operation and assumptions. This indicates that the convergence speed of the FE-NANC system may be very poor when \(\hat{M}\) takes a large value.

### 2.6 LFE-NANC system

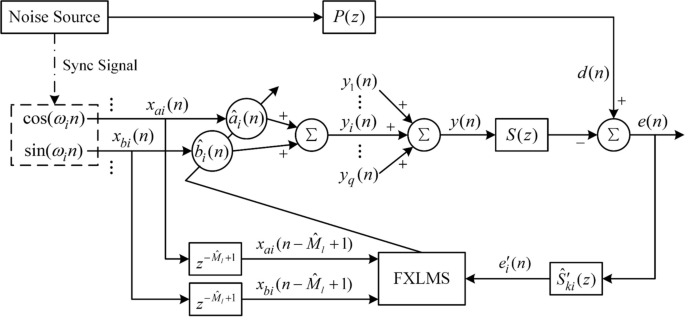

Based on the local secondary path estimation method, an improved FE-NANC (called LFE-NANC) system is developed in our recent study [32, 33], as shown in Fig. 7. The LFE-NANC system differs from the above FE-NANC system in that a set of local secondary path estimates are used. Furthermore, the local models are obtained by the improved local secondary path modeling methods that are more accurate than Delegà's modeling method. On the basis of this, the LFE-NANC system may have not only less computational cost but also much better convergence performance than the FE-NANC system.

Correspondingly, the control filter weights of the LFE-NANC system are updated using the FELMS algorithm, as

where

### 2.7 CFX-NANC system

The above narrowband ANC systems are all based on real-valued signals, which is consistent with real-world applications. Considering that two complex-conjugate sinusoidal signals can be merged into a real-valued sinusoidal signal, Jeon et al. [37] proposed a complex FXLMS algorithm-based narrowband ANC (CFX-NANC) system. The CFX-NANC system uses the complex signal representation method to convert the convolution operation for reference filtering at a controlled frequency into the complex-valued multiplication operation. There is no doubt that the computational complexity of the system can be significantly improved. The reference signals in this system are expressed by

Then the filtered reference signals are given by

where \(\hat{A}_{si}\) and \(\hat{\varphi }_{si}\) are the amplitude gain and phase shift of the estimated secondary path \(\hat{S}(z)\) at the frequency *ω*_{i}, respectively.

The control filter weights are updated by the complex FXLMS algorithm, as

where (▪)^{*} denotes the complex conjugate operation. It can be seen that the CFX-NANC system involves a series of complex-valued operations, although the complex time-domain convolutions are replaced by the simple frequency-domain multiplications.

### 2.8 Computational complexity analysis

In this section, the computational complexity of the conventional FX-NANC system, DFX-NANC system, BFX-NANC system, LFX-NANC system, FE-NANC system, LFE-NANC system, and CFX-NANC system is analyzed and compared. Table 1 summarizes the required number of real multiplications per input sample for the seven systems. It is assumed that one complex multiplication is equivalent to four real multiplications. As defined earlier,* q* represents the number of controlled frequencies, \(\hat{M}\) and \(\hat{M}_{l}\) represent the length of global and local secondary path estimates, respectively.

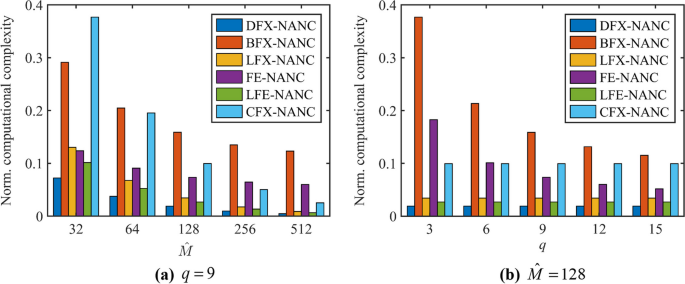

The normalized computational complexity of the six computationally efficient narrowband ANC systems for different \(\hat{M}\) and *q* with respect to the conventional FX-NANC system is compared quantitatively in Fig. 8, where \(\hat{M}_{l}\) is set to 2. It is obvious from Fig. 8 that in all the considered typical cases, the computational complexity of the DFX-NANC system and the LFE-NANC system is always less than 10% of the conventional system. The DFX-NANC system enjoys the best computational advantage among all the systems, and the LFE-NANC system is the second system with the lowest computational complexity. And when \(\hat{M}\) and *q* take smaller values, the computational merit of the BFX-NANC system and the CFX-NANC system is not very significant compared to other systems. In a usual case of \(\hat{M} = 128\) and \(q = 9\), the six computationally efficient narrowband ANC systems can save the number of performed real multiplications by 98.1%, 84.1%, 96.6%, 92.6%, 97.3%, 90.0%, respectively, and thus the comparative results of the computational merit of these systems may be expressed as DFX-NANC > LFE-NANC > LFX-NANC > FE-NANC > CFX-NANC > BFX-NANC.

## 3 Computationally efficient broadband ANC systems

### 3.1 Conventional FX-BANC system

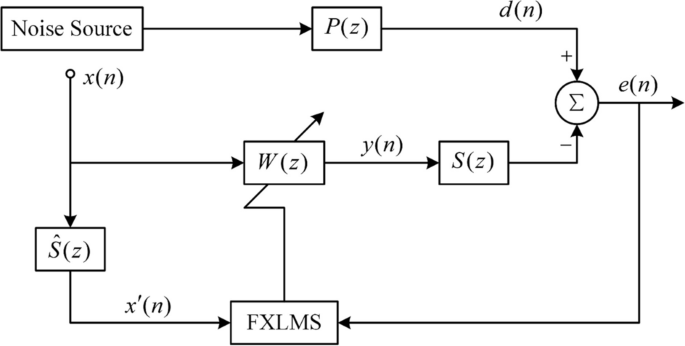

Before introducing computationally efficient broadband ANC systems, the conventional FX-BANC system in Fig. 2 is first reviewed as follows:

The output of the control filter *W*(*z*) is given by

where \({\mathbf{w}}(n)\) and \({\mathbf{x}}(n)\) are the control filter weight vector and reference signal vector respectively, defined as

*N* is the length of the control filter.

The formula of updating the weight vector for the FX-BANC system may be expressed by

where *μ* is the step size, \({\mathbf{x^{\prime}}}(n)\) is the filtered reference signal vector and written as

This FX-BANC system is actually the most basic system for active noise control. On the basis of this system, the normalized FXLMS algorithm-based broadband ANC (NFX-BANC) system is developed by normalizing the step size according to the power of the filtered reference signal. The NFX-BANC system employs the normalized step size and thus its convergence performance may be improved in the case of the reference signal with large power spectra disparity. Accordingly, the weight vector of the NFX-BANC system is updated by the normalized FXLMS algorithm, as

where \(\varepsilon\) is a small regularization constant to avoid the denominator being too small.

Since a transversal FIR filter is used as the control filter, the FX-BANC system involves two convolution operations per input sample, including the control filtering and filtered reference vector generation. As can be seen from Eqs. (43) and (48) that the number of performed multiplications regarding convolution operations of the system depends on the length *N* of the control filter and the length \(\hat{M}\) of the estimated secondary path. As for the NFX-BANC system, the normalization of the step size will increase another *N* multiplications. To reduce the computational cost, several frequency-domain methods and subband methods have been proposed.

### 3.2 DF-BANC system

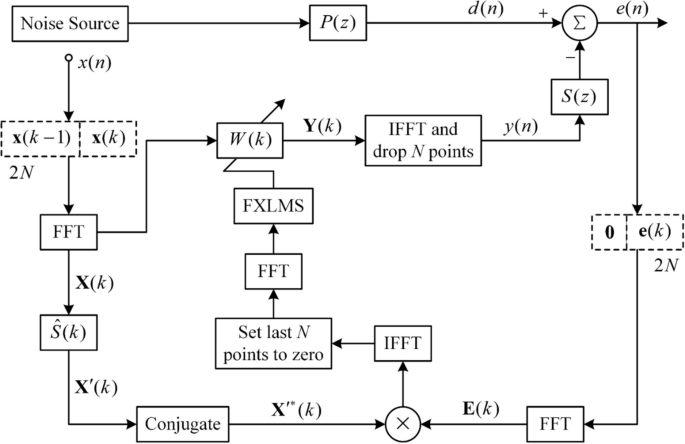

Based on the frequency-domain implementation of the LMS algorithm in [58], Zhang et al. [59] proposed a normalized frequency-domain block filtering method, and the corresponding broadband ANC system is called FB-BANC system as given in Fig. 9. Instead of the conventional point-based processing, the frequency-domain block filtering method can process the signal block by block and perform a time-domain convolution via a frequency-domain multiplication based on the fast Fourier transform (FFT) and the overlap-save method. In this way, the high computational complexity resulting from large lengths of the control filter and the estimated secondary path may be reduced. However, in the FB-BANC system, the control filtering is also implemented in frequency domain, which inevitably causes a delay of one block length. The effect of the undesired delay is extremely unfavorable for broadband noise control. To this end, a delayless frequency-domain filtering based broadband ANC (DF-BANC) system is developed according to the studies [38,39,40]. Figure 10 shows the block diagram of the DF-BANC system. In this system, the control filtering is implemented directly in time domain to minimize the delay; while, the weight vector is updated in frequency domain and then the modified frequency-domain weight vector is transformed to update the time-domain weight vector by the inverse FFT (IFFT).

The control filter output in the DF-BANC system is expressed by

where (▪)^{T} denotes the transpose operation, *k* is the block index, \({\mathbf{w}}(k)\) and \({\mathbf{x}}(n)\) are the control filter weight vector and reference signal vector in time domain respectively, defined as

Assuming that the length of each data block is equal to the length *N* of the control filter* W*(*z*), then the *k*th data block for \(x(n)\), \(y(n)\) and \(e(n)\) are written as

The overlap-save method (50% overlap) is used to convert the circular correlation due to FFT processing to desired linear correlation, and thus two blocks of all the time-domain signals to be processed need to be concatenated to form a 2*N*-point data vector for frequency-domain calculations. It is worth noting that the \((k - 1){\text{th}}\) block of the error signal needs to be padded with a zero vector of length *N* to form a 2*N*-point data vector. On the basis of this, the weight vector of the control filter is updated in frequency domain using the complex normalized FXLMS algorithm, as

where (▪)^{*} denotes the complex conjugate operation, *m* = 0, 1,…,\(N - 1\), is the frequency-bin index, \(W_{m} (k)\), \(E_{m} (k)\), and \(X^{\prime}_{m} (k)\) are the control filter weight, the error signal and the filtered reference signal in the *m*th frequency-bin, and the corresponding frequency-domain vectors may be expressed by

Finally, the time-domain weight vector \({\mathbf{w}}(k)\) is updated based on the frequency-domain weight vector \({\mathbf{W}}(k)\), as

and \({\mathbf{W}}(k)\) and \({\mathbf{w}}(k)\) are both updated only once for every *N* input samples.

### 3.3 DS-BANC system

In addition to the delayless frequency-domain filtering method, the delayless subband filtering method is currently a more popular method for reducing the computational complexity of broadband ANC systems [8, 38, 41, 42]. Figure 11 illustrates the block diagram of a delayless subband filtering based broadband ANC (DS-BANC) system. In the DS-BANC system, the filtered reference signal and the error signal are both decomposed into *G* subbands by an analysis filter bank \({\mathbf{H}}(z)\) and decimated by factor *D*. The analysis filter bank consists of *G* bandpass filters and is usually based on the polyphase FFT technique instead of complex time-domain convolutions to calculate the subband signals. The resulting subband filtered reference signals and error signals are used to update the corresponding subband control filter weights. For the *i*th subband control filter, the weight vector may be updated using the complex normalized FXLMS algorithm, as

where (▪)^{H} denotes the Hermitian transpose operation, \(e_{i} (n)\) is the *i*th subband error signal, \({\mathbf{x^{\prime}}}_{i} (n)\) is the *i*th subband filtered reference signal vector, \({\mathbf{w}}_{i} (n)\) is the weight vector of the *i*th subband control filter with length \(N_{s} = N/D\), and *N* is the length of the fullband control filter.

Since the reference and error signals are real-valued signals, the subbands are complex conjugate symmetric. This means that only the first \(G/2 + 1\) subbands need to be considered for weight updating. After all the updated subband weight vectors are obtained, the fullband weight vector can be constructed by the FFT stacking. Generally, the fullband weight vector is updated only once for every \(N/J\) input samples, and *J* is the fullband weight transform rate. It is obvious that the computational cost of the DS-BANC system is largely reduced due to the down-sampling process.

### 3.4 MDS-BANC system

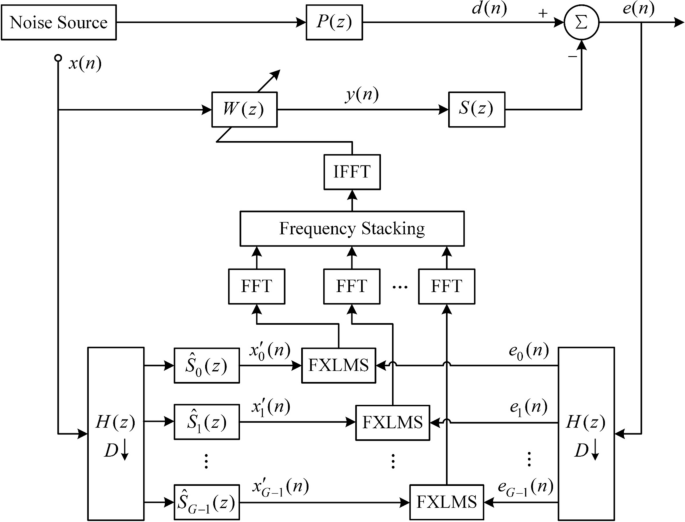

To further reduce the computational complexity, a modified delayless subband filtering method with the use of subband secondary path models is developed [43]. The block diagram of the corresponding broadband ANC system (called MDS-BANC system) is shown in Fig. 12. In the MDS-BANC system, the computational merit is enhanced with respect to that of the DS-BANC system by decomposing the fullband secondary path estimate into a set of subband secondary path estimates with the decimation factor *D*.

The subband filtered reference signals are obtained by filtering the reference signal \(x(n)\) through \({\mathbf{H}}(z)\) followed by \(\hat{S}_{i} (z)\), *i* = 0, 1,…,\(G - 1\). \(\hat{S}_{i} (z)\) is the *i*th subband secondary path estimate and can be modeled using a short FIR filter in a subband-decomposed form. It should be noted that the subband secondary path estimation here is similar to the local secondary path estimation in Sects. 2.4 and 2.6, but the difference is that the subband secondary path estimation is implemented at the decimated sampling frequency. Except for the generation of the subband filtered reference signals, the rest of the MDS-BANC system is the same as the DS-BANC system. On the other hand, both the DS-BANC system and the MDS-BANC system may more easily attenuate the noise over a broadband frequency range than the conventional FX-BANC system, since each subband control filter can fully play its role in the corresponding narrow frequency band.

### 3.5 Computational complexity analysis

The computational complexity of the NFX-BANC system, DF-BANC system, DS-BANC system and MDS-BANC system is analyzed and compared in this section. Table 2 summarizes the required number of real multiplications per input sample for the four systems. It is assumed that each *N*-point FFT or IFFT operation requires *N*log_{2}*N* real multiplications, and one complex multiplication is equivalent to four real multiplications. *N* and \(N_{s}\) represent the length of fullband and subband control filter, respectively, \(\hat{M}\) and \(\hat{M}_{s}\) represent the length of fullband and subband secondary path estimates, respectively, *G* represents the number of subbands, *D* represents the decimation factor, *L* represents the length of analysis filters, and *J* represents the fullband weight transform rate. And some of these parameters typically have the following relationships: \(N_{s} = {N \mathord{\left/ {\vphantom {N D}} \right. \kern-0pt} D}\), \(\hat{M}_{s} = {{\hat{M}} \mathord{\left/ {\vphantom {{\hat{M}} D}} \right. \kern-0pt} D}\), \(D = {G \mathord{\left/ {\vphantom {G 2}} \right. \kern-0pt} 2}\).

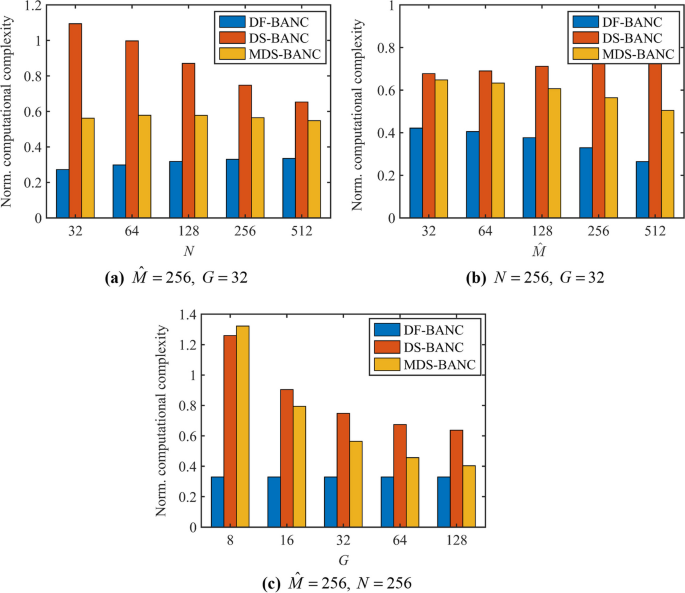

The normalized computational complexity of the three computationally efficient broadband ANC systems for different *N*, \(\hat{M}\) and *G* with respect to the NFX-BANC system is compared quantitatively in Fig. 13, where \(J = 2\) and \(L = 4G\). The results indicate that the DF-BANC system exhibits the greatest computational superiority among these systems, and the computational complexity of the MDS-BANC system is lower than that of the DS-BANC system. In a usual case of \(N = 256\), \(\hat{M} = 256\) and \(G = 32\), the three computationally efficient broadband ANC systems can save the number of performed real multiplications by 67.0%, 25.2%, and 43.5%, respectively, and thus the comparative results of the computational merit of the systems may be expressed as DF-BANC > MDS-BANC > DS-BANC. Moreover, it can also be seen from Fig. 13c that with the increase in the number of subbands* G*, the computational cost of the DS-BANC system and the MDS-BANC system decreases significantly.

## 4 Numerical simulations

To evaluate the convergence speed and noise attenuation performance of all the considered ANC systems with reduced computational complexity, several numerical simulations are carried out in MATLAB environment. Considering that for narrowband noise control, the target noise is usually stationary or non-stationary multi-harmonic noise, two synthesized stationary and non-stationary multi-tonal noises are used as the noise source signals to fully validate the control performance of the narrowband ANC systems [2, 3, 5, 32, 33]. The broadband noise control is generally considered to be more difficult than the narrowband noise control, so current ANC research is mainly focused on steady-state broadband noise control [4, 38, 41,42,43]. To verify the control performance of the broadband ANC systems for broadband noises with different spectral dynamic ranges, both white Gaussian noise and colored noise are used as the noise source signals. The computer used has an Intel Core i5-6300HQ (2.3 GHz) processor and 4 GB RAM. The models of the primary and secondary paths used in the simulations are taken from [9], as illustrated in Fig. 14a, b. The sampling frequency is 2000 Hz. The length \(\hat{M}\) of the global (or fullband) secondary path estimate \(\hat{S}(z)\) is set to 256.

### 4.1 Performance comparison of narrowband ANC systems

#### 4.1.1 Case 1: Stationary multi-tonal noise

In case 1, a multi-tonal noise with six integer harmonic orders and fundamental frequency of 100 Hz is used as the source noise signal to compare the control performance of the six computationally efficient narrowband ANC systems. The source noise signal is given by

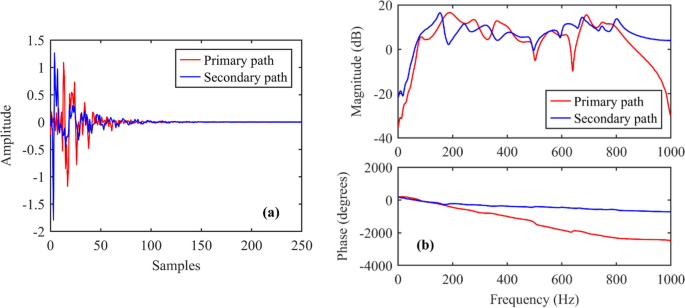

The primary noise signal is generated by this source noise signal and an additional zero-mean white Gaussian noise, expressed as

where \(\left\{ {p_{j} } \right\}_{j = 0}^{255}\) are the impulse response coefficients of the primary path *P*(*z*), the variance of the white noise \(v_{p} (n)\) is set to 0.02.

The conventional FX-NANC system is used as the benchmark. The length of each simulation is 1 s. The pole-attraction parameter *ρ* is set to 0.99. The length of the local secondary path estimates is set to \(\hat{M}_{l} = 5\). All the step sizes are carefully adjusted so as to provide fair comparisons between the systems, and multiple independent trials are conducted to obtain ensemble averaged results. Two metrics including the averaged noise reduction (ANR) [43, 60] and the sound pressure level (SPL) are used to evaluate the performance of the systems, and they are defined as follows:

where \(A_{e} (n) = \xi A_{e} (n - 1) + (1 - \xi )\left| {e(n)} \right|\), \(A_{d} (n) = \xi A_{d} (n - 1) + (1 - \xi )\left| {d(n)} \right|\) with initial conditions \(A_{e} (0) = 0\), \(A_{d} (0) = 0\), and \(\xi = 0.999\) is the forgetting factor.

where *P* is the sound pressure to be calculated, and \(P_{{{\text{ref}}}} = 2 \times 10^{ - 5} {\text{Pa}}\) is the reference sound pressure.

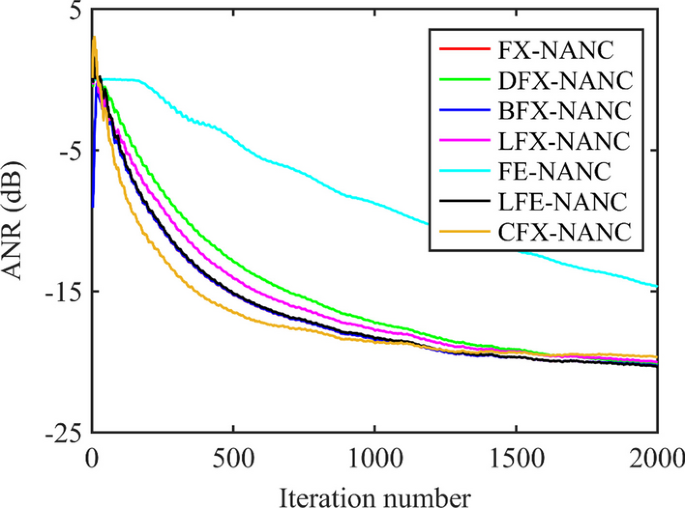

Figure 15 presents the comparison of the ANR curves for the seven narrowband ANC systems in this case (the ANR curves of the FX-NANC, BFX-NANC and LFE-NANC systems are overlapped). It is shown that the BFX-NANC and LFE-NANC systems have similar convergence speeds to that of the FX-NANC system, the CFX-NANC system converges faster than the FX-NANC system while the DFX-NANC and LFX-NANC systems converges slower than the FX-NANC system, and the FE-NANC system performs the worst with severe delay. The results are consistent with those described in Sect. 2. Furthermore, the time waveforms and the frequency spectrums of the residual noise for the seven narrowband ANC systems are depicted in Figs. 16 and 17, respectively. As is presented in Fig. 17, the noise reduction performance of the DFX-NANC system and the FE-NANC system is obviously inferior to other systems.

#### 4.1.2 Case 2: Non-stationary multi-tonal noise

This case aims to investigate the ability of the considered narrowband ANC systems to deal with non-stationary primary noise. The source noise signal consists of three tonal components with frequency of 100 Hz, 200 Hz, and 300 Hz, and their amplitudes are 0.4 Pa, 0.2 Pa and 0.5 Pa, respectively. The duration of the simulation is still 1 s, but the frequency and amplitude of the three tonal components in the source noise signal are changed at the intermediate moment. After the variation, the frequencies of the three tonal components are 400 Hz, 500 Hz, and 600 Hz, and the amplitudes are 0.3 Pa, 0.6 Pa and 0.4 Pa. The rest of the parameter settings are the same as those in case 1.

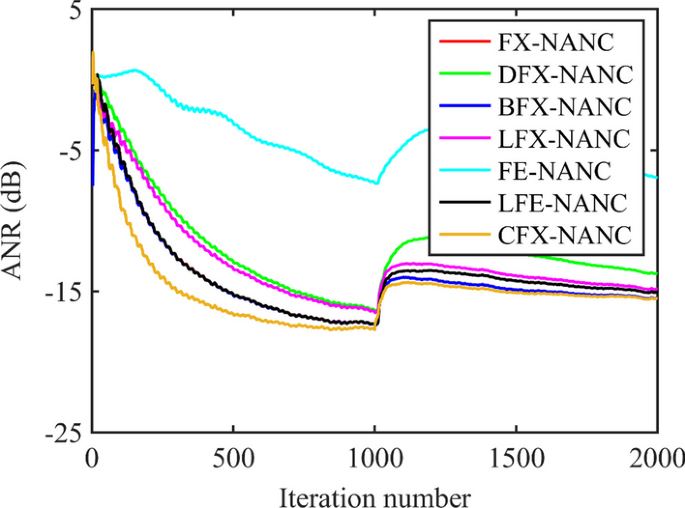

The comparison of the ANR curves for the seven narrowband ANC systems in case 2 is illustrated in Fig. 18, where the ANR curves of the FX-NANC, BFX-NANC and LFE-NANC systems are overlapped in the first 1000 iterations, and the ANR curves of the FX-NANC and BFX-NANC systems are overlapped in the last 1000 iterations. In addition, the time waveforms of the residual noise for the seven narrowband ANC systems are also given in Fig. 19. The results demonstrate that all of the computationally efficient narrowband ANC systems may track time-varying multi-tonal noise and tackle the variation relatively well, except for the FE-NANC system. Overall, the comparative results of the convergence speed of all the systems may be expressed as CFX-NANC > FX-NANC = BFX-NANC = LFE-NANC > LFX-NANC > DFX-NANC > FE-NANC, which agrees with those in case 1.

### 4.2 Performance comparison of broadband ANC systems

#### 4.2.1 Case 1: White Gaussian noise

To compare the convergence speed and steady-state performance of the three computationally efficient broadband ANC systems, a stationary zero-mean white Gaussian noise with variance of 0.05 is used as the source noise signal in case 1. The reference signal is the same as the source noise signal, and the primary noise signal is obtained by passing the source noise signal through the primary path model. The duration of each independent simulation is 100 s. The length of the control filter is \(N = 256\), the regularization constant is \(\varepsilon = 0.001\), the number of subbands is \(G = 32\), the decimation factor is \(D = {G \mathord{\left/ {\vphantom {G 2}} \right. \kern-0pt} 2}\), the length of subband control filters is \(N_{s} = {N \mathord{\left/ {\vphantom {N D}} \right. \kern-0pt} D}\), the length of subband secondary path estimates is \(\hat{M}_{s} = {{\hat{M}} \mathord{\left/ {\vphantom {{\hat{M}} D}} \right. \kern-0pt} D}\), the fullband weight transform rate is \(J = 2\), the length of analysis filters is \(L = 4G\). The step size of each system is selected experimentally to be as optimal as possible.

The conventional FX-BANC system and the NFX-BANC system serve as the references. The time waveforms of the residual noise for the five broadband ANC systems in this case are plotted in Fig. 20. Furthermore, the ANR curves and frequency spectrums of the residual noise for these systems are also compared in Fig. 21, where the ANR curves and frequency spectrums of the FX-BANC and NFX-BANC systems are overlapped. From all the results, it can be observed that all the considered broadband ANC systems are able to attenuate the broadband primary noise well, and they have the similar convergence speeds. But it can also be seen that the steady-state errors of the DS-BANC system and the MDS-BANC system are larger than those of the FX-BANC system, the NFX-BANC system and the DF-BANC system. As shown in the frequency spectrum results, the residual noise of the two subband systems including the DS-BANC system and the MDS-BANC system fluctuates largely in the frequency domain, since the noise in each frequency subband is controlled relatively independently.

#### 4.2.2 Case 2: Colored noise

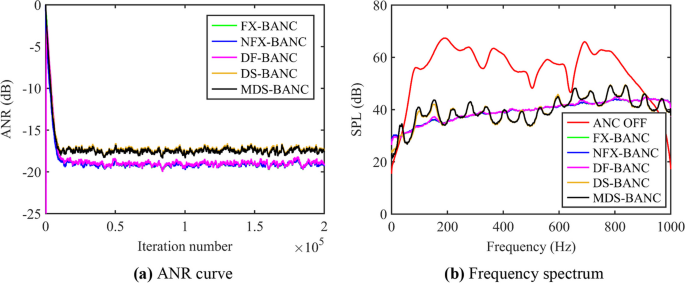

In this case, to further evaluate the control performance of the considered broadband ANC systems for broadband noises that have large spectral dynamic range, a colored noise obtained by filtering a zero-mean white Gaussian noise through a 10th order auto-regressive system [38] is used as the source noise signal. The reference signal is the same as the source noise signal, and the primary noise signal is obtained by passing the source noise signal through the primary path model. The duration of each independent simulation is 100 s. The rest of the parameter settings are the same as those in case 1.

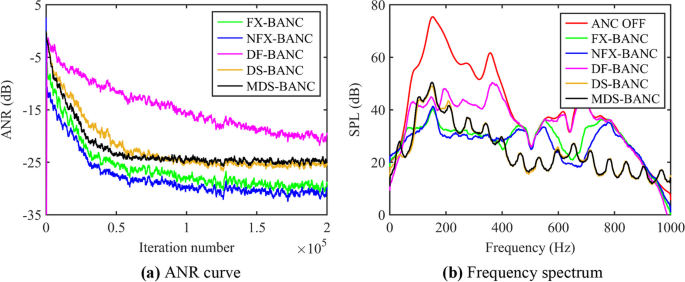

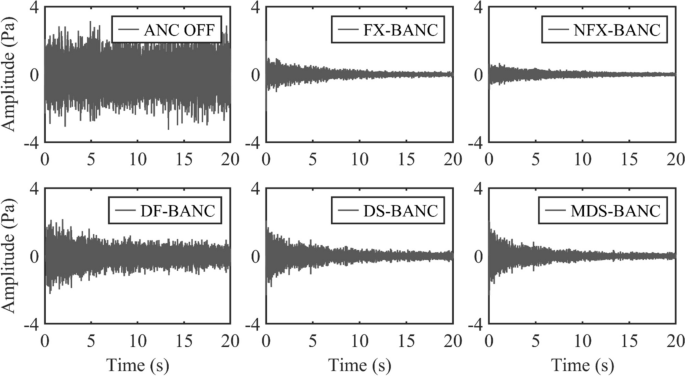

With the synthesized colored noise signal, the performance of the five broadband ANC systems is compared. Figure 22 shows the time waveforms of the residual noise for the five broadband ANC systems in case 2. And Fig. 23 also illustrates the ANR curves and frequency spectrums of the residual noise for these systems. It is obvious from Figs. 22 and 23a that, in terms of the convergence speed and steady-state error, the NFX-BANC system performs the best, followed by the FX-BANC, MDS-BANC and DS-BANC systems, and the DF-BANC system performs the worst in this case. On the other hand, the results of Fig. 23b demonstrate that the DS-BANC system and the MDS-BANC system can eliminate the frequency components with lower amplitude levels much better than the other three broadband ANC systems. This may be because the noise signal with higher eigenvalue spread ratio can be canceled using different normalized step sizes in respective frequency subbands.

### 4.3 Discussions

Based on the computational complexity analysis and numerical simulations, the relative strengths and weaknesses of the considered computational-efficient narrowband and broadband ANC systems are summarized in Tables 3 and 4, respectively. Among the narrowband ANC systems, the computational complexity of the DFX-NANC, LFE-NANC, and LFX-NANC systems are all very low, followed by the FE-NANC, CFX-NANC, and BFX-NANC systems. However, due to the inaccurate delay estimation and amplitude effect, the convergence speed and noise reduction performance of the DFX-NANC system suffer from degradation. The LFX-NANC system employs Delegà's local secondary path estimation method, which fails to provide an accurate spectral approximation of the secondary path, thus limiting the system performance. And the FE-NANC system performed the worst because of the severe delay in the convergence of the control filters.

Among the broadband ANC systems, the DF-BANC system has the lowest computational effort, followed by the MDS-BANC and DS-BANC systems. When the controlled noise is the white Gaussian noise, the noise attenuation performance of the MDS-BANC and DS-BANC systems is slightly worse than that of the DF-BANC system, but they still have good broadband attenuation effects. When the controlled noise is the colored noise with high spectral dynamics, the MDS-BANC and DS-BANC systems can effectively reduce not only the frequency components with high amplitude but also those with low amplitude due to the use of subband filtering methods. However, the convergence speed and noise attenuation performance of the DF-BANC system are poor, because it is unable to control different frequency subbands relatively independently. In fact, the optimal step sizes corresponding to different frequency subbands are different, so determining the appropriate step size combination is a very tricky problem, which we will also investigate in-depth in our future work.

Finally, in order to make all the considered ANC systems easier to understand and implement in real applications, Table 5 provides the key parameters and usage characteristics of each system.

## 5 Conclusions

In this paper, the typical narrowband and broadband ANC systems with emphasis on reducing computational complexity are reviewed. Through the computational complexity analysis and a series of numerical simulations, some valuable results are obtained as follows. For the narrowband ANC systems, the comparative results of computational superiority may be expressed as DFX-NANC > LFE-NANC > LFX-NANC > FE-NANC > CFX-NANC > BFX-NANC. The convergence speed and noise reduction performance of the LFE-NANC, CFX-NANC and BFX-NANC systems are good; whereas, those of the DFX-NANC, LFX-NANC and FE-NANC systems are unsatisfactory. For the broadband ANC systems, the comparative results of computational superiority may be expressed as DF-BANC > MDS-BANC > DS-BANC. When the controlled noise is the white Gaussian noise, the three systems have acceptable broadband attenuation effects. However, when the controlled noise is the colored noise with high spectral dynamics, the control performance of the MDS-BANC and DS-BANC systems is much better than that of the DF-BANC system. This study may provide greater insight into typical computationally efficient ANC systems, which will be beneficial in facilitating the use of ANC technology in real-world applications.

## Availability of data and materials

The datasets generated or analyzed during the current study are available from the corresponding author on reasonable request.
