Offline and online task allocation algorithms for multiple UAVs in wireless sensor networks
EURASIP Journal on Advances in Signal Processing volumeÂ 2024, ArticleÂ number:Â 21 (2024)
Abstract
In recent years, UAV techniques are developing very fast, and UAVs are becoming more and more popular in both civilian and military fields. An important application of UAVs is rescue and disaster relief. In postearthquake evaluation scenes where it is difficult or dangerous for human to reach, UAVs and sensors can form a wireless sensor network and collect environmental information. In such application scenarios, task allocation algorithms are important for UAVs to collect data efficiently. This paper firstly proposes an improved immune multiagent algorithm for the offline task allocation stage. The proposed algorithm provides higher accuracy and convergence performance by improving the optimization operation. Then, this paper proposes an improved adaptive discrete cuckoo algorithm for the online task reallocation stage. By introducing adaptive step size transformation and appropriate local optimization operator, the speed of convergence is accelerated, making it suitable for realtime online task reallocation. Simulation results have proved the effectiveness of the proposed task allocation algorithms.
1 Introduction
In recent years, UAV (Unmanned Aerial Vehicle) [1] techniques are developing very fast, and UAVs are becoming more and more popular due to their strong maneuverability. When performing tasks in hazardous areas, they do not rely on onboard personnel. They not only are convenient and intelligent to use, but also reduce pilot training costs. Therefore, they are widely used in various application scenarios. With the increasing popularity of UAV applications [2], research issues such as autonomous algorithms, collaborative planning algorithms, and intelligent control algorithms [3] for UAVs are becoming increasingly prominent. Especially the ability of UAVs to perform tasks in dry, harsh or dangerous environments for humans has attracted more and more scientific researchers to conduct research on UAV flight formation algorithms, task allocation algorithms, path planning algorithms, and efficiency evaluation methods. UAVs not only play an increasingly important role in the military field, but also have a high demand in civilian field such as wireless sensor networks. Especially in today's increasingly frequent occurrence of various disasters, UAVs are increasingly being used to monitor disaster scenes, such as mountain fire monitoring, maritime emergency rescue, and medical material transportation.
The main scenario considered in this paper is that after a severe earthquake, the early warning measurement center needs to collect environmental information such as water quality and pressure. Such information is very important for analyzing the disaster situation and giving early warning of possible secondary disasters such as forming of barrier lakes and aftershocks. Due to the threat of aftershocks and the impact of landforms being destroyed, it is not feasible to manually collect information using land transportation facilities. Utilizing the high mobility of UAVs, the early warning measurement center can send a UAV cluster to collect data from distributed or preset sensors at task target points. Due to the cluster distribution of wireless sensor nodes, when earthquakes occur on a largescale, it is difficult to network between each group of sensor nodes. At the same time, there is no support from communication facilities such as base stations, which makes it impossible to gather all information from various locations. In another word, there are far more locations in a large range that require data collection tasks than UAVs. By allocating tasks and planning UAV flight paths reasonably, data collection tasks within the entire earthquake area can be efficiently completed.
Nowadays, there are many researchers studying on task allocation of UAVs. UAV task allocation problem belongs to the task planning problem of multiagent systems. In multiagent systems, it is quite difficult to find the optimal or near optimal solution of the task allocation problem. In general, it is proved to be NPhard, and it is difficult to solve it with conventional numerical methods. The main goal of task allocation, besides achieving overall optimal system performance, can also be to minimize the execution time of tasks, minimize the time of certain agent activities, maximize the number of tasks completed within a specific time, and maximize the robustness of the task allocation process, that is, to ensure the completion of tasks [4]. Due to the fact that optimal overall performance is a vague concept that is difficult to quantify and may depend on each agent, the concept of utility is generally used to estimate the value or cost of task allocation processes on system performance. Yoon, et al. [5] introduced the concept of virtual task to reduce the complexity of the problem, and introduced the Hungarian algorithm to decompose the virtual character to calculate an approximately optimal path. Itshak, et al. [6] proposed an improved bee colony optimization algorithm that utilized distributed swarm intelligence methods to allocate fixed heterogeneous sensors to upcoming unknown tasks to minimize task detection time. They assigned sensors to tasks based on their performance, task priority, and the distance between the sensor and the location where the task was executed. Based on the classic fixed response threshold model, Wu, et al. [7] adopted a bottomup approach to design new dynamic environmental stimuli, response thresholds, and transfer probabilities under the concept of problem centered and evolutionary solving. A dynamic ant colony labor division model was proposed, which allowed a group of relatively low intelligent agents to perform complex tasks. It had the characteristics of distributed framework, multitask execution sequence, multistate, adaptive response threshold, and multiindividual response.
For UAV path planning algorithms, many researchers in this field have proposed effective and feasible planning algorithms that belong to various branches, and have proposed some improved intelligent algorithms based on them. Zeng, et al. [8] first proposed to use the block coordinate descent algorithm to decompose the problem, and use the continuous convex optimization algorithm to obtain the optimal solution of the joint optimization problem of UAV communication resources and track. Later, this idea was successfully applied to various other scenarios, such as UAV communication path planning based on energy efficiency maximization [9], multiple UAV downlink broadcast communication [10], UAV communication physical layer security design [11], UAV mobile edge computing [12], wireless power transmission supported by UAVs [13] and wireless energy carrying communication [14]. It is worth noting that one drawback of alternately updating UAV paths and allocating communication resources is that if the initialization design is improper, it may fall into suboptimal local optima. Therefore, Shen, et al. [15] studied the simultaneous updating of these two variables in certain scenarios by developing new concave lower bound functions, and also introduced the use of alternating direction multiplier techniques to reduce the computational complexity of multiUAV path design. Liang et al. [16] studied the placement and flight optimization of multiple UAVs for uplink coordination and multipoint communication. Each UAV forwards its signals received from all ground users to the central processor for joint decoding. Due to the limited flight speed of UAVs, utilizing their maneuverability to improve communication performance is generally the most suitable application scenario for delay tolerance. In fact, for UAV platforms serving multiple users, there is a new compromise between communication throughput and access delay. Lyu [17] first studied UAVs with fixed flight trajectories, and then Wu [18] expanded them through joint optimization of UAV trajectories and communication resource allocation in OFDMA (Orthogonal FrequencyDivision Multiple Access) systems.
This paper firstly proposes an improved immune multiagent algorithm for the offline task allocation stage. The proposed algorithm provides higher accuracy and convergence performance by improving the optimization operation. Then, this paper proposes an improved adaptive discrete cuckoo algorithm for the online task reallocation stage. By introducing adaptive step size transformation and appropriate local optimization operator, the speed of convergence is accelerated, making it suitable for realtime online task reallocation. The efficiency of the proposed algorithms is finally proved by numerical simulations.
2 Methods
2.1 Task allocation model
The goal of multiUAV task allocation [19] is to assign a set of target point sequences to all UAVs under the condition of known UAV formation groups, target point information, and partial environmental information, in order to complete all tasks with the minimum cost and achieve the optimal efficiency.
The UAV clusters in this paper meet the following conditions:

1.
Isomorphism: All the UAVs have the same structure and function;

2.
Communication guarantee: All the UAVs have established communication links through flight Ad hoc networks;

3.
Functionality: All the UAVs are equipped with relevant equipment for data collection.
Assume that the number of UAVs is N, and the set of UAVs is Uâ€‰=â€‰{U_{1}, U_{2}, â€¦, U_{N}}. The number of target points to traverse is M, and the set of tasks is Tâ€‰=â€‰{T_{1}, T_{2}, â€¦, T_{M}}. The task allocation problem meets the following principles:

1.
All the UAVs have the same resource and constraints;

2.
A single target point can only be accessed once;

3.
The UAVs visit all target points with the shortest possible total flight distance;

4.
The task allocation of all the UAVs should be as fair as possible;

5.
UAVs should try to avoid threat areas as much as possible.
The task allocation problem is a combinatorial optimization problem which meets the following constraints:
1. Maximum flight distance constraint The maximum flight distance of a single UAV is limited by the amount of fuel carried. Assume that the maximum flight distance is D_{max}, and the route of the ith UAV is L_{i}. Then, the maximum flight distance constraint is expressed as,
2. Target traversal constraint All the target points should be assigned only once, and this constraint is expressed as,
where \(T_{i}^{j}\) is the jth target point that the ith UAV will visit.
In dynamic scenarios, task allocation should consider the total length of the UAV cluster's execution path, the flight load of each UAV cluster, and the penalty for passing through threat zones. Considering these factors, the fitness function is expressed as,
where \(\sum\limits_{i = 1}^{N} {D\left( {L_{i} } \right)}\) is the total length of all the UAVs, \(\max \left( {D\left( {L_{i} } \right)} \right)\) is the maximum flight distance, and \(D_{o} \left( {L_{i} } \right)\) is the penalty path for UAVs flying through threat zones. \(\alpha ,\beta ,\gamma\) are three weighting coefficients and,
By minimizing the fitness function, an optimal solution can be obtained for the comprehensive evaluation of the total distance, the task balance, and the flight safety. The final optimization problem is expressed as,
2.2 Improved immune multiagent algorithm for offline task allocation
Based on the concept of artificial immune algorithm [20] and multiagent system, we propose an improved immune multiagent algorithm for the offline task allocation stage. By limiting some operations within the neighborhood, the ability of traditional immune algorithms to jump out of local optima is improved, while maintaining the fast convergence speed of traditional immune algorithms in the initial stage. It is also suitable for dynamic and static task allocation issues.
2.2.1 Memory population initialization
The immunological memory operation refers to the concept of memory population in the clonal selection algorithm, and is used to save the optimal part of agents in each evolution process. The size of the memory agent group is limited, so it is necessary to update and eliminate it in realtime during each iteration. The specific steps are as follows:
1. Assuming that the size of the initial memory agent group is N, select k antibody agents with the best fitness in the current antibody agent grid, and try to add them to the memory agent group. If the memory agent group has not reached the preset size, this addition is allowed, and the k antibody agents are directly added to the agent group.
2. If the memory agent group is full, or the number of antibody agents that can be accommodated is less than k, the elimination operation is performed. All antibody agents in the current memory agent group are compared with the new k antibody agents for fitness, and the antibody agents with the lowest fitness that exceed the size of the memory agent group are removed from the memory agent group.
The overall process can be expressed as,
where N_{best} is the memory agent group, \(SelectN( \cdot )\) means to select the first N agent functions with the best fitness.
2.2.2 Neighborhood cloning operation
The neighborhood cloning operation refers to the antibody cloning operation in the clonal selection algorithm. The antibody cloning operation in the clonal selection algorithm only multiplies the best few antibodies in the population and then mutates, so it is not suitable for maintaining the diversity of the population. Therefore, this paper keeps the cloning process in the neighborhood. For each antibody agent, we select the agent with the best fitness in its neighborhood and its own several agents, multiply and mutate it to a certain extent, and then select the antibody agent with the best fitness to replace the original antibody agent. The neighborhood cloning operation is represented as,
where \(Select\left( \cdot \right)\) represents selecting the best agent, \(Mutation\left( \cdot \right)\) represents the mutation operation, and \(Clone\left( \cdot \right)\) represents the cloning operation.
2.2.3 Neighborhood suppression operation
The neighborhood suppression operator suppresses high affinity antibodies to maintain population diversity. Since the cloning operation in this paper is carried out in the neighborhood, if an antibody agent is the local optimal agent, its excellent fitness will make it the parent of all antibody agent clones in its neighborhood, that is, the antibodies in a small range all preserve the characteristics of the local optimal agent, and the affinity is naturally high, which needs to be suppressed. Therefore, within each neighborhood, neighborhood suppression operations can be represented as,
where B_{i,j} is a randomly generated new antibody agent. Since the neighborhood range is small, for each agent, if there is an identical agent in the neighborhood, it will be directly replaced with the randomly generated antibody agent to maintain the diversity of the agent group.
2.2.4 Population crossover operation
The population crossover operation exchanges certain gene loci of two randomly selected parent antibodies according to certain rules with a certain probability, thereby exchanging information and generating two new offspring. The objects selected for the crossover operation in this algorithm are different. For each antibody agent, a roulettewheelbased selection method is used to select another parent agent in the entire grid for cross operation, and then replace the original agent with the better offspring after cross operation. This operation not only provides an opportunity for each antibody agent, regardless of its excellence, to intersect, improve the diversity of the population, conduct global search, but also has mutual motivation between excellent individuals, ensuring the direction of evolution. If the crossover operator uses a partially matched crossover operator, the population crossover operation can be represented as,
where Roulette(L) represents the roulette choice function for the entire grid L, unifrnd(0,1) represents a random number that follows a uniform distribution between 0 and 1, times represents the overall number of iterations, and i indicates the current number of iterations. The probability of population crossover operations gradually decreases as the number of iterations increases, with the aim of accelerating population convergence and preventing the loss of too much useful information due to excessive crossover.
2.2.5 Selflearning operation
The selflearning operation refers to the selflearning ability of agents in multiagent systems. In this paper, the multiagent is the antibody agent group, and its most representative individual is the individual with the best fitness. Through cloning and mutation of the individual, selecting the optimal individual after mutation to replace the original optimal agent, and completing local search in a small range, the antibody agent group will further evolve. Selflearning operations is represented as,
2.2.6 Partial 2opt operator
The 2opt operator was first used in the traveling salesman problem, of which the goal is to find a Hamiltonian circuit with the minimum sum of weights. The traveling salesman problem is one of the most widely studied problems in the field of combinatorial optimization. This problem is NPhard. There is no constant approximation of polynomial time for the traveling salesman problem if no additional assumptions are added. Researchers are committed to designing a better approximation algorithm for the traveling salesman problem in metric space. The 2opt optimization algorithm is one of them, which is the core of the classic Lin Kernighan algorithm. The 2opt optimization algorithm starts from an arbitrary feasible solution and repeatedly searches. If a crossing edge is found, the encoding in the middle of this pair of crossing edges is reversed. This substitution operation is performed until the local optimal is reached, and the local optimal solution is finally used as the algorithm's solution. The 2opt algorithm is expressed as follows.
Although it is not possible to directly perform 2opt operations on the overall antibody, for the target points under each UAV, partial 2opt operations can be used to accelerate the convergence of the algorithm. The specific operations are as follows,
where \(2  opt\left( \cdot \right)\) represents performing 2opt optimization, N is the number of target points, M is the number of drones, and \(\left\{ \cdot \right\}\) represents the splicing of various parts.
2.3 Improved cuckoo algorithm for online task allocation
The previous section proposes an improved offline task allocation algorithm, which is characterized by the introduction of a large number of optimizations to ensure the accuracy of the optimization results. The time complexity is large, so the calculation time is long, and the requirements for the realtime scenes cannot be met. Therefore, this section proposes an improved cuckoo optimization algorithm, which has strong ability to jump out of local optimization and a lower complexity.
2.3.1 Target point exchange operator
The target point exchange operator mainly completes the approximation of large step random walks in the Levy distribution. The main idea of the target point exchange operator is to evaluate the excellent state indicators of each target point, identify one or more target points with the worst indicators under a UAV in this generation of feasible solutions, and remove them from the UAV's target point sequence and place them in the candidate pool. Then several UAVs are selected in a random order, selecting one or more target points from the candidate pool that have the best performance for them into their own target point sequence. The evaluation index selected in this section is the average value of the sum of distances from the target point to all points in the UAV target point sequence, which is given as,
where value(i) represents the evaluation index, i represents the target point label, K represents the number of target points of the UAV, and Distance(i, j) represents the distance between the target points. So, the target point exchange operator can be expressed as,
where \(delete\_worst\left( \cdot \right)\) denotes the function of removing the worst objective point, and \(reselect(rest,pool)\) denotes reselecting the target point function in the candidate pool.
2.3.2 Partial 2opt operator
For online task allocation algorithms, realtime performance is an important indicator that needs to consider the constraints of computing time and computer power. For the initial stage of population evolution, the use of partial 2opt operators is of great benefit to evolution, because it can replace all local cross paths and generate paths with no or less loops, which can greatly accelerate the convergence of the algorithm. However, as a search operator with time complexity of O(n^{3}) in the overall algorithm, it will consume more time. In the later stage of algorithm iteration, almost all loops are removed by local or global optimization operators, so not performing 2opt optimization with a certain probability will not reduce the algorithm's optimization ability. So, drawing inspiration from the sigmoid function, the probability set by the following equation determines whether to perform 2opt optimization.
where times represents the overall number of iterations, timesi_num represents the remainder iterations. The probability of 2opt execution has decreased from around 64% to around 26%, saving a lot of computation time.
2.3.3 Adaptive optimization proportion strategy
In general discrete cuckoo algorithms, the proportion of executing short step, medium step, and long step jumps is generally fixed, set to 20%, 30%, and 50%, respectively. This not only maintains local evolution, but also maintains a good ability to jump out of local optima. However, in the later stage of evolution, the population benefits little from long step jumps, and only a small range of local optimizations are needed to approach the optimal solution. Therefore, this paper proposes an adaptive optimization step probability adjustment strategy. According to the abovementioned analysis, the probability of short steps should be adjusted from 20% to around 50%, and the probability of long steps should be adjusted from 50% to around 20%. Using the sigmoid function, the probability of short step jumps is expressed as,
and the probability of long step jumps is expressed as,
where times represents the total number of iterations, and timesi_num represents the remaining iterations, so the probability of medium step jumps is expressed as,
2.3.4 Learning strategies for discovering bird nests
The discovery of bird nests is similar to the dropout strategy in machine learning, which preserves population diversity by randomly discarding some feasible solutions. The probability of bird nests being discovered in the improved algorithm is set to a constant value of 20%. After the birdâ€™s nest is discovered, the generated feasible solution is discarded and the strategy of learning from the optimal solution of this generation is activated. After three medium steps, an optimal individual is selected to replace the position of the generated feasible solution.

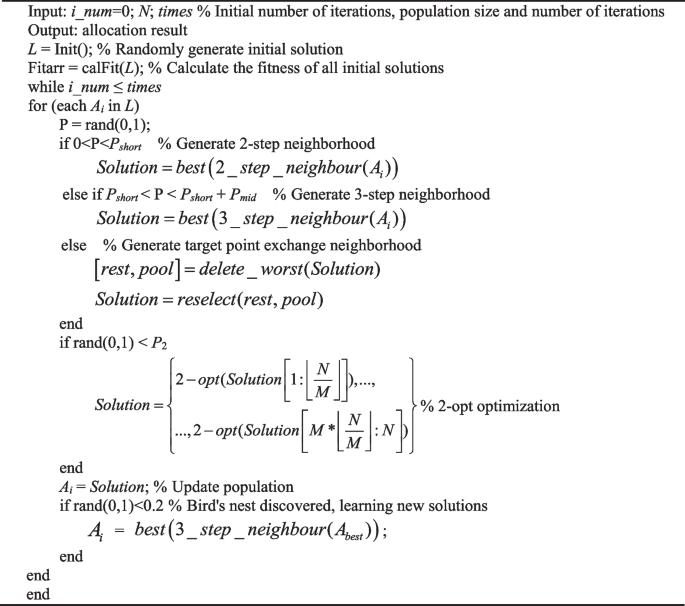

The improved cuckoo algorithm for online task allocation is expressed as follows,
The time complexity of the improved adaptive cuckoo algorithm proposed in this section is O(timesâ€‰Ã—â€‰N). Compared with the offline allocation algorithm in the previous section, it has greater complexity reduction and faster running time.
3 Results and discussion
3.1 Improved immune multiagent algorithm for offline task allocation
The simulation parameters are set as follows: The grid parameter is 6, the size of the agent group is 36, the memory population size is 36, the number of iterations is 5000, and the clone multiplication factor is 10. Assuming that the task is distributed in a threedimensional space of 50Â kmâ€‰Ã—â€‰50Â kmâ€‰Ã—â€‰400Â m, with 4 UAVs and 30 target points, the truncation vector is [7, 14, 21]. We set a cylindrical meteorological threat zone with a radius of 3Â km and a height of 400Â m in the scenario, and the center of the circle is located at the horizontal coordinates [33Â km, 20Â km]. FigureÂ 1 shows an example of the flight routes of the UAVs and the location of the threat zone. The circles on the routes are the start points of the UAVs, and the triangles are the target points.
3.1.1 Offline task allocation without threat or energy constraint
Since there is no threat zone, the penalty path weighting coefficient Î³â€‰=â€‰0. Î± should be slightly greater than Î², and Î±â€‰+â€‰Î²â€‰+â€‰Î³â€‰=â€‰1, so we set Î±â€‰=â€‰0.7 and Î²â€‰=â€‰0.3, experimentally. We compare our proposed algorithm with the improved clonal selection algorithm [21]. TableÂ 1 shows the numerical results.
The known optimal solution of this problem is 74.6146 by using the proof by exhaustion in mathematics to traverse all the existing feasible solutions. Next, we shall analyze the optimization performance of the proposed immune multiagent algorithm.
From TableÂ 2, we can see that the iterations all reach the global optimal solution, and there is no deviation between the optimal solution and the average solution, which is suitable for offline task allocation.
3.1.2 Offline task allocation with energy constraint
When the UAV has energy constraints, the task allocation problem can be changed to the following statement: when the base calculates the time when the UAV must return due to insufficient energy, the completed task set is recorded as T_{c}, and the returning UAV set is recorded as U_{return}, then the problem becomes to allocate the tasks in the remaining task set \(T  T_{c}\) to the UAVs in the remaining set \(U  U_{return}\). Since there is also no threat zone, the penalty path weighting coefficient Î³â€‰=â€‰0. Î± should be slightly greater than Î², and Î±â€‰+â€‰Î²â€‰+â€‰Î³â€‰=â€‰1, so we set Î±â€‰=â€‰0.7 and Î²â€‰=â€‰0.3, experimentally. We compare our proposed algorithm with the improved clonal selection algorithm, and TableÂ 3 shows the numerical results.
By using the proof by exhaustion in mathematics to traverse all the existing feasible solutions, we can know that the optimal solution of the problem is 67.7000. Next, we analyze the optimization performance of the proposed immune multiagent algorithm. The result is given in TableÂ 4.
In the proposed algorithm, on average, eight out of 30 iterations have reached the global optimal solution. For offline planning algorithms, parallel data centers on the ground can definitely be used for operations to achieve numerical optimal solutions. For a more complex multiobjective optimization problem, it is already excellent, and the optimal solution has no deviation degree. The average solution deviation degree is small, and the algorithm performance improvement is significant.
3.1.3 Offline task allocation with threat and energy constraints
In the case of meteorological threat, the task allocation problem can be changed to the following statement: keep away from meteorological threat as far as possible while ensuring the shortest distance and load balance. Assume that a cylindrical meteorological threat zone with a radius of 3Â km and a height of 400Â m appears, and the center of the circle is located at the horizontal coordinates [33Â km, 20Â km]. Due to the dominant factor in the threat zone, the penalty path weighting coefficient \(\gamma = \frac{1}{3}\). Î± should be slightly greater than Î², so we set \(\alpha = \frac{7}{15}\) and \(\beta = \frac{1}{5}\), experimentally. We compare our proposed algorithm with the improved clonal selection algorithm, and TableÂ 5 shows the numerical results.
Next, we will analyze the optimization performance of immune multiagent algorithms. In the simulations, three out of 30 iterations have reached the global optimal solution. The details are given in TableÂ 6.
For offline planning algorithms, parallel data centers on the ground can definitely be used for operations to achieve numerical optimal solutions. For a more complex multiobjective optimization problem, it is already excellent, and the optimal solution is unbiased, with a small deviation from the average solution and a significant improvement in algorithm performance.
3.2 Improved cuckoo algorithm for online task allocation
3.2.1 Online task allocation without threat or energy constraint
Since there is no threat zone, the penalty path weighting coefficient Î³â€‰=â€‰0. Î± should be slightly greater than Î², and Î±â€‰+â€‰Î²â€‰+â€‰Î³â€‰=â€‰1, so we set Î±â€‰=â€‰0.7 and Î²â€‰=â€‰0.3, experimentally. We compare the performances of the improved clonal selection algorithm [21], the offline task allocation algorithm proposed in Sect.Â 2.2, and the online task allocation algorithm proposed in Sect.Â 2.3. The simulation result is given in TableÂ 7.
From TableÂ 7, although our proposed algorithm has a slightly longer total distance than the improved clonal selection algorithm, it has a much better balance in task allocation, i.e., the difference between the maximum distance and the minimum distance is much smaller. FigureÂ 2 shows the fitness function curves of the three algorithms. It can be seen that the online task allocation algorithm has the fastest convergence speed, so it is suitable for realtime scenarios.
The proposed online task allocation algorithm (the improved cuckoo algorithm) has a smaller maximum distance than the algorithm in [21]. Then we test the overall performance of the improved cuckoo algorithm, and the simulation result is given in TableÂ 8.
In the simulations, 6 out of 30 iterations have reached the global optimal solution. If the number of target points changes, the online task allocation algorithm can give out a good solution within limited time.
3.2.2 Online task allocation with energy constraint
In the case of energy constraints on UAVs, the online task allocation problem can be expressed as follows: the UAV's own system realizes that there is a risk of energy shortage when performing several tasks and must return. The completed task set is expressed as Tc, and the returning UAV is expressed as U_{return}. Then, the problem becomes to assign tasks in TTc to the UAVs in UU_{return}. Since there is also no threat zone, the penalty path weighting coefficient Î³â€‰=â€‰0. Î± should be slightly greater than Î², and Î±â€‰+â€‰Î²â€‰+â€‰Î³â€‰=â€‰1, so we set Î±â€‰=â€‰0.7 and Î²â€‰=â€‰0.3, experimentally. Assume that UAV 2 must return after completing Task 5. The simulation result is given in TableÂ 9.
The improved cuckoo algorithm shows better fairness than the algorithm in [21], however, a little worse than the offline algorithm in Sect.Â 2.2, but the convergence speed of the online algorithm is much faster than that of the offline one, as shown in Fig.Â 3.
The overall performance with energy constraint is given in TableÂ 10.
The deviation degree of the optimal solution for 30 iterations is 7.7%. Although the performance declines a little, the calculation speed is fast; and thus, the algorithm is suitable for online task allocation where scenarios that require a temporary return flight often occurs.
3.2.3 Online task allocation with threat and energy constraint
When there is a meteorological threat, the task allocation problem can be expressed as follows: while ensuring the shortest distance and load balance, try to stay as far away from the meteorological threat as possible. The meteorological threat zone is the same with that in Sect.Â 3.1.3. Due to the dominant factor in the threat zone, the penalty path weighting coefficient \(\gamma = \frac{1}{3}\). Î± should be slightly greater than Î², and Î±â€‰+â€‰Î²â€‰+â€‰Î³â€‰=â€‰1, so we set \(\alpha = \frac{7}{15}\) and \(\beta = \frac{1}{5}\), experimentally. The simulation result is given in TableÂ 11.

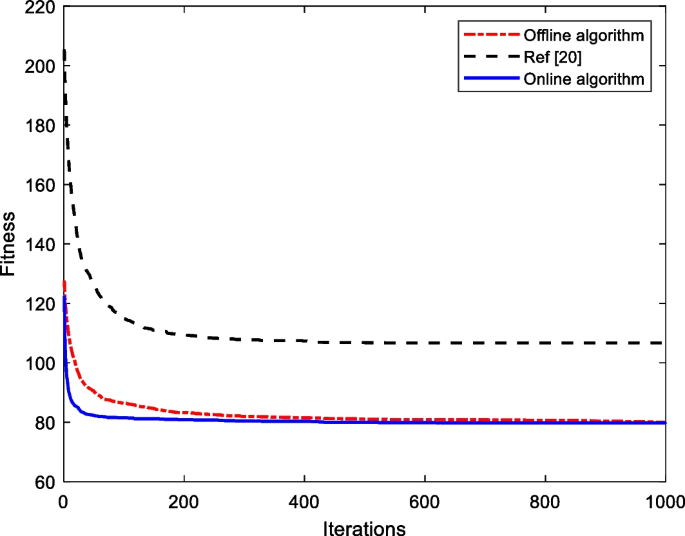

The convergence speeds of the three algorithms are given in Fig.Â 4. It can be seen that the proposed online algorithm has better realtime performance than the offline algorithm.
Although the optimal fitness is 67.9005, which is about 0.3% lower than the optimal solution, the total distance index and maximum distance index are similar to those of the immune multiagent algorithm, proving that the improved algorithm performs equally well in the problem of poor performance of clone selection algorithms. The overall performance with energy constraint and threat zone is given in TableÂ 12.
The average solution without deviation degree for 30 iterations is 4.9%, which is only a 2.6% decrease in performance compared with that of the improved immune multiagent algorithm. However, the speed improvement is significant, and it is suitable for online task allocation with threat and energy constraints. This algorithm can be used to obtain a highquality solution in a limited time for scenarios where UAVs need to return temporarily.
According to the simulation results above, both the proposed offline task allocation algorithm and the proposed online task allocation algorithm have their advantages and disadvantages. The proposed offline task allocation algorithm, i.e., the improved immune multiagent algorithm, can achieve better balance among all the UAVs, and both the total distance and the maximum distance are smaller, but the convergence speed of the algorithm is slower, so it is suitable for task allocation in the offline stage. On the other hand, the proposed online task allocation algorithm, i.e., the improved cuckoo algorithm, has a faster convergence speed, but the total distance and the maximum distance are larger, so it is suitable for task allocation in the online stage. In a complete flight task, from before taking off to completing the last mission, both the two algorithms are applied.
4 Conclusions
For scenarios where multiple UAVs collect sensor data from largescale wireless sensor nodes after earthquakes, this paper proposes two task allocation algorithms for different stages.
In response to the high accuracy requirements of offline task allocation algorithms, this paper first establishes a general mathematical model for data collection task allocation problems, and then proposes an improved immune multiagent algorithm as a solution for offline task allocation problems, striving to improve the accuracy of the algorithm and plan the global optimal task allocation scheme. The accuracy and effectiveness of the algorithm have been demonstrated through simulation analysis.
In response to the issue of higher realtime requirements for online task allocation algorithms, this paper proposes an improved adaptive discrete cuckoo algorithm as the allocation algorithm for online tasks. By introducing adaptive step size transformation and appropriate local optimization operators, the convergence speed of the algorithm is accelerated, making it suitable for realtime scenarios of online reassignment. Through runtime analysis and algorithm optimization characteristics analysis, it has been proven that it achieves fast convergence performance with minimal loss of accuracy.
