Performance evaluation of distributed multiagent IoT monitoring based on intelligent reflecting surface
EURASIP Journal on Advances in Signal Processing volume 2024, Article number: 36 (2024)
Abstract
The advent of intelligent reflecting surface (IRS) technology has revolutionized the landscape of wireless communication systems, offering promising opportunities for enhancing the performance of Internet of Things (IoT) applications. This paper presents a comprehensive performance evaluation of multiagent IoT monitoring systems leveraging IRS technology. We focus on three criteria for selecting IRS units and assess the impact on system performance. Specifically, we analyze the system performance by deriving an outage probability expression for each criterion. Our study begins by introducing the concept of IRS and its role in IoT monitoring. We then present three IRS unit selection criteria: optimal selection (OS), partial selection (PS), and random selection (RS). For each criterion, we mathematically model and analyze the system outage probability, shedding light on the reliability and connectivity of IoT devices. The outage probability expressions derived in this work offer valuable insights into the tradeoffs associated with IRS unit selection criteria in the context of IoT monitoring. Additionally, our findings contribute to the optimization of multiagent IoT monitoring systems, enabling improved communication performance and enhanced reliability.
1 Introduction
The development of information technology has been marked by a remarkable evolution, with wireless communication and edge computing playing pivotal roles in this transformative journey [1,2,3]. Wireless communication technologies have fundamentally reshaped the way we connect and communicate, enabling ubiquitous access to data and services [4,5,6]. From the early days of mobile phones to the advent of highspeed 5 G networks, wireless communication has grown to support a vast array of devices and applications, facilitating realtime data transfer and enabling the Internet of Things (IoT) [7,8,9]. Concurrently, the rise of edge computing has revolutionized data processing, bringing computational power closer to the data source [10,11,12,13]. This shift has not only reduced latency but also unlocked new possibilities for realtime decisionmaking and analytics at the edge, enabling applications like autonomous vehicles, smart cities, and industrial automation. The synergy between wireless communication and edge computing has laid the foundation for a future where information technology is seamlessly integrated into our daily lives, driving innovation, efficiency, and connectivity across various sectors. As these technologies continue to advance, the landscape of information technology will undoubtedly see further transformation, delivering enhanced experiences and unprecedented capabilities to users worldwide.
The development of IoT networks has seen a remarkable evolution, ushering in a new era of connectivity and datadriven insights [14,15,16,17]. Monitoring IoT networks has become a critical aspect of this development, as the sheer scale and complexity of IoT deployments demand continuous oversight [18,19,20,21]. To effectively monitor these networks, advanced technologies such as edge computing and machine learning (ML) are employed to process and analyze the vast amount of data generated by IoT devices in real time [3, 6, 22, 23]. This proactive monitoring approach enables predictive maintenance, early detection of anomalies, and efficient resource management, ensuring the optimal functioning of IoT devices and, consequently, the success of various IoT applications across industries ranging from healthcare and smart cities to agriculture and industrial automation [24,25,26,27]. As IoT networks continue to expand and diversify, monitoring solutions will play an indispensable role in maintaining their reliability, security, and performance.
Intelligent reflecting surface (IRS) is a transformative technology in wireless communication systems, significantly enhancing data rate, minimizing outage probability, and improving symbol error rate (SER). By deploying passive reflecting elements, IRS optimizes signal propagation, enabling multipath signal control and beamforming. This results in substantial data rate enhancement as signals can be efficiently focused on the intended receivers, mitigating interference and boosting spectral efficiency. The outage probability is drastically reduced as IRS units actively respond to environmental conditions, such as path loss and fading, to ensure consistent signal coverage. Additionally, IRS enhances the SER by mitigating the effects of channel impairments, facilitating reliable and lowerror communication. These combined advantages position IRS as a promising solution for the nextgeneration wireless networks, offering the potential to revolutionize data transmission and reliability across various applications and scenarios.
Motivated by the above literature review, this study provides a comprehensive assessment of multiagent IoT monitoring systems empowered by IRS technology. We delve into the impact of three criteria for selecting IRS units on the system performance. In particular, our analysis centers on the derivation of outage probability expressions for each of these selection criteria. The exploration commences with an introduction to IRS and its pivotal role in IoT monitoring. Subsequently, we present three IRS unit selection criteria: optimal selection (OS), partial selection (PS), and random selection (RS). Each of these criteria is subjected to rigorous mathematical modeling and analysis to gauge their influence on the system reliability and IoT device connectivity. The outage probability expressions derived from our investigation provide valuable insights into the nuanced tradeoffs inherent to different IRS unit selection criteria within the context of IoT monitoring. Moreover, our findings make meaningful contributions to the enhancement of multiagent IoT monitoring systems, ultimately leading to improved communication performance and heightened reliability, thus advancing the realization of a seamlessly efficient IoT ecosystem.
2 System model

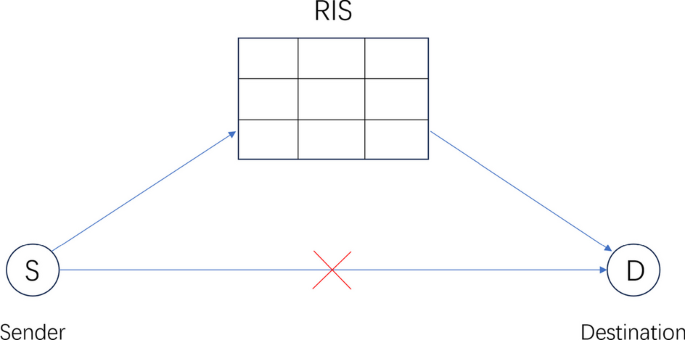

As shown in Fig. 1, we consider a communication based IoT monitoring system with one sender S, one destination D and one IRS composed of N units. Precisely, the absence of the direct wireless link between the source S and destination D necessitates their communication to be established indirectly through the intermediary IRS. In this network, the signaltonoise ratios (SNRs) at S and D are given by
where P is the transmit power at the S, and \(\sigma ^2\) is the variance of the additive white Gaussian noise (AWGN). Moreover, let \(g_{1n}^2\) and \(g_{2n}^2\) denote the channel gains from the S to the IRS and the IRS to the D, respectively, where n denotes the nth \((n \in \{1,2,\dots ,N\})\) unit of the IRS, and \(g _{1n}\sim \mathcal{C}\mathcal{N} \left( 0, \beta _1 \right)\), \(g _{2n}\sim \mathcal{C}\mathcal{N} \left( 0, \beta _2 \right)\), respectively. Without loss of generality, we assume that all wireless links experience freespace path loss. Hence, \(\beta _1\) and \(\beta _2\) are given by,
where \(d_1\in \left( 0,1 \right)\) is a relative distance, and a larger \(d_1\) results in an enhanced firsthop relaying with a weaker secondhop relaying. Then, we can obtain the transmission data rate with the assistance of the IRS as
3 Unit selection and performance analysis
Within this section, our initial focus lies in presenting a comprehensive analysis of the system outage probability, followed by the meticulous derivation of closedform expressions that encapsulate the outage probability. These expressions are developed to specifically account for a range of diverse IRS unit selection criteria, ensuring a thorough understanding of the underlying dynamics and performance implications.
Firstly, the outage occurs when
where \(R_{\text {th}}\) is the transmission rate threshold, which means the transmission rate with the assistance of the IRS \(R_n\) is lower than \(R_{\text {th}}\). Hence, the outage probability can be denoted as
where \(\gamma _{\text {th}}\) denotes the SNR threshold. We can further write (7) as
In order to better utilize the IRS, we propose three IRS unit selection criteria, namely the optimal selection criterion, partial selection criterion, and random selection criterion. Next, we analyze the communication outage probabilities \(P_{\text {out},n}\) under the three criteria.
3.1 Optimal selection (OS)
At the first, the optimal selection criterion means that
Thus, we assume
and for \(X_1\), its cumulative distribution function (CDF) is
where \(K_1(\cdot )\) is the modified Bessel function of the second type.
Similarly, we can obtain the CDF of \(X_i\) as,
For
its cumulative distribution function is
we can further write (14b) as
Because of
the outage probability of OS criterion can be given by
with
3.2 Partial selection (PS)
To simplify the analysis, we choose to derive the outage probability of the PS criterion based on the CSI of the secondhop of the IRS. At the first, the PS criterion means that
In the same way before, we let
thus, we have
From the above results, we can write the outage probability as,
Due to
we have
Thus, we can rewrite (26c) as
with
3.3 Random selection (RS)
According to \(g_{1n}^{2}\sim \text {Exp}(\beta _1)\) and \(g_{2n}^{2}\sim \text {Exp}(\beta _2)\), we can obtain the probability density functions \(f_{g_{1n}^{2}}(x)\) and \(f_{g_{2n}^{2}}(x)\) as,
Then, the associated cumulative distribution functions are
Thus, we can write the outage probability as
with
Then, we can further write (34c) as
As
Equation (36) can be rewritten as
Finally, the outage probability of the RS criterion can be written as
with
Overall, the above three selection criteria for IRS units, namely optimal selection, partial selection, and random selection, present a tradeoff between the implementation complexity and outage performance. Specifically, optimal selection, while offering the best outage performance, demands a higher implementation complexity due to its requirement for extensive channel state information and computational optimization. Partial selection strikes a balance between complexity and performance by making informed choices based on partial channel knowledge. In contrast, random selection, the simplest to implement, typically results in higher outage probabilities, as it selects IRS units without considering specific performance metrics or channel conditions. The choice of selection criterion should be made by considering the specific application requirements and available resources.
4 Simulation results and discussions
In this section, we present a series of simulations aimed to verify the proposed studies. If not specified, the simulation environment is set as follows. The communication rate threshold is set to \(R_{\text {th}}\) = 0.1 bps/Hz, the parameter for the relative distance is \(d_1\) = 0.3, and the total number of IRS units is N = 4. Moreover, the variance of AWGN is set to \(\sigma ^2\) = 1, the transmit SNR is set to \(\gamma _S\) = 0 dB, and the transmit power P is 1 W.
Figure 2 and Table 1 illustrate the effect of the total number of IRS units N on the analytical and simulated outage probabilities for the three unit selection criteria, where N takes values from the set \(\{1, 4, 9, 16, 25, 36\}\), and \(R_{\text {th}}\) is set to 2 bps/Hz. In Fig. 2 and Table 1, we can observe that the outage probability of the OS criterion significantly decreases with an increase of N. This reduction is due to a larger number of IRS units, which increases the capacity of the IRS. Additionally, the OS criterion consistently outperforms the other two criteria. Specifically, at N = 25, the simulated outage probability of the OS criterion is approximately \(7.28 \times 10^{6}\), the simulated outage probability of the PS criterion is about \(1.73 \times 10^{1}\), and the simulated outage probability of the RS criterion is approximately \(6.23 \times 10^{1}\). Moreover, the analytical and simulation solutions perfectly overlap, providing evidence for the validity of the derived expressions on the system outage probability.

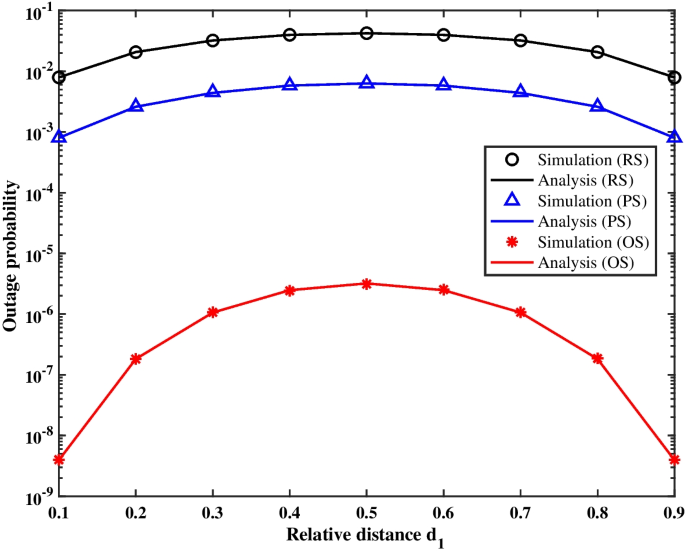

Figure 3 shows the impact of the relative distance \(d_1\) on the analytical and simulated outage probabilities of the three unit selection criteria, where \(d_1\) varies from 0.1 to 0.9. As shown in Fig. 3, we can see that the outage probability shows an increasing and then decreasing trend with \(d_1\), which indicates that the system has a high outage probability when the IRS is in the middle of S and D. Moreover, the analytical results overlap with the simulation results, verifying the closedform solutions. In further, the outage probability under the OS criterion is consistently lower than that under the RS and PS criteria. Specifically, at \(d_1\) = 0.9, the simulated outage probability of the OS criterion is approximately \(4.00 \times 10^{9}\), the simulated outage probability of the PS criterion is about \(8.00 \times 10^{4}\), and the simulated outage probability of the RS criterion is approximately \(7.87 \times 10^{3}\). This is because that the OS criterion effectively utilizes the IRS to assist the communication.
Figure 4 shows the simulated and analytical results versus the data rate threshold \(R_{\text {th}}\), where the threshold \(R_{\text {th}}\) increases from 0.1 to 1 bps/Hz. From Fig. 4, it can be seen that the outage probabilities in the communication links increase as \(R_{\text {th}}\) increases, which indicates that a smaller \(R_{\text {th}}\) leads to an improved outage performance. Moreover, the analyzed results overlap with the images of the simulation results, verifying the closedform solution. In further, the outage probability of the OS criterion is higher than that of the PS and RS criteria. Specifically, at \(R_{\text {th}}\) = 1 bps/Hz, the simulated outage probability of the OS criterion is approximately \(5.93 \times 10^{3}\), the simulated outage probability of the PS criterion is about \(8.40 \times 10^{2}\), and the simulated outage probability of the RS criterion is approximately \(2.77 \times 10^{1}\).

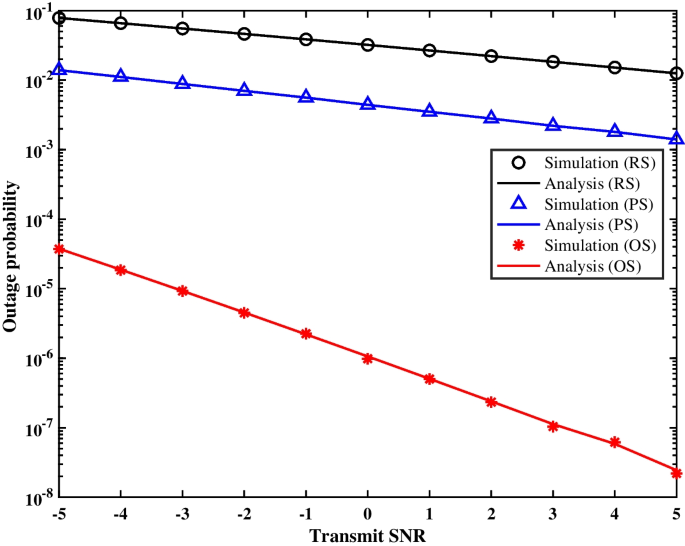

Figure 5 depicts the comparison of the simulated and analytical system outage probabilities versus the transmit SNR \(\gamma _S\), which varies from \(5\) to 5 dB. From Fig. 5, the congruence between the analytical and simulated results validates the accuracy of the derived expression for outage probability. Moreover, a higher \(\gamma _S\) yields an improved overall outage performance due to increased \(\gamma _S\) at the S, resulting in higher receive SNR at the D. Notably, the OS criterion consistently outperforms the other criteria, which is because that it can effectively leverage the increasing \(\gamma _S\) through IRS to significantly enhance outage performance. Specifically, at SNR = 5 dB, the simulated outage probability of the OS criterion is approximately \(2.20 \times 10^{8}\), the simulated outage probability of the PS criterion is about \(1.4 0\times 10^{3}\), and the simulated outage probability of the RS criterion is approximately \(1.25 \times 10^{2}\).
5 Conclusion
This paper investigated the usage of IRS in the efficiency of IoT monitoring systems within wireless communication environments. Three IRS unit selection criteria, namely optimal selection, partial selection, and random selection, were considered for enhancing the system performance. The derived outage probability expressions provided valuable insights into the tradeoffs inherent in each selection criterion, allowing for informed decisionmaking in IoT monitoring deployments. By optimizing IRSbased IoT systems, we were able to substantially enhance communication performance and bolster reliability, thereby contributing to the ongoing development of a seamless and efficient IoT ecosystem. This study underscored the potential of IRS technology to reshape the landscape of IoT applications and laid the groundwork for further research and practical implementations in this evolving field.
