Spreading code optimization for lowearth orbit satellites via mixedinteger convex programming
EURASIP Journal on Advances in Signal Processing volumeÂ 2024, ArticleÂ number:Â 67 (2024)
Abstract
Optimizing the correlation properties of spreading codes is critical for minimizing interchannel interference in satellite navigation systems. By improving the codesâ€™ correlation sidelobes, we can enhance navigation performance while minimizing the required spreading code lengths. In the case of lowearth orbit (LEO) satellite navigation, shorter code lengths (on the order of a hundred) are preferred due to their ability to achieve fast signal acquisition. Additionally, the relatively high signaltonoise ratio in LEO systems reduces the need for longer spreading codes to mitigate interchannel interference. In this work, we propose a twostage block coordinate descent (BCD) method which optimizes the codesâ€™ correlation properties while enforcing the autocorrelation sidelobe zero property. In each iteration of the BCD method, we solve a mixedinteger convex program over a block of 25 binary variables. Our method is applicable to spreading code families of arbitrary sizes and lengths, and we demonstrate its effectiveness for a problem with 66 length127 codes and a problem with 130 length257 codes.
1 Introduction
In this work, we consider the design of navigation spreading codes for future lowEarth orbit (LEO) satellite constellations. LEO constellations are typically comprised of hundreds, or even thousands, of lowcost satellites [1]. Commercial examples include Iridium [2], OneWeb [3], and the constellations proposed by Samsung [4], SpaceX [5], and Xona [6]. Several of those constellations are primarily designed to deliver global internet coverage, but can also be leveraged for navigation [7]. In addition, the European space agency (ESA) recently announced the LEO PNT program, which will test capabilities for navigation and timing using LEO satellites [8]. See the review [9] for a survey of recent developments in LEO PNT.
All codedivision multiple access (CDMA) systems, including satellite navigation systems, rely on spreading codes [10]. In CDMA, each satellite modulates its signal with a unique and known spreading code, which is typically a binary sequence. The receiver then correlates the received signal with replicas of each satelliteâ€™s spreading code to identify the source of the transmitted signal. Therefore, it is necessary for the spreading codes to have low pairwise crosscorrelation to minimize interchannel interference. Additionally, it is important for the codes to have low autocorrelation sidelobes to minimize the effects of multipath and selfinterference, and to ensure that the time of signal reception can be correctly determined.
LEO systems suffer less path loss than navigation systems in mediumEarth orbit (MEO) such as GPS, improving signal strength 1000fold, or by 30dbB [1]. Therefore, short code lengths (on the order of a hundred) may be preferable since short code lengths correspond to fast signal acquisition, and the relatively high signaltonoise ratio (SNR) means that long spreading codes are not needed for low interchannel interference [11].
In this work, we propose a twostage block coordinate descent (BCD) method for finding good spreading codes satisfying the autocorrelation sidelobe zero (ACZ) property [12, 13]. The ACZ property requires that the shiftone autocorrelation of each code is minimal. Imposing the ACZ constraint is useful for ensuring that the tracking performance is consistently good across all the satellites in the constellation. [12, 13]. The first stage of our BCD method finds a feasible code family that satisfies the ACZ property, and the second stage minimizes the sum of squared auto and crosscorrelation sidelobes, without breaking the ACZ property.
Our method is based on the recently proposed mixedinteger convex program (MICP) approach to spreading code optimization [14,15,16], which has shown promising results for optimizing spreading codes for MEO applications. In that approach, the spreading code optimization problem is formulated as a mixedinteger convex program (MICP). In each iteration of BCD, we solve the optimization problem exactly over a subset of the binary variables, with the others held fixed. The partial minimization problem is also an MICP and may be solved using an MICP solver such as Gurobi [17]. In this work, we handle the ACZ constraint by using the fact that it may be enforced using linear inequality constraints [16].
Unlike the prior works [15, 16], we focus on the LEO setting, where the number of codes is relatively large. In this regime, the choice of the subset of binary variables to optimize over in each iteration of BCD is an important consideration. We propose a variable subset selection strategy that can achieve a small periteration runtime cost by tuning the number of codes from which the binary variables are selected in a given iteration. For a fixed variable subset size, choosing the variables from a small number of codes can make the subproblems more difficult to solve and can lead large periteration runtime cost. On the other hand, choosing the variables from a large number of codes can make the subproblems easier to solve, but can still lead to a large periteration runtime cost due to the computational overhead from setting up the MICP subproblems.
The rest of the paper is organized as follows. We review related work in Sect. 1.1. In Sect. 2, we describe the spreading code optimization problem and the MICP formulation of the problem. In Sect. 3, we describe the proposed BCD. Section 4 presents numerical results, and Sect. 5 concludes.
1.1 Related work
The problem of designing spreading codes with good correlation properties has a long history. Current satellite navigation systems, such as GPS, use pseudorandom noise (PRN) codes such as Gold codes [18], which can be generated using linearfeedback shift registers, and the Weil codes [19, 20], which are based on Legendre sequences. While those codes satisfy provable bounds on their auto and crosscorrelation, they are only available for specific lengths and number of codes, and cannot be easily modified. For example, truncating or extending those codes by even a single bit can compromise their correlation properties [12].
To address those limitations, there has been growing interest in designing the spreading codes by directly optimizing the auto and crosscorrelation. Populationbased methods, such as genetic algorithms [21, 22], natural evolution strategies [23], and the crossentropy method [24], have been applied, and the European Unionâ€™s Galileo constellation uses spreading codes designed by a genetic algorithm [12, 25]. However, those methods do not consider the structure in the objective, and often require extensive tuning in order to work well. In addition, they have focused on codes for mediumEarth orbit (MEO) constellations such as GPS [16, 23] and Galileo constellations [12, 25]. In those settings, the code length is orders of magnitude larger than the number of the codes; this is necessary for good system performance due to the relatively lower SNR in the MEO setting.
Coordinate descent and BCD methods have been proposed to optimize sets of binary sequences for multipleinput multipleoutput (MIMO) radar systems [15, 26,27,28,29]. Like the spreading codes for navigation systems, the binary sequences used in those applications are required to have low auto and crosscorrelation. However, the aforementioned works only optimize over either a single binary variable at a time, or a small number (e.g., four), using an exhaustive search. In contrast, by using branchandbound to perform the BCD updates [15, 16, 30], we can efficiently optimize over large blocks of binary variables, e.g., 25, during each BCD iteration. This approach is particularly effective for designing LEO satellite spreading codes due to the relatively small code lengths and large family sizes.
Finally, penalty methods [31] and semidefinite relaxations [32] have been proposed to design sets of complexvalued, continuousphase sequences with constant magnitude. However, we focus on binary sequences, since they are often preferred in practice due to ease of implementation. Moreover, the discretization of continuous sequences has been found to give poor performance [26, 27].
Other methods construct new sequences and sequence sets by combining preexisting binary sequences with desirable correlation properties, such as Gold codes or optimized sequence sets [33, 34].
2 Spreading code optimization
2.1 Preliminaries
A spreading code family is a set of m binary code sequences, each of length n. We refer to the code family as \(X=(x^0,\ldots ,x^{m1})\), where \(x^i\in \{\pm 1\}^n\) is the ith code in the family. The code family may be represented as a binary matrix \(X\in \{\pm 1\}^{n\times m}\), where \(x^i\) is the ith column of X.
Crosscorrelation. The crosscorrelation between two binary codes \(w,v \in \{\pm 1\}^n\) is a vector \((w \star v)\in {\mathbb {R}}^n\), where
That is, \((w \star v)_k\) is the inner product between w and a kcircularly shifted version of v. The crosscorrelation may also defined for negativevalued shifts, noting that
Autocorrelation. We refer to the crosscorrelation of a binary sequence \(w\in \{\pm 1\}^n\) with itself as the autocorrelation of w. Note that the shiftzero autocorrelation is given by \((w\star w)_0 = \Vert w\Vert _2^2 = n\), regardless of the value of w. By symmetry, \((w\star w)_k = (w\star w)_{k}\), for all \(k=0,\ldots ,n1\).
Autocorrelation sidelobe zero (ACZ). A binary sequence \(w\in \{\pm 1\}^n\) satisfies the ACZ property if its shiftone autocorrelation \((w\star w)_1\) is minimal. For evenvalued n, this corresponds to the requirement that \((w\star w)_1=0\). For oddvalued n, the autocorrelation cannot be zero, and so we instead require that \((w\star w)_1 = 1\). If the measured correlation at shifts zero and one are too similar, the receiver may erroneously lose the signal lock. The ACZ property ensures that the difference between the shiftzero peak and shiftone autocorrelation is large for all of the codes in the family. This can improve the consistency in ranging performance across the code family, especially when the code lengths are short. Indeed, it has been shown that maximizing the difference between the shiftzero peak and the shiftone autocorrelation minimizes the Cramerâ€“Rao lower bound for the ranging estimation problem [35, 36]. The ACZ property has also been applied in practice; the Galileo constellation uses evenlength spreading codes which were designed to satisfy the ACZ property. [12, 13]. In this work, we formulate the ACZ property as a set of linear inequality or equality constraints. Therefore, the ACZ property may be readily incorporated into the MICP formulation of the spreading code optimization problem, as we discuss in the following subsection.
2.2 Spreading code optimization problem
An ideal sequence set \(X=(x^0,\ldots ,x^{m1})\) has \((x^i\star x^j)_k\) close to zero for all pairs of sequences \(x^i\) and \(x^j\) and at all shifts \(k=0,\ldots ,n1\). In this work, we minimize the sum of squared auto and crosscorrelation magnitudes, subject to constraint that the autocorrelation sidelobe zero (ACZ) property is satisfied.
The spreading code optimization problem may be written as
Here, g is a parameter that takes value 0 if n is even, and 1 if n is odd. In some contexts, the sum of squares objective is referred to as the integrated sidelobe level (ISL) [26, 37]. For ease of notation, we do not exclude the zeroshift autocorrelation terms from the objective. Since those terms are constantvalued, they do not affect the solution of the optimization problem.
Note that the objective function (2a) is a nonconvex quartic function of the variables, since each term \(\left( x^i \star x^j\right) _k\) is a nonconvex quadratic function of the binary variables. Similarly, the ACZ constraint (2b) is a nonconvex constraint. The nonconvex objective and constraints, combined with the nonconvex binary constraints, make the problem (2a)â€“(2c) a challenging combinatorial optimization problem. In Sect. 2.3, we discuss how the problem may be reformulated as a MICP and how the resulting convex structure may be exploited [15, 16].
2.3 MICP formulation
The crosscorrelation function (1) involves a sum of products of binary variables. By representing each product using a new auxiliary variable, the crosscorrelation becomes a sum of auxiliary variables, and the objective function (2a) may be written as a convex quadratic function of the auxiliary variables.
Binary variable product. This approach is made possible by the following fact, which may be verified using a truth table [38]. Suppose that \(a,b\in \{\pm 1\}\) and \(c\in {\mathbb {R}}\). Then, \(c = ab\) if and only if
We refer to the above constraints as linking constraints, since they couple the binary variables a and b to the auxiliary variable c that represents their product.
Spreading code optimization as a MICP. Using the aforementioned representation of binary variable products, we may represent the spreading code optimization problem (2) as a MICP. Let \(\{z^{i,j}_{s,l}\}\) be a set of auxiliary variables such that \(z^{i,j}_{s,l}\) represents the product \(x^i_s x^j_l\), for each \(i,j=0,\ldots ,m1\) and \(s,l=0,\ldots ,n1\). Then, the crosscorrelation between codes \(x^i\) and \(x^j\) may be written as a sum of the auxiliary variables, given by
Here, each auxiliary variable \(z^{i,j}_{s,k}\) satisfies a set of linking constraints that couple it to the binary variables \(x^i_s\) and \(x^j_k\). The spreading code optimization problem (2a)â€“(2c) may therefore be written as
Here, the linear equality constraints (3b) enforces the ACZ property and the linking constraints (3d)â€“(3g) couple the binary variables to the auxiliary variables. Since the optimization problem (3) involves minimizing a convex quadratic function subject to binary, linear inequality, and linear equality constraints, it is a MICP [14]. More specifically, it is a mixedinteger quadratic program, since it becomes a quadratic program when the binary constraints (3c) are relaxed.
Number of auxiliary variables. A total of \({nm\atopwithdelims ()2}\) additional auxiliary variables, along with \(4{nm\atopwithdelims ()2}\) linking constraints, are required to transform (2) into the MICP (3). Therefore, the problem size, in terms of the number of additional auxiliary variables and constraints, grows quadratically with nm. This may be prohibitive for relevant values of nm, which may be in the tens of thousands. In Sect.Â 2.4, we show how the problem may be simplified when we are only interested in optimizing over only a subset of B of the binary variables, with the others held fixed. In that case, the number of auxiliary variables and constraints grows on the order of \(O(B^2)\), rather than \(O(n^2m^2)\).
2.4 Partial minimization
In this subsection, we describe the partial minimization of (3) over a subset of the binary variables. Note that since (3) is an MICP, any partial minimization problem derived from (3) is also an MICP. The partial minimization problem is useful for the block coordinate descent algorithm discussed in Sect.Â 3.1.
Suppose we wish to optimize only over a variable index set
Each index \((i,r) \in S\) corresponds to the binary variable \(x_r^i\), which is the rth element of the ith code sequence. The variables not indexed by S are held fixed. That is, we wish to solve the MICP (3) with the additional equality constraints
for some fixed values \({\tilde{x}}^i_r \in \{\pm 1\}\), for all \((i,r)\not \in S\).
Since it is only necessary to include auxiliary variables to represent products between binary variables that appear in S, the partial minimization MICP may be simplified in this case.
In the partial minimization problem, the crosscorrelation between any two codes \(x^i\) and \(x^j\) may be expressed as an affine function of the auxiliary and binary variables, with coefficients that depend on the values of the fixed binary variables. That is, we may write the crosscorrelation between two codes \(x^i\) and \(x^j\) as
where
There are three cases: both \(x^i_s\) and \(x^j_{(s+k)_{\text {mod}n}}\) are variables in the partial minimization, only one of them is a variable, or neither of them is a variable.
Since the crosscorrelation may be represented using an affine function of the auxiliary and binary variables, the objective function (3a) remains convex quadratic. Here, only \({S \atopwithdelims ()2}\) auxiliary variables are required, since we only need to represent products between binary variables indexed by S.
Let \(C_S\) be the set of columns, or code sequences, that contain at least one binary variable indexed by S. That is,
The number of terms in the objective function (3a) may be reduced to the auto and crosscorrelation terms between codes in \(C_S\). That is, the partial minimization problem may be written as the MICP
where \(y^{i,j}_{s,k}\) are given by (5), and g is a constant that is either 0 if n is even, or 1 if n is odd.
3 Block coordinate descent
In this section, we describe a block coordinate descent (BCD) method for finding a good solution to the spreading code optimization problem (3). In our approach, we iteratively solve the partial minimization problem (7) over a block, or subset of the binary variables, with the others held fixed [15, 16, 27, 30]. The partial minimization problems are solved exactly using an MICP solver, such as Gurobi [17] or SCIP [39]. The BCD method is described in Sect. 3.1, and variable subset selection strategies are discussed in Sect. 3.2.
3.1 Method
BCD is a particularly compelling method for handling the MICP (3), since the MICP is difficult to solve directly, but its partial minimization (7) can be solved effectively in practice.
Basic BCD method. The basic BCD method proceeds starting from an initial code family \(X^0\in \{\pm 1\}^{n\times m}\). In the kth iteration, we compute the next code family \(X^{k+1}\) by performing the following steps:

1.
Select a variable subset \(S^k \subseteq \left\{ (i,r) \mid 0 \le i \le m1,\,0 \le r \le n1 \right\}\).

2.
Solve the partial minimization problem (7) over \(S^k\), with the other binary variables fixed to their previous values in \(X^{k}\).

3.
Set \(X^{k+1}\) to be the solution to the partial minimization problem.
BCD is a descent method, i.e., the objective value is nonincreasing, since the block update steps are solved to optimality. We discuss strategies for selecting the variable subset \(S^k\) in Sect. 3.2. The partial minimization problem (7) may be solved using an MICP solver, or exhaustive enumeration.
Twostage BCD method. If the code in a given iteration of BCD does not satisfy the ACZ constraint, then the partial minimization problem (7) may be infeasible. That is, it may not be possible to find an arrangement of the binary variables indexed by S that satisfies the ACZ constraint. Therefore, we consider a twostage BCD method, in which the purpose of the first stage is to find a feasible code family that satisfies the ACZ constraint. In the first stage, we perform BCD with a modification of the partial minimization problem (7). In the modified partial minimization problem, the ACZ constraint is removed, and the objective function is reduced to
That is, we only minimize the shiftone autocorrelation values.
The first stage is terminated when the ACZ constraint is satisfied. This occurs when \(J=0\) in the evenlength case, and when \(J=m\) in the oddlength case. We now discuss a possible termination criterion for the second stage of BCD.
Secondstage stopping criterion. When the variable subset size S is constrained to be one in every iteration, the BCD algorithm converges if changing the sign of any single binary variable does not improve the objective value. In general, if S takes a fixed value \(M \ge 1\) in every iteration, then the algorithm converges if changing any \(mn \atopwithdelims ()M\) binary variables does not improve the objective value. In practice, we may terminate the algorithm after the objective value has not improved for a fixed number of iterations, or after a maximum number of iterations has been reached.
Initialization. The performance of the BCD algorithm depends on the value of the initial code family. In practice, it may be desirable to run the algorithm multiple times, initialized with different code families, and select the best solution. The initial code families may be chosen to be random, or to have desirable properties. For example, if the initial code family already satisfies the ACZ property, then the first stage of the twostage BCD algorithm is unnecessary. Another option is to initialize with a set of codes with good correlation properties, such as the Gold codes [18], Weil codes [19, 20] or the output of another optimization method.
Solving MICPs. The MICP (3) and its partial minimization (7) are both NPhard combinatorial optimization problems. In general, those problems can only be solved by enumerating all possible combinations of binary variables, and the number of combinations grows exponentially with nm. However, the enumeration may be made more efficient by exploiting the convex structure of the MICP.
In practice, when the variable subsets S are not too large, the partial minimization problems (7) may be effectively solved using global optimization methods such as branchandbound [40, 41] and branchandcut [42, 43]. The basic idea is that in each iteration, a convex optimization problem derived from (7) is solved, with the binary constraints removed and possibly with additional variables and convex constraints added. The solution to the convex relaxations give lower bounds on the optimal value of the original problem, and those lower bounds may be used to reduce the search space. The commercial solver Gurobi [17] and the noncommercial solver SCIP [39] may be used to solve MICPs.
While the aforementioned global methods are often slow and have exponential worstcase runtime, they can work well when the lower bounds obtained by solving the convex relaxations are tight. For the partial minimization problems, the lower bounds are often tight enough to find the global optimum in a reasonable amount of time, when the number of auxiliary variables required is not too large.
3.2 Variable subset selection strategies
The performance of the BCD algorithm depends on the variable subset selection strategy. The goal is to choose the variable subset S such that its size can be made as large as possible, given a computational budget. The time required to solve the partial minimization problem is the sum of the time required to compile the MICP (7) into a form that can be handled by the solver, and the time required for the solver to find a global solution.
In this work, we select the indices in S randomly in each iteration, with a sampling scheme that limits the time required to solve the partial minimization problems in each BCD step.
Limiting the number of active columns. The number of active columns in the partial minimization problem is \(C_S\), where \(C_S\) is given by (6). Since the partial minimization objective function (7a) involves a sum of with \(O(nmC_S)\) terms, it may be desirable to limit the number of active columns \(C_S\), especially when n and m are large. As seen in Sect. 4.3, limiting the number of active columns can greatly reduce the time required to form and compile the partial minimization MICP in each BCD iteration.
Limiting the number of variables in each column. Reducing the number of variables in each active column can reduce the time needed for the MICP solver to find a solution to the partial minimization problem. As seen in Sect. 4.3, for a fixed subset size S, the time taken by the MICP solver is largest when all of the indices are concentrated in a single column, and increasing the number of active columns generally reduces the time taken by the solver. This may be explained by the fact that the partial minimization problem is more difficult to solve when there are more variables in each active column. Due to symmetry, an MICP solver based on branchandbound may need to explore a larger number of branches when there are more variables in each active column [15].
4 Results and discussion
In the following, we use the Gurobi optimizer to solve the partial minimization MICPs involved [17]. Our implementation has been made publicly available.^{Footnote 1} Section 4.1 describes the two problem settings considered in our experiments. Comparisons of variable subset selection strategies and variable subset sizes are given in Sects. 4.2 and 4.3.
4.1 Problem settings
We considered two problem settings in our experiments, each corresponding to a different code length n and family size m. In each case, we evaluate code families using the meanofsquares metric, which is the sum of squares objective (2a), normalized by the number of terms in the summation.
Set of 66 length127 codes. The first problem setting involves finding a family of \(m=66\) binary sequences each of length \(n=127\), and is modeled after the Iridium constellation, which is a LEO constellation that uses 66 active satellites [2].
Set of 130 length257 codes. The second problem setting is modeled for potential future LEO PNT constellations. Xona Space Systemsâ€™ upcoming LEO constellation is planned to include 260 satellites [6]. Since satellites on opposite sides of the earth (i.e., antipodal satellites) will never simultaneously be in direct lineofsight, antipodal satellites can broadcast with the same code without causing intersignal interference. Antipodal satellite code sharing would allow for fewer codes in the complete family, thereby reducing computation load when the receiver applies correlation processing to search for and acquire PNT signals. This channel sharing is analogous to the one conducted by GLONASS, the Russian satellite navigation constellation, which uses frequency division multiple accessÂ (FDMA) for its G1 signal and assigns antipodal satellites to the same frequency channel [10]. Therefore, it is sufficient to consider a families of \(m=130\) sequences. In our experiments, we considered lengths of \(n=257\).
Meanofsquares metric. In our experiments, we used the meanofsquares metric to evaluate code families. The meanofsquares metric is defined as the sum of squared correlation values given by (2a), normalized by the number of terms in the summation. That is, the meanofsquares of a code family \(x\in \{\pm 1\}^{n\times m}\) is given by
BCD subset sizes. For each problem setting, we considered BCD methods with three different variable subset sizes Ss: 25, 4, and 1. When \(S=25\), the partial minimization problem is solved using Gurobi; when \(S=4\) and \(S=1\), the partial minimization problem is solved using exhaustive enumeration.
Comparison with Gold and Weil codes. The BCD methods were compared against the Gold codes [18] in the case of \(n=127\), and the Weil codes [19, 20] in the case of \(n=257\). The Gold and Weil codes are wellknown families of binary sequences that are commonly used in satellite communications due to their good correlation properties [10].
For length \(n=127\), there are a total of 129 Gold codes. Among them, only 65 satisfy the ACZ constraint. Although there are fewer Gold codes satisfying the ACZ property than the number of codes in the BCDoptimized code family, the BCDoptimized codes may still be compared against the Gold codes in terms of the meanofsquares objective. For length \(n=257\), there are only 128 Weil codes, none of which satisfy the ACZ constraint. Although there are fewer Weil codes than the number of codes in the BCDoptimized code family, the two code families may also be compared in terms of the meanofsquares objective.
4.2 Variable subset selection
In this experiment, we compared the time required to solve the partial minimization problem for the two problem settings, where the variable subset sizes were fixed to be \(S=25\) and the number of active columns were varied. For each active column count \(C_S\), the number of variable indices in each active column was limited to be \(\lceil 25 / C_S\rceil\), i.e., the variable indices were roughly evenly divided among the active columns. For example, if we take \(C_S=4\), then the number of variable indices in each selected active column is limited to be at most 7. When \(C_S=1\), all of the indices in S were selected from a single column, and when \(C_S=m\), all of the indices were selected from different columns.

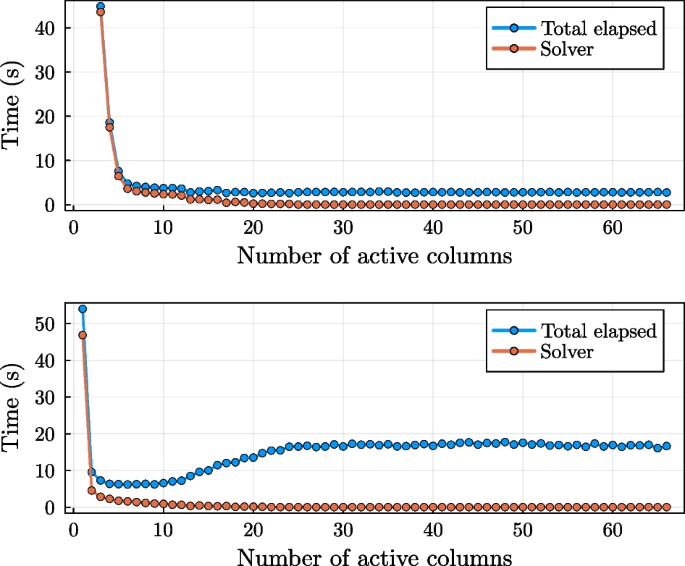

FigureÂ 1 compares the average time needed to solve the partial minimization problem for different numbers of active columns. The time taken by the Gurobi MICP solver is plotted, along with the total elapsed time, which also includes the time required to form and compile the partial minimization MICPs. Each plotted point is the average time taken over 30 runs, where each run involved a random code family and a random variable subset S. The random code families were generated uniformly at random, and the partial minimization problems were solved without the ACZ constraint.
For the \(n=127\), \(m=66\) problem instance, the amount of time required to solve the partial minimization problem decreases monotonically with the number of active columns. However, this is not the case in the \(n=257\), \(m=130\) case. In that case, the total time required initially decreases with the number of active columns, but then increases again. This is due to the overhead required to compile the MICP into a form that can be handled by the solver, since the time taken by the solver itself decreases monotonically with the number of active columns.
4.3 Comparison of BCD methods
Next, we evaluate the performance of the twostage BCD method with variable subset sizes \(S=25\), \(S=4\), and \(S=1\).
Variable subset selection strategy. We use the following selection scheme, which is based on the results in Sect. 4.2. In the \(n=127\) case, the variable indices were selected by choosing a single variable index from S different columns. In the \(n=257\) case, the variable indices were selected by choosing the indices at random, with the constraint that the number of the number of active columns and the number of variable indices in each active column were limited to five each.

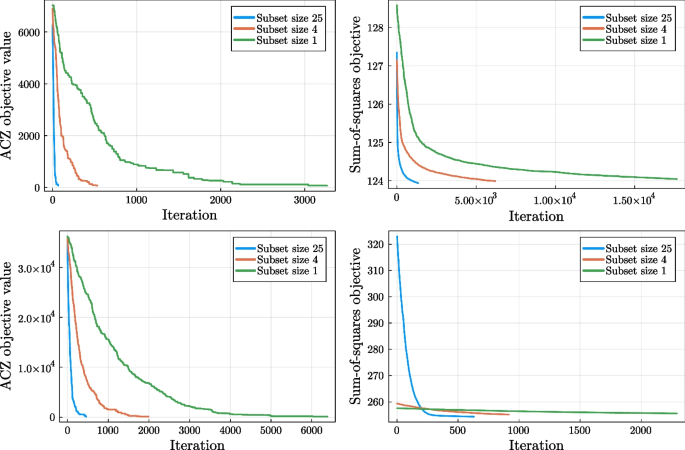

Results FigureÂ 2 shows the objective value versus iteration for the three subset sizes. The top left and bottom left plots show the ACZ objective value (8) versus iteration for the first stage of BCD, for the \(n=127\) and \(n=257\) problem settings, respectively. The first stage is terminated when the ACZ constraint is satisfied. The top right and bottom right plots show the meanofsquares metric (9) versus iteration for the second stage of BCD, for the \(n=127\) and the \(n=257\) problem settings, respectively. The plots show the objective values for the first hour of computation.
In each case, it can be seen that increasing the subset size S leads to a lower objective in fewer iterations, but also fewer total iterations, since the cost of each iteration is higher. Table 1 compares the meanofsquares of the BCDoptimized codes with the Gold and Weil codes, where the BCD methods were run for 12 h. The BCDoptimized code with \(S=25\) found a code with the lowest meanofsquares in both problem settings. Table 2 shows the number of BCD iterations taken in the 12h period, for each subset size S.

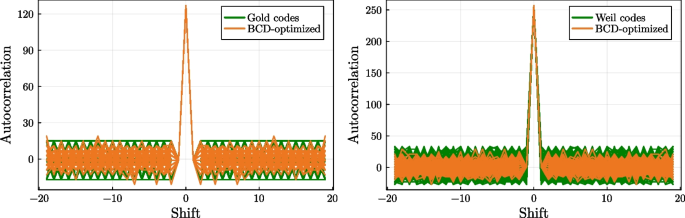

Autocorrelation visualization Finally, Fig.Â 3 shows a superposition of the autocorrelations of the codes found using the BCD method with subset size 25, compared with a superposition of the autocorrelations of the Gold and Weil codes. Both the BCDoptimized codes and the selected Gold codes satisfy the ACZ constraint, while it may be seen that the Weil codes do not. The BCDoptimized codes appear to strictly outperform the Weil codes. While the BCDoptimized codes appear to have autocorrelation closer to zero than the Gold codes on average, they have a larger peak autocorrelation magnitude than the Gold codes.
5 Conclusions
In this work, we considered the problem of designing binary spreading codes with good auto and crosscorrelation properties, in particular for LEO applications, where the number of codes are large, relative to the code lengths. We proposed a twostage BCD method for finding codes of arbitrary length and family size that both satisfy the ACZ property and have good correlation properties. We demonstrated that the method can find codes that outperform the Gold and Weil codes in terms of the mean of squared correlation values.
Finally, we discuss possible directions for future work. First, the BCD method proposed in this work may be extended to account for the effects of Doppler shift, which can be significant in LEO navigation settings [44]. For example, the BCD method may be used to optimize the average of the objective function (2a) over a range of Doppler shifts [45]. Second, this work did not consider the effects of any data or secondary codes, which are often superimposed on the primary spreading codes [12]. Those superimposed codes may adversely affect the correlation properties of the primary codes and may be worth consideration in future work.
Availability of data and materials
The datasets generated and/or analyzed during the current study are available in the binary_seq_opt repository, https://github.com/StanfordNavLab/binary_seq_opt
References
T.G. Reid, T. Walter, P.K. Enge, D. Lawrence, H.S. Cobb, G. Gutt, M. Oâ€™Connor, D. Whelan, Navigation from low earth orbit: part 1: concept, current capability, and future promise, in Position, Navigation, and Timing Technologies in the 21st Century: Integrated Satellite Navigation, Sensor Systems, and Civil. Applications, vol. 2 (2020), pp. 1359â€“1379
K. Maine, C. Devieux, P. Swan, Overview of IRIDIUM satellite network, in Proceedings of WESCONâ€™95 (IEEE, 1995), p. 483
P.B. DeÂ Selding, Virgin, Qualcomm invest in OneWeb satellite internet venture. Space News 15 (2015)
F. Khan, Mobile Internet from the Heavens (2015). arXiv:1508.02383
P.B. DeÂ Selding, SpaceX to build 4,000 broadband satellites in Seattle. Space News 19 (2015)
Septentrio: Septentrio collaborates with Xona on PULSAR GNSS receiver (2023). https://www.septentrio.com/en/company/news/septentriocollaboratesxonapulsargnssreceiver. Accessed 19 June 2023
T.G. Reid, A.M. Neish, T.F. Walter, P.K. Enge, Leveraging commercial broadband LEO constellations for navigating, in Proceedings of the 29th International Technical Meeting of the Satellite Division of the Institute of Navigation (Ion Gnss+ 2016), Portland, Oregon, vol. 12 (2016), pp. 2016â€“2016
K. Dennehy, Is LEO PNT the Next Big Thing? vol. 33 (2023). https://www.ion.org/publications/upload/IONWinter2023.pdf
F.S. Prol, R.M. Ferre, Z. Saleem, P. VĂ¤lisuo, C. Pinell, E.S. Lohan, M. Elsanhoury, M. Elmusrati, S. Islam, K. Ă‡elikbilek et al., Position, navigation, and timing (PNT) through low earth orbit (LEO) satellites: a survey on current status, challenges, and opportunities. IEEE Access 10, 83971â€“84002 (2022)
P. Misra, P. Enge, Global Positioning System: Signals, Measurements & Performance (GangaJamuna Press, Kathmandu, 2012)
H.B. Bekhit, E. ElÂ Diwany, S.H. ElÂ Ramly, Design of ranging codes for lowearth orbit satellites, in Proceedings of 5th International Conference on Recent Advances in Space Technologies (RAST) (IEEE, 2011), pp. 324â€“329
S. Wallner, J.A. AvilaRodriguez, G.W. Hein, J.J. Rushanan, Galileo E1 OS and GPS L1C pseudo random noise codesrequirements, generation, optimization and comparison, in Proceedings of the 20th International Technical Meeting of the Satellite Division of the Institute of Navigation (ION GNSS 2007) (2007), pp. 1549â€“1563
J.O. Winkel, Spreading codes for a satellite navigation system. United States Patent. Patent No.: US 8,035,555 B2 (2011)
M. Conforti, G. CornuĂ©jols, G. Zambelli, Integer Programming, vol. 271 (Springer, Berlin, 2014)
A. Yang, T. Mina, G. Gao, Binary sequence set optimization for CDMA applications via mixedinteger quadratic programming, in IEEE International Conference on Acoustics, Speech, & Signal Processing (2023)
A. Yang, T. Mina, G. Gao, Spreading code sequence design via mixedinteger convex optimization, in Proceedings of the 36th International Technical Meeting of the Satellite Division of the Institute of Navigation (ION GNSS+ 2023) (2023), pp. 1341â€“1351
L. Gurobi, Optimization, Gurobi Optimizer Reference Manual (2022). https://www.gurobi.com
R. Gold, Optimal binary sequences for spread spectrum multiplexing. IEEE Trans. Inf. Theory 13(4), 619â€“621 (1967)
J.J. Rushanan, The spreading and overlay codes for the L1C signal. Navigation 54(1), 43â€“51 (2007)
A.M. Legendre, Essai sur la thĂ©orie des nombres. Chez Courcier (1808)
T.Y. Mina, G.X. Gao, Devising highperforming random spreading code sequences using a multiobjective genetic algorithm, in Proceedings of the 32nd International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS+ 2019) (2019), pp. 1076â€“1089
T. Liu, J. Sun, G. Wang, Y. Lu, A multiobjective quantum genetic algorithm for MIMO radar waveform design. Remote Sens. 14(10), 2387 (2022)
T.Y. Mina, G.X. Gao, Designing lowcorrelation GPS spreading codes with a natural evolution strategy machinelearning algorithm. NAVIG. J. Inst. Navig. 69(1) (2022)
T. Mina, A. Yang, G. Gao, Designing long GPS memory codes using the cross entropy method, in Proceedings of the 36th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS+ 2023) (2023), pp. 1328â€“1340
S. Wallner, J.A. AvilaRodriguez, J.H. Won, G. Hein, J.L. Issler, Revised PRN code structures for galileo E1 OS, in Proceedings of the 21st International Technical Meeting of the Satellite Division of the Institute of Navigation (ION GNSS 2008) (2008), pp. 887â€“899
M. AlaeeKerahroodi, M. ModarresHashemi, M.M. Naghsh, Designing sets of binary sequences for MIMO radar systems. IEEE Trans. Signal Process. 67(13), 3347â€“3360 (2019)
G. Cui, X. Yu, G. Foglia, Y. Huang, J. Li, Quadratic optimization with similarity constraint for unimodular sequence synthesis. IEEE Trans. Signal Process. 65(18), 4756â€“4769 (2017)
R. Lin, J. Li, On binary sequence set design with applications to automotive radar, in ICASSP 20202020 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP) (IEEE, 2020), pp. 8639â€“8643
W. Huang, R. Lin, Efficient design of Doppler sensitive long discretephase periodic sequence sets for automotive radars, in 2020 IEEE 11th Sensor Array and Multichannel Signal Processing Workshop (SAM) (IEEE, 2020), pp. 1â€“5
G. Yuan, L. Shen, W.S. Zheng, A Hybrid Method of Combinatorial Search and Coordinate Descent for Discrete Optimization (2017). arXiv:1706.06493
X. Yu, G. Cui, J. Yang, J. Li, L. Kong, Quadratic optimization for unimodular sequence design via an ADPM framework. IEEE Trans. Signal Process. 68, 3619â€“3634 (2020)
A. De Maio, S. De Nicola, Y. Huang, S. Zhang, A. Farina, Code design to optimize radar detection performance under accuracy and similarity constraints. IEEE Trans. Signal Process. 56(11), 5618â€“5629 (2008)
A. Bose, M. Soltanalian, Constructing binary sequences with good correlation properties: an efficient analyticalcomputational interplay. IEEE Trans. Signal Process. 66(11), 2998â€“3007 (2018)
S. Boukerma, K. Rouabah, S. Mezaache, S. Atia, Efficient method for constructing optimized long binary spreading sequences. Int. J. Commun. Syst. 34(4), 4719 (2021)
D. Medina, L. Ortega, J. VilĂ Valls, P. Closas, F. Vincent, E. Chaumette, Compact CRB for delay, Doppler, and phase estimationapplication to GNSS SPP and RTK performance characterisation. IET Radar Sonar Navig. 14(10), 1537â€“1549 (2020)
L. Ortega, J. VilĂ Valls, E. Chaumette, F. Vincent, On the timedelay estimation performance limit of new GNSS acquisition codes, in 2020 International Conference on Localization and GNSS (ICLGNSS) (IEEE, 2020), pp. 1â€“6
H. He, J. Li, P. Stoica, Waveform Design for Active Sensing Systems: A Computational Approach (Cambridge University Press, Cambridge, 2012)
F. Glover, E. Woolsey, Converting the 0â€“1 polynomial programming problem to a 0â€“1 linear program. Oper. Res. 22(1), 180â€“182 (1974)
K. Bestuzheva, M. BesanĂ§on, W.K. Chen, A. Chmiela, T. Donkiewicz, J. Doornmalen, L. Eifler, O. Gaul, G. Gamrath, A. Gleixner et al., The SCIP optimization suite 8.0 (2021). arXiv:2112.08872
E.L. Lawler, D.E. Wood, Branchandbound methods: a survey. Oper. Res. 14(4), 699â€“719 (1966)
P. Brucker, B. Jurisch, B. Sievers, A branch and bound algorithm for the jobshop scheduling problem. Discrete Appl. Math. 49, 107â€“127 (1994)
M. Padberg, G. Rinaldi, A branchandcut algorithm for the resolution of largescale symmetric traveling salesman problems. SIAM Rev. 33, 60â€“100 (1991)
R. Stubbs, S. Mehrotra, A branchandcut method for 0â€“1 mixed convex programming. Math. Program. 86, 515â€“532 (1999)
F. Soualle, M. Soellner, S. Wallner, J.A. AvilaRodriguez, G.W. Hein, B. Barnes, T. Pratt, L. Ries, J. Winkel, C. Lemenager etÂ al., Spreading code selection criteria for the future GNSS Galileo, in Proceedings of the European Navigation Conference GNSS (2005), pp. 19â€“22
A. Yang, T.Y. Mina, G.X. Gao, Fast spreading code optimization under doppler effects, in Proceedings of the 2024 International Technical Meeting of the Institute of Navigation (ION ITM 2024) (2024)
