An optimized two-level discrete wavelet implementation using residue number system

EURASIP Journal on Advances in Signal Processing20182018:41

https://doi.org/10.1186/s13634-018-0559-3

Received: 11 October 2017

Accepted: 30 May 2018

Published: 25 June 2018

Abstract

Using discrete wavelet transform (DWT) in high-speed signal processing applications imposes a high degree of caution to hardware resource availability, latency and power consumption. In this paper, we investigated the design and implementation aspects of a multiplier-free two-level DWT by using residue number system (RNS). The proposed two-level takes the advantage of performing the multiplication operations using only the memory without involving special multiplier units, which preserves valuable resources for other critical tasks within the FPGA. The design was implemented and synthesized in ZYNQ ZC706 development kit, taking advantage of embedded block RAMs (BRAMs). The results of the overall experimentations showed that there is a considerable improve in the proposed two-level DWT design with regard to latency and peak signal-to-noise ratio (PSNR) precision value in the final output.

Keywords

  • Discrete wavelet transform (DWT)
  • Digital signal processing (DSP)
  • Residue number system (RNS)
  • Field programmable gate array (FPGA)

1 Introduction

Discrete wavelet transform (DWT) [15] is a linear signal processing technique that transforms a time domain signal to “wavelet” domain [6]. DWT is usually implemented using the finite impulse response (FIR) filter bank structures [7]. Figure 1 shows a convolution-based five-tap FIR filter with five multipliers, known as multiplier-accumulator (MAC) structure. In Fig. 1, the multipliers are involved in multiplying an input x[n] with filter coefficients, b i . The direct implementation of the N-tap filter requires N multipliers, which are an expensive resource in field-programmable gate array (FPGA). With regard to this fact, it is known and clear that convolution-based method requires massive computations, takes more physical space, and consumes more power [8]; hence, lifting-based (LS) [9] has been developed and implemented to improve these limitation.
Figure 1
Fig. 1

Five-tap finite impulse response filter

In this work, we preferred the conventional convolution-based DWT implementation over the LS for the following reasons. In LS, as the critical path delay (CPD) increases, the energy per operation increases and the operating frequency decreases [10]. In [11, 12], the authors found out that as the length of the filter (N) increases, the CPD is increased, respectively. Hence, the sequence of multiplication and addition will be longer than the convolution-based scheme. Therefore, LS is observed to have poor scalability and is inappropriate for large filter lengths [13, 14]. In addition, LS requires temporary registers to store the intermediate results, which takes up more storage area and as well consumes more power [15, 16]. For these reasons, we decided to implement the DWT using the convolution-based approach, but with multiplierless architecture.

Multiplierless approaches eliminate the use of multipliers by replacing individual coefficient multipliers with a single multiplier block, known as a multiple constant multiplication (MCM). Because filter coefficients are fixed and determined in advanced, the multiplication of filter coefficients by an input leads to area, delay, and power-efficient architectures [17].

The existing multiplierless algorithms can be divided into two general classes: they either reduce the number of multipliers or totally replace them with a simplified circuit logic. The most popular reduction algorithms are graph-based eliminations (GE) [18] and common subexpression elimination (CSE) techniques [1921]. The drawback of CSE algorithms is that its performance depends on the representations of the coefficients and also limited by the constant bit widths [20], whereas the GE require more computational resources due to a larger search space [22].

On the other hand, several multiplierless architectures that eliminate all multipliers have been proposed. Distributed arithmetic (DA) efficiently performs the inner product function in a bit-serial manner via a look-up table (LUT) scheme, followed by shift accumulation operations [2325]. Based on our previous experience, we identified that the ROM size in DA-based structures increases with the increase in the word length [26]. Residue number system (RNS) is a highly parallel non-weighted arithmetic system that is based on the residue of division operation of integers using the look-up table (LUT) scheme [2729]. The key advantage of RNS is gained by reducing an arithmetic operation to a set of concurrent, but simple, operations. Another advantage of RNS is its large dynamic range, which is divided into independent smaller ranges, where addition and multiplication operations are performed in parallel without a carry propagation among them. Several applications, such as digital filters, benefit from the RNS implementation, e.g., [3032]. To the best of our knowledge, the aforementioned approaches consider only one-level DWT implementation.

1.1 Contribution of this paper

This article focuses exclusively on the implementation of two-level multiplier-free DWT. We propose a new design of two-level RNS-based DWT that efficiently uses the memory elements in the first-level DWT and do not employ any memory element in the next levels. In addition, this design eliminates the use of multiple residue-to-binary converters (RBCs) between consecutive levels. Generally, the number of level is bounded by the output word length and we determine it mathematically (Eqs. 15 and 16). Finally, the proposed RNS-based approach could achieve high PSNR values with simple hardware structure and consume less power.

The remainder of this paper is organized as follows: In Section 2, the theoretical background on RNS is given. Section 3 illustrates the implementation of discrete wavelet transform. The implementation of the proposed two-level RNS is also presented. We further show an analytical comparison between these approaches. Section 4 presents the performance results. Finally, conclusions are drawn in Section 5.

2 Preliminaries

2.1 Discrete wavelet transform

The wavelet decomposition mainly depends on the orthonormal filter banks. Figure 2 shows a two-channel wavelet structure for decomposition, where x[ n] is the input signal, g[ n] is the high-pass filter, h[ n] is the low-pass filter, and 2 is the down-sampling by a factor of two. By this way, each filter creates a series of coefficients that represent and compact the original signal information.
Figure 2
Fig. 2

Multi-resolution wavelet decomposition. The block diagram of the two-channel two-level discrete wavelet transform decomposition (J=2) that decomposes a discrete signal into two parts. Note that 2 is keeping one sample out of two; a i and d i are the approximation and details at level i, respectively

Mathematically, a signal y[ n] consists of high and low-frequency components, as shown in Eq. (1). It shows that the obtained signal can be represented by using half the coefficients, because they are decimated by 2.
$$ y[\!n] = y_{\text{high}} [\!n-1] + y_{\text{low}} [\!n-1] $$
(1)
The decimated low-pass filtered output is recursively passed through identical filter banks in order to add the dimension of varying resolution at every stage. Equations (2) and (3) mathematically express the filtering process of a signal through a digital high-pass filter g[ k] and low-pass filter h[ k]. This operation corresponds to a convolution with an impulse response of k-tap filters.
$$ y_{\text{high}} [\!n]= \sum\limits_{k} g[\!k].x[\!2n-k] $$
(2)
$$ y_{\text{low}} [\!n]= \sum\limits_{k} h[\!k].x[\!2n-k] $$
(3)
where n becomes 2n, representing the down-sampling process. The output ylow[ n] provides an approximation signal, while yhigh[ n] provides the detailed signal. There have been several wavelet filters proposed in literature, but in this paper, we have restricted ourselves to Daubechies wavelet filters only [33]. Because the down-sampling process follows each filter (as shown in Fig. 2), Eq. (3) can be rewritten without the decimation factor as:
$$ y[\!n] = \sum\limits_{k=0}^{N-1} h[\!k].x[\!n-k] $$
(4)

where N is the number filter tap. For the sake of simplicity of representing Eq. (4), x[ nk] is replaced by x[ k].

2.2 Residue number system (RNS)

RNS [27, 28] is a non-weighted number system that performs parallel carry-free addition and multiplication arithmetic. In DSP applications, which require intensive computations, the carry-free propagation allows for concurrent computation in each residue channel.

Another aspect of using RNS is that an integer, within a large dynamic range, can be uniquely represented by set of residues, P, that are of much smaller values, corresponding to the size of the moduli set.

The RNS moduli set, P=m1,m2,…,m q , consists of q channels. Each m i represents a positive relatively prime integer, that is GCD (m i ,m j )=1, for ij.1 Any number, \( X \in \mathbb {Z}_{M} = {0,1, \dots M-1} \), is uniquely represented in RNS by its residues \( | X |_{m_{i}} \), which is the remainder of division X by m i and M is defined in Eq. (5),
$$ M = \Pi_{i=1}^{q} m_{i} = m_{1}*m_{2}*\dots *m_{q} $$
(5)

M determines the range of unsigned numbers in [0,M−1]. In particular, M should be greater than the largest expected output.

In the RNS representation, addition and multiplication are performed entirely in parallel on each modulo,
$$ Z = X \circ Y \overset{RNS}{\longrightarrow} Z_{m_{i}}= | X_{m_{i}} \circ Y_{m_{i}} |_{m_{i}} $$
(6)

where represents the addition, subtraction, or multiplication operation; and m i P.

Mapping from the RNS system to integers, \(\mathbb {Z} \), is performed by Chinese reminder theorem (CRT) [3436]. The CRT states that binary/decimal representation of a number can be obtained from its RNS through Eq. (7), provided all elements of the moduli set are pairwise relatively prime.
$$ |X|_{M} = (x_{1}, x_{2},... x_{q}) = | \sum\limits_{i=1}^{q} \hat{M_{i}} | \alpha_{i} x_{i}|_{m_{i}} |_{M} $$
(7)

where \( \hat {M_{i}} = M/{m_{i}} \) and \( \alpha _{i} = |\hat {M_{i}}^{-1}|_{m_{i}} \) is the multiplicative inverse of \( \hat {M_{i}} \) with respect to m i .

The implementation of RNS-based DWT is obtained by substituting Eq. (6) into (4)
$$ y\left[n\right]_{m_{i}}= y_{m_{i}} = |\left(\sum\limits_{k=0}^{N-1} |h\left[k\right]_{m_{i}}. x\left[n-k\right]_{m_{i}}|_{m_{i}}\right)|_{m_{i}} $$
(8)

for each m i P. This implies that a q-channel DWT is implemented by q FIR filters that are working in parallel.

For designing an efficient RNS-based DWT, the choice of the moduli set and hardware design of residue-to-binary conversion are two critical issues that should be considered. Most widely studied moduli sets are given as a power of two due to the attractive arithmetic properties of these modulo sets. For example, {2 n −1,2 n ,2n+1−1} [37] {2 n −1,2 n ,2 n +1} [38] and {2 n ,22n−1,22n+1} [39] have been investigated. A four-moduli set has been suggested to increase the dynamic range, e.g., {2 n −1,2 n ,2 n +1,2n+1−1} [40] and {2 n −1,2 n ,2 n +1,22n+1} [41].

In this work, the moduli set P n ={2 n −1,2 n ,2n+1−1} is used for three reasons. First reason being that the modular adder is simple and identical for both m1=2 n −1 and m3=2n+1−1. Secondly, for small n=7, the dynamic range of P7 is large and M is equal to 4145280, which would efficiently express real numbers in the range [−2.5,2.5] using 16-bit fixed-point representation, provided scaling and rounding are done properly. We assume that this interval is sufficient to map the input values, which does not exceeds ± 2. Thirdly, the reverse converter unit is simple and regular [36] because it does not employ any memory.

3 DWT implementation methodology

As mentioned in the previous sections, the wavelet transform of a signal can be performed by FIR filters, where the convolution operations are achieved by multiplying an input signal by the wavelet coefficients. In contrast, RNS-based approach has replaced the multiplication units with a suitable memory to perform the multiplication operations.

3.1 DWT implementation using RNS

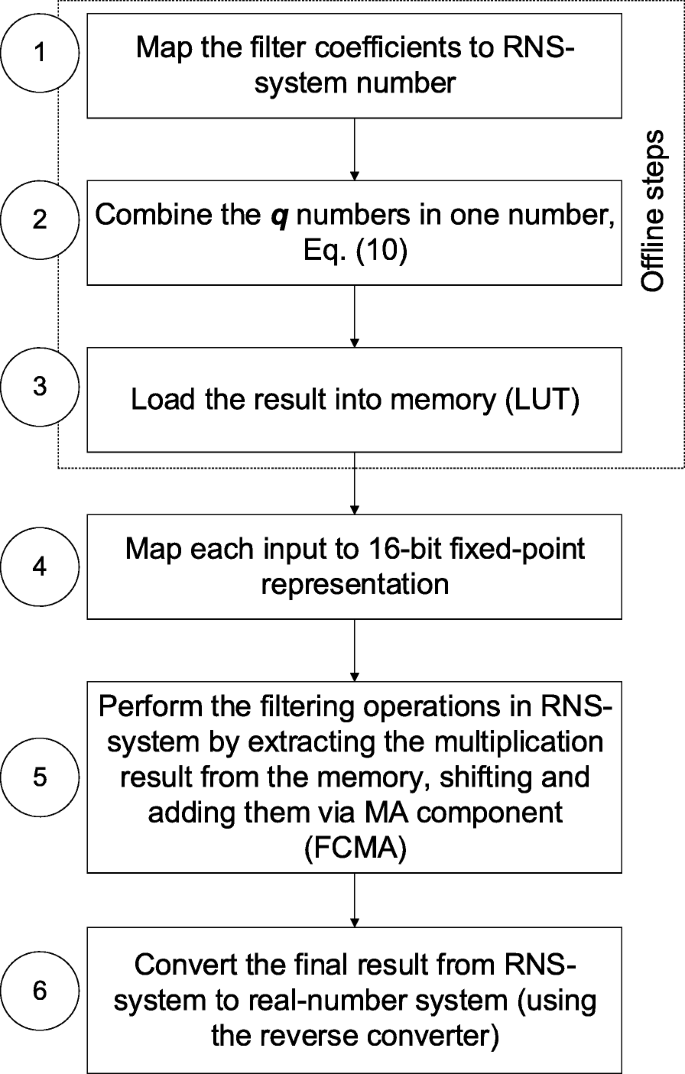

Figure 3 shows the steps that are involved in RNS-based DWT approach. These steps are divided into offline and online steps. The offline steps are performed by converting the filter coefficients to RNS numbers and storing the result in a LUT. The online steps are used in converting each input values into RNS-system, before performing the filtering operations. Finally, the produced result is converted back to real-number system. We explained these process in Section 3.1.1.
Figure 3
Fig. 3

The RNS-based DWT offline and online steps to perform the filtering operations. The offline steps are performed one time, while the online are performed for each input. q is the number of channels

In general, the implementation of RNS-based DWT has essentially three components— i.e., the modulo adders (MA), forward and reverse converter. The forward converter, also known as binary-to-residue converter (BRC), is used to convert a binary input number to residue numbers. In contrast, the reverse converter, also known as residue-to-binary converter (RBC), is used to obtain the result in a binary format from the residue numbers. These components are shown in Fig. 4. We will refer to the RNS-system, which does not include RBC, as a forward-converter and modular-adders (FCMA), shown inside the dashed-line box in Fig. 4.
Figure 4
Fig. 4

The block diagram of DB2 RNS-based architecture. BRC stands for binary-to-residue converter, RBC stands for residue-to-binary converter and MA represents for modulo adder

3.1.1 Binary-to-residue converter (BRC)

The BRC is used to convert the result of multiplying an input number by a wavelet coefficient to q residue numbers by using LUT, shift, and modulo adders, where q is the number of channels. This procedure ensures that the multiplication operation is performed by using only memory.

3.1.1.1 RNS-system number conversion

The received input and wavelet coefficients span the real number and might take small values. One of the main limitation of using RNS-number representation is that it only operates with positive integer numbers from [0,M−1]. The DWT coefficients are generally close to zero and between − 1 and 1. Therefore, it is important to cope with both negative numbers and small numbers. To handle negative numbers, we mapped the real number to RNS range. Assuming the input samples are in [− 2.5,2.5], we mapped any value in this range to a unique value in [0,(M−1)]. Any sample, which does not fit this interval, will produce incorrect values. Hence, the interval should be large enough to map all the numbers.

In principle, the received sample X[i] is shifted y positions to the left (multiplying by 2 y , step 4 in Fig. 3). This step ensures that X[i] is a y-bit fixed point integer. In a similar manner, the wavelet coefficients are scaled by shifting it z positions to the left (step 1 in Fig. 3). In our design, we set the filter scaling factor z to 11 and as a result, the coefficients of DB2 (Eq. 9) are multiplied by 211 and rewritten as shown in Eq. 9.
$$ {\begin{aligned} y_{\text{low}}[\!n] &= -266 ~x[\!n] + 459 ~x[\!n-1]\\ & \quad + 1713 ~x[\!n-2]+ 989~ x[\!n-3] \end{aligned}} $$
(9)
3.1.1.2 Modulo m i multiplier

The multiplication of the received sample by the filter coefficients, which are constants, can be performed via indexing the LUT. It is critical to identify the size of LUT because as the word length, w, of the received sample is increased, the memory size becomes 2 w . Additionally, the design require q LUTs to perform the modulo multiplication.

We suggested several techniques to overcome these inadequate requirements. Instead of preserving a dedicated memory for each modulo m i , one memory that contains all module results is used. In this scheme, each word at location j contains q modules of h k j211. Figure 5 shows the internal BRC block design of the three-channel moduli set P7={127,128,255} with its memory-map at the right top corner. This shows that, for a location j, the least significant 8-bit contains \(\phantom {\dot {i}\!} | h_{k} * x |_{m_{3}} \), the next 7-bit contains \(\phantom {\dot {i}\!} | h_{k} * x |_{m_{2}} \) and the most significant 7−bit contains \(\phantom {\dot {i}\!} | h_{k} * x |_{m_{1}} \), which can be generalized as shown in Eq. (10) (steps 2 and 3 from Fig. 3). The advantage of this method is that no extra hardware is required to separate each module value. Table 1 shows the memory contents of h1 in RNS system using 4×22 LUT.
$$ {\begin{aligned} \text{ROM}(j) &= |~h_{k}*j*2^{11} |_{m_{1}} ~*~ 2^{2n+1}\\ & \quad + | h_{k}*j*2^{11} |_{m_{2}} ~*~ 2^{n+1 }\\ & \quad + | h_{k} ~*~ j*2^{11} |_{m_{3}}, \quad j=\left[0,2^{w}\right] \end{aligned}} $$
(10)
Figure 5
Fig. 5

The block diagram of the binary-to-residue converter for the three-channel RNS-based DWT, P7={127,128,255} (a) with two, (b) with four identical memories. The green blocks are not required because the shift result is always zero for m2. The memory content at location j is as shown in the upper corner

Table 1

The memory content of h0 = −0.1294 or 757(− 266) multiplied by 211 in P7={127,128,255} when word length is 4

Location i

\(\phantom {\dot {i}\!} |\,-\,266*m_{1}|_{m_{1}} \)

\(\phantom {\dot {i}\!} |\,-\,266*m_{2}|_{m_{2}} \)

\(\phantom {\dot {i}\!}|\,-\,266*m_{3}|_{m_{3}}\)

ROM(i)



(Eq. 10)

0

0

0

0

0

1

115

118

244

3798772

2

103

108

233

3402985

3

91

98

222

3007198

4

79

88

211

2611411

5

67

78

200

2215624

6

55

68

189

1819837

7

43

58

178

1424050

8

31

48

167

1028263

9

19

38

156

632476

10

7

28

145

236689

11

122

18

134

4002438

12

110

8

123

3606651

13

98

126

112

3243632

14

86

116

101

2847845

15

74

106

90

2452058

It is obvious that if the input word length is 16 bits, then the LUT size becomes huge because 216 locations will be needed. One way to reduce the size of memory is to divide it into smaller size, each consisting of 2×22 bits or 4×22 bits. Figure 5 shows the block diagram of the binary-to-residue converter with two and four memories, respectively. However, the output of each memory should be combined, so that the final result is correct. It is worth noting that this division comes with a cost in terms of additional adders and registers are used (discussed in Section 3.4).

According to the previous improvements, the RNS-based system works as follows (step 5 from Fig. 3). Suppose that four memories are used, each of 16 locations. The input X16−bit=(x1,x2,x3,x4) will be divided into four segments. Each 4-bit segment will be fed into one memory, so that the 22-bit can be found, which will then be divided into three outputs, corresponding to \(\phantom {\dot {i}\!} |h_{k}*x_{l}*2^{11}|_{m_{i}} \). We want to emphasize that this result is the multiplication of each 4-bit with a filter coefficient with respect to m i .

To obtain the final multiplication’s result, each m i output will be shifted by l positions, where l is the index of the lowest input bit (4, 8, or 12). The modular multiplication and shift for 2 n −1 and 2n+1−1 can be achieved by a left circular shift (left rotate) for l positions, whereas the modular multiplication and shift for 2 n can be achieved by a left shift for l positions [37]. Finally, the modulo adder adds the corresponding output.

3.1.2 Modulo adder (MA)

The modulo adders are required for adding the results from a modular multiplier as well as for the reverse converter. In this work, two types of MAs are necessary—i.e., the first one is based on 2 n and the other is based on 2 n −1. Modulo 2 n adder is just the lowest n bits of adding two integer numbers, where the carry is ignored. Modulo 2 n −1 adder differs from modulo 2 n adder in that the carry should be considered to limit the result to not be greater than 2 n −1, as in Eq. (11).
$$ |x+y|_{2^{n}-1} =\left\{ \begin{array}{ll} x + y & \text{if} ~x+ y \leqslant 2^{n}-1,\\ x + y + 1 & \text{otherwise } \end{array} \right. $$
(11)

To improve the design and enhance the speed, a parallel-prefix carry computational structure is used [4244], which allows the implementation of highly efficient combinational and pipelined circuits for modular arithmetic.

3.1.3 The reverse converter

The Chinese remainder theorem (CRT) [34] provides the theoretical basis for converting a residue number into a natural integer. The direct implementation of the CRT is inefficient because it requires a divider unit and several multipliers to determine the final output. However, the moduli set P n ={2 n −1,2 n ,2n+1−1} can be efficiently implemented by four modulo adders and two multiplexers (step 6 from Fig. 3) [36]. Figure 6 shows the block diagram of the RBC of P7, which is adapted from [36]. The output of the RBC is unsigned (3n+1)-bit integer number. The actual signed number can be found by shifting the result y+z positions to the left, which is equivalent to dividing by 2y+z. y and z are the scaled values of the input and wavelet coefficients, respectively. Generally, the word length of one-level DWT is bounded by Eq. 12 and should not exceed 3n−2 bits. Subtracting 3 is required because 2.5 is added to the input samples in order to have a 3-bit unsigned integer.
$$ 3*n+1 \geq y+z+3 $$
(12)
Figure 6
Fig. 6

The block diagram of the pipelined residue-to-binary converter for the three-channel RNS-based DWT, P7={127,128,255}. Four identical 2n+1−1 MAs, three subtractors and two multiplexers are generally required for RBC. Two shift registers are used for extending the 7-bit input by one bit. In the real implementation this operation does not add any cost because this operation is just equivalent to appending 0 at the first location of the input signal

3.2 Example

In this subsection, an example with input x[1] = − 0.4 is given to illustrate how the RNS-based works. Each input is added to 2.5 and then multiplied by 28. Therefore, if x[1] = − 0.4, the result is 538. Then, this value is multiplied by the scaled h0=− 266 in P7. The sample input can be rewritten as (0000 0010 0001 1010)2 or x1=0, x2=2, x3=1 and x4=10. These values are used to index the memory and the value of multiplying x i by h0 can be found in Table 1—i.e., 0, 3402985, 3798772 and 236689, respectively. From the table, the corresponding module of x1 is \((0, 0, 0)_{P_{7}}\), x2 is \((103, 108, 233)_{P_{7}}\), x3 is \((115, 118, 244)_{P_{7}}\) and the corresponding module of x4 is \( (7,28,145)_{P_{7}} \). After that, the value of h0x2 is shifted eight-position corresponding to m i and the value of h0x3 is shifted four-position corresponding to m i . For the case of x3, the mid value is shifted 8 bit to the left, whereas the other values is circular shifted by 8 bit to the left and the result becomes \( (79, 0, 233)_{P_{7}}\). It is worth noting that the mid value is always 0 because the word width is 7 and is less than the shift value, 8. For the case of x2, the mid value is shifted 4 bit to the left, whereas the other values is circular shifted for four positions and the result becomes \( (62, 96, 79)_{P_{7}}\). The sum of the partial results, performed via tree of two-input MAs, is \( (148,124,457)_{P_{7}} \) or \( (21,124,202)_{P_{7}} \), which is equivalent to (mod(− 143108,127),mod(− 143108,128), mod(− 143108,255)), respectively. Finally, the output of this memory-based multiplication is aggregated with next filter-taps using MAs.

3.3 Two-level DWT implementation

The two-level discrete wavelet transform comprises of two cascaded one-level DWTs (in series), where the output of the first level is fed into the second level (as shown in Fig. 2). Figure 7a shows the design of two-level RNS-based DWT, which involves two identical FCMA and two RBC blocks. The FCMA block is the RNS-based filtering (multiplication) block. It is obvious that converting between the number systems back and forth introduces some latency. Latency is defined as the number of clock cycles required to generate the first output sample once the input signal is applied. The latency, τ, of the two-level design is given by
$$ \tau = 2* (\tau_{FCMA} + \tau_{RBC}) $$
(13)

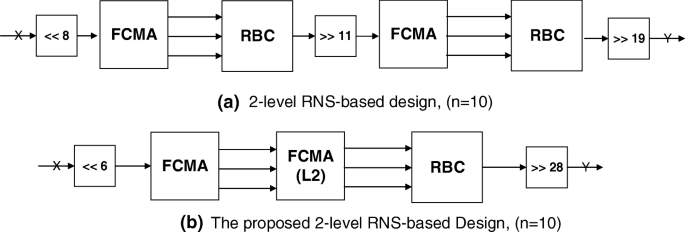

Figure 7
Fig. 7

The block diagram of two-level RNS-based DWT design (a), the full design with two RBCs, and (b) the proposed design, which eliminates the middle RBC to improve the latency. FCMA represents FIR filtering process in RNS

where τ FCMA is the RNS-based filter latency and τ RBC is the RNS-to-binary converting delay, respectively.

In this work, we suggest to eliminate the first RBC and feed the output of the first FCMA block into the second block, as shown in Fig. 7b. The advantage of this elimination is that the final output will be solely computed by one RBC component and one shift register. As a result, the latency becomes:
$$ \tau = 2 * \tau_{\text{FCMA}} + \tau_{\text{RBC}} $$
(14)
The only restriction is that the range of the used moduli-set should be greater than the maximum expected value, th o , which can be computed as follows:
$${} {th}_{o} = \left(\sum\limits_{k} h_{k}\right)^{2} * \max(x\left[n\right]) * (2^{z})^{2} * 2^{y} \leqslant M -1\quad $$
(15)
where h k is the k t h DWT coefficient; x[n] is the input; y and z are the input and filter scaling factors, respectively; and M is the maximum range from Eq. (5). As a consequence, the word length of two-level DWT is bounded by Eq. 16 and should not exceed 3n−2 bits.
$$ 3*n+1 \geq y + (2*z) + 3 $$
(16)
where (3n+1) is the moduli-set word length. Eventually, Eq. 16 can be generalized to any DWT level, (l), by using the following inequality:
$$ 3*n-2 \geq y + (l*z) $$
(17)

3.3.1 The design of the second FCMA

The FCMA of the proposed stage can be implemented by two different techniques. The first one is based on memory that stores the multiplication result of multiplying an integer by the filter coefficient (Fig. 8a) and the second one is based on shift-add operations of the input by 2 r , where r is the position of each “1” of the filter coefficient (Fig. 8b). For example, from Table 1, h0 is equal to 757 or (01011110101)2, which is required to (circular) shift the input by 0,2,4,5,6,7,9 and adding them to find the final multiplication result. The key feature of this technique is that each multiplication operation is a left (circular) shift, which can be implemented by rewiring the order of the input bits. Indeed, the implementation is simple, and does not require any special circuits except several MAs to sum up the result. In the following sections, we refer to the optimized FCMA as memory-based, if it employs memory elements or shift-based, if it does not employ any memory.

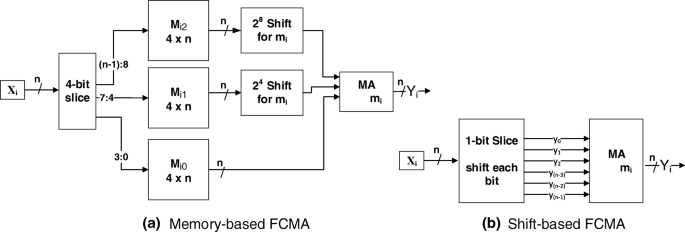

Figure 8
Fig. 8

The proposed FCMA block diagram of the second stage module, which directly performs a residue number multiplication by the filter coefficient at channel q. The Mi0,Mi1 and Mi2 blocks are identical memories of 4×n and contain values of m i 2 z h k j, where h k is the k t h filter tap and j[0,16]. (a) Using memories. (b) Using shift operators and MAs

3.4 Hardware complexity

3.4.1 Memory usage

RNS techniques employs memory elements as a key resource to avoid multiplying two input variables. As the number of level increases, the number of memory elements changes. Assuming that the length of the received word is w−bit and there are N filter-tap, we define the size of a memory element by a×b, where a and b are the word size of input and output, respectively. The value of a determines the size of the memory, 2 a . The total number of memory elements that is occupied by an RNS-based filter is Nw/a of (a×b). This Eq. shows that the number of memory elements increases linearly with the number of filter taps (as shown in Fig. 8a), while the memory size remains constant (a×b), but increased as a and b increase. The only overhead with large a is that the number of MA, which are required to sum up the final result, is increased. Table 2 shows a comparison of the memory usage when w=16.
Table 2

Occupied memories that are used by RNS-based DB2 DWT approaches. The input word length, w, is 16 bits and b=3n+1

Approach

Occupied memories



a = 8

a = 4

Memory-size

(8×b)

(4×b)

One-level

8

16

Two-level

16

32

Optimized FCMA (memory-based)

24

36

Optimized FCMA (shift-based)

0

0

If the FCMA at the second stage is implemented by means of memory (memory-based FCMA), then the number of required memory can be calculated as follows:
$$ q * N * \left(\left\lceil \frac{n}{a} \right\rceil \right) $$
(18)

For instance, a three-channel of P10 FCMA has 6 memories of (4×10) and 3 memories of (4×11). Therefore, the FCMA at the second stage requires 36 memory elements and in total 52 are required for the whole design.

The design of FCMA at the second stage can be improved by eliminating all the memory at FCMA, as shown in Fig. 8b. In this case, the proposed shift-based FCMA performs the multiplying operations via shift operations and MA units. The shift operation is always performed via rewiring the bits [37], which has no cost in terms of delay and hardware.

3.4.2 Adder counts

In addition to the memory complexity, we could derive an expression for the overall adder counts. In the following analysis, we can neglect the difference between (2 n −1) and (2n+1−1) MAs because it will not affect the total number of MAs.

For a word length w and N-tap filter, the q-channel FCMA implementation requires N BRC blocks and (q(N−1)) two-input MA blocks to compute the final result (Fig. 4). Each BRC requires at most (q(w/a−1)) two-input MA blocks (Fig. 5). Likewise, the RBC has four MA blocks, three subtractors, and two multiplexers. Thus, the total number of MA blocks at one-level RNS-based is given by:
$$ \begin{aligned} \text{MA}_{t} &= q*N * (w/a - 1) + q * (N - 1) + 4 \\ &= q*N*w/a -qN +qN - q + 4\\ &= q*(N*w/a -1) + 4 \end{aligned} $$
(19)

For instance, three-channel DB2 implementation requires 9 MA blocks to sum up the final result, and in total P7 RNS-based implementation has a total of 49 MA blocks when w = 16 and a = 4 bits.

If the FCMA of the second stage is implemented by means of memory, then each unit requires \( (q*((\lceil \frac {n}{a} \rceil) - 1)) \) MAs to sum the output of each tap (Fig. 8a). In addition, (q(N−1)) MAs are required to sum all the output of all taps. This means, \( (N * q*((\lceil \frac {n}{a} \rceil) - 1) + q * (N-1)) \) MAs are used for the memory based proposed approach.

In contrast, if the FCMA of the second stage is implemented by rewiring the input of the first stage, then each tap requires at most q(n−1) MAs, where n is the channel width. However, not all of these MAs are required, because the shift operations are applied to the binary ones of the filter coefficients. For example, from Table 1, h0 equal to (757)10 or (01011110101)2. This means that the proposed approach requires \( q (\bar {n} - 1)= 3*6 = 18\) modulo adders, where \( \bar {n} \) is the average of binary ones in h j 2 z . Table 3 summarizes the number of memories and MAs of each implementation, respectively.
Table 3

Memory usage and adders for RNS-based approaches for N-tap DWT



Number of memories

Number of MAs

One-level

Nw/a

q(Nw/a−1)+4

Two-level

2Nw/a

2(q(Nw/a−1)+4)

Optimized memory-based FCMA

\( q * N * (\lceil \frac {n}{a} \rceil) \)

\( N * q*((\lceil \frac {n}{a} \rceil) - 1) + q * (N-1) \)

Optimized shift-based FCMA

0

\(N* q (\bar {n} - 1) + q * (N-1) \)

It is clear that as (w/a) increases, the number of MA increases because (w/a−1) MA are required to construct MA tree. Hence, the critical path delay (PSD) involves one multiplier followed by log2(w/a−1) levels MA tree. As a consequence, there is a trade-off between the number of memory and its size on the overall performance of the system.

4 Simulation results, performance analysis, and validation

In the previous section, we have demonstrated the design of the DWT by using a residue number system. The two-level DWT RNS-based has been designed, implemented and tested with series of simulations to verify the DWT functionality. Experiments were carried out on the Xilinx ZC706 evaluation board [45]. The performance of the proposed approach was compared with the distributed arithmetic (DA) [3], which is a multiplierless DWT. We also considered the direct DWT implementation using an IP FIR Compiler 6.3 (FIR6.3) block, which provides a common interface to generate highly parameterizable, area-efficient, high-performance FIR filters [46].

In the following experiments, the moduli sets of P7={127,128,255},P10={1023,1024,2047}, and P13={8191,8192,16383} were used. The dynamic range of these sets are M=4161536,2144338944, and 1099310309376, respectively. In fact, the moduli sets of P10 and P13 are selected because their dynamic range are greater than th o . For instance, Eq. 15 shows that th o =1279020283 for P10 with y=6,z=11, and \( \sum (h_{i}) = 1.5436 \). In all RNS-based implementations, the input word length was set to 16 bits.

4.1 Resource utilization and system performance

Table 4 summarizes the resource use by RNS-based components— i.e., FCMA and reverse-binary converter (RBC) when using 2×b memory, where ‘b’ is the output word length of P n and equal to (3n+1). The two-level, three-channel RNS contains two FCMA units and 3 different MAs (Fig. 5b). The RBC unit consumes fewer resources and less power with the operating frequency in all models being approximately equal and as high as 350 MHz or more. The optimized shift-based FCMA consume less power but the number of occupied slices is doubled compared to the memory-based implementation. Finally, it is clear that the BRAM consumes most power in all memory-based models (approximately 16 mW).
Table 4

FPGA resource utilization and system performance for the RNS components— i.e., FCMA and reverse converter

Resources

(n=7)

(n=10)

n=10

n=13

n=10



FCMA

RBC

FCMA

RBC

S-FCMA c

M-FCMA

Number of slice LUTs

234

114

335

143

731

999

348

Number of slice registers

375

148

478

187

792

1024

471

Number of occupied slices

121

55

158

57

360

524

164

Number of RAMB18E1

8

0

8

0

0

0

24

Output word length (bits)

22

0

31

0

31

40

31

Worst negative slack (ns)

7.3

7.2

7.1

7.29

7.23

7.26

7.29

Max. operating freq (MHz)

367.1

353.7

346.6

369.7

360.1

365.7

368.9

Data path delay (ns)

2.599

2.65

2.66

2.5

2.76

2.7

2.65

Estimated power (mW)a

25

3

29

3

6

7

21

Block RAM power (mW)

16

0

16

0

0

0

16

Latency (CC)b

5

6

5

5

6

6

5

aThe IO power estimation is not considered

bClock cycle

cRewiring the input for implementing shift operations and a series of MAs. The FCMA involves the forward converters and modulo adders. “S-FCMA” is the shift-based FCMA, the one that rewires the input, and “M-FCMA” is the memory-based FCMA

4.2 Two-level DWT evaluation

Table 5 lists the resource consumption and the system performance for the two-level DWT implementations when two memory elements are used in each filter-tap. The FIR-based model shows better performance compared to all multiplierless architectures but it requires several multiplier units, known as DSP48E in modern FPGA [45].
Table 5

FPGA resource utilization and system performance of two-level DB2 DWT implementation with ZC706



RNS-based

Resources

FIR

DA

(n=7)

(n=10)

(n=13)



Full

Full

M-FCMA

S-FCMA**

Full

S-FCMA

Number of slice LUTs

92

1108

730

1000

882

1759

1261

2455

Number of slice registers

494

1250

1007

1307

1231

1648

1643

2204

Number of occupied slices

122

411

351

434

444

656

561

885

Number of memory

0

44

16

16

32

8

16

8

Number of DSP

7

0

0

0

0

0

0

0

Worst neg. slack (ns)

7.654

6.01

6.59

6.87

4.73

6.6

6.86

6.2

Max. operating freq (MHz)

426.3

250.6

293.3

316

189.7

294.4

318.8

263.2

Data path delay (ns)

2.017

3.73

3.152

2.94

4.84

3.07

2.9

3.54

Estimated power (mW)

13

63

42

50

55

44

81

63

Block RAM power (mW)

0

37

20

23

29

8

46

15

**“S-FCMA” is the shift-based FCMA, the one that rewires the input, and “M-FCMA” is the memory-based FCMA

It is also observed that the maximum frequency of all RNS-based schemes is higher than DA-based DWT. Because the only change among P7, P10, and P13 implementations is the moduli-set width, the maximum operating frequencies slightly changes among these designs. Furthermore, the two-level DB2 filter bank was designed with maximum operating frequencies between 260 and 360 MHz for full and optimized shift-based FCMA, respectively. However, P7 RNS-based is the only model that has less resources compared to DA-based because of its small word length.

Furthermore, Table 5 shows that the RNS schemes consume less power compared to DA-based DWT. The exception is that the Full model of P13, which occurred due to the hardware usage and the memory-size—i.e., 8×40. The large size of the memory can further be split into smaller memory (as shown in Fig. 5). Table 6 presents the impact of using four-memory in each filter-tap on the power. It is obvious that the power consumption is increased as the number of memory and its size increase. The proposed shift-based RNS model compared to these models showed a better performance regards to power and maximum operating frequency. In spite of the deficiency in terms occupied slices, the proposed model has less number of memories and multipliers compared to DA- and FIR-based schemes.
Table 6

The effect of using four memories in each filter-tap with ZC706



RNS-based

Resources

DA

(n=7)

(n=10)

(n=13)



Full

Full

M-FCMA

S-FCMA**

Full

S-FCMA

Number of memory

44

32

32

52

16

32

16

Output word length (bits)

22

22

31

31

31

40

40

Estimated power (mW)

78

70

85

88

60

142

92

Block RAM power (mW)

51

39

43

49

18

88

36

**“S-FCMA” is the shift-based FCMA, the one that rewires the input, and “M-FCMA” is the memory-based FCMA

4.3 Functionality verification

In this experiment, a sinusoidal signal is applied on each approach to verify the functionality of each design. Figure 9 shows a comparison among all RNS-based implementations with FIR- and DA-based implementations. It indicates that the proposed approaches are ahead of other implementations. To be more accurate, the two-level DB2 DWT implementations were simulated by DSP Logic Analyzer and the result is shown in Fig. 10. It depicts that the signals resulting from Full RNS- and FIR-based lag behind the proposed architecture by 80 ns or 8 clock cycles, whereas the signal resulting from DA-based lags by 4 clock cycles.

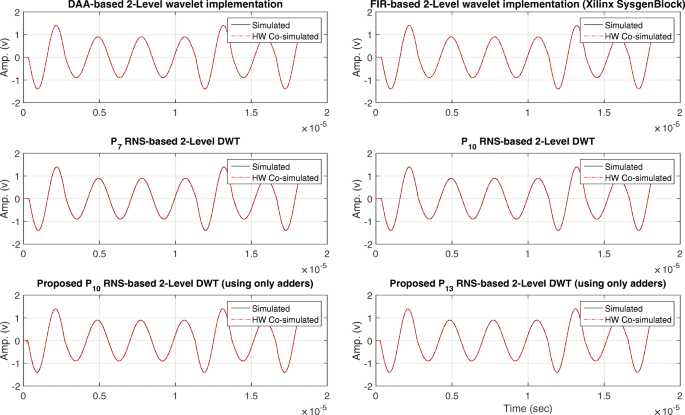

Figure 9
Fig. 9

Comparison among all two-level DWT approaches when a sinusoidal signal is applied

Figure 10
Fig. 10

The output of two-level DWT using DSP Logic Analyzer when a sin wave is applied. Each clock cycle is 10 ns

Eventually, we have verified the simulated result on ZC706 development kit and the simulation and hardware co-simulation results of the two-level DB2 implementations are highly correlated, as shown in Fig. 11.
Figure 11
Fig. 11

The output of the two-level DWT when a pattern-based signal [4] is applied. It is used to extract the main features of the received signal

4.4 Precision analysis

Generally, convolution-based DWT involves floating-point operations, which introduces rounding errors. Because the filter-banks coefficients, designing by means of floating-point, require large hardware resources to retain the precision, we replaced the floating-point method with RNS numbering system. We simply multiplied the input by 2 y and the filter coefficients by 2 z . At the end, we converted the result back to floating-point number. PSNR is the most commonly used method to measure the quality of the result. In fact, it measures the peak error and high PSNR means better quality and that less error is introduced to the result.

We carried out the precision analysis for the first and second levels. The Daubechies wavelet with four coefficients were used and the result of each level was compared with the actual double-precision values via MATLAB. Table 7 shows the behavior of the proposed approaches in terms of input and wavelet coefficients precision. The output precision is set to Q5,16 for all implementations. It is worth noting that employing the memory-based FCMA or shift-based FCMA at the second level has no effect on the output because both schemes compute identical results.
Table 7

The PSNR values of one- and two-level of different DWT implementations



DA

FIR

RNS

Optimized RNS



P 7

P 10

P 13

P 10 a

P 13 a

Architecture

1L/2L

1L/2L

1L/2L

1L/2L

1L/2L

2L

2L

Input precision

Q 5,16

Q 5,16

y=8/8b

y=12/12

y=13/12

y=6

y=11

Coeff. precision

Q 1,15 c

Q 0,15

z=11

z=16/11

z=18/13

z=11

z=13

Internal word length

22 bit

NA

22 bit

31 bit

40 bit

31 bit

40 bit

PSNR (dB)

73.5/63.5

86.3/78.7

56.5/41.87

84/53

90/54

48.5d

54.5

aOptimized FCMA model, where one RBC is used

bThe input to RNS circuit is 16-bit unsigned integer

cMemory word length

dThis is the only combination that satisfies Eq. (16)

The optimized two-level with P10 has a maximum input scaling factor of 6 (due to Eq. 16). As a consequence, we cannot adapt their scaling factors. In contrast, the optimized two-level of P13 has higher input and filter coefficients scaling factors due to its large word length, which enables it to have large accuracy values.

Table 7 presents that the maximum achieved PSNR of P7 set is 56.5 dB and 41.87 for the first and second level, respectively. We could not achieve better accuracy with the specified scaling factors because y+z+3=21≤(37)+1=22 (see Eq. 16). If an application requires higher accuracy values, then different moduli set with large n should be selected. Figure 12 compares the effect of changing the scaling factors of two different moduli sets, P10 and P13 for one-level DB2 RNS-based approach. The input scaling factor was varied between 8-bit and 13-bit, and filter scaling factor was varied between 11 and 18. As expected, lower scaler factors produces PSNR equal to 60 dB. While the maximum PSNR equal to 90.37 is obtained with y=13 and z=18 for P13, the maximum PSNR of P10 is obtained when y=12 and z=16 (Eq. (12)). It is worth mentioning that as the filter scaling factor increases, no hardware cost is added to the design, because all the changes correspondingly occurred in the memory contents. Figure 13 shows the effect of the scaling factors for two-level DB2 RNS-based approach. The proposed 2-stage RNS-based P13 with z=13, has maximum PSNR of 54.5 dB, which is roughly equal to the full model with z=11.
Figure 12
Fig. 12

The impact of input, y, and wavelet filter coefficients, z, scaling factors of one-level RNS-based implementation on PSNR, with respect to (a) P10 and (b) P13 moduli sets

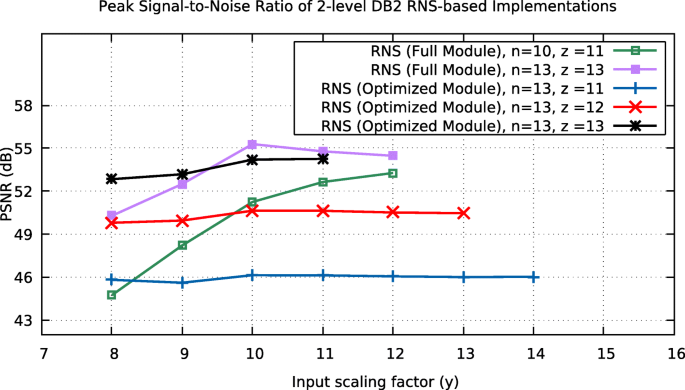

Figure 13
Fig. 13

The impact of input, y, and wavelet filter coefficients, z, scaling factors of two-level RNS-based implementation with respect to P10 and P13 moduli sets on PSNR

5 Conclusions

In this article, we have addressed the development of a multiplierless scheme for two-level RNS-based DWT, which can be adapted to any moduli set, with any number of channel. This approach intensively use memory to speed up the entire processing time. In order to achieve low latency, we incorporated two novel ideas into the two-level proposed design, as follows: (1) eliminating the intermediate RBC unit; (2) replacing the internal memory of the second level by simple circular shift operations. A key feature of this approach is that the user can change the scaling factors, y and z, either to achieve high PSNR values or lowering the PSNR value in order to design multi-level DWT with low latency.

The trade-off between system performances and resource consumption was addressed. Experiment results showed that the RNS-based approach would be more appropriate for multi-level DWT because the number of memory element is always constant as the number of level is increased. In addition, it is observed that the proposed RNS-based DWT implementation has lower latency than FIR and P n RNS-based implementations. Finally, an acceptable precision can be achieved by adapting the scaling factors. Table 8 indicates the advantage and disadvantages of each moduli-set.
Table 8

A comparison between RNS-based implementations using moduli-set P n



P 7

P 10

P 13

Pros

∙ Design is simple ∙ Consume less power

∙ Design is moderate ∙ The shift-based scheme has lower latency and consume less power

∙ Can be extended to three-level (with y=8 and z=9) ∙ The shift-based scheme has lower latency and consume less power

Cons

∙ Low PSNR ∙ Cannot be extended to multi-level DWT

∙ Cannot be extended to three-level DWT

∙ Word length is high ∙ consume large resources

Given the implementation examples for experimental verifications and analysis, the approach was validated on a ZYNQ ZC706 development kit. The co-simulation results have also been verified and compared with the simulation environment. The complexity and optimization of multi-level DWT with respect to hardware structure provides a foundation for employing an appropriate algorithm for high-performance applications, such as in cognitive communication, where DWT analysis is combined with machine learning algorithms.

6 Appendix 1

6.1 Acronyms

BRAM Block RAM

BRC Binary-to-residue converter

CC Clock cycle

CLB Configurable logic block

CPD Critical path delay

CRT Chinese reminder theorem

CSE Common subexpression elimination

DA Distributed arithmetic

DSP Digital signal processing

DWT Discrete wavelet transform

GCD Greatest common divisor

GE Graph-based eliminations

FCMA Forward-converter and modular adders

FIR Finite impulse response

FPGA Field-programmable gate array

LS Lifting-based schemeLUT Look-up table

MA Modular adder

MAC Multiplier-accumulator

MCM Multiple constant multiplications

PSNR Peak signal-to-noise ratio

RBC Reverse-binary converter

RNS Residue number system

7 Appendix 2

7.1 Mathematical symbols

a×b The memory word size

l Number of DWT levels

M The maximum range of P n

N Number of filter tap

h k The low-pass k t h filter coefficient

m The number of magnitude bits

m i The i th moduli of P n

n The moduli set base (e.g. P7)

q Number of RNS channel

τ Latency

w Word length

y The input scaling factor

z The filter scaling factor

Declarations

Acknowledgements

The authors would like to thank the anonymous reviewers for their valuable comments and suggestions to improve the quality of the article.

Authors’ contributions

All authors contributed to the work. Both authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Computer Engineering, Faculty of Computer Engineering, Istanbul Technical University, Istanbul, Turkey

References

  1. P Yang, Q Li, Wavelet transform-based feature extraction for ultrasonic flaw signal classification. Neural Comput. & Applic.24(3-4), 817–826 (2014).View ArticleGoogle Scholar
  2. SK Madishetty, A Madanayake, RJ Cintra, VS Dimitrov, Precise VLSI architecture for AI based 1-D/ 2-D Daub-6 wavelet filter banks with low adder-count. IEEE Trans. Circ. Syst. I Regular Papers. 61(7), 1984–1993 (2014).View ArticleGoogle Scholar
  3. M Martina, G Masera, MR Roch, G Piccinini, Result-biased distributed-arithmetic-based filter architectures for approximately computing the DWT. IEEE Trans. Circ. Systems I Regular Papers. 62(8), 2103–2113 (2015).MathSciNetView ArticleGoogle Scholar
  4. H Alzaq, BB Ustundag, in European Wireless 2015; 21th European Wireless Conference; Proceedings Of. Wavelet Preprocessed Neural Network Based Receiver for Low SNR Communication System (VDE Budapest, 2015), pp. 1–6.Google Scholar
  5. N Carta, D Pani, L Raffo, Impact of Threshold Computation Methods in Hardware Wavelet Denoising Implementations for Neural Signal Processing (Springer, Cham, 2015). http://doi.org/10.1007/978-3-319-26129-4_5.View ArticleGoogle Scholar
  6. S Mallat, A Wavelet Tour of Signal Processing, Third Edition: The Sparse Way, 3rd edn. (Academic Press, Philadelphia, PA, USA, 2008).MATHGoogle Scholar
  7. M Vetterli, C Herley, Wavelets and filter banks: theory and design. IEEE Trans. Signal Process.40(9), 2207–2232 (1992).View ArticleMATHGoogle Scholar
  8. S Gnavi, B Penna, M Grangetto, E Magli, G Olmo, Wavelet kernels on a DSP: a comparison between lifting and filter banks for image coding. EURASIP J. Adv. Signal Process.2002(9), 458215 (2002).View ArticleMATHGoogle Scholar
  9. I Daubechies, W Sweldens, Factoring wavelet transforms into lifting steps. J Fourier Anal. Appl.4(3), 247–269 (1998).MathSciNetView ArticleMATHGoogle Scholar
  10. M MAB, NM Sk, in 2018 31st International Conference on VLSI Design and 2018 17th International Conference on Embedded Systems (VLSID). An efficient vlsi architecture for convolution based dwt using mac (IEEEPune, 2018), pp. 271–276. https://doi.org/10.1109/VLSID.2018.75.Google Scholar
  11. A Gacic, M Puschel, JMF Moura, in 2004 IEEE International Conference on Acoustics, Speech, and Signal Processing. Automatically generated high-performance code for discrete wavelet transforms, vol 5 (IEEEMontreal, 2004), pp. 69–725. https://doi.org/10.1109/ICASSP.2004.1327049.Google Scholar
  12. E Ramola, JS Manoharan, in 2011 3rd International Conference on Electronics Computer Technology. An area efficient vlsi realization of discrete wavelet transform for multiresolution analysis, vol 6 (IEEEKanyakumari, 2011), pp. 377–381.View ArticleGoogle Scholar
  13. I Mamatha, S Tripathi, TSB Sudarshan, in 2017 International Conference on Computing, Communication and Automation (ICCCA). Convolution based efficient architecture for 1-d dwt (IEEEGreater Noida, 2017), pp. 1436–1440. https://doi.org/10.1109/CCAA.2017.8230023.View ArticleGoogle Scholar
  14. M I, S Tripathi, S TSB, in 2016 3rd International Conference on Signal Processing and Integrated Networks (SPIN). Pipelined architecture for filter bank based 1-d dwt (IEEENoida, 2016), pp. 47–52. https://doi.org/10.1109/SPIN.2016.7566660.Google Scholar
  15. PK Meher, BK Mohanty, MMS Swamy, in 2015 28th International Conference on VLSI Design. Low-Area and Low-Power Reconfigurable Architecture for Convolution-Based 1-D DWT Using 9/7 and 5/3 Filters (IEEEBangalore, 2015), pp. 327–332. https://doi.org/10.1109/VLSID.2015.61.View ArticleGoogle Scholar
  16. J Ramírez, A García, PG Fernandez, A Lloris, in 2000 10th European Signal Processing Conference. An efficient rns architecture for the computation of discrete wavelet transforms on programmable devices (IEEETampere, 2000), pp. 1–4.Google Scholar
  17. L Aksoy, P Flores, J Monteiro, A tutorial on multiplierless design of FIR filters: algorithms and architectures. Circ. Syst. Signal Process.33(6), 1689–1719 (2014).View ArticleGoogle Scholar
  18. Y Voronenko, M Püschel, Multiplierless multiple constant multiplication. ACM Trans. Algorithm.3(2) (2007).Google Scholar
  19. F Al-Hasani, MP Hayes, A Bainbridge-Smith, A common subexpression elimination tree algorithm. IEEE Trans. Circ. Syst. I Regular Papers. 60(9), 2389–2400 (2013).MathSciNetView ArticleGoogle Scholar
  20. X Lou, YJ Yu, PK Meher, New approach to the reduction of sign-extension overhead for efficient implementation of multiple constant multiplications. IEEE Trans. Circ. Syst. I Regular Papers. 62(11), 2695–2705 (2015).MathSciNetView ArticleGoogle Scholar
  21. H Liu, A Jiang, in 2016 8th International Conference on Wireless Communications Signal Processing (WCSP). Efficient design of fir filters using common subexpression elimination (IEEEYangzhou, 2016), pp. 1–5. https://doi.org/10.1109/WCSP.2016.7752701.Google Scholar
  22. L Aksoy, P Flores, J Monteiro, Multiplierless design of folded dsp blocks. ACM Trans. Des. Autom. Electron. Syst.20(1), 14–11424 (2014).View ArticleGoogle Scholar
  23. A Peled, B Liu, A new hardware realization of digital filters. IEEE Trans. Acoust. Speech Signal Process.22(6), 456–462 (1974).View ArticleGoogle Scholar
  24. DJ Allred, W Huang, V Krishnan, H Yoo, DV Anderson, in Field-Programmable Custom Computing Machines, 2004. FCCM 2004. 12th Annual IEEE Symposium On. An FPGA Implementation for a High Throughput Adaptive Filter using Distributed Arithmetic (IEEENapa, 2004), pp. 324–325. https://doi.org/10.1109/FCCM.2004.15.View ArticleGoogle Scholar
  25. H Yoo, DV Anderson, in Proceedings. (ICASSP ’05). IEEE International Conference on Acoustics, Speech, and Signal Processing, 2005. Hardware-efficient Distributed Arithmetic Architecture for High-Order Digital Filters, vol 5 (IEEEPhiladelphia, 2005), pp. 125–1285. https://doi.org/10.1109/ICASSP.2005.1416256.Google Scholar
  26. H Alzaq, BB Üstündağ, in 2017 10th International Conference on Electrical and Electronics Engineering (ELECO). Multiplier-less 1-level discrete wavelet transform implementations on zc706 development kit (IEEEBursa, 2017), pp. 1122–1126.Google Scholar
  27. S Pontarelli, G Cardarilli, M Re, A Salsano, Optimized implementation of RNS FIR filters based on FPGAs. J. Signal Process. Syst.67(3), 201–212 (2012).View ArticleGoogle Scholar
  28. W Jenkins, B Leon, The use of residue number systems in the design of finite impulse response Digital Filters. IEEE Trans. Circ. Syst.24(4), 191–201 (1977).MathSciNetView ArticleMATHGoogle Scholar
  29. CH Chang, AS Molahosseini, AAE Zarandi, TF Tay, Residue number systems: a new paradigm to datapath optimization for low-power and high-performance digital signal processing applications. IEEE Circ. Syst. Mag.15(4), 26–44 (2015).View ArticleGoogle Scholar
  30. J Ramírez, U Meyer-Bäse, F Taylor, A García, A Lloris, Design and implementation of high-performance RNS wavelet processors using custom IC technologies. J. VLSI Signal Process. Syst. Signal Image Video Technol.34(3), 227–237 (2003).View ArticleMATHGoogle Scholar
  31. GC Cardarilli, A Nannarelli, M Petricca, M Re, in 2015 IEEE 58th International Midwest Symposium on Circuits and Systems (MWSCAS). Characterization of RNS multiply-add units for power efficient DSP (IEEEFort Collins, 2015), pp. 1–4. https://doi.org/10.1109/MWSCAS.2015.7282052.Google Scholar
  32. R Conway, J Nelson, Improved RNS FIR filter architectures. IEEE Trans. Circ. Syst. II Express Briefs. 51(1), 26–28 (2004).View ArticleGoogle Scholar
  33. I Daubechies, Ten Lectures on Wavelets (Society for Industrial and Applied Mathematics, Philadelphia, 1992).View ArticleMATHGoogle Scholar
  34. KH Rosen, Elementary Number Theory and Its Applications, 5th edn. (Addison-Wesley, Reading, MA, 2004).Google Scholar
  35. PVA Mohan, RNS-to-binary converter for a new three-moduli set 2n+1−1,2 n ,2 n −1. IEEE Trans. Circ. Syst. II Express Briefs. 54(9), 775–779 (2007).View ArticleGoogle Scholar
  36. S-H Lin, M-h Sheu, C-H Wang, Y-C Kuo, in Circuits and Systems, 2008. APCCAS 2008. IEEE Asia Pacific Conference On. Area-Time-Power Efficient VLSI Design for Residue-to-binary Converter Based on Moduli Set (2 n ,2n+1−1,2 n +1) (IEEEMacao, 2008), pp. 168–171. https://doi.org/10.1109/APCCAS.2008.4745987.Google Scholar
  37. KS Reddy, S Bajaj, SS Kumar, in TENCON 2014 - 2014 IEEE Region 10 Conference. Shift add approach based implementation of RNS-FIR filter using modified product encoder (IEEE Bangkok, 2014), pp. 1–6. https://doi.org/10.1109/TENCON.2014.7022321.Google Scholar
  38. CH Vun, AB Premkumar, W Zhang, A new RNS based DA approach for inner product computation. IEEE Trans. Circ. Syst. I Regular Papers. 60(8), 2139–2152 (2013).MathSciNetView ArticleGoogle Scholar
  39. A Hariri, K Navi, R Rastegar, A new high dynamic range moduli set with efficient reverse converter. Comput. Math. Appl.55(4), 660–668 (2008).MathSciNetView ArticleMATHGoogle Scholar
  40. B Cao, T Srikanthan, C-H Chang, Efficient reverse converters for the four-moduli sets (2 n −1,2 n ,2 n +1,2n+1−1) and (2 n −1,2 n ,2 n +1,2n−1−1). IEE Proc. Comput. Digit Tec.152(5), 687–696 (2005).View ArticleGoogle Scholar
  41. B Cao, C-H Chang, T Srikanthan, An efficient reverse converter for the 4-moduli set 2 n −1,2 n ,2 n +1,22n+1 based on the new Chinese remainder theorem. IEEE Trans. Circ. Syst. I Fundam. Theory Appl.50(10), 1296–1303 (2003).View ArticleMATHGoogle Scholar
  42. R Zimmermann, in Proceedings 14th IEEE Symposium on Computer Arithmetic (Cat. No.99CB36336). Efficient vlsi implementation of modulo (2n plusmn;1) addition and multiplication (IEEE Adelaide, 1999), pp. 158–167. https://doi.org/10.1109/ARITH.1999.762841.View ArticleGoogle Scholar
  43. L Kalampoukas, D Nikolos, C Efstathiou, HT Vergos, J Kalamatianos, High-speed parallel-prefix modulo 2 n −1 adders. IEEE Trans. Comput.49(7), 673–680 (2000).View ArticleGoogle Scholar
  44. G Dimitrakopoulos, DG Nikolos, HT Vergos, D Nikolos, C Efstathiou, in 2005 12th IEEE International Conference on Electronics, Circuits and Systems. New architectures for modulo 2 n −1 adders (IEEEGammarth, 2005), pp. 1–4. https://doi.org/10.1109/ICECS.2005.4633502.Google Scholar
  45. Xilinx Inc., Zynq-7000 All Programmable SoC ZC706 evaluation kit. https://www.xilinx.com/products/boards-and-kits/ek-z7-zc706-g.html. Accessed 30 Aug 2017.
  46. Xilinx: LogiCORE IP FIR Compiler v6.3. Product Specification DS795 (Oct 2011). http://www.xilinx.com/support/documentation/ip_documentation/fir_compiler/v6_3/ds795_fir_compiler.pdf. Accessed 25 Sept 2017.

Copyright

© The Author(s) 2018

Advertisement
